INTRODUCTION
THIS TELESCOPE HAS BEEN PRODUCED TO PRECISE SPECIFICATIONS.
PRIOR TO USING YOUR NEW CASSINI TELESCOPE, PLEASE READ THE FOLLOWING SETUP
AND USAGE INSTRUCTIONS. IT IS IMPORTANT TO PROPERLY ASSEMBLE YOUR TELESCOPE
IN ORDER TO ALLOW IT TO FUNCTION PROPERLY.
USE THE TELESCOPE FOR TERRESTRIAL (LAND) VIEWING BEFORE ATTEMPTING TO VIEW
ASTRONOMICAL OBJECTS. THIS WILL FAMILIARIZE YOU WITH HOW POWERFUL EACH
EYEPIECE WILL BE, AS WELL AS INTRODUCE YOU TO THE FUNCTIONS OF YOUR
ACCESSORY LENSES.
THE IMAGE YOU SEE WILL BE UPSIDE DOWN AND BACKWARD. THIS IS DUE TO THE
FACT THAT YOUR TELESCOPE IS AN ASTRONOMICAL TELESCOPE AND HAS BEEN
MANUFACTURED FOR ASTRONOMICAL OBSERVATIONS.
WE RECOMMEND YOU BEGIN WITH THE LOWEST POWER EYEPIECE (25MM) WHEN USING
YOUR TELESCOPE. AS YOU INCREASE THE POWER TO 10MM YOUR POWER WILL BE
HIGHER, BUT THE IMAGE WILL APPEAR DARKER. THIS IS DUE TO THE BASIC PHYSICAL
PROPERTIES OF THE TELESCOPE. THE HIGHER THE POWER YOU USE, THE DARKER THE
IMAGE WILL APPEAR AND YOUR VIEWING FIELD WILL BE MORE NARROW.
PLEASE BE PATIENT WHEN USING YOUR TELESCOPE. IT IS A VERY SENSITIVE INSTRUMENT
THAT IS CAPABLE OF USING HIGH POWER. HOWEVER, THE MORE POWER YOU USE, THE
MORE SENSITIVE THE TELESCOPE BECOMES. AS A RESULT THE SLIGHTEST MOVEMENT
OF THE TELESCOPE COULD CAUSE YOU TO LOSE THE IMAGE YOU HAVE IN YOUR
EYEPIECE. PRACTICE WILL ENABLE YOU TO KNOW HOW MUCH MOVEMENT TO EXPECT
WITH EACH EYEPIECE AND IT'S CORRESPONDING POWER.
CONGRATULATIONS ON YOUR PURCHASE OF THE CASSINI CQR-120 TELESCOPE.
CASSINI CQR-120
OPERATING INSTRUCTIONS

ACCESSORIES
A)
C)
D)
E)
MARS-EYE ELECTRONIC FINDER:
USED TO LOCATE OBJECTS PRIOR TO USING MAIN TELESCOPE.
PLEASE NOTE YOU MUST ALIGN THE FINDER WITH THE MAIN
TUBE PRIOR TO INITIAL ASTRONOMICAL OR TERRESTRIAL USE.
3X 2-ELEMENT ASTROSCOPIC BARLOW:
USED TO INCREASE THE POWER OF ANY GIVEN EYEPIECE BY
300%. EXAMPLE - 25MM EYEPIECE SEPARATELY PROVIDES 40X
POWER, WHEN USED WITH THE 3X BARLOW, YOU NOW HAVE
120X POWER.
EYEPIECES:
10MM = 100X (300X WITH 3X BARLOW)
MOST POWERFUL - LEAST LIGHT
25MM EYEPIECE = 40X (120X WITH 3X BARLOW )
LEAST POWERFUL - MOST LIGHT
ELECTRONIC FOCUSER:
IMAGE STABILIZING ELECTRONIC FOCUSER WITH HELICAL
RACK & PINION FOCUSING.ALLOWS FOR PRECISE FOCUSING.
INCLUDES: WIRELESS HANDBOX
COUNTER BALANCE WEIGHT ASSEMBLY.
A)
B)
NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
3
CASSINI CD-ROM
PLANETARIUM
FROM ANY LOCATION YOU CAN SEE THE SKY AT IT APPEARS AT
ANY TIME OF DAY, OR EVEN IN THE FUTURE.
F)

4
1. REMOVE ALL PARTS FROM BOX AND IDENTIFY THEM.
TELESCOPE W/MOUNT ATTACHED
TRIPOD (PREASSEMBLED)
MARS-EYE FINDER
EYEPIECES (25MM ASTROSCOPIC & PL10MM)
3X 2-ELEMENT ASTROSCOPIC BARLOW LENS
WIRELESS CONTROL BOX
A CESSORY TRAY C
CD-ROM
2. EXTEND TRIPOD LEGS EQUALLY AND TIGHTEN LOCKING KNOBS.
3. ATTACH THE TELESCOPE + MOUNT TO TRIPOD AS SHOWN
DO NOT OVERTIGHTEN
CASSINI CQR-120 TELESCOPE
ASSEMBLY INSTRUCTIONS
CAUTION: NEVER POINT YOUR TELESCOPE
AT THE SUN. VIEWING THE SUN WITH
THIS TELESCOPE OR EVEN THE UNAIDED
EYE CAN RESULT IN BLINDNESS OR OTHER
SERIOUS EYE DAMAGE.
4. ATTACH ACCESSORY TRAY
ACCESSORY TRAY
HOOK HOLDER LOCKING KNOB
(1) SPREAD TRIPOD LEGS APART SO THE TRAY WILL FIT UNDERNEATH
(2) PLACE THE TRAY'S HOOK OVER THE HOLDER'S METAL ROD AND PUSH DOWN
(3) TIGHTEN THE HOLDER'S LOCKING KNOB TO HOLD THE ACCESSORY TRAY IN PLACE
5. LOOSEN SCREWS ON MARS-EYE FINDER AND SLIDE ONTO
BRACKET. TIGHTEN ATTACHMENT SCREWS . ( PLEASE SEE
FURTHER INSTRUCTIONS ON MARS-EYE FINDER).

5
6A. TO BALANCE TUBE LIFT UP ON
QUICK-RELEASE LATCH. WHEN
BALANCED PUSH DOWN TO
CLOSE LATCH.
6B. BALANCE THE MAIN TUBE BY
MOVING IT AS SHOWN
7. BALANCE TELESCOPE BY MOVING THE
COUNTER WEIGHTS AS SHOWN
BALANCE MARK
6A
8. ATTACH THE SLOW-MOTION KNOB TO THE
SHAFT OF THE SLOW-MOTION ON THE TRIPOD
AS SHOWN
9. REMOVE CAPS WHEN TELESCOPE IS IN USE,
AND REPLACE WHEN NOT IN USE. THIS WILL
KEEP THE TELESCOPE'S OPTICS CLEAN.
10. THE COLLIMATION SPOT ON THE PRIMARY
MIRROR IS FOR THE OPTICAL ALIGNMENT
OF THE TELESCOPE, AND IS NOT A DEFECT.

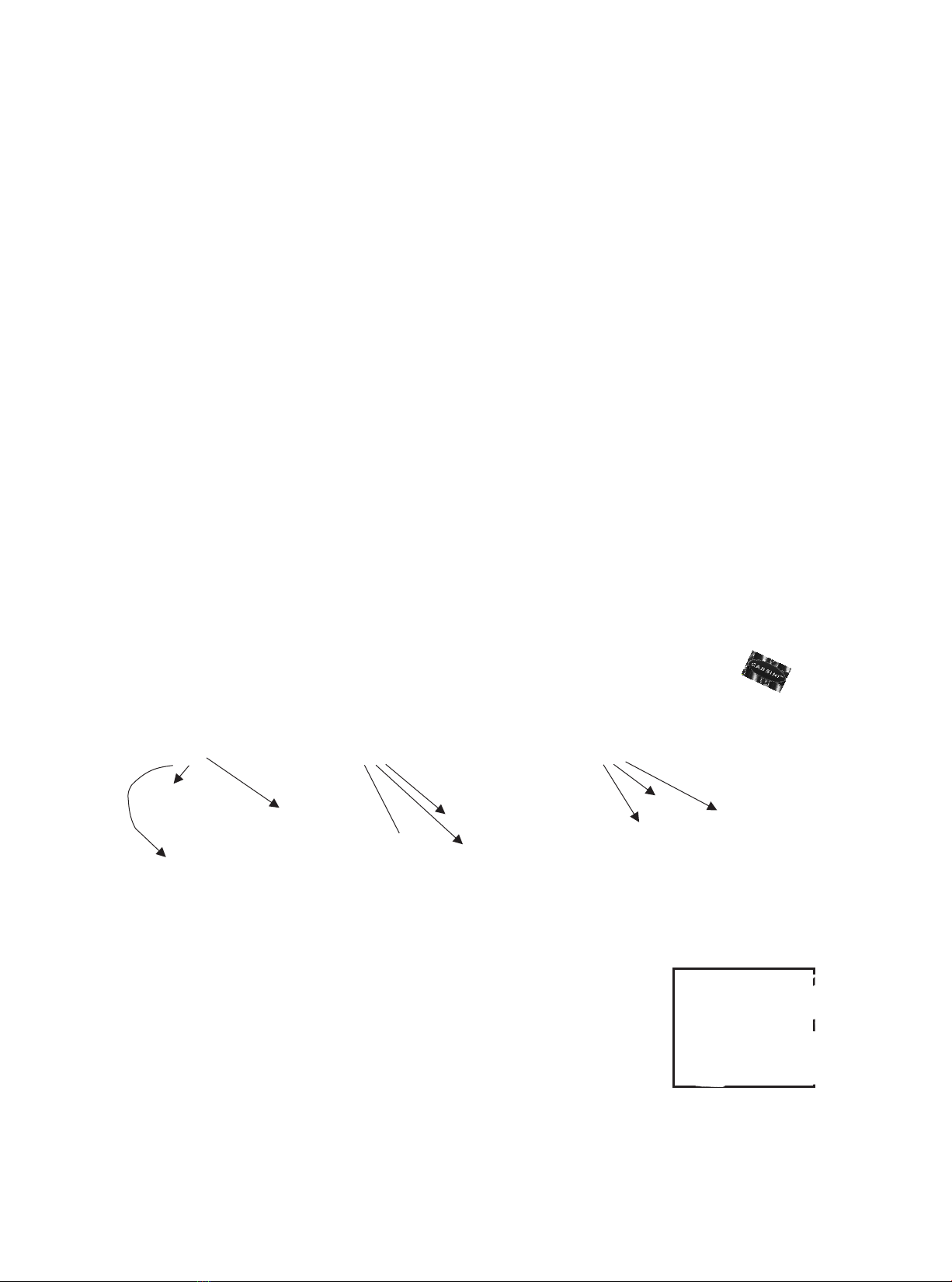

MARS-EYE FINDER
ACCESSORY TRAY
TO SKY
FRONT
BACK
TRIPOD
TRIPOD LOCKING
KNOB
EYEPIECES
IMAGE STABILIZING
ELECTRONIC FOCUSER
6
LOCKING KNOB
ALTITUDE SLOW-MOTION
KNOB
25MM
ASTROSCOPIC
WIRELESS CONTROL BOX
ADJUSTABLE
RUBBER FEET
PLöSSL 10MM
COUNTER BALANCE
WEIGHT ASSY
QUICK-RELEASE LATCH
3X
ASTROSCOPIC
BARLOW

7
HOW TO USE EYEPIECES & ACCESSORIES
1. FOCUSING TUBE - TURN FOCUSING KNOB (LEFT SIDE)
TOWARD THE TELESCOPE UNTIL IT WILL GO
NO FURTHER. TO FOCUS MANUALLY BEGIN
TO TURN THE FOCUSING KNOB TOWARD
YOUR BODY, SLOWLY, UNTIL THE IMAGE IS
CLEAR.
NOTE: YOU MUST HAVE AN EYEPIECE INSER-
TED IN ORDER TO VIEW IMAGE. RIGHT SIDE
IS CLUTCH KNOB
2. EYEPIECE INSERTION - INSERT AN EYEPIECE
INTO THE RECEIVING END OF THE FOCUSING
TUBE. WE SUGGEST YOU ALWAYS BEGIN
WITH THE LOWEST POWER EYEPIECE (20MM).
THE LOWER THE NUMBER ON THE EYEPIECE,
THE HIGHER THE POWER YOUR TELESCOPE
WILL BE USING. ALSO AS YOU INCREASE
YOUR POWER YOU WILL DECREASE THE
FIELD OF VIEW AND THE BRIGHTNESS OF
YOUR TELESCOPE. WE SUGGEST YOU
ALWAYS USE THE LOWEST POWER REQUIRED
TO VIEW YOUR SUBJECT. PROPER PLACEMENT
OF THE EYEPIECES AND ACCESSORIES ARE
IMPORTANT IN ORDER TO ASSURE EASY
OPERATIONS AND CLEAR VIEWING.
3. BARLOW LENS - THE BARLOW LENS IS USED TO
ACHIEVE THE MAXIMUM POWER FROM YOUR
TELESCOPE. INSERT THE BARLOW DIRECTLY
INTO THE FOCUSING HOUSING, THEN INSERT
AN EYEPIECE INTO THE RECEIVING END OF
YOUR BARLOW LENS. REMEMBER YOU WILL
HAVE TO READJUST YOUR FOCUSING DUE
TO THE FACT THAT YOU HAVE INCREASED
THE POWER OF YOUR TELESCOPE.
PLEASE CONSIDER USING YOUR ACCESSORIES IN THE FOLLOWING ORDER. BY DOING THIS
YOU WILL BETTER UNDERSTAND THE IMPACT EACH INDIVIDUAL ACCESSORY HAS ON THE
FUNCTION OF YOUR TELESCOPE.
CLUTCH KNOB MUST BE LOOSE IN ORDER
TO FOCUS WITH LEFT FOCUSING KNOB.
DO NOT TRY TO FOCUS WITH CLUTCH KNOB TIGHT.
(FOR MANUAL FOCUSING ONLY.)
CAUTION:
OPERATIONS AND CLEAR VIEWING.
TIGHTEN CLUTCH KNOB WHEN USING
THE WIRELESS HANDBOX TO FOCUS."
C
T
H
U
L
C

8

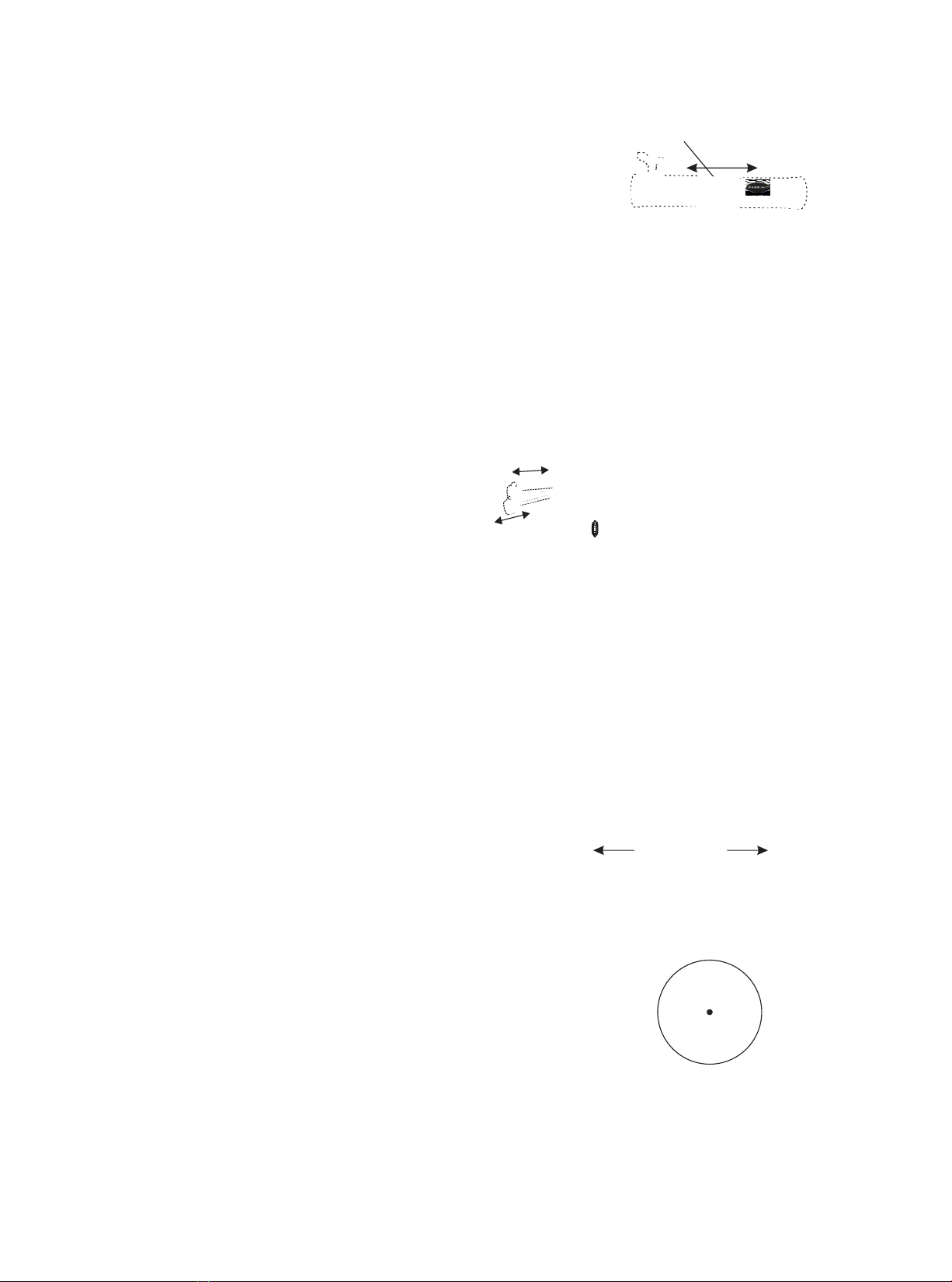

TO MOUNT:
1) REMOVE MARS-EYE ELECTRONIC FINDER FROM BOX.
2) LOOSEN THUMB SCREWS ON SIDE OF FINDER AND SLIDE FINDER ONTO DOVETAIL
MOUNT LOCATED AT TOP OF MAIN TELESCOPE TUBE.
3) TIGHTEN THUMB SCREWS.
TO CHECK ALIGNMENT WITH MAIN TELESCOPE:(IMPORTANT!)
1) THE MARS-EYE ELECTRONIC FINDER IS NOT PRE-SET AT FACTORY. THE FOLLOWING
WILL ALLOW YOU TO ADJUST THE ALIGNMENT.
2) DURING THE DAY LIGHT HOURS, AIM THE MAIN TELESCOPE AT AN OBJECT AT LEAST 1/4
MILE OR MORE IN THE DISTANCE AND BRING IT INTO FOCUS.(VERY IMPORTANT)
3) ONCE YOU HAVE CENTERED THE REFERENCE ITEM IN THE MAIN TUBE, TIGHTEN ALL
KNOBS AND ADJUSTMENTS TO PREVENT ANY MOVEMENT.
4) REMOVE CIRCULAR BATTERY S AVER L OCATED B ENEATH F RONT O F F INDER (B E S URE.
TO SAVE AND REPLACE THE BATTERY SAVER WHEN NOT IN USE.)
5) TURN FINDER ON B Y S LIDING O N/OFF S WITCH F ORWARD. O N/OFF S W ITCH IS LO CATED
ON THE RIGHT SIDE OF THE FINDER.
6) LOOK THROUGH THE FINDER AND LOCATE THE RED DOT.
7) IF THE OBJECT IN THE MARS-EYE FINDER IS NOT THE OBJECT YOU SEE THROUGH THE
MAIN TELESCOPE TUBE, ADJUSTMENT IS REQUIRED.
8) TO MOVE THE RED DOT UP AND DOWN, SIMPLY TURN THE ELEVATION SCREW LOCATED
ON THE REAR BOTTOM OF THE FINDER TO HEIGHT REQUIRED.
9) TO MOVE THE RED DOT LEFT AND RIGHT, SIMPLY TURN THE WINDAGE SCREW LOCATED
AT THE FRONT LEFT SIDE OF THE FINDER TO THE PROPER POSITION.
10) THESE ADJUSTMENTS WILL ALLOW YOU TO POSITION THE RED DOT ON THE SAME
OBJECT CENTERED IN THE MAIN TELESCOPE.
MARS-EYE ELECTRONIC FINDER
MOUNTING & ALIGNMENT

AS STATED EARLIER IN THE INSTRUCTIONS, THE BARLOW LENS INCREASES THE POWER
OF THE EYEPIECES BY 3 TIMES.
TO USE SIMPLY INSERT THE BARLOW LENS INTO THE MAIN FOCUSING TUBE AND THEN
PUT THE DESIRED EYEPIECE INTO THE RECEIVING END OF THE BARLOW LENS
PLEASE REMEMBER, THE HIGHER THE POWER YOU USE THE DARKER THE IMAGE WILL
APPEAR.
USING THE BARLOW LENS
TAKE THE TIME TO BECOME FAMILIAR WITH YOUR NEW TELESCOPE. LEARN THE NAMES
OF THE VARIOUS PARTS, WHERE THEY ARE LOCATED AND THEIR FUNCTION. IT IS BEST TO
PERFORM THESE FUNCTIONS DURING THE DAY TIME.
WHEN SETTING UP FOR A VIEWING SESSION, PLACE THE TELESCOPE IN AN AREA
SHELTERED FROM THE WIND IF POSSIBLE. THE BEST NIGHT TIME VIEWING WILL BE AWAY
FROM CITY LIGHT AND WHEN THE ATMOSPHERE IS "STEADY".
WITH A LITTLE PRACTICE YOU WILL LEARN TO JUDGE WHEN VIEWING CONDITIONS ARE
GOOD. LOOK FOR THE NIGHTS WHEN THE STARS SHINE BRIGHTLY WITH LITTLE OR NO
TWINKLING.
USE LOW POWER TO TAKE ADVANTAGE OF THE WIDER FIELD OF VIEW AND BRIGHTER
IMAGE. RESERVE YOUR HIGHER POWERS FOR THOSE NIGHTS WHEN VIEWING
CONDITIONS ALLOW FOR DETAILED OBSERVATIONS.
GETTING THE MOST FROM YOUR TELESCOPE
9
EYEPIECE POWER POWER WITH 3 X BARLOW
10MM
25MM 40X
300X
120X
POWER CHART
100X

10
1. PUT THREE AAA BATTERIES INTO INTO BATTERY HOLDER.
HOW TO USE THE CASSINI IMAGE
STABILIZING ELECTRONIC FOCUSER
2. INSERT BATTERY HOLDER INTO ELECTRIC FOCUSER
COMPARTMENT.
3. CLOSE THE COVER
4. A. TIGHTEN THE RIGHT CLUTCH KNOB TO USE
THE FOCUSER ELECTRONICALLY.
B. LOOSEN THE RIGHT CLUTCH KNOB TO USE
THE FOCUSER MANUALLY (LEFT KNOB ONLY).
VERY IMPORTANT. SEE IMAGE
5. TURN ON THE ON-OFF SWITCH, THE INDICATOR
WILL FLASH ONCE, ELECTRIC FOCUSER IS READY
6. WIRELESS CONTROL BOX
INDICATOR
FOCUS IN FAST
FOCUS IN SLOW
FOCUS OUT
FAST
FOCUS OUT
SLOW
TIGHTENLOOSEN
INSERT TWO
AAA BATTERIES
ON-OFF

11
7. USE WIRELESS HANDBOX TO CONTROL THE ELECTRIC
FOCUSER. (MUST AIM TOWARD IR RECEIVER)
CAUTION: PLEASE REPLACE THE BATTERIES WHEN YOU SEE THE INDICATOR
LIGHT OF ELECTRIC FOCUSER FLASHING CONTINUOUSLY, OR WHEN
THE FOCUSING BECOMES IRREGULAR.
IR RECEIVER
8. USE THE FAST FOCUS BUTTONS ON THE HANDBOX WHEN THE IMAGE IS NOT CLOSE
TO FOCUS, AND USE THE SLOW BUTTONS WHEN YOU ARE CLOSE TO FOCUS AND THE
FOCUS NEEDS TO BE FINE TUNED.

CASSINI™ Limited One Year Warranty
We guarantee to replace or, at our option, repair any products or parts thereof
which are found defective in material or workmanship during the first year from
date of purchase. Our obligation with respect to such products or parts shall be
limited to replacement or repair. In no event shall we be liable for consequential or
special damages or for transportation, installation, adjustment, or other
expenses which may arise in connection with such product or parts . The
customer shall be responsible for all costs of transportation and insurance, both
to and from CASSINI/COSMO BRANDS INC., and shall be required to prepay
such costs. No expenses, warranties and implied warranties, whether or not
merchantability of fitness for any particular use or otherwise ( except as to title)
other than these expressly set forth above which are made in writing and signed
by executive officer of our corporation.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES, IN NO EVENT SHALL THE
MANUFACTURER OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES
WHATSOEVER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMI TATIO N O F T H E P OS S IB IL IT Y FOR CON S EQ U EN TI AL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
CASSINI™
DIVISION OF COSMO BRANDS INC.
21230 SW 246th ST. HOMESTEAD FL 33031 USA
www.cosmosoptics.com
IF YOU NEED ANY FURTHER HELP WITH YOUR CASSINI TELESCOPE
PLEASE E-MAIL US AT [e-mail]
CASSINI™
DIVISION OF COSMO BRANDS INC.
21230 SW 246th ST. HOMESTEAD FL 33031 USA
www.cosmosoptics.com
