Craftsman 944.361161 User manual

581 00 18-27 05.09.12 BY Printed in U.S.A.
Model No.
944.361161
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment.
Owner’s Manual
WHEELED
WEEDTRIMMER
675 Series Briggs & Stratton Engine
22 Inch Cut
Sears Canada, Inc., Toronto, Ontario M5B 2B8

2
Warranty ................................................4-5
Safety Rules ..........................................2-3
Assembly / Pre-Operation ........................6
Operation...............................................7-9
Maintenance Schedule...........................10
Maintenance......................................10-12
Product Specifi cations ..........................10
Service and Adjustments...................13-14
Storage..............................................14-15
Troubleshooting......................................16
Repair Parts.......................................18-26
Sears Service .......................... Back Cover
TABLE OF CONTENTS
SAFETY RULES
Look for this symbol to point out im-
portant safety precautions. It means
CAUTION!!! BECOME ALERT!!!
YOUR SAFETY IS INVOLVED.
WARNING: In order to prevent ac-
cidental starting when setting up, trans-
porting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact plug.
CAUTION: Muffler and
other engine parts become
extremely hot during
operation and remain hot
after engine has stopped.
To avoid severe burns
on contact, stay away from these areas.
I. GENERAL OPERATION
• Read, understand, and follow all instruc-
tions on the machine and in the manual
before starting. Be thoroughly familiar
with the controls and the proper use of
the machine before starting.
• Do not put hands or feet near or under
rotating parts.
• Keep all parts of your body away from
muffler and spinning line. A hot muffler
can cause serious burns.
• Only allow responsible individuals, who
are familiar with the instructions, to
operate the machine.
• Stay away from breakable objects, such
as house windows, auto glass, green-
houses, etc.
• Clearthearea ofobjectssuchasrocks,toys,
wire, bones, sticks, etc., which could be
picked up and thrown by the spinning lines.
• Be sure the area is clear of other people
before trimming, particularly small chil-
dren and pets. Stop machine if anyone
enters the area.
• Wear appropriate clothing such as a long-
sleeved shirt or jacket. Also wear long
trousers or slacks. Do not wear shorts.
• Do not wear loose clothing which could
get caught in this equipment.
• Do not operate the machine when bare-
foot or wearing open sandals. Always
wear work gloves and sturdy footwear.
Leather work shoes or short boots work
well for most people. These will protect
the operator’s ankles and shins from
small sticks, splinters, and other debris,
and improve traction.
• Do not pull machine backwards un-
less absolutely necessary. Always look
down and behind before and while mov-
ing backwards.
• Do not operate the machine without
proper guards, plates or other safety
protective devices in place.
• See manufacturer’s instructions for
proper operation and installation of
accessories. Only use accessories ap-
proved by the manufacturer.
• Never use blades, wire, or flailing devices.
This unit is designed for line trimmer use
only. Use of other accessories or attach-
ments will increase the risk of injury.
• Stop the rotating trimmer head when
crossing gravel drives, walks, or roads.
Wait for the cutting lines to stop rotating.
• Stop the engine (motor) whenever you
leave the equipment and allow it to cool,
before cleaning, repairing or inspecting
the unit. Be sure the trimmer head and
all moving parts have stopped.
The operation of any trimmer can result in foreign objects thrown into
the eyes, which can result in severe eye damage. Always wear safety
glasses or eye shields while operating your trimmer or performing any
adjustments or repairs. We recommend standard safety glasses or a
wide vision safety mask worn over spectacles.
27

26

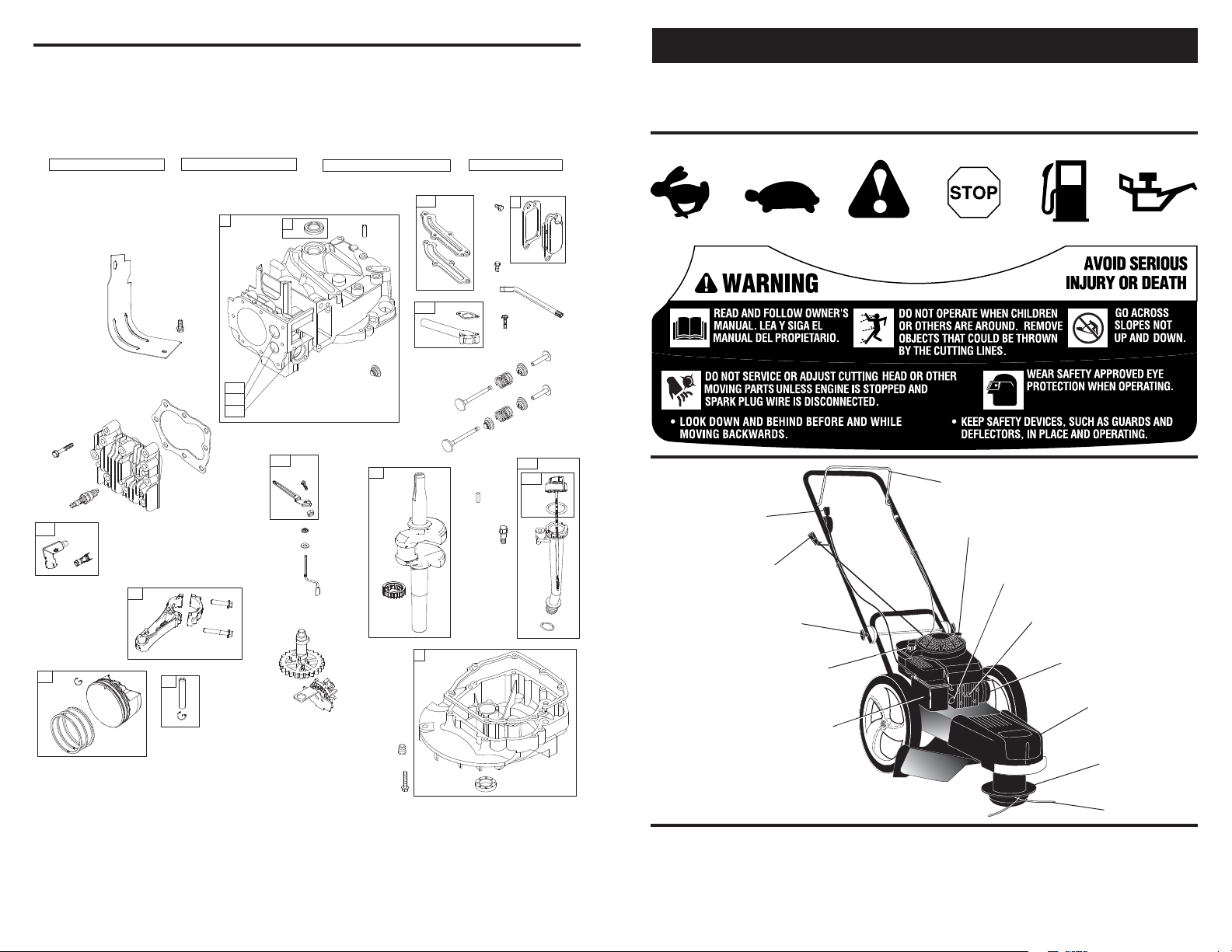

MODEL NUMBER 126T02-1377-B1
BRIGGS & STRATTON 4-CYCLE ENGINE
KEY PART
NO. NO. DESCRIPTION
562 691119 Bolt (Governor Control Lever)
563 691138 Screw (Debris Screen Guard)
564 690351 Screw (Control Cover)
584 697734 Cover-Breather Passage
585 691879 Gasket-Breather Passage
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate)
601 791850 Clamp-Hose (Green)
604 691757 Cover-Control
608 697671 Starter-Rewind
613 691340 Screw (Muffler)
615 690340 Retainer-Governor Shaft
616 698801 Crank-Governor
617 270344s Seal-O Ring (Intake Manifold)
621 692310 Switch-Stop (Brake)
633 691321 Seal-Choke / Throttle Shaft
(Throttle Shaft)
633A 693867 Seal-Choke / Throttle Shaft
(Choke Shaft)
668 493823 Spacer (Control Bracket)
676 393760 Deflector-Muffler
677 690661 Screw (Muffler Deflector)
684 690345 Screw
(Breather Passage Cover)
689 691855 Spring-Friction
703 696309 Clip (Debris Shield)
718 690959 Pin-Locating
741 795755 Gear-Timing (Includes Shim)
842 691031 Seal-O Ring (Dipstick Tube)
847 692047 Dipstick / Tube Assembly
851 493880s Terminal-Spark Plug
868 697338 Seal-Valve
869 691155 Seat-Valve (Intake)
870 690380 Seat-Valve (Exhaust)
871 262001 Bushing-Valve Guide
(Exhaust Valve)
KEY PART
NO. NO. DESCRIPTION
871 63709 Bushing-Valve Guide
(Intake Valve)
883 691881 Gasket-Exhaust
949 696306 Guard-Debris Screen
957 692046 Cap-Fuel Tank
966 795259 Base-Air Cleaner Primer
967 493537s Filter-Pre Cleaner
968 692298 Cover-Air Cleaner
972 699374 Tank-Fuel
975 493640 Bowl-Fuel
976 694395 Primer-Carburetor
994 398067 Arrester-Spark
997 696310 Shield-Debris
1005 691346 Fan-Flywheel
1036 - - - Label-Emissions (Available
from any Briggs & Stratton
Authorized Dealer)
1058 277039 Operator’s Manual
1059 692311 Kit-Screw / Washer
(Fuel Tank)
1095 498528 Gasket Set-Valve
1210 498144 Pulley / Spring Assembly
(Pulley)
1211 498144 Pulley / Spring Assembly
(Spring)
1329 Replacement Engine
1330 270962 Repair Manual
Carburetor Overhaul Kit, Key Number 121
Engine Gasket Set, Key Number 358
Valve Gasket Set, Key Number 1095
NOTE: All component dimensions given in
U.S. inches. 1 inch = 25.4 mm
3
WARNING: This trimmer is equipped with an internal combustion engine and should
not be used on or near any unimproved forest-covered, brush-covered or grass-covered
land unless the engine’s exhaust system is equipped with a spark arrester meeting ap-
plicable local or state laws (if any). If a spark arrester is used, it should be maintained in
effective working order by the operator.
In the state of California the above is required by law (Section 4442 of the California
Public Resources Code). Other states may have similar laws. Federal laws apply on
federal lands. A spark arrester for the muffler is available through your nearest Sears
Service Centre/Department in Canada (see the REPAIR PARTS section of this manual).
• Operate only in daylight or good artificial
light.
• Do not operate the machine while under
the influence of alcohol or drugs.
• Never operate machine in wet grass. Al-
ways be sure of your footing: keep a firm
hold on the handle and walk; never run.
• If the equipment should start to vibrate
abnormally, stop the engine (motor) and
check immediately for the cause. Vibra-
tion is generally a warning of trouble.
• Always wear safety goggles or safety
glasses with side shields when oper-
ating machine.
II. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra cau-
tion. If you feel uneasy on a slope, do not
trim it.
DO:
• Trim across the face of slopes: never up
and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not trim on wet grass. Reduced foot-
ing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the machine
and the trimming activity. Never assume
that children will remain where you last
saw them.
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while moving backwards,
look behind and down for small children.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline and
other fuels. They are flammable and
vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling.
Do not smoke.
- Never refuel the machine indoors.
- Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
- Move away from fueling site before
starting engine.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent accidental
starting.
• Keep nuts and bolts, especially trimmer
head and engine bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris buildup. Clean oil or fuel
spillage. Allow machine to cool before
cleaning or storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Do not change the engine governor set-
ting or overspeed the engine.
• Clean and replace safety and instruction
decals as necessary.

4
WARRANTY
GENERAL: Craftsman products are warranted to be free from defects in materials
or workmanship for a specific time period as set-out below (the “Warranty Period”).
Warranties extend to the original purchaser of a Craftsman product only. Purchases
made through an online auction or through any website other than www.sears.ca are
excluded. The relevant Warranty Period commences on the original date of purchase.
Within this period, Sears Canada, Inc. will, at its sole option, repair or replace any products
or components which fail in normal use. Such repairs or replacement will be made at no
charge to the customer for parts or labor, provided that the customer shall be responsible
for any transportation cost.
EXCLUSIONS: This warranty does not cover failures due to normal wear, abuse, misuse,
neglect (including but not limited to the use of stale fuel, dirt, abrasives, moisture, rust,
corrosion, or any adverse reaction due to improper storage or use habits), improper
maintenance or failure to follow maintenance guidelines and/or instructions, failure to
operate the product in accordance with the owner’s manual or any additional instructions
or information provided at the time of purchase or in subsequent communications with
the original purchaser, accident or unauthorized alterations or repairs made or attempted
by others. Also excluded from warranty coverage – except as provided below - are the
following: maintenance, adjustments, components subject to wear including but not
limited to: cosmetic components, belts, blades, blade adapters, bulbs, tires, filters, guide
bars, lubricants, seats, grips, recoil assy’s, saw chains and bars, trimmer lines and spools,
spark plugs, starter ropers and tines, and discoloration resulting from ultraviolet light. Any
product missing the model and/or serial number identification label will be disqualified
from coverage under this warranty.
REPAIRS: Repairs have a 90 day warranty. If the defective product is still within the
Warranty Period, then the new warranty is 90 days from the date of repair or to the end of
the original Warranty Period, whichever period is longer.
DISCLAIMERS: THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER ORAL OR
WRITTEN (OTHER THAN AS STATED HEREIN), AND WHETHER EXPRESS, IMPLIED
OR STATUTORY, INCLUDING BUT NOT LIMITED TO ANY. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM PROVINCE TO
PROVINCE.
IN NO EVENT SHALL SEARS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE
OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. THE
EXCLUSIONS IN THIS PARAGRAPH SHALL NOT APPLY IN JURISDICATIONS WHERE
APPLICABLE LAW DOES NOT ALLOW FOR THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES. IN SUCH JURISDICTIONS, THIS PARAGRAPH SHALL
NOT APPLY, BUT THE REMAINING PROVISIONS OF THIS DOCUMENT SHALL
REMAIN VALID.
Sears retains the exclusive right to repair or replace the product or offer a full refund of
the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND
EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
CUSTOMER RESPONSIBILITIES: In additional to complying with all suggested
maintenance guidelines and instructions, customers’ obligations shall include but shall
not be limited to: operating the product in accordance with the owner’s manual or any
additional instructions or information provided at the time of purchase or in subsequent
communications to the purchaser from time to time, exhibit reasonable care in the use,
operation, maintenance, general upkeep and storage of the product. Failure to comply
with these requirements will void any applicable warranty.
25
MODEL NUMBER 126T02-1377-B1
BRIGGS & STRATTON 4-CYCLE ENGINE
KEY PART
NO. NO. DESCRIPTION
1 697322 Cylinder Assembly
2 399269 Kit-Bushing / Seal
(Magneto Side)
3 299819s Seal-Oil (Magneto Side)
4 493279 Sump-Engine
5 691160 Head-Cylinder
7 692249 Gasket-Cylinder Head
8 695250 Breather Assembly
9 699472 Gasket-Breather
10 691125 Screw (Breather Assembly)
11 691781 Tube-Breather
11A 691923 Tube-Breather
12 692232 Gasket-Crankcase
13 690912 Screw (Cylinder Head)
15 691680 Plug-Oil Drain
16 691451 Crankshaft (Includes Shim)
20 399781s Seal-Oil (PTO Side)
22 691092 Screw
(Crankcase Cover / Sump)
23 790536 Flywheel
24 222698s Key-Flywheel
25 797302 Piston Assembly (Standard)
797303 Piston Assembly
(.020” Oversize)
26 797304 Ring Set (Standard)
797305 Ring Set (.020” Oversize)
27 691588 Lock-Piston Pin
28 298909 Pin-Piston
29 797306 Rod-Connecting
32 691664 Screw (Connecting Rod)
(Short)
32A 695759 Screw (Connecting Rod)
(Long)
33 262651s Valve-Exhaust
34 262652s Valve-Intake
35 691270 Spring-Valve (Intake)
36 691270 Spring-Valve (Exhaust)
37 793756 Guard-Flywheel
40 692194 Retainer-Valve
43 691997 Slinger-Governor / Oil
45 690548 Tappet-Valve
46 691449 Camshaft
48 - - - Short Block
50 794305 Manifold-Intake
51 794306 Gasket-Intake
54 691650 Screw (Intake Manifold)
55 697670 Housing-Rewind Starter
58 697316 Rope-Starter
60 281434s Grip-Starter Rope
65 690837 Screw (Rewind Starter)
78 691108 Screw (Flywheel Guard)
KEY PART
NO. NO. DESCRIPTION
81 691740 Lock-Muffler Screw
97 696565 Shaft-Throttle
104 691242 Pin-Float Hinge
108 795935 Valve-Choke
117 498978 Jet-Main (Standard)
118 497466 Jet-Main (High Altitude)
121 498260 Kit-Carburetor Overhaul
125 498170 Carburetor
127 694468 Plug-Welch
130 696564 Valve-Throttle
133 398187 Float-Carburetor
134 398188 Kit-Needle / Seat
137 693981 Gasket-Float Bowl
141 796193 Kit-Choke Shaft
163 795629 Gasket-Air Cleaner
187 791766 Line-Fuel
(Cut To Required Length)
188 693999 Screw (Control Bracket)
190 690940 Screw (Fuel Tank)
202 691829 Link-Mechanical Governor
209 691291 Spring-Governor (Vermillion)
222 790143 Bracket-Control
227 690783 Lever-Governor Control
276 271716 Washer-Sealing
287 690940 Screw (Dipstick Tube)
300 692038 Muffler
304 493294 Housing-Blower
305 691108 Screw (Blower Housing)
306 690450 Shield-Cylinder
307 690345 Screw (Cylinder Shield)
332 690662 Nut (Flywheel)
333 793353 Armature-Magneto
334 691061 Screw (Magneto Armature)
337 796112s Plug-Spark
346 690661 Screw (Spark Arrester)
356 692390 Wire-Stop
358 794307 Gasket Set-Engine
362 793351 Shield-Spark Plug
365 691688 Screw (Carburetor)
404 690272 Washer (Governor Crank)
425 690670 Screw (Air Cleaner Cover)
443 692523 Screw
(Air Cleaner Primer Base)
445 491588s Filter-Air Cleaner Cartridge
455 791960 Cup-Flywheel
456 692299 Plate-Pawl Friction
459 281505s Pawl-Ratchet
505 691251 Nut (Governor Control Lever)
523 499621 Dipstick
524 692296 Seal- Dipstick Tube
525 495265 Tube-Dipstick

24
MODEL NUMBER 126T02-1377-B1
BRIGGS & STRATTON 4-CYCLE ENGINE
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society
of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating
performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05).
Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. Actual gross
engine power will be lower and is affected by, among other things, ambient operating conditions
and engine-to-engine variability. Given both the wide array of products on which engines are placed
and the variety of environmental issues applicable to operating the equipment, the gas engine will
not develop the rated gross power when used in a given piece of power equipment (actual “on-site”
or net power). This difference is due to a variety of factors including, but not limited to, accessories
(air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambi-
ent operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to
manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated
power for this Series engine.
60
58
592
65
597
456
689
459
1210
1211
55
608
23
455
332
305
304
78
37
1036 EMISSIONS LABEL
356
604
564
949
1005
703
997
563
334
851
333
362
851
9
883
1095 VALVE GASKET SET
7
12
9
7
3
358 ENGINE GASKET SET
883
177
617
524
163
20
585
51
134
121 CARBURETOR OVERHAUL KIT
104
127
137
163 633
617
276
5
LIST OF APPLICABLE WARRANTY PERIODS: The following list contains the applicable
Warranty Period for your Craftsman product and is based on a combination of the type of
product or component and the intended and actual use of the product or component:
1. 90 DAYS: Craftsman products intended for use or actually used for commercial,
institutional, professional or income-producing purposes
2. 2 YEARS: Craftsman riding lawn mowers, yard and garden tractors, walk behind
mowers, tillers, brush cutters, snow blowers, handheld blowers, backpack blowers,
hedge trimmers and electrical products for noncommercial, nonprofessional, non-
institutional, or non-income-producing use, except for those components which are
part of engine systems manufactured by third party engine manufacturers for which
the purchase has received an separate warranty with product information supplied at
the time of purchase.
3. 1 YEAR: Craftsman power cutters, stump grinders, pole pruners, gas chain saws,
electric chain saws, trimmer attachments, baggers and pole saws for noncommercial,
nonprofessional, non-institutional, or non-income-producing use.
4. 90 DAYS: All defective batteries, which will be replaced during this 90-day Warranty
Period.
5. 60 DAYS: Additional Warranty Period of 60 days will apply to adjustments and worn
products or components BUT DOES NOT INCLUDE WEAR OR ADJUSTMENTS
for products used for commercial, institutional, professional or income-producing
purposes. Wear items include but are not limited to: belts, blades, tires, spark plugs,
air filters, chains, shear bolts, skid plates, scraper bars, drift cutters, ropes, tines,
collection bags and pulleys.
As the Warranty Period runs from the date of purchase and NOT from the date that a
product is delivered, opened, assembled or first used, plea se ensure during this time
period that your product or component has been assembled and tested for correction
operation regardless of when you intend to actually use it. Claims made after the
Warranty Period has expired will not be honored.
PROOF OF PURCHASE/DOCUMENTATION: Warranty coverage is conditioned upon
the original purchaser furnishing Sears Canada or its authorized third party service
provider if applicable, with the original sales receipt or other adequate written proof of
the original purchase date and identification of the product. In the event that the original
purchaser is unable to provide a company of the original sales receipt, Sears Canada
Inc. reserves the right to determine in its sole discretion what other written proof of the
original purchase date and identification of the product is acceptable.
WARRANTY

6
ASSEMBLY / PRE-OPERATION
Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new trimmer.
IMPORTANT: This trimmer is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new trimmer has been assembled
at the factory with the exception of those
parts left unassembled for shipping
purposes. All parts such as nuts, wash-
ers, bolts, etc., necessary to complete the
assembly have been placed in the parts
bag. To ensure safe and proper operation
of your trimmer, all parts and hardware
you assemble must be tightened securely.
Use the correct tools as necessary to
ensure proper tightness.
When right hand (RH) or left hand (LH) is
mentioned in this manual, it means when
you are in the operating position (standing
behind the handle).
TO REMOVE TRIMMER FROM
CARTON
1. Remove loose parts included with trim-
mer.
2. Cut down two end corners of carton
and lay end panel down flat.
3. Remove all packing materials.
4. Roll trimmer out of carton and check
carton thoroughly for additional loose
parts.
HOW TO SET UP YOUR TRIMMER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Loosen handle knob enough to allow
upper handle to be unfolded from the
shipping position.
2. Raise upper handle section into place
on lower handle and tighten handle
knob.
3. Remove handle padding holding trim-
mer head control bar to upper handle.
Your trimmer handle can be adjusted for
your trimming comfort. Refer to “ADJUST
HANDLE” in the Service and Adjustments
section of this manual.
Loose Parts Packed Separately
Bottle of oil
Trimmer Lines
(2) Sets
(0.155 diameter
x 18.75 inches long)
LIFT UP
Lower
handle
Upper handle
Handle
knob
23
MODEL NUMBER 126T02-1377-B1
BRIGGS & STRATTON 4-CYCLE ENGINE
601
187
190
1059
443
445
968
425
966
613
81
883
300
188
202
209
365 972 957
163
11A
967 976
668
621
222
676
677
276
118
97
975
133
134
617
130
633
163
276
137
104
276
108
633A
125 141
127
117
994
346

22
MODEL NUMBER 126T02-1377-B1
BRIGGS & STRATTON 4-CYCLE ENGINE
10
3
12
8
9
718
307
337
13 5
7
11
33
36
40
22 20
15
12
4
287
45
34
35
40 45
24
741
16
43
46
870
869
871
306
684
585
584
868
51
50
54
1330 REPAIR MANUAL
1058 OPERATOR’S MANUAL
48 SHORT BLOCK 1329 REPLACEMENT ENGINE
868
616
404
615
505
562
227
26
27
25
27
28
32
32A
29
847
523
524
525
842
362
851
7
FAST CAUTION FUEL
SLOW OIL
ENGINE OFF
OPERATION
KNOW YOUR TRIMMER
READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING
YOUR TRIMMER. Compare the illustrations with your trimmer to familiarize yourself with
the location of various controls and adjustments. Save this manual for future reference.
Starter handle
Gasoline cap
Air filter
Trimmer head
Handle knob
Trimmer line
Engine oil cap w/dipstick
Chassis cover
Trimmer head control bar
Throttle control
Throttle control – used for starting and
stopping the engine and allows you to
select either fast or slow engine speed.
Starter handle – used for starting the
engine.
Trimmer head control bar – must be
held down to the handle to engage trimmer
head. Release to stop the trimmer head.
Primer – pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
These symbols may appear on your trimmer or in literature supplied with the product. Learn and
understand their meaning.
IMPORTANT: This trimmer is shipped
WITHOUT OIL OR GASOLINE in the engine.
Primer
Muffler
Spark plug

8
HOW TO USE YOUR TRIMMER
ENGINE SPEED
The engine speed is controlled by a throt-
tle located on the side of the upper handle.
FAST position is for starting and normal
trimming. SLOW is for light trimming and
fuel economy. STOP is for stopping the
engine.
The operation of any trimmer can result in
foreign objects being thrown into the eyes,
which can result in severe eye damage.
Always wear safety glasses or eye shields
while operating your trimmer or performing
any adjustments or repairs. We recom-
mend standard safety glasses or a wide
vision safety mask worn over spectacles.
TO ADJUST TRIMMING HEIGHT
CAUTION: Stop the engine and wait for
all moving parts to stop. Disconnect spark
plug wire from spark plug and place wire
where it cannot come in contact with plug.
The height of cut can be set to six (6) dif-
ferent positions ranging from 1-1/2 inches
to 3 inches. Recommended cutting height
for the average yard is 2 inches.
1. To adjust trimming height, push in the
locking plate tab and move trimmer
head up or down to desired position.
2. Release tab and be sure head is
locked into one of the six (6) height
positions.
TRIMMER HEAD DRIVE CONTROL
Your trimmer is equipped with a trimmer
head drive control bar which will require
the operator to be positioned behind the
trimmer handle to operate the trimmer.
• Trimmer head rotation is controlled by
holding the trimmer head control bar
down to the handle.
• Trimmer head rotation will stop when
the control bar is released.
STOP
BEFORE STARTING ENGINE
ADD OIL
Your trimmer is shipped without oil in the
engine. For type and grade of oil to use,
see “ENGINE” in the Maintenance section
of this manual.
CAUTION: DO NOT overfill engine with
oil, or it will smoke on startup.
1. Be sure trimmer is level and area
around oil fill is clean.
2. Remove oil dipstick from oil fill spout.
Make sure that rim of spout is clean.
3. You receive a container of oil with the
unit. Slowly pour the entire container
down the oil fill spout into the engine.
NOTE: Initial oil fill requires only 18 oz.
due to residual oil in engine from the
manufacturers 100% quality testing. When
changing oil you may need 20 oz.
4. Insert and tighten dipstick.
Locking
Plate Tab
Adjustable
Trimmer
Head
21

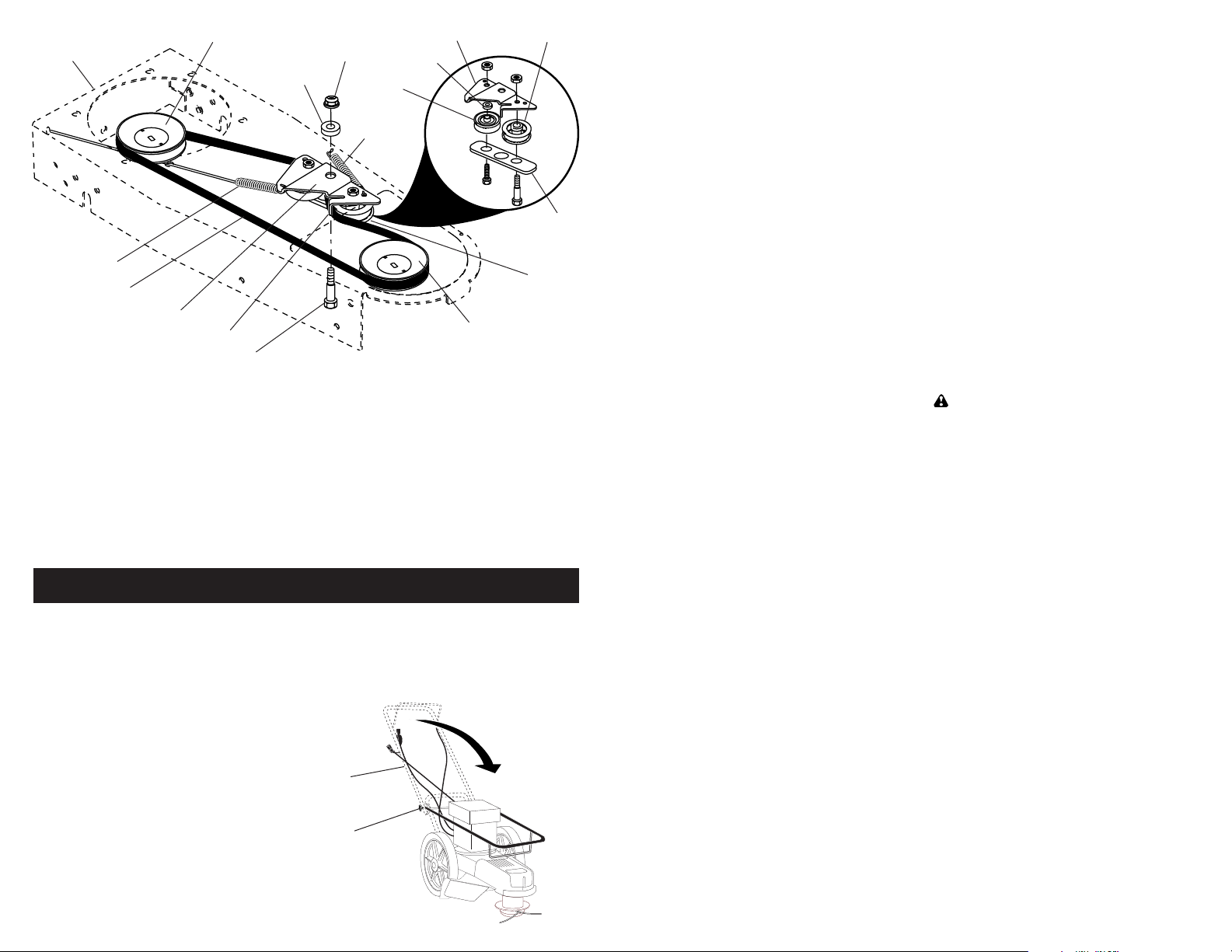

CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361161
KEY PART
NO. NO. DESCRIPTION
1 174031X615 Chassis Assembly
2 182219 Line, Trimmer .155 diameter x 18.75 long
3 173715 Screw, Self-Tapping 5/16-18 x 1
4 185476 V-Belt
5 172145X004 Bracket, Idler
6 166042 Pulley, Idler, V-Groove
7 173716 Bolt, Hex Head 3/8-16 x 1.25
8 73930600 Locknut, Hex 3/8-16
9 166043 Pulley, Idler, Flat
10 160829 Bolt, Shoulder
11 73930500 Locknut 5/16-18
12 173717 Spacer
13 174719 Bolt, Shoulder
14 409149 Locknut, Flange
15 173811 Spring, Return
16 180268 Deflector, Bottom
17 17060410 Screw 1/4-20 x 1/2
18 178848 Screw #10-24 x 3/4
19 199574 Belt Keeper
20 430485 Cover, Chassis, Top
21 149746 Screw #10-24 x 1-3/4
22 STD541137 Nut, Hex 3/8-24 UNF
23 STD551137 Washer, Lock 3/8
24 STD551037 Washer, Flat 3/8
25 180340 Pulley, Driven
26 172551 Spacer, Pulley
27 174549 Bearing
28 172520 Jackshaft
29 169766X479 Cover, Chassis, Bottom
30 174543 Spindle Housing Assembly (* Includes Upper Bearing, Key No. 27)
31 174581 Ring, Retaining, External, 17mm
32 173973 Spring, Locking Plate
33 172519 Locking Plate
34 180338 Carrier Plate Assembly
35 182217 Mow Ball Assembly (Includes Key Numbers 27, 37 and 38)
36 172516 Cover, Bearing
37 174580 Ring, Retaining, Internal, 40mm
38 172523 Mow Ball
39 180334 Bolt, Mow Ball
40 180333 Spindle Assembly, Complete (Includes Key No. 22-28 and 30-39)
41 174029 Spacer
43 174042 Decal, Instruction
45 174596X479 Belt Keeper, Bottom
46 17060408 Screw, Self-Tapping
47 182205 Decal, Instruction
51 189006 Deflector, Rear
52 178848 Screw
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your weed trimmer and void your warranty.

20
CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361161
12
43
14
1
52 51
17
4
13
16
18
34
33
39
38
27
37
27
30*
36
31
35
32
3
22
23
24
25
26
27*
28
9
10
19
7
6
41
5
8
11
15
29
40 45
21 47
46
20
2
9
TRIMMING TIPS
• Set the throttle control in the FAST posi-
tion. If the weeds or grass are tall and
thick, operate the trimmer at a slower
walking speed.
• Frequently clean the underside of the
trimmer to remove any grass build up.
Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and extend
engine life.
• For best results and longer lasting
line, use the ends of the line to do the
cutting. This is easily done by moving
slowly through very thick and heavy
weeds.
• Use the left side of trimmer when trim-
ming along fences, walls, flowerbeds
and other such objects.
• If trimmer lines become too short, it will
take longer to complete the job. If trim-
mer lines are worn to less than half their
original length, they should be replaced.
See “TO REPLACE TRIMMER LINE” in
the Maintenance section of this manual.
• Trimmer head contact with concrete, as-
phalt or other hard surfaces may cause
premature wear of the ball on bottom of
trimmer head.
IMPORTANT:
• Check oil level before each use. Add oil
if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often under
dusty, dirty conditions.
ADD GASOLINE
• Fill fuel tank to bottom of tank filler neck.
Do not overfill. Use fresh, clean, regular
unleaded gasoline with a minimum of 87
octane. Do not mix oil with gasoline. Pur-
chase fuel in quantities that can be used
within 30 days to assure fuel freshness.
CAUTION: Alcohol blended fuels
(called gasohol or using ethanol or
methanol) can attract moisture which
leads to separation and formation of acids
during storage. Acidic gas can damage
the fuel system of an engine while in
storage. To avoid engine problems, the
fuel system should be emptied before
storage of 30 days or longer. Drain
the gas tank, start the engine and let it
run until the fuel lines and carburetor
are empty. Use fresh fuel next season.
See Storage Instructions for additional
information. Never use engine or
carburetor cleaner products in the fuel
tank or permanent damage may occur.
CAUTION: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
Starter
handle
Throttle
control
Gasoline
filler cap
Engine
oil cap
Primer
2. Move throttle control lever to FAST
position.
3. Hold upper handle firmly and pull
starter handle quickly. Do not allow
starter rope to snap back.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather overpriming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes before
attempting to start and DO NOT repeat
priming steps.
TO STOP ENGINE
• To stop engine, move throttle control
lever to STOP position.
TO START ENGINE
1. To start a cold engine, push primer three
(3) times before trying to start. Use a
firm push. This step is not usually neces-
sary when starting an engine which has
already run for a few minutes.

10
MAINTENANCE
GENERAL RECOMMENDATIONS
The warranty on this trimmer does not cover
items that have been subjected to operator
abuse or negligence. To receive full value
from the warranty, operator must maintain
trimmer as instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
At least once a season, check to see if
you should make any of the adjustments
described in the Service and Adjustments
section of this manual.

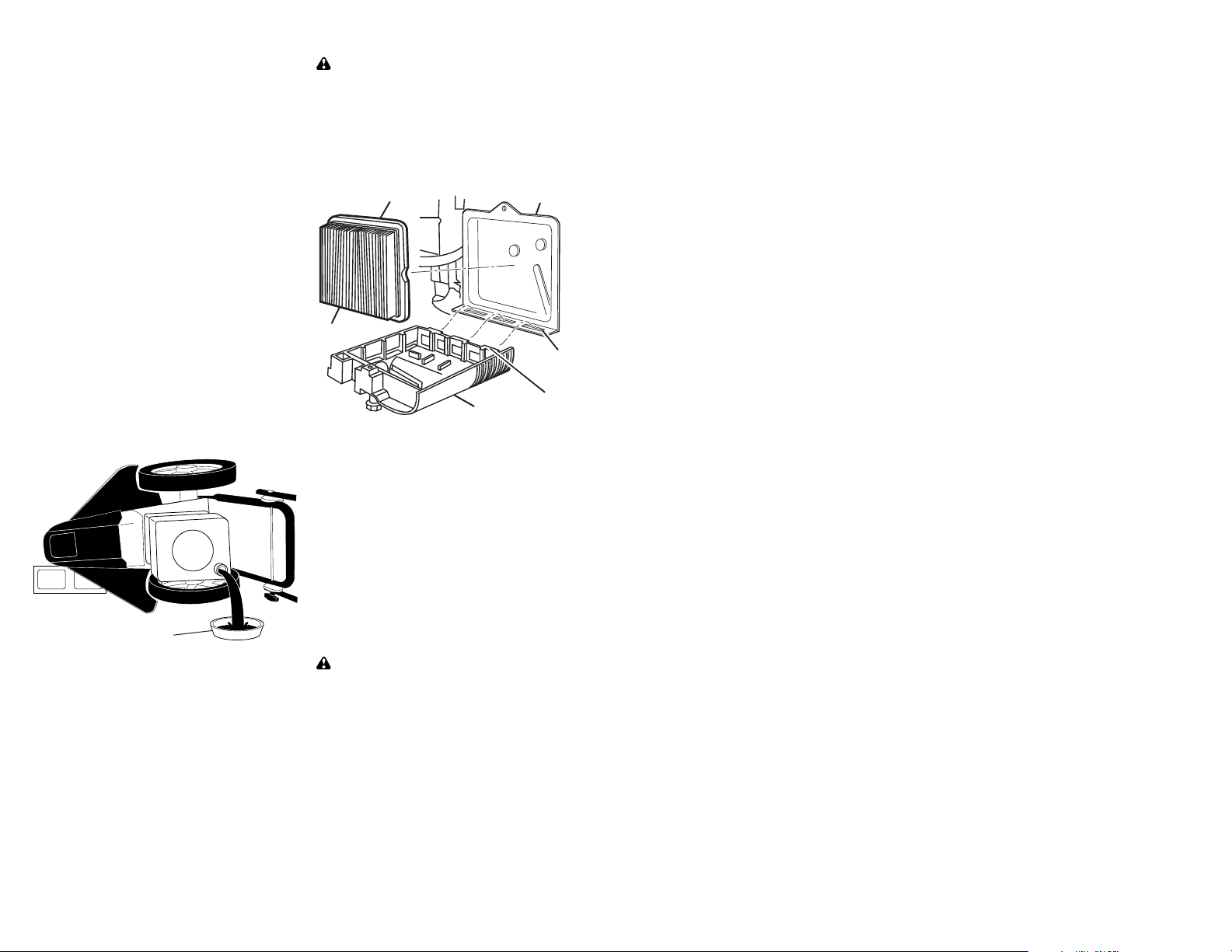

• At least once a year, replace the spark
plug and replace air filter element. A
new spark plug and clean/new air filter
element assure proper air-fuel mixture
and help your engine run better and
last longer.
• Follow the maintenance schedule in
this manual.
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
3. Clean under engine cover.
LUBRICATION
To prolong the useful life of your trimmer,
change engine oil as recommended in this
section of this Owner’s Manual.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will
attract dust and dirt that will shorten the
life of the self- lubricating bearings. If you
feel they must be lubricated, use only a dry,
powdered graphite type lubricant sparingly.
PRODUCT SPECIFICATIONS
Serial No. __________________________
Date of Purchase: ____________________
Gasoline Type: Unleaded Regular
Gasoline Capacity: 1,5 Liters
Oil Type: SAE 30 (Above 32º F)
(API-SF-SJ) SAE 5W-30 (Below 32º F)
Oil Capacity: 0,58 Liters
Spark Plug: Champion RJ19LM
(Gap: 0,76 mm)
Trimmer Line Diameter: 0,155 inch
Trimmer Line Length: 18,75 inches
The model and serial numbers will be found
on a decal attached to the rear of the trim-
mer. Record both serial number and date of
purchase in the space provided above. 19
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your weed trimmer and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 - - - Engine, Briggs & Stratton, Model No.
126T02-1377-B1 (See Breakdown)
2 150406 Bolt, Engine Mounting 3/8-16
3 179466 Pulley, Engine
4 88348 Washer, Flat
8 169821X479 Handle, Lower
9 428867 Screw, Hex Washer Head 5/16-18 x 3/4
10 177815 Handle, Upper
11 170980 Bolt, Handle
12 442571X428 Knob, Handle
15 179751 Handle Adjuster Assembly
16 194788 Guide, Rope
18 66426 Wire Tire
19 176983 Control Bar
20 417238 Throttle Control
21 158755 Screw, Hex Washer Head
22 447829 Axle Shaft
23 428867 Screw, Hex Washer Head 5/16-18 x 3/4
24 169823 Spacer
25 197480 O-Ring
26 431880X460 Wheel, 12" x 1-3/4
27 409149 Locknut, Hex 3/8-16
28 181699 Drive Control Cable
29 178365 Decal, Warning
30 406678 Decal, Warning
31 172221X004 Support Bracket, Axle Shaft
32 164265 Grip, Handle
33 132004 Nut, Hex
34 429930X004 Bracket, Upstop
35 178848 Screw #10-16 x 5/8
36 851084 Bolt, Hex Head
37 850263 Washer, Lock
38 851074 Washer, Flat, Hardened
41 445315X479 Tube, Axle
- - 581001827 Owner's Manual, English
- - 581001831 Owner's Manual, French
CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361161
