Crestron HD(I)-XSPA Owner's manual

HD(I)-XSPA
4K Ultra High-Definition 7.1 Surround Sound
AV Receiver
Supplemental Guide
Crestron Electronics, Inc.

The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195;
7,272,567 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered
trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
Crestron, the Crestron logo, Crestron Studio, Crestron Toolbox, DigitalMedia, and DM are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI Logo are either trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and/or other countries. Other trademarks, registered trademarks, and trade names
may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any
proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Contents
Introduction 1
Internal Block Diagrams 2
Fuse Replacement 3
Configuration 4
Using the Installer Menu .......................................................................................... 4
Configure the Inputs................................................................................................ 5
Configure the Outputs............................................................................................. 7
Configure the Network .......................................................................................... 10
Configure the Front Panel...................................................................................... 15
Operation 17
Source .................................................................................................................. 17
Theater ................................................................................................................. 17
Downmix............................................................................................................... 20
Display .................................................................................................................. 22
Supplemental Guide – DOC. 7448E Contents •i

HD(I)-XSPA: 4K Ultra High-Definition
7.1 Surround Sound AV Receiver
Introduction
The Crestron®HD-XSPA and HDI-XSPA make it easy and affordable to put great surround
sound in any room of the house as part of a complete home automation and entertainment
system.
The HD-XSPA and HDI-XSPA are functionally identical. For simplicity within this guide, the
term “HD-XSPA” is used except where noted.
For more information, refer to the HD(I)-XSPA DO Guide (Doc. 7730) at
www.crestron.com/manuals for details.
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •1

Internal Block Diagrams
The following diagrams represent the switching and DSP capabilities of the HD-XSPA.
Internal Block Diagram of the HD-XSPA
Audio
DSP Amplifier
5 x 1
HDMI
®
Switcher
HDMI 3
HDMI 4
HDMI 5
S/PDIF
Optical
S/PDIF 2
S/PDIF 3
Digital
Audio
Switch
Analog
Audio
Switch
Unbalanced 1
Unbalanced 2
Balanced
A/D
LFE/Sub
Center
Right
Left
Surround Right
Surround Left
Back/Downmix Right
Back/Downmix Left
SPEAKERS
LFE/Sub
Downmix Right
Downmix Left
PRE-AMP
D/ AConv
2•HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

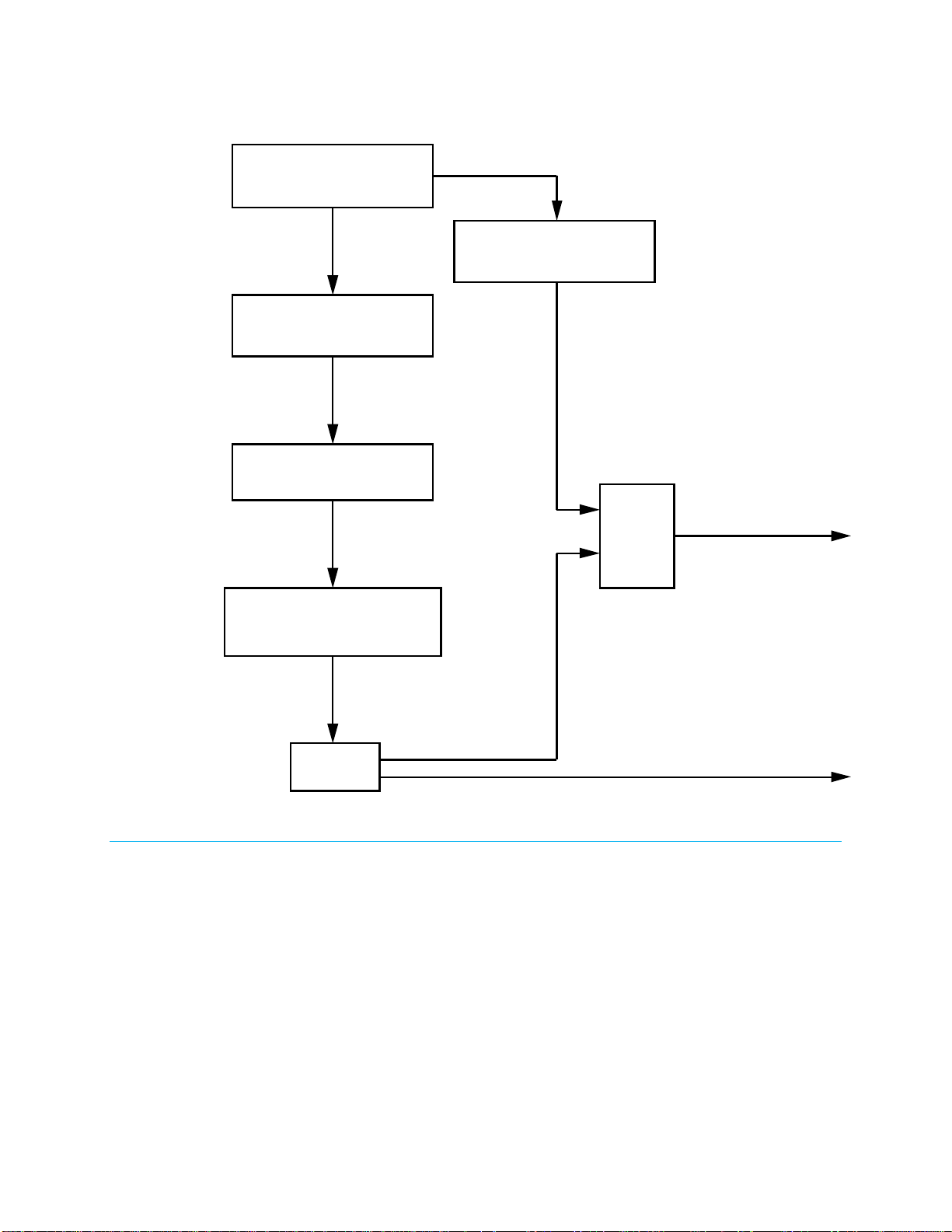

HD-XSPA DSP Detail
Fuse Replacement
If the HD-XSPA does not power up when it is plugged into an ac outlet, the fuse may need
to be replaced. The fuse holder is located on the rear panel, next to the IEC socket
assembly. To replace the fuse, perform the following procedure:
1. Unplug the HD-XSPA.
2. Using a flat-head screwdriver, push in the fuse holder while turning the screwdriver
counterclockwise until the fuse holder pops out.
4 x 2
Switch
Decoding
(7.1 and Downmix)
Bass
Management
Volume/Tone/
Loudness
2-Channel
Downmix
2-Channel
Downmix
Back/Downmix L/R
Front L/R, Center, Surround L/R
Back L/R
Volume
Trim
Delay
(Up To 100 ms Per Channel)
EQ
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •3

3. Remove the fuse from the fuse holder and insert a new fuse.
CAUTION:
Use only the type of fuse specified in the table below. Failure to do so
may cause damage to the HD-XSPA
.
NOTE:
One spare fuse is included.
MODEL REQUIRED FUSE TYPE
HD-XSPA
(US/North America)
T10AH (1/4” x 1 1/4”, 250 V, 10 A, time-lag, high-rupture
rated)
HDI-XSPA
(International/220-240 Vac)
T5AH (1/4” x 1 1/4”, 250 V, 5 A, time-lag, high-rupture
rated)
4. Insert the fuse holder into the HD-XSPA.
5. Push in the fuse holder with a flat-head screwdriver while turning the screwdriver
clockwise until the fuse holder sets further into the HD-XSPA.
6. Push in the fuse holder a little further, and then turn the screwdriver clockwise until
the fuse holder locks into place.
7. Plug in the HD-XSPA.
Configuration
The HD-XSPA can be configured with the front panel controls or with Crestron Toolbox™.
For details on using Crestron Toolbox, please refer to the Crestron Toolbox help file.
Using the Installer Menu
The
Installer
menu is used to configure the HD-XSPA.
Open the Installer Menu
To configure the HD-XSPA using the front panel controls, the
Installer
menu must be
displayed. Perform the following to open the
Installer
menu:
1. Press
HOME
to display the
Crestron HD-XSPA
screen.
Crestron HD-XSPA Screen
2. Press
BACK
to display the
Password
screen.
Crestron
HD-XSPA
4•HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

Password Screen
3. Use the Nav Pad to enter the password.
oTo select a number, press up or down on the Nav Pad.
oTo move the cursor left or right, press left or right on the Nav Pad.
When the password is displayed, move the cursor to the rightmost digit, and then
press the center button of the Nav Pad. The
Installer
menu is displayed.
NOTE:
The default password is 0000. For instructions on changing the password,
refer to “Password” on page 16.
Installer Menu
The
Installer
menu is divided into four sections:
•
Inputs
sets the name and compensation level of each input.
•
Outputs
sets the audio parameters for the theater and downmix outputs.
•
Network
configures and displays the HD-XSPA’s Ethernet settings.
•
Control
configures and displays the HD-XSPA’s front panel settings.
Exit the Installer Menu
To exit the
Installer
menu, press
HOME
.
Configure the Inputs
The name and compensation level for each input are set from the
Inputs
section of the
Installer
menu. Perform the following to configure an input:
1. Open the
Installer
menu as described in “Open the Installer Menu” on page 4.
2. Press up or down on the Nav Pad to highlight
Inputs
, and then press the center
button of the Nav Pad. The
Inputs
menu is displayed.
Password
[0]000
Installer
Inputs
Outputs
Network
Control
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •5

Inputs Menu
3. Press up or down on the Nav Pad to highlight the input to be configured, and then
press the center button of the Nav Pad. The selected input’s menu is displayed.
Input Menu (DM Shown)
Rename the Input
The inputs of the HD-XSPA are assigned default names from the factory. However, a new
name can be assigned to an input. Perform the following to change the name of an input:
1. Press up or down on the Nav Pad to highlight
Name
, and then press the center
button of the Nav Pad. A list of names is displayed.
DM Screen
2. Press up or down on the Nav Pad to highlight the desired name, and then press the
center button of the Nav Pad. The display returns to the previous menu.
To cancel and return to the previous menu, press
BACK
.
Adjust the Compensation Level
The compensation level of each input can be adjusted. Perform the following to adjust an
input’s compensation level:
1. Press up or down on the Nav Pad to highlight
Compensation
, and then press the
center button of the Nav Pad. The
Compensation
screen is displayed.
Inputs
DM
HDMI 1
HDMI 2
HDMI 3
DM
Name
Compensation
DM
CAMERA
DVD
GAME CONSOLE
HDMI
6•HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

Compensation Screen
2. Press right or left on the Nav Pad to select the amount of compensation to be
applied, and then press the center button of the Nav Pad. The display returns to the
previous menu.
To cancel and return to the previous menu, press
BACK
.
Configure the Outputs
Audio settings for the theater output and downmix output are set from the
Outputs
section
of the
Installer
menu. Perform the following to configure an output:
1. Open the
Installer
menu as described in “Open the Installer Menu” on page 4.
2. Press up or down on the Nav Pad to highlight
Outputs
, and then press the center
button of the Nav Pad. The
Outputs
menu is displayed.
Outputs Menu
3. Press up or down on the Nav Pad to highlight the output to be configured, and then
press the center button of the Nav Pad. The selected output’s menu is displayed.
Output Menu (Theater Shown)
Balance (Downmix Output Only)
The balance of the downmix output can be adjusted. Perform the following to adjust the
balance:
1. Select the output to be configured as described in “Configure the Outputs” above.
Compensation
-10dB +10dB
0.0dB
Outputs
Theater
Downmix
Theater
Min Volume
MaxVolume
StartupVolume
StartupVolume: Use
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •7

2. Press up or down on the Nav Pad to highlight
Balance
, and then press the center
button of the Nav Pad. The
Balance
screen is displayed.
Balance Screen
3. Press right or left on the Nav Pad to adjust the balance, and then press the center
button of the Nav Pad. The display returns to the previous menu.
To cancel and return to the previous menu, press
BACK
.
Stereo or Mono (Downmix Output Only)
The output of the downmix output can be set for stereo or mono sound. Perform the
following to set the output for stereo or mono sound:
1. Select the output to be configured as described in “Configure the Outputs” on page
7.
2. Press up or down on the Nav Pad to highlight
Stereo
or
Mono
, and then press the
center button of the Nav Pad. The setting toggles between
Stereo
and
Mono
.
Minimum Volume (Theater and Downmix Output)
The minimum volume setting is the lowest volume setting to which an output can be set.
Perform the following to adjust the minimum volume:
1. Select the output to be configured as described in “Configure the Outputs” on page
7.
2. Press up or down on the Nav Pad to highlight
Min Volume
, and then press the
center button of the Nav Pad. The
Minimum Volume
screen is displayed.
Minimum Volume Screen
3. Press up or down on the Nav Pad to adjust the minimum volume level, and then
press the center button of the Nav Pad. The display returns to the previous menu.
To cancel and return to the previous menu, press
BACK
.
Balance
LR
0
Minimum
Volume
0%
8•HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

Maximum Volume (Theater and Downmix Output)
The maximum volume setting is the highest volume setting to which an output can be set.
Perform the following to adjust the maximum volume:
1. Select the output to be configured as described in “Configure the Outputs” on page
7.
2. Press up or down on the Nav Pad to highlight
Max Volume
, and then press the
center button of the Nav Pad. The
Maximum Volume
screen is displayed.
Maximum Volume Screen
3. Press up or down on the Nav Pad to adjust the maximum volume level, and then
press the center button of the Nav Pad. The display returns to the previous menu.
To cancel and return to the previous menu, press
BACK
.
Startup Volume (Theater and Downmix Output)
The startup volume setting specifies the volume level that is used when the theater or
downmix output is turned on. Perform the following to adjust the startup volume:
1. Select the output to be configured as described in “Configure the Outputs” on page
7.
2. Press up or down on the Nav Pad to highlight
Startup Volume
, and then press the
center button of the Nav Pad. The
Startup Volume
screen is displayed.
Startup Volume Screen
3. Press up or down on the Nav Pad to adjust the minimum volume level, and then
press the center button of the Nav Pad. The display returns to the previous menu.
To cancel and return to the previous menu, press
BACK
.
To enable or disable the startup volume setting, refer to “Use or Ignore the Startup
Volume (Theater and Downmix Output)” on page 10.
Maximum
Volume
100%
Startup
Volume
0%
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •9

Use or Ignore the Startup Volume (Theater and Downmix Output)
The startup volume setting can be enabled or disabled. When the startup volume setting is
ignored, the last volume setting is used. Perform the following to set the output to use or
ignore the startup volume setting:
1. Select the output to be configured as described in “Configure the Outputs” on page
7.
2. Press up or down on the Nav Pad to highlight
Startup Volume: Use
or
Startup
Volume: Ignore
, and then press the center button of the Nav Pad. The setting
toggles between
Use
and
Ignore
.
Configure the Network
Ethernet settings for the HD-XSPA are set from the
Network
section of the
Installer
menu.
NOTE:
If the DM port is connected to a DM®switch, the DM switch can be used to
configure the network settings. Refer to the DigitalMedia™ Design Guide (Doc. 4546) at
www.crestron.com/manuals for details.
Perform the following to configure the Ethernet settings:
1. Open the
Installer
menu as described in “Open the Installer Menu” on page 4.
2. Press up or down on the Nav Pad to highlight
Network
, and then press the center
button of the Nav Pad. The
Network
menu is displayed.
Network Menu
3. Press up or down on the Nav Pad to highlight the parameter to be viewed or
configured, and then press the center button of the Nav Pad.
Status
Details of the HD-XSPA’s Ethernet connection can be viewed from the
Status
section of the
Network
menu. Perform the following to view this information:
1. Open the
Network
menu as described in “Configure the Network” above.
2. Press up or down on the Nav Pad to highlight
Status
, and then press the center
button of the Nav Pad. The
Network Status
menu is displayed.
Network
Status
DHCP: On
IPAddress
Subnet Mask
10 •HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

Network Status Menu
3. Press up or down on the Nav Pad to highlight the desired level of detail to be
displayed (
Basic
or
Advanced
), and then press the center button of the Nav Pad.
o
Basic
shows the status of the Ethernet link, the HD-XSPA’s IP address,
and the hostname of the master control system.
o
Advanced
shows the status of the Ethernet link, the HD-XSPA’s MAC
address, the HD-XSPA’s IP address, the subnet mask, the default router,
the DHCP setting, the hostname, the domain name, and the IP addresses
of the DNS servers.
4. Press up or down on the Nav Pad to scroll through the Ethernet details.
5. Press the center button of the Nav Pad to return to the previous menu.
Enable or Disable DHCP
The HD-XSPA can obtain an IP address, a subnet mask, and the default router information
from a DHCP server. Perform the following to enable or disable DHCP:
1. Open the
Network
menu as described in “Configure the Network” on page 10.
2. Press up or down on the Nav Pad to highlight
DHCP: On
or
DHCP: Off
, and then
press the center button of the Nav Pad. The setting toggles between
On
and
Off
.
If any changes were made, the HD-XSPA reboots upon exiting the
Installer
menu.
IP Address
The HD-XSPA uses TCP/IP to communicate with a control system. The IP address can be
manually set or obtained from a DHCP server. For information on enabling DHCP to obtain
an IP address, refer to “Enable or Disable DHCP” above.
NOTE:
If DHCP is enabled, any changes made to the IP address do not take effect.
Perform the following to manually set an IP address:
1. Open the
Network
menu as described in “Configure the Network” on page 10.
2. Press up or down on the Nav Pad to highlight
IP Address
, and then press the
center button of the Nav Pad.
If DHCP is enabled, an IP address and a message stating “DHCP On: Address
Invalid” is displayed. Otherwise, controls for setting the IP address are displayed in
the
IP Address
screen.
Network Status
Basic
Advanced
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •11

IP Address Screen
3. Press up or down on the Nav Pad to set the first octet of the IP address.
4. Press left or right on the Nav Pad to move the cursor between octets (or press the
center button of the Nav Pad to move to the next octet) and select one for editing.
5. Set each octet until the correct IP address is displayed.
6. To save the IP address and return to the
Network
menu, move the cursor to the
rightmost octet, and then press the center button of the Nav Pad. To cancel the
operation and return to the previous screen, press
BACK
.
If any changes were made, the HD-XSPA reboots upon exiting the
Installer
menu.
Subnet Mask
The subnet mask can be manually set or obtained from a DHCP server. For information on
enabling DHCP to obtain a subnet mask, refer to “Enable or Disable DHCP” on page 11.
NOTE:
If DHCP is enabled, any changes made do not take effect.
Perform the following to manually set the subnet mask:
1. Open the
Network
menu as described in “Configure the Network” on page 10.
2. Press up or down on the Nav Pad to highlight
Subnet Mask
, and then press the
center button of the Nav Pad.
If DHCP is enabled, the subnet mask and a message stating “DHCP On: Address
Invalid” is displayed. Otherwise, controls for setting the subnet mask are displayed
in the
Subnet Mask
screen.
Subnet Mask Screen
3. Press up or down on the Nav Pad to set the first octet of the subnet mask.
4. Press left or right on the Nav Pad to move the cursor between octets (or press the
center button of the Nav Pad to move to the next octet) and select one for editing.
5. Set each octet until the correct subnet mask is displayed.
IP Address
[10].0.0.111
Subnet Mask
[255].255.255.0
12 •HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

6. To save the subnet mask and return to the
Network
menu, move the cursor to the
rightmost octet, and then press the center button of the Nav Pad. To cancel the
operation and return to the previous screen, press
BACK
.
If any changes were made, the HD-XSPA reboots upon exiting the
Installer
menu.
Default Router
The default router can be manually set or obtained from a DHCP server. For information on
enabling DHCP to obtain a default router, refer to “Enable or Disable DHCP” on page 11.
NOTE:
If DHCP is enabled, any changes made do not take effect.
Perform the following to manually set the default router:
1. Open the
Network
menu as described in “Configure the Network” on page 10.
2. Press up or down on the Nav Pad to highlight
Default Router
, and then press the
center button of the Nav Pad.
If DHCP is enabled, the default router and a message stating “DHCP On: Address
Invalid” is displayed. Otherwise, controls for setting the default router are displayed
in the
Default Router
screen.
Default Router Screen
3. Press up or down on the Nav Pad to set the first octet of the default router.
4. Press left or right on the Nav Pad to move the cursor between octets (or press the
center button of the Nav Pad to move to the next octet) and select one for editing.
5. Set each octet until the correct default router is displated.
6. To save the default router and return to the
Network
menu, move the cursor to the
rightmost octet, and then press the center button of the Nav Pad. To cancel the
operation and return to the previous screen, press
BACK
.
If any changes were made, the HD-XSPA reboots upon exiting the
Installer
menu.
Control System
The
Control System
menu is used to specify the HD-XSPA’s IP ID and the IP address of
the control system. Perform the following to specify the IP ID and the control system’s IP
address:
1. Open the
Network
menu as described in “Configure the Network” on page 10.
2. Press up or down on the Nav Pad to highlight
Control System
, and then press the
center button of the Nav Pad. The
Control System
menu is displayed.
Default Router
[0].0.0.0
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •13

Control System Menu
3. Set the IP ID that identifies the HD-XSPA in the Crestron Studio™ (or SIMPL
Windows) program:
a. Press up or down on the Nav Pad to highlight
IP ID
, and then press the
center button of the Nav Pad. The
IP ID
screen is displayed.
IP ID Screen
b. Press up or down on the Nav Pad to display the desired IP ID, and then
press the center button of the Nav Pad. The display returns to the previous
screen.
NOTE:
The IP ID must match the IP ID in the Crestron Studio (or SIMPL
Windows) program.
If any changes were made, the HD-XSPA reboots upon exiting the
Installer
menu.
4. Set the master control system’s IP address:
a. Press up or down on the Nav Pad to highlight
IP Address
, and then press
the center button of the Nav Pad. The
Ctrl Sys IP Address
screen is
displayed.
Ctrl Sys IP Address Screen
b. Press up or down on the Nav Pad to set the first octet of the IP address.
c. Press left or right to move the cursor between octets (or press the center
button of the Nav Pad to move to the next octet) and select one for editing.
Control System
IP ID
IPAddress
IPID
3
Ctrl Sys IP
Address
[255].255.255.0
14 •HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E

d. Set each octet until the correct IP address is displayed.
e. To save the IP address and return to the
Control System
menu, move the
cursor to the rightmost octet, and then press the center button of the Nav
Pad. To cancel the operation and return to the previous screen, press
BACK
.
If any changes were made, the HD-XSPA reboots upon exiting the
Installer
menu.
Configure the Front Panel
The HD-XSPA’s front panel controls are configured from the
Control
section of the
Installer
menu. Perform the following to configure the front panel controls:
1. Open the
Installer
menu as described in “Open the Installer Menu” on page 4.
2. Press up or down on the Nav Pad to highlight
Control
, and then press the center
button of the Nav Pad. The
Control
menu is displayed.
Control Menu
3. Press up or down on the Nav Pad to highlight the parameter to be viewed or
configured, and then press the center button of the Nav Pad.
Backlight
The backlight of the LCD display can be adjusted. Perform the following to adjust the
backlight:
1. Open the
Control
menu as described in “Configure the Front Panel” above.
2. Press up or down on the Nav Pad to highlight
Backlight
, and then press the center
button of the Nav Pad. The backlight switches between the different lighting levels.
Front Panel Lock
The front panel user controls can be locked or unlocked for operation.
NOTE:
The
Installer
menu can still be opened when the front panel is locked.
Perform the following to lock or unlock the front panel controls:
1. Open the
Control
menu as described in “Configure the Front Panel” above.
2. Press up or down on the Nav Pad to highlight
Front Panel Lock: On
or
Front
Panel Lock: Off
, and then press the center button of the Nav Pad. The setting
toggles between
On
and
Off
.
Control
Backlight
Front Panel Lock: Off
Password
Restore Defaults
Supplemental Guide – DOC. 7448E HD(I)-XSPA: 4K UHD Surround Sound AV Receiver •15

NOTE:
When locked, only the
BACK
button can be used to access the
Installer
menu.
Password
The password for opening the
Installer
menu can be changed. Perform the following to
change the password:
1. Open the
Control
menu as described in “Configure the Front Panel” on page 15.
2. Press up or down on the Nav Pad to highlight
Password
, and then press the
center button of the Nav Pad. The
Password
screen is displayed.
Password Screen
3. Use the up, down, left, right, and
SELECT
buttons to enter the password.
oTo select a number, press up or down on the Nav Pad.
oTo move the cursor left or right, press left or right on the Nav Pad.
Once the password is displayed, move the cursor to the rightmost digit, and then
press the center button of the Nav Pad
to save the password. The
Control
menu is
displayed.
Restore Defaults
Perform the following to restore the HD-XSPA to the factory default settings:
1. Open the
Control
menu as described in “Configure the Front Panel” on page 15.
2. Press up or down on the Nav Pad to highlight
Restore Defaults
, and then press
the center button of the Nav Pad. The
Restore Defaults
menu is displayed.
Restore Defaults Menu
3. Press up or down on the Nav Pad to highlight
Yes
, and then press the center
button of the Nav Pad. The
Are You Sure
menu is displayed.
4. Press up or down on the Nav Pad to highlight
Yes
, and then press the center
button of the Nav Pad. The factory default settings are restored.
Password
[0]000
Restore Defaults
No
Yes
16 •HD(I)-XSPA: 4K UHD Surround Sound AV Receiver Supplemental Guide – DOC. 7448E
