Crownline AC-225 User manual

Mobile Evaporative Cooler
Read And Save These Instructions
MODEL : AC-225
RATED VOLTAGE : 220V / 50Hz

Diagram
Handle
Control Pannel
Front Pannel
Side Pannel
Back Pannel
Vertical Louver
Horizontal Louver
Water Filling Door
Water Level Indicator
Water Tank
Caster
Drain Assembly
Rear in tank
Warranty Card
TEL
:
Customer Name:
Purchase Store:
Store :
Purchase
Dealer
Date:
Customer Address:
Customer
Maintenance Record
TEL:
Post Code:
Date Reason Place Repairer

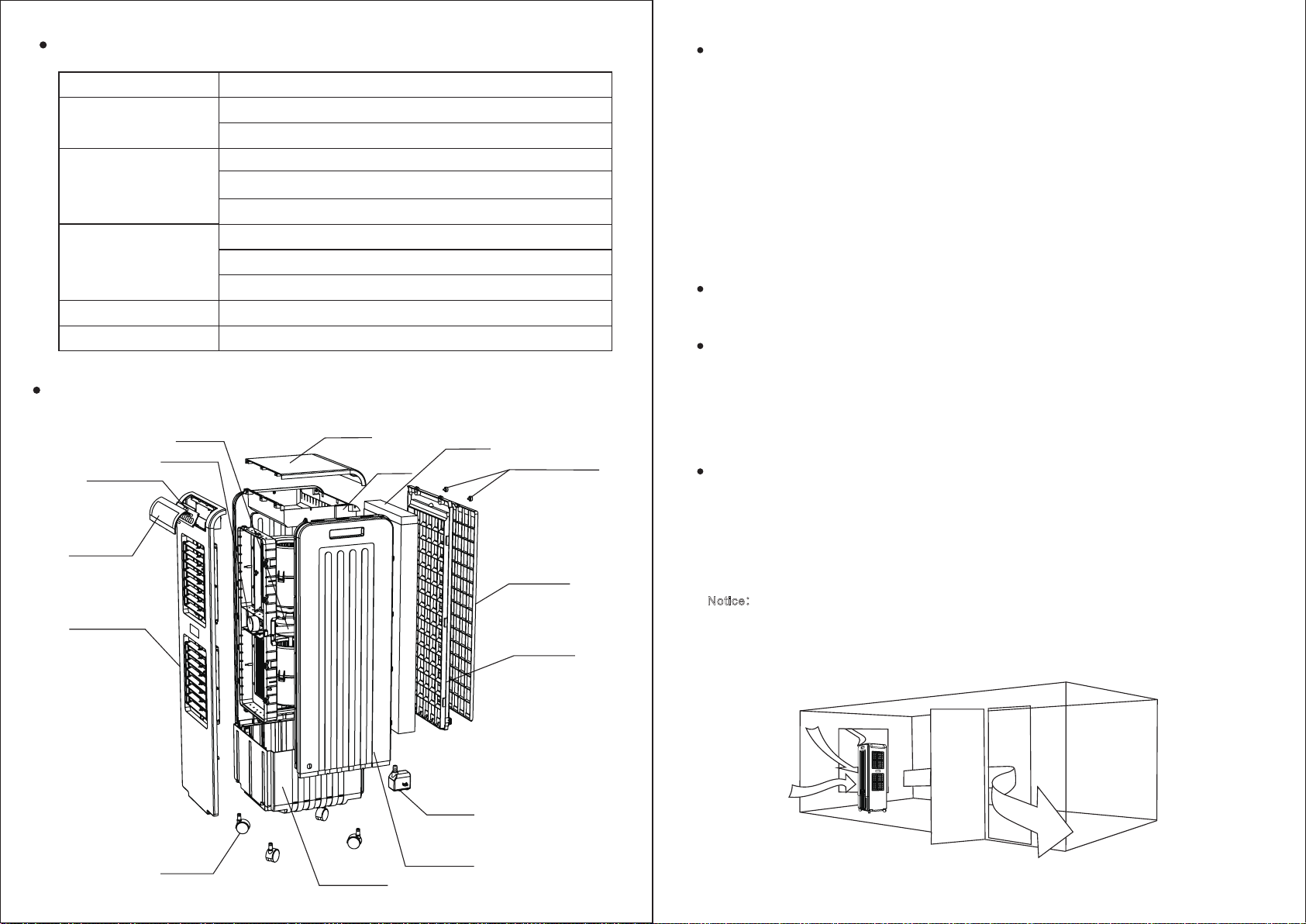

Replacement Parts
Motor Top Cover
Ice Box
Dust Filter
Cooling Pad
Screws Fixing Back Pannel
Swing Motor
Control Board
Control Screen
Front Pannel
Caster Water Tank
Side Pannel
Water Pump
Back Pannel
Trouble shooting ：
Problem:
1.Cooler fails to work at all
2.Cooler does not pump
3.Fan does not operate
4.Louver does not operate
5.Water leakage
Cause/Remedy:
1.1 Check that the unit is plugged properly.
1.2 Check the P OW E R , push it to “ ON ”.
2.1 Pump is not activated. P ush the P UMP s witch to “ON”.
2.3 Pump may be defective. Replace pump.
2.2 Water level is low.Fill with water and make sure
pump is a ctivated
3.1 Check that unit is plugged properly.
3.2 Check the P OW E R button, push it to“ ON ”.
3.3 If connected to a G FC I outlet. check if it is tripped.
4.1 L ouver does not move. Louver switch,position to “ ON”.
5.1 C heck the cap of the drain plug. make sure it tightened.
NOTICE:
This P roduct May Temporarily Produce An Odd Odor When First Turned On. This Is
NORMAL And Will Dissipate After A Few Hours.
Evaporative C ooling
Evaporative cooling is an economical way to cool. Air is cooled while being drawn across
wet evaporative media. The movement of this fresh cooled air over the skin is what makes
it feel cool. It is important when using an evaporative cooler in an enclosed space to have
adequate exhaust by opening windows, doors, etc. Without an outlet to exhaust the air,
humidity will build up in the enclosed space and the unit will not cool adequately. It is preferable
to have an opening behind the unit to bring in fresh air and another opening across the room
to exhaust and help move the air.
Safety Rules
1．Unit must be in the Off Position and Unplugged from power receptacle when perfor
m ing any maintenance.
2．To reduce the risk of electric shock, plug unit into a properly grounded receptacle.
3．To reduce the risk of electric shock, install only on a circuit protected with a G rounded
Fault Circuit Interrupter (GFC I).
4. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. C hildren should be supervised to ensure that they
do not play with the appliance.
Location(Key Operational Points)
Notice：Having completed assembly of your cooler, position the unit with its back to an open
window or door. This will allow fresh air to be drawn through the cooler and exhausted from
the room. C onstant air change is e ssential and part of the fresh air benefit from evaporative
aircooling.
Remember your cooler has been designed to operate even if it runs out of water. No damage
will be caused to the pump if your cooler runs out of water.
5. Do Not operate any fan with a damaged cord or plug. Discard fan or return to an authorized
service facility for examination and/or repair.
6. D o Not run cord under carpeting. Do Not cover cord with throw rugs, runners or similar
coverings. Do Not route cord under furniture or appliance. Arrange cord away from traffic
area and where it will not be tripped over.
A. Your cooler must be positioned in front of an open window or door if it is to operate effectively.
B. A lways ensure that there is another open window or door through which the air can exhaust from the room
C. E nsure the filter is kept clean throughout the summer season.
D. At the end of each day run your cooler on FAN ONLY for 30 minutes to dry out the filter.
E. Prior to putting your cooler away for winter, always:
(a)Drain the tank and wipe out clean.
(b)C lean the filter.
(c)R eassemble and run on FAN O NLY for 30 minutes to dry out the filter.

Louver Timer Humid Cool PowerAir
直接连接外部水源，无需加水。
C.
1.Slip the clips as Pic indicate,take off
the dust filter;
3.Pull up and take down the back pannel; 4.Take out the cooling pad and clean it;
2.Follow step B and take off the top
cover,use the key hanging in the wire
to unscrew the fixing screws;
A.Control
B.Filling Ice
1. Touch to turn ON or OFF the cooler;
2. Touch to adjust air speed;
3. Touch to turn ON or OFF the Louver Swing;
4. Touch and turn ON or OFF the cooling function.If the Low-water Indicator light on warning
the water pump stop working,please filling water in time.
5.
6. Touch to set the timing function 1-7 hours.
1. 2.
D.Drain Water
High SpeedMid SpeedLow Speed
Low-Water Indicator
Receiver
Press the clips in top cover
and slide them up to unlock.
Slide back the top cover,then
fill the ice or ice crystal in the
box.
ice or ice crystal
Clean The Cooling Pad
(warning：Be aware to unplug the cooler before any maintainence.)
Unscrew the drain cap as Pic,lean
back the cooler body and drain
empty the water.
If the humidity of the circumstance is high,please touch and turn ON or OFF the humid
adjust function.when humidity-control ON,the pump will be in acircle of 20mins’ Pump-ON
and 20mins’Pump-OFF;
Operation
Installation method
Caster assembling
Take out the 4 casters and fix them as
Pic indicates,Make sure the 2casters-
with-lock be in the direction of front
pannel,Go to next step after the cooler
moving smoothly.
