Miele KWFN 8706 SE ED-1 User manual

Operating and installation instructions
Frost free freezer
with wine cooler
and ice cube maker
KWFN 8706 SE ed-1
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
G
M.-Nr. 06 785 780

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wine cooler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Freezer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching off for longer periods of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Temperature displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Temperature display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Temperature alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Door alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switching on the alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switching the alarm off early . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the wine cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the temperature in the wine cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Dynamic cooling m. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Switching on Dynamic cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Switching off Dynamic cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Storing wine bottles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wooden shelf fronts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Descriptive labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the freezer section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the temperature in the freezer section. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Freezer section temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Freezing fresh food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Super freeze. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Switching on Super freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Switching off Super freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents

Freezing and storing food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Maximum freezing capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Storing frozen food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Home freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Hints on home freezing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Packing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Before placing food in the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . 27
Placing food in the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Freezer calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Marker system for frozen food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cooling drinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Freezer tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cool pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Ice cube maker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning the outer casing, the interior and accessories . . . . . . . . . . . . . . . . . . . . 33
Cleaning the ice cube tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Ventilation gaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Door seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Metal grille at the back of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Mains water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Notes on connecting to the mains water supply . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Connection to the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Climate range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Aligning the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Contents

Installing in a side-by-side combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Joining the two appliances together . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Changing the door hinging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Contents

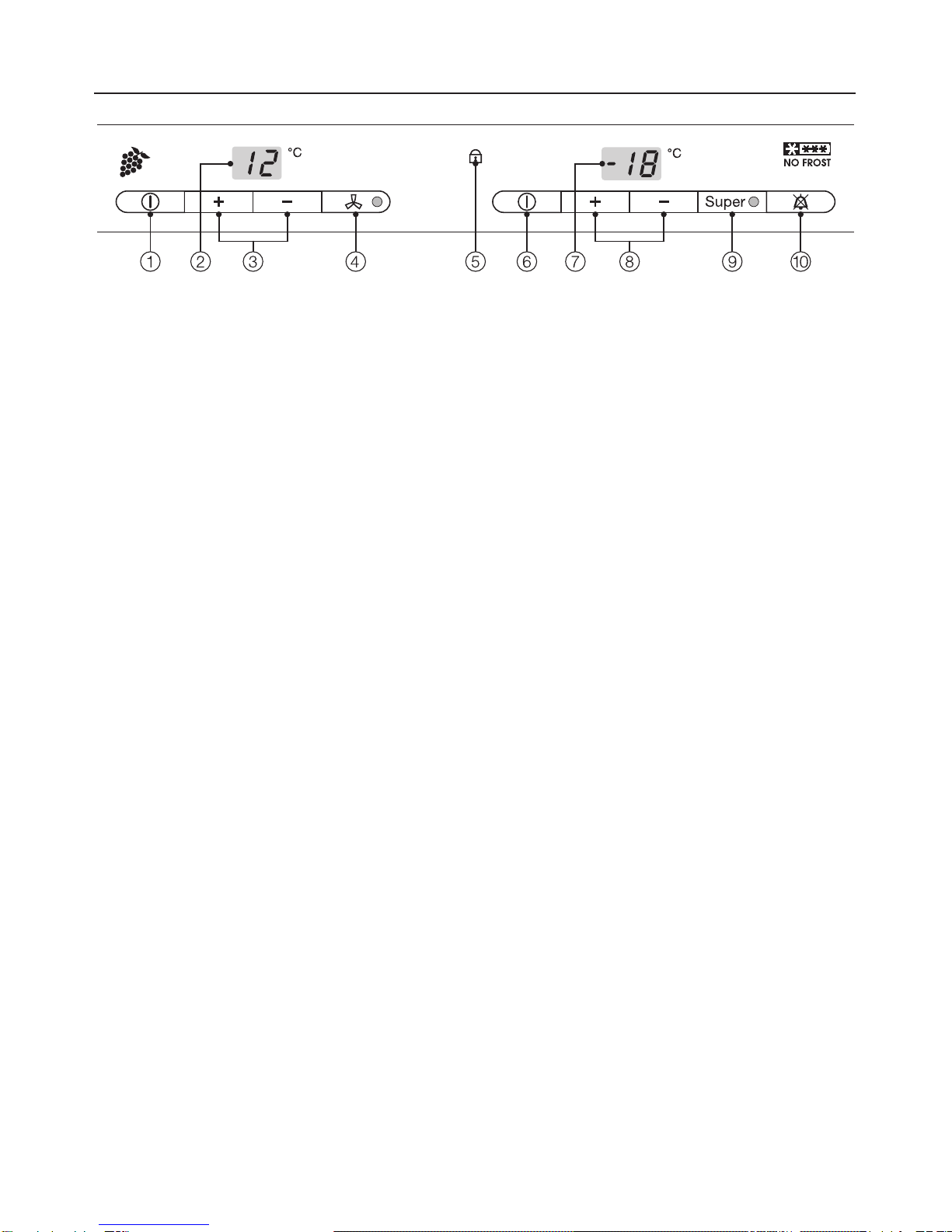

aWine cooler On/Off button
bWine cooler
temperature display
cWine cooler
temperature selector buttons
left hand button: warmer
right hand button: colder
dDynamic cooling / constant humidity
button and indicator light
eSafety lock indicator light
fFreezer section On/Off button
gFreezer section temperature display
hFreezer section
temperature selector buttons
left hand button: warmer
right hand button: colder
iSuper freeze button and indicator
light
jAlarm off button
Description of the appliance
5

aWooden shelf front with descriptive
labels
bActive charcoal filter
cCondensate channel and
drain hole
dIce cube drawer with
automatic ice cube maker
eFreezer drawers with
freezer calendar
fMarker system for frozen food
Description of the appliance
6

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Please ensure that the appliance
presents no danger to children while
being stored for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind the
appliance to prevent misuse. See the
"Warning and Safety" section of this
booklet for further details.
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please dispose of your old appliance at
your local community waste collection /
recycling centre and not with your
household waste.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
7

This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
Before installation and before using
for the first time, read the operating
instructions carefully. They contain
important notes on installation,
safety, operation and care of the
appliance. This way you will avoid
the risk of accidents and damage to
the appliance.
This appliance is not a toy! To avoid
the risk of injury, do not allow
children to play on or near it, or to
play with the controls. Supervise its
use by the elderly or infirm
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct use
This appliance is intended for
domestic use only for storing wine
as well as for storing deep frozen food,
freezing fresh food and for preparing
ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage caused by
incorrect or improper use of the
appliance.
Technical safety
This appliance contains the coolant
Isobutane (R600a), a natural gas
which is environmentally friendly.
Although it is flammable, it does not
damage the ozone layer and does not
increase the greenhouse effect. The
use of this environmentally friendly
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:
- avoid open fires and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department
for advice.
The more refrigerant there is in an
appliance, the larger the room it
should be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every 8 g of coolant at least 1 m3
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
Warning and Safety instructions
8

Before connecting the appliance to
the mains supply make sure that
the rating on the data plate
corresponds to the voltage and
frequency of the household supply. This
data must correspond in order to avoid
risk of damage to the appliance. If in
any doubt, consult a qualified
electrician.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system, which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested and where there is any doubt
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Safe operation of the appliance is
only assured if it has been installed
and connected in accordance with
these operating and installation
instructions.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Installation work, maintenance and
repairs may only be carried out by
suitably qualified and competent
persons to ensure safety.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
The manufacturer cannot be held
liable for damage due to a faulty
connection to the mains water supply.
Connection to the mains water
supply and any repairs to the ice
cube maker must only be carried out by
a suitably qualified and competent
person.
The ice cube maker is not suitable
for connection to a hot water
supply.
Before making plumbing
connections, ensure the appliance
is disconnected from the mains
electricity supply.
The appliance is only completely
isolated from the electricity supply
when:
– it has been switched off at the wall
socket and the plug removed,
– the fuse from the fused spur
connection unit is withdrawn, or
–the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Warning and Safety instructions
9

Use
Never handle frozen food with wet
hands. Your hands may freeze to
the frozen food. Danger of injury.
Do not use any electrical
equipment in this appliance, e.g.
ice cream makers. Danger of sparking
and explosion!
Do not take ice cubes out with your
bare hands and never place ice
cubes or ice lollies in your mouth
straight from the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.
Do not refreeze thawed or partially
thawed food. Defrosted food
should be used up as quickly as
possible as food soon loses its
nutritional value and goes off. Defrosted
food may only be re-frozen after it has
been cooked.
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard.
If storing alcohol with a high
percentage proof, make sure it is
tightly closed and stored upright.
Danger of explosion.
Do not store cans or bottles
containing carbonated drinks or
liquids which could freeze in the
freezer. The cans or bottles could
explode.
Danger of injury and damage to the
appliance.
When cooling drinks quickly in the
freezer make sure bottles are not
left in for more than one hour, otherwise
they could burst. Danger of injury and
damage to the appliance.
Observe the "use by" dates given
on food to avoid the risk of food
poisoning.
Storage times will depend on several
factors including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer’s packaging on storage
conditions required as well as the "use
by" date.
Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods and remove
ice trays.
They will damage the evaporator
causing irreversible damage to the
appliance.
Never place electric heaters or
candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays, or
de-icers as they could contain
substances which could damage the
plastic parts and which may cause the
build up of gases and pose a danger to
health.
Do not use any oils or grease on
the door seals as these will cause
the seals to deteriorate and become
porous with time.
Warning and Safety instructions
10

Do not block the ventilation grilles
in the appliance as this would
impair the efficiency of the appliance,
increase the electricity consumption
and could cause damage to the
appliance.
The appliance is designed for use
within certain climate ranges
(ambient temperatures) and should not
be used outside this range. The climate
range for your appliance is stated on
the data plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
Never use a steam-cleaning
appliance to defrost or clean this
appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surrounding in a
clean condition at all times. Any
damage caused by cockroaches or
vermin will not be covered by the
appliance guarantee.
Disposal of your old appliance
Before disposing of an old
appliance first make the door latch
or lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
Before disposing of an old
appliance, unplug it and render the
plug unusable. Cut off the cable
directly behind the appliance and at the
plug to prevent misuse.
Be careful not to damage any part
of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and safety instructions.
Warning and Safety instructions
11

Normal energy consumption Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Situated near to a heat source
(radiator, oven).
Where the ambient room
temperature is ideal at approx.
20°C.
Where there is a high ambient
room temperature.
Temperature setting with
a thermostat which is
approximate (set in
stages).
With a medium setting of 2 to 3. With a high setting: The lower the
temperature in the appliance, the
higher the energy consumption.
Temperature setting with
a thermostat which is
exact to the degree
(digital display).
Cellar section 8 to 12°C On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.
Refrigerator section 4 to 5 °C
StayFresh zone just above 0 °C
Freezer section -18°C
Use Only open the door when
necessary and for as short a time
as possible.
Frequent opening of the door for
long periods will cause a loss of
coldness.
Store food in an organised way. If food is not stored in an
organised way, searching for an
item will mean the door is open for
longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Placing hot food in the appliance
will cause the compressor to run
for a long time, as the appliance
will have to work harder to lower
the temperature.
Store food covered or packaged. The evaporation or condensation
of liquids will cause a loss of
coldness in the refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance to
allow air to circulate.
How to save energy
12

Normal energy
consumption Increased energy
consumption
Defrosting Defrost the freezer when a layer of
ice one centimetre thick has built
up.
A layer of ice hinders the cold
from reaching the frozen food, and
causes an increase in energy
consumption.
How to save energy
13

Before using for the first time
The stainless steel surface has a layer
of protective foil to prevent scratching
during transportation.
^Do not remove this foil until the
appliance has been installed or built
in. Start at one of the upper corners.
^Clean stainless steel surfaces with a
suitable conditioning agent for
stainless steel.
^Clean the inside of the appliance and
the accessories with warm water and
a little washing up liquid, and then
dry with a soft cloth.
Important:
To ensure the correct functioning of
the appliance, let it stand for
between 1½ and 2 hour after
transporting it to its final location
before connecting it to the mains.
Switching on
The wine cooler and freezer section are
switched on independently of one
another so that, if required, you can
switch on only one.
Wine cooler
^Press the wine cooler On/Off button
on the left hand side of the control
panel.
The wine cooler temperature display
will light up and the wine cooler starts
cooling.
Freezer section
^Press the freezer section On/Off
button on the right hand side of the
control panel.
Bars light up in the freezer section
temperature display and the freezer
section starts cooling.
Allow the appliance to run for a few
hours before placing food in it. This will
ensure that the temperature is
sufficiently low.
Cool pack
Place the cool pack in the top freezer
drawer or to save space on the freezer
tray. The cool pack will be at its most
effective after it has been in the freezer
for approx. 24 hours.
Switching off
^Press the appropriate On/Off button
until the temperature display goes
out.
The cooling system is switched off. If
this does not happen, then the safety
lock has been activated.
Switching on and off
14

Safety lock
The safety lock can be activated to
prevent the appliance being switched
off inadvertently.
Activating or de-activating the safety
lock
^Press and hold the Super freeze
button for approx. 5 seconds.
The Super freeze indicator light flashes
and a ;flashes in the temperature
display.
^Press the Super freeze button again.
;lights up in the temperature display.
^You can now choose between ;0
and ;1by pressing the temperature
selector buttons:
0: the safety lock is de-activated,
1: the safety lock is activated.
^Press the Super freeze button to save
the setting.
The safety lock indicator light Xwill
light up when the safety lock has been
activated.
^Press the freezer section On/Off
button to come out of the setting
mode.
The electronics will then switch over to
normal operation after a couple of
minutes.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday,
^switch the appliance off,
^switch off at the wall socket and
withdraw the plug,
^close the stopcock for the water inlet,
^clean the appliance out and
^leave the doors ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the doors are left
shut, there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
15

During normal operation the
temperature displays show the average
temperature in the wine cooler and the
temperature in the warmest part of the
freezer section.
If the temperature in the appliance is
not within the range that the appliance
is able to display (above 0 °C in the
wine cooler, and below 0 °C in the
freezer section), bars will flash in the
temperature displays.
Depending on the ambient temperature
and the setting, it can take the
appliance up to 8 hours to reach the
temperature required and for this
temperature to then be shown as a
constant temperature in the display.
The temperature displays flash, if
– a different temperature is being set,
– the temperature in the wine cooler is
too low,
– the temperature in the appliance has
risen by several degrees, indicating
that the appliance is warming up too
much.
A loss of coldness in the freezer section
is no cause for concern in the following
circumstances:
–when the door has been left open for
a while, e.g. for removing or storing a
large amount of food,
–when freezing large amounts of food
at once,
–if the temperature of the food you
have recently placed in the freezer
section is too warm,
–if the ambient temperature
surrounding the appliance is too
high.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
Temperature display brightness
The appliance is supplied with the
brightness of the temperature display
set as low as possible. However, if the
door is opened, a setting changed or if
the alarm is sounding, the temperature
display will appear much brighter for
approx. 1 minute.
You can adjust the level of brightness:
^Press and hold the Super freeze
button for approx. 5 seconds.
The Super freeze indicator light flashes
and a ;flashes in the temperature
display.
^Press one of the temperature selector
buttons repeatedly until an ^appears
in the display.
^Press the Super freeze button again.
^lights up in the temperature display.
Temperature displays
16

^You can now adjust the level of
brightness by pressing the
temperature selector buttons. You
can choose from settings 1to 5:
1: lowest setting,
5: brightest setting.
^Press the Super freeze button to save
the setting.
^Press the freezer section On/Off
button to come out of the setting
mode.
The electronics will then switch over to
normal operation after a couple of
minutes.
Temperature displays
17

Your appliance has been fitted with a
warning system to protect your stored
wine and frozen food from a change in
temperature and also to save energy.
Temperature alarm
An alarm will sound and the relevant
temperature display will flash, if the
temperature in the wine cooler is too
cold or too warm or if the temperature
in the freezer section is not cold
enough.
The temperature the appliance is set at
determines the temperature the
appliance recognises as being too
warm or too cold.
The alarm will sound and the relevant
temperature display will also flash:
– when freezing large amounts of food
at once.
– if the doors have been left open for a
while, e.g. in order to load, to
re-arrange or to take out frozen food
or wine bottles.
The temperature display continues to
flash until the set temperature has been
reached.
Door alarm
If one of the doors has been left open
for more than approx. 60 seconds the
alarm will sound.
The alarm will stop as soon as the door
is closed.
Switching on the alarm system
The alarm system is always active. It
does not have to be switched on
manually.
Switching the alarm off early
Once the set temperature has been
reached in the wine cooler or the
freezer section, the alarm switches off
and the temperature display stops
flashing and lights up constantly.
However, if the noise disturbs you, you
can turn the alarm off before this if you
wish.
^Press the alarm off button.
The alarm will stop. The relevant
temperature display will continue to
flash until the set temperature has
been reached. The display then
stops flashing and lights up
constantly. The alarm system is now
ready should it be needed again.
Alarm
18

Wine keeps on maturing depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will depend on the
temperature but also the air humidity.
The correct temperature
Wine can be stored at a temperature
between 5°C and 18°C. The optimum
temperature is around 8 - 12°C. Most
white wines can be consumed at this
temperature. It is best to take red wine
out of the wine cooler about two hours
before drinking. Open the wine to allow
it to breathe and to develop its aroma.
After two hours red wine will be at the
correct temperature for drinking.
If wine is stored at a temperature above
22°C it will mature too quickly. Wine
should not be stored below 5°C for a
long period of time as it will not mature
fully at this low temperature.
Fluctuations in temperature put wine
under stress and interrupt the maturing
process. It is therefore very important
to maintain a constant temperature.
Safety feature
A thermostat prevents the temperature
in the wine cooler falling below 2°C. If
the external temperature should drop
below this level, a heater element in the
appliance switches on automatically to
keep the temperature inside as
constant as possible.
Setting the temperature in the
wine cooler
Use the two buttons underneath wine
cooler temperature display to set the
temperature.
Press the
left hand button: to raise the
temperature
right hand button: to reduce the
temperature.
The temperature being set will flash in
the display.
After setting the temperature you can
see the following information in the
display by pressing the +/- buttons:
– When first pressed: the last
temperature selected flashes.
– Each subsequent press of the button
adjusts the temperature shown in
1 °C steps.
–Keeping the button pressed in
adjusts the temperature continually.
Approx. 5 seconds after letting go of
the button, the current actual
temperature of the wine cooler is
automatically shown.
Temperature range
The temperature can be adjusted from
5 °C to 18 °C.
Using the wine cooler
19

Humidity
It is very important to store wine in an
atmosphere with a high humidity level
(60 - 70 %) so that the corks remain
moist on the outside. A refrigerator with
its low humidity level is therefore not the
best place to store wine. At a low
humidity level corks dry out from the
outside and so do not seal the bottles
as tightly. This is why wine always has
to be stored on its side so that the wine
keeps the corks moist from the inside
too. Air entering the bottle will inevitably
spoil the wine.
Useful tip: Before serving, stand the
wine upright for at least two hours, or
the entire day if possible, to allow any
sediment to settle at the bottom of the
bottle.
Dynamic cooling m
With Dynamic cooling the relative
humidity inside the wine cooler and the
temperature are distributed evenly
around the interior which enables you
to store all your wine under the exactly
the same excellent conditions.
The fan will switch itself on
automatically at regular intervals to
ensure that the humidity level in the
wine cooler remains constant.
Switching on Dynamic cooling
^For a constant circulation of air inside
the wine cooler, press the Dynamic
cooling button m. The indicator light
will come on.
Switching off Dynamic cooling
Because the appliance uses more
energy when Dynamic cooling is
switched on, it should not be left
switched on all the time.
^To switch it off, press the Dynamic
cooling button m. The indicator light
will go out.
The fan automatically switches off
whilst the door is open.
Using the wine cooler
20
