Philco PFN 238 EX JOKER User manual

FREEZER
USER’S MANUAL
PFN 238 EX JOKER
PFN 238 EW JOKER

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read
all the instructions in this user‘s manual.
Copyright © 2020, Fast ČR, a. s. Revision 01/2023

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 1
CONTENTS
1. SAFETY INFORMATION................................................................................................................................2
2. PROPER USE OF REFRIGERATORS............................................................................................................10
PLACEMENT.......................................................................................................................................................................................10
DOOR HANDLE INSTALLATION..................................................................................................................................................12
LEVELLING FEET...............................................................................................................................................................................13

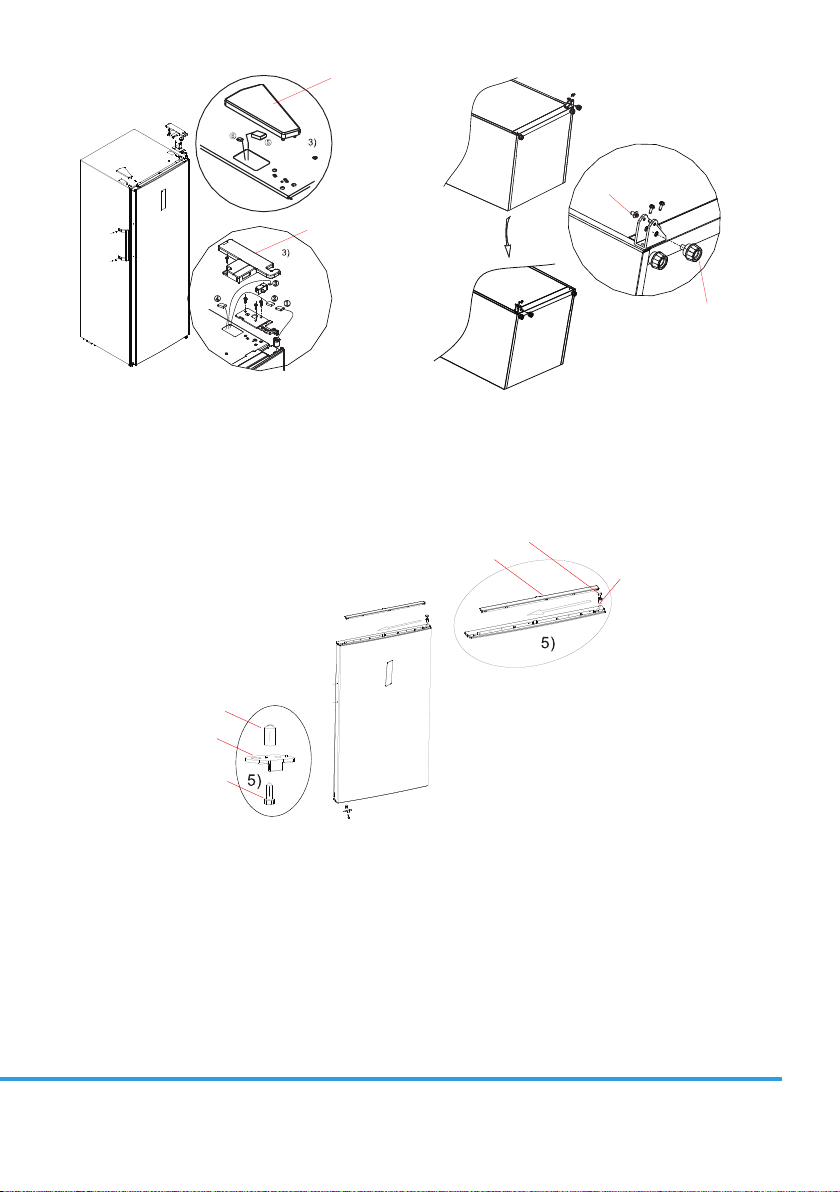

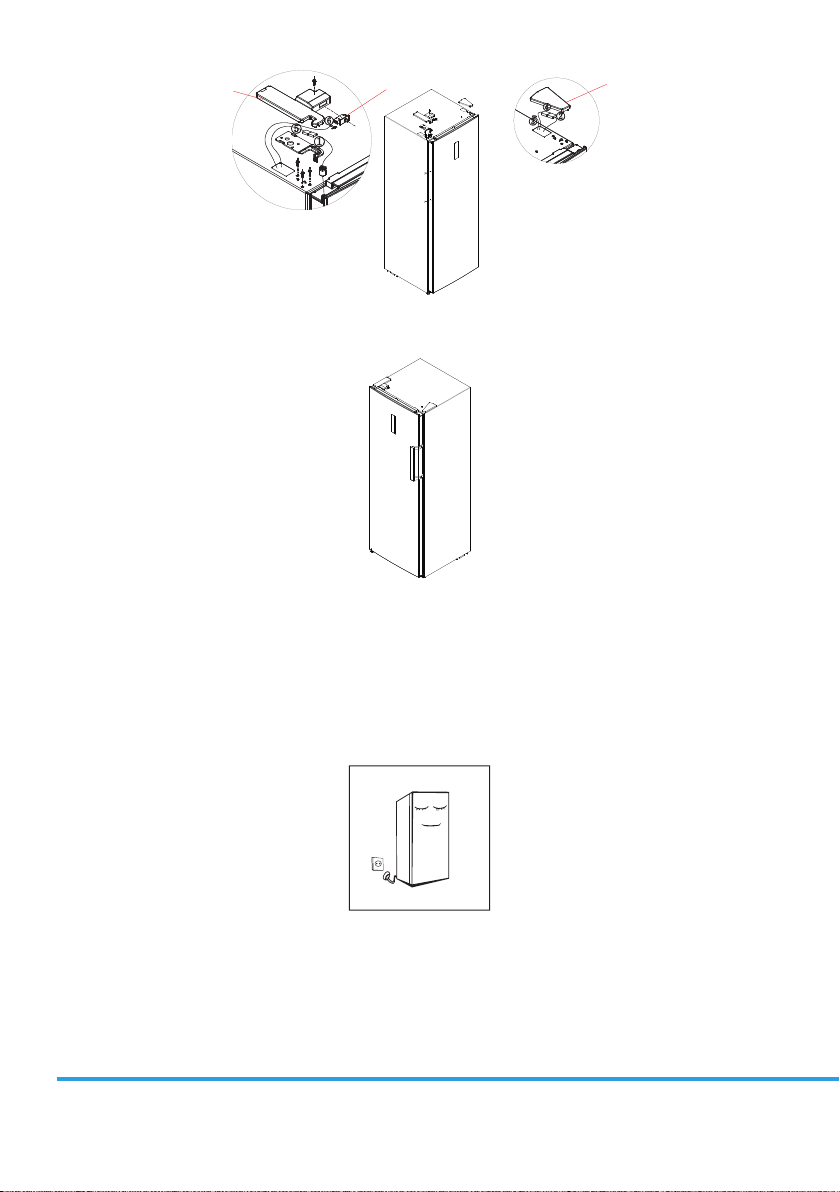

DOOR RIGHTLEFT CHANGE OPTIONAL.............................................................................................................................14
STARTING............................................................................................................................................................................................16
ENERGY SAVING TIPS.....................................................................................................................................................................17
CLIMAT E CLASSES..........................................................................................................................................................................17
3. STRUCTURE AND FUNCTIONS..................................................................................................................18
KEY COMPONENTS.........................................................................................................................................................................18
FUNCTIONS........................................................................................................................................................................................19
4. MAINTENANCE AND CARE OF THE REFRIGERATOR...............................................................................21
OVERALL CLEANING ......................................................................................................................................................................21
DEFROSTING .....................................................................................................................................................................................22
OUT OF OPERATION.......................................................................................................................................................................22
STORAGE INSTRUCTIONS ............................................................................................................................................................23
5. TROUBLESHOOTING..................................................................................................................................25
6. PRODUCT INFORMATION SHEET .............................................................................................................26
TECHNICAL INFORMATION.........................................................................................................................................................28
TESTING INFORMATION................................................................................................................................................................28
CUSTOMER CARE AND SERVICE................................................................................................................................................28
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS........29
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES ............................................................................29
This appliance has been tested in accordance with the directives in force in the European Union.
This appliance conforms to the relevant safety provisions for electrical appliances in force in the
European Union.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 2
1. SAFETY INFORMATION
FOR YOUR SAFETY AND CORRECT USAGE, BEFORE
INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER
MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO
AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS
IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE
APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION
AND SAFETY FEATURES. SAVE THESE INSTRUCTIONS AND BE
SURE THAT THEY REMAIN WITH THE APPLIANCE IF IT IS MOVED
OR SOLD,SO THAT ANYONE USING IT THROUGHOUT ITS LIFE,WILL
BE PROPERLY INFORMED ON ITS USAGE AND SAFETY NOTICES.
FOR THE SAFETY OF LIFE AND PROPERTY,KEEP THE
PRECAUTIONS OF THESE USER'S INSTRUCTIONS AS THE
MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES CAUSED
BY OMISSION.
●THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8
YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE
AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR
INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE
WAY AND UNDERSTAND THE HAZARDS INVOLVED.
●CHILDREN AGED FROM 3 TO 8 YEARS ARE ALLOWED TO LOAD
AND UNLOAD REFRIGERATING APPLIANCES.
●CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.
●CLEANING AND USER MAINTENANCE CANNOT BE PERFORMED
BY CHILDREN WITHOUT SUPERVISION.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 3
●IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A
SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS
SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE
SUPPLY CABLE IS DAMAGED.
●CAUTION: IF YOUR MODEL IS EQUIPPED WITH AN ICE MAKER
WITHOUT WATER SUPPLY CONNECTION, FILL IT WITH DRINKING
WATER ONLY.
●WARNING: KEEP VENTILATION OPENINGS,IN THE APPLIANCE
ENCLOSURE OR IN THE BUILTIN STRUCTURE,CLEAR OF
OBSTRUCTION.
●WARNING: DO NOT USE MECHANICAL DEVICES OR OTHER
MEANS TO ACCELERATE THE DEFROSTING PROCESS,OTHER THAN
THOSE RECOMMENDED BY THE MANUFACTURER.
●WARNING: DO NOT DAMAGE THE REFRIGERANT CIRCUIT.
●WARNING: DO NOT USE ELECTRICAL APPLIANCES INSIDE THE
FOOD STORAGE COMPARTMENTS OF THE APPLIANCE,UNLESS
THEY ARE OF THE TYPE RECOMMENDED BY THE MANUFACTURER.
●WARNING: DO NOT STORE EXPLOSIVE SUBSTANCES SUCH
AS AEROSOL CANS WITH A FLAMMABLE PROPELLANT IN THIS
APPLIANCE.
ISO 70001701 MARK 200401
LABELS MEDIA UNDER PRESSURE..

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 4
THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND
SIMILAR PREMISES, SUCH AS:
 KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES;
APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER
ACCOMMODATION FACILITIES; APPLIANCES USED IN BEDAND
BREAKFAST FACILITIES; APPLIANCES USED IN CATERING AND
OTHER SIMILAR NONVENDING ENVIRONMENTS.
ONLY SOME REFRIGERATOR MODELS ARE EQUIPPED WITH ICE
MAKER. INTEGRATED ICE MAKERS MUST BE INSTALLED BY THE
MANUFACTURER OR ITS SERVICING ORGANIZATION ONLY.
●THE FOLLOWING GOES FOR SELECTED MODELS EQUIPPED
WITH AN ICE MAKER WITH WATER CONNECTION: CAUTION: CAN
ONLY BY CONNECTED TO DRINKING WATER SUPPLY.
●CAUTION: THE APPLIANCE MUST BE FASTENED IN
ACCORDANCE WITH THE MANUAL TO PREVENT DANGER CAUSED
BY ITS INSTABILITY.
●CAUTION:THE COOLING SYSTEM CONTAINS REFRIGERANT
UNDER HIGH PRESSURE. DO NOT MANIPULATE WITH THE SYSTEM.
THE SYSTEM MAY BE REPAIRED BY AUTHORIZED PERSONS ONLY.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 5

WARNING :
RISK OF FIRE / FLAMMABLE MATERIALS
CONTAINS COOLING GAS ISOBUTANE
R600A
REFRIGERANT
THE REFRIGERANT ISOBUTENE R600A IS CONTAINED WITHIN
THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS
WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH
IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION
AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF
THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES
DAMAGED. THE REFRIGERANT R600A IS FLAMMABLE.
●WARNING  REFRIGERATORS CONTAIN REFRIGERANT AND
GASES IN THE INSULATION. REFRIGERANT AND GASES MUST
BE DISPOSED OF PROFESSIONALLY AS THEY MAY CAUSE
EYE INJURIES OR IGNITION. ENSURE THAT TUBING OF THE
REFRIGERANT CIRCUIT IS NOT DAMAGE PRIOR TO PROPER
DISPOSAL.
THE SYMBOL

IS A WARNING AND INDICATES THE
REFRIGERANT AND INSULATION BLOWING GAS ARE FLAMMABLE.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 6
WARNING : RISK OF FIRE / FLAMMABLE MATERIALS
IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED:
 AVOID OPENING FLAMES AND SOURCES OF IGNITION.
 THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE
IS SITUATED.
IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY
THIS PRODUCT IN ANY WAY.
ANY DAMAGE TO THE CORD MAY CAUSE A SHORT CIRCUIT, FIRE,
AND/OR ELECTRIC SHOCK.
●CAUTION: THE COOLING SYSTEM CONTAINS REFRIGERANT
UNDER HIGH PRESSURE. DO NOT MANIPULATE WITH THE
SYSTEM.
THE SYSTEM MAY BE REPAIRED BY AUTHORIZED PERSONS ONLY.
●CAUTION:WHEN PLACING THE APPLIANCE IT MUST BE ENSURED
THAT THE SUPPLY CORD DOES NOT GET CAUGHT OR DAMAGED.
●CAUTION:DO NOT PLACE PORTABLE MULTIPLE SOCKET-
OUTLETS OR PORTABLE EXTENSION CABLES TO THE REAR SIDE OF
THE APPLIANCE.
ELECTRICAL SAFETY
1. THE POWER CORD MUST NOT BE LENGTHENED.
2. MAKE SURE THAT THE POWER PLUG IS NOT CRUSHED OR
DAMAGED.
A CRUSHED OR DAMAGED POWER PLUG MAY OVERHEAT AND
CAUSE A FIRE.
3. MAKE SURE THAT YOU CAN ACCESS THE MAIN PLUG OF THE
APPLIANCE.
4. DO NOT PULL THE MAIN CABLE.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 7
5. IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE
POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE.
6. YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE
INTERIOR LIGHTING LAMP COVER.
7. THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF
SINGLE PHASE ALTERNATING CURRENT OF 220~240V/50HZ.
IF FLUCTUATION OF VOLTAGE IN THE DISTRICT OF USER IS SO
LARGE THAT THE VOLTAGE EXCEEDS THE ABOVE SCOPE,FOR
SAFETY SAKE, BE SURE TO APPLY A.C. AUTOMATIC VOLTAGE
REGULATOR OF MORE THAN 350W TO THE FRIDGE.
THE FRIDGE MUST EMPLOY A SPECIAL POWER SOCKET INSTEAD
OF COMMON ONE WITH OTHER ELECTRIC APPLIANCES. ITS PLUG
MUST MATCH THE SOCKET WITH GROUND WIRE.
DAILY USE
●DO NOT STORE FLAMMABLE GAS OR LIQUIDS IN THE
APPLIANCE, THERE IS A RISK OF AN EXPLOSION.
●DO NOT OPERATE ANY ELECTRICAL APPLIANCES IN THE
APPLIANCE E.G. ELECTRIC ICE CREAM MAKERS,MIXERS ETC..
●WHEN UNPLUGGING ALWAYS PULL THE PLUG FROM THE
MAINS SOCKET,DO NOT PULL ON THE CABLE.
●DO NOT PLACE HOT ITEMS NEAR THE PLASTIC COMPONENTS
OF THIS APPLIANCE.
●DO NOT PLACE FOOD PRODUCTS DIRECTLY AGAINST THE AIR
OUTLET ON THE REAR WALL.
●STORE PREPACKED FROZEN FOOD IN ACCORDANCE WITH THE
FROZEN FOOD MANUFACTURE’S INSTRUCTIONS.
●THE APPLIANCES MANUFACTURES STORAGE
RECOMMENDATIONS SHOULD BE STRICTLY ADHERED TO. REFER
TO RELEVANT INSTRUCTIONS FOR STORAGE.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 8
●DO NOT PLACE CARBONATED OR FIZZY DRINKS IN THE
FREEZER COMPARTMENT AS IT CREATES PRESSURE ON THE
CONTAINER,WHICH MAY CAUSE IT TO EXPLODE,RESULTING IN
DAMAGE TO THE APPLIANCE.
●FROZEN FOOD CAN CAUSE FROST BURNS IF CONSUMED
STRAIGHT FROM THE FREEZER COMPARTMENT.
●DO NOT PLACE THE APPLIANCE IN DIRECT SUNLIGHT.
●KEEP BURNING CANDLES,LAMPS AND OTHER ITEMS WITH
NAKED FLAMES AWAY FROM THE APPLIANCE SO THAT DO NOT
SET THE APPLIANCE ON FIRE.
●THE APPLIANCE IS INTENDED FOR KEEPING FOOD STUFF AND/
OR BEVERAGES IN NORMAL HOUSEHOLD AS EXPLAINED IN THIS
INSTRUCTION BOOKLET. YOU SHOULD TAKE CARE WHEN MOVE
IT AS THE APPLIANCE IS HEAVY.
●DO NOT REMOVE OR TOUCH ITEMS FROM THE FREEZER
COMPARTMENT IF YOUR HANDS ARE DAMP/WET, AS THIS COULD
CAUSE SKIN ABRASIONS OR FROST/FREEZER BURNS.
●NEVER USE THE BASE,DRAWERS,DOORS ETC. TO STAND ON OR
AS SUPPORTS.
●FROZEN FOOD MUST NOT BE REFROZEN ONCE IT HAS BEEN
THAWED OUT.
●DO NOT CONSUME ICE POPSICLES OR ICE CUBES STRAIGHT
FROM THE FREEZER AS THIS CAN CAUSE FREEZER BURN TO THE
MOUTH AND LIPS.
●TO AVOID ITEMS FALLING AND CAUSING INJURY OR DAMAGE
TO THE APPLIANCE,DO NOT OVERLOAD THE DOOR RACKS OR
PUT TOO MUCH FOOD IN THE CRISPER DRAWERS.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 9
INSTALLATION
IMPORTANT!
●FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE
INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE
AND CHECK IF THERE ARE DAMAGES ON IT.
●DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT
POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT
IT. IN THIS CASE RETAIN PACKING.
●IT IS ADVISABLE TO WAIT AT LEAST FOUR HOURS BEFORE
CONNECTING THE APPLIANCE TO ALLOW THE OIL TO FLOW BACK
IN THE COMPRESSOR.
●ADEQUATE AIR CIRCULATION SHOULD BE AROUND THE
APPLIANCE, LACKING THIS LEADS TO OVERHEATING. TO
ACHIEVE SUFFICIENT VENTILATION, FOLLOW THE INSTRUCTIONS
RELEVANT TO INSTALLATION.
●WHEREVER POSSIBLE THE BACK OF THE PRODUCT SHOULD
NOT BE TOO CLOSE TO A WALL TO AVOID TOUCHING OR
CATCHING WARM PARTS COMPRESSOR, CONDENSER TO
PREVENT THE RISK OF A FIRE, FOLLOW THE INSTRUCTIONS
RELEVANT TO INSTALLATION.
●THE APPLIANCE MUST NOT BE LOCATE CLOSE TO RADIATORS
OR COOKERS.
●MAKE SURE THAT THE MAINS PLUG IS ACCESSIBLE AFTER THE
INSTALLATION OF THE APPLIANCE.
●PLACE ALL PACKAGING MATERIALS OUT OF THE REACH OF
CHILDREN, THERE IS A RISK OF SUFFOCATION.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 10
2. PROPER USE OF REFRIGERATORS
Placement
• Beforeuse,removeallpackingmaterials,includingbottomcushions,foampadsandtapesinsideofthe
refrigerator; tear o the protective lm on the doors and the refrigerator body.
FP
• Keepawayfromheatandavoiddirectsunlight.Donotplacethefreezerinmoistorwateryplacesto
prevent rust or reduction of insulating eect.
• Donotsprayorwashtherefrigerator;donotputtherefrigeratorinmoistplaceseasytobesplashedwith
water so as not to aect the electrical insulation properties of the refrigerator.
FP
• Therefrigeratorisplacedinawell-ventilatedindoorplace;thegroundshallbeat,andsturdy(rotateleft
or right to adjust the wheel for levelling if unstable).
FP
• Thetopspaceoftherefrigeratorshallbegreaterthan10cm,therefrigeratorshouldbeplacedagainsta
wallwithafreedistancemorethan10cmonthebothsidetofacilitateheatdissipation,andthebackof
appliances is intended to be placed against a wall with a free distance not exceeding 7.5 cm.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 11
FP
• Spareenoughspaceforconvenientopeningofthedoorsanddrawersorstatementbythedistributor.
FP
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured that the refrigerator is
disconnected from power.
Precautionsshallbetakentopreventfallofthehandlefromcausinganypersonalinjury.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 12
Door handle installation
Precautionsshallbetakentopreventfallofthehandlefromcausinganypersonalinjury.
List of tools to be provided by the user
Cross screwdriver
1Screw hole
cover
2Screw hole
3Screw
4Screw cover
(Thepictureaboveisonlyforreference.Theactualcongurationwilldependonthephysicalproductor
statement by the distributor)
Assembly steps
a. Remove the screw hole caps 1from the door, and use cross screwdriver to x screws 3into the screw
hole 2tightly.
b. Assemble the screw hole caps 4on the screw hole of handle.
c. The reverse operation is for disassembly.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 13
Levelling feet
Schematic diagram of the levelling feet
(Thepictureaboveisonlyforreference.Theactualcongurationwilldependonthephysicalproductor
statement by the distributor)
Adjusting procedures:
a. Turnthefeetclockwisetoraisetherefrigerator;
b.Turnthefeetcounterclockwisetolowertherefrigerator;
c. Adjusttherightandleftfeetbasedontheproceduresabovetoahorizontallevel.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 14
Door Right-Left Change (Optional)
List of tools to be provided by the user
Cross screwdriver Puttyknifethin-blade
screwdriver
5/16"
socketandratchet Maskingtape
Parts to be used for door reverse
SN Parts Quantity Notes
1 Shaft sleave 1 Pre-installed on the refrigerator and to be used when
changing the door
2 Upper hinge screw 1 Pre-installed on the refrigerator and to be used when
changing the door
3 Right stopper 1 Pre-installed on the refrigerator, removed when the door is
reversed,andkeptforfutureuse
4 Hinge cover assembly 1 Pre-installed on the refrigerator, removed when the door is
reversed,andkeptforfutureuse
5 Pillar switch 1 Pre-installed on the refrigerator and to be used when
changing the door
6 Left hinge cover 1 Pre-installed on the refrigerator, removed when the door is
reversed,andkeptforfutureuse
7 Right upper hinge 1 Pre-installed on the refrigerator, removed when the door is
reversed,andkeptforfutureuse
8 Adjustable foot 1 Pre-installed on the refrigerator and to be used when
changing the door
9 Adjustable foot 3 Left upper hinge/Left upper hinge cover/Leftstopper
10 Lower hinge assembly 1 Pre-installed on the refrigerator and to be used when
changing the door
11 Lower hinge screw 2 Pre-installed on the refrigerator and to be used when
changing the door
12 End cover plate 1 Pre-installed on the refrigerator and to be used when
changing the door
13 End cover plate 1 Pre-installed on the refrigerator and to be used when
changing the door
1) Power o the refrigerator, and remove all objects from the door trays.
2) Dismantle the screw hole caps .screws and handle, and remove the plastic screw hole caps from the
other side please refer to chapter "Door handle installation".
3) Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other
side,unplugthewiringconnectorontherightsideofrefrigeratortop(1, 2, 3wiring connector).
4) Dismantlethedoorandrightbottomhingeassembly(hingeshaft&adjustablefoot&hinge),disassemble
the right bottom hinge assembly,and assemble the hinge shaft and adjustable foot on the other side of
hinge, then assemble the whole hinge assembly on the other side of refrigerator

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 15
Hole cover
Hinge cover
Hinge shaft
Adjustable foot
5) Remove the door upper cover, install the upper hinge sleeve , door signal line to the other side and install
the door upper cover.
Dismantle the right door stopper,sleeve pipe from the right bottom of door, insert the sleeve pipe into
hingeholeofleftbottomofdoor,andtakeoutleftdoorstopperfromtheaccessorybag,andassembleIt
on left bottom of door, the right door stopper could be reserved for future use.
Sleeve pipe
Door signal line
Door upper cover
Sleeve pipe
Stopper
Stopper screw
6) Takeoutofthelefttophinge,lefttophingecoverfromaccessoriespackage;
Place the door on bottom hinge, and mount left top hinge.
Dismantle the pillar switch from the hinge cover assembly, and palce on the left upper hinge cover;
Connect signal line terminal 5with signal line terminal 1, connect signal line terminal 6to the door
switch connect signal line terminal 2with signal line terminal 4; Mount top hinge cover and hole
cover.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 16
Hinge cover The door switch Hole cover
7) For the assembly of handle, please refer to chapter "Door handle installation".
Starting
• Beforeinitialstart,keeptherefrigeratorstillfortwohoursbeforeconnectingittopowersupply.
• Beforeputtinganyfreshorfrozenfoods,therefrigeratorshallhaverunfor2-3hours,orforabove4hours
in summer when the ambient temperature is high.
• Pleasepullouttheplugincaseofpowerfailureorcleaning.Donotconnectthefreezertopowersupply
within ve minutes to prevent damages to the compressor due to successive starts.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 17
Energy saving tips
• Theapplianceshouldbelocatedinthecoolestareaoftheroom,awayfromheatproducingappliancesor
heating ducts, and out of the direct sunlight.
• Lethotfoodscooltoroomtemperaturebeforeplacingintheappliance.Overloadingtheappliance
forcesthecompressortorunlonger.Foodsthatfreezetooslowlymaylosequality,orspoil.
• Besuretowrapfoodsproperly,andwipecontainersdrybeforeplacingthemintheappliance.
This cuts down on frost build-up inside the appliance.
• Appliancestoragebinshouldnotbelinedwithaluminumfoil,waxpaper,orpapertoweling.
 Linersinterferewithcoldaircirculation,makingtheappliancelessecient.
• Organizeandlabelfoodtoreducedooropeningsandextendedsearches.Removeasmanyitemsas
needed at one time, and close the door as soon as possible.
Climat e classes
Class Symbol Ambient temperatur e range °C
Extended temperate SN + 10 to + 32
Temperate N + 16 to + 32
Subtropical ST + 16 to + 38
Tropical T + 16 to + 43
Extended temperate:
This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.
Temperate:
This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.
Subtropical:
This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.
Tropical:
This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

Copyright © 2020, Fast ČR, a. s. Revision 01/2023
EN - 18
3. STRUCTURE AND FUNCTIONS
Key components
Drawer
(Thepictureaboveisonlyforreference.Theactualcongurationwilldependonthephysicalproductor
statement by the distributor)
Refrigerator
• Therefrigeratorissuitableforstorageofavarietyoffruits,vegetables,beveragesandotherfood
consumed in the short term,suggested storage time 3days to 5days.
• Cookingfoodsshallnotbeputintherefrigeratingchamberuntilcooledtoroomtemperature.
• Foodsarerecommendedtobesealedupbeforeputtingintotherefrigerator.
Freezer
• Thefreezermaykeepfoodfreshforalongtimeanditismainlyusedtostorefrozenfoodsandmaking
ice.
• Thefreezingchamberissuitableforstorageofmeat,sh,riceballsandotherfoodsnottobeconsumed
in short term.
• Chunksofmeatarepreferablytobedividedintosmallpiecesforquickfreezingandeasyaccess.
Please be noted food shall be consumed within the shelf time.
Drawers, food boxes, shelves, etc. placed according to the position in the picture above are the most
energyecient.
 Theappliancehasthefunctionofrefrigerator-freezertransition,byoperatingondisplaypanel,end-
consumerscouldselectrefrigeratororfreezerinaccordancewiththeirrequirement.
