CyberChill CB 85 User manual

1
Merchandising Range
Model: CB 85 –CB 145
OPERATING I N ST RUC TIO N S
CyberChill Pty
Ltd
PO Box 7200
Baulkham Hills BC
New South Wales
2153
AUSTRALIA
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.cyberchill. c om.au

2
TABLE OF CONTENTS
Introduction ……………………………………………………….…………………………………......... 2
Reference Information …………………………………………………………………………...….........2
Safety Precautions …………………………………………………………………………….…............ 3-4
Installation …………………………………………………………………………………….…………… 5
Product Parts and Features ……………………………………………………………….…………….. 6
How to Operate ………………………………………………………………………….………………... 6
Reversing the Door ………………………………………………………………………….…………….7
Proper Bottle cooler Care and Cleaning …………………………………………………..…………….8
Warranty ………………………………………………………………………………….………………...8
Circuit Diagram ……………………………………………………………………….……………………9
Compliance ………………………………………………………………………………………………...10
UK
INTRODUCTION
Thank you for choosing our bottle cooler. This unit is designed to improve your living and entertaining
comfort. With its silent operation and unique design, you will enjoy the convenience and comfort for
years to come.
Please read these instructions carefully before operating this appliance. When using this appliance,
always exercise basic safety precautions.
This easy-to-use manual will guide you to getting the best use of your bottle cooler.
REFERENCE INFORMATION
Please complete the following information for future reference. You will need
it to obtain warranty service.
Model Name*:
Serial Number *:
Date of Purchase:
Place of Purchase:
*The above information is written on the nameplate inside the cabinet. Retain this Owner’s Manual with your
sales receipt as a permanent record of your purchase.

3
CAUTION: RISK OF FIRE
FLAMMABLE REFRIGERANT R600a
Safety Precautions
Position the product on a flat, stable surface. Use adjustment leveling feet according to
instructions.
Always disconnect the machine from the power supply before removing any service panels or
performing any cleaning tasks.
The appliance is intended for indoor use as a packaged food and beverage cooler. It is for
commercial use only.
Do not use the appliance for other than its intended use.
Do not use if it is received damaged or becomes damaged during use. If you are in any doubt,
consult the service agents, BevWizz on 1300 720 660
Do not use any electrical appliances inside the appliance.
Keep clear of obstruction all ventilation openings on the appliance and ensure minimum
ventilation requirements are met, these are: The room for installing the appliance must be at least
1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is
noted on the Serial Plate of the appliance.
Do not use sharp objects to accelerate the defrosting process or for cleaning the interior.
Do not pierce the refrigerant circuit. The refrigerant is flammable and there is a risk of fire if it
escapes. Immediately ventilate the area if this happens.
Do not stand or support yourself on the base or shelves. Do not swing from the door.
Do not allow children to play with the packaging. Dispose or recycle the packaging in accordance
with the regulations of local authorities.
Always carry, store and handle the appliance in a vertical position and move by holding the base
of the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
suitably qualified and skilled persons in order to avoid a hazard. A skilled person is a person
having the appropriate technical training and experience necessary to be aware of hazards to
which he or she is exposed in performing a task and of measures necessary to minimize the
danger to his or herself or other persons.
Children should be supervised to ensure that they do not play with the appliance.
To guarantee safe operation, ensure that the appliance is set up and connected as described in
the instruction manual.
If the appliance develops a fault, please contact BevWizz on 1300 720 660 as they are authorised
to carry out the repair. Repairs by an unauthorised person is not permitted and will invalidate the
warranty.
Do not store explosive substances, such as aerosol cans with flammable propellant, in this
merchandiser.
Do not overload the power supply. Always ensure that the power supply is adequate for the
electrical requirements specified on the rating label. The rating label is located inside the
merchandiser on the right hand side wall. If in doubt, please consult a qualified electrician.
Caution: Never use extension leads or multiple adaptors.
It is hazardous for anyone other than an Authorised Service Person to service this
appliance. In Queensland –the authorised Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which involve
the removal of covers.

4
SAFETY PRECAUTIONS (Cont.)
Before you use your cooler please read this instruction manual carefully.
Use this appliance only for its intended purpose as described in this owner’s manual.
This cooler must be properly installed in accordance with the installation instructions before it is used.
Never unplug you cooler by pulling on the power cord. Always grasp the plug firmly and pull straight
out from the wall outlet.
1) Repair or replace immediately, all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the
connector end.
2) Unplug your cooler before cleaning or before making any repairs.
NOTE: If for any reason this product requires service, we strongly recommend that a certified
technician perform the service.
3) Do not operate your cooler in the presence of explosive fumes.
4) The power supply must be properly grounded.
5) Do not use an adapter plug or extension cord.
6) Do not use the unit in the immediate surroundings of a bath, shower or swimming pool.
7) Before discarding or storing, we recommend that you remove the door and leave the shelves in
place. This will reduce the possibility of danger to children.
8) Do not store food in cooler as the interior temperature may not be cool enough to prevent spoilage.
INSTALLATION
It is advisable to clean the inside of the cooler with lukewarm water using a mild detergent, and then to
dry it thoroughly prior to use.
The temperature in the appliance will depend on: The temperature in the room
The frequency and duration of periods when the door is open
How many items there are in the cooler.
It may therefore be necessary to adjust the thermostat from time to time.
The refrigeration system of the cabinet is designed to operate with the cabinet located on a flat
surface. Avoid tilting the cabinet side.
If the cabinet must be tilted on an angle for handling or moving purposes, allow it to sit in an upright
position 20 to 30 minutes prior to plugging it in and starting the cooling of the storage compartment.
Grounding plug and socket should be provided in accordance with local regulations. The cable-size
should meet the cooler’s requirements. The unit must be connected to proper electrical network, which
is shown on the nameplate, through an omnipolar circuit-breaker. To assure the proper function of the
cooler, please observe the following recommended.
1) To ensure the circulation, the unit should be kept at 2 cm, away from the wall.
2) Locate the unit away from direct sunlight. This will enable you to obtain the best performance and
save energy.
3) Under no circumstances should the top grid be covered by any object. It will preclude the warm air
from circulating.

5
Unpacking Your Cooler
1. Remove all packing material. This includes the foam base and all adhesive tape.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the
cooler.
Leveling Your Cooler
1. There are four leveling legs which are located in the front and rear corners of your cooler. After
properly placing your cooler in its final position, you can level your cooler.
2. Leveling legs can be adjusted by turning them clockwise to raise your cooler or by turning them
counterclockwise to lower your cooler. The cooler door will close easily when the leveling legs are
extended.

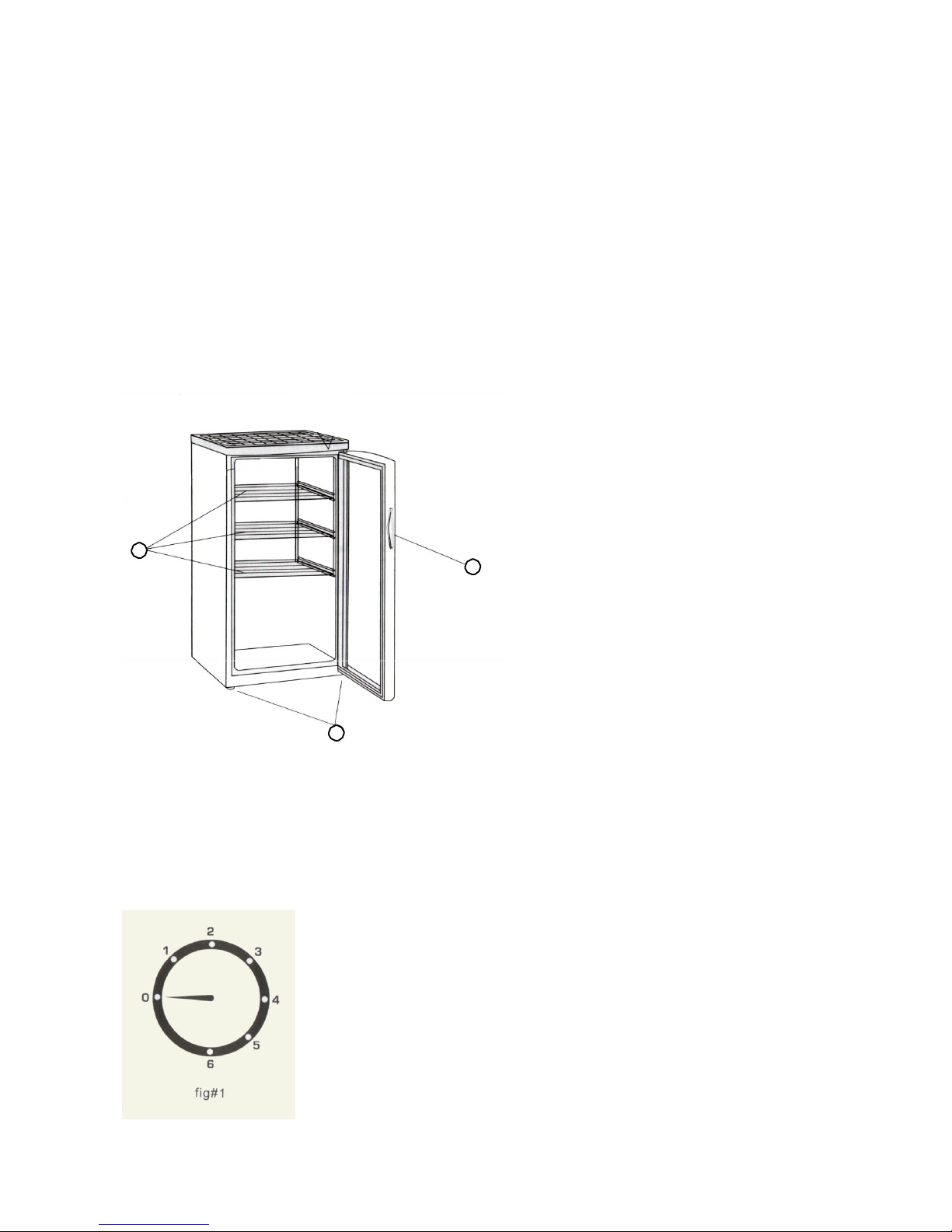

PRODUCT PARTS AND FEATURES
12 1 Shelves
2 Handle
3
Le v eli ng le gs
3
HOW TO OPERATE THE BOTTLE COOLER
1. Insert the power plug into wall outlet.
2. To adjust the temperature turn thermostat knob inside the cabinet.
Temperature Control
The inner temperature ranges from 0└to 10 ┘.You can turn the
thermostat knob to your desired temperature. Turn the knob clockwise;
the position varies from 1 to 6, (6 being coldest). By turning the position
to 0; you will switch your appliance off. (See fig #1.)

NORMAL OPERATING SOUNDS you may hear
‘Boiling water’, gurgling sounds or slight vibrations is due to the refrigerant circulating through the
cooling coils.
The thermostat control will click when it cycles on and off.
REVERSING THE DOOR (OPTION)
How to reverse the door
Remove the lower hinge by loosening and removing the screws with screwdriver.
Carefully lower the door and remove it.
Move the pivot pin to the opposite hole on the lower hinge.
Move the pivot pin from the left top hinge to the opposite hole on the right top hinge.
Remove the two screws from the right holes in the bottom cross bar.
Take the door. Insert the lower hinge axle into the right bottom hole of the door; insert the right
hole of the door into the right top hinge pin (axle).
Adjust the door; straighten and align with cabinet.
Fix the lower hinge with two screws.
Cover the left holes in the bottom cross bar with two screws.
Note: As the door gasket is sometimes pressed-in during shipment, after reversing the door the gasket
might have to be reset. This will be good for seal to avoid any air escaping. If there is a gap between
the cabinet and the door gasket, set the gasket by gently pulling it out to seal the gap. If necessary, it
is recommended to gently use a hairdryer to warm the gasket to eliminate the gap.
7

CORRECT BOTTLE COOLER CARE AND CLE AN I N G
Warning: To avoid electric shock always unplug you cooler before cleaning. Ignoring this warning may
result in injury.
General: Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents,
solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolour
your cooler.
1) Remove the contents of the appliance
2) Wipe the inside and outside surfaces with a damp cloth. The addition of vinegar to the water is
good for the prevention of mold and fungus.
3) Wipe all parts thoroughly after the cleaning.
IMPORTANT:
When the cooler is not in use it must be completely dry inside to avoid mold growth (if possible have
the door open).
LIMITED WA RR AN T Y:
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate
along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
1) Damage, accidental or otherwise, to the cooler while in the possession of a consumer not caused
by a defect in material or workmanship.
2) Damage caused by consumer misuse, tampering, or failure to follow the care and special handling
provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear
4) Damage caused by repairs or alterations of the cooler by anyone other than those authorised by
the manufacturer.
5) Freight and Insurance cost for the warranty service
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT-ABILITY ARE
LIMITED TO CLAIMED DURATION. THE MANUFACTURER DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES.
8

9
CIRCUIT DIAGRAM
For unit with fan ventilation
For unit without fan ventilation
Disposal
Disposal of the cabinet must take place in an environmentally correct way. Please note existing
regulation on disposal. There may be special requirements and conditions which must be observed.

is a registered trademark of CyberChill Pty Ltd
10
Model : ...............................................................................
Serial Number :.................................................................
CyberChill Merchandiser Range
User Manual
2013
CyberChill Pty Ltd reserve the right to alter specifications without notice.
RoHS
N30030
2002/95/EC
