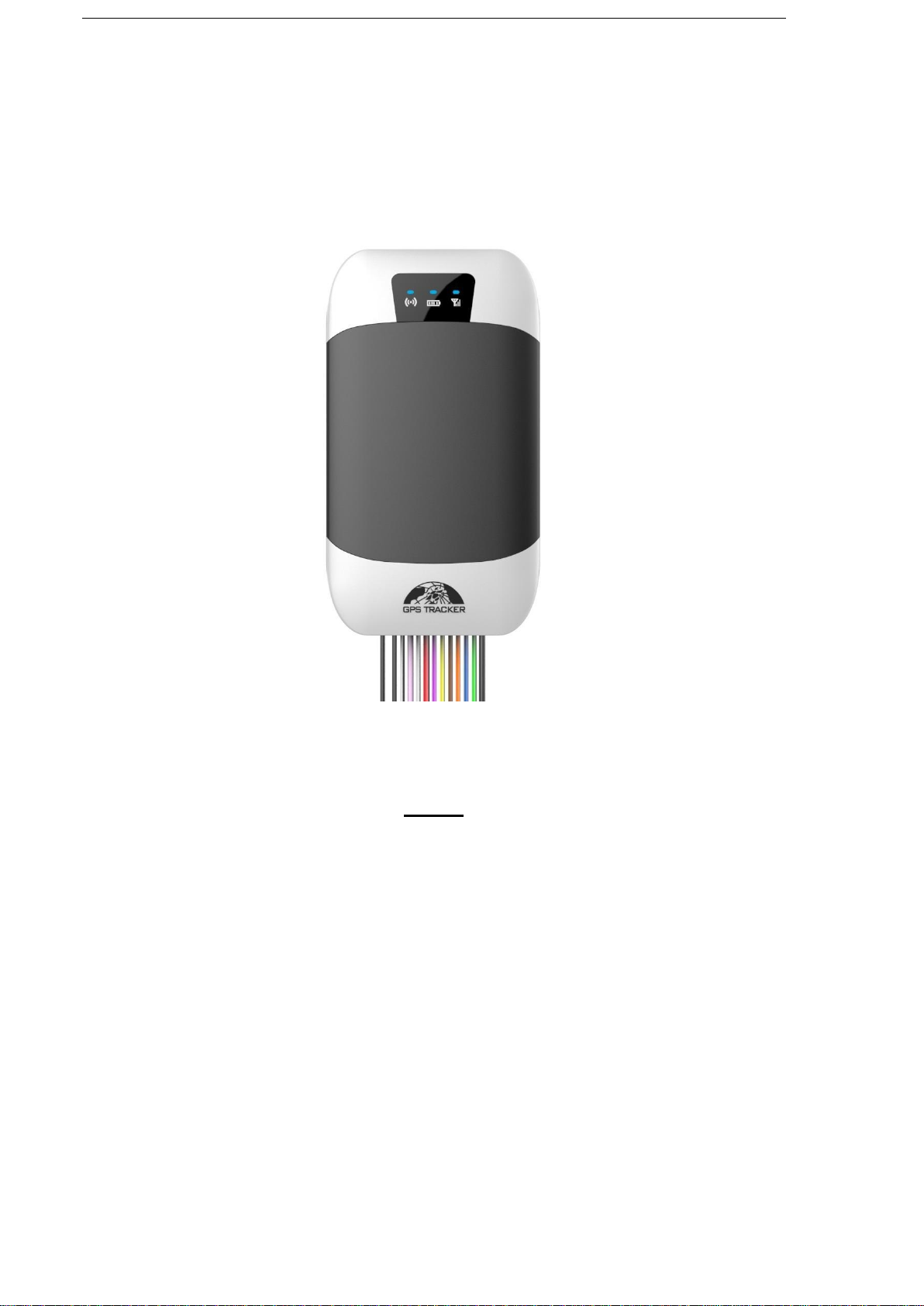

GPS/POWER/GSM Indicator
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security,
tracking, monitoring surveillance, emergency alarms and management，this product can locate and
monitor any remote targets by SMS or internet.
Features
Built-in GSM, GPS antenna, compact, elegantappearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and
management in itsentirety.
2. Applications
Used widely for vehicle and other moving objects tracking.
3. Hardware Description

5
4. Accessories
No.
Name
Specifications
Applicable
model
1
Harness
12PIN
Standard
2
Microphone
1.5m
Standard
3
Relay
12V/40A or
24V/40A
Standard
4
siren
12V/24V
Optional
5
Fuel sensor
Optional
6
Remote
control
Optional for
type G

6
5. Specifications
Content
Specification
DIM
9.6×5.3×1.6cm
Weight
70g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5m
GPS start time
Cold status 45s
Warm status 35s
Hot status 1s
Car power
supply
12 V -24V
Back up battery
Chargeable 3.7V 700mAh Li-ion battery
Storage Temp
-40°C to +85 °C
Operation
Temp.
-20°C to +65°C
Humidity
5%--95% non-condensing
6. Terminal Installation
Terminal Installation
Please ask the qualified engineers to install it.
Do not install it in an environment which is over GSM performance index.
Pay attention to make installation location preventing water and dust.
Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect the
wires with the original car circuit showing below:

7
Wiring diagram
Note: The pink wire can be connected to the original car horn; it can also be connected to the siren
bought with the tracker.
Know about the type of the door trigger is positive or negative trigger. Please connect the green wire
to the door control circuit if it is positive, and connect blue wire if itis negative.
Please install the SOS button on the place driver can touch.
SIM CARD Installations
Use the screwdriver accompanied with the device to open sealed buckle and insert the SIM card.
If need data logging function, please insert microSD and put sealed buckle back.
Please make sure the SIM card is for GSM network and able to execute the function of incoming
calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT
format, and can’t recognize the PDU format.
Turn on the Tracker Device
Connect the positive & negative wire, red & black ones, with 12V or 24V car power system, wait for
1 minute after connecting power to wait tracker works normal, and then turn on the backup battery
switch.
GSM/GPS LED Indicator
Red LED: when charging, LED ON, after full charged, LED OFF,
In Low power, LED flashes fast.
Green LED: In GSM Mode, LED quick flash for each second, In GPRS Mode, LED flash one time
in three seconds, when No GSM reception, LED ON.

8
Blue LED: In good GPS reception, LED quick flash for each second,
No GPS reception, LED OFF.
Initialization
Send SMS “begin+password” to the unit, it will reply “begin ok” and initialize all the settings to
default factory settings.（default password: 123456）
For example: send SMS “begin123456”, it will reply “begin ok”.
Change Password
Send SMS “ password+old password+space+new password” to the unit to change the password.
For example: send SMS “password123456 888888” to the unit. If succeeded, “password ok” will
reply to your cell phone from the device tracker.
Be sure to keep the new password in mind, you have to upload the software to restore the original
setting in case of losing the new password.
Attention: Make sure the new password is in 6 digits Arabic numbers, or else the tracker cannot
recognize the password.
When reading this user manual, you will notice that we have used "+" and "space" between some
words;"+" between two words means they should be written together as one word and "space"
between two words means you should leave one character space between two words.
Authorization
Up to 5 numbers can be authorized.
Call the tracker for 10 times continuously and get its position, then it will save the cell phone
number as the authorized number automatically. and reply “add master ok”.
Authorization: Send SMS “admin+password+space+cell phone number” to set up an authorized
number, the other authorized numbers should be set by the first authorized number, if the number
is successfully authorized, the unit will reply “admin OK” by SMS.
Delete authorization: Send SMS “noadmin+password+space+authorized number” to delete the
authorized number.
If you want to track the target when it enters into another country, you must add the country code
before the cell phone number. Youshould authorize your number in international format as
follows: “admin123456 008613322221111” to tracker to set 13322221111 as an authorized
number.
Single Locating
If there aren’t any authorized number set-up, it will reply all calls with a location report; if there
are authorized numbers set-up, then it will not respond when an unauthorized number calls it.

9
If you call it from authorized phone number, it will hang up and report a real-time location as
below:
When lost fix to satellites, it will track by LBS / CELL-ID. And the SMS will include two positions:
⚫ GPS coordinates of the last known position.
⚫ LAC code. Open web platform and find “manual track”, put code received from tracker in LAC and
Cell-ID fields to locate by LBS technology.
Auto track continuously
Trackwith limited times upon timeinterval
Send SMS command “fix030s005n +password” to the tracker device, it will report the latitude & longitude
at intervals of 30 seconds for 5 times. (s:second, m:minute, h:hour). This command set must be in 3 digits
Arabic numbers and the maximum value is 255.
e.g. fix030s005n123456
Trackwith unlimited times upon timeinterval
Send SMS “fix030s030m***n+password” to the tracker. Tracker will report a real-time location every 30
seconds when ACC is ON, and report every 30 minutes when ACC is OFF.
Note: The interval must not less than 10s.
Smart track upon time and distance interval
Please set "track with unlimited times upon time interval" before this function, and send
"distance+password+space+distance", tracker will reply "Distance ok", and then tracker will
locate upon both the pre-set time and distance.
e.g. Send "distance123456 0050", it means distance is 50 meters; the number must be 4 digits Arabic
numbers.
Set this function on web platform: Set time interval first and then distance interval, tracker will
locate upon the time and distance.
6.9.4. Cancel: Send SMS “nofix+password” to the tracker device to cancel the “auto track”.
e.g. nofix123456
Turning points update automatically
The tracker will update the positions automatically to web platform once the vehicle changing
driving direction over pre set angle value to form a smooth trajectory consistent with the actual road,
this function is only effective in GPRS mode.

10
Send "angle+password+space+angle" to tracker, it will reply"angle ok". e.g. angle123456
040
The angle must be 3 digits Arabic numbers, default angle value is 30 degree.
GPS drift suppression
This function is deactivated by default, send "suppress+password" to tracker, it will reply"
suppress drift ok". The GPS data stop updating if vehicle is not driving (ACC is OFF) and latitude
and longitude always keep same, and GPS data updates automatically when vehicle is moving.
Cancel: send "nosuppress+password" to tracker, it will reply" nosuppress ok ".
Exact street address
You must set up the APN of your local GSM network for the SIM card in tracker first before using
this function, if there is user name and password for GPRS login, (Please refer to 6.36 to configure
the APN, user name and password for GPRS login.)
After configure the APN, send "address+password" to device, it will reply SMS including real
street/address name. For example: No.113, Guankou 2nd Rd, Nantou, Nanshan district, Shenzhen,
Guangdong, china. e.g. address123456
Location based service (LBS) / Cell-ID Locating
If the tracker cannot establish a solid GPS Fix, it will calculate its location using Cell-ID GSM
locating, Location reports will include the GPS coordinates of the last known positions as well as a
LAC code, Entering the LAC code to the “Manual Track” menu of web tracking platform
www.gpstrackerxy.com will enable you to see the tracker’s current location. You can also send
command “address+password” to the tracker to request exact address, track will automatically
switch to tracking by LBS in GPRS mode. Accuracy of LBS depends on the distance to the nearest
GSM Network Cell Tower or Base Station.
Note: This feature can be used normally in most areas according to the signal of GSM network. It m
ay not be available in some areas.
Monitor
The command to switch between Track mode and Monitor mode are “tracker” and “monitor”.
The default mode is “track” (Track mode).

11
Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to
“monitor” mode.
Send SMS “tracker+password” to the unit, and it will reply “tracker ok!” and switch to “track”
mode.
Data logging
Auto logging：When the tracker device lost GSM signals or fall offline from GPRS, tracker will log
the tracking position and alerts automatically in the SD card on the basis of the pre-set condition,
when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or web
platform (server), but the logged tracking data should be loaded to the web platform via SMS
command.
Logging upon times: Send SMS: “save030s005n+password” to the tracker unit, it will reply “save
ok”, and will log the Latitude and longitude locations every 30 seconds for 5 times. (S: second, m:
minute; h:hour).
Multi-logging：Send SMS:”save030s***n+password” to tracker device, it will reply “save ok”.
Cancel logging: Send SMS “nosave+password”, e.g. nosave123456
Logging Clearance: send SMS: “clear+password” to tracker device, it will reply “clear ok”.
Logging Volume: It depends on the capacity of the SD card inserted in the tracker device.
The logged data in SD card can be copied to computers through card reader, and then the data
route can be checked by importing data in the menu “Data Import” of web platform
www.gpstrackerxy.com
Data Load
Current date Load: Send SMS: “load+ password” to tracker device, it will reply: “load ok” if the
device is working well under GPRS mode; if not, it will reply “load fail! Please check gprs” that
means device does not work under GPRS mode.
Specified date Load：Send SMS: “load+ password+ space+ year month date” to tracker device,
it will reply: “load ok” and load the tracking data to the web platform upon the valid time you choose.
For Example: send SMS: “load123456 20110425” to the tracker device, means to load the tracking
data of 25th April 2011 to web platform.
Forward the third parties’ message
Send SMS "forward+password+space+third parties phone number" from authorized phone number,
tracker will reply"forward ok", and supports1 third parties phone numbers at most.
For example, set the phone number of the service provider of the SIM card in the tracker, when
charge remind message coming in, tracker will forward it to authorized phone number.
Cancel: Send SMS command "noforward+password".

12
SIM card Balance Inquiry
Send SMS command "balance+password+space+carrier’s phone number+space+code" to tracker, it
will forward the code to carrier’s phone number and return the balance message received from
carrier’s phone number
How it works: After accept balance command, tracker will remember the “mobile phone number”,
carrier’s phone number and the code;
And then send the code to carrier’s phone number, and forward the message from carrier to m obile
phone number.
Take china mobile for example, mobile users can send “ye” to china mobile number 10086, and
10086 will send user’s balance message to tracker, and then tracker forward the balance message to
mobile phone number , following is an illustration how this function works.
Received and execute
Mobile balance123456 10086 ye Tracker
Send ye out to 10086
10086(China mobile)
Forward balance message to mobile phone
ACC working alarm
Send balance back
Received Balance message Received ye from number in
the tracker and process
This function is deactivated by default. To active this functions, send "ACC+password" to tracker, it
will reply "ACC ok". And tracker will send "ACC on+latitude & longitude" to authorized numbers
when detect ignition on, that means the vehicle has been started; and tracker will send “ACC
off+latitude & longitude" to authorized numbers when ignition off and ACC is off, that means
vehicles has been stopped.
Send "noACC+password" to deactivate this function, tracker will reply "noACC ok"
This configuration can only activate and deactivate the alarm to authorized numbers; it will send to
web platform automatically in GPRS mode and can't be deactivated
Cut off the oil and power system
Send command “stop+password” to tracker, tracker will execute it and reply “Stop engine Succeed”.
And it will remain immobile state until next command to resume.
Stop mode
Execute immediately: Send command “quickstop+password” to tracker, it will reply “quickstop
OK”. Then tracker will stop the car immediately after “stop” command.
Execute depends on speed(Default mode): Send command “noquickstop+password” to tracker, It
will reply “noquickstop OK”, Then the tracker won’t stop the car immediately after “stop” command,
instead, it will reply “it will be executed after speed less than 20KM/H”, and stop the car when the
speed is less than 20KM/H.
Resume the Oil and Power System

13
Send “resume+password" to tracker, it will reply "Resume engine succeed", it means the oil supply is
resumed.
Calibration of fuel sensor
Due to the difference of fuel tank height and resistive fuel level sensor specifications, tracker
need to set an appropriate zero value and full range value to detect the precise fuel percentage.
Zero calibration: Send “ oilzero+password “ to tracker when the fuel tank is empty , tracker will
adjust zero and reply “ oilzero ok!” . The fuel check is 0%.
Full calibration: Send “oilfull+password “ to tracker when the fuel tank is full , then tracker will
adjust the full range and reply “ oilfull ok! “ . The fuel check is 100%.
Tracker can connect to car original resistive fuel level sensor ranging from 0-500OHM. You can also
connect add-on resistive fuel level sensor.
Function of Remote Controller (Option, for modelG
ONLY )
Button
Function
Descriptions
ARM
Press for 0.5 second, the siren will beep one time.
DISARM
Press for 0.5 second, the siren will beep two times.
ARM &
Silent mode
Press for 0.5 second when it is in disarm state, the siren will
beep one times. No voice from siren when alarm triggered and quit from silent
mode automatically when disarm.
SOS
Press for 3 seconds, Tracker will send SOS alert to authorized phone numbers
without voice.
Deterrence/ca
r search
Press for 0.5 second when it is in arm state, siren will beep 10 seconds, press
disarm button to quit.
Arm
Set up arm by SMS
Send “arm+password” to tracker, it will make the car enter ARM states and and reply “Tracker is
activated”.
If the car is in ignition (ACC is at “ON” position), then the car can’t enter ARM state, reply “set up
fail! pls turn off ACC”.
If engine turned off, but door is open, then the car can’t enter ARM state and reply “set up fail! pls
close the door”.
Set up arm by remote controller (Option, for model GONLY)
Press button on the remote controller for 0.5 seconds, the car enters into armed state and the
siren will beep one time, no SMS reply.

14
If the car is in ignition (ACC is at “ON” position), then the car can’t enter ARM state, and siren keep
silent.
If engine turned off, but door is open, then the car can’t enter ARM state and siren beeps 3 times, that
means door is not closed.
Silent Mode
Set up silent mode by SMS
Send silent+password to tracker, it will reply silent ok! that means tracker enters ARM & silent
mode, Siren won’t be sound after alarm is triggered
, but tracker will send alarm SMS to authorized number.
Send disarm+password to quit ARM & silent mode.
Set up silent mode by remote controller (Option for model G)
Press in disarm state for 0.5 second, the siren will beep one time, the car will enter ARM &
Silent mode. Siren won’t be sound after alarm is triggered, but tracker will send alarm SMS to
authorized numbers.
Press to quit.
DISARM
DISARM BY SMS
Send command “disarm+password” to tracker, tracker will disarm and reply “Tracker is deactivated”,
then it will turn off the alarm of door, shock sensor and ACC, and no alarms if open door, trigger
shock sensor and ignition.
DISARM BY Remote controller (Option for model G)
Press on remote controller for 0.5 seconds, the car will enter DISARM state and, siren beeps
two times and tracker doesn’t send message.
Decide how many times of alarm message
You can decide how many times of the alarm message to be sent, For those alarm message sent in
cycle, you can limit the times the alarm message to be sent. send SMS “ xtime+password+005 “ to
tracker, alarm message will be sent 5 times once alarms are triggered .
The Alarm SMS will be sent 5 times by default.

15
Alarm Function
Low battery alarm
Send SMS “lowbattery+password+space+on”, it will send SMS “low battery+latitude/longitude” to
authorized numbers 2 times in total in 15 minutes interval when voltage of battery is going to be
about 3.55V.
This function activates by default, send SMS “lowbattery+password+space+off” to deactivate.
External Power off alarm
This function activates by default. Send “ extpower+password+space+on” to activate, it will send
SMS “power alarm+latitude/longtitude” to authorized numbers every 3 minutes when external power
is cut off.
Cancel: Send SMS “ extpower+password+space+off” to deactivate it.
GPS blind Spot alert
This function deactivates by default, send SMS “gpssignal+password+space+on”, it will send alert
SMS “no gps+last valid latitude/longitude before lost signal” when no GPS signal is received.
Send SMS “gpssignal+password+space+off” to deactivate.
SOS
Long Press the SOS button for 3 seconds（For model G, press button on remote controller for 3
seconds）, the tracker device will send SMS “help me!+lat./long.” to all the authorized numbers at
interval of 3 minutes. It will stop sending such an alert SMS when any authorized number reply SMS
“help me” to the tracker.
Geo-fence
Set up a geo-fence for the tracker device to restrict its movements within a district. The tracker will
send SMS to the authorized numbers when it goes out of this district.
Set up: When the car stays immobile in a place for 3-10 minutes, the user can send
SMS“stockade+password+space+latitude, longitude;latitude,longitude” to unit to set the restricted district.
In case of breach, it will send SMS “stockade!+ latitude & longitude” to the authorized numbers.
Note: The first latitude & longitude is coordinate of the top left corner of the Geo-fence, while the
second latitude & longitude is the coordinate of the bottom right corner, it will alarm at interval of 3
minutes once beyond the restricted district.
Cancel: Send SMS “nostockade+password” to deactivate this function.

16
Multi-area management
Set area
Send SMS command "area+password+space+latitude,longitude+space+areaname,distanceM" to
tracker(distance unit: M for meter, K for kilometer), it will reply "area01 ok". For Example: Send
"area123456 22.353648,113.543678 school,800M".
Note: 5 areas at most and the distance between two points can't be less than the total distance in the 2
commands, and different areas can't cover each other
Delete area
Send SMS command:"noarea+password+space+area name” to tracker, it will reply:"noarea ok".
rename and set distance
Send SMS command "rename+password+space+old name;new name,distanceM" to tracker, if name
is not repeated and area doesn't cover others, it will reply "rename ok!" for successful configuration.
Example: Send"rename123456 area01;school,800M", it means the new area name is "school", and covers
area of a radius of 800 meters.
Activate multi-area management
Send SMS command "area+password+space+on" to tracker, it will reply "Area on ok!", when tracker
enter the pre-set area, it will send SMS "area name+latitude & longitude" to all the authorized phone
number, and send same SMS when goes out of the area.
Deactivate Multi-area management
Send SMS command "area+password+space+off" to tracker, it will reply"area off ok!
Movement alarm
Set up: when the unit stays immobile in a place for 3-10 minutes with GPS signal reception, the user can
send SMS“move+password+space+0200” to the tracker (Suppose area of a radius of 200 meters, it
supports 4 digits at most. Unit: Meter). It will reply “move OK”. In case of such a movement (the default
distance is 200m), it will send SMS “Move+ latitude & longitude” to the authorized numbers at interval of
3 minutes.
Cancel: Send SMS “nomove+password” to deactivate the movement alarm.
Overspeed alarm
Set up: Send SMS command “speed+password+space+080” to the unit (suppose the speed is 80km/h),
and it will reply “speed OK!”. When the target moves exceeding 80km/h, the unit will send SMS

17
“speed+080!+ latitude & longitude” to the authorized numbers ,it will only send one SMS in 3
minutes in SMS mode when overspeed ; the siren will beep 1 time when overspeed 1 time.
Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm.
Note: The recommended speed should be not less than 30km/h. For below that rate, it will be effected
the accuracy by GPS signals drift etc.
Fuel Alarm
When the fuel consumption exceeds the normal standards during driving, or oil theft/leakage when
the vehicle is stopped, the tracker will send "oil: xx% + Geo-info" to the authorized number at
interval of 3 minutes. The siren beeps 20S.
Cancel: Send SMS command “ nooil+password” to tracker.
Alarms under Arm State
Door Open Alarm
The unit will send SMS “Door alarm+lat/long” to the authorized number at interval of 3 minutes
when the door of the car opens in arm status. Siren will be sound for 20 seconds, and repeat sound at
interval of 20 seconds if the door is always open. Disarm to stop this alarm
ACC Alarm
The unit will send SMS “ACC alarm+lat/long” to the authorized number in at interval of 3 minutes when
the engine of the car is turned on, that is the key is rotated to “ACC ON” position to start the car in arm
state; Siren will be sound for 20 seconds, and repeat again at interval of 20 seconds if the ACC always
keep ON. Disarm to stop this alarm.
Built in Acceleration SensorAlarm
The tracker is built in three axis acceleration sensor, the tracker can detect it in arm state when
the vehicle move, tilt or shock. The alarm way is the same as the external shock sensor alarm.
Disarm to stop this alarm.
The sensitivity ofthe built-in shock sensor has three different level:
First level: Alarm will be triggered after detect one time slight vibration,
send command" sensitivity+password+space+1" .
Second level: Alarm will be triggered after detect 8 times vibration in 2 seconds, send command"
sensitivity+password+space+2".
Third level: Alarm will be triggered after detect 25 times vibration in 5 seconds, send command"
sensitivity+password+space+3".

18
Alarm without GSM network service
When the car is arm state and in the place without GSM network service, siren will be sound under
non-silent mode if alarm is triggered (door, sensor, ACC), but no SMS alarm will send to authorized
number.
Sleep Mode
Sleep by time
Send SMS command "sleep+password+space+time" to tracker device, tracker will reply "sleep time
ok" if none of the alarms has been set and no operations, tracker will fall asleep in 5 minutes, GPS
module shuts down, LED will be off ,calling or SMS can awake the tracker. If these alarms have been
set, tracker will sleep by detecting shock sensor.
E.g sleep123456 time.
Sleep by shock sensor
Send SMS command "sleep+password+space+shock"to tracker device, tracker will reply "sleep shock ok",
it will enter sleep mode if no shake is detected and ACC is off , GPS module shuts down, LED will be off .
Shake or any operation can awake the tracker.
Deep Sleep by Shock Sensor
Send SMS command "sleep+password+space+deepshock"to tracker to activate deep sleep by shock
sensor, it will reply "sleep deepshock ok", and will enter deep sleep mode if no vibration is detected,
GPS and GSM module shuts down, it will run in super lowest power consumption mode. SMS or
calling can’t awake the tracker. Triggered alarm can awake the tracker to work normally, after alarm
canceled, tracker come back to deep sleep mode again.
No sleep mode
Send SMS command”sleep+password+space+off” to tracker device , tracker will reply”sleep off ok”.
Tracker GSM, GPS, LED will work without sleep .This mode is the default mode.

19
Start Workon specific time
Send "schedule+password+space+1h"to tracker, it will awake every one hour and send position info.
(m:minute,h:hour,d:day) The time interval is in 3 digits at most and should be less than 30days.
GSM & GPS module shut off, trackers work under low power consumption mode. Neither calling nor
SMS can awake tracker device. Track will be awaken by alarms and enter to this mode after alarms
are deactivated.
Cancel: After the tracker is waked up. Send SMS command” noschedule+password”to cancel this
function.
Check the Vehicle State
Send SMS command “check+password” to the tracker device in the vehicle, It will reply the status
of the power, battery, GPS, ACC, door, GSM signal, GPRS status ,oil, APN, UP, IP and Port.
For example: Send SMS “check123456” to the tracker device in the vehicle, It will reply following
SMS.
Power: ON/OFF
Battery: 100%
Oil: 100%
GPRS: ON/OFF
GPS: OK/NO GPS
ACC: OFF/ON
Door:OFF/ON
GSM Signal: 1-32 The higher, the better.
APN: cmnet
IP: 104.250.138.146
PORT: 9000
Check IMEI
Send SMS command "imei+password" to the unit. E.g. Send SMS command "imei123456" to the
tracker device, an IMEI number in 15 digits will reply to your cell phone.
Set up Terminal (local) Time
Send SMS command “time+space+zone+password+space+time” to the tracker unit, If succeed, It will
reply “time OK”

20
For example: Send SMS “time zone123456 8”, 8 is Chinese time zone, If your country time zone is
minus, send SMS “time zone123456 -8”.
Reset Hardware
Send SMS “reset+password” to tracker device, it will reply “reset ok”. And the GSM module and
GPS module in the tracker will be reset.
Configure parameters by USB
Connect tracker to computer with the optional USB cable, open the memory of the tracker, find and open
the initial configuration file with notepad operate according the instructions.
Note: Correct password is needed every time you configure the tracker.
GPRS setting
User must send SMS via cell phone to set up IP, port and APN before starting GPRS.
Setting upAPN
APN standards for Access Point Name and differs from country to country. For more information about
the local APN, inquire with your local GPRS network operator.
Text the tracker a SMS “APN+password + Space + your local APN” via a cell phone and if succeeded
in setup, the tracker will return the message “APN OK”.
e.g. send SMS command “APN123456 CMNET”. If succeeded, “APN OK” is returned by the tracker in
SMS.
Notes: 123456 refer to password of tracker and CMNET is the APN of China Mobile (One of GSM
Operator in China).
GPRS User ID and password Setup
In most countries, the user name and password involving GPRS login are not compulsorily necessary,
therefore, the entry can be skipped. For those countries requiring user name and password, please
configure as following:
Send SMS “up+password+space+user+space+password”If succeeded, “user,password ok” is returned by
the tracker in SMS.
