xStack Storage TM
D-Link xStack Storage iSCSI SAN Array
Managed SAN Solution
DSN-5110-10, 5210-10, 5410-10 & 5000-10
Hardware Reference Guide
Version 1.4

ii
© 2010 D-Link Networks, Inc. All Rights Reserved
D-Link Systems, Inc. makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. D-Link Systems, Inc. shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use of this
material.
This document contains proprietary information, which is protected by copyright. No part of
this document may be photocopied, reproduced, or translated into another language without
the prior written consent of D-Link Systems, Inc.
The information is provided “as is” without warranty of any kind and is subject to change
without notice. The only warranties for D-Link products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. D-Link shall not be liable for
technical or editorial errors or omissions contained herein.
Copyright © 2010 D-Link Systems, Inc.™
Patents and Trademarks
Includes one or more of the following United States patents: 6,941,396; 7,353,306;
7,389,462; 7,460,473; 7,512,663 and 7,594,002. Other patents pending.
The D-Link logo is a registered trademark of D-Link, Inc.
Adobe®and Acrobat®are trademarks of Adobe Systems, Incorporated.
Java™ is a U.S. trademark of Sun Microsystems, Incorporated.
Microsoft Windows is a U.S. registered trademark of Microsoft Corporation.
Oracle®is a registered U.S. trademark of Oracle Corporation, Redwood City, California.
UNIX®is a registered trademark of The Open Group.
All other brand or product names are or may be trademarks or service marks, and are used
to identify products or services, of their respective owners.
D-Link Systems, Inc.
17595 Mount Herrmann Street
Fountain Valley, CA 92708

DSN-5000 series HardwareReference Guide iii
Safety Information
There is a danger of a new battery exploding if it is incorrectly installed.
Replace the battery pack only with the same or equivalent type recommended
by the manufacturer. Do not dispose of the battery along with household waste.
Contact your local waste disposal agency for the address of the nearest battery
deposit site.
This product also uses a lithium coin cell battery. The lithium coin cell battery is a long-life
battery, and it is very possible that you will never need to replace it. However, should you
need to replace it, consult your service documentation. Do not dispose of the battery along
with household waste. Contact your local waste disposal agency for the address of the
nearest battery deposit site.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.
The iS512-10G product requires usage of laser transceivers (SFPs) to be installed. Such
installation of any installed SFP must comply with the following:
1. The SFP to be installed must be UL Recognized as I.T.E.
2. The Laser Class of the SFP to be installed must be Class 1.
3. The transceivers of the SFP to be installed must comply with U.S. Code of Federal
Regulations, 21 CFR 1040.
4. Those transceivers of the SFP to be installed must conform to the applicable
requirements of 21 CFR Subchapter J.
Following are the safety agency certifications that the xStack Storage enclosure has met:
CSA 60950-1
UL 60950-1
IEC 60950-1
EN 60950-1
Compliance Information
FCC Class A
CE Class A
C-Tick Class A
VCCI Class A

iv
Notice of Export Controls
Export of technical data contained in this document may require an export license from the
United States government. Please contact D-Link Systems, Inc. for any export compliance
questions.
Document Revision Level
Revision Date Description
Version 1.0 January 2009 Version 1.0: initial release
Version 1.1 June 2009 Version 1.1: updatedfor software version 2.5.0 andredundant controllers
Version 1.2 September 2009 Version 1.2:minor formatting updatesand clarification of network
connections when using dual controllers
Version 1.3 December 2009 Version 1.3: updatedfor 84 drivesupport andversion 2.6.0software
Version 1.4 May 2010 Version 1.4: added DSN-5110 and other minorupdates

DSN-5000 series HardwareReference Guide v
Preface
This document is intended to assist users with installing the primary array and expansion
array of the xStack Storage system from D-Link. This document assumes that users are
computer literate, familiar with Storage Array Products, and have a basic understanding of
storage products and concepts.
Typographic Conventions
Notes
Notes provide information that deserves special attention. They are preceded by:
Cautions
Cautions contain information which, if not followed, can cause damage to the
xStack storage system. They are preceded by:
Warnings
Warnings contain information which, if not followed, can cause damage to the
xStack storage system and to the person installing it. They are preceded by:
Related Documentation
In addition to this document, the following documents are available from D-Link.
 xStack StorageSoftware User's Guide. This guide provides the information needed to
configure and manage storage on the xStack Storage system using the xStack graphical
user interface.

vi Preface
Contact Information
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and within
Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our website, or
by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone
Please see our support site for current number:
 http://support.dlink.com
 Monday to Friday 8:00am – 5:00pm PST/PDT
D-Link Technical Support over the Internet:
 http://support.dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone
Please see our support site for current number:
 http://support.dlink.ca
 Monday to Friday 7:30am to 9:00pm EST/EDT
D-Link Technical Support over the Internet:
 http://support.dlink.ca

DSN-5000 seriesHardwareReference Guide vii
Contents
Chapter 1 Introduction..................................................................................................................................1
1.1 Models .............................................................................................. 3
1.2 Features and Benefits ............................................................................ 5
1.3 System Overview .................................................................................. 6
Chapter 2 DSN-5000 Series Primary Array Layout ...................................................................................9

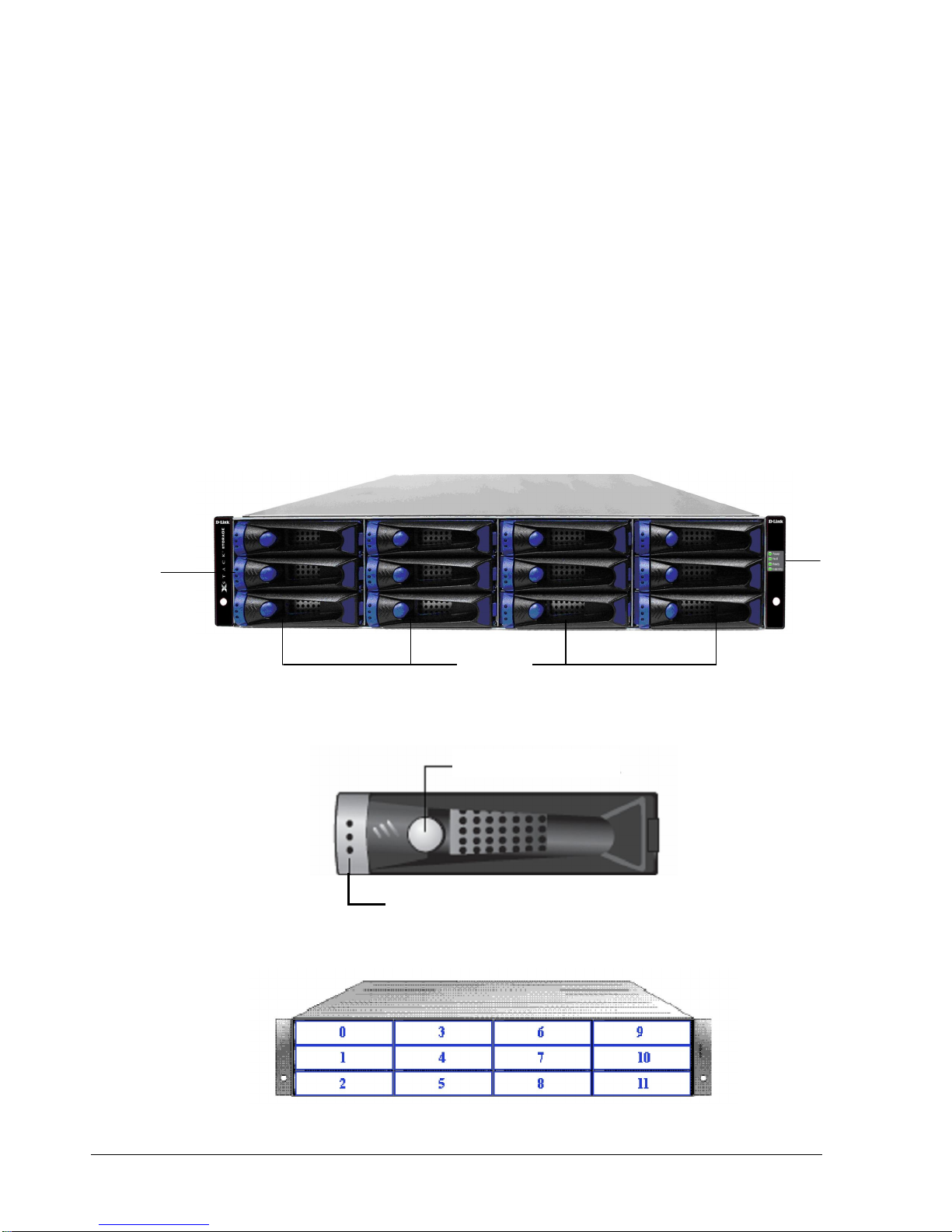

2.1 Front Panel Components........................................................................10
2.2 Rear Panel Components.........................................................................12
2.3 Side, Top and Bottom Panel Components....................................................15
Chapter 3 Installing the DSN-5000 Series Primary Array.......................................................................17
3.1 Site Considerations...............................................................................18
3.1.1 General Considerations ................................................................18
3.1.2 Desktop or Shelf Installation..........................................................18
3.1.3 Rack-mount Guidelines ................................................................19
3.2 Safety Considerations............................................................................19
3.3 Unpacking the DSN-5000 series Primary Array ..............................................20
3.4 Items Supplied by the User.....................................................................20
3.5 Connecting to the iSCSI Data Ports............................................................20
3.5.1 xStack Storage DSN-5110-10 & 5210-10 Data Ports ...............................21
3.5.2 xStack Storage DSN-5410-10 Data Port..............................................21
3.6 Connecting to the Management Port..........................................................21
3.7 Connecting the Power Cords ...................................................................24
3.8 Powering-on the DSN-5000 series Primary Array............................................24
Chapter 4 DSN-5000-10 Expansion Array Layout and Installation.......................................................25
4.1 Expansion Array Front Panel Components ...................................................26
4.2 Expansion Array Rear Panel Components ....................................................28
4.3 Site, Safety, and Rack-Mount Considerations ...............................................28
4.4 Unpacking the DSN-5000-10 Expansion Array................................................28
4.5 Items Supplied by the User.....................................................................29
4.6 Installing the DSN-5000-10 Expansion Array.................................................29
4.7 Connecting DSN-5000-10 Expansion Arrays to a DSN-5210-10 or 5410-10 Primary Array30
4.8 Connecting DSN-5000-10 Expansion Arrays to a DSN-5110-10 Primary Array ..........31
4.9 Connecting the AC Power Cords ...............................................................32
4.10 Powering-on the DSN-5000-10 Expansion Array.............................................32
Appendix A Replacing and Upgrading FRUs..............................................................................................33
A.1 Installing or Replacing Drives ..................................................................34
A.2 Replacing a Power Supply Module in the Primary or Expansion Array ..................35
A.3 Replacing the Controller Module on the Primary Array....................................36
A.4 Replacing the I/O Module on the Expansion Array .........................................37
A.5 Connecting to the Diagnostic Serial Port.....................................................38
Appendix B Installing the System in a Rack...............................................................................................41

viii Contents
This Page Left Intentionally Blank

DSN-5000 seriesHardwareReference Guide 1
Chapter 1 Introduction
The xStack Storage DSN-5000 series storage system is an intelligent, high-performance multiple
Gigabit Ethernet storage solution designed for businesses that want to improve the reliability,
availability, serviceability, and performance of their storage systems. It provides a range of
benefits and features from its ability to use familiar, proven, and widespread networking
technologies like IP and Ethernet for storage solutions.
The DSN-5000 series storage system is highly scalable. To add more storage capacity, simply
connect up to six additional expansion arrays to the DSN-5210-10 or DSN-5410-10 primary arrays
for up to 84 drives, or up to three additional expansion arrays to the DSN-5110-10 for up to 48
drives. This plug-and-play approach to storage expansion enables you to form a scalable
enterprise storage grid of many drives quickly and easily.

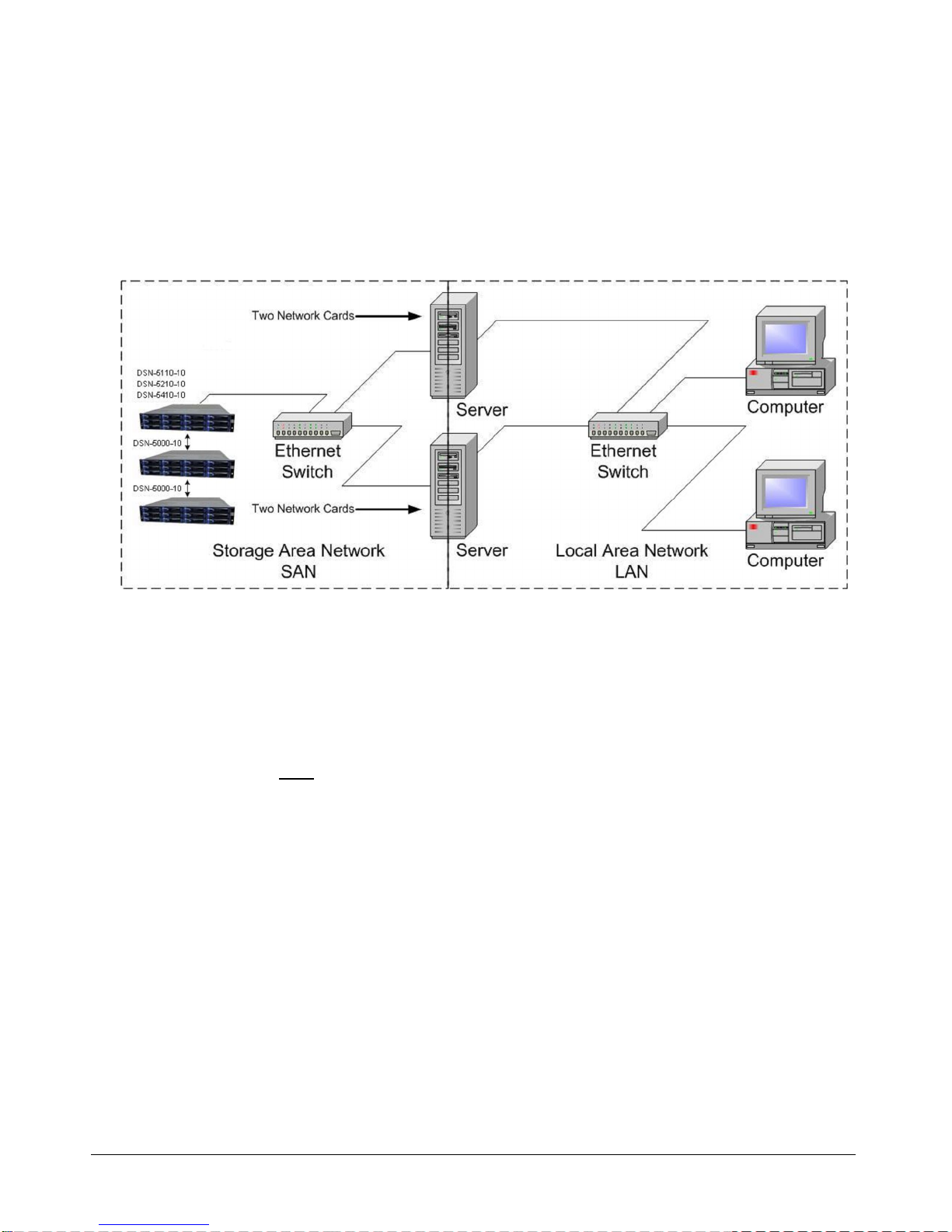

Based on an Internet Protocol-Storage Area Network (IP-SAN) architecture, the DSN-5000 series
primary array is built around an iSCSI RAID processor System-On-A-Chip and has the following
features:
 Up to 12 internal Serial Attached SCSI (SAS) or Serial Advanced Technical Attachment (SATA)
drives per chassis, for a total of up to 84 drives per system (when additional DSN-5000-10
expansion arrays are connected) for the DSN-5210-10 and DSN-5410-10 arrays, or up to 48
drives per system for the DSN-5110-10 array.
The DSN-5110-10. DSN-5210-10, DSN-5410-10 and DSN-5000-10 units can all
support SATA hard drives when a single controller is used. However, the use
of SAS hard drives is recommended, and required for High Availability (HA)
operation.
 Support for redundant controllers for High Availability (HA). For HA operation, a second
controller must be installed. The DSN-5110-10 will require the DSN-510 controller, the DSN-
5210-10 will require the DSN-520 controller and the DSN-5410-10 will require the DSN-540
controller. Please see previous note for SAS drive requirement.
 Up to 4GB of system memory (512MB standard)
 Up to 4 GB of buffer (cache) memory:
1GB standard on the DSN-5110-10
2GB standard on the DSN-5210-10
2GB standard on the DSN-5410-10
 iSCSI Ethernet Connectors:
Four 1-Gigabit RJ-45 connectors for the DSN-5110-10
Eight 1-Gigabit RJ-45 connectors for the DSN-5210-10
One 10-Gigabit Optical connector for the DSN-5410-10
 A 10/100/1000 Mbps Ethernet management port
 Two expansion connectors for attaching up to:
Three additional expansion arrays for the DSN-5110-10;
Six additional expansion arrays for the DSN-5210-10;
Six additional expansion arrays for the DSN-5410-10

2 Chapter 1 Introduction
 A 115.2 Kbps RS-232-C stereo mini-jack diagnostic port for troubleshooting purposes
Complete configuration and management of the storage system are available through the
intuitive, graphical-based xStack Storage Management Center software.
For the latest information about supported drives, consult the
Interoperability Matrix found on the D-Link Support Web site:
www.dlink.com

DSN-5000 seriesHardwareReference Guide 3
1.1 Models
The xStack Storage DSN-5000 series storage array is available in various models. The models
differ according to the speed and host network interface. Table 1-1 lists the xStack Storage DSN-
5000 series array models.
Table 1-1. DSN-5000 series Storage Array Models
Model Description
DSN-5110-10 (single controller) System
DSN-510 (additional controller) Number of host network connections: Four RJ-45ports Speed: 1 Gbps
Maximum numberof internal SATA or SAS drives: 12
Maximum number of total SATA or SAS drives (with DSN-5000-10 Expansion Arrays): 48
Maximum amount ofsystem memory:4 GB
Maximum amount of buffer (cache) memory: 4 GB (1GB Standard)
Single or Dual controllers are allowed
A DSN-510controller can be installed inthe empty bay of the DSN-5110-10 for High Availability
DSN-5210-10 (single controller) System
DSN-520 (additional controller) Number of host network connections:Eight RJ-45 ports Speed: 1 Gbps
Maximum number of internal SATA orSAS drives: 12
Maximum number of total SATA or SAS drives (with DSN-5000-10 Expansion Arrays): 84
Maximum amount ofsystem memory:4 GB
Maximum amount of buffer (cache) memory: 4 GB (2GB Standard)
Single or Dual controllers are allowed
A DSN-520controller can be installed inthe empty bay of the DSN-5210-10 for High Availability
DSN-5410-10 (single controller) System
DSN-540 (additional controller) Number of host network connections: One optical XFPtransceiver host network connection - XFP transceiver sold separately
Speed: 10 Gbps
Maximum number of total SATA or SAS drives (with DSN-5000-10 Expansion Arrays): 84
Maximum amount ofsystem memory:4 GB
Maximum amount of buffer (cache) memory: 4 GB (2GB Standard)
Single or Dual controllers are allowed
A DSN-540controller can be installed inthe empty bay of the DSN-5410-10 for High Availability
- XFP transceiver sold separately
DSN-5000-10 (single I/O module)
Expansion
DSN-500 (additional I/O module)
This is an expansion array with asingle I/Omodule that is used with a DSN-5110-10. DSN-
5210-10 or DSN-5410-10 primary array
Maximum number of SATA orSAS drives: 12
Each I/O module provides twoSAS expansion ports
Single or Dual I/O modules are allowed
A DSN-500 I/O modulecan be installed inthe empty bay of the DSN-5000-10 for High
Availability

4 Chapter 1 Introduction
High Availability (HA) Note: A system using a single controller (DSN-5110-10,
DSN-5210-10 or DSN-5410-10) and its expansion array(s) may use SAS or SATA
drives. A system using dual controllers for High Availability operation (DSN-
510 for the 5110-10, DSN-520 for the 5210-10 or DSN-540 for the 5410-10)
requires SAS drives be used in both the primary array and any expansion
array(s).
If you anticipate upgrading to HA with the addition of a second controller,
then it is recommended you install SAS drives.

DSN-5000 seriesHardwareReference Guide 5
1.2 Features and Benefits
 High-performance, low-latency iSCSI storage system, with a highly integrated multifunction
ASIC for fully featured, integrated storage virtualization
 High Availability with automatic failover when configured with dual controllers
 Modular design with the ability to add up to six hot-swappable 12-drive expansion arrays for
up to 84 drives for the DSN-5210-10 and DSN-5410-10 systems, or up to 48 drives for the DSN-
5110-10 system.
 Easy setup and configuration – can be installed anywhere on a Gigabit or 10-Gigabit Ethernet
network for improved access to critical information
 In-band or out-of-band management via direct connection or the Web
 Delivers Ethernet economics to storage for lower total cost of ownership and rapid
deployment using known and trusted technologies
 Proven transport infrastructure for increased reliability, investment protection, and reduced
training and administrative costs
 Scalability over long distances - ideal for remote data replication and disaster recovery
 High availability - redundant fans and 2 redundant, hot-swappable, auto-sensing, load-sharing
power supplies
 Intelligent battery pack ensures that a charged battery is on hand to preserve buffer cache
contents if a power failure occurs. Contents are backed up for approximately 72 hours with
the standard 2GB data cache (48 hours with the 4GB data cache option).

6 Chapter 1 Introduction
1.3 System Overview
Figure 1-1 shows a typical DSN-5000 series storage system (primary array DSN-5110-10, DSN-5210-10
or DSN-5410-10) configuration in a Storage Area Network (SAN). The SAN shown is an Ethernet
network used solely for exchanging data between the customer's host servers and the DSN-5000
series storage system. The Ethernet bandwidth used by the servers exchanging data with the DSN-
5000 series storage system can be very high. Using a separate Ethernet network to act as a SAN
keeps that data from interfering with the customer's existing LAN and improves security.
Figure 1-1. Example of aDSN-5000 series Storage System Configuration
When equipped with dual controllers, the DSN-5000 series primary array provides High
Availability (HA) with automatic failover to the redundant controller. When a failure occurs on
the primary controller, the Management Port and all of the iSCSI data ports will be automatically
redirected to the equivalent ports on the redundant controller, without any interruption to your
host server applications. To accomplish the redirection of network traffic on those ports, a
network switch must be used between the host server(s) and both of the controllers found in the
DSN-5000 series primary array prior to system startup to allow the automatic re-direction of the
network connections to the redundant controller when a failure occurs on the primary controller.
For example, the Management Port network connection on both controllers must be connected to
the same network switch. Similarly, Data Port 0 on both controllers must also be connected to
the same network switch, and so on.
A Field Upgrade Kit is available to add a redundant controller (DSN-510 for the 5110-10, DSN-520
for the 5210-10 or DSN-540 for the 5410-10) to any existing single-controller system. Similarly, a
Field Upgrade Kit is available to add a second I/O Module to the DSN-5000-10 expansion array
(The expansion array with a single I/O module is the DSN-5000-10. An additional I/O module for
the DSN-5000-10 is the DSN-500), which is required when the DSN-5110-10, 5210-10 or 5410-10
system is equipped with dual controllers.
To clarify: DSN-5110-10, DSN-5210-10 or DSN-5410-10 systems all have a single controller. For
additional storage array expansion, each would require a DSN-5000-10 expansion array which
itself has a single I/O module. A single external SAS to mini-SAS cable (provided with the DSN-
5000-10) will then connect the controller in the DSN-5110-10, DSN-5210-10 or DSN-5410-10 to the
I/O module in the DSN-5000-10.

DSN-5000 seriesHardwareReference Guide 7
A DSN-5110-10 with dual controllers (an additional controller DSN-510 is inserted in the second bay),
a DSN-5210-10 with dual controllers (an additional controller DSN-520 is inserted in the second bay)
or a DSN-5410-10 with dual controllers (an additional controller DSN-540 is inserted in the second
bay) will require a DSN-5000-10 expansion array with two I/O modules (an additional I/O module
DSN-500 is inserted in the second bay of the DSN-5000-10). An additional SAS to mini-SAS cable
(provided with the DSN-500) will connect the second controller in the DSN-5110-10, DSN-5210-10 or
DSN-5410-10 to the second I/O module (DSN-500) installed in the DSN-5000-10 expansion array. You
will now have dual redundancy between the DSN-5110-10, DSN-5210-10 or DSN-5410-10 and the DSN-
5000-10 expansion array.

8 Chapter 1 Introduction
This Page Left Intentionally Blank

DSN-5000 seriesHardwareReference Guide 9
Chapter 2 DSN-5000 Series Primary Array Layout
This chapter describes the hardware components on the DSN-5000 series primary array (DSN-
5110-10, DSN-5210-10 & DSN-5410-10). The topics covered in this chapter are:
 Section 2.1, Front Panel Components
 Section 2.2, Rear Panel Components
 Section 2.3, Side, Top and Bottom Panel Components

10 Chapter 2 DSN-5000 Series Primary Array Layout
2.1 Front Panel Components
The front of the DSN-5000 series primary array enclosure has the following components (see
Figure 2-1
 Enclosure LEDs - four enclosure LEDs at the right side of the front panel provide status
information about the DSN-5000 series primary array enclosure. For a description of
these LEDs, see Table 2-1.
 Drive slots – the front panel provides access to 12 drive slots. The drive slots are
arranged in four columns of 3 slots.
 Drive carriers - drives are mounted on a drive carrier. Drive carriers have a push-button
lever for installing and removing drives, and three status LEDs (see Figure 2-2 and Table
2-2). Each carrier has a corresponding drive slot number (see Figure 2-3). Filler panels
must be installed in all drive slots that are not occupied by a drive.
Figure 2-1. Front View of the DSN-5000 series PrimaryArray
Figure 2-2. Close-up View of the LeverRelease Button and Status LEDs on a Drive Carrier
Figure 2-3. Drive Numbers on the Primary Array
Enclosure
LEDs
Drive Slots
Drive Carrier
(see Figure 2-2
for
Close-up View)
Drive Status LEDs
Lever Release Button

DSN-5000 seriesHardwareReference Guide 11

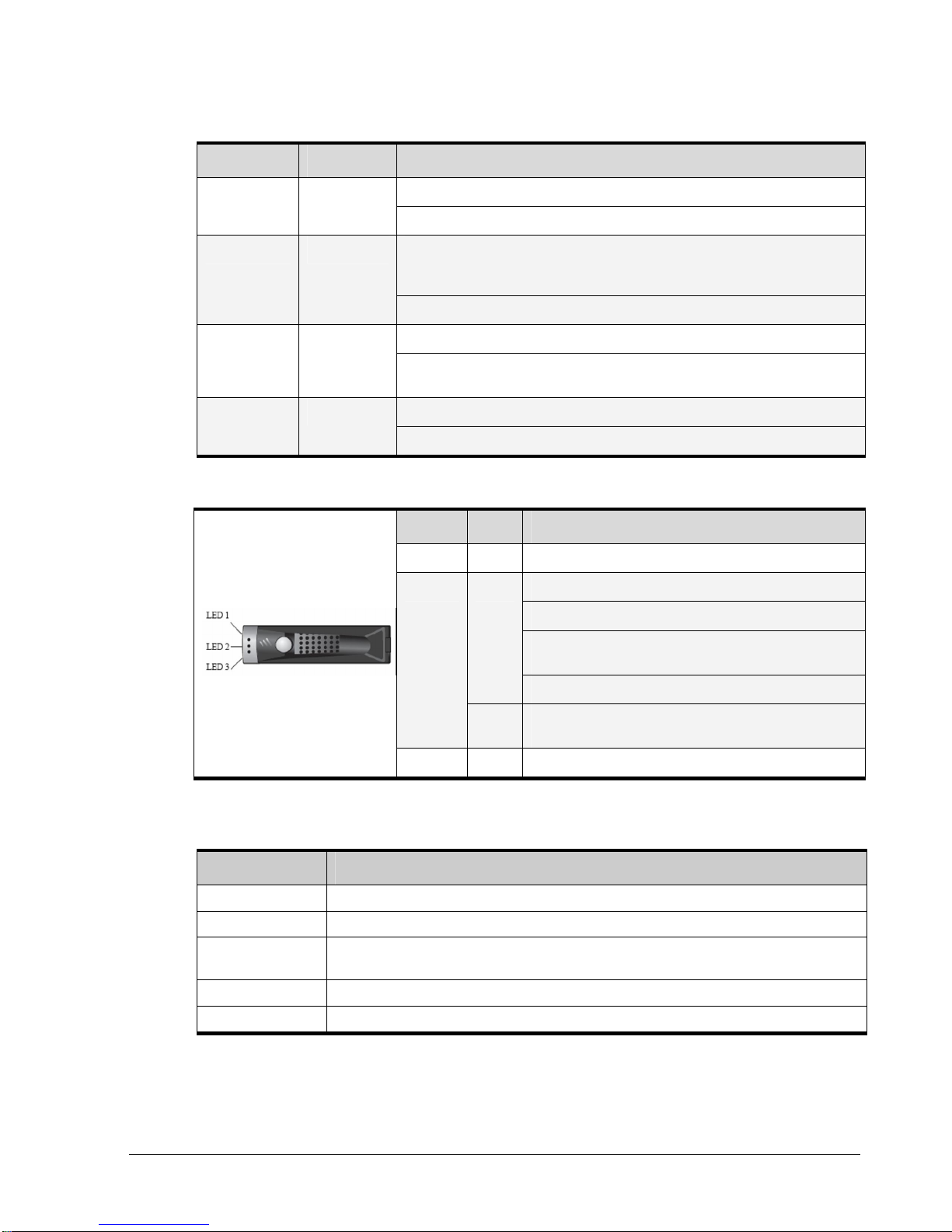

Table 2-1. Enclosure LEDs
LED Color Description
ON = DSN-5000 series primary array is powered on.Power Green
OFF = power is not beingreceived.
ON = a fault occurred with the power supply, fan, over temperature, internal module, or
controllers. Referto Error! Reference source not found. for informationabout
possiblecauses.
Fault Amber
OFF = normal operation.
ON = normal operation.Ready Green
OFF = normal while DSN-5000 series primary array is booting. After initialization, this
statusindicates aproblem with theDSN-5000 series primary array.
Blink = usedto visually identify the enclosure.Identify Blue
OFF = no intent of identification is being performed.
Table 2-2. Drive Carrier Status LEDs
LED Color Description
LED 1 Green This LED is reservedfor future use.
OFF = no driveis installed (drive slot is empty).
ON = drive is online, ready for operation.
Slow Flash = drive is being prepared for removal or is being
rebuilt.
Green
Fast Flash = drive is beingidentified.
LED 2
Amber Fast Flash = drive failed andshould be replaced (seeAppendix
A for information about installingor replacingdrives)
LED3 Green Flash =driveactivity is occurring.
Table 2-3. Failure Conditions thatActivate the System Fault LED and Audio Alarm
Failure Condition Description and Additional Information
Power Supply Failure The System Fault LED willbe illuminated, andthe audible alarm will sound.
Cooling Fan Failure The System Fault LED willbe illuminated, andthe audible alarm will sound.
Battery Failure The System Fault LED will be illuminated, and the audible alarm will sound. A system restart is
required after the battery has been replaced.
Over Temperature The System Fault LED willbe illuminated, andthe audible alarm will sound.
Software Failure The System Fault LED will be illuminated, and the audible alarm willsound.

12 Chapter 2 DSN-5000 Series Primary Array Layout
2.2 Rear Panel Components
The rear panel of the DSN-5000 series primary array controller has the following components
(see Figure 2-4 and Figure 2-5):
 Four or Eight 1-Gigabit RJ-45 iSCSI data ports, or one 10-Gigabit XFP iSCSI data port are
located on the rear panel of the DSN-5000 series chassis controllers. Each iSCSI data port
has port speed and port activity LEDs (see Table 2-4 for the xStack Storage DSN-5110-10
and DSN-5210-10, and Table 2-5 for the xStack Storage DSN-5410-10).
 Management port (MGMT) - one 10/100/1000 RJ-45 management port is located to the
right of the iSCSI data ports. The management port has port speed and port activity LEDs
(see Table 2-4)
 Diagnostic port (DIAG) - one 115.2 Kbps RS-232-C diagnostic port (stereo mini-jack) is
located above the top-right corner of the management port. To connect to this port, use
the diagnostic cable supplied with your xStack Storage system.
 Expansion ports (EXP0 and EXP1) - two expansion ports are located to the right of the
management port. These connectors let you attach up to six DSN-5000-10 expansion
arrays to the primary array to increase the array’s storage capabilities (see Section 4.7
for more information).
 Reset switch and restart switch - are located above the expansion ports. For an
explanation of these switches, see Table 2-6.
 Ready/fault, battery status and A/B LEDs - are located above the expansion ports (see
Table 2-7).
The rear panel of the DSN-5000 series primary array enclosure has two AC power receptacles
and power switches. For an explanation of the power receptacles and power switches, see
Sections 3.7 and 3.8. The Mute Audio Alarm button is located on the module that is located
between the two AC power supply modules.

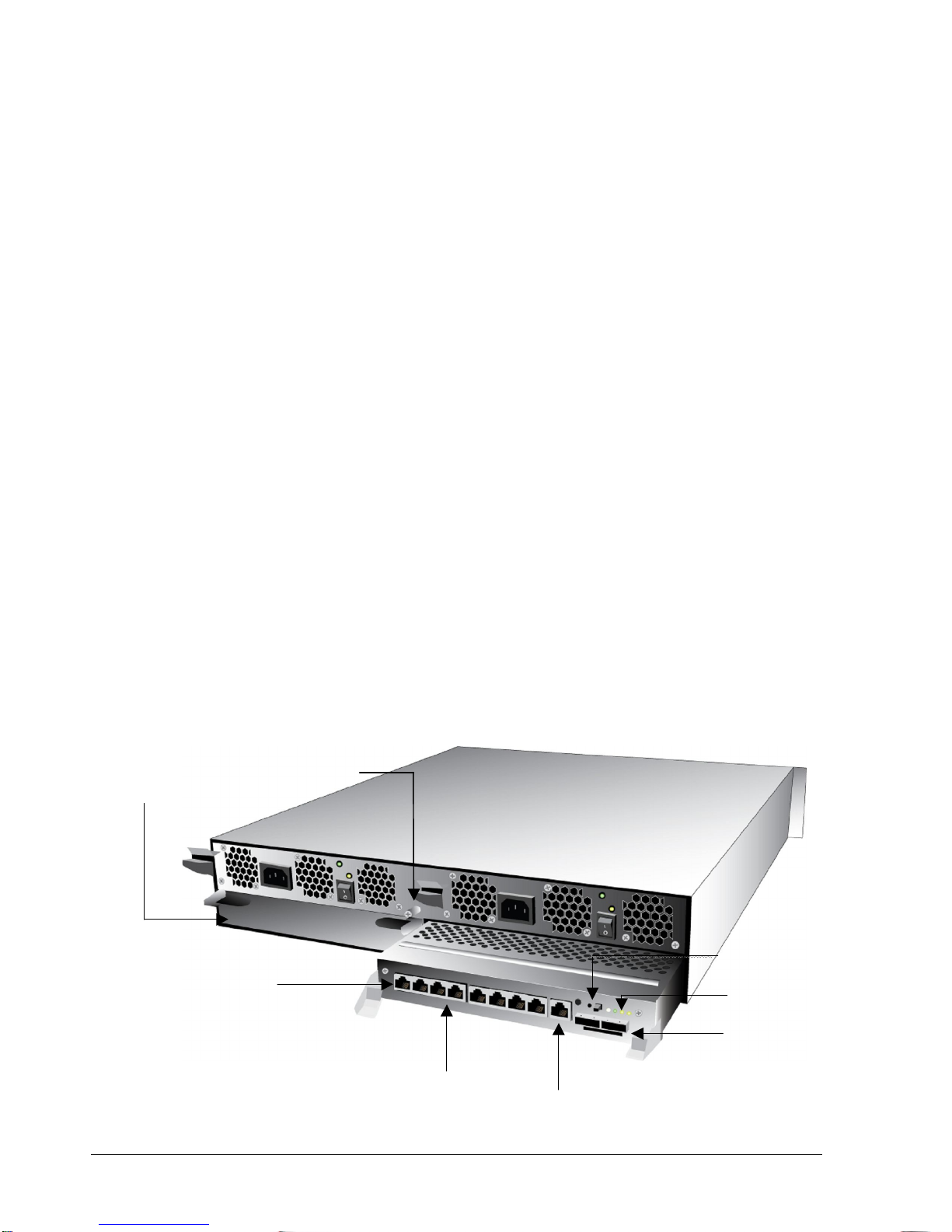

Figure 2-4. Rear View of theDSN-5210-10 series Primary Array
Four or eight 1-Gigabit
iSCSI RJ
-
45 Ports
One Management Port
Two SAS Expansion Ports
Rear Panel Status LEDs
Rear Panel Switches
Redundant Controller or
Filler Plate in Slot #1
Primary Controller in Slot #0
Mute Audio
Alarm Button
