Section 1 - Product Overview
Package Contents
Wi-Fi Conguration Note
If any of the above items are missing, please contact your reseller.
DAP-1365 N300 Wi-Fi Range Extender with Power Passthrough
Wi-Fi Conguration Card
Quick Installation Guide
2D-Link DAP-1365 User Manual
Section 1 - Product Overview
Network Requirements • A wireless router with an active Internet connection.
• 802.11n, 802.11g, or 802.11b wireless clients/devices
Web-based Conguration
Utility Requirements
A Computer or Mobile Device with the following:
•Windows®, Apple® Mac OS®, or Linux-based operating system
• Wireless adapter or Wi-Fi functionality
• An Apple® iPhone®, iPod touch®, iPad®, or Android™ mobile
device
Browser Requirements:
• Internet Explorer® 10 or later
• Firefox® 28 or later
• Safari® 6 or later
• Google Chrome™ 28.0 or later
System Requirements
3D-Link DAP-1365 User Manual
Section 1 - Product Overview
Introduction
Features
Easily Extend Your Existing Network
The DAP-1365 N300 Wi-Fi Range Extender with Power Passthrough lets you easily extend a secure wireless network with a press
of a button. Connect the DAP-1365 to a router via Wi-Fi or Ethernet and share your high-speed Internet access in more places
throughout your home or small oce. Additionally, the DAP-1365 provides a passthrough power socket to ensure that your
electrical outlet remains available.
High-speed Wireless Performance With Wireless 802.11n Technology
Thanks to the latest Wireless N technology, the DAP-1365 provides a wireless connection at up to 300 Mbps* with other 802.11n
wireless devices. This feature lets you participate in real-time activities online, such as video streaming, online gaming, and real-time
audio with smooth performance.
Simple Setup
All it takes is a press of a button to connect compatible WPS devices to the DAP-1365. Its easy-to-use web interface lets you quickly
and easily connect the DAP-1365 to an uplink router, congure the extended wireless network, and manage the administrative
settings. The setup wizard will even guide you through the setup process, getting your extended wireless network up and running
in no time. Alternatively, connect an Ethernet cable to your existing network infrastructure to quickly and easily create a wireless
network.
Compatibility
The DAP-1365 is fully compatible with 802.11n, and it is also backwards compatible with IEEE 802.11g/b wireless devices, so you can
use your existing devices without sacricing performance.
LatestWireless Network Security and Encryption
The DAP-1365 supports wireless security features to prevent unauthorized access from the wireless network. Support for WPA/
WPA2 standards ensure that you’ll be able to use the best possible encryption methods with your compatible wireless devices.
* Maximum wireless signal rate derived from standard IEEE specications. Actual data throughput will vary. Network conditions and environmental factors, including volume
of network trac, building materials and construction, and network overhead may lower actual data throughput rate. Environmental conditions will adversely aect wireless
signal range.
4D-Link DAP-1365 User Manual
Section 1 - Product Overview
What is a Wireless Extender?
The DAP-1365 acts as a repeater to extend the range of an existing wireless network to provide a better signal for parts of your
home or oce that may have poor or no reception. Your existing wireless signal will be re-broadcast by the DAP-1365, allowing
you to reach the farthest corners of your home or oce.The extended network can simply use the same network credentials as the
existing network, or you can specify a dierent network name and password, giving you the exibility to control network access.
You may also use the DAP-1365 as a wireless access point by connecting an Ethernet cable.

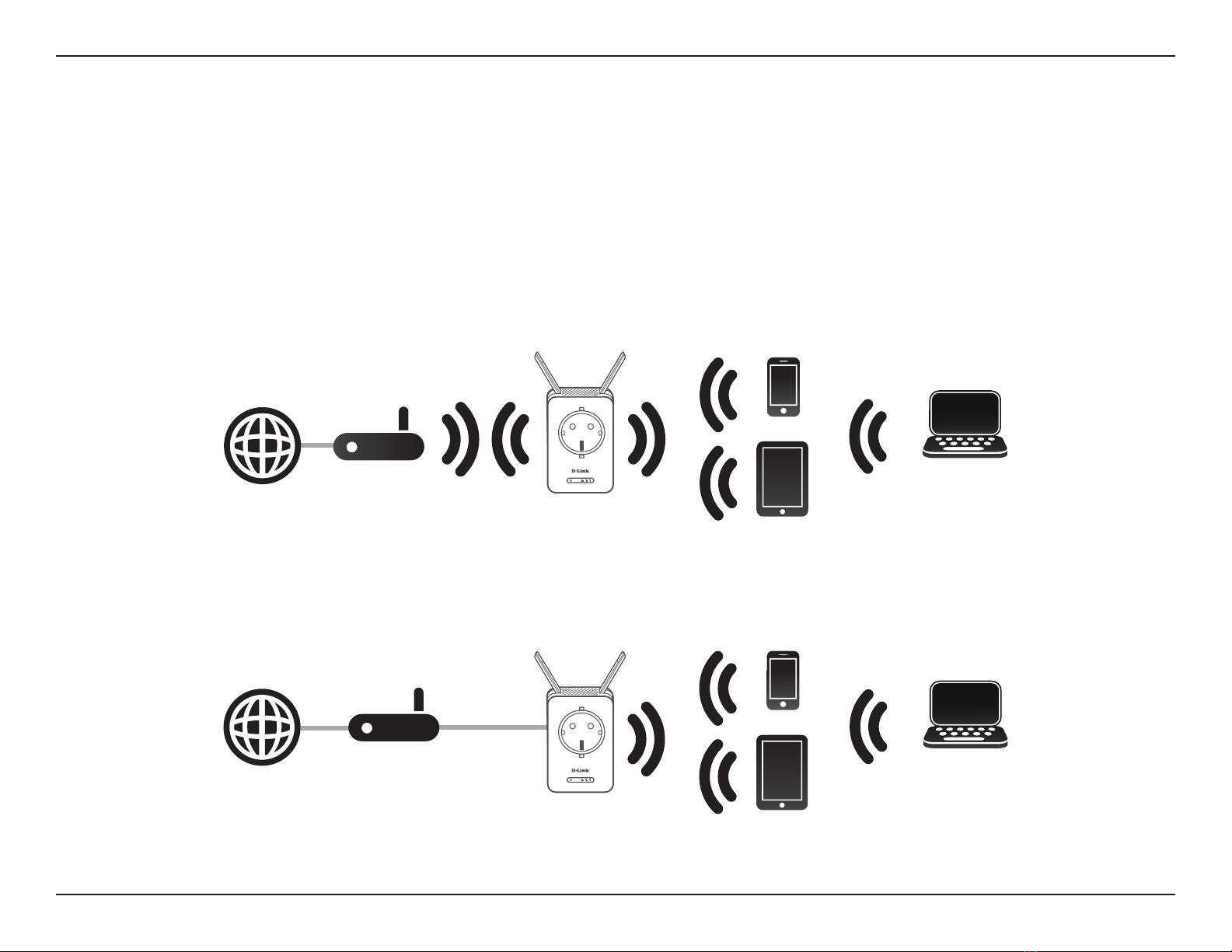

Extend Your Wireless Network using Wi-Fi
Create a Wireless Network using Ethernet
Router
Internet DAP-1365
Extender
Wireless Devices
Computer
Router
Internet DAP-1365
Access Point
Wireless Devices
Computer
5D-Link DAP-1365 User Manual
Section 1 - Product Overview
Hardware Overview
Front
2
1
43

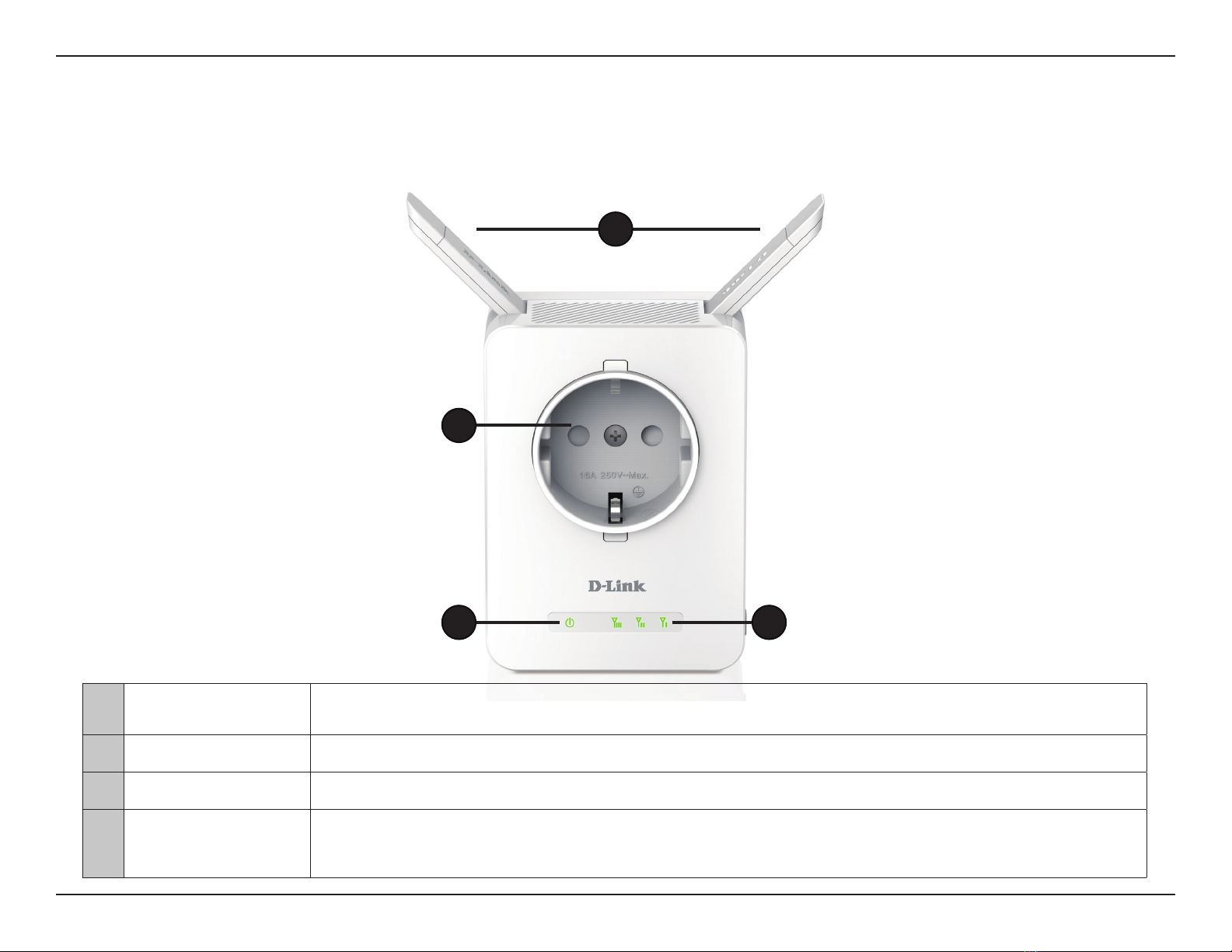

1External Antennas Extend the antennas for optimal wireless coverage.
2Power Outlet Plug-in electrical devices using this power passthrough outlet.
3Status/WPS LED This LED indicates the current status of the DAP-1365, as detailed on the next page.
4Signal Indicator LED The more lit green bars on the Signal Indicator LED, the better the wireless signal to the host network. A single
solid amber LED indicates a weak Wi-Fi signal. Refer to“Wireless Signal Strength Indicator LED” on page 8.
6D-Link DAP-1365 User Manual
Section 1 - Product Overview
3
2
1
Hardware Overview
Side

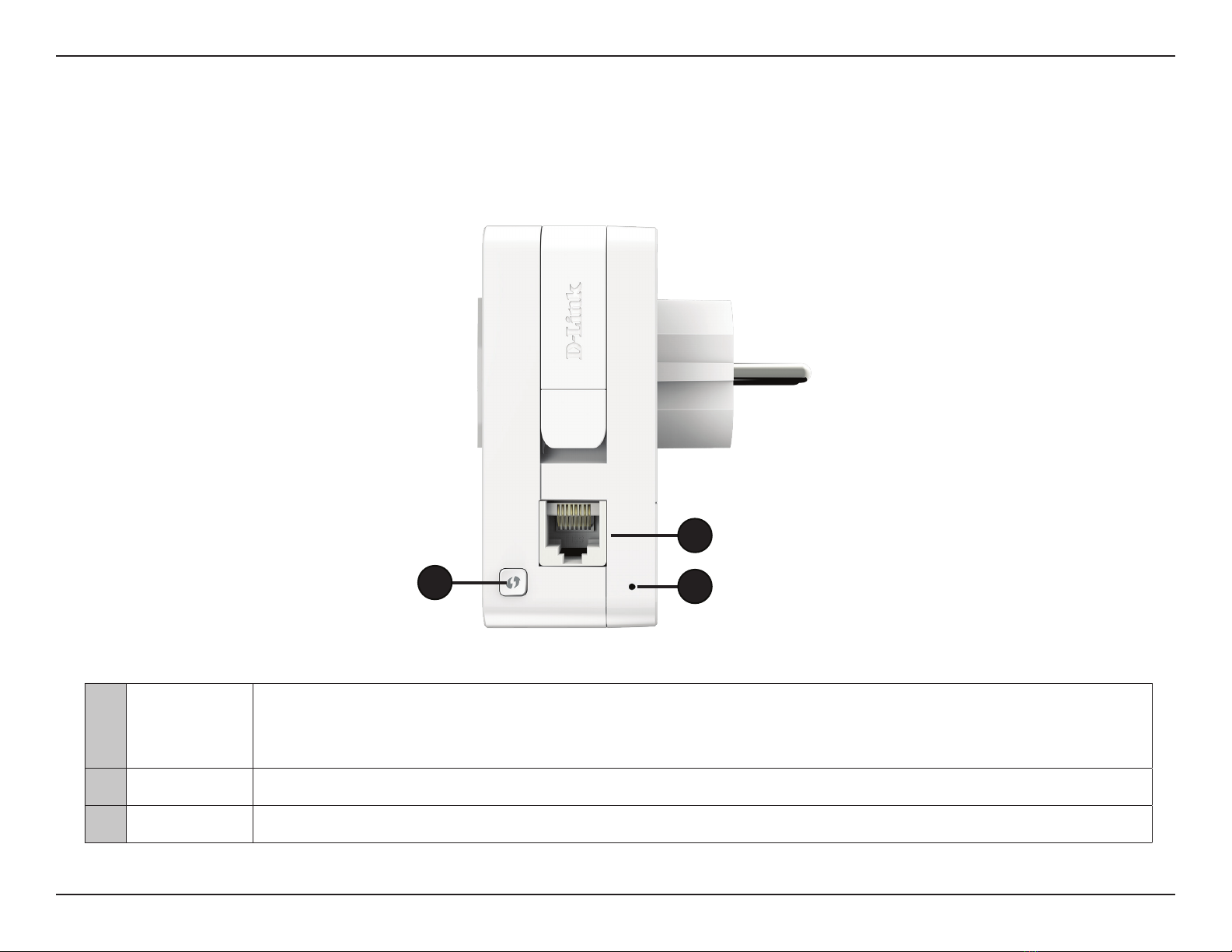

1WPS Button
Press to establish a connection with another WPS compatible device. Pressing the WPS button for 1 second allows
you to connect with Wi-Fi clients using Wi-Fi Protected Setup. Refer to “WPS-PBC Conguration” on page 15 for
more information.
2LAN Connect an Ethernet cable if you are adding wireless to an existing wired network.
3Reset Button Use an unfolded paperclip to press and hold the reset button on the bottom of DAP-1365 for 10 seconds.
7D-Link DAP-1365 User Manual
Section 1 - Product Overview
LED Indicator Color Status Description
Power/Status
Green Solid The DAP-1365 is receiving power and connected to a host network.
Blinking WPS mode is active.
Red Solid The DAP-1365 is booting or an error has occurred.
Amber Blinking The DAP-1365 is not connected to a host network.
None O Device is not receiving power. Check the power outlet.
Status/WPS LED Indicator
Status/WPS LED Indicator
8D-Link DAP-1365 User Manual
Section 1 - Product Overview

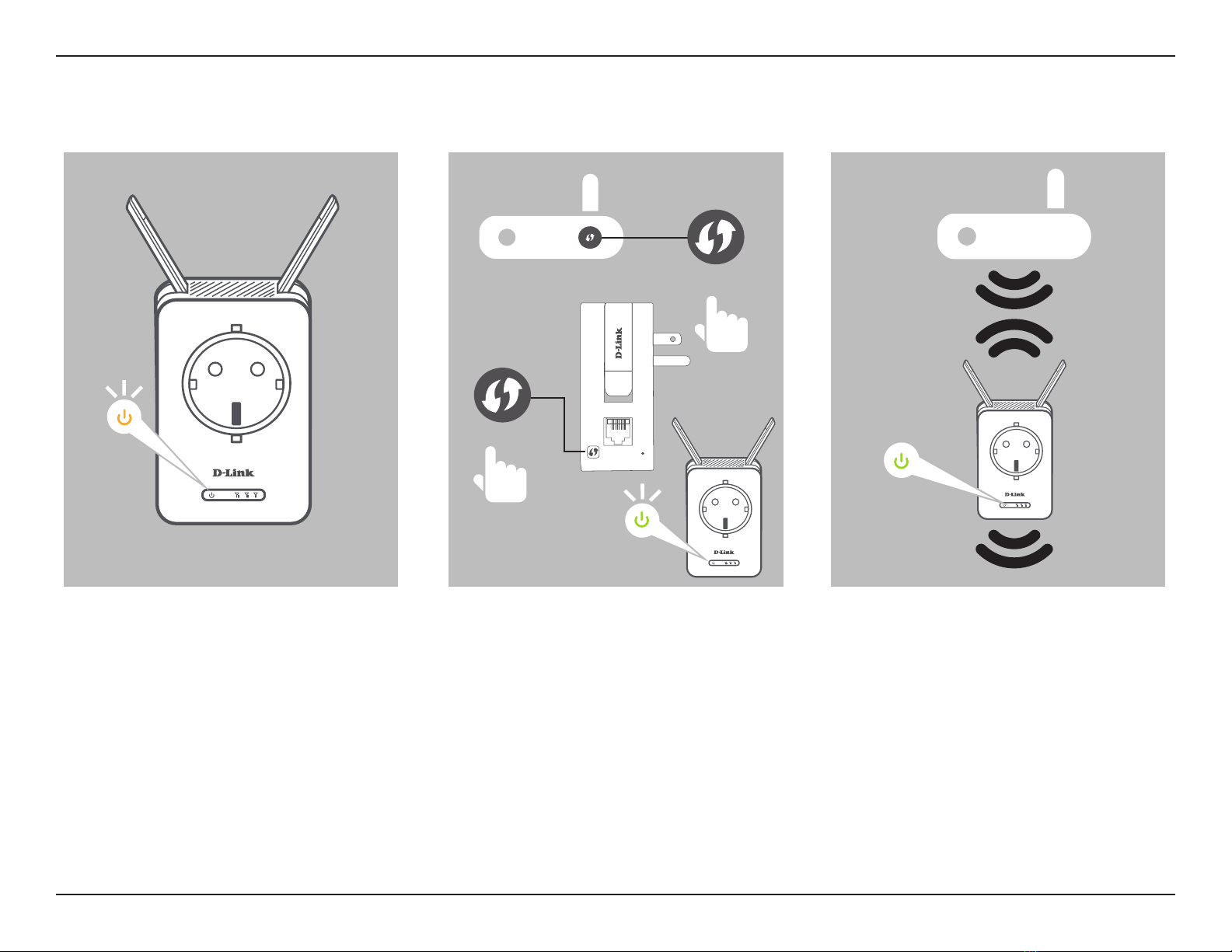

The Status/WPS LED will turn solid green when the DAP-1365 has connected successfully to an uplink wireless network and is
extending that network. If the Signal Indicator LED has a single amber bar after the connection process has nished, the DAP-1365
has established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal.To improve
the connection quality, the DAP-1365 should be relocated closer to the source wireless router.
Poor
Ok
Good
Best

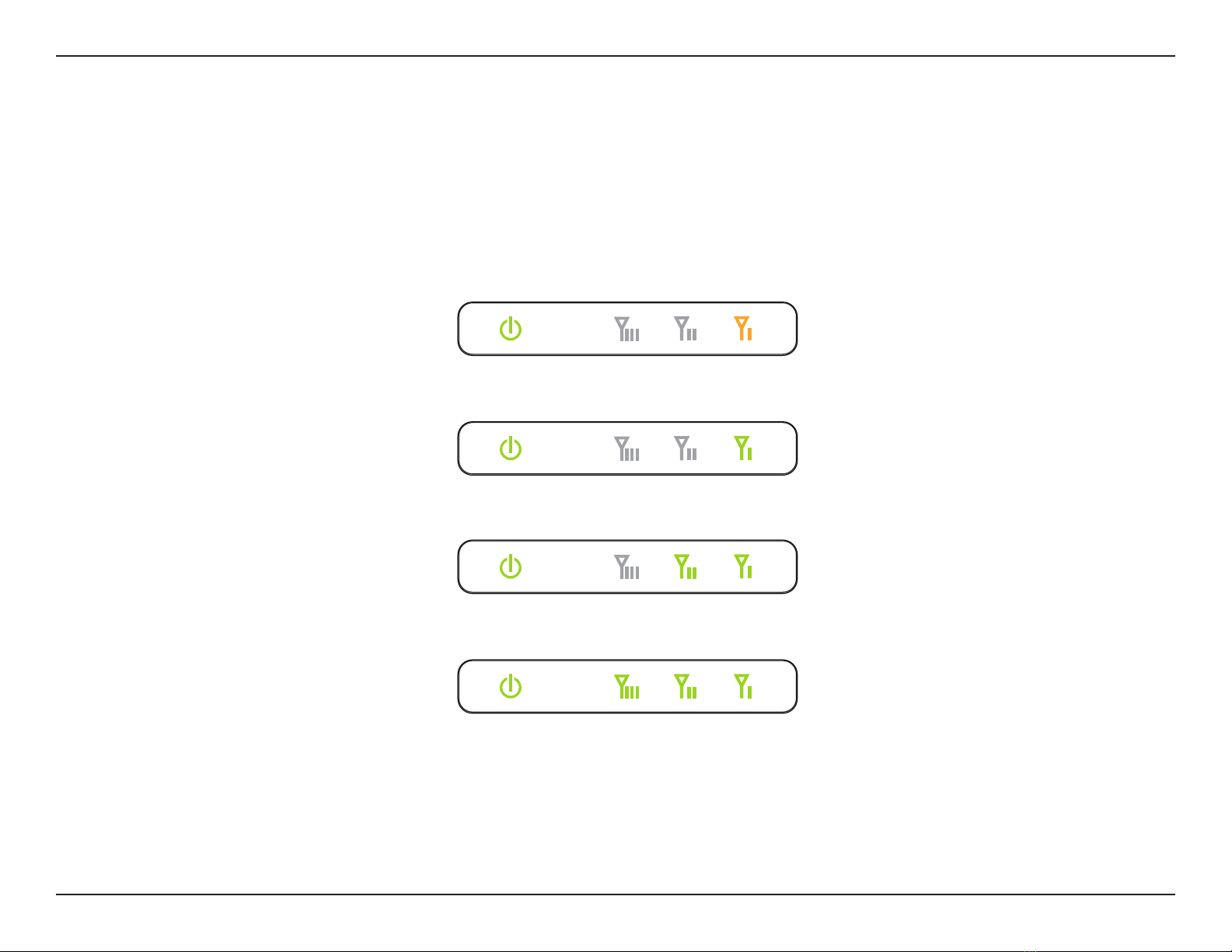

Wireless Signal Strength Indicator LED
9D-Link DAP-1365 User Manual
Section 2 - Installation
You may locate the Wi-Fi name (SSID) and password for your DAP-1365. This information is printed on the specication sticker on
the back of the device. You will need this information to connect your computer or mobile device to the default network (SSID) of
your DAP-1365. This information is also provided on the Wi-Fi conguration card.
Hardware Overview

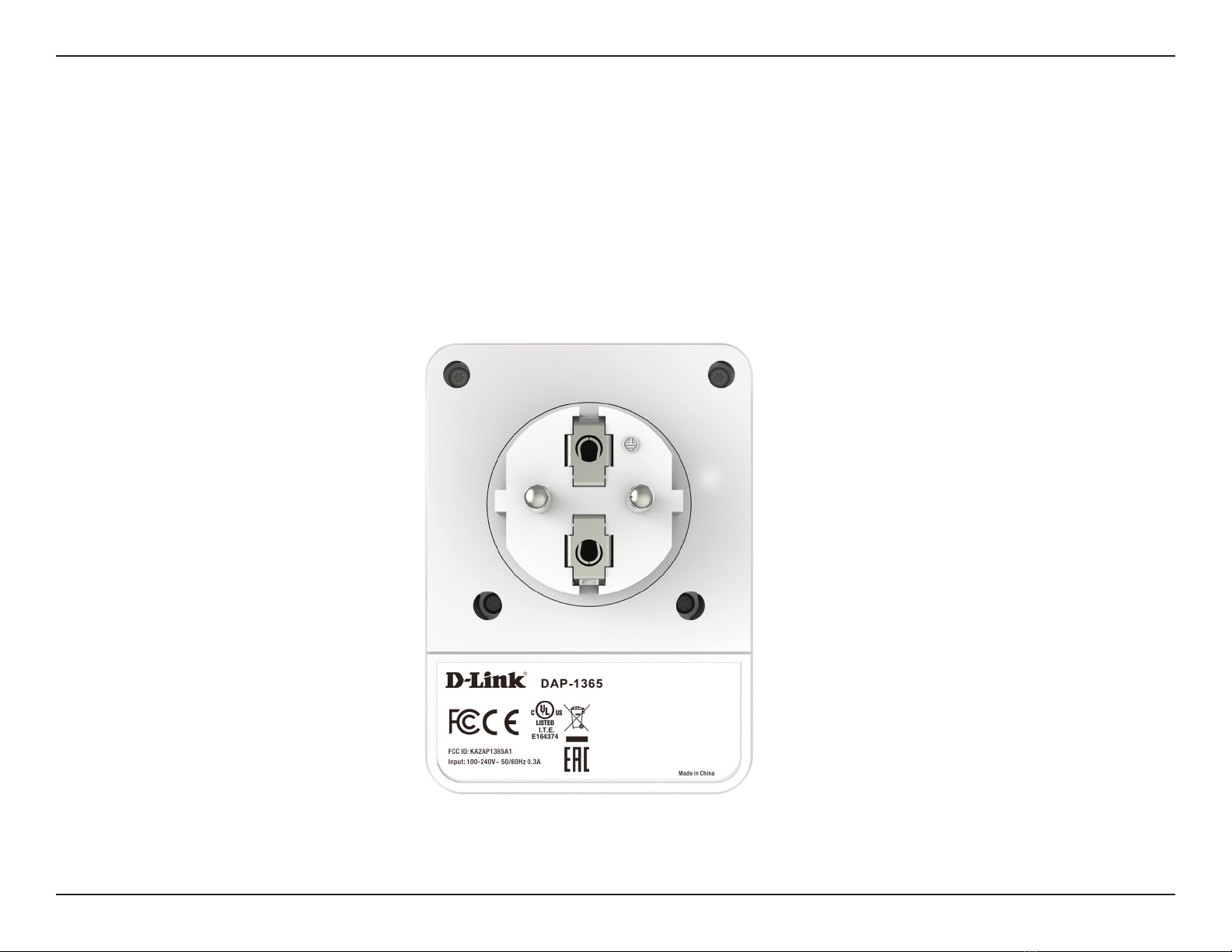

Back
10D-Link DAP-1365 User Manual
Section 2 - Installation
Installation
Wireless Installation Considerations
The DAP-1365 lets you extend your existing wireless network’s coverage as long as it is within range of the uplink network. Keep in
mind that the DAP-1365’s extension network’s range may be limited by the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through.Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business.The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link extender and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position extenders, access points, wireless routers, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.
11D-Link DAP-1365 User Manual
Section 2 - Installation
Power Installation Considerations
Plan the location of your Extender and devices plugged into the passthrough outlet:
1. Connect range extenders with power passthrough to electrical outlets that are not controlled by a wall switch to avoid
accidentally turning o power to the device.
2. To help prevent electrical shock, be sure to plug the power cables into properly grounded electrical outlets.
3. The Extender is designed to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from the
cable.
4. Do not exceed the circuit load rating listed on the front of the device.
12D-Link DAP-1365 User Manual
Section 2 - Installation
Important Safety Instructions
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service the device.
2. Use the device in a dry location, and avoid placing it in humid environments.
3. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it
from the power outlet and use a damp towel.
4. Keep the device out of direct sunlight.
5. Do not cover or block the vents on the device.
6. Make sure that the device has adequate room for ventilation.
8. Avoid placing the device near a heater or radiator.
9. The device should be located only where sucient ventilation can be ensured.
10. The purpose of this product is to create a constant network connection for your devices. If you wish to power down
this product, please simply unplug it from the power outlet.
13D-Link DAP-1365 User Manual
Section 2 - Installation

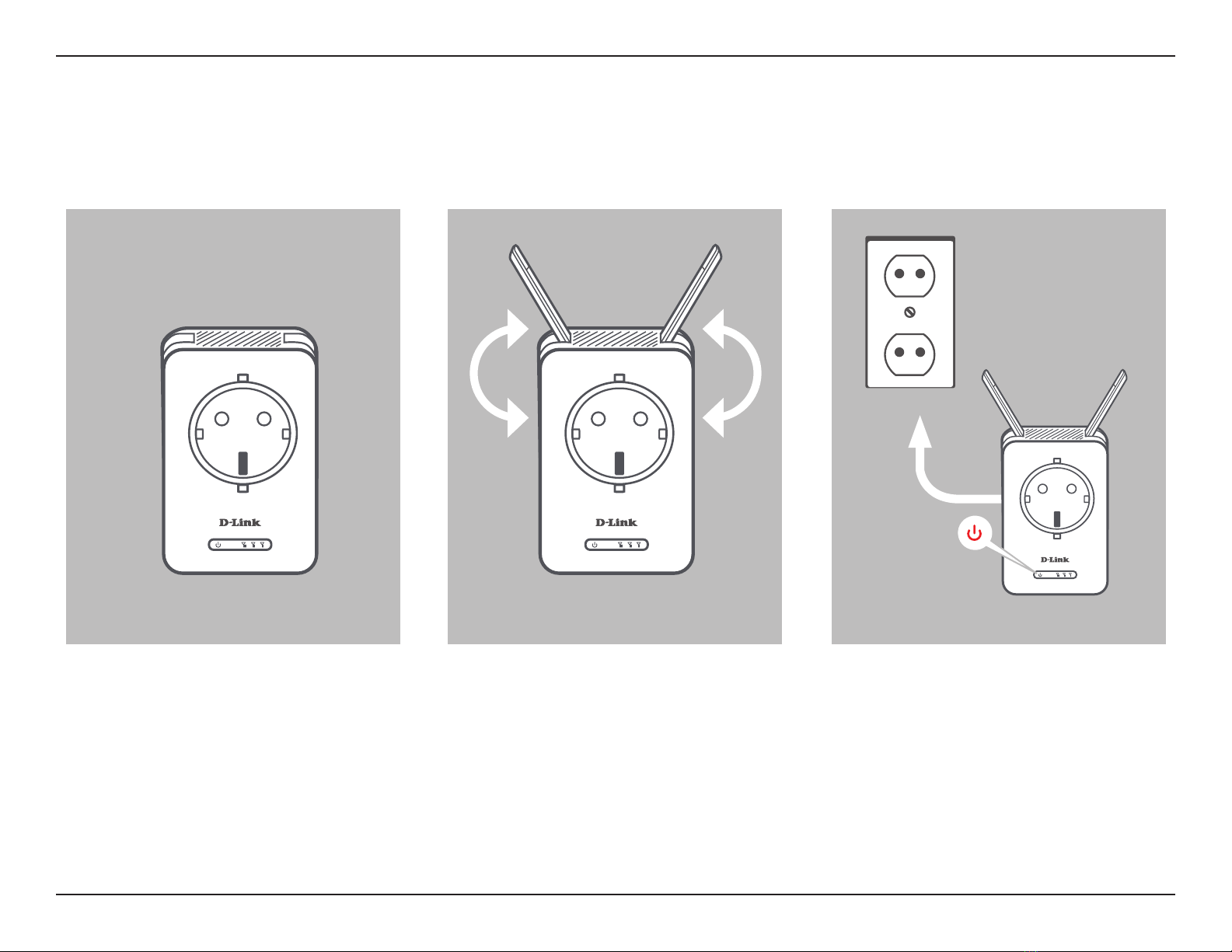

Move the antennas to their upward
position before plugging in the
extender.
Position Antennas
Locate your DAP-1365 to an area which
you wish to extend Wi-Fi to.
Find a location
Plug in the DAP-1365 to an outlet or
power strip. The WPS/Status LED will
immediately activate to indicate the
device is booting up.
Plug-in Extender
Hardware Setup
Outlet
14D-Link DAP-1365 User Manual
Section 3 - Conguration
There are several conguration tools you can use to set up your DAP-1365.
• WPS PBC - To easily extend an existing wireless network refer to “WPS-PBC Conguration” on page 15 for setup
instructions.
• QRS Mobile App - Use your Android device or iPhone, iPad, or iPod touch to congure your extender. Refer to “QRS
Mobile App Setup” on page 16 for setup instructions.
• D-Link Setup Wizard - This wizard will launch when you log into the Extender’s web conguration utility for the rst
time. Refer to ”Setup Wizard”on page 22 for setup instructions.
• Manual Conguration - Advanced users who wish to manually setup extender or adjust its settings may refer to
“Conguration”on page 32 for more information.
Getting Started
15D-Link DAP-1365 User Manual
Section 3 - Conguration
WPS-PBC Conguration
The device is ready to connect to an
uplink network once the WPS/Status
LED is blinking amber.
Push the WPS buttons on both the
source wireless router or access point.
The Status/WPS LED on the DAP-1365
will start to blink green. Please allow up
to two minutes for the process to nish
The Status/WPS LED will turn solid
green once the DAP-1365 has
connected successfully to the uplink
wireless network. The new extension
network will be named:
(Source SSID)-EXT
The password be the same as the
source network’s.
WPS Button
WPS Button
Blinking
Blinking
16D-Link DAP-1365 User Manual
Section 3 - Conguration
QRS Mobile App Setup
The DAP-1365 can be set up from your iPhone, iPod touch, iPad, or Android smartphone or tablet device using the QRS Mobile app.
Step 2
Once your app is installed, you may now congure your extender. Connect to the
router wirelessly by going to your wireless utility on your device. Scan for theWi-
Fi name (SSID) as listed on the supplied conguration card. Select and then enter
your Wi-Fi password.
Step 3
Once wirelessly connected to the extender, launch the QRS Mobile app from the
Home screen of your device.
Note: The following steps show the iOS interface of the QRS Mobile app. If you are
using an Android device, the appearance may be dierent to that of the screenshots,
but the process is the same.
Step 1
Search for the free QRS Mobile App on the Apple App Store or Google Play.
Note: The screenshots may be dierent depending on your mobile device’s OS version.
Other manuals for DAP-1365
3
Table of contents
Other D-Link Range Extender manuals
