D-Link AC750 User manual

User Manual
Version 1.0 | February 13, 2014
DIR-818LW
Wireless AC750
Dual Band Cloud Router

iD-Link DIR-818LW User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation
or its subsidiaries. All other third-party marks mentioned herein may be trademarks of their respective owners.This publication
may not be reproduced, in whole or in part, without prior express written permission from D-Link Systems, Inc.
Preface
Revision Date Description
1.0 February 13, 2014 • Initial release for Revision A1

iiD-Link DIR-818LW User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
Minimum Requirements............................................................ 2
Introduction ................................................................................... 3
Hardware Overview..................................................................... 4

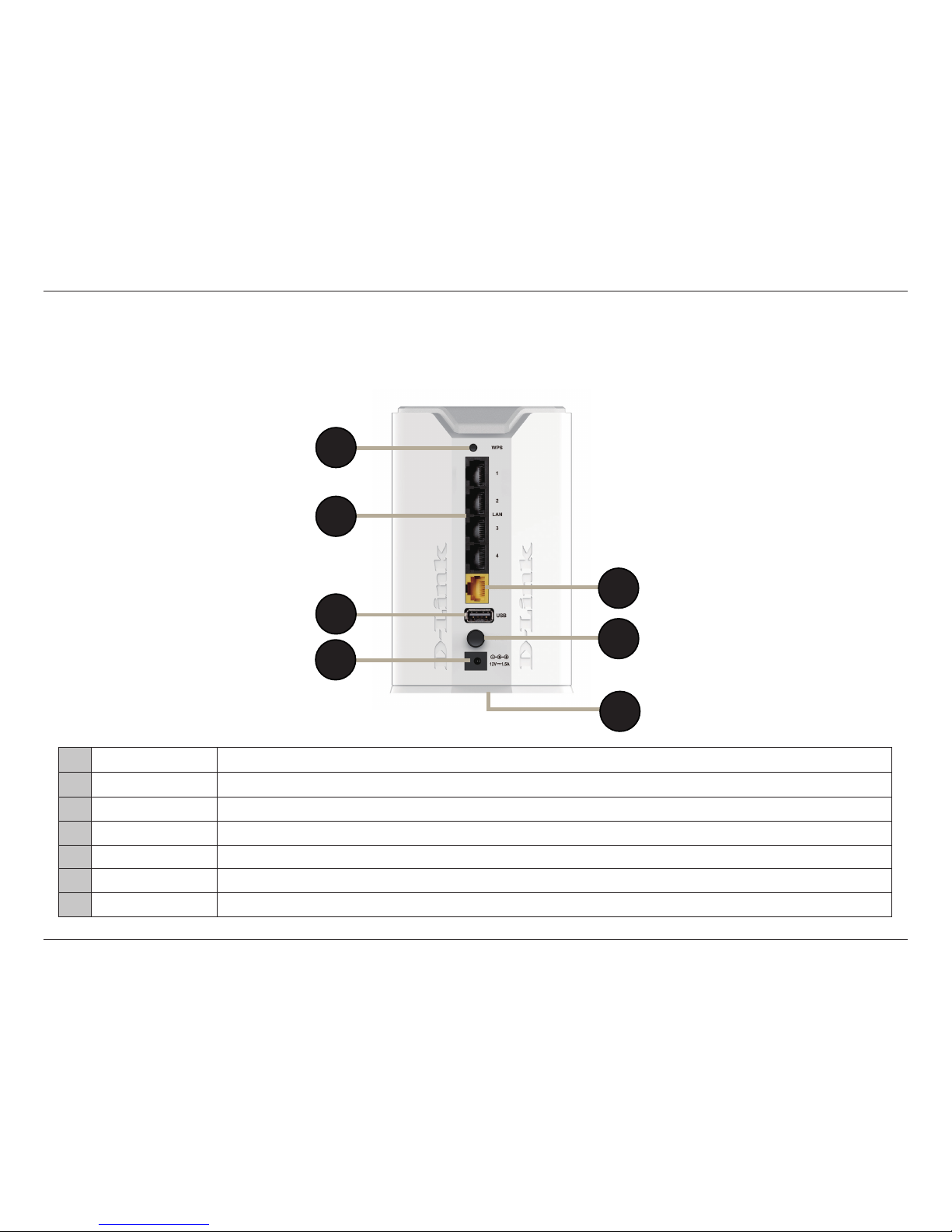

Connections ........................................................................... 4

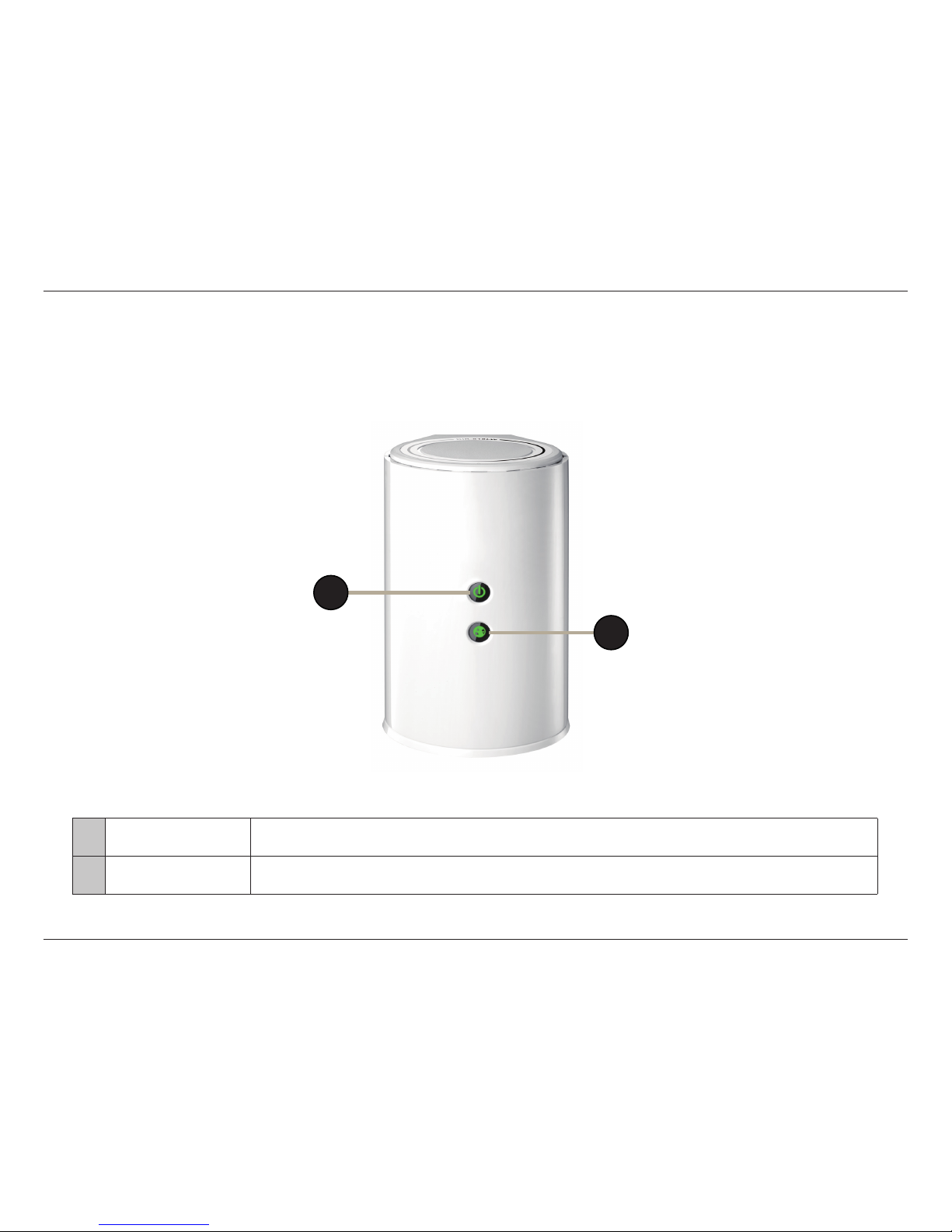

LEDs........................................................................................... 5
Installation ......................................................................... 6
Before you Begin........................................................................... 6
Wireless Installation Considerations...................................... 7

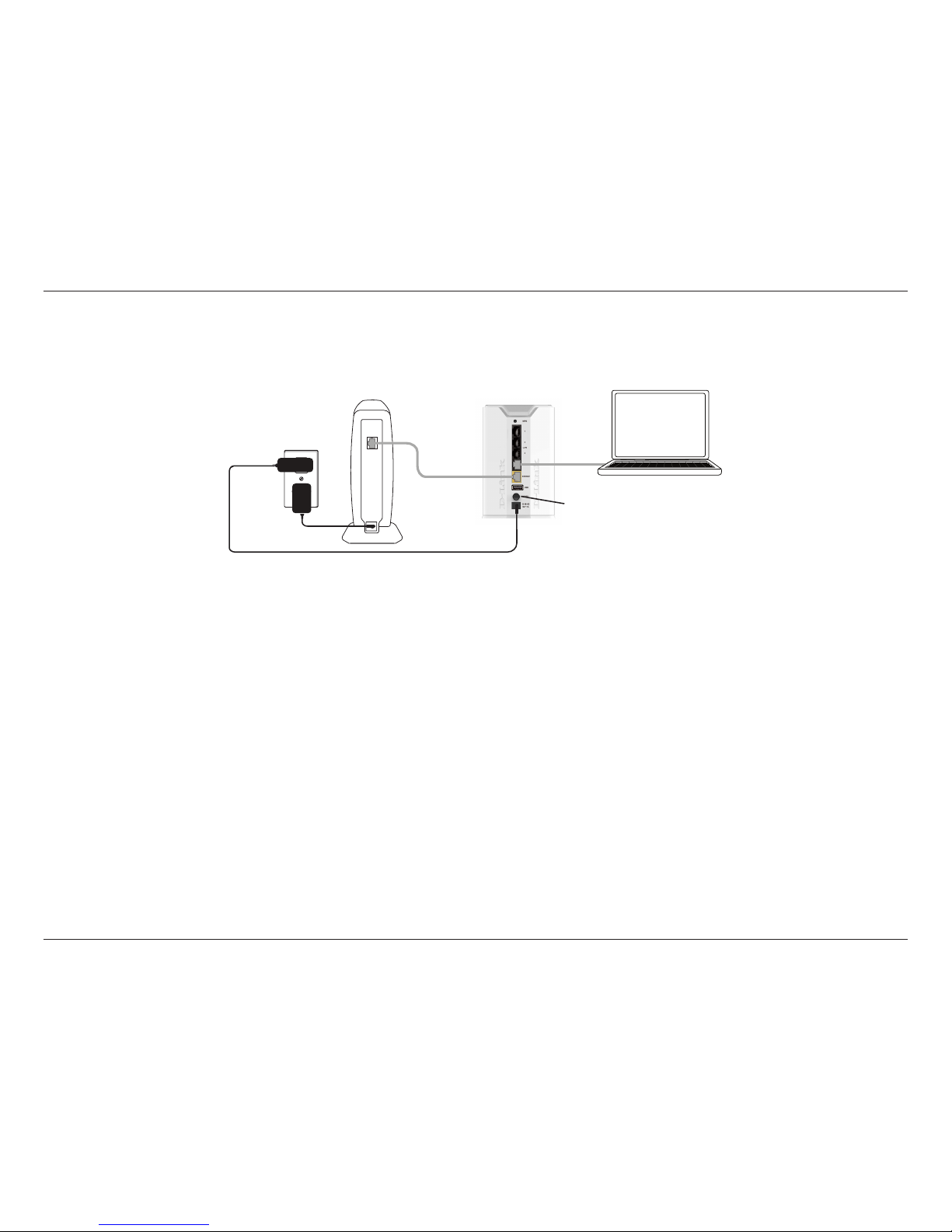

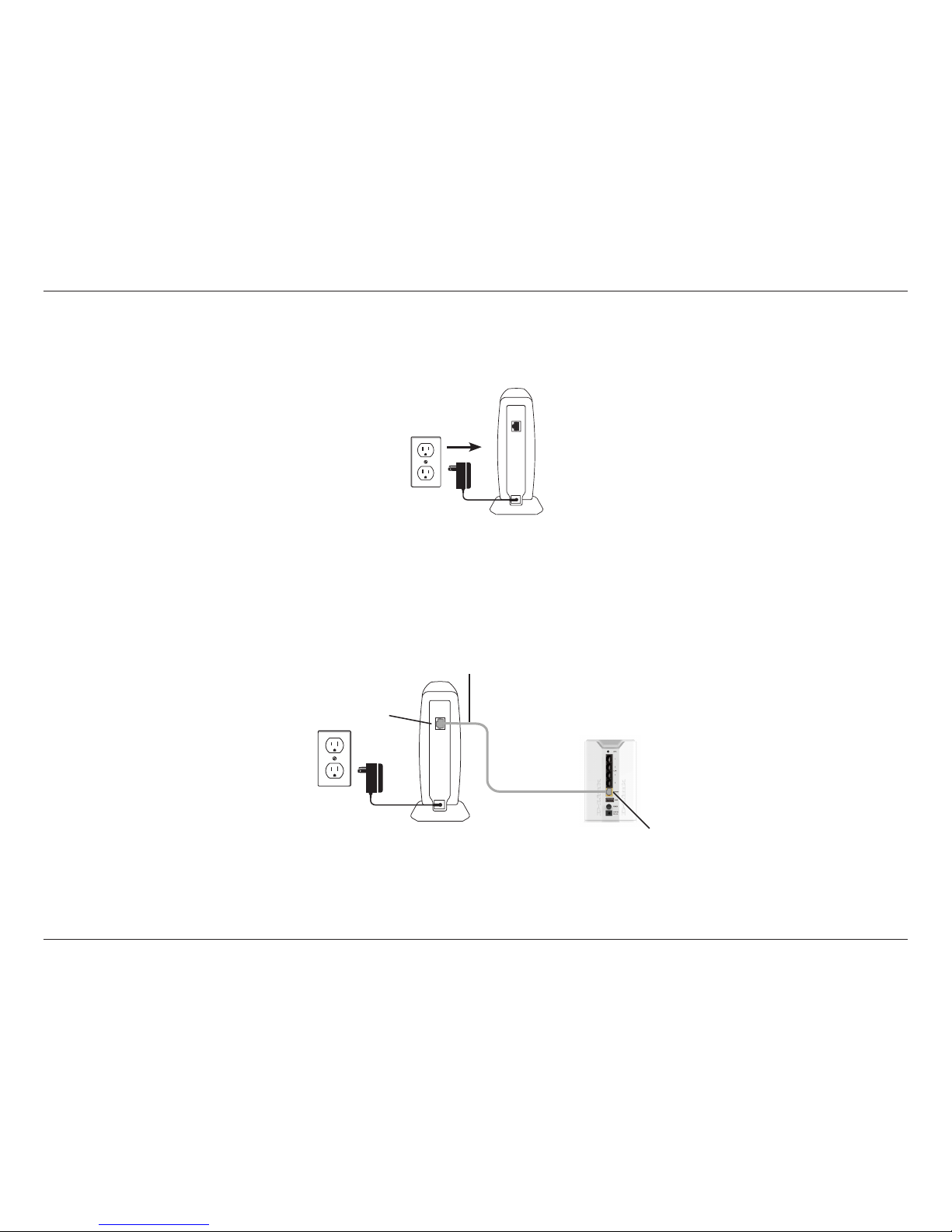

Connect to your Network.......................................................... 8

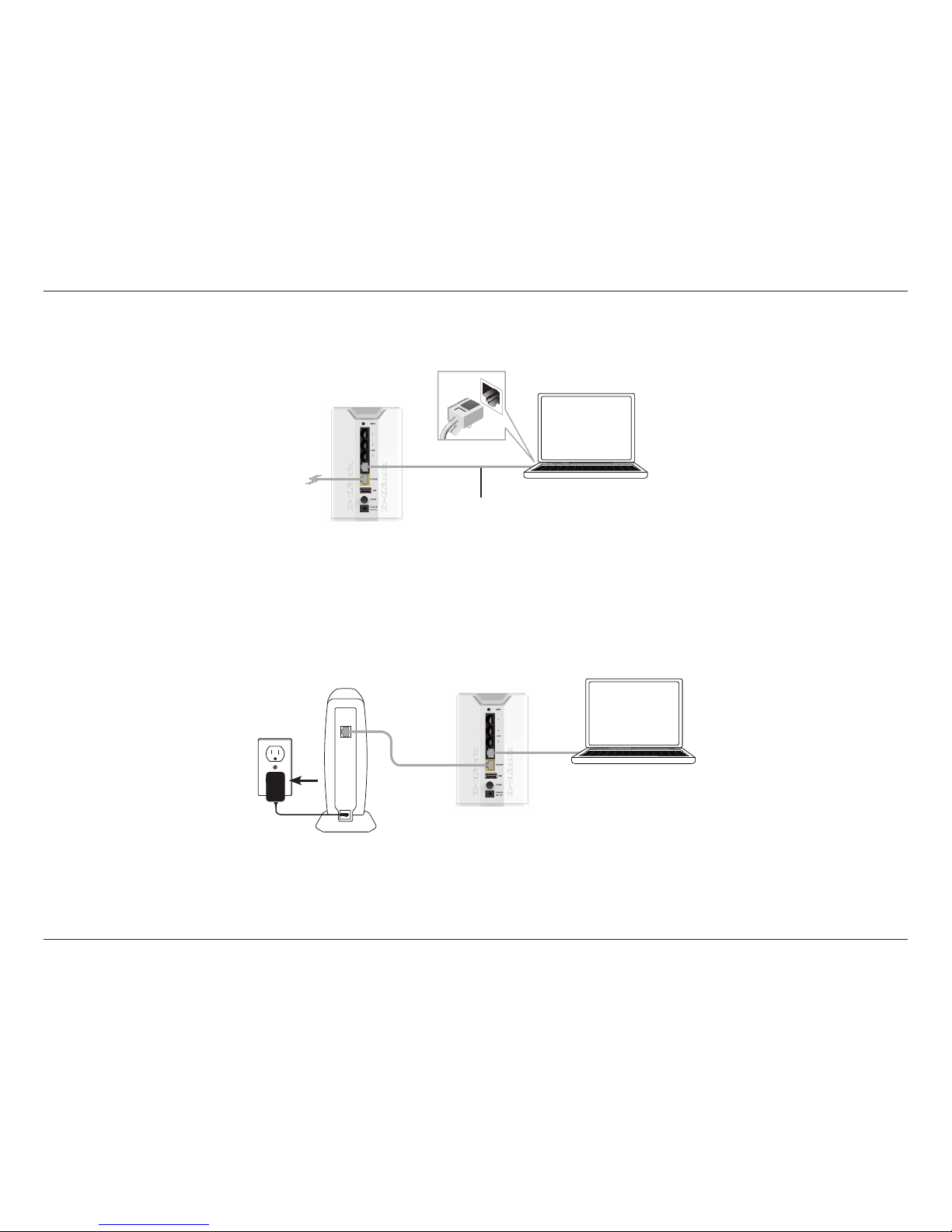

Connect to an Existing Router...............................................11
Conguration...................................................................13

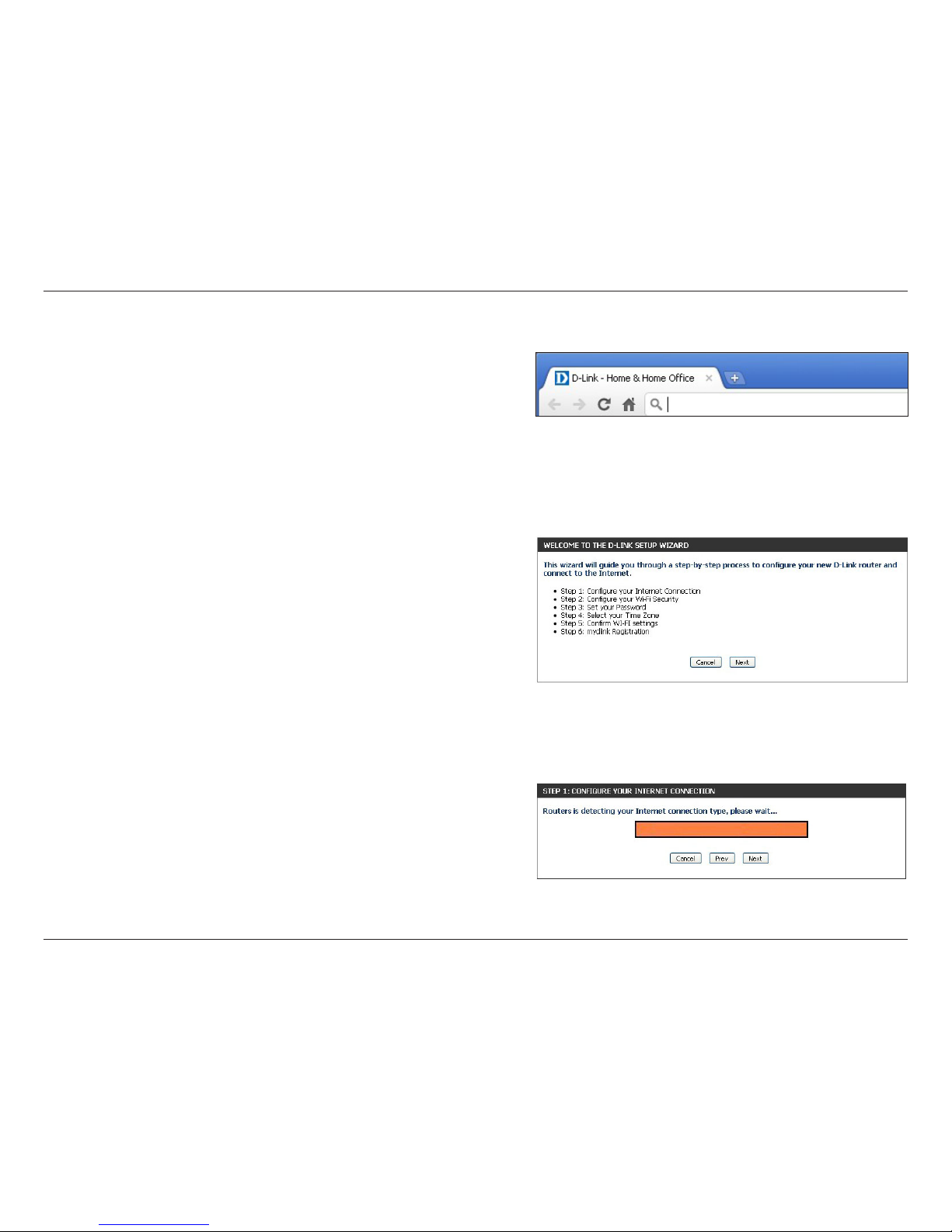

Quick Setup Wizard....................................................................14
QRS Mobile App..........................................................................21
Web-based Conguration Utility..........................................22
Internet Connection Setup .............................................23
Static (assigned by ISP)................................................24
Dynamic (Cable).............................................................25
PPPoE (DSL)......................................................................26
PPTP....................................................................................27
L2TP ....................................................................................29
DS-Lite ...............................................................................31
Internet Connection Setup Wizard.......................................32
Wireless Settings.................................................................37
Wireless Connection Setup Wizard..........................38
Add Wireless Device with WPS Wizard...................40
Manual Wireless Settings ............................................42
802.11n/g (2.4GHz)..................................................42
802.11ac/n/a (5GHz) ...............................................43
Wireless Security .................................................................44
What is WPA? ...................................................................44
WPA/WPA2-Personal (PSK) .........................................45
Congure WPA/WPA2-Enterprise (RADIUS)..........46
Network Settings ................................................................48
Router Settings...............................................................48
DHCP Server Settings...................................................49
DHCP Reservation .........................................................51
Storage ...................................................................................52
Access Files from the Internet ...................................53
Media Server.........................................................................54
IPv6 ..........................................................................................55
IPv6 Internet Connection Setup Wizard ................57
IPv6 Manual Setup.........................................................62
Auto Detection .........................................................62
Static IPv6 ...................................................................63
Autoconguration...................................................64
PPPoE............................................................................65
IPv6 in IPv4 Tunnel...................................................67
Table of Contents

iiiD-Link DIR-818LW User Manual
Table of Contents
6 to 4 Tunneling........................................................68
6rd .................................................................................69
Local Connectivity ...................................................70
mydlink Settings .................................................................71
Advanced...............................................................................72
Virtual Server...................................................................72
Port Forwarding .............................................................73
Application Rules...........................................................74
QoS Engine.......................................................................75
Network (MAC) Filters ..................................................77
Inbound Filters................................................................78
Access Control.................................................................79
Access Control Wizard............................................79
Website Filters.................................................................83
Firewall Settings.............................................................84
Routing..............................................................................86
Advanced Wireless ........................................................87
Wi-Fi Protected Setup (WPS) .....................................88
WPS Button ................................................................89
Advanced Network Settings......................................90
Guest Zone.......................................................................91
IPv6 Firewall.....................................................................92
IPv6 Routing ....................................................................93
Tools ........................................................................................94
Admin.................................................................................94
Time....................................................................................95
SysLog................................................................................96
Email Settings..................................................................97
System ...............................................................................98
Firmware ...........................................................................99
Language Pack Upgrade.............................................99
Dynamic DNS ............................................................... 100
System Check ............................................................... 102
Schedules ...................................................................... 103
Status ................................................................................... 104
Device Info .................................................................... 104
Logs.................................................................................. 105
Statistics ......................................................................... 106
Internet Sessions......................................................... 107
Wireless........................................................................... 108
Routing........................................................................... 109
IPv6 .................................................................................. 110
IPV6 Routing................................................................. 111
Support ............................................................................... 112
Sharing Files Using the mydlink SharePort™ App.......113
The mydlink SharePort App for iOS Devices.................. 113
Main Menu ......................................................................... 117
Documents......................................................................... 118
Pictures................................................................................ 120
Videos .................................................................................. 122
Music .................................................................................... 124
Folders ................................................................................. 127
Favorites.............................................................................. 130
The mydlink SharePort App for Android™ Devices ..... 131
Main Menu ......................................................................... 135
Documents......................................................................... 136
Pictures................................................................................ 138

ivD-Link DIR-818LW User Manual
Table of Contents
Videos .................................................................................. 140
Music .................................................................................... 142
Folders ................................................................................. 145
Favorites.............................................................................. 149
Using SharePort Mobile for Windows® 8/RT.................. 150
Main Menu ......................................................................... 152
Documents......................................................................... 153
Pictures................................................................................ 154
Movies.................................................................................. 156
Music .................................................................................... 158
Folder ................................................................................... 161
Favorite................................................................................ 164
Using SharePort Web Access............................................... 165
Music .................................................................................... 167
Pictures................................................................................ 168
Videos .................................................................................. 169
Documents......................................................................... 170
Connect a Wireless Client to your Router ....................171
WPS Button................................................................................ 171
Windows® 8................................................................................ 172
Windows® 7................................................................................ 174
WPA/WPA2 ......................................................................... 174
WPS....................................................................................... 177
Windows Vista®......................................................................... 181
WPA/WPA2 ......................................................................... 182
WPS/WCN 2.0 .................................................................... 184
Windows® XP............................................................................. 185
WPA/WPA2 ......................................................................... 186
Troubleshooting ............................................................188
Wireless Basics ...............................................................192
What is Wireless?...................................................................... 193
Tips................................................................................................ 195
Wireless Modes......................................................................... 196
Networking Basics.........................................................197
Check your IP address............................................................ 197
Windows® 8 Users............................................................ 197
Windows® 7/Vista® Users............................................... 197
Windows® XP Users......................................................... 197
Statically Assign an IP Address ........................................... 198
Windows® 8 Users ............................................................ 198
Windows® 7/ Vista® Users .............................................. 199
Windows® XP Users......................................................... 200
Technical Specications................................................201
Contacting Technical Support ......................................202
GPL Code Statement......................................................203
Warranty.........................................................................215
Registration ...................................................................222

1D-Link DIR-818LW User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-818LW will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.
DIR-818LW Wireless AC750 Dual Band Gigabit Cloud Router
Power Adapter
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DIR-818LW User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based broadband modem
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows® 8, 7, Vista®, XP (SP3), or Mac OS® X (v10.4)
• An installed Ethernet adapter or wireless adapter
Supported Browsers:
• Internet Explorer 7 or higher
• Firefox
• Chrome
• Safari 4 or higher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
mydlink Requirements For mydlink and mydlink app requirements, refer to:
http://www.mydlink.com
Minimum Requirements

3D-Link DIR-818LW User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-818LW Wireless AC750 Dual Band Gigabit Cloud Router provides revolutionary 802.11ac wireless speed - up to
750Mbps - for awless HD video streaming to multiple devices.
With mydlink™ Cloud Services, you can monitor your home network from anywhere, anytime, using your iPhone, iPad, and
Android device(s). Monitor what websites are being visited, block access from unwanted devices, and receive automatic e-mail
alerts when unauthorized connections are attempted.
With the mydlink SharePort™ app, you can wirelessly access your media that is stored on a connected USB drive from your
iPhone®, iPad®, or Android™ device. Best of all, you can get free apps for network management and le access.
* Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

4D-Link DIR-818LW User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1
2
3
4
65
7
1USB Port Connect a USB ash drive to share content throughout your network.
2WPS Button Press the WPS button to start the WPS process. The Power LED will start to blink.
3LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
4Internet Port Connect your broadband modem to this port using an Ethernet cable.
5Power Button Press the power button to power the router on and o.
6Power Port Connect the supplied power adapter to this port.
7Reset Button Press and hold the reset button with a paper clip for six seconds to reset the router to the factory default settings.

5D-Link DIR-818LW User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will be solid orange
during reboot, and will blink green during the WPS process.
2Internet LED A solid green light indicates a successful connection to the Internet. If the LED is solid orange, the
connection is good but the router cannot connect to the Internet.
2
1

6D-Link DIR-818LW User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• Users with DSL providers - If you are using a PPPoE connection, you will need your PPPoE user name and password.
If you do not have this information, contact your Internet provider. Do not proceed until you have this information.
• Users with Cable providers - Make sure you unplug the power to your modem. In some cases, you may need to turn
it o for up to ve minutes.
•Advanced Users - If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so
the DIR-818LW can work properly. For details, contact your ISP or refer to the user manual for your modem/router
device.

7D-Link DIR-818LW User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

8D-Link DIR-818LW User Manual
Section 2 - Installation
1. Turn o and unplug the power to your DSL or Cable modem. This is required.
Connect to your Network
Modem
2. Connect an Ethernet cable from the Internet port of the router to the Ethernet port on your DSL or Cable modem.
Modem DIR-818LW Internet Port (yellow)
Ethernet Port
Ethernet Cable

9D-Link DIR-818LW User Manual
Section 2 - Installation
4. Plug the power back into your DSL or Cable modem. Please wait about one minute before continuing.
3. Connect another Ethernet cable from the Ethernet port on your computer to one of the LAN ports on the router.
DIR-818LW
Computer
Modem
DIR-818LW
Computer
Ethernet Cable

10D-Link DIR-818LW User Manual
Section 2 - Installation
6. After the router has powered up, verify that the power (green) and Internet (orange or green) LEDs are both lit. Skip
to “Conguration” on page 13 to learn about your conguration options. If you initially choose not to connect
to the Internet, later you can use the ”Internet Connection Setup Wizard”on page 32.
5. Plug the power adapter into your router and connect to an available power outlet or surge protector. If the
Power LED does not light up, press the Power button on the back of the router.
Modem
Computer
DIR-818LW
Power Button

11D-Link DIR-818LW User Manual
Section 2 - Installation
Note: It is strongly recommended that you replace your existing router with the DIR-818LW instead of using both. If your modem is a
combo router, you may want to contact your ISP or review the manufacturer’s user guide so you can put the router into Bridge mode,
which will ‘turn o’ the router’s (NAT) functions.
If you are connecting the DIR-818LW router to an existing router to use as a wireless access point and/or switch, you will have
to do the following to the DIR-818LW before connecting it to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept
a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure
your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics
section for more information. If you need to change the settings, write down your existing settings before making any
changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have
to do anything to your computer.
2. Open a web browser, enter http://192.168.0.1 (or http://dlinkrouter.local./) and press Enter. When the login window
appears, set the user name to Admin and leave the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
Connect to an Existing Router

12D-Link DIR-818LW User Manual
Section 2 - Installation
5. Under Router Settings, enter an available IP Address and the Subnet Mask of your network. Click Save Settings to save
your settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and
change your computer’s IP settings back to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything
into the Internet (WAN) port of the D-Link router.
8. You may now use the other three LAN ports to connect other Ethernet devices and computers. To congure your wireless
network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless
Security sections for more information on setting up your wireless network.

13D-Link DIR-818LW User Manual
Section 3 - Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• QRS Mobile App - Use your iPhone, iPad, or Android device to congure your router. See ”QRS Mobile App” on page 21.
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to“Quick Setup Wizard”
on page 14.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to“Manual Internet
Setup” on page 24.
Conguration

14D-Link DIR-818LW User Manual
Section 3 - Conguration
If this is your rst time logging into the router, and the wizard does
not start automatically, enter http://192.168.0.1.
The wizard will guide you through a step-by-step process to
congure your new D-Link router and connect to the Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, launch your web
browser (e.g., Internet Explorer), and you will automatically be
directed to the D-Link Setup Wizard.
If you have already congured your settings and you would like
to access the conguration utility, please refer to “Web-based
Conguration Utility” on page 22.
Please wait while your router detects your internet connection
type. If the router detects your Internet connection, you may need
to enter your ISP information such as username and password. (See
instructions on page 16 for PPPoE, PPTP and L2TP).

15D-Link DIR-818LW User Manual
Section 3 - Conguration
If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Connect.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue. You
can select DHCP Connection (Dynamic IP Address) if your Internet
connection automatically provides you with an IP Address. This option
is commonly used for cable modem services.
Click Next to continue.
