DAE Pumps Sonora S330 User manual

Instruction Manual
Sonora S330

Original instructions
Printed matter N° 2954 8980 01
04/2019

Preface
Please read the following instructions carefully before starting to use your pump.
It is a solid, safe and reliable machine, built according to the latest technology. Follow the instructions in this booklet.
Always keep the manual available near the machine. In all correspondence always mention the pump type and serial number, shown on the data plate.
The company reserves the right to make changes without prior notice.
Copyright © 2018 DAE Pumps
Warranty and Liability Limitation
Use only authorized parts.
Any damage or malfunction caused by the use of unauthorized parts is not covered by Warranty or Product Liability.
The manufacturer does not accept any liability for any damage arising from modications, additions or conversions made without the manufacturer's approval in writing.
Neglecting maintenance or making changes to the setup of the machine can result in major hazards.
While every eort has been made to ensure that the information in this manual is correct, DAE Pumps does not assume responsibility for possible errors.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and drawings.

Table of Contents
Safety precautions .................................. 5
Introduction .......................................... 5
Pictograms and symbols ............................. 5
Safety during use and operation ..................... 5
Authorised personnel ................................ 6
Dangers when not following safety instructions .... 6
Safety-conscious working method .................. 6
Personal safety ....................................... 6
Safety during maintenance .......................... 6
Electrical safety ...................................... 6
Conversion and spare parts .......................... 6
Unintended use ...................................... 6
General description ................................ 7
Housing and wet end ................................ 7
Impeller .............................................. 7
Overload Protection ................................. 7
Main parts .......................................... 8
Options ............................................. 9

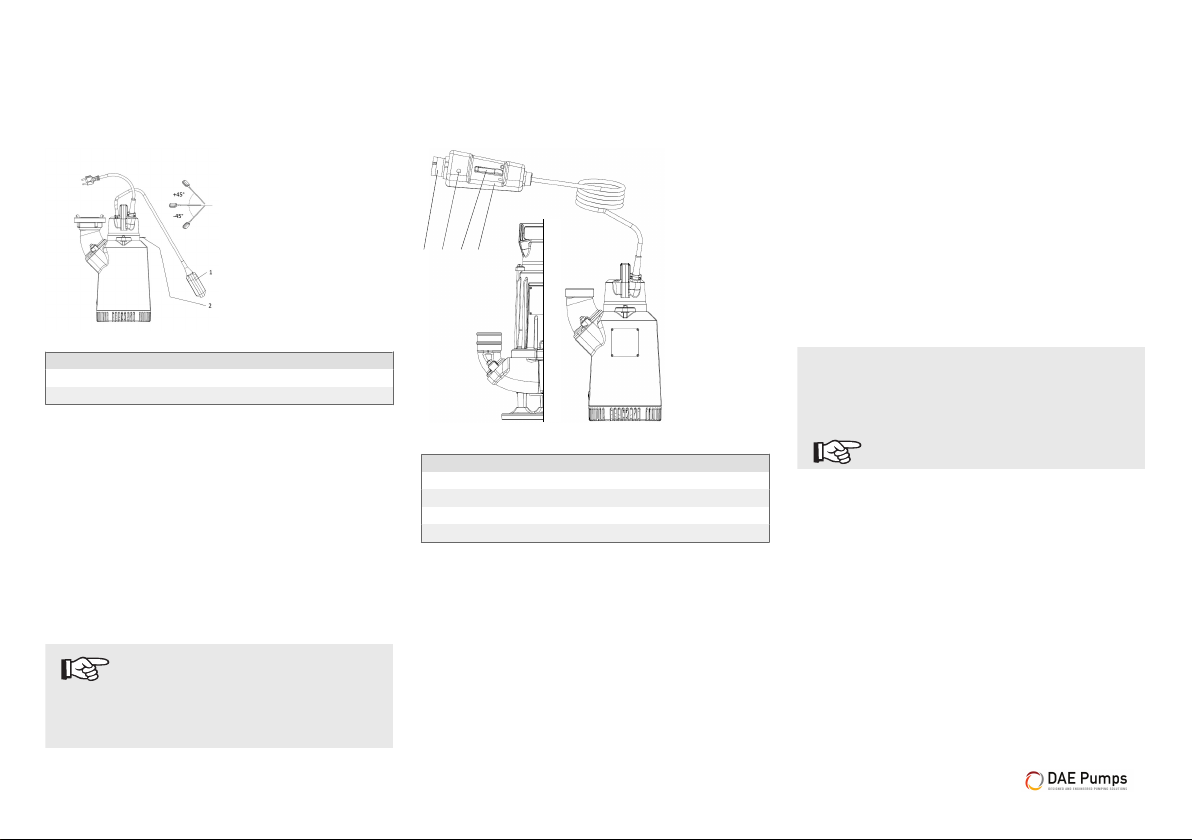

Float switch ......................................... 9
Motor protection plug .............................. 9
Supply control relay ................................ 9
Low suction collar .................................. 10
Zinc anodes ......................................... 10
Epoxy coating ...................................... 10
Quick couplings .................................... 10
Operating instructions ............................ 11
Transport . ........................................... 11
Starting ............................................. 11
Stopping ............................................ 12
Storage .............................................. 12
Maintenance ....................................... 13
Preventive maintenance schedule .................. 13
External damage, loose parts ....................... 13
Motor insulation resistance ......................... 13
Impeller ............................................. 13
Power cable ......................................... 13
Cable entry ......................................... 13

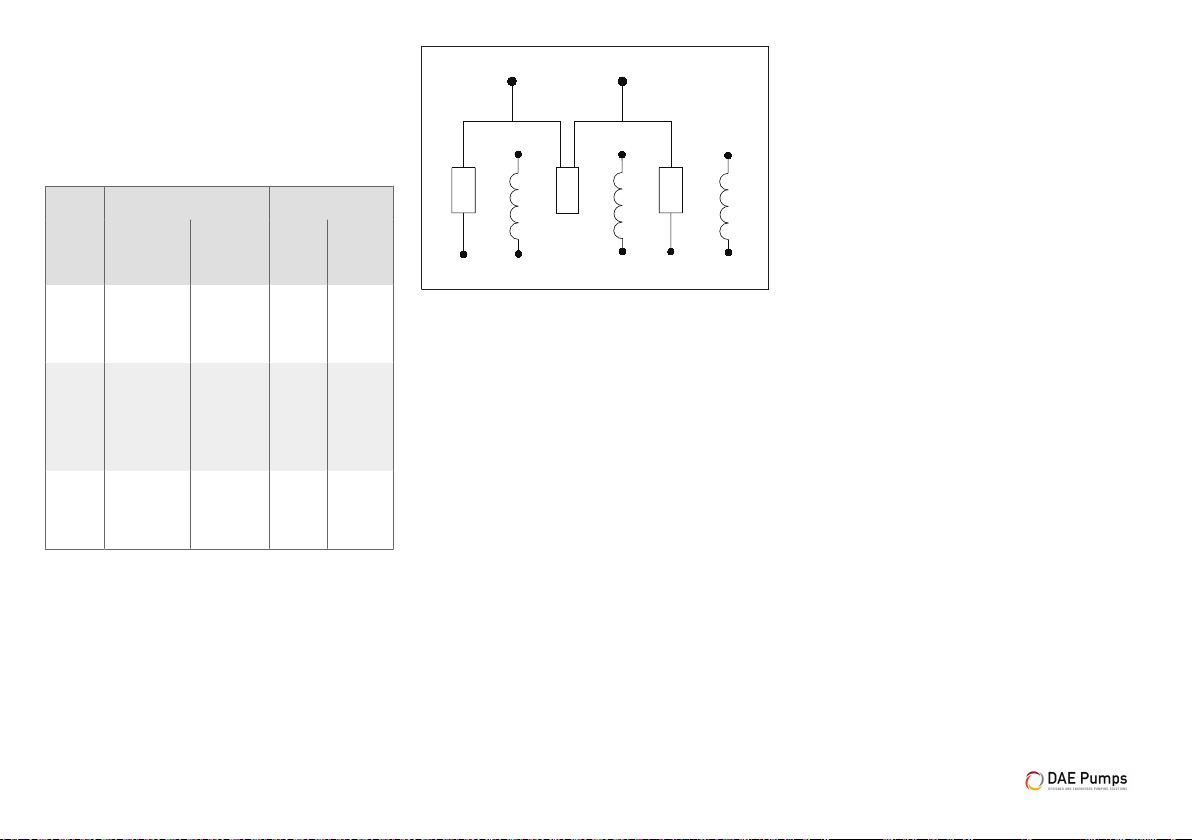

Thermal switches in windings, 3-phase ............ 14
Oil .................................................. 15
Troubleshooting ................................... 16
Technical details Impeller material ............. 18
Dimensions ......................................... 18
Motor data WEDA S30 ............................. 21
1-phase, 50 Hz ...................................... 21
3-phase, 50 Hz ...................................... 21
3-phase, 60 Hz ...................................... 21
Wiring diagram ..................................... 20
Flow characteristics ................................ 26
Spare parts ......................................... 27
Ordering spare parts ................................ 27
Oil specification .................................... 27
Warranty ........................................... 27
Disposal ............................................ 28
General ............................................. 28
RoHS ............................................... 28
WEEE .............................................. 28
Disposal of materials ............................... 28
Declaration of conformity .......................... 29
4

Safety precautions
To be read attentively and acted ac-
cordingly before operating, perform-
ing maintenance or repairing the
unit.
INTRODUCTION
The policy of DAE Pumps is to provide the users of
their equipment with safe, reliable and efficient prod-
ucts. Factors taken into account are among others:
• the intended and predictable future use of the prod-
ucts, and the environments in which they are ex-
pected to operate,
• applicable rules, codes and regulations,
• the expected useful product life, assuming proper
service and maintenance,
• providing the manual with up-to-date information.
Before handling any product, take time to read the
relevant instruction manual. Besides giving detailed
operating instructions, it also gives specific informa-
tion about safety, preventive maintenance, etc.
Keep the manual always at the unit location, easy ac-
cessible to the operating personnel.
These safety precautions are general and some state-
ments will therefore not always apply to a particular
unit.
Only people that have the right skills should be al-
lowed to operate, adjust, perform maintenance or re-
pair on DAE Pumps equipment.
It is the responsibility of management to appoint staff
with the appropriate training and skill for each cate-
gory of job.
Take the necessary steps to keep unauthorized persons
away from the unit and eliminate all possible sources
of danger at the unit.
When handling, operating, overhauling and/or per-
forming maintenance or repair on DAE Pumps equip-
ment, the mechanics are expected to use safe engi-
neering practices and to observe all relevant local
safety requirements and ordinances.
All responsibility for any damage or injury resulting
from neglecting these precautions or by non-observ-
ance of ordinary caution and due care required in han-
dling, operating, maintenance or repair, also if not ex-
pressly mentioned in this instruction manual, is dis-
claimed by DAE Pumps.
The manufacturer does not accept any liability for any
damage arising from the use of non-original parts and
for modifications, additions or conversions made
without the manufacturer’s approval in writing.
If any statement in this manual does not comply with
local legislation, the stricter of the two shall be ap-
plied.
Statements in these safety precautions should not be
interpreted as suggestions, recommendations or in-
ducements that it should be used in violation of any
applicable laws or regulations.
PICTOGRAMS AND SYMBOLS
This manual contains safety instructions that, when
not observed, can lead to dangerous situations.
These safety instructions are indica-
ted with a general pictogram indicat-
ing danger.
Safety instructions related to possible
dangers when not observing the elec-
trical safety instructions are indica-
ted with this pictogram. Violating
these safety instructions may result
in death through electrocution.
This pictogram indicates safety in-
structions that can lead to damage to
the pump when not observed.
All labels on the pump must be kept legible. Dam-
aged labels have to be replaced.
SAFETY DURING USE AND OPERATION
This manual contains basic safety instructions that
have to be observed during installation, use and main-
tenance. This manual is to be read by all operators/
users before installing and operating the pump. It
must be kept available to all operators/users at the op-
erating site. Apart from the instructions in this chapter
also the safety instructions mentioned in others sec-
tions of this manual must be observed.
5

AUTHORISED PERSONNEL
Only people that have the right skills should be al-
lowed to operate, adjust, perform maintenance or re-
pair on DAE Pumps equipment.
It is the responsibility of management to appoint op-
erators with the appropriate training and skill for each
category of job.
Skill level 1: Operator
An operator is trained in all aspects of operating the
unit with the push-buttons, and is trained to know the
safety aspects.
Skill level 2: Mechanical technician
A mechanical technician is trained to operate the unit
the same as the operator. In addition, the mechanical
technician is also trained to perform maintenance and
repair, as described in the instruction manual, and is
allowed to change settings of the control and safety
system. A mechanical technician does not work on
live electrical components.
Skill level 3: Electrical technician
An electrical technician is trained and has the same
qualifications as both the operator and the mechanical
technician. In addition, the electrical technician may
carry out electrical repairs within the various enclo-
sures of the unit. This includes work on live electrical
components.
Skill level 4: Specialist from the manufacturer
This is a skilled specialist sent by the manufacturer or
its agent to perform complex repairs or modifications
to the equipment.
In general it is recommended that not more than two
people operate the unit, more operators could lead to
unsafe operating conditions.
DANGERS WHEN NOT FOLLOWING SAFETY
INSTRUCTIONS
Not observing the safety instructions may lead to per-
sonal injury, damage to the equipment and environ-
mental hazards. Not observing the safety instructions
will void any warranty claim.
SAFETY-CONSCIOUS WORKING METHOD
All safety instructions in this manual as well as na-
tional accident preventing regulations and company-
internal regulations regarding labour, operation and
safety have to be observed.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common
sense when operating a pump. Do not use pumps
while tired or under influence of drugs, alcohol or
medication. A moment of inattention while operating
pumps can result in serious personal injury.
Dress properly. Do not wear loose clothing or jewel-
lery. Contain long hair. Keep your hair, clothing, and
gloves away from moving parts. Loose clothes, jewel-
lery, or long hair can be caught in moving parts.
Use approved safety equipment. Always wear eye
protection, protective shoes and gloves.
SAFETY DURING MAINTENANCE
The owner is responsible for adequate training of the
personnel maintaining the pumps. In principle all
maintenance has to be performed on a non-energised
pump. Observe the procedures as mentioned in the
manual.
ELECTRICAL SAFETY
Pumps must be plugged into an outlet that is properly
installed and grounded in accordance with all codes
and ordinances. Never remove the grounding prong or
modify the plug in any way. Do not use any adaptor
plugs. Check with a qualified electrician if you are in
doubt as to whether the outlet is properly grounded.
Do not abuse the power cable. Never use the power
cable to carry the pumps or pull the plug from an out-
let. Keep the power cable away from heat, oil, sharp
edges or moving parts. Damaged power cables in-
crease the risk of electric shock.
Use a network protected by a ground fault circuit in-
terrupter.
CONVERSION AND SPARE PARTS
Conversions are only allowed after written consent of
the manufacturer. Always use original spare parts.
Unauthorised conversion and / or the use of nonorigi-
nal spare parts will void any warranty claims.
6
UNINTENDED USE
The reliability of the pump is only guaranteed when it
is used according the specifications in this manual.
The limits as indicated are not to be exceeded under
any circumstances.
Do not use the pump to transport water for human
consumption, for water well pumping or for installa-
tion in an explosive atmosphere.
Caustic, slightly inflammable and other explosive
substances such as petrol, petroleum, diluted nitrogen,
greases, oils and waste water from toilets as well as
sludgy water that has a slower flow capacity than wa-
ter, should not be transported using the pump. Salt
water may be transported provided that a zinc anode
kit is used for protection against galvanic corrosion,
see section options.
The temperature of the transported fluids should not
exceed 40°C.
The appliance is not suitable for use as a stationary
installation (such as a lifting device, fountain pump).

7
General description
Sonora dewatering pumps are electrical submersible
pumps for dewatering applications in construction
sites, industry, mining, tanks, pools etc. The range
consists of several dewatering pumps, all designed for
though pumping in demanding applications. The
compact design and light weight make the pumps very
versatile and easy to install.
The design with outer jacket for cooling and motor
protector keeps the pump running safely under vari-
ous conditions. (Cooling flanges for Sonora S330
provides the cooling function in ab-sence of outer
casing). The double mechanical seal runs in an oil
bath and assures a long life time.
Features:
• Dry running capability. Motor protector.
• Plug and pump.
• Built-in high torque capacitor (1ph).
• The double seal runs in an oil bath and assures a
long life time.
• Impeller from high chrome steel minimizes mainte-
nance.
• The bearings are greased for life with high temper-
ature grease and anti-corrosion additive.
Sonora S330 are compact versatile dewatering pumps
for various pumping needs. The high chrome steel
impeller is designed to handle the water in
construction sites, manholes and industrial pits etc.
with very low risk of clogging.
HOUSING AND WET END
The housing is made of aluminum and parts of wet
end are rubber lined.
IMPELLER
The Sonora S330 pumps are equipped with a high
chrome steel impeller.
OVERLOAD PROTECTION
The pump is supplied with automatically resetting
thermal overload protection switches in the motor
windings.

Main parts
1
2
7
3
4
5
611
10
8
9
4
5
12
Reference Name
1 Cable
2 Plug
3 Coupling
4 Discharge
5 Oil plug
6 Strainer
7 Handle
8 Holder for float switch (option)
9 Data plate
10 Float switch (option)
11 Volute
12 Bottom plate
8

Options
FLOAT SWITCH
Reference Name
1 Float switch
2 Float switch holder
3081690555 - Float switch kit (CE)
3081690557 - Float switch kit (CSA)
(Float switch kit for local retro fit assembly.)
Use the pump with a float switch if automatic starting
and stopping is required.
The pump starts if the float switch reaches an angle of
+45° and stops at an angle of -45°.
For continuous operation block the float switch verti-
cally, pointing upwards.
Note! For non CSA pumps with mo-
tor voltage above 400V
, the float
switch kit must be complemented by
a step down transformer as the float
is not approved above 400V.
MOTOR PROTECTION PLUG
4 3 2 1
Reference Name
1 Over current relay
2 On/Off switch
3 Indicator lamp for phase control
4 Plug with phase inverter
To protect the motor against over current it is strongly
recommended to use an external motor protector.
For pumps with 400V 50Hz- 3ph motor an external
motor protector can be ordered separately. It com-
bines the on/off switch and the overload protection in
one device, thus creating optimal operating comfort
and protection for the pump.
If the indicator lamp 3 is lighting red, reverse two
phases with a screw driver in plug 4.
After a fault the pump must be restarted manually
pressing the switch on the external motor protector.

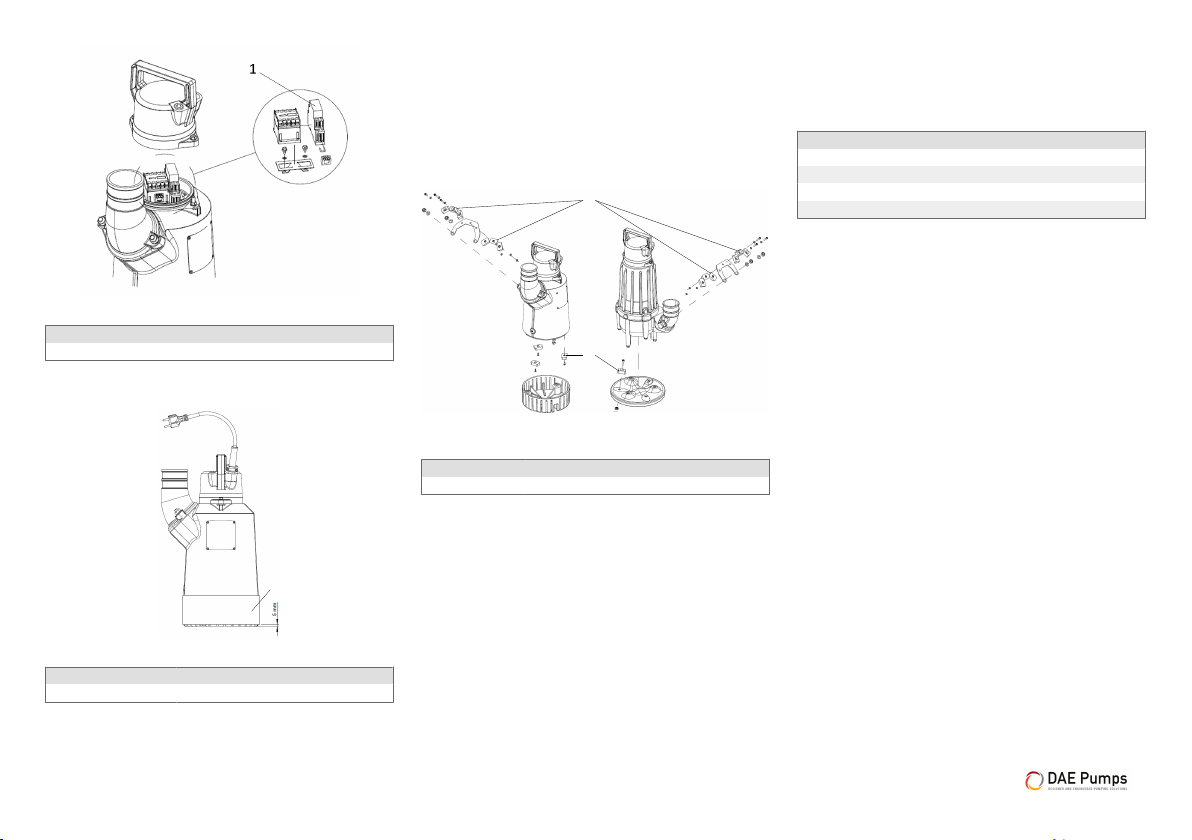

SUPPLY CONTROL RELAY
The Sonora pumps can be equipped with a built-in
supply control relay.
Features
Pump protection, the pump will stop in case of:
• Wrong phase sequence.
• Phase failure
A pump equipped with a supply con-
trol relay will not start when phase
sequence is wrong, or in case of
phase failure. To start the pump
when phase sequence is wrong, shift
two of the three phases.
9

Reference Name
1 Supply control relay
LOW SUCTION COLLAR
1
Reference Name
1 Low suction collar
470W224848 - Low suction collar
The low suction collar allows you to pump residual
water all the way down to 3 mm. The low suction col-
lar is made of rubber and is placed over the strainer. If
the low suction collar is placed 5 mm to the ground,
the water can be pumped down to a residual amount
of 3 mm.
ZINC ANODES
1
1
Reference Name
1 Zinc anode
3081690475 Zinc anode kit Sonora S330
When pumping salt water (which is highly aggressive
towards aluminum), the pump should be protected
with zinc anodes.
EPOXY COATING
For optimum protection when pumping salty water,
water containing aggressive substances, or water with
a high or low pH value the pump can be protected
with an epoxy resin coating on special request.
The pump can be equipped with several discharges,
see table above.
QUICK COUPLINGS
Quick couplings Part number
3" BSP female Camlock adaptor 8162164100
3" BSP female Camlock coupling 8162164300
3" BSP female Storz coupling 75-B 470W157011
4” BSP female Storz coupling 470W157012
The pump can be equipped with several quick cou-
plings, see table above.
10

Operating instructions
TRANSPORT
Always use the handle to lift the
pump. Never use the power cable to
lift or transport the pump. Always be
careful not to let it fall or bump it
against the wall or other equipment.
STARTING
The pump may not be used in an ex-
plosive / inflammable environment or
used to pump inflammable liquids!
If the pump is being used for pump-
ing water out of a swimming pool:
• nobody is allowed to be in the pool
during pumping,
• the pump must be connected via a
residual current device having a
rated residual operating current
not exceeding 30 mA.
Check the power cable with mains plug for damage
before every use. If the power cable is damaged, ex-
change it immediately.
Check whether the power supply matches the rating
on the Data plate.
Check whether the fluid to be pumped matches the
characteristics mentioned in section Technical de-
tails.
The minimum start water level is approx.:
150 mm
Never operate the pump without the
strainer.
The Sonora Sludge pumps are de-
signed for solids handling and
there-fore has no strainer.
Rotating parts. Never put your hand
into the volute.
Attach a suitable hose to the outlet and make sure it is
thoroughly tightened. Avoid making excessive bends
in delivery hoses or piping, as this may cause reduced
flow. Turn discharge in horizontal (1) or vertical (2)
direction according to application.
Run the electric cable so that sharp bends are avoided
and there is no danger of the cable being pinched or
otherwise being damaged.
Never install the pump directly on a weak soil layer
or muddy ground. The pump may sink and mud/soil
may enter the pump and reduce the flow. Check that
the pump is pumping.
The start kick can be powerful.
Make sure nobody is close to the
pump during the start.
At start the pump will jerk counter-clockwise when
viewed from above. If direction is wrong, switch po-
sition of two phase conductors.
In case the motor stops due to overload or a blocked
impeller, first pull the plug out of the socket before
removing the pump from the pump site to check for
why the pump has stopped. Remove the blockage, let
the pump cool down and resume pumping.
For Sonora Sludge pumps, water level can be too low
for sufficient cooling. Lay the pump down.
11

STOPPING
Take the plug out of the socket and take the pump out
of the pump site. If the pump has been operating in
dirty water, allow it to run in clean water for a short
period or flush clean water through the discharge port.
If clay, cement or other sticky dirt remain in the pump
this may clog the impeller and seal area.
STORAGE
If the pump is stored more than six months the seal
must be inspected to ensure that it is not stuck before
operation.
To avoid the seal getting stuck it is
recommended to rotate the impeller
every other month.
The pump must be stored in a cov-
ered and dry location free from heat,
dirt and vibrations.
12

Maintenance
PREVENTIVE MAINTENANCE SCHEDULE
Service task Every month Every 3 months Every 6 months Every 12 months in use When worn
Check cable / replace cable when jacket is damaged x
Check cable seal x
Check pipes, hoses, valves x
Check float switch / Level sensor function x
Check for external damage, loose parts x
Oil check * x x
Oil change after 6 months or when contaminated with water x x
Check wear parts / adjust impeller and diffusor if necessary x x
Change wear parts x
Replace seals x x
Replace ball bearings x x
Check contactor function x
Stator measurement ** x x
Measure thermal switches of stator x
*) in continuous operation check every 3 months. At intermittent duty check oil every 6 months.
**) check related country standard and regulation.
EXTERNAL DAMAGE, LOOSE PARTS
Make sure that all screws, bolts and nuts are tight.
Check the condition of the pump lifting handle and
replace if damaged or worn. Replace any external part
that appears worn or damaged.
MOTOR INSULATION RESISTANCE
Use a 500 V DC Megger and measure the insulation
between the phases and between any phase and
ground. Resistance values should be over 1 M ohm. If
abnormal readings are obtained, immediately hand
the pump in for repair.
Also observe any local requirement regulations. The
stricter one will prevail.
IMPELLER
Inspect the impeller by removing the strainer and dif-
fusor. Replace the impeller if it is damaged or severe-
ly worn.
POWER CABLE
Inspect the cable for cuts, scrapes or sharp bends. If
the outer jacket is damaged, replace the cable. Do not
make splices within wet wells.
CABLE ENTRY
Make sure that the cable entry flange and strain relief
clamp are tight. If the cable entry is showing signs of
leakage replace the cable seal and position on the ca-
ble.
13

THERMAL SWITCHES IN WINDINGS, 3-
PHASE
If either of the three thermal contacts in the winding
is found defect the circuit can be repaired if the defect
thermal contact is bypassed according to the below
scheme. If more than one thermal contact is found de-
fect the stator must be replaced.
Locating defect thermal
switch
Bypass of defect
thermal switch
No contact
between
Contact
between
Con-
nect
Connect
to con-
tactor
(A1, A2)
Defect
thermal
switch
A
1-3
(1-2)
(1-4)
2-3
(2-4)
(3-4)
- 2-3
Defect
thermal
switch
B
3-4
(1-2)
(1-4)
(2-3)
1-3
2-4
3-4 1-2
Defect
thermal
switch
C
2-4
(2-1)
(2-3)
1-4
(1-3)
(3-4)
- 1-4
3
12
4
U2 V2 W2
U1 V1 W1
AC
B
14

OIL

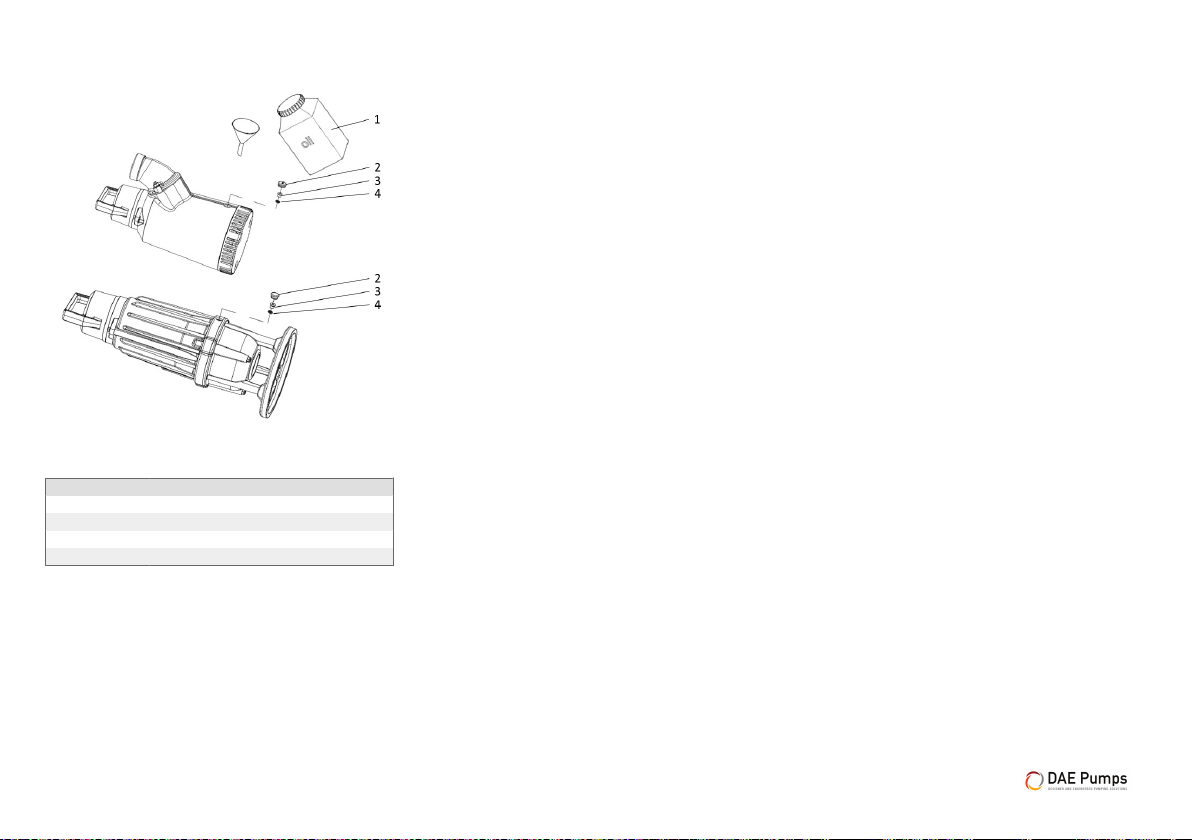

Reference Name
1 Oil
2 Plug
3 Oil plug
4 O-ring
Check the oil level and condition of the oil to see if
any leakage has occurred. Remove the plug and oil
plug.
Take an oil sample using a pipette. Check for impuri-
ties and emulsification. (Oil must be clear.) If water
intrusion has occurred the seal must be replaced and
the seal chamber refilled with fresh oil. Refer to sec-
tion Spare parts [33] for type and quantity of oil.
15

Troubleshooting
Problem Cause Action
Pump's ca-
pacity is too
low
1. Wrong pump rotation (if no built in supply control relay)
2. Pump not enough submersed
3. Total head of application does't match pump performance
4. Impeller not rotating free
5. Delivery hose is squeezed
6. Strainer is blocked
7. Impeller is worn
1. Correct the phase sequence by shifting two out of three phases and start the pump again
2. Lower pump level or increase water level
3. Adjust pump performance or change to another pump
4. Clean system or adjust impeller properly
5. Straighten delivery hose
6. Clean strainer
7. Retrim or replace impeller
Pump
doesn't start
1. Wrong phase sequence (with built in supply control relay)
2. Fuse blown or circuit breaker tripped
3. Damaged cable
4. Power failure
5. Impeller not rotating free
6. Float switch is defective or not adjusted correctly
7. Failure of thermal switch
1. Shift two out of three phases and start the pump again
2. Measure stator and pump cable, replace if damaged
Check electric system for moisture or water ingress, replace seals if necessary
Check cable for damaged jacket
3. Replace cable, use new cable seal
4. Restore power supply
5. Clean system or adjust impeller properly
6. Check float switch adjustment
7. Identify failed thermal switch and bypass it according to separate section in this AIB
16

Problem Cause Action
Pump starts
and stops
1. Pump motor overheat
2. Back running water
3. Wrong adjusted level control
4. Too small pump pit
5. Liquid density too high
1. Raise water level
For Sonora Sludge pumps, water level can be too low for sufficient cooling. Lay the pump down.
Water temperature too high, decrease temperature
Pump strainer clogged, clean system
Too low voltage create over current and over temperature, shorten cable, avoid cable coil or use larger cable
section
Wrong rotation sequence (if no built in supply control relay) can create over current and over temperature.
Correct the phase sequence
2. Use non return valve to avoid water running back
3. Optimize level control
4. Use a smaller pump
5. Manually set start and stop cycles to get enough time for cooling of motor
17

Technical details Impeller material
Unit Sonora S330
Discharge, Hose Dis-
charge, threaded (ISO-
G&NPT)
inch 3
inch -
Weight kg/lb 25/55
Max solids handling mm/
inch
Ø50/2
Cable length m/ft 20/66
Max submersed depth m/ft 20/66
Impeller type centrifugal
impeller
vortex impeller
Impeller material high
chrome steel
Shaft seals mechanical seal
Motor protection thermal protec-
tion
Motor insulation class F
Rated output variation 10%
Voltage variation without
overheating
10%
Voltage imbalance toler-
ance
2%
Maximum starts per hour 30
Code compliance IEC60034-1
pH range 5-8
Maximum density kg/m
lb/
Usgal.
1100/9.2
Max fluid temperature C/F 40/104
The pump is designed to pump water that meets the specifica-
tions in the table above.
The pump is not to be used in explosive or inflammable environ-
ments or for pumping flammable liquids
DIMENSIONS
W
ØD
H
H
W
ØD
Dimension (mm/inch) ØD W (3") W (4") H
Sonora S330 250/9.8 326/12.8 - 620/24.3
18

MOTOR DATA Sonora S330
1-phase, 50 Hz
Max power input 2.2 kW
Voltage (V) Rated current (A)
230 9.9
3-phase, 50 Hz
Max power input 3.3 kW
Voltage (V) Rated current (A)
230 9.6
400 5.1
500 4.4
3-phase, 60 Hz
Max power input 3.6 kW
Voltage (V) Rated current (A)
230 10.4
460 5.2
575 4.2
19

WIRING DIAGRAM

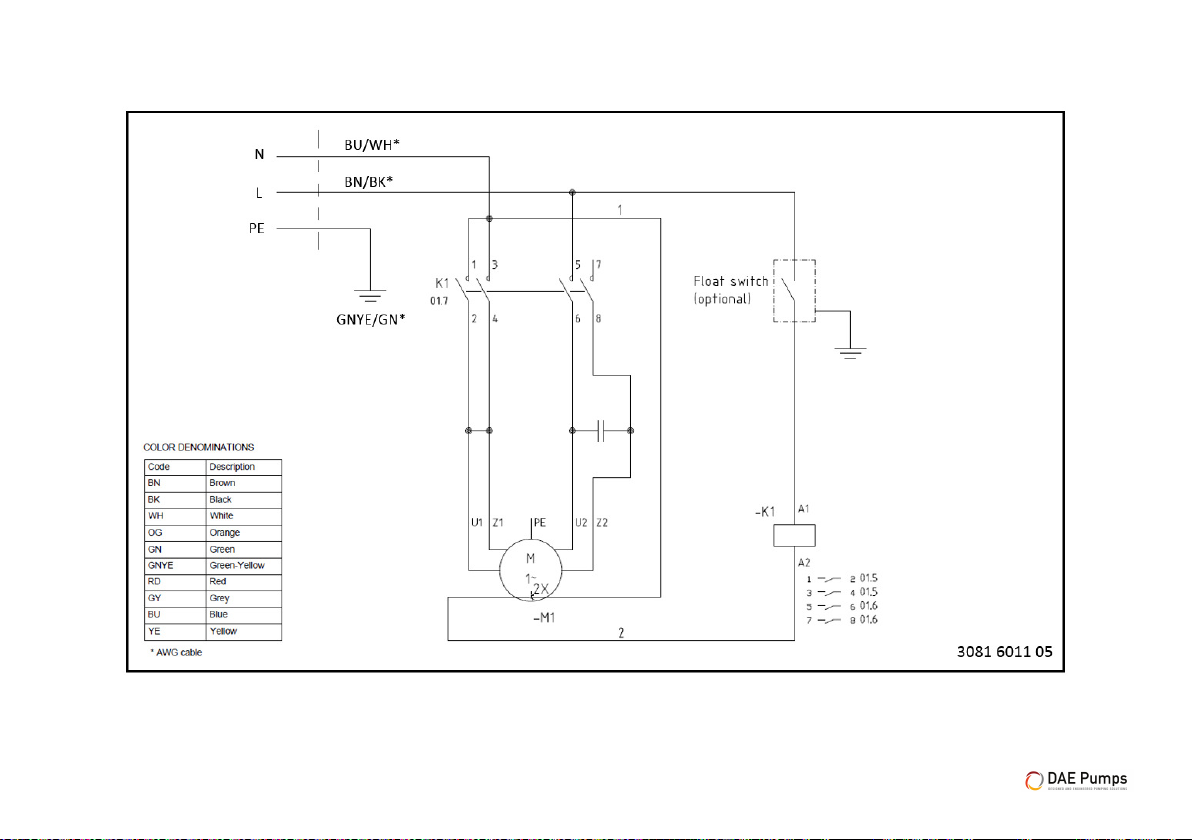

1-phase stator
20
