Daewoo ERF-36.M User manual

ELECTRONICS
• ENGLISH 1
Models: ERF-33.M..., ERF-36.M..., ERF-38.M...,
ERF-39.M..., ERF-41.M...
GRIP HANDLE HIDDEN HANDLE

Environment–friendly fridge / freezer using R-600a
refrigerant and cyclopentane blowing agent
•This product protects the environment by using the R-
600a refrigerant and the cyclopentane blowing agent.
• Properties:
ODP (Ozone Depletion Potential) : 0
GWP (Global Warming Potential) : Lowest
High–energy efficiency
• Optimized power consumption when using R-600a and
cyclopentane.
R-134a or R-600a is used as a refrigerant. You can check
the compressor label on the rear of the appliance and the
rating label inside the fridge.
This appliance contains a small amount of
isobutane refrigerant (R600a), a natural gas with
high environmental compatibility, but it is also
combustible. When transporting and installing the
appliance, care should be taken to ensure that no parts of
the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite or cause
an eye injury. If a leak is detected, avoid any naked flames
or potential sources of ignition and air the room in which
the appliance is standing for several minutes.
• In order to avoid the creation of a flammable gas-air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used. The room
must be 1m
3
in size for every 8g of R600a refrigerant
inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identification plate
inside the appliance.
• Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
• Keep ventilation openings in the appliance enclosure or
in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage
compartments of the appliance, useless they are of a type
recommended by the manufacturer.
English
1
Do not plug several appliances into the same sockets.
• This could cause overheating and the risk of fire.
Keep the power plug away from the rear of the fridge / freezer .
• A damaged power plug may cause fire due to overheating.
Do not directly spray water inside or outside the fridge /
freezer.
•There is a risk of fire or electric shock.
Do not spray water inside or outside the fridge / freezer .
•There is a risk of explosion or fire.
Do not bend the po wer cord excessively or place heavy articles
on it.
•This constitutes a fire hazard. If the power cord is damaged,
have it replaced immediately by the manufacturer, its service
agent or a similarly qualified person.
Do not insert the po wer plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on top of the
appliance.
• If the water spills on to any electrical parts, it may lead to fire
or electric shock.
Do not install the fridge / freezer in a damp place, where it
could be splashed with water .
• Incorrect insulation of the electrical parts may cause an
electric shock or fire.
Do not store volatile and flammable substances in the
refrigerator.
•The storage of benzene, thinner, alcohol, ether, LP gas or
other such substances may cause an explosion.
Do not disassemble, repair or alter the appliance.
• It may cause fire or abnormal operations, which may lead to
injury.
Pull the power plug out of the socket before replacing the
interior light in the refrigerator .
• Otherwise, there is a risk of electric shock.
Be sure to earth the appliance.
• Otherwise, it may cause material damage and electric shock.
If you wish to dispose of the fridge / freezer, thr ow it away
after removing the door or its seals.
• In this way, it is not possible for a child to remain trapped
inside it.
Do not store too much food in the appliance.
–When you open the door, an item may fall out and cause
personal injury or material damage.
Do not put bottles or any kind of glass in the freezer .
–The container may break and cause personal injury.
If the wall socket is loose, do not insert the po wer plug.
• It may cause electric shock or fire.
Do not disconnect the po wer cord by pulling on it.
• You may disconnect a wire and cause a short circuit.
Do not store article on top of the appliance.
WARNING / SAFETY PRECAUTIONS
To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety
precautions. (After reading these owner’s instructions, please keep them in a safe place for reference). Remember to hand them over to
any subsequent owner.
Warning
Indicates that a danger of of death or serious
injury exists Indicates that a risk of personal injury or material damage exists.
Caution
NOTICE
WARNING
CAUTION
WARNING
THERE IS NOTICE BELOW FOR APPLIANCES
USING R-600a AS A REFRIGERANT.

English
•When you open or close the door, the articles may fall and
cause personal injury or material damage.
Do not store pharmaceutical products, scientific material or
other temperature-sensitive products in the refrigerator .
• Products that require strict temperature controls must not be
stored in the refrigerator.
Do not let a child hang from the door .
Do not touch any containers and food in the freezer with
wet hands.
• It may cause frostbite.
Remove any foreign matter from the po wer plug pins.
• Otherwise, there is a risk of fire.
Do not insert your hand into the bottom area of appliance.
•Any sharp edges may cause personal injury.
After unplugging the appliance, wait for at least fiv e
minutes before plugging it again to the wall socket.
• Abnormal operation of the freezer may cause material
damage.
If the appliance is not be used for a long period of time,
pull out the po wer plug.
•Any deterioration in the insulation may cause fire.
Do not let children touch or play with the control panel on
the front of the appliance.
• Do not allow children to play with this appliance.
• Do not stand or lean on the base panel, pull-out parts, door
and so on.
• Repairs and maintenance of the appliance should only be
performed by a qualified technician. Incorrect repairs by an
unqualified person are a potential source of danger that may
have critical consequences for the user of the appliance.
• Never put ice cubes or ice lollies straight from the freezer into
your mouth. (The low temperature may cause “cold burns”.)
The refrigerant used in fridge / freezers and the gases in the
insulation material require special disposal procedures. Ensure
that none of the pipes on the back of the appliance are damaged
prior to disposal.
DISPOSAL
INSTALLING THE FRIDGE / FREEZER
1. Allow an adequate space and install the fridge / freezer on a
firm, level floor.
• If the appliance is not level, there may be unusual noises
and poor cooling.
2. Clean the fridge / Freezer
• Wipe and clean the inside and outside of appliance with a
damp cloth.
3. Plug the fridge / freezer into a wall socket used exclusively by
this appliance.
•This appliance must be properly earthed.
4. Place the food in the fridge / freezer.
• It is recommended that you wait for the appliance to cool
for 3~4 hours before storing food in it.
5. Keep 30cm of space between the refrigerator and the back
wall.
• Insufficient space causes the noise of vibration, weakening
of refrigerating power and the waste of electricity
6. The electrical plug must be accessible without moving the set.
7. For ambient temperature below 10ºC, the perfect
performance of our refrigerator can not be achieved.
Use of an earthed socket exclusively
for the appliance:
• If you are using a socket with an earthed terminal, you do not
require a separate earthed connection.
Use of a non-earthed socket:
• Connect the “earthed wire” to the steel plate and bury it at
depth of at least 25cm in the ground.
LEVELING
If the front of the appliance is slightly higher than the rear, the
door can be opened and closed more easily.
1. The appliance tilts down to the
left.
Turn the left adjusting leg in the
direction of the arrow until the
appliance is level.
2. The appliance tilts down to the
right.
Turn the right adjusting leg in the
direction of the arrow until the
appliance is level.
PREPARING THE FRIDGE / FREEZER
To prepare your appliance for use and check that it is running
correctly, take the following steps.
1. Install removed all shelves and compartments during transport
in the correct positions.
2. Clean the fridge/freezer and accessories to remove any dust
that accumulated during packing and shipping.
3. The interior light should be turned on when the refrigerator
door’s opened.
4. Set the temperature control to the coldest temperature and let
the refrigerator operate for one hour.The freezer should get
slightly chilled and the motor should run smoothly with a soft
hum and no noise. Your fridge / freezer is operated by a
compressor which switches “on and off” to maintain the
internal temperature. When the compressor is new, it requires
running in for a period of up to five months. During this
period, it may be slightly noisy.This is quite normal and does
not represent a fault.
5. Store food once the temperature in the refrigerator is
sufficiently low. It takes a few hours after starting the
refrigerator to reach the proper temperature.
If the appliance does not operate correctly, check the
electricity supply. If the problem persists, contact your dealer.
2
WARNING
CAUTION

English
3
CE
This product has been designed, constructed and marketed in
accordance with EEC directives 73/23, 89/336, 96/57 and
93/68.
Please read this manual carefully to ensure maximum satisfaction
from your appliance. Keep the manual in a safe place for future
reference. For drawings referenced in the text below, see flap at
back of the manual.
ABOUT THIS PRODUCT
■ This product is designed for domestic household use only.
■ Use the 4-star freezer compartment
- to freeze fresh and cooked foods,
- to store deep-frozen and frozen products,
- to make ice-cubes.
■ Use the refrigerator compartment
- to store fresh foods,
- to cool drinks.
■ The freezer and refrigerator compartments defrost
automatically.
■ Owing to cool air circulation (multi-airflow system) an even
temperature is maintained on every shelf of the refrigerator
compartment. The temperature in the specially designed low
temperature compartment is kept at approximately 0°C,
extending nutritional value and original freshness of the
food.
BEFORE CONNECTING TO THE MAINS
1. Wait 2 hours after delivery before you connect the appliance
to the power supply, in order to ensure trouble-free
operation.
2. In the UK only. Electrical connections:
-Check that the voltage on the rating plate (8) corresponds
to the voltage in your home.
-The wires of the mains lead fitted to this appliance are
coloured in accordance with the following code:
GREEN and YELLOW = EARTH
(GREEN or GREEN and YELLOW)
BLUE = NEUTRAL (BLACK)
BROWN = LIVE (RED)
As the colours of the wires in the mains lead fitted to this
appliance may not correspond with the coloured markings
identifying the terminals in the plug, proceed as follows:
-The wire which is coloured GREEN and YELLOW must
be connected to the terminal in the plug which is marked
with the letter “E” or by the earth symbol (
z ) or
coloured GREEN or GREEN and YELLOW.
-The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter “N” or
coloured BLACK.
-The wire which is coloured BROWN must be connected
to the terminal which is marked with the letter “L” or
coloured RED.
If the terminals in the plug are unmarked or you are in any
doubt as to the correct connections, consult a qualified
electrician.
3. In the UK only. Moulded plugs:
- Applicable only if moulded plug is fitted.
- Should it be necessary to remove a moulded on plug from
the mains cable, it should be cut off and replaced with a
suitable replacement.
-The moulded plug cannot be used for any other
appliance, therefore remove the fuse and dispose
immediately and safely to prevent anyone, especially
children, from plugging it into a wall socket, which will
create a safety hazard.

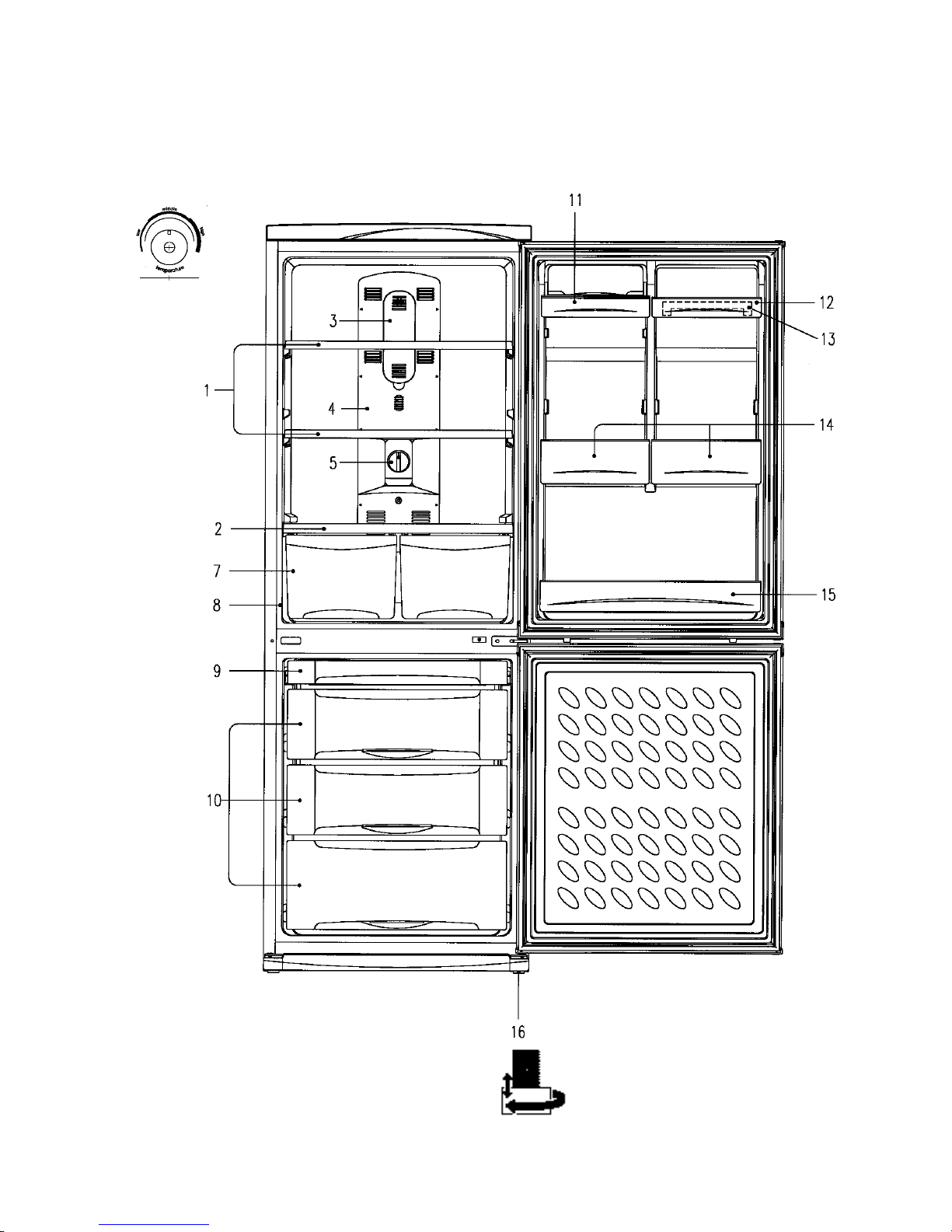

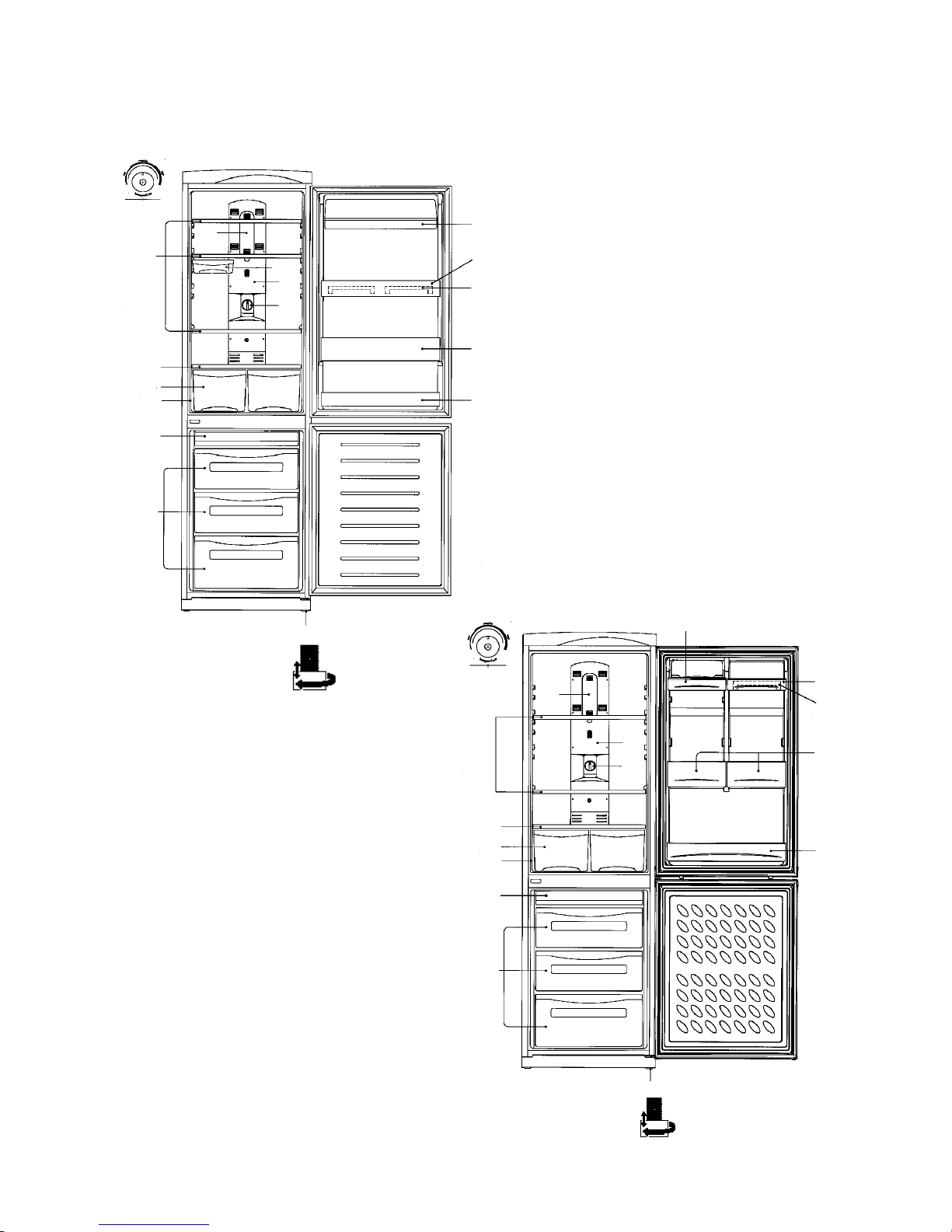

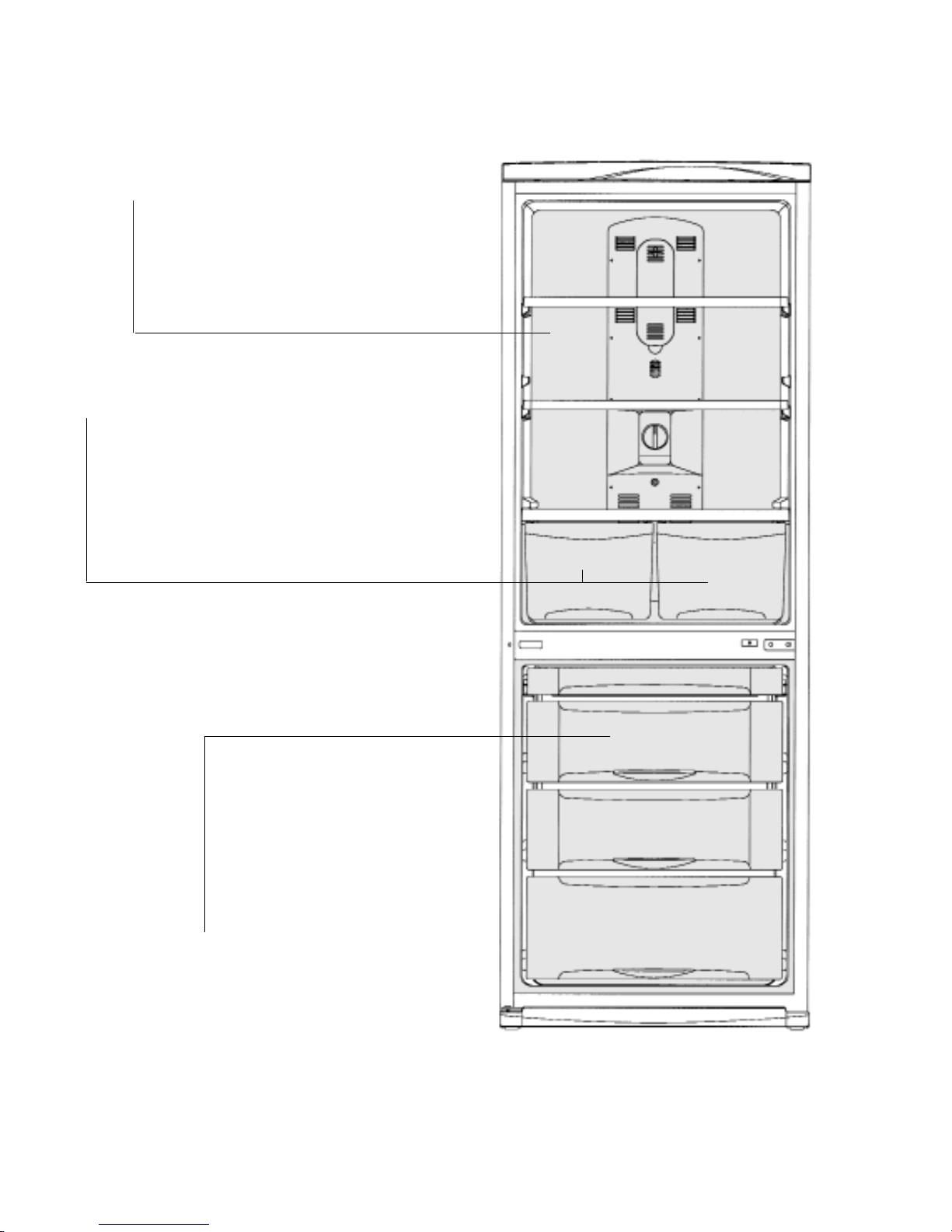

DESCRIPTION OF YOUR REFRIGERATOR
See flap at the back of the manual.
1. Shelves (The material of shelf be changed by
model.)
2. Cover vegetable case (The material be
changed by model).
3. Interior light for refrigerator compartment.
4. Multi air flow duct.
5. Refrigerator & freezer temperature control
knob.
6. Low temperature compartment (Only in
some models).
7. Vegetable case: 1 box type or 2 boxes type. In
case of 1 box type must be deleted (15).
8. Rating plate. It´s attached in the refrigerator
compartment on the left-hand side next to
the vegetable case.( with serial number).
9. Ice cube tray.
10. Case for storing & freezing.
11. Butter pocket.
12. Egg pocket.
13. Egg tray.
14. Bottle pocket.
15. R door pocket.
16. Adjustable foot.

4
- Should the mains lead ever require a replacement, it is
essential that this operation be carried out by a qualified
electrician and should only be replaced with a flexible
cord obtained from the manufacturer.
-After replacement of a fuse in the plug, the fuse cover
must be refitted. If the fuse cover is lost a replacement
cover must be obtained. The colour of the correct
replacement fuse cover is that of the coloured insert in the
base of the plug or the colour that is embossed in words
in the base of the plug recess or elsewhere on the plug.
Always state this colour when ordering a replacement fuse
cover.
- Only 13 amp. replacement fuses which are ASTA
approved to BS 1362 should be fitted.
4. Check the rating plate (8) for voltage information.
5. The socket should be easily accessible and not directly
behind the appliance.
6. Electrical connections must be made in accordance with
local regulations. The appliance must be earthed as described
by law (connected through a properly earthed plug and
socket). The manufacturer rejects all liability for injury to
persons and animals or damage to property resulting from
failure to comply with this requirement.
7. A 10A fuse or one of a higher value must be used in the
socket circuit.
8. If the appliance plug and the wall socket are incompatible,
the socket must be replaced by a qualified electrician.
9. If the supply cord is damaged, it must be replaced by the
manufacturer or his service agent or a similarly qualified
person in order to avoid hazard.
10.Do not use extension leads or multiple adapters, etc.
11.In some countries a plug has to be fitted. Make sure that the
installation and electrical connections are performed by a
qualified technician in compliance with the manufacturer’s
instructions and current local safety regulations. The wires in
the mains lead are coloured in accordance with the following
code:
- green/yellow = earth
- blue = neutral
- brown = live.
DISCONNECTION
Note: does not apply in the UK.
Electrical disconnection: remove the plug from the mains, or (if
applicable) disconnect the two-pole circuit breaker upstream
from the socket.
PROTECTING THE ENVIRONMENT
-The packaging may be completely recycled, as confirmed by
the recycling symbol; follow local disposal regulations.
-The appliance is manufactured from reusable materials.
-When you decide to scrap this product, please check the
cable to be disconnected from the mains. Then cut off the
cable and dispose of the product according to local waste
disposal laws.
- This product is free of CFC’s (cooling circuit contains R134a
or R-600a). Check the compressor label on the rear of the
appliance or the rating label inside the fridge to see which
refrigerant is used for your refrigerator.
English

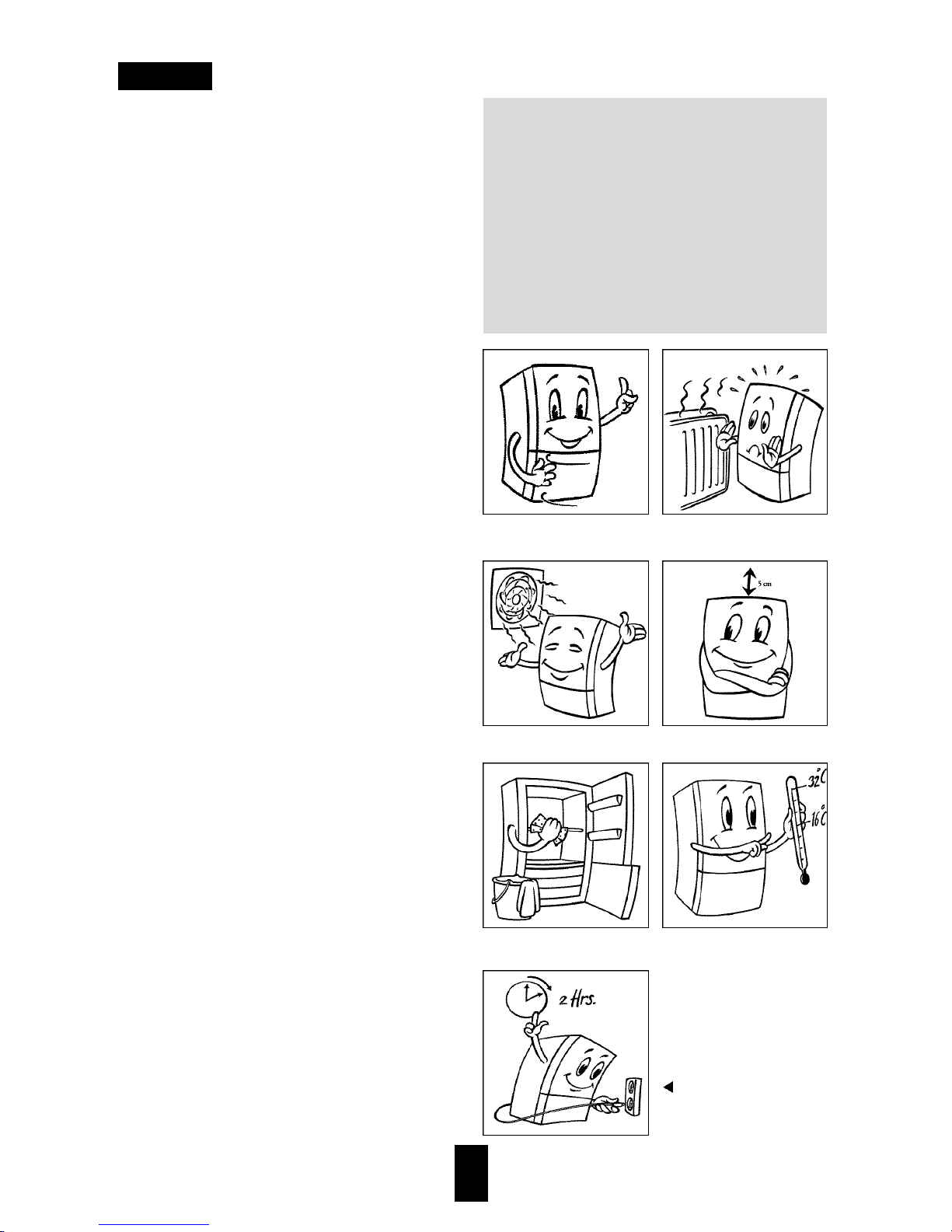

Check for damages and correct
closing of the doors. Not in the vicinity of a heat source.
Keep room dry and well ventilated. Keep more than 5cm distance space
at the top for ventilation.
Clean interior with a damp cloth. Best room temperature range -
+16°C to +32°C.
IMPORTANT
1. Although this product was carefully checked before
packing, please check the product:
- for damage;
- for correct closing of the doors.
Complaints must be reported to your retailer within 24
hours of delivery.

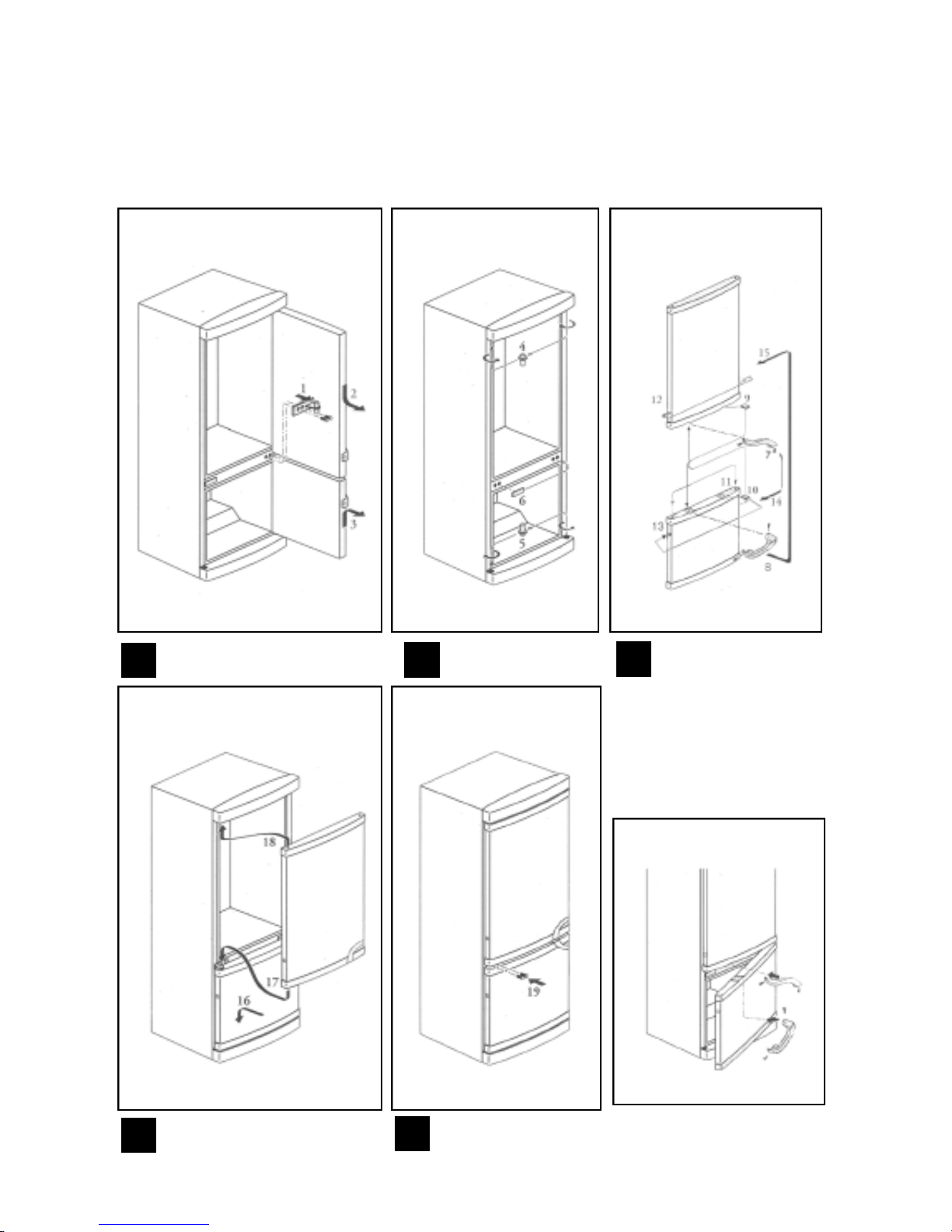

2. Installation instructions (7 drawings below).
3. Keep potentially hazardous packing materials (plastic
bags, etc.) out of reach of children to prevent the risk
of trapping
and suffocation.
Wait 2 hours before connecting to the
mains.
