Before operating this oven, please read these instructions completely.
MICROWAVE
KITCHEN
TIMER LOCK NO. CUPS lb
1 1 auto time
BROWN DEFROST
STOP/CLEAR
OPERATING
INSTRUCTIONS
MICROWAVE OVEN
KOG-134K

1
PRECAUTIONS .................................................... 1
IMPORTANT SAFETY INSTRUCTIONS............. 2
SPECIFICATIONS................................................. 3
IMPORTANT.......................................................... 3
EARTHING INSTRUCTIONS............................... 4
INSTALLATION...................................................... 4
FEATURES DIAGRAM..................................... 5, 6
OPERATION PROCEDURE................................. 7
CONTROLS........................................................... 8
SETTING THE CLOCK...................................... 8
WEIGHT DEFROSTING.................................... 8
TIME DEFROSTING.......................................... 9
COOKING IN ONE STAGE............................... 9
COOKING IN TWO STAGE............................ 10
SEQUENCE PROGRAMMING....................... 11
KITCHEN TIMER MODE................................. 11
ONE TOUCH COOKING................................. 12
EXPRESS COOK............................................. 13
MORE TIME/LESS TIM................................... 13
TOP BROWN ................................................... 13
AUTO COOK.................................................... 14
CHILD SAFETY LOCK .................................... 15
TO STOP THE OVEN WHILE THE OVEN IS
OPERATING..................................................... 15
CARE OF YOUR MICROWAVE OVEN ............ 16
BEFORE YOU CALL FOR SERVICE................ 17
CARE AND CLEANING.......................................17
QUESTIONS AND ANSWERS .......................... 18
UTENSIL TEST.................................................... 19
COOKING UTENSILS......................................... 19
USE YOUR MICROWAE OVEN SAFELY ............ 20
MICROWAVING PRINCIPLES........................... 21
HOW MICROWAVES COOK FOOD................. 21
CONVERSION CHARTS.................................... 21
COOKING TECHNIQUES .................................. 22
DEFROSTING GUIDE ........................................ 23
DEFROSTING CHART....................................... 23
COOKING & REHEATING CHART ................... 24
VEGETABLE CHART.......................................... 25
RECIPE................................................................ 26
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a competent person : (1) door (bent), (2) hinges and latches(broken or
loosened), (3) door seals and sealing surfaces.
(d) WARNING : It is hazardous for anyone other than a competent person to carry out any service or
repair operation which involves the removal of a cover which gives protection against exposure to
microwave energy.
(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are liable
to explode.
(f) The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
(g) WARNING : Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands the
hazards of improper use.
TABLE OF CONTENTS

2
IMPORTANT SAFETY INSTRUCTIONS
WARNING : To prevent fire, burns, electric shock and other warnings:
Listed below are, as with all appliances, certain rules to follow and safeguards to assure
top performance from this oven:
1. Do not use the oven for any reason other than food
preparation, such as for drying clothes, paper, or any
other nonfood items or for sterilizing purposes.
2. Do not use the oven when empty, this could damage the
oven.
3. Do not use the oven cavity for any type of storage, such
as papers, cookbook, cookware, etc.
4. Do not operate the oven without the glass tray in place.
Be sure it is properly sitting on the rotating base.
5. Make sure you remove caps or lids prior to cooking when
you cook food sealed in bottles.
6. Do not put foreign material between the oven surface and
door. It could result in excessive leakage of microwave
energy.
7. Do not use recycled paper products for cooking. They
may contain impurities which could cause sparks and/or
fires when used during cooking.
8. Do not pop popcorn unless popped in a microwave
approved popcorn popper or unless it’s commercially
packaged and recommended especially for microwave
ovens.
Microwave popped corn produces a lower yield than
conventional popping; there will be a number of
unpopped kernels. Do not use oil unless specified by the
manufacturer.
9. Do not cook any food surrounded by a membrane, such
as egg yolks, potatoes, chicken livers, etc., without first
piercing them several times with a fork.
10. Do not pop popcorn longer than the manufacturer’s
directions. (popping time is generally below 3 minutes).
Longer cooking does not yield more popped corn, it can
cause scorchings and fire.
Also, the cooking tray can become too hot to handle or
may break.
11. If smoke is observed, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
12. When heating food in plastic or paper containers, check
the oven frequently due to the possibility of ignition.
13. The contents of feeding bottles and baby food jars are to
be stirred or shaken and the temperature is to be
checked before consumption, in order to avoid burns.
14. Always test the temperature of food or drink which has
been heated in a microwave oven before you give it to
somebody, especially to children or elderly people. This
is important because things which have been heated in a
microwave oven carry on getting hotter even though the
microwave oven cooking has stopped.
15. Eggs in their shell and whole hard-boiled eggs shall not
be heated in microwave ovens since they may explode.
16. Keep the waveguide cover clean at all times. Wipe the
oven interior with a soft damp cloth after each use. If you
leave grease or fat anywhere in the cavity it may
overheat, smoke or even catch fire when next using the
oven.
17. Never heat oil or fat for deep frying as you cannot control
the temperature and doing so may lead to overheating
and fire.
18. Microwave heating of beverages can result in delayed
eruptive boiling, therefore care has to be taken when
handling the container.
SAVE THESE INSTRUCTIONS

3
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code.
Green-and-yellow: Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter ‘E’ or by the earth symbol or green-and-yellow. The wire which is coloured
blue must be connected to the terminal which is marked with the letter 'N' or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
‘L’ or coloured red.
WARNING: This appliance must be earthed.
POWER SUPPLY 220~240V 50Hz, SINGLE PHASE WITH EARTHING
POWER MICROWAVE 1400 W
CONSUMPTION GRILL 1200 W
MICROWAVE ENERGY OUTPUT 1000W
MICROWAVE FREQUENCY 2450MHz
OUTSIDE DIMENSIONS (W x H x D) 563 x 318 x 454mm
CAVITY DIMENSIONS (W x H x D) 380 x 246 x 386mm
NET WEIGHT APPROX. 18Kg
TIMER 99 min. 00 sec.
POWER SELECTIONS 10 LEVELS
CAVITY VOLUME 1.3 Cu.Ft.
* Specifications are subject to change without notice.
SPECIFICATIONS

4
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.
WARNING: Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified
electrician or serviceman if the earthing instructions are not completely understood, or if doubt
exists as to whether the appliance is properly earthed. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade earthing plug, and a 3-slot receptacle
that will accept the plug on the appliance. The marked rating of the extension cord should be
equal to or greater than the electrical rating of the appliance.
INSTALLATION
Steady, flat location
This oven should be set on a steady, flat surface. This oven is designed for counter top use only.
Leave space behind and side
All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and,
eventually, oven failure.
Away from radio and TV sets
Poor television reception and radio interference may result if the oven is located close to
a TV, Radio antenna, feeder and so on.
Position the oven as far from them as possible.
Away from heating appliance and water taps
Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might
be adversely affected and breakdowns occur.
Power supply
• Check your local power source. This oven requires a current of approximately 7 amperes, 220~240V 50Hz.
• Power supply cord is about 1.4 meters long.
• The voltage used must be the same as specified on this oven. Using a higher voltage
may result in a fire or other accident causing oven damage. Using low voltage will
cause slow cooking. We are not responsible for damage resulting from use of this
oven with a voltage of ampere fuse other than those specified.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
Examine the oven after unpacking for any damage such as:
A misaligned door, Broken door, A dent in cavity. If any of the above are visible, DO NOT INSTALL, and notify
dealer immediately.
Do not operate the oven if it is colder than room temperature.
(This may occur during delivery in cold weather.) Allow the oven to become room temperature before operating.
The minimum height of free space necessary above the top surface of the oven is 100mm.
1
2
3
4
5
6
7
8

5
1. Door seal - Door seal maintains the microwave
energy within the oven cavity and prevents
microwave leakage.
2. Reflector (Insulator Heater)
3. Heating Element
4. Oven cavity
5. Safety interlock system
6. Metal Rack

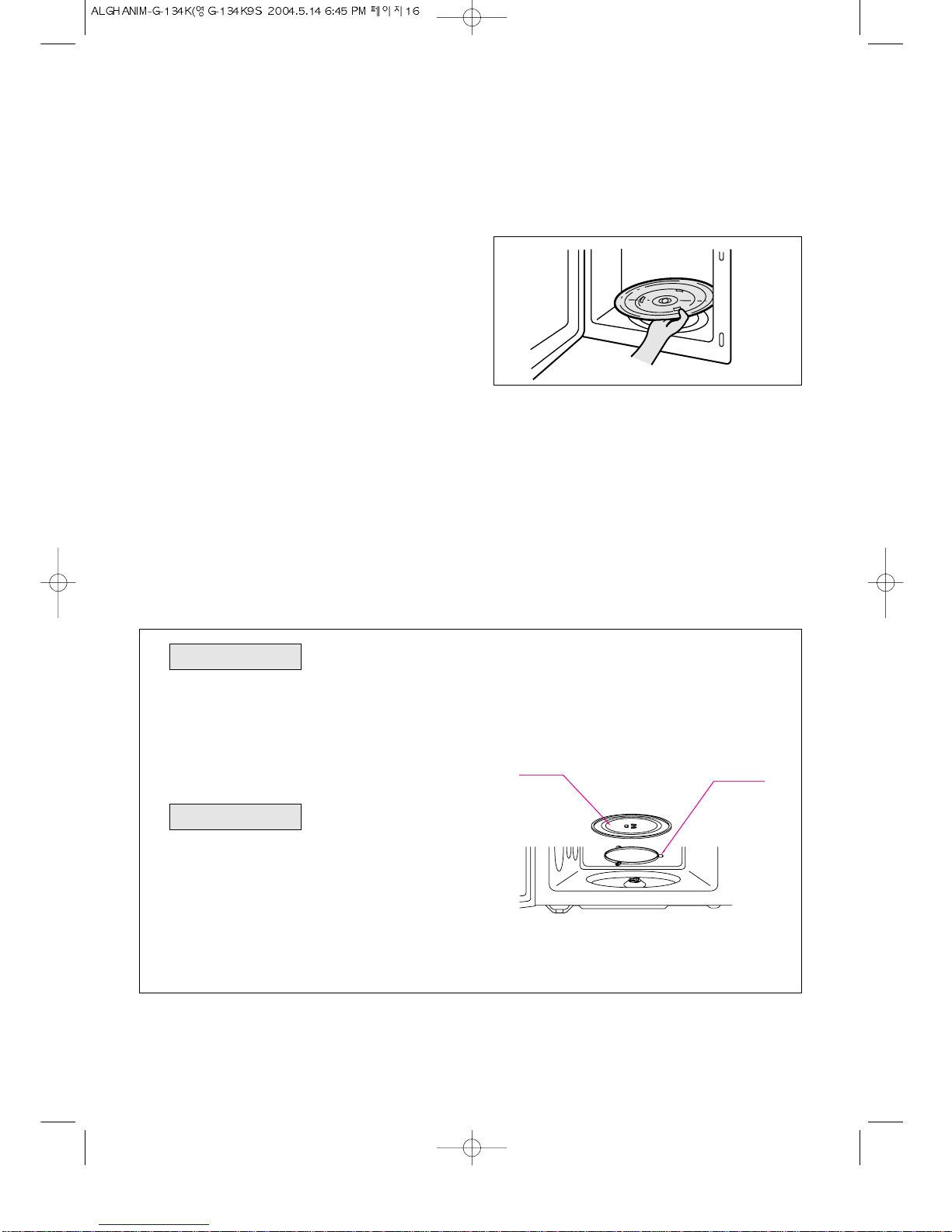

7. Coupler - This fits over the shaft in the center of
the ovens cavity floor. This is to remain in the
oven for all cooking.
8. Roller guide - This must always be used for
cooking together with the glass cooking tray.
9. Glass cooking tray - Made of special heat
resistant glass. Food in a proper receptacle is
placed on this tray for cooking.
10. Door viewing screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwave.
11. Door hook - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron will
immediately stop operating.
FEATURES DIAGRAM
q1 5
98 740
2 3
6
MICROWAVE
KITCHEN
TIMER LOCK NO. CUPS lb
1 1 auto time
BROWN DEFROST
STOP/CLEAR

6
Check the Convenience Guide before you begin.
Press Enter
TIME COOK Amount of cooking time
Turn dial
DEFROST
Press once Food weight
Press twice Amount of defrosting time
POWER LEVEL Power level 0–HI
EXPRESS COOK Starts immediately!
TOP BROWN Amount of browning time more/less time
POPCORN Starts immediately!
Press once, twice or
three times
BEVERAGE Starts immediately!
Press once, twice or
three times
AUTO COOK Food type 1–9
FEATURES DIAGRAM ( continued )
MICROWAVE
KITCHEN
TIMER LOCK NO. CUPS lb
1 1 auto time
BROWN DEFROST
STOP/CLEAR

7
OPERATION PROCEDURE
This section includes useful information about oven operation.
a. Plug power supply cord into a 220~240V 50Hz power outlet.
b. After placing the food in a suitable container, open the oven door and put it on the glass tray.
The glass tray and roller guide must always be in place during cooking.
c. Shut the door. Make sure that it is firmly closed.
WATTAGE OUTPUT CHART
• The power-level is set by pressing the Power/Def. button. The chart shows the display, the power level and
the percentage of power.
Touch Power/Def. button Power level (Display) Approximate Percentage of Power
once P-HI 100%
twice P-90 90%
3 times P-80 80%
4 times P-70 70%
5 times P-60 60%
6 times P-50 50%
7 times P-40 40%
8 times P-30 30%
9 times P-20 20%
10 times P-10 10%
11 times P-00 00%
The oven light is on only when the microwave oven is
operating.
The oven door can be opened at any time during
operation by touching the door release button on the
control panel. The oven will automatically shut off.
Each time a button is touched, a BEEP will sound to
acknowledge the touch.
The oven automatically cooks on full power unless set to
a lower power level.
The display will show “ : 0” when the oven is plugged in.
Time clock returns to the present time when the cooking
time ends.
When the STOP/CLEAR button is touched during the
oven operation, the oven stops cooking and all information
retained. To erase all information(except the present time),
touch the STOP/CLEAR button once more.
If the oven door is opened during the oven operation, all
information is retained.
If the START button is touched and the oven does not
operate, check the area between the door and door seal
for obstructions and make sure the door is closed securely.
The oven will not start cooking until the door is completely
closed or the program has been reset.
NOTE : When using the TOP BROWN mode;
• Do not open the door so often, the temperature inside the
oven decrease and the cooking may not be completed in
setting time.
• Never touch the oven window and metal interior of the
oven when taking food in and out, because the
temperature inside the oven and door is very high.
• When using these modes, be careful as the tray will be
hot to touch, use oven gloves or pot holders while
handling tray.
1
2
3
4
5
6
7
8
9
Make sure the oven is properly installed and
plugged into the electrical outlet.

8
WEIGHT DEFROSTING
WEIGHT DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting
time. The minimum weight for WEIGHT DEFROST is 200 g and the maximum weight is 3,000 g.
Follow the steps below for easy defrosting.
CONTROLS
SETTING THE CLOCK
When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power
ever turns off, the display shows “ :0” when the power comes back on.
1. Press Clock button.
This is a 12 hour clock system.
2. Press Clock button once more.
This is a 24 hour clock system.
3. Turn the DIAL KNOB to adjust
hour.
4. Press Clock button.
5. Turn the DIAL KNOB to adjust
minute.
6. Press Clock button.
If you selected 12 hour system, the display will
show the hours from “1” to “12”.
If you selected 24 hour system, the display will
show the hours from “0” to “23”.
The adjusted hour starts blinking.
The hour stops blinking and “00” starts blinking.
The display will show the minutes from “0” to “59”.
The adjusted minute starts blinking.
NOTE : This oven has multiple clock
systems. If you want 12 hour
clock system, omit this step.
Clock
Clock
1. Press Auto Def. button.
2. Turn the DIAL KNOB to adjust
the defrosting weight.
3. Press Start button.
The Weight indicator & “0” appear and the g
indicator starts blinking.
The display will show what you selected.
Auto Def.
Clock
When you press Start button, the g indicator disappears and the Weight indicator starts blinking to show the
oven is in the DEFROST mode. The display counts down the time to show you how much defrosting time is
left in the DEFROST mode. The oven beeps during the defrosting cycle to signal that the food needs to be
turned or rearranged. When the defrosting time ends, you will hear 3 beeps.
When you press Clock button, the minute stops blinking, and the colon starts blinking. If you selected 12 hour clock
system, this digital clock allows you to set from 1:00 to 12:59. If you selected 24 hour clock system, this digital clock
allows you to set from 0:00 to 23:59.

9
COOKING IN ONE STAGE
When you press Start button, the M/W1 indicator starts blinking to show the oven is cooking.
The display counts down the time to show how much cooking time is left. When the cooking time ends, you
will hear 3 beeps.
1. Press Power button. (Select
the desired power level.)
2. Turn the DIAL KNOB to adjust
the cooking time.
3. Press Sart button.
The M/W 1 indicator appears and the display
will show what you selected.
The display will show what you selected.
NOTE: Using lower power levels increases the cooking time which is recommended for foods such as
cheese, milk and slow cooking of meats.
NOTE: If step 1 is omitted, the oven will
cook at full power.
NOTE: Your oven can be programmed for
99 minutes 00 second.(99:00)
Power
TIME DEFROSTING
When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of
alternating defrost and stand times by cycling on and off.
1. Press Defrost button.
2. Turn the DIAL KNOB to adjust
the defrosting time.
3. Press Start button.
The Time indicator appears and “ : 0” is
displayed.
The display will show what you selected.
Defrost
When you press Start button, the Time indicator starts blinking to show the oven is the DEFROST mode. The
display counts down the time to show you how much defrosting time is left in the DEFROST mode. The oven
beeps during the defrosting cycle to signal that the food needs to be turned or rearranged.
When the defrosting time ends, you will hear 3 beeps.
NOTE: Your oven can be programmed for
99 minutes 00 second. (99:00)
X 5
