Before operating this oven, please read these instructions completely.
OPERATING
INSTRUCTIONS
MICROWAVE OVEN
KOR-6N4R

1
PRECAUTIONS ..................................................................................................................................1
EARTHING INSTRUCTIONS .............................................................................................................2
INSTALLATION....................................................................................................................................2
SPECIFICATIONS...............................................................................................................................3
IMPORTANT........................................................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS...........................................................................................4
FEATURES DIAGRAM .......................................................................................................................5
OPERATION PROCEDURE...............................................................................................................7
CONTROLS .........................................................................................................................................8
SETTING THE CLOCK .................................................................................................................8
WEIGHT DEFROSTING ...............................................................................................................8
TIME DEFROSTING......................................................................................................................9
COOKING IN ONE STAGE ........................................................................................................10
COOKING IN TWO STAGES.....................................................................................................10
EASY COOK................................................................................................................................11
AUTO COOK................................................................................................................................11
CHILD SAFETY LOCK................................................................................................................12
TO STOP THE OVEN WHILE THE OVEN IS OPERATING....................................................12
COOKING UTENSILS.......................................................................................................................13
CARE AND CLEANING ....................................................................................................................13
BEFORE YOU CALL FOR SERVICE..............................................................................................14
QUESTIONS AND ANSWERS ........................................................................................................14
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a competent person : (1) door (bent), (2) hinges and latches(broken or
loosened), (3) door seals and sealing surfaces.
(d) WARNING : It is hazardous for anyone other than a competent person to carry out any service
or repair operation which involves the removal of a cover which gives protection against
exposure to microwave energy.
(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are liable
to explode.
(f) WARNING : Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands the
hazards of improper use.
TABLE OF CONTENTS

2
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.
INSTALLATION
1 Steady, flat location
This oven should be set on a steady, flat surface. This oven is designed for counter top use only.
2 Leave space behind and side
All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat
and, eventually, oven failure.
3 Away from radio and TV sets
Poor television reception and radio interference may result if the oven is located close to a TV, Radio
antenna, feeder and so on. Position the oven as far from them as possible.
4 Away from heating appliance and water taps
Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation
might be adversely affected and breakdowns occur.
5 Power supply
• Check your local power source. This oven requires a current of approximately 6 amperes, 230V AC 50Hz.
• Power supply cord is about 0.8 meters long.
• The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire or
other accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for
damage resulting from use of this oven with a voltage of ampere fuse other than those specified.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
6 Examine the oven after unpacking for any damage such as:
A misaligned door, Broken door, A dent in cavity. If any of the above are visible, DO NOT INSTALL, and
notify dealer immediately.
7 Do not operate the oven if it is colder than room temperature.
(This may occur during delivery in cold weather.) Allow the oven to become room temperature before
operating.
8 The minimum height of free space necessary above the top surface of the oven is 100mm.
WARNING : Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified
electrician or serviceman if the earthing instructions are not completely understood, or if
doubt exists as to whether the appliance is properly earthed. If it is necessary to use an
extension cord, use only a 3-wire extension cord that has a 3-blade earthing plug, and a 3-
slot receptacle that will accept the plug on the appliance. The marked rating of the
extension cord should be equal to or greater than the electrical rating of the appliance.

3
WARNING: This appliance must be earthed.
SPECIFICATIONS
IMPORTANT
The wires in this mains lead fitted to this appliance are coloured in accordance with the following code.
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows: the wire which is coloured green-and-
yellow must be connected to the terminal in the plug which is marked with the letter 'E', the earth symbol
or coloured green-and-yellow. The wire which is coloured blue must be connected to the terminal which
is marked with the letter ‘N’ or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or
coloured red.
* Specifications are subject to change without notice.
POWER SUPPLY 230V AC 50 Hz SINGLE PHASE WITH EARTHING
POWER CONSUMPTION 1200 W
MICROWAVE OUTPUT POWER 800 W
FREQUENCY 2450 MHz
OUTSIDE DIMENSIONS (W X H X D) 465 X 279 X 356 mm
CAVITY DIMENSIONS (W X H X D) 301 X 230 X 283 mm
NET WEIGHT APPROX. 12KG
TIMER 59 min. 00sec.
POWER LEVELS 5 LEVELS

4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING : To prevent fire, burns, electric shock and other warnings:
Listed below are, as with all appliances, certain rules to follow and safeguards to assure high
performance from this oven:
1. Do not use the oven for any reason other than
food preparation, such as for drying clothes,
paper, or any other nonfood items or for
sterilizing purposes.
2. Do not use the oven when empty, this could
damage the oven.
3. Do not use the oven cavity for any type of
storage, such as papers, cookbook, cookware,
etc.
4. Do not operate the oven without the glass tray
in place. Be sure it is properly sitting on the
rotating base.
5. Make sure you remove caps or lids prior to
cooking when you cook food sealed in bottles.
6. Do not put foreign material between the oven
surface and door. It could result in excessive
leakage of microwave energy.
7. Do not use recycled paper products for
cooking. They may contain impurities which
could cause sparks and/or fires when used
during cooking.
8. Do not pop popcorn unless popped in a
microwave approved popcorn popper or unless
it's commercially packaged and recommended
especially for microwave ovens. Microwave
popped corn produces a lower yield than
conventional popping; there will be a number of
unpopped kernels. Do not use oil unless
specified by the manufacturer.
9. Do not cook any food surrounded by a
membrane, such as egg yolks, potatoes,
chicken livers, etc., without first piercing them
several times with a fork.
10.Do not pop popcorn longer than the
manufacturer's directions. (popping time is
generally below 3 minutes). Longer cooking
does not yield more popped corn, it can
cause scorchings and fire.
Also, the cooking tray can become too hot to
handle or may break.
11.If smoke is observed, switch off or unplug the
appliance and keep the door closed in order
to stifle any flames.
12.When heating food in plastic or paper
containers, keep an eye on the oven due to
the possibility of ignition.
13.The contents of feeding bottles and baby food
jars shall be stirred or shaken and the
temperature checked before consumption, in
order to avoid burns.
14.Always test the temperature of food or drink
which has been heated in a microwave oven
before you give it to somebody, especially to
children or elderly people. This is important
because things which have been heated in a
microwave oven carry on getting hotter even
though the microwave oven cooking has
stopped.
15.Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even after
microwave heating has ended;
16.Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth
after each use. If you leave grease or fat
anywhere in the cavity it may overheat,
smoke or even catch fire when next using the
oven.
17.Never heat oil or fat for deep frying as you
cannot control the temperature and doing so
may lead to overheating and fire.
18.Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must
be taken when handling the container.

5
11Door latch - When the door is closed it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron will
automatically shut off.
22Door seal - The door seal maintains the
microwave within the oven cavity and prevents
microwave leakage.
33Oven cavity
44Spatter shield - Protects the microwave outlet
from splashes of cooking foods.
55Safety interlock system - Prevents the oven
from operating while the door is opened.
66Control Panel
77Glass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating.
Do not cook food directly on the tray.
88Roller guide - Supports the glass cooking tray.
99Door screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwaves.

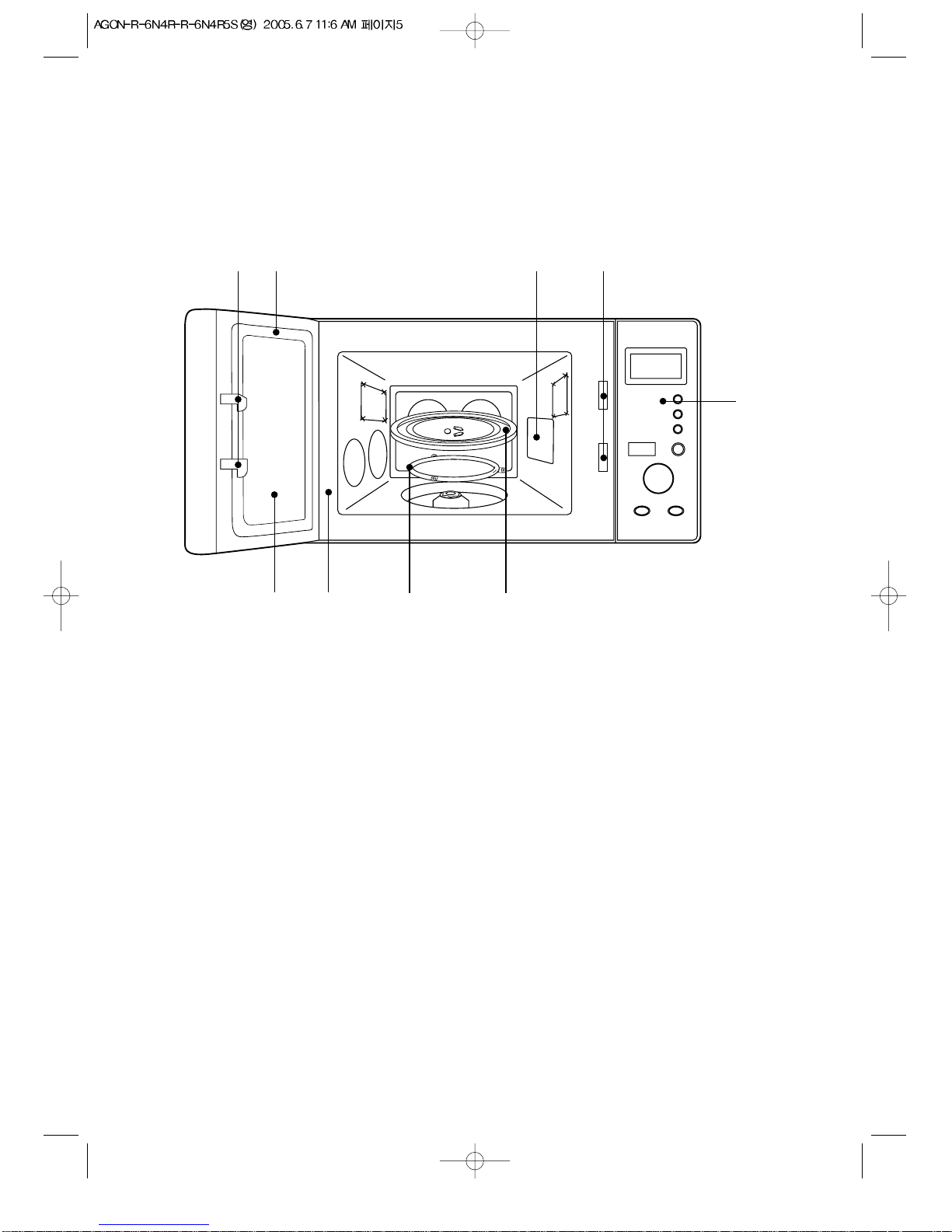

FEATURES DIAGRAM
12 4 5
6
7839

6
00Display - Cooking time, Power level, indicators
and present time are displayed.
qqPower - Used to set power level.
wwDefrost - Used to defrost by weight or time.
eeClock - Used to dset clock.
rrAuto cook - Used to cook using a program or
to reheat.
ttDial knob - Used to set time and weight.
yyStop/Clear - Used to stop the oven operation
or to erase all entries.
uuStart/Easy cook - Used to start the oven
operation and also increase the reheat time by
30 seconds.
FEATURES DIAGRAM ( continued )
W
e
i
g
h
t
/
T
i
m
e
Power
Defrost
Clock
1. Dinner Plate
2. Soup
3. Beverage
4. Fresh Vegetable
Auto Cook
Stop/Clear Start/Easy Cook
0
q
w
e
r
t
y
u

7
The oven light is on only when the microwave
oven is operating.
The oven door can be opened at any time during
operation by touching the door release button on
the control panel. The oven will automatically
shut off.
Each time a button is touched, a BEEP will
sound to acknowledge the touch.
The oven automatically cooks on full power
unless set to a lower power level.
The display will show “ : 0” when the oven is
plugged in.
Time clock returns to the present time when the
cooking time ends.
When the Stop/Clear button is touched during the
oven operation, the oven stops cooking and all
information retained. To erase all
information(except the present time), touch the
Stop/Clear button once more. If the oven door is
opened during the oven operation, all information
is retained.
If the Start button is touched and the oven does
not operate, check the area between the door and
door seal for obstructions and make sure the door
is closed securely. The oven will not start cooking
until the door is completely closed or the program
has been reset.
OPERATION PROCEDURE
This section includes useful information about oven operation.
1. Plug power supply cord into a 230V 50Hz power outlet.
2. After placing the food in a suitable container, open the oven door and put it on the glass tray.
The glass tray and roller guide must always be in place during cooking.
3. Shut the door. Make sure that it is firmly closed.
1
2
3
4
5
6
7
8
Make sure the oven is properly installed and
plugged into the electrical outlet.
WATTAGE OUTPUT CHART
• The power-level is set by pressing the Power button. The chart shows the display, the power level and the
percentage of power.
Touch Power button Power level (Display) Approximate Percentage of Power
once P-HI 100%
twice P-80 80%
3 times P-60 60%
4 times P-40 40%
5 times P-20 20%

8
WEIGHT DEFROSTING
WEIGHT DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting
time. The minimum weight for WEIGHT DEFROST is 200 gram and the maximum weight is 3,000
gram. Follow the steps below for easy defrosting.
CONTROLS
SETTING THE CLOCK
When the oven is first plugged in, the display will flash “ :0” and a tone will sound. If the AC power
ever turns off, the display shows “ :0” when the power comes back on.
1. Press Clock button.
This is a 12 hour clock system.
2. Press Clock button once more.
This is a 24 hour clock system.
4. Press Clock button.
5. Turn the dial knob to adjust minute.
6. Press Clock button.
3. Turn the dial knob to adjust hour. If you selected 12 hour system, the display will
show the hours from “1” to “12”.
If you selected 24 hour system, the display will
show the hours from “0” to “23”.
The adjusted hour starts blinking.
The minute stops blinking and “00” starts blinking.
The display will show the minutes from “0” to “59”.
The adjusted minute starts blinking.
NOTE : This oven has multiple clock
systems. If you want 12 hour
clock system, omit this step.
Clock
Clock
1. Press Defrost button.
2. Turn the dial knob to adjust the defrosting weight.
3. Press Start button.
The DEF. indicator & “0” appear and the g
indicator starts blinking.
The display will show what you selected.
Defrost
Start
Clock
When you press Start button, the g indicator disappears and the DEF. indicator starts blinking to show the
oven is in the DEFROST mode. The display counts down the time to show you how much defrosting time is
left in the DEFROST mode. The oven beeps during the defrosting cycle to signal that the food needs to be
turned or rearranged. When the defrosting time ends, you will hear 3 beeps.
When you press Clock button, the minute stops blinking, and the colon starts blinking. If you selected 12 hour clock
system, this digital clock allows you to set from 1:00 to 12:59. If you selected 24 hour clock system, this digital clock
allows you to set from 0:00 to 23:59.

9
TIME DEFROSTING
When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of
alternating defrost and stand times by cycling on and off.
1. Press Defrost button.
2. Press Defrost button once more.
3. Turn the dial knob to adjust the defrosting time.
4. Press Start button.
The DEF. indicator & “0” appear and the g
indicator starts blinking.
The g indicator disappears and “:0” is displayed.
The display will show what you selected.
Defrost
Start
When you press Start button, the DEF. indicator starts blinking to show the oven is the DEFROST mode. The
display counts down the time to show you how much defrosting time is left in the DEFROST mode. The oven
beeps during the defrosting cycle to signal that the food needs to be turned or rearranged.
When the defrosting time ends, you will hear 3 beeps.
NOTE: Your oven can be programmed for
59 miutes 00 seconds. (59:00)

10
COOKING IN TWO STAGES
All recipes require frozen foods to be defrosted fully before cooking.
This oven can be programmed to automatically defrost foods before cooking.
When you press Start button, the DEF and M/W indicators come on to confirm the power levels selected.
The DEF. indicator starts blinking to show you that the oven is in DEFROST mode. The display counts down
the time remaining in DEFROST mode. When the oven beeps, turn over, break apart and/or redistribute the
food. At the end of DEFROST mode, the oven will beep and start M/W cook. The DEF. indicator disappears
and the M/W indicator starts blinking. The display counts down the time remaining in M/W mode.
When M/W cook ends, you will hear 3 beeps.
1. Press Defrost button.
2. Turn the dial knob to adjust the defrosting weight.
4. Turn the dial knob to adjust the cooking time.
5. Press Start button.
The DEF. indicator & “0” appear and the g
indicator starts blinking.
The display will show what you selected.
The M/W indicator appears and the display will
show what you selected.
This example shows power level 6.
The display will show what you selected.
COOKING IN ONE STAGE
When you press Start pad, the M/W indicator starts blinking to show the oven is cooking.
The display counts down the time to show how much cooking time is left. When the cooking time ends, you will hear 3 beeps.
1. Press Power button.
(Select the desired power
level.)
X 3
2. Turn the dial knob to adjust the cooking time.
3. Press Start button.
The M/W indicator appears and the display will
show what you selected.
This example shows power level 6.
The display will show what you selected.
NOTE: Using lower power levels increases the cooking time which is recommended for foods such as
cheese, milk and slow cooking of meats.
NOTE: If step 1 is omitted, the oven will
cook at full power.
NOTE: Your oven can be programmed for
59 minutes 00 seconds.(59:00)
Power
Start
Defrost
Power
Start
3. Press Power button.
(Select the desired power
level.)
X 3

1. Press Auto cook button.
2. Turn the DIAL KNOB to adjust the desired quantity.
3. Press Start button.
When you press AUTO COOK button once, “AC-1”
is displayed. By repeatedly pressing this button, you
can select one of the four menu programs as shown
in the chart below.
The display will show what you selected.
When you press Start button, the display changed
into cooking time and the oven starts cooking.
When the cooking time ends, you will hear 3 beeps.
11
Directions
Put foods on the microwave plate and cover with
vented plastic wrap.
Pour soup in microwave bowl or mug.
Stir before serving.
Pour beverage in microwave mug and place it on the
turntable. Do not cover.
Stir before serving.
Wash and put in casserole. Add no water if vegetables
have just been washed. Cover tender vegetables with
lid and stir after cooking.
AUTO COOK
AUTO COOK allows you to cook or reheat many of your favorite foods by repeatedly touching Auto cook
button.
EASY COOK
EASY COOK allows you to reheat for 30 seconds at 100% (full power) by simply pressing the
Easy cook button.
By repeatedly pressing the Easy cook button, you can also extend reheating time to 5 minutes by 30
seconds.
1. Press Easy cook button. When you press Easy cook button, ":30" appears.
After 1.5 seconds, the oven starts reheating.
When the cooking time ends, you will hear 3 beeps.
Easy cook
Auto cook
Start
Food
Dinner Plate
Soup
Beverage
Fresh vegetable
Press Autocook
button
once
twice
three times
four times
Display
AC-1
AC-2
AC-3
AC-4
Weight
350g
450g
350g
450g
1 CUP (200ml)
2 CUPS (200mlx2)
3 CUPS (200mlx3)
200g
400g

12
CHILD SAFETY LOCK
SAFETY LOCK lock prevents unwanted oven operation such as by small children.
To set, press and hold Stop/Clear button for 3 seconds, Lock indicator appears and a beep sounds.
To cancel, press and hold Stop/Clear button for 3 seconds, Lock indicator disappears and a beep sounds.
TO STOP THE OVEN WHILE THE OVEN IS OPERATING
1. Press Stop/Clear button.
• You can restart the oven by pressing Start button.
• Press Stop/Clear button once more to erase all instructions.
• You must enter in new instructions.
2. Open the door.
• You can restart the oven by closing the door and pressing Start button.
NOTE: Oven stops operating when door is opened.

13
COOKING UTENSILS
Only use utensils that are suitable for use in microwave ovens.
Microwave energy is produced by high frequency radio waves. They are reflected from
metal, but will pass through most cooking utensils without heating them.
As the waves come into contact with the food, they are converted into heat energy. Listed
below are the suggested cooking utensils for this microwave oven and when to use them.
1. Dishes with metal trim of any type-should not be used. This will cause sparking.
2. Glass or ceramic heat proof dishes-excellent for microwave cooking.
3. China dishes and plates-without metal trim may be used to cook and heat individual portions of food.
4. Wood or straw-use only for short period, wood contains some moisture and the microwave energy may
cause the wood to dry out and crack.
5. Aluminum foil-may be used in very small pieces for shielding only.
Any aluminum foil used should never be closer than 2.5cm from side walls of oven.
6. Plastic-most heat resistant plastic dinnerware may be used for heating food. However polyethylene,
melamine, phenol are unsuitable for use in the oven. They become hot in the microwave.
7. Wax paper-use as a cover to avoid spatters.
8. Metal-in general, metal utensils should not be used in microwave oven.
CARE AND CLEANING
Although your oven is provided with safety features, it is important to observe the following:
1.It is important not to defeat or tamper with safety interlocks.
2.Do not place any object between the oven front face and the door or allow residue to accumulate on
sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and dry. Never use
abrasive powders or pads.
3.When opened, the door must not be subjected to strain, for example, a child hanging on an opened
door or any load could cause the oven to fall forward to cause injury and also damage to the door. Do
not operate the oven if it is damaged, until it has been repaired by a competent service technician. It is
particularly important that the oven closes properly and that there is no damage to the:
i) Door(bent)
ii) Hinges and Hookes(broken or loosened)
iii) Door seals and sealing surfaces.
4.The oven should not be adjusted or repaired by anyone except a properly competent service
technician.
5.The oven should be cleaned regularly and any food deposits removed;
6.Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation.

14
BEFORE YOU CALL FOR SERVICE
Refer to the following checklist, you may prevent an unnecessary service call.
* The oven doesn't work;
1. Check that the power cord is securely plugged in.
2. Check that the door is firmly closed.
3. Check that the cooking time is set.
4. Check for a blown circuit fuse or tripped main circuit breaker in your house.
* Sparking in the cavity;
1. Check utensils. Metal containers or dishes with metal trim should not be used.
2. Check that metal skewers or foil does not touch the interior walls.
If there is still a problem, contact the service station.
A list of these stations is included in the oven.
QUESTIONS AND ANSWERS
* Q : I accidentally ran my microwave oven without any food in it. Is it damaged?
* A:Running the oven empty for a short time will not damage the oven. However, it is not recommended.
* Q : Can the oven be used with the glass tray or roller guide removed?
* A:No. Both the glass tray and roller guide must always be used in the oven before cooking.
* Q : Can I open the door when the oven is operating?
* A : The door can be opened anytime during the cooking operation. Then microwave energy
will be instantly switched off and the time setting will maintain until the door is closed and START is
touched.
* Q : Why do I have moisture in my microwave oven after cooking?
* A : The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food
hitting the cool oven surface.
* Q : Dose microwave energy pass through the viewing screen in the door?
* A : No. The metal screen bounces back the energy to the oven cavity. The holes are made to allow light to
pass through. They do not let microwave energy pass through.
DO NOT ATTEMPT TO SERVICE THE OVEN YOURSELF !

Disposal of Used Electrical & Electronic Equipment
The meaning of the symbol on the product, its accessory or packaging indicates that this product shall
not be treated as household waste. Please, dispose of this equipment at your applicable collection
point for the recycling of electrical & electronic equipments waste. In the European Union and Other
European countries which there are separate collection systems for used electrical and electronic
product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous
to the environment and to human health, which could otherwise be caused by unsuitable waste
handling of this product. The recycling of materials will help conserve natural resources. Please do
not therefore dispose of your old electrical and electronic equipment with your household waste. For
more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
