Daikin DCM601A51 Quick start guide

intelligent Touch Manager
Energy Navigator Setup
Model
DCM601A51
MONITOR
CPU ALIVE
SLAVE
MASTER
BACKUP
LAN SW
SERVICE LAN
FRONT BACK
D MASTER
ON
OFF RESET
LAN LINK
D MONITOR
Commissioning Manual
Supplementary Volume

1Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
Contents
Energy Navigator Setup..........................................................................................2
•Log into the service mode .......................................................................................................... 7
• Congure the source from which to obtain the room temperature ............................................. 9
• Congure the month when to start data collection ................................................................... 11
• Congure an additional energy conversion type ...................................................................... 12
• Data Clear ................................................................................................................................ 13
Contents

Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
2
Energy Navigator assists equipment administrators in implementing systematic operations
management by analyzing the operational status of the equipment, formulating energy saving
plans, establishing equipment operations standards necessary to achieve energy saving goals.
Energy Navigator consists of the following four main functional areas:
Function Summary
Energy Navigator
(1) Budget/Actual Energy
Management
Budget/Actual Energy Management visualizes the yearly and
monthly progress of the actual energy consumption goals with
respect to the planned energy consumption and also provides
functionality to compare the actual energy consumption of the
current year with that of the previous year.
(2) Equipment Operations
Management (Identication
of deviation from operations
plans)
Equipment Operations Management identies and visualizes any
equipment systems that are or were running during the hours
when they are supposed to stop and any air conditioners that are
running beyond the set temperature range set forth as part of the
air conditioner operations plans.
(3) Data Export
Data Export allows you to export measurement data to a CSV
format so that you can perform advanced analysis on the data
using external software.
(4) Commissioning
Commissioning allows you to congure settings necessary to take
the advantage of Energy Navigator.
This function is available in the service mode only.
Energy Navigator can address various needs but depending on how your equipment is engineered,
such as whether or not watt-hour meters are installed and whether or not the commissioning
process for Power Proportional Distribution has been completed.
Energy Navigator Setup

3Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
Target
user What is needed
Engineering details Overview of available functionality
Availability of
Meters
installed
Trial Power
Proportional
Distribution
Budget/Actual
Energy
Management
Equipment Operations
Management
Equipment
administrator
(1) Ability to easily gain
visibility into the
operational status of
the equipment.
× ×
- Manage actual
energy
consumption
based on billing
statements
- Identify deviation from
equipment operations plans
- Visualize, based on CT
values, how the energy
consumption is affected
by deviations of
in-house air
conditioners from
operations plans
(2) Ability to perform
budget/actual
management of the
whole energy
consumed by the
building and to
ensure that
equipment operations
comply with
operations plans.
×
- Budget/actual
energy
management
with watt-hour
meters
- Identify deviation from
equipment operations plans
- Visualize, based on CT
values, how the energy
consumption is affected
by deviations of
in-house air
conditioners from
operations plans
(3) Ability to perform
extensive energy
management of
equipment systems
that are among the
largest energy
consumers in the
building as well as air
conditioners that
have great
opportunities for
operational
improvement.
×
- Manage actual
energy
consumption
based on billing
statements
- Identify deviation from
equipment operations plans
- Visualize the waste of
energy due to
deviations of in-house
air conditioners from
operations plans
(4) Ability to perform
budget/actual
management of the
whole energy
consumed by the
building and to
efciently achieve
energy saving goals.
- Budget/actual
energy
management
with watt-hour
meters
- Identify deviation from
equipment operations plans
- Visualize the waste of
energy due to
deviations of in-house
air conditioners from
operations plans
Legend
:
Yes
× :
No
Legend : Available
: Available in part
× : Unavailable

Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
4
The following table describes how the availability of each of Budget/Actual Management and
Equipment Operations Management depends on the engineering details:
Engineering details Energy budget/actual management function
Availability
of meters
Availability of
energy
consumption
plan
(Monthly) Energy
consumption
estimation function
Energy budget/actual visualization function
Annual energy budget/
actual visualization
function
Monthly energy budget/
actual visualization
function
Year-to-year energy
comparison function
Ye s Ye s
Ye s No ×
No Ye s ×
(Budget/actual can be
visualized by manually
entering the actual
energy consumption)
×(Available by manually
entering the actual
energy consumption)
No No ××(Available by manually
entering the actual
energy consumption)
Engineering details Energy budget/actual management function
Availability
of meters
Availability of
energy
consumption
plan
Energy
consumption
plan registration
function
Actual energy
consumption
registration
function
Energy Group
registration function
Energy type/Energy conversion
factor registration function
Energy type
registration
function
Energy conversion
factor registration
function
Ye s Ye s
Ye s No
No Ye s
(Creation of group to
which to manually
enter the actual energy
consumption)
No No
(Creation of group to
which to manually
enter the actual energy
consumption)
: Available
: Some functions available
×: Unavailable

5Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
Engineering details Equipment operation management
Trial Power Proportional
Distribution
Operation
rules
Operation rule creation
function
Sampling period/target setup function
Sampling period setup
function
Sampling target setup
function
Ye s Ye s
Ye s No
No Ye s
No No
Engineering details Equipment operation management
Trial Power Proportional
Distribution
Operation
rules
Failure to turn off sampling function
Failure to turn off sampling result display
function
Detailed display
function
Ye s Ye s
Ye s No (Sampling possible by default rule)
No Ye s (Displays power consumed during
failure to turn off, based on CT value.)
No No
(Displays power consumed during
failure to turn off, based on CT value.)
(Sampling possible by default rule)
Engineering details Equipment operation management
Trial Power Proportional
Distribution
Operation
rules
Setpoint gap sampling function
Setpoint gap sampling function Detailed display
function
Ye s Ye s
Ye s No (Sampling possible by default rule)
No Ye s (Displays power consumption when there is
setpoint gap, based on CT value.)
No No (Displays power consumption when there is
setpoint gap, based on CT value.)
(Sampling possible by default rule)
: Available
: Some functions available
×: Unavailable

Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
6
You need the outdoor unit address to use Energy Navigator. Congure the outdoor unit address in
advance (see the intelligent Touch Manager Installation Manual (EM11A016/EM11A018)).
For information on how the administrator can configure and use the function, refer to the
appropriate sections of the User Manual.
The remaining part of this manual provides the procedures for commissioning.
See:
Congure the outdoor unit address intelligent Touch Manager Installation
Manual (EM11A016/EM11A018)
Congure the model type of the outdoor unit Commissioning Manual
(EM11A021/EM11A022)
Commissioning for Power Proportional Distribution
Commissioning Manual
(Supplementary Volume)
Commissioning for Power
Proportional Distribution
(EM11A027)
Log into the service mode
This manual
Congure the source from which to obtain the room
temperature
Congure the month when to start data collection

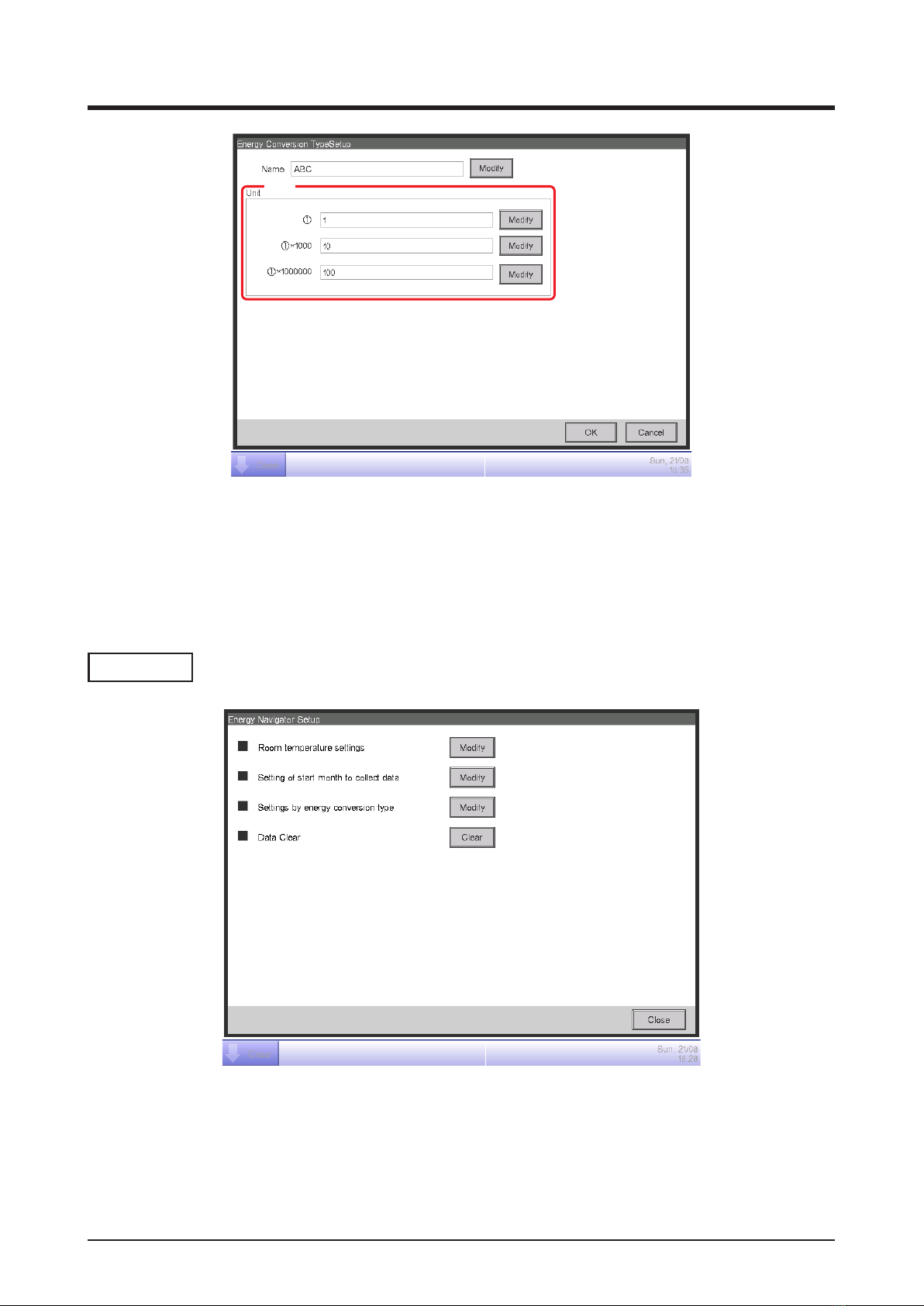

Congure an additional energy conversion type
* When necessary

7Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
Log into the service mode
Display the Menu List screen.
Touch the four corners of the screen in the indicated order. The Password Input dialog appears.
(1)
(4)
(2)
(3)

Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
8
Enter the service password (daikin) and touch the OK button to log into the SE Mode.
Furthermore, if the screen is locked, entering the service password instead of the administrator
password after carrying out the special operation indicated below, allows you to unlock the screen
and log into the SE Mode.
(1)
(4)(2)
(3)

9Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
Congure the source from which to obtain the room temperature
Configure the source from which to obtain the room temperature that will be displayed on the
Operational Status graph on the Detailed View screen accessible from Energy Navigator's Failure
to Turn Off sampling screen and Setpoint Gap sampling screen.
*Detailed View screen (operational state)
On the service mode Menu List window, select and open the Service Settings tab.
(1)
Touch the Energy Navigator button (1) to bring up the Energy Navigator Setup window.

Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
10
(2)
Touch the Modify button (2) to bring up the Room temperature settings window.
(3)
(4)
(5)
The Mgmt. point list box (3) provides a list of registered indoor unit management points.
Select your desired management point from this list, which shows management point names along
with their current settings. Specify whether to use the suction temperature or analogue input (Ai) as
the source of the room temperature by selecting either of the two radio buttons under Room
temperature settings (4).
If you have chosen Ai, touch the Modify button to bring up the Ai Selection window.

11 Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
Select your desired Ai management point from the list and then touch the OK button to return to the
Room temperature settings window.
The selection you made using the radio button group (4) is saved when you touch the Modify
button (5). The list (3) is updated to reect the change.
Repeat the steps above to congure all of the indoor unit management points. When you are done,
touch the OK button to save the settings and return to the Energy Navigator Setup window.
Congure the month when to start data collection
To congure the month when to start data collection, use the following procedure:
(6)
Touch the Modify button (6) to bring up the Month to Collect Data Setup window.

Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
12
(7)
From the Start month for yearly collecting data combo box (7), select the month (January
through December) when to begin collecting the data for use on the annual budget/actual
management graph.
Touch the OK button. On the conrmation dialog box that appears, touch the Yes button to save the
settings and restart iTM.
Congure an additional energy conversion type
You can configure an additional energy conversion type for use in Budget/Actual Energy
Management as needed.
(8)
Touch the Modify button (8) to bring up the Energy Conversion TypeSetup window.

13 Commissioning Manual (Energy Navigator Setup) EM11A028
DCM601A51 intelligent Touch Manager
(10)
(9)
Fill in the Name (9) and Unit (10) elds, and specify the x1,000 and x1,000,000 units. To ll in each
eld, use a text input dialog box that appears when you touch the Modify next to the eld.
When you are done, touch the OK button. On the conrmation dialog box that appears, touch the
Yes button to save the settings and restart iTM.
Data Clear
(11)
You can clear the trend data as needed.
Touch the Clear button (11). On the conrmation dialog box that appears, touch the Yes button to
clear the data and restart iTM.

EM11A028 (1208) HT
