Danbit KAM-U-DOM2MP-E User manual

1/47
IPC Fast Operation User Manual
Directory
1. Interface introduction.........................................................3
1.1 Box IP Camera(IPC-XXXX-E series) interface.................3
1.2 Waterproof(B cable) interface.............................................4
1.3 Waterproof(P cable) Interface.............................................5
1.4 Robot IP camera Interface ..................................................5
1.5 Cube IP Camera Interface...................................................6
1.6 Interface Function Instruction.............................................7
2. Network Operation.............................................................9
2.1 IE Operation........................................................................9
2.2 Client Software Operation ................................................14
2.3 Monitor the device by WAN(cloud server).......................17
2.4 HVR user manual..............................................................24
3. POE Power supply ..........................................................28
4. Mobile monitor..................................................................30
5. Common Questions.........................................................41

2/47
3/47
Features:
1. Reliability and compatibility
2. Advanced H.264 High prole compression
3. Low streams and high resolution image
4. Support local BNC output
5. Support several servers, IP address,DDNS,cloud
6. Support two-way audio
7. Support dual stream,cloud technology.
8. Support iPhone,Windows
Mobile,BlackBerry,Symbian, Android remote monitor.
9. Support all kinds of browsers, IE, Chrome,Firefox
and Safari
10. Support WIFI/3G
11. Support connect to HVR/NVR
12. Support ONVIF2.0,please refer to IP camera user
manual in the CD
1. Interface introduction
1.1 Box IP Camera(IPC-XXXX-E series) interface
Picture 1.1 HD Box IP camera

4/47
5/47
1.2 Water proof (B cable) interface
Picture 1.2 IR Waterproof IP Camera
1.3Water proof (Pcable) Interface
Picture1.3 IR Waterproof IP Camera
1.4 Robot IP camera Interfa
Picture 1.4 Robot IP camera

6/47
7/47
1.5 Cube IP Camera Interface
Picture 1.5 Cube IP Camera
1.6 Interface Function Instruction
DC12/5V Power Supply：12/5V DC power
supply,wrong power supply will make the device broken
Indication Light: It's working status of device, when
power on is red, nish startup is green, local record is
green icker, alarm activated is red icker

8/47
9/47
Alarm Input: Default - Normal open
Alarm Output: Use for alarm activated
RS485: Connected with PTZ or other RS485 devices
RESET: Keep pressing 5seconds to restore to factory
setting,include IP setting
Audio Input: Connected to audio picker
Audio Output: Connect to Speaker
Video Output: Connect to TV for debugging focal
length
Antenna: Use for WIFI/3G
2. Network Operation
2.1 IE Operation
2.1.1 Use correct power supply
2.1.2 After startup, connect the device with switch or
router, see below picture
Picture2.1 Network structure
2.1.3 Make sure the device ip address is in the same
LAN of router, default IP address is 192.168.1.10
2.1.4 Go to CD->English->Software to nd UpgradeTool

10/47
11/47
and install it
2.1.5 Run UpgradeTool, Clock “IP Search”,you will nd
the device ip,see below picture
Picture2.2 IP Congure
2.1.6 Select the device to cong IP, see below picture
Picture2.3 IP Congure
2.1.7 Factory default IP setting:
IP address: 192.168.1.10
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
User name: admin
Password: no password

12/47
13/47
Picture 2.4 Local BNC output
Note: Local BNC output is for debugging lens and look
over IP settings(only keep 30seconds ,then disappear),
see above picture
2.1.8 Open IE,type IP address,login with user name
and password,see below picture
Picture 2.5 WEB GUI After login,enter into below picture
Picture2.6 WEB GUI after login

14/47
15/47
2.2 Client Software Operation
2.2.1 Go to CD->English->Software, nd CMS
2.2.2 Install CMS, run it, default user name: super, no
password
Picture 2.7 CMS Interface
2.2.3 Device manage: System->Device manage,see
below picture
Picture2.8 Device manage
2.2.4 Add Device, see below picture
Picture 2.9 Add device

16/47
17/47
add device modes: IP address, domain name,serial
number and MAC address.
Add IP address ---- IP search and manually add IP
address
IP search: Click “IP search” and select the DVR IP
address to add device
Manually add IP address: Click “add device”,then fill
with IP address,TCP port,user name, password
2.2.5 Device connection: double click the device
name,then choose main stream or extra stream, see
below picture
Picture 2.10 Connect device successfully
2.3 Monitor the device by WAN(cloud server)
2.3.1 If this is the rst time for you to visit it,pls read it
（1）Login XM Cloud http://xmeye.net
（2）User guide,see below picture.
（3）Click "Next", then search IP address, see below
picture:

18/47
19/47
（4）Click "Next", see below picture
（5）Click "Next", see below picture.
（6）Click "Next", enter to user registration page, see
below picture.
（7）Click "Next", it's shown device serial number and
another name,see below picture.

20/47
21/47
（8）Click "Next", it's shown registration nished page,
see below picture.
（9）Click "Finish", see below picture.
2.3.2 Login by User, device manage(you can manage
multiple devices if login by user).
（1）Login http://xmeye.net, click “By User”, input
user name and password
（2）After login, click "Device manage" -> "Add
device",see below picture
（3）Enter "My device", double click device name, then
you can monitor the device,see below picture

22/47
23/47
2.3.3 Login by device and device manage
（1）Go to http://xmeye.net ,click “By Device”, ll with
serial number and verify number.
（2）Ento into monitor live, see below picture

24/47
25/47
2.4 HVR user manual
2.4.1 Login HVR
2.4.2 GotoMainMenu->System->DigitalManage-
>ChannelType, see below picture
Select different HVR mode, picture 3.1 shows “4ch
analog D1 + 1ch 1080p IP + 7ch 720p IP”.
Picture 3.1 ChannelType
If you connect a IP device, resolution or encode range
is higher than HVR mode distribute, it will show nothing
on screen, see below picture
Picture 3.2 IP device resolution higher than HVR mode
2.4.3 MainMenu->System->DigitalManage-
>DigitalChannels, click left corner button to add device
---- manual add and search IP address.
（1）Add IP camera to HVR, pls refer to client software
user manual, see below picture:

26/47
27/47

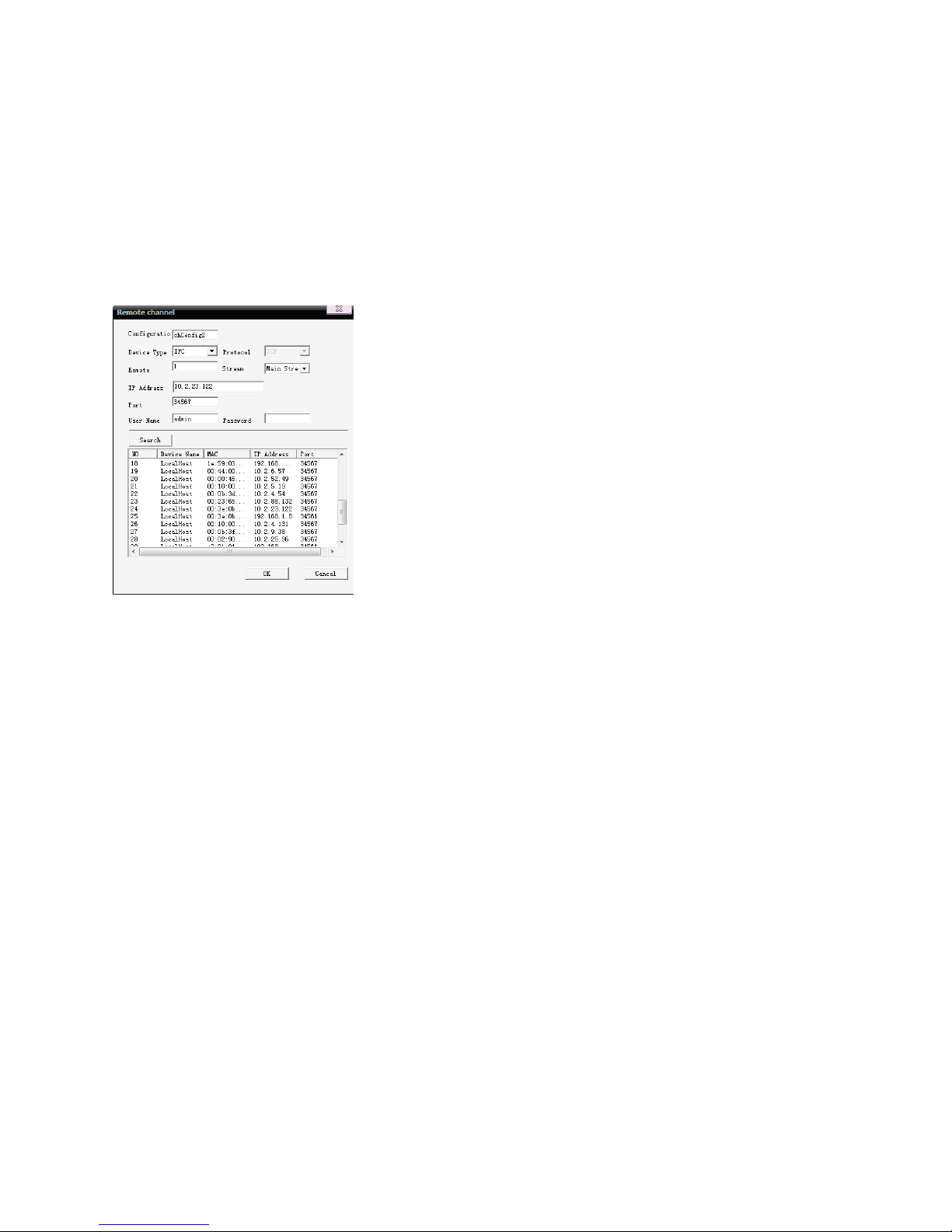

Picture 3.3 Add device
Device name: HVR channel name
Device type: Optional, IP Camera or DVR
Protocol: default TCP
Remote channel: remote DVR channel number, if IP
camera, choose 1
Stream: choose “main stream” or “extra stream” for
remote channels
IP address: remote DVR/IP camera ip address, manual
add or search IP
Port: DVR/IP camera TCP port
User name and password: remote DVR/IP camera user
name and password
(2) Finish add device
2.4.4 Delete remote channel
GotoMainMenu->System->DigitalManage-
>DigitalChannel, select IP
address, click “delete”.
2.4.5 Check “Channel Status”
Mainmenu->System->DigitalManage->ChannelStatus,
go to check channel status

28/47
29/47
3. POE Power supply
POE board, see below picture
Picture3.1POEPositivepowersupplyboard
Picture 3.2POEPower supply board back
POE extend cable, see below picture
Picture 4.4: POE extend cable port

30/47
31/47
4. Mobile monitor
Install new mobile client software, after installation, see
below picture
Picture 1 Mobile client software
4.1.1
Run mobile client software,see below picture:
Picture 2 Mobile phone monitoring software functions
4.1.2
Monitor, see below picture

32/47
33/47
Picture 3 Mobile live monitor screen, double click the
channel to full scButton function:
Button Name Function description
Play Connect the device and play live
video
Snapshot Capture live pictures
Local
Record Live record and save to your mobile
Alarm
When motion detect,video loss,video
blind happens,
it will light, click here, it will show
alarm message.
Cong
Cong DVR/IP camera ip
address,domain name,
port,user
name,password
etc...
PTZ PTZ control
Switch
channels Switch to 8-32channels
PTZ
Control Up,Down,Left,Right
Zoom Zoom in/out
Focal Focal add/reduce
Iris Iris add/reduce

34/47
35/47
4.1.3
Device list: see below picture
Picture 4 Device list
4.1.4 ：Add device: see below picture
Picture 5 Add device
Input Device name, ip address/domain name, port, user
name, password, then click to nish
4.1.5 ：Edit device: see below picture
Picture 6 Edit device IP setting
4.1.6 ：Delete device: see below picture
Picture 7 Delete device
4.1.7

36/47
37/47
Cong device: see below picture
Picture 8 Cong device
Click device, see below picture
Picture 9 Cong device
4.1.8
Remote playback, see below picture
Picture 10 Remote playback
Search records by time,device,channel, see below
Picture 11 Remote playback
Click the le to playback, see below picture

38/47
39/47
Picture 12 Remote playback
4.1.9
Album, you can nd snapshot picture here, see below
Picture 13 Snapshot picture
4.1.10
Local record: click it to record and save in mobile, see
below picture
Picture 14 Local record le
Click the le to playback, see below picture:
Picture 15 Local playback
About: Information for this mobile client software, see
