EverFocus EHD300N User manual

EVERFOCUS
1/3” Color Rugged Dome Camera
Operation Instructions
Model No. EHD300N
Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1. Do not install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.
2. Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
3. Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4. Keep the power cord away from water and liquid.
Touching the wet power cord may result in electric shock.
5. Never install the camera in areas exposed to water, oil or gas.
Water, oil or gas may result in failure, electric shock or fire.

1
6. Cleaning
Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from
the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the
camera lens.
7. Do not operate the camera beyond the specified temperature, humidity or
power source ratings.
Use the camera at temperatures within –10℃~ 50℃/14℉ ~ 122℉ and humidity between
20%~ 80%. The input power source is 12VDC/24VAC.
PREFACE
The most technically advanced EHD series are the newest vandal-resistant Color Rugged
Dome Camera from EverFocus Electronics. The Color Rugged Dome Camera can withstand
a blow from a 10-pound sledgehammer and has a built-in heater that allows for operation in
low temperatures. It is perfect for all high-profile crime-prone applications such as building
entrances, retail stores, and shopping malls. EHD series are unquestionably one of the
world's toughest cameras and is your best choice for vandal resistance.
FEATURES
z1/3” SONY Super HAD color CCD pick up device for more than 520 TV lines of
horizontal resolution
zLow light sensitivity of 0.4 lux/F=1.2 is achieved by using 1/3” SONY Super HAD
interline transfer color CCD
zThe electronic shutter andAGC allow the camera to be used in environment with
varying light levels
z12VDC/24VAC switches automatically power supply
zS/N Ratio reaches 48 dB or more
zBuilt-in Vari-focal lens
zFlickerless, Mirror, AGC and BLC ON/OFF switchable
zWith manual Pan/Tilt mechanism
zRugged dome designed for vandal proof
zRugged Dome designed with 3-axis which provides the best installation for ceiling
and wall mount
zIP66 weatherproof

2
INSTALLATION

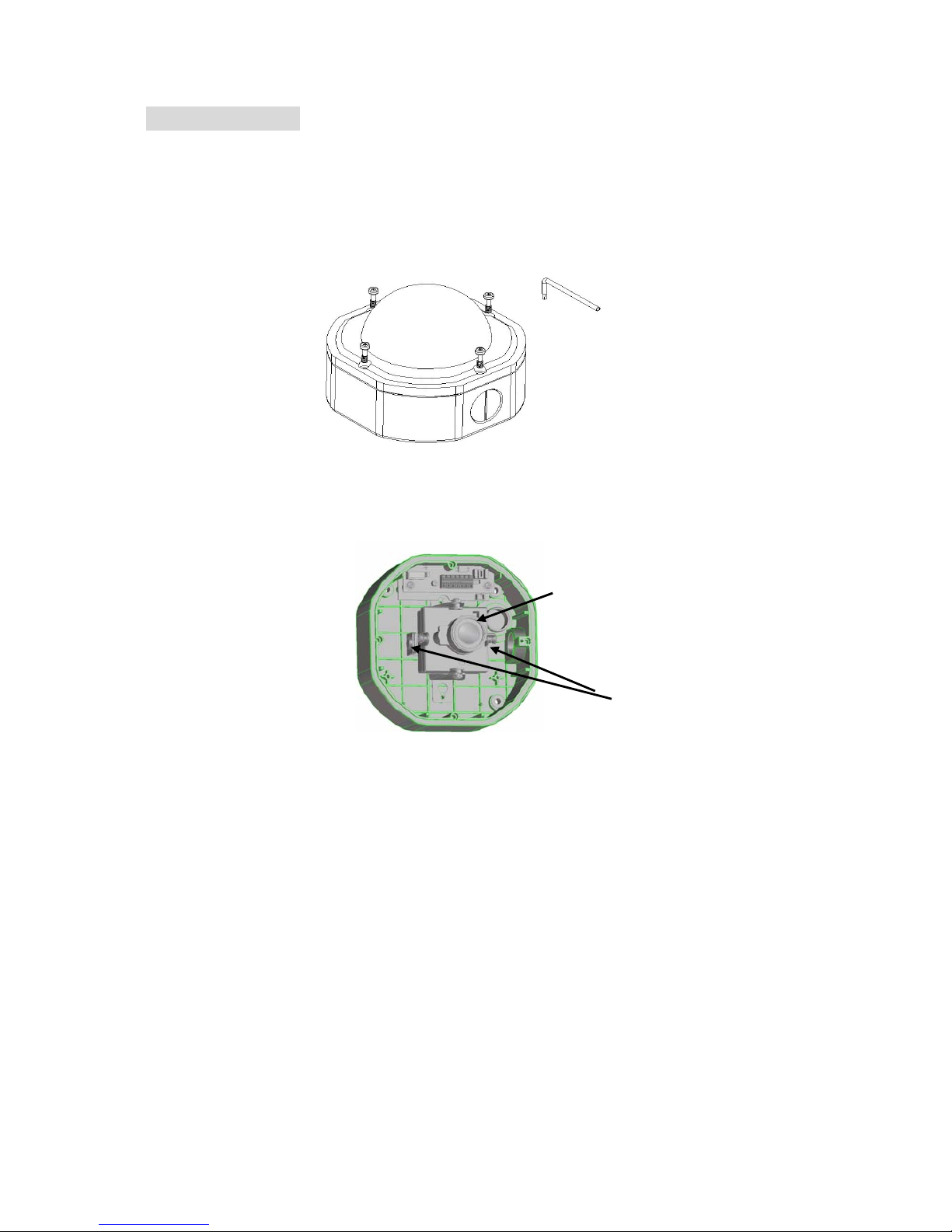

1. Loosen the 4 fix screws on the housing cover by using the attached wrench (Figure 1).
Please pay attention not to damage the lens.
2. Remove the camera.
To remove the camera, first unplug the wire connection on the back of the camera. Then
loosen the 2 locking screws on the camera base, push the camera base to the right (toward
heater direction, as shown in Figure 2), remove the camera from the mounting base.
Reinstall the camera and the cable while the base mounting is completed.
Figure 1
Figure 2
Locking Screws
Vari-Focal Lens

3

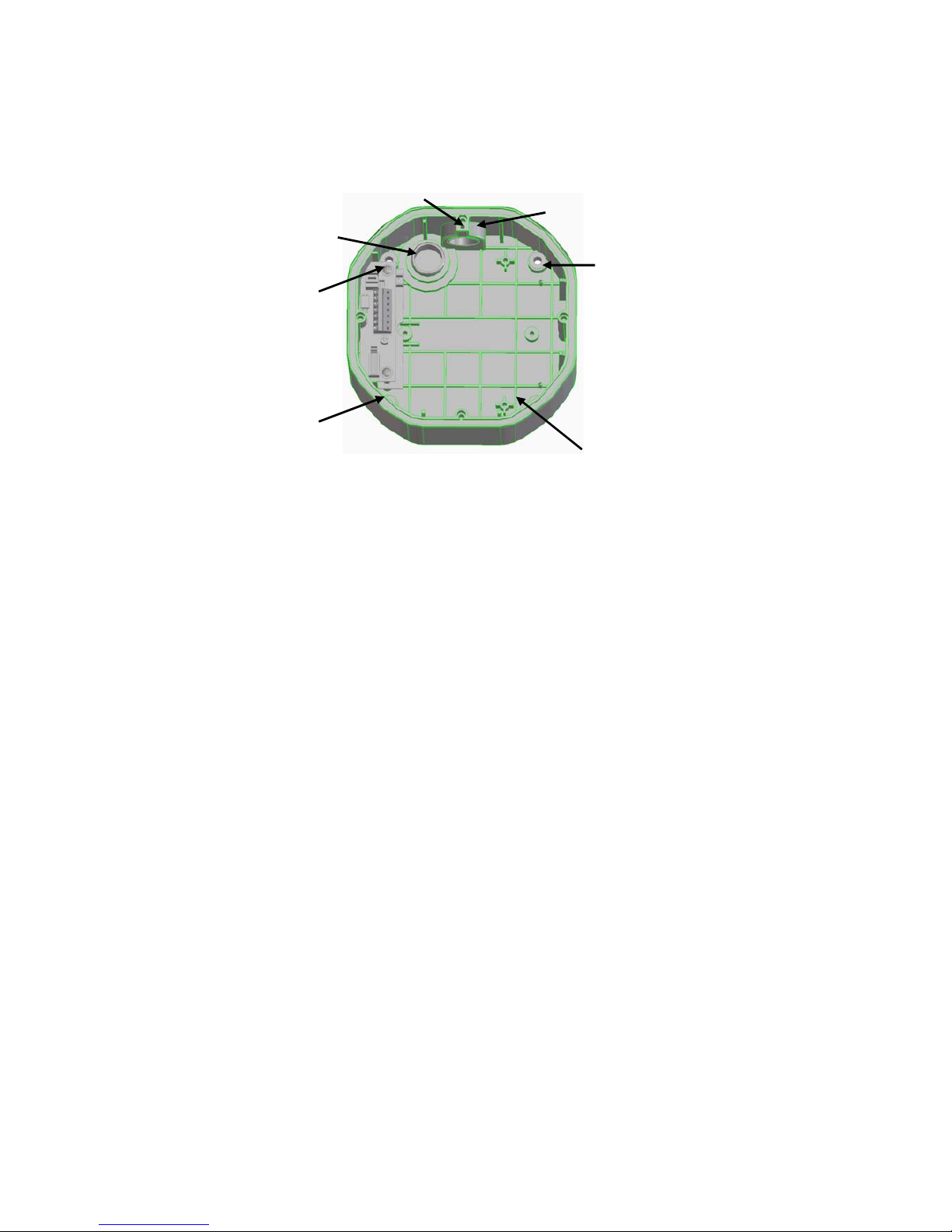

3. Mounting the base.
Attach the base to the wall or ceiling, fix the base by the 4 setscrews attached in the
accessory pack. Please make sure if the mounting is strengthened enough to
support it, if not, please reinforce the mounting according to the environment.
Note: The diameter of the screw hole isψ4.7mm.
Conduit plug setscrew
Side conduit entry
Back conduit entry
Mounting Setscrew
Mounting Setscrew
Figure 3
Mounting Setscrew
Mounting Setscrew

4
Caution: To prevent moisture leaking into the housing, apply an appropriate
gasket or sealant around the conduit connection.
4. Wire Connection
The camera comes with a conduit plug
pre-installed in the PF 1/2 conduit entry on
the side. The screw can be removed and
installed in the back conduit entry. Loosen
the conduit plug setscrew (as shown in
Figure 4) before removing the conduit plug.
Side conduit entry (PF1/2)
Conduit plug
Back conduit entry (PF1/2)
Figure 4

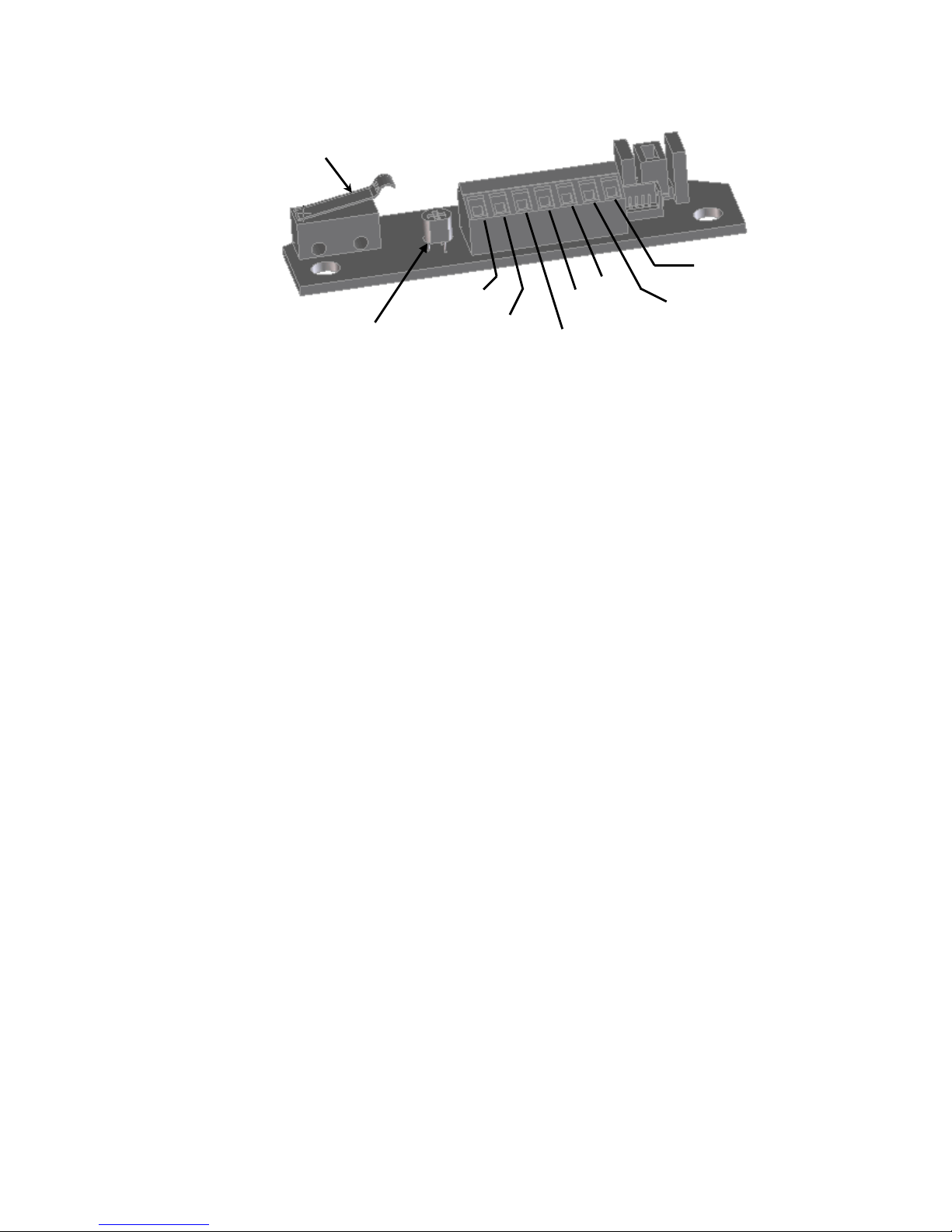

Termination Board

5
Connect the power supply cable (12VDC/24VAC), video output and alarm
output to the proper connectors shown as Figure 5.
The V. Phase adjustment screw is located on the termination board. The
vertical phase may require adjustment to synchronize the vertical phase of the
camera with other camera in the system when it is to be used in the line-lock
sync mode. Make the adjustment when the vertical phase of the camera does
not match with other cameras.
5. View Angle Adjustment
The camera can be rotated 360° horizontally, 140°vertically and 60° 3’rd axis
view angles (as shown in Figure 6). Adjust the proper camera view angle as
needed. If a vari-focal lens is used, you may adjust the focus and zoom of
the lens to bring the object in focus. Be sure to loosen the locking screws on
the lens before you make adjustment.
Video
Alarm COM
Micro Switch for Alarm trigger
GND
Alarm NO Alarm NC
Power In (+)
V. Phase Adjustment VR
Figure 5
Power In (-)

6
Figure 6
Lens fixing Screws
140°
360°
60°

7
DIPSWITCH FUNCTION
¾BLC (Back Light Compensation)
When BLC is turned on, the AGC, FL and IRIS operating point is determined by averaging over
the center area instead of entire field-of-view, so that a dimly-lit foreground object at center area
can be clearly distinguished from brightly-lit backgrounds. BLC should not be used unless it is
needed to compensate for back-light.
The default setting is OFF. For Auto-Iris lens model, the brightness can also be adjusted via the
Iris level control VR.
¾AGC (Automatic Gain Control)
AGC ON: The sensitivity increases automatically when light is low.
AGC OFF: A-low-noise picture is obtained under a low light condition.
The default setting is ON.
¾FL (Flickerless)
When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter at 1/100(S)(NTSC) or 1/120(S)(PAL)
automatically, and reduce the flicker immediately. The default setting is OFF.
¾IRIS Level Control (For Vari-Focal Lens Model)
Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens.
•Turn counterclockwise to L to get darker picture.
•Turn clockwise to H to get brighter picture.¾Electronic Shutter (For Fixed Lens Model)
ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50 (PAL) second
to 1/100,000 second according to the luminance conditions of the scene.
ES OFF: The shutter speed is fixed at 1/60 (NTSC),1/50 (PAL) second.
Set ES OFF, when auto iris lens is used or flicker is observed under a very bright fluorescent lamp.
Otherwise, turn ES on for optimum performance.

8
SIMPLE INSTRUCTIONS FOR THE DESICCANT PACK
Due to the camera lens blurred from the humidity inside the camera.
The desiccant pack absorbs the humidity; please refer to the easy instruction as follows:
1. Adjust all settings first and place the desiccant pack on the horizontal rod, then bend the
horizontal rod and fix it.
2. Install the outer cover and tighten the screws.
Installation steps for the camera:
Step 1
Step 2
Step 3
Desiccant pack
Horizontal rod
Bend the horizontal rod and fix the desiccant pack
Install the outer cover and tighten the screws

9
SPECIFICATIONS
Pickup Device 1/3'' SONY Super HAD CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec.
PAL: 625 TV lines, 50 fields/sec.
Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)
Horizontal Resolution 520TVL
Sensitivity 0.4Lux/F=1.2
S/N Ratio Over 48dB (AGC off)
Electronic Shutter 1/50(1/60)~1/100,000
Lens Type
Vari-focal lens, Auto Iris
f=2.9~10mm, F=1.2
f=9~22mm, F=1.6
*Lens models and availability vary in different regions
Auto Gain Control ON/OFF Switch
Flickerless ON/OFF Switch
Back Light Comp. ON/OFF Switch
Auto White Balance Yes
Gamma Correction 0.45
Video Output
2 video outputs
BNC 1.0Vp-p, 75ohm
Additional testing video output 1.0Vp-p, 75ohm
Sync. Mode Internal sync
Weatherproof IP66
Vandal Resistant Yes
Power Source 12VDC/24VAC
Power Consumption 24VAC: 4VA max.
12VDC: 2W max.
Dimensions 130mm(W) x 98.8mm(H) x 130mm(D);
5.1"(W) x 3.87"(H) x 5.1"(D)
Weight 0.8kg ; 1.8lbs
Operating Temperature -10°C~50°C ; 14°F~122°F (20%~80% Humidity)
Certifications FCC/CE

10
CONTENT LIST
Standard Accessories
1. Camera Unit
2. Operation Instruction (this document)
3. Accessory Pack
4. Waterproof Connector
5. Power & Video Cable
Optional Accessory
1. Wall Mount Bracket (BA-EHD)
