David Clark DC PRO-X User manual

Quick Reference Guide
WWW.DAVIDCLARK.COM
230-32457-DC PRO-X Manual 2-16 FINAL.indd 3 3/19/16 1:48 PM

T H A N K Y O U . . .
2 WWW.DAVIDCLARK.COM
Congratulations on your purchase of the
most technologically advanced electronic
noise-cancelling headset available. As
with all of our products, The DC PRO-X
Electronic Noise Cancelling Headset is
backed by extraordinary customer service
and support.
David Clark Company assumes full
responsibility for the quality and performance
of our products. We are committed to a
policy of service whereby we will respond
in a prompt and positive manner to any
question or issue regarding one of our
products.
David Clark Company products have set
the standards of performance and excellence
for pilots throughout the world. Your new
DC PRO-X continues this legacy. We have
earned a reputation for excellence; we
intend to keep it by continuing to deserve
your confidence.
Richard M. Urella, President
Thank you for purchasing the DC PRO-X
Futura Med w/Bernard Fashion
230-32457-DC PRO-X Manual 2-16 FINAL.indd 4 3/19/16 1:48 PM

FITTING
Hybrid Electronic Noise-Cancellation Technology
Your DC ONE-X headset features leading-edge Hybrid
Electronic Noise-Cancelling Technology (ENC) with feed-
forward and feed-back technology for superior active noise
reduction. Feed-forward noise cancelling is accomplished through
an exterior microphone in the ear dome that is isolated from the
speaker. The exterior microphone acquires the noise before it gets
to the ear. Feed-back noise cancelling is performed by the internal
microphone placed near the speaker. The signals are then inverted
to produce a reverse, ‘anti-noise’ signal. This hybrid technology
results in unsurpassed active noise reduction performance.
External
Microphone
Internal
Speaker
Internal
Microphone
Amplifier
Bluetooth &
Audio DSP
Inversion
Circuit
Inversion
Circuit
External Noise Signal
Internal Noise Signal
Cancellation Processor
HYBRID ENC TECHNOLOGY
WWW.DAVIDCLARK.COM 3
Anti-Noise
Signal
HYBRID
230-32457-DC PRO-X Manual 2-16 FINAL.indd 8 3/19/16 1:48 PM

H E A D S E T
4 WWW.DAVIDCLARK.COM

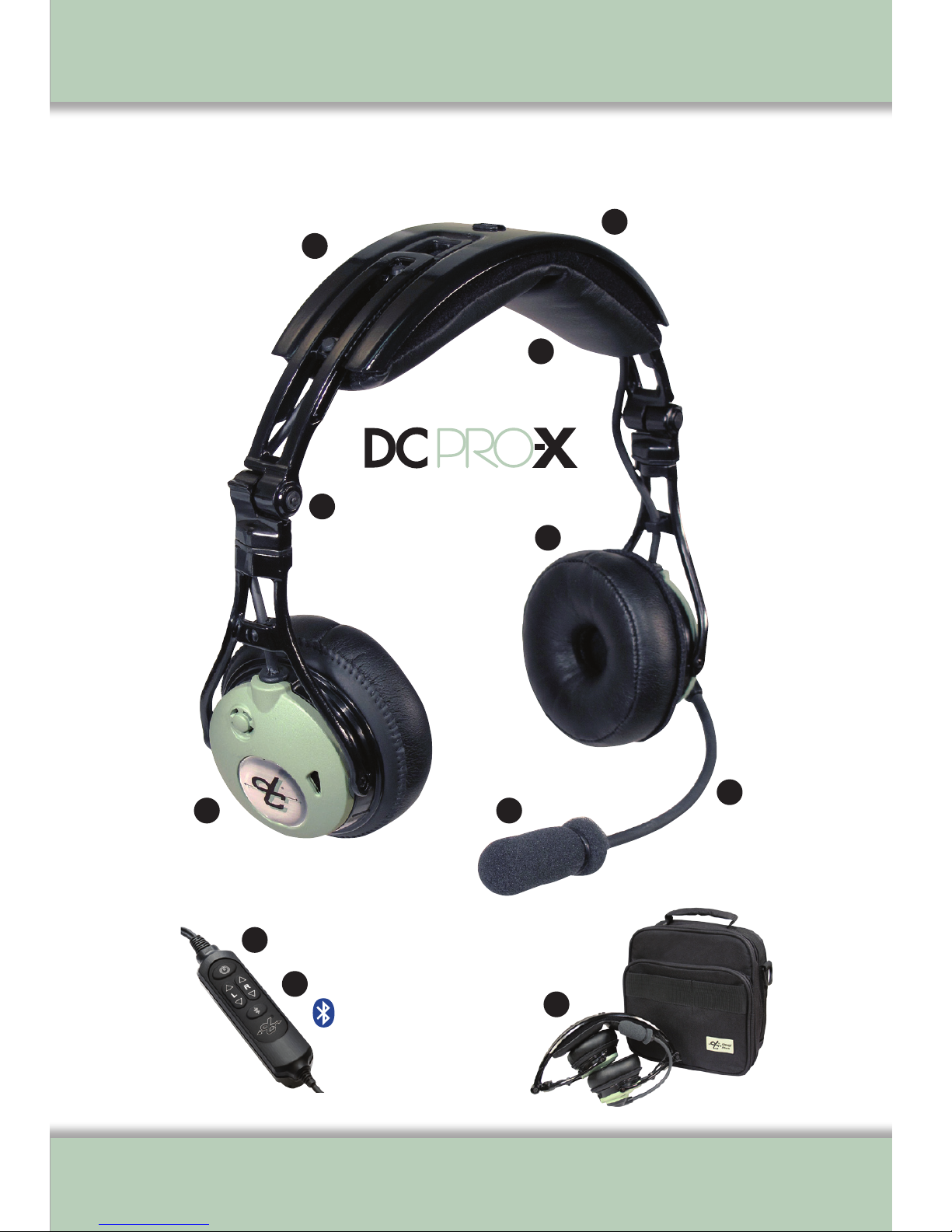

DC PRO-X Features
1
3
2
5
6
9
8
4
®
Futura Med w/Bernard Fashion
Approved
FAA TSO-C139
7
10
Bluetooth
Control
Module
11
230-32457-DC PRO-X Manual 2-16 FINAL.indd 9 3/19/16 1:48 PM

CONTROL MODULE
F E A T U R E S
WWW.DAVIDCLARK.COM 5
Technologically Advanced. Intelligently Designed.
1. Very light, yet rugged alloy headband and suspension
2. Fully adjustable suspension assembly for personalized comfort
3. Ultra-soft leatherette head pad with breathable, vented design
4. Swivel hinge stirrups disperse clamping pressure for secure yet
comfortable fit
5. Plush, ‘rest on ear’, Dura-Stitched leatherette ear seals reduce
heat build up
6. Hybrid ENC technology for best-in-class active noise attenuation
7. Digital Signal Processing (DSP) Technology provides high-fidelity
audio for superior communications and music listening
8. M-55 Electret Microphone with enhanced noise cancelling
9. Full flex boom for precise mic placement
10. Bluetooth®wireless technology provides seamless integration
for connecting to cell phones, MP3, tablets or other personal
electronic devices
11. Collapsible design for compact storage in David Clark
headset bag
DC PRO-X Features
230-32457-DC PRO-X Manual 2-16 FINAL.indd 14 3/19/16 1:48 PM

CONTROL MODULE
6 WWW.DAVIDCLARK.COM

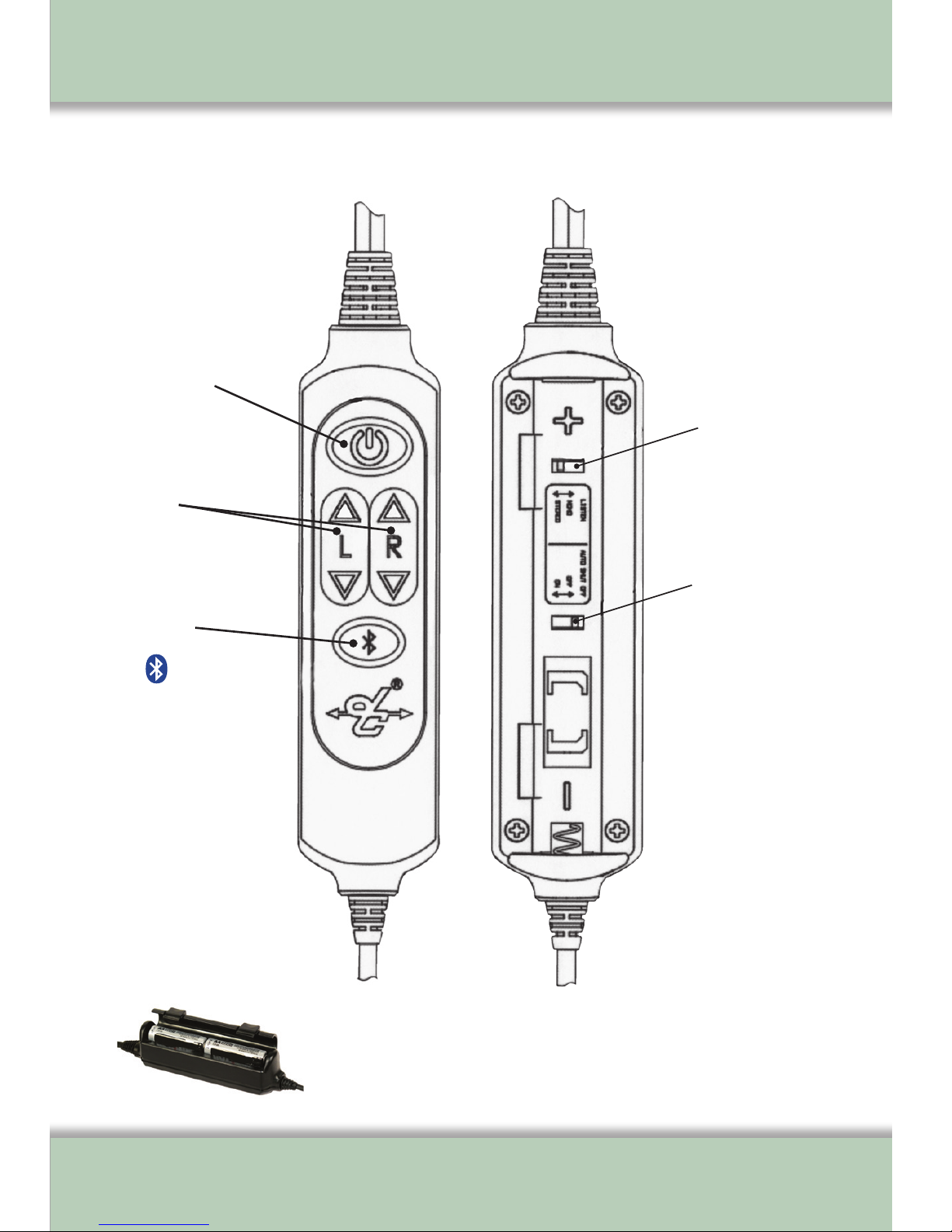

Control Module - Quick Reference Guide
Power On/Off
Volume
Controls
Bluetooth
Mono/Stereo
Switch
Auto Shutoff
Switch
The Control Module is powered by two
(2) ‘AA’ batteries for up to 50 hours of
continuous use.
®
230-32457-DC PRO-X Manual 2-16 FINAL.indd 11 3/19/16 1:48 PM

CONTROL MODULE
F E A T U R E S
WWW.DAVIDCLARK.COM 7
Power
Press and hold for 2 seconds to turn
unit on or off:
•Solid Yellow: Initializing
•Flashing Green: On
•Flashing Red: On, Low Batteries
Power (LED 'Dark' Mode)
•First, press and hold Bluetooth®
button, then press and hold the
Power button
•Power and Bluetooth®LED will turn
ON yellow
•Release the Power ON button
•Continue to hold Bluetooth®button
until yellow Power ON LED turns
OFF
•Release Bluetooth®button
•Control Module is now in 'Dark'
mode (no flashing Power LED).
Note that 'Low Batteries' red flashing LED
will still function in 'Dark' mode.
Volume Up/Down
•Adjust listen level volume up
or down
•Left/right adjustments are
independent
•Only usable when power is ON;
Levels default to max when unit
is OFF
Mono/Stereo
•Set per type of intercom/audio
panel (factory default is “Mono”)
Auto Shutoff
When set to ON, unit will turn off
automatically after 5 minutes when:
•Intercom/audio panel turned off
•Not connected to intercom/audio
panel
•Not in a phone call
•Factory default is “OFF”
Bluetooth®Wireless Technology
Press and hold for 2 seconds to turn on
Bluetooth®Wireless Technology:
•Flashing Purple: Initializing/Mute
Disabled
•Flashing Green: On, Not Connected
•Flashing Yellow: Pairing Mode
•Flashing Blue: Paired and
Connected/Mute Enabled
To Pair:
•Turn Bluetooth®Wireless
Technology on (flashing green)
•Press Bluetooth®Wireless
Technology button to enter
pairing mode (flashing yellow)
•Search for devices from your
phone/device
•Select DC PRO-X and initiate
pairing on your device
•If prompted for PIN code,
enter 0 0 0 0
Control Module - Quick Reference Guide
230-32457-DC PRO-X Manual 2-16 FINAL.indd 12 3/19/16 1:48 PM

CONTROL MODULE
8 WWW.DAVIDCLARK.COM
Control Module Operation
1. Fail Safe - if batteries are dead or the unit is turned off, microphone
and earphones will function when connected to aircraft intercom.
2. The DC PRO-X headset is shipped with the Auto Shutoff feature OFF.
In this mode, the Hybrid ENC will function whenever the power is ON.
3. When Auto Shutoff is set to ON, unit will turn off automatically after 5
minutes when:
•Intercom/audiopanelturnedoff
•Notconnectedtointercom/audiopanel
•Notinaphonecall
4. Auto shutoff can be enabled/disabled via a small switch located under
the batteries (see Quick Start diagram page 6).
5. Cell Phone Interface
 •UseoftheBluetooth®wireless technology cell phone feature while
plugged into aircraft intercom is not recommended and may violate
applicable regulations
 •Allintercompartieshearcellphoneoutboundaudiobutcellphone
recipient’s voice is heard only by the headset connected/paired to
the cell phone
 •Sidetoneisalwayspresent
 •BrieypressingtheBluetooth®wireless technology button will
answer or terminate a call (if supported by the cell phone)
 •Cellphonereceiveaudioisnotmutedwhenreceivingatransmission
from ATC or intercom
230-32457-DC PRO-X Manual 2-16 FINAL.indd 13 3/19/16 1:48 PM

H E A D S E T
CONTROL MODULE
WWW.DAVIDCLARK.COM 9
Control Module Operation (cont.)
6. Music Listening
The Bluetooth®wireless technology feature allows you to listen to your
favorite music when paired with cell phones, MP3, tablets, or other
compatible devices. When listening to music briefly pressing the Bluetooth
button will enable/disable muting:
 •Flashingblue(default):WhenreceivingtransmissionfromATCor
intercom, music will mute to prioritize communication. Once transmission
is completed, music audio will gradually return to the previously set
volume level. A falling two-tone chime is heard when entering this mode.
 •Flashingpurple:Musicwillnotmutewhentransmissionisreceivedfrom
ATC or intercom. A rising two-tone chime is heard when entering
this mode.
Each time the DC PRO-X is powered 'ON', this setting will revert to the
default (muting) mode.
For DC PRO-XP (Panel Mount) Model Only
 •Powercanbeprovidedbytheaircraftwhenusingthe6-pinRedel
connector (11-30 VDC)
 •Whenpoweredbyaircraft,powerLEDwillbesolidgreen
 •Ifexternalpowerislost,headsetwillreverttobatterypower
 •Headsetwillnotautomaticallyturnonwhenexternalpowerisapplied
230-32457-DC PRO-X Manual 2-16 FINAL.indd 10 3/19/16 1:48 PM

FITTING
10 WWW.DAVIDCLARK.COM
HYBRID ENC TECHNOLOGY
Proper Fitting
The advanced suspension system of the DC PRO-X is designed for
a simple and comfortable fit. Proper fit is necessary for maximum
effectiveness. The headset should be worn so that the head pad lightly
touches the top of the head. Adjust the sliding assembly on each
side as necessary (see Fig. 1), keeping slide positions equal on
either side, until the center of the ear phone aperture within the
ear seal is directly aligned with the ear canal.
The ultra-soft memory foam of the ear seal will conform to the
contours of the ear to provide an adequate seal. While in the presence
of noise, turn on the ANR circuitry and then adjust headset and ear
seal position for lowest noise heard, allowing optimum performance
of the Hybrid ENC technology for communications and music listening.
To adjust microphone placement, adjust boom up/down and in/out by
rotating and flexing the boom as necessary. Ideal microphone place-
ment is 1/8” from the lips, as this will provide maximum intelligibility
and ambient noise rejection. Fig. 1
230-32457-DC PRO-X Manual 2-16 FINAL.indd 7 3/19/16 1:48 PM

WWW.DAVIDCLARK.COM 11
P A N E L M O U N T M O D E L S
Futura Med w/Bernard Fashion
P
The DC PRO-XP Panel Mount Model
has all the same advanced features and
technology as the DC PRO-X headset but
provides 6-pin connector compatibility to
plug directly into the panel of the aircraft
utilizing one of three available adapter
cords (see "ACCESSORIES").
Futura Med w/Bernard Fashion
A
The DC PRO-XA Panel Mount Model
has all the same advanced features and
technology as the DC PRO-X headset but
provides 5-pin connector compatibility
to plug directly into the panel of Airbus
aircraft.
NOTE: The DC PRO-XA does not receive
power from the aircraft. Batteries
(included) are required in order for ENC
to function.
(Panel Mount)
(Airbus)
230-32457-DC PRO-X Manual 2-16 FINAL.indd 5 3/19/16 1:48 PM

WWW.DAVIDCLARK.COM 12
ACCESSORIES

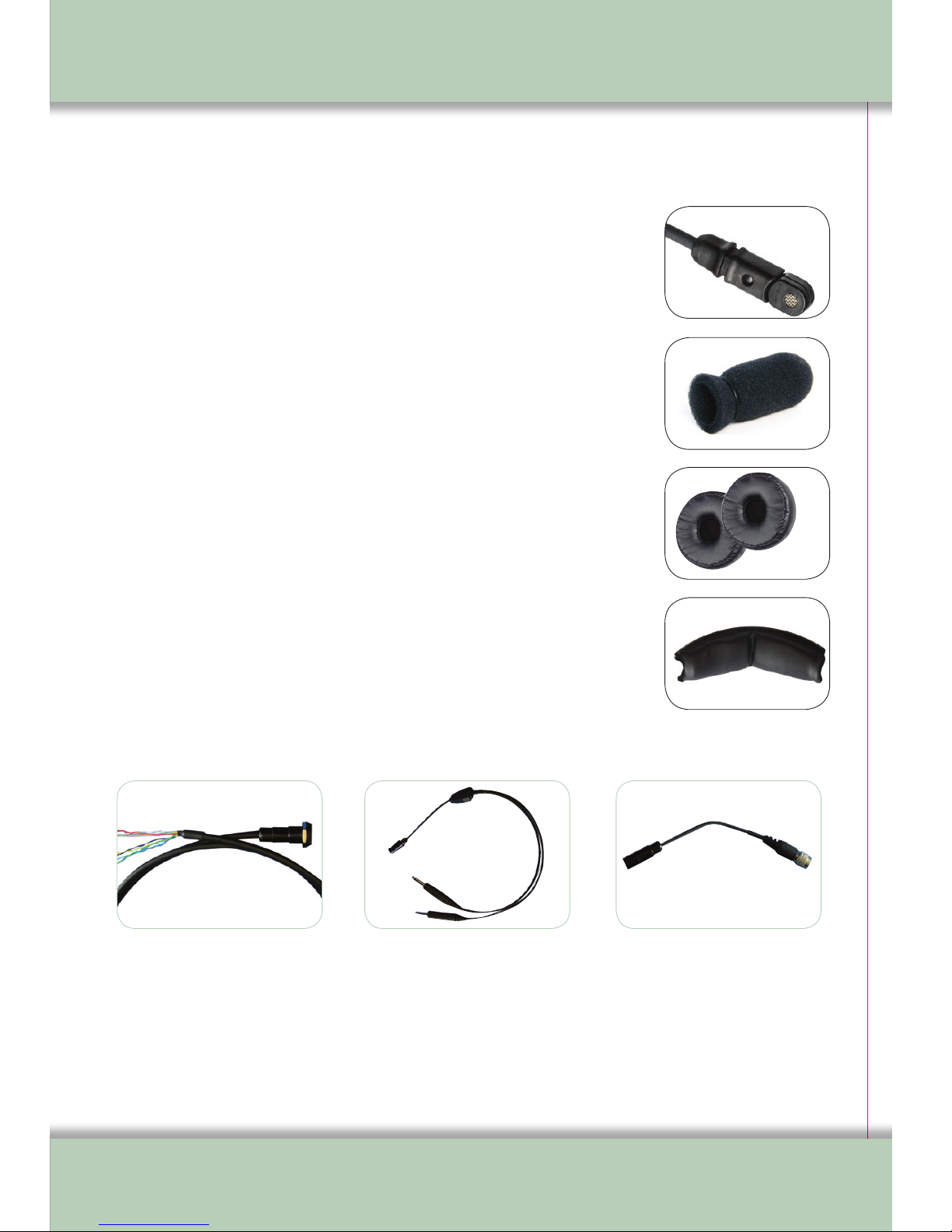

Replaceable Parts Removal/Installation
M-55 Microphone (P/N 09168P-66)
•To remove microphone: Gently pull off foam cover. Grasp
microphone firmly and pull straight out.
•To install microphone: Align keyway on microphone with keyway on
boom. “TALK” should be inward towards the user’s face. Push until
microphone snaps into place.
Microphone Foam Cover (P/N 40062G-05)
•Slide foam cover over top of microphone and secure with
‘O’ ring (included).
Leatherette Ear Seals, Pair (P/N 15976P-03)
•To remove: Gently pull off.
•To install : Stretch earseal over lip of dome until completely seated
on dome.
Leatherette, Vented Head Pad (P/N 15977P-02)
•To remove: Gently pull off.
•To install : Align head pad with headband assembly and push
all around the perimeter to engage hook-and-loop fasteners.
DC PRO-XP Optional Adapter Cords
P/N 40998G-05
For wiring into existing
avionics. Must be purchased
if 6-pin connector is not
available in your aircraft.
P/N 40998G-02
Adapter cord with standard
aviation plugs allowing use
of DC PRO-XP headset when
flying in other than primary
aircraft.
P/N 40998G-03
Adapter cord allowing use
of DC PRO-XP headset in
aircraft already equipped
with David Clark ENC 'XP'
Series panel mount modules.
230-32457-DC PRO-X Manual 2-16 FINAL.indd 6 3/19/16 1:48 PM

13 WWW.DAVIDCLARK.COM
C U S T O M E R S E R V I C E
David Clark Company aviation headsets are covered by a 5-year
warranty. We make every effort to prevent problems and the need
for repairs. In the unlikely event that you experience a problem,
David Clark Company qualified representatives are available to
answer your questions and provide the best customer service in
the industry. Many repairs are covered under warranty. Contact
Customer Service:
Tel. [phone]
508-751-5800 (outside the USA)
Visit our website at www.davidclark.com
Customer Service and Support
230-32457-DC PRO-X Manual 2-16 FINAL.indd 1 3/19/16 1:48 PM

COMPLIANCE
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired
operation.
Changes and modifications not expressly approved by David Clark Company, Inc. can void your authority to
operate this equipment under Federal Communications Commission rules.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct theinterference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation of the device.
French version of RSS-Gen, Sec. 7.1.3
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Made In USA
WWW.DAVIDCLARK.COM
19544P-97 (2/16)
© 2016 David Clark Company Incorporated
Green headset domes are a David Clark
Company Trademark.
FAA TSO-C139a
Approved
230-32457-DC PRO-X Manual 2-16 FINAL.indd 2 3/19/16 1:48 PM
