Dawlance DW 560 INV User manual

Read This Manual
Inside, you will find many helpful hints on how to use and maintain your Microwave Oven properly. Just a little
preventive care on your part can save you a great deal of time and money over the life of your Microwave Oven.
MODEL: DW 560 INV
Microwave Oven
User Manual
Before using your Microwave Oven, please read this manual carefully and
keep it for future reference.
TOUCH TO OPEN
FUNCTION
FUNCTION
INVERTER
INSTAMENU
CONFIRM/START
+30SEC
MICROWAVE
AIR FRY
CONV/GRILL/
COMBI
TADKA/
MASALA ROAST
PANEER/GHEE/
CURD
BREAD/
ROTI BASKET
WEIGHT
DEFROST/
JET DEFROST
STOP/
CANCEL LOCK

SPECIFICATIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
2
(a) Do notattemptto operate this oven with the door open since this can resultin harmful
exposure to microwave energy.It is important not to break or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven mustnotbe operated
until it has been repaired by acompetent person.
ADDENDUM
If the apparatus is notmaintained in agood state ofcleanliness, its surface could be degraded
and affect the life span of the apparatus and lead to adangerous situation.
Power Consumption
Model Number
Rated Microwave Output
Oven Capacity
Net Weight
ProductDimensions
1100W (Grill)
2500W (Convection)
28L
230V~/50Hz, 1550W (Microwave)
DW 560 INV
1000W
510 mm x 310 mm x 460 mm
Approx.1 .Kg5 03

3

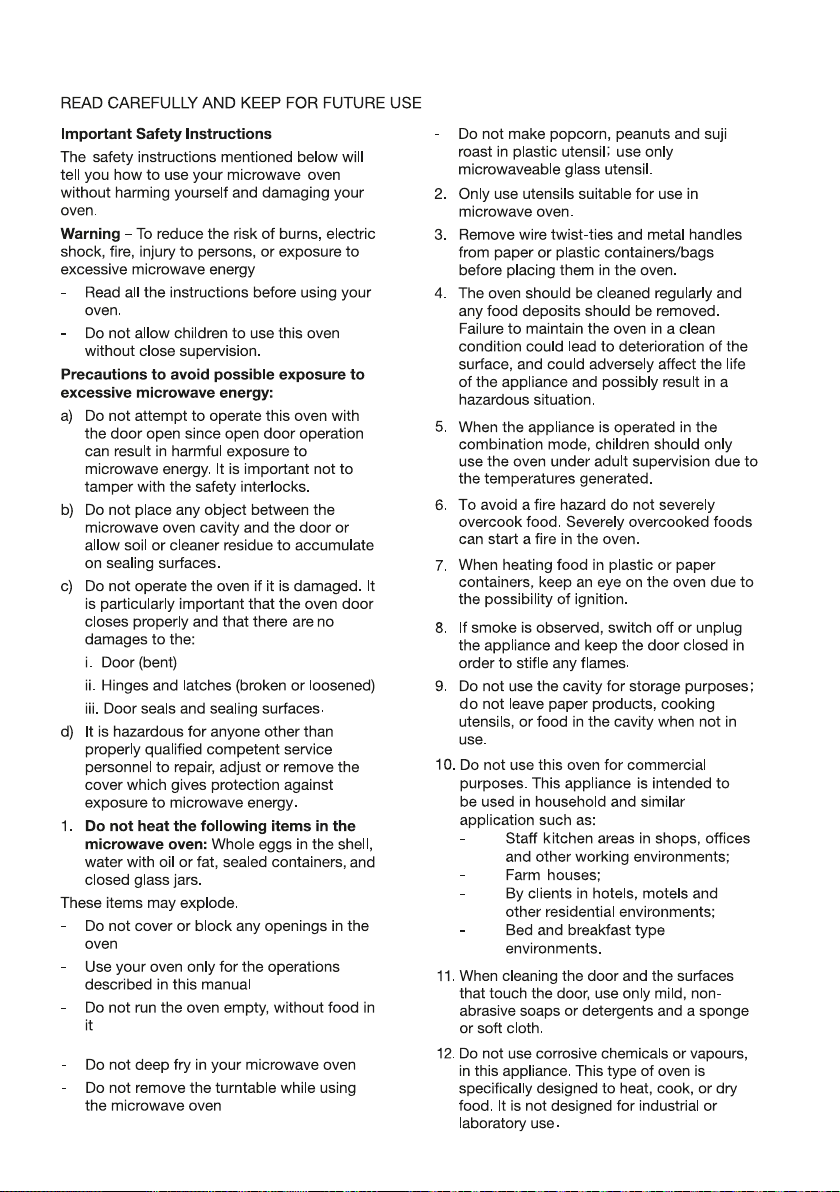

IMPORTANT SAFETY INSTRUCTIONS
;
;
;
;
;
;
;

4

5
UTENSILS
CAUTION
Personal Injury Hazard:It is hazardous for anyone other than a compentent person to carry out
any service or repair operation that involves the removal of a cover which gives protection
against exposure to microwave energy.
See the instructions on "Materials you can use in microwave oven or to be avoided in microwave
oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in
doubt, you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the
utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
4. Do not exceed 1 minute cooking time.
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame, seal and neighbouring parts must be cleaned carefully with
a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering of
the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can
touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100%
microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.
CLEANING

6
Meterials you can use in microwave oven
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to
high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Utensils Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat-resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labelled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
ThermometersMicrowave-safe only (meat and candy thermometers).
Wax paperUse as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware

7
20cm
30cm
20cm
min85cm
0cm
Remove all packingmaterial and
accessories. Examine the oven for any
damage such as dents or broken door.
Do not install if oven is damaged.
1. Select a level surface that provides
enough open space for the intake
and/or outlet vents.
2. Plug your oven into a standard
household outlet. Be sure the
voltage and the frequency is the
same as the voltage and the
frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged
and the warranty would be void.
The accessible
surface may be
hot during operation.
(1) The minimum installation height is
85cm.
(2) The rear surface of appliance shall
be placed against a wall. Leave a
minimum clearance of 30cm above
the oven, a minimum clearance of
20cm is required between the oven
and any adjacent walls.
Cabinet: Remove any protective film
found on the microwave oven cabinet
surface. Do not remove the light brown
Mica cover that is attached to the oven
cavity to protect the magnetron.
Countertop Installation
Installation
(3) Do not remove the legs from the
bottom of the oven.
(4) Blocking the intake and/ or outlet
openings can damage the oven.
(5) Place the oven as far away from
radio and TV as possible.
Operation of microwave oven may
cause interference to your radio or
TV reception.

8
:

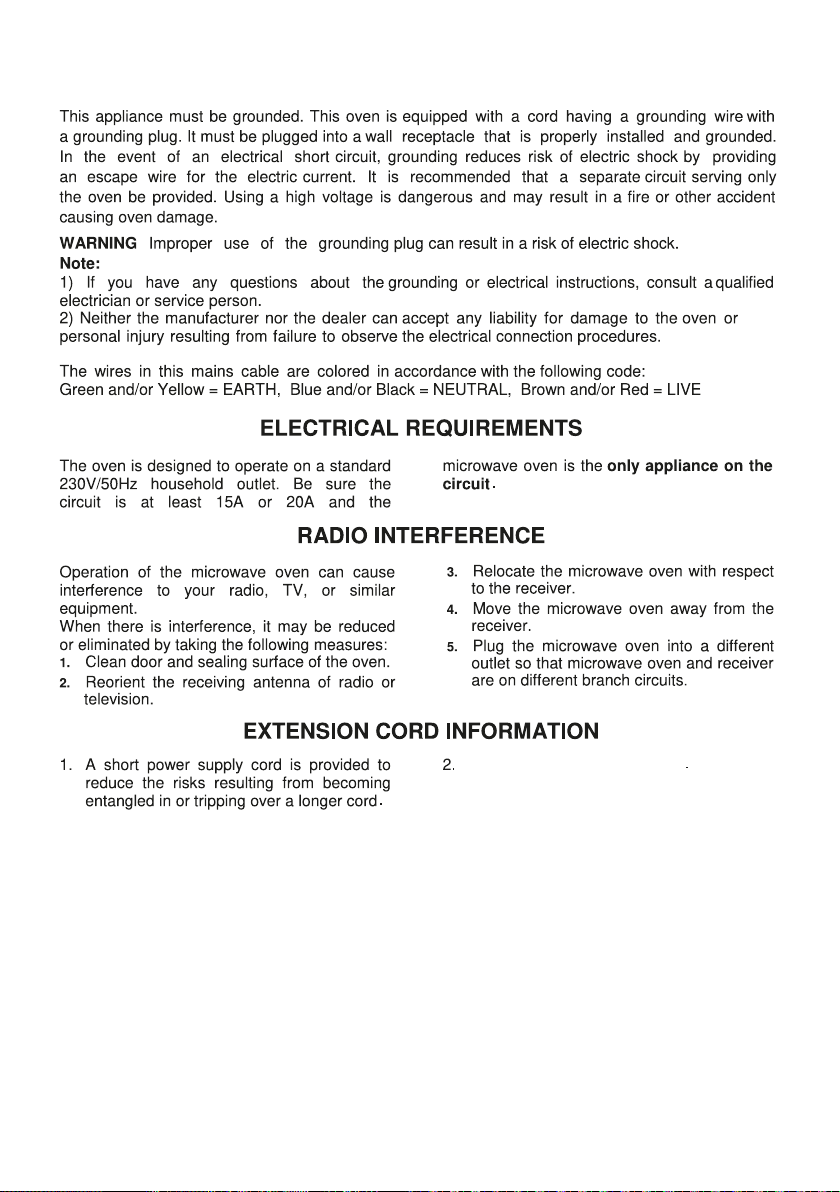

Dawlance Instructions
Do not use an extention cord

9
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
E BC
D

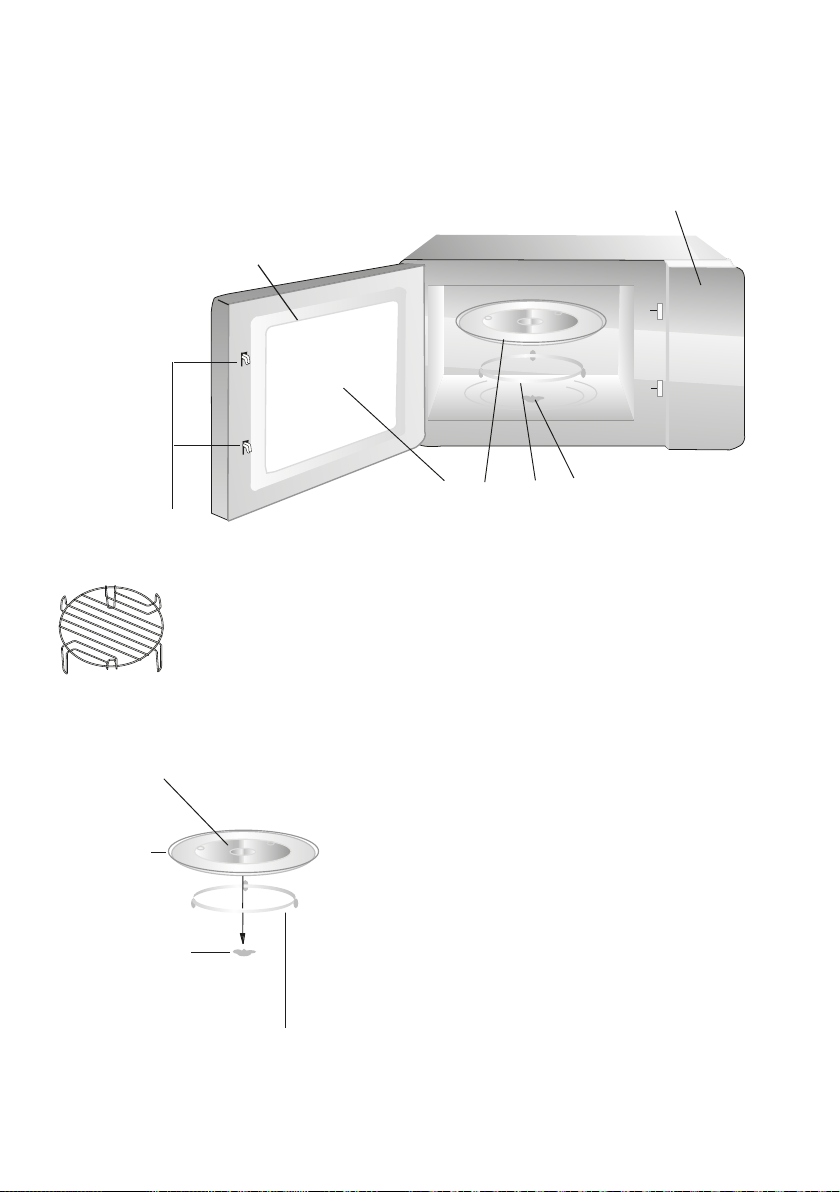

Setting up Your Oven
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both
glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If
glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
Grill Rack (cannot be used in microwave
function and must be placed on the glass tray)

10

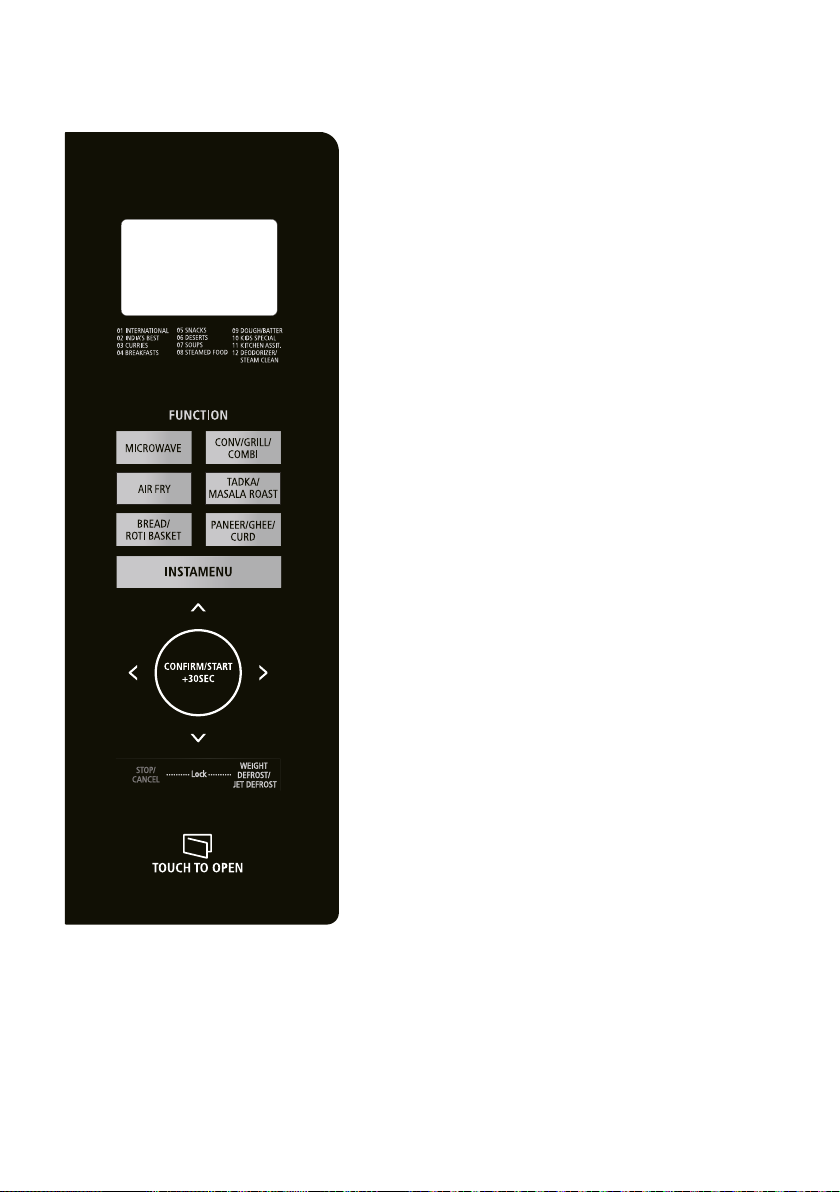

Control Panel
DISPLAY MENU
Used to indicate cooking time etc.
AUTO COOK MENUS
Tadka/Masala Roast, Bread/Roti Basket,
and Paneer/Ghee/Curd.
MICROWAVE
Press to select microwave cooking
power level.
CONV/GRILL/COMBI
Press to program convection cooking.
Press to program grill cooking.
Press to select one of the four
combination cooking settings.
WEIGHT DEFROST/JET DEFROST
Press to select weight defrost i.e. defrost
by weight.
Press to select jet defrost i.e. defrost by
time.
CONFIRM/START
Press to start cooking program.
Touch to start the oven quickly at full
power.
STOP/CANCEL
Touch to stop cooking program or cancel
all previous settings before cooking
starts.
International, Asia's Best, Curries,
Breakfasts, Snacks, Desserts, Soups,
Steamed Food, Dough Batter, Kids
Special, Kitchen Assistant,
Deodorizer/Steam Clean, Air Fry,

11
Operation Instructions
WHILE SELECTING TIME
•Right and left arrow will increase and decrease the weight respectively.
WHILE SELECTING WEIGHT
•Up and down arrow will increase and decrease the temperature respectively.
WHILE SELECTING TEMPERATURE
•Up and down arrow will increase and decrease the recipe number respectively in steps of 10.
•Right and left arrow will increase and decrease the temperature respectively in steps of 1.
WHILE SELECTING SUBMENU RECIPES
ARROW INSTRUCTIONS DURING DIFFERENT OPERATIONS
•Press the Microwave option several times to select the desired power levels.
•Press Confirm/Start to confirm desired level.
•Use arrow keys to set the cooking time and press Confirm/Start to start the operation.
SELECTION OF MICROWAVE MODE
No. of Press 1 2 3 45 6 7 8 9 10
Display P-90 P-80 P-70 P-60 P-50 P-40 P-30 P-20 P-10
Output Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
•Press the Conv/Grill/Combi option once to select the convection preheat mode .
• Use arrows to select the desired temp and press Confirm /Start to confirm the temperature.
•Press Confirm /Start again to start the operation.
CONVECTION PREHEAT
•Up and down arrow will increase and decrease time respectively by 1 minute.
•Right and left arrow will increase and decrease time respectively by 10 seconds.
P HI-
Set Temperature 150 160 170 180 190 200 210 220 230 240
Display C150 C160 C170 C180 C190 C200 C210 C220 C230 C240

• Your oven can be programmed for up to 3 automatic cooking sequences.
•Suppose you want to set the following cooking program.
Sequence Microwave – Grill – Micro+Grill Combo 1.
•Enter the desired microwave cooking program. DO NOT TOUCH CONFIRM/START.
•Enter the desired grill program. DO NOT TOUCH CONFIRM/START.
•Enter the Micro+Grill Combo 1 program.
•Press Confirm/Start to start the operation.
•
Multi-stage Cooking
•The Childproof Lock: Prevents unsupervised operation by little children.
• To set the Childproof Lock:In waiting for the state , press the STOP/CANCEL button for
3 seconds, then a beep will sound and the indicator light will turn on.
• In the lock state, all buttons are disabled.
• To cancel the Childproof Lock: Press STOP/CANCEL button for three seconds, then beep will
sound and the indicator light will turn off.
CHILDPROOF LOCK
12

•
and other Instacook Menus
•Press any Auto Cook Menu
• Use arrows to select the submenu recipe number and press Confirm/Start to confirm.
• Use arrows again to select the weight and press Confirm/Start the operation.
International, Asia’s Best, Curries, Breakfasts, Snacks, Desserts, Soups, Steamed Food,
Dough Batter, Kids Special, Kitchen Assistant, Deodorizer/Steam Clean, Air Fry,
Tadka/Masala Roast, Bread/Roti Basket, & Paneer/Ghee/Curd
Please note: If the operation is of 2 or 3 steps, the user is requested to open and close the door.
Further, press Confirm/Start to continue the operation.
Selection of Auto Cook Menus
Auto Cook Menu No. of Recipes
71teksaBitoR/daerB
41tsaoRalasaM/akdaT
4druC/eehG/reenaP
65lanoitanretnI
78Asia’s Best
52seirruC
41stsafkaerB
82skcanS
51stresseD
7spuoS
7dooFdemaetS
7rettaB/hguoD
6laicepSsdiK
6tnatsissAnehctiK
2
Air Fry 9
Deodorizer, Steam Clean
13

It is forbidden to run the unit without any food inside.
It is very dangerous.

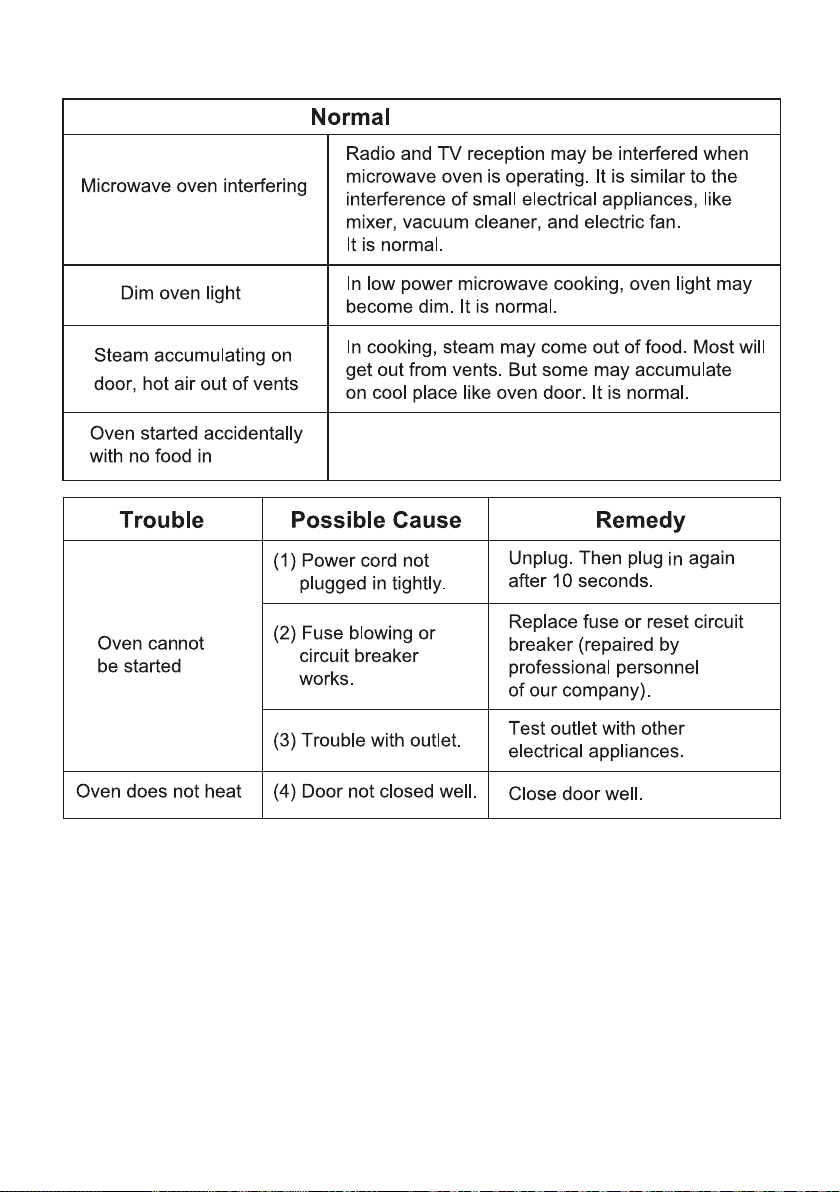

Troubleshooting
14
with radio and TV reception
