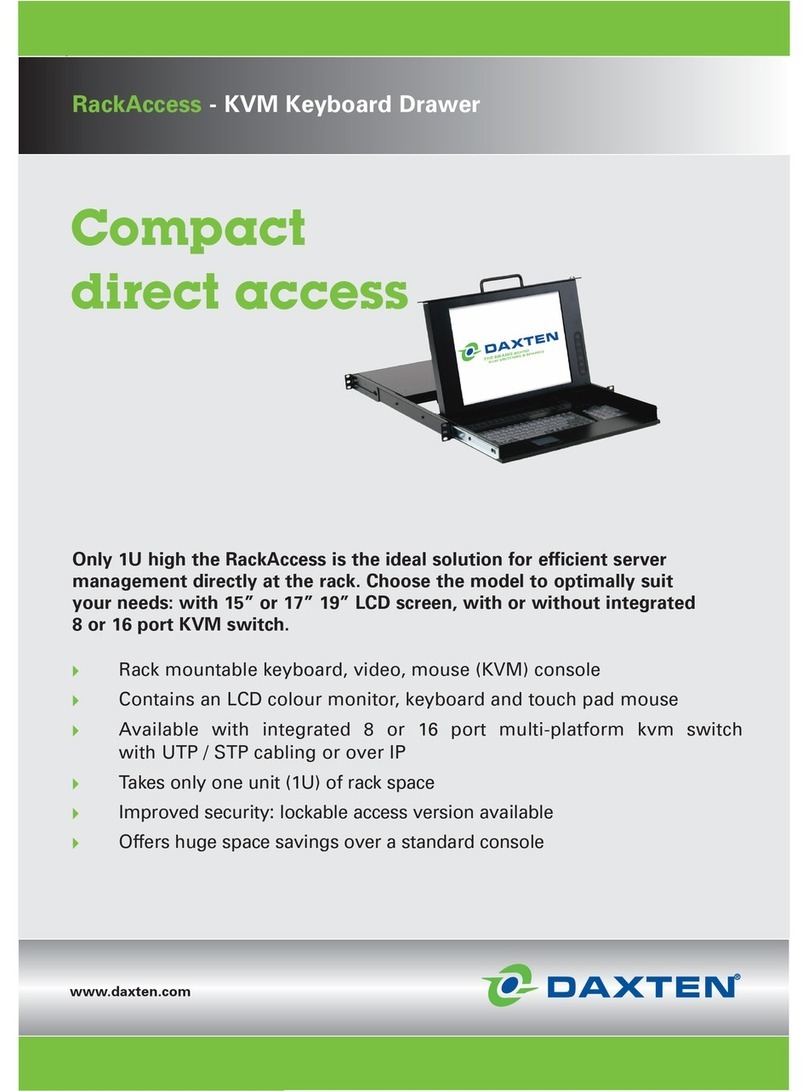

RackAccess - KVM Keyboard Drawer
Compact
direct access
up to
16 servers
The RackAccess 8i and 16i is a keyboard drawer with a 15” LCD monitor, PS/2
mouse, 105key keyboard and an integrated 8- or 16 port KVM Switch. All
housed in one rack unit. The integrated SCOUTutp is an efficient KVM Switch
solution for PS/2, USB and SUN servers. Using UTP / STP cable and our server
adaptors reduces the need for expensive cable installation and allows you to
easily change configurations.
Rack mountable keyboard, video, mouse (KVM) console with an
integrated KVM switching system
Contains an LCD colour monitor, keyboard and touch pad mouse
With integrated 8 or 16 port multiplatform kvm switch
The UTP / STP cabling allows the servers to be up to 10m away from the
switch
Cascadable up to 256 computers
www.daxten.com

KVM Server Management
Daxten Limited
5 Manhattan Business Park
Westgate
London W5 1UP
Tel: [phone]
Fax: [phone]
[email protected]
www.daxten.com
Adapter
UTP cable
RackAccess 8i and 16i
The RackAccess 8i and 16i allows direct access at
the server rack.
RackAccess 8i and 16i is a rack mountable keboard,
video and mouse (KVM) console with an integrated
KVM switching system. This troublefree KVM console
contains an LCD monitor, a standard keyboard, as
well as a touch pad mouse. The KVM drawer occupies
only one rack unit (1U) and therefore conserves
valuable space and energy.
The integrated SCOUTutp is an efficient KVM
Switch solution for PS/2, USB and SUN PCs. Using
UTP / STP cable and our PC adaptors reduce the
need for expensive cable installation and allows you
to easily change configurations. If your hardware
changes you can change the adaptor without need-
ing to rewire the rack. Ideal for changing environ-
ments.
Product Features
Integrated SCOUTutp 8- and 16- Port KVM Switch
Multi-platform, UTP cabling with adaptor for
PS/2, USB or SUN
Hot key controls (Switch channels using the
pop up menu) or push button
Programmable scan mode for automatic
sequencing between PCs
Distance between CPUs and KVM Switch can
be up to 10m by using UTP cabling
Assign names to individual PCs
Keyboard layout available in Englisch UK & US,
German, Frensh, Spanish and many others
Technical specifications
LCD display 15” TFT Active matrix
Resolution up to 1024 x 768 @ 75 Hz
Max. 16 million colours (Dithering)
Viewing angle 160° horizontal/vertical
Keyboard PS/2 compatible
88key keyboard + 17key numeric keypad, Touch
pad PS/2 compatible with 2 mouse buttons
Microsoft Intellimouse compatible
Cascadable to support up to 256 PCs
Integrated lock for security
Standard 19” Rack mounting accessories
Part No.
3115-108M-xx RackAccess 8i - xx keyboard layout
3115-116M-xx RackAccess 16i
2364-01P SCOUTutp CPU Adaptor PS/2
2364-01S SCOUTutp CPU Adaptor SUN
2364-01U SCOUTutp CPU Adaptor USB
