Daymak Ultra Beast User manual

Ultra Beast ATV
User Manual

About Daymak
Daymak is one of Canada’s largest Alternative Vehicle providers. We design, engineer,
manufacture, import and repair everything from recreational dirt bikes, go-karts and
electric golf cars to alternative transportation solutions such as e-bikes and gas scooters.
Our electric bicycles represent an energy-e-cient and eco-friendly alternative for peo-
ple who need to get around the city. They greatly increase the practicality of bicycle
transportation in urban centers. Costing only a few cents to charge, an e-bike can make
city life more convenient and much less expensive. While there are many new Green
technologies that are still in their infancy, electric bicycles have been developing over the
last 40 years or more. E-bike technology has been dramatically re invented since the in-
troduction of the 1st custom-conversion bicycles. Today, electric bicycles are a supreme-
ly reliable and aordable means of transportation. Daymak is constantly developing new
eco-friendly alternative transportation strategies, led by its own Research and Develop-
ment department in Toronto, Canada.
We are always improving our products. Our innovative in-house engineering and qual-
ity testing provide customers with many new kinds of reliable, eco-friendly vehicles,
designed to help change the lives of our customers and the world. Daymak warranties,
services, and stocks parts for everything it sells. We support our products. Please feel free
to visit our website. You’ll nd the latest in cool transportation solutions, support for the
products you’ve purchased and contact information.

3
Table of Contents
About Daymak............................................................................................................2
Components ..............................................................................................................4
Safety .........................................................................................................................5
Operation ..................................................................................................................6
Powering On the Unit ................................................................................................6
Powering on the Tablet Display .................................................................................6
Connecting the Tablet ................................................................................................7
Riding the Unit ...........................................................................................................8
Motor Controls ...........................................................................................................8
Throttle .......................................................................................................................8
Brakes ........................................................................................................................9
Brake Lock / Wheel Lock............................................................................................9
Features ....................................................................................................................10
Forward / Reverse. ....................................................................................................11
Lights .........................................................................................................................11
Winch .........................................................................................................................12
Charging the Winch ...................................................................................................12
Maintenance ..............................................................................................................13
Charging the Unit .......................................................................................................13
Service .......................................................................................................................14
Troubleshooting .........................................................................................................15
Specifi cations .............................................................................................................16
Warranty Info ..............................................................................................................17

4
Components
1) Mirrors
2) Motor Controls
3) Throttle
4) Tablet / Display
5) Battery Charging Ports
6) ATV Rack
7) Rear Motor
8) Battery Case
9) Front Motors (x 2)
10) Headlights
11) Brakes
12) Seat
13) Tires

5
Safety
When operating the Ultra Beast ATV please make sure you adhere to the following:
Always where a helmet when riding the Ultra Beast
Always check your mirrors and blind spots when operating through trails.
Turn on headlights when in need of additional visibility.
Make sure that your battery power is suffi cient before you go out to ride
Do not ride with more than 1 passenger
Do not over charge the battery by leaving the charger in the charging port. Once the
battery is fully charged remove the charger immediately.
Do not try to operate the unit while charging.
Do not let anyone uner the age of 16 years old operate this vehicle.
Do not operate this unit up extreme inclines to avoid tipping.
Do not make sharp / abrupt turns at high speeds to avoid tipping.
Do not operate under the infl uence of any use of drugs or alcohol
Do not operate on public roads
Do not operate at excessive speeds.
Do not completely submerge the unit in water

6
Operation
Powering on the unit

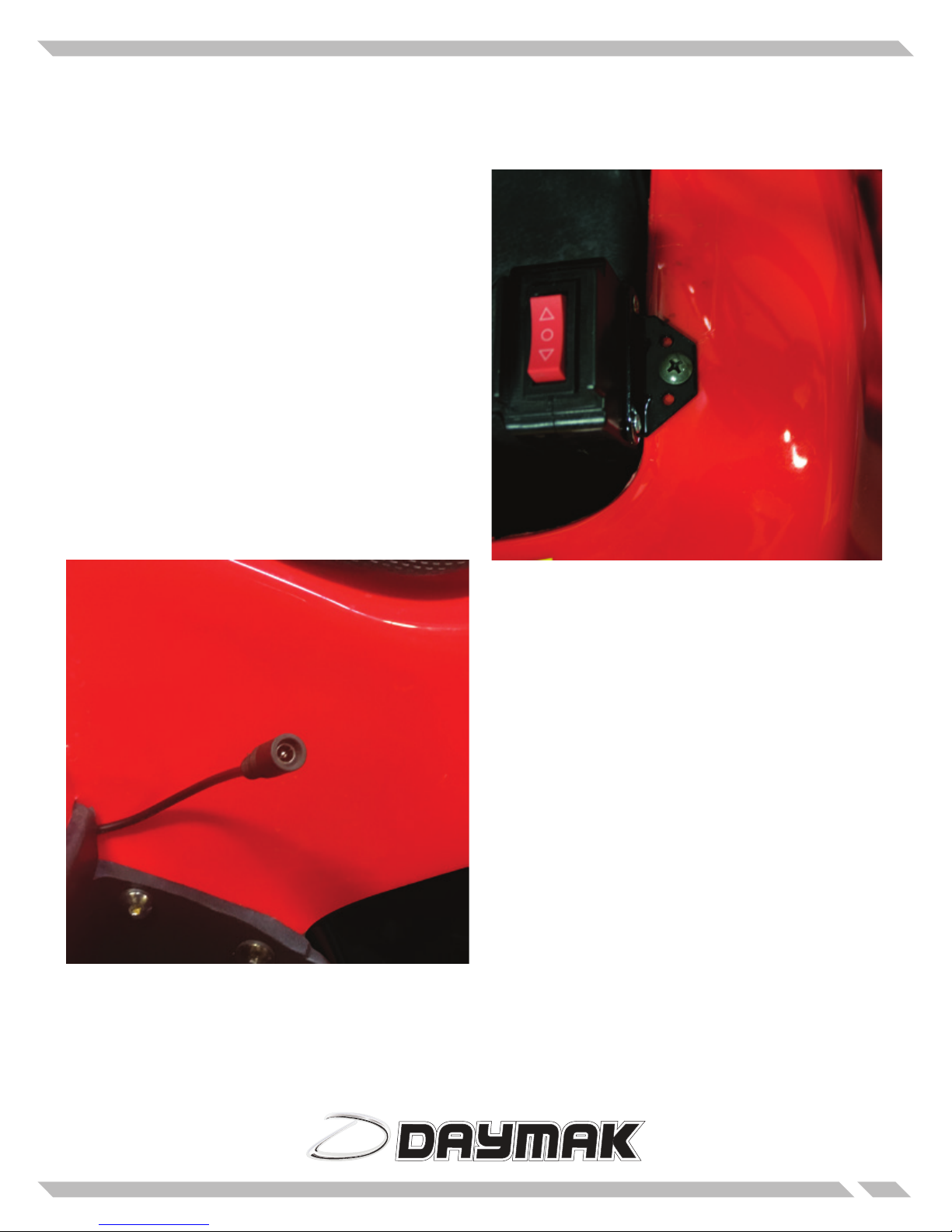

When you are ready to use your Ultra Beast, start
by turning the ignition, located on top of the front
right wheel well (seen here) clockwise. It comes
with two sets of keys so be sure to keep the spare
separate for safe keeping. Once you are fi nished
turn the ignition counterclockwise to turn off the
unit.
Powering the Tablet Display
PLEASE NOTE:These tablet display instructions are for the standard tablet that comes with
the unit. This table can be replaced with any of your devices however not all instructions will
apply.
the unit. This table can be replaced with any of your devices however not all instructions will
Turn on the unit by pressing power the highlighted button and
holding it for 3 seconds.
Once the tablet is on, ensure that the bluetooth function is turned
on. (To do this click on the settings icon and under the fi rst menu
touch “Bluetooth” and make sure the slider is set to “On”. Press
the “O” at the bottom center of the screen to go back to the main
display.
After, open the Daymak Drive app. (If it is not visible you may
need to download it from the Google Play/iOS App Store.)
Please note, to charge the Tablet, plug the charger into the bot-
tom of the tablet and then plug the other end into a regular outlet.

7
Connecting the Tablet
Once the App is open, it will show you a list of the nearby bluetooth devices as well as the Front
and rear motor. Connect to the rear motor or front (whatever is your preference). For the fi rst time
you connect, it will require you to input a password: 12345678.
Once you have done that, a speedometer will show up and you are ready to go!
For more information on the Daymak Drive App, please refer to the quick guide seen here:
http://daymak.com/manuals/Daymak%20Drive%20Manual.pdf

8
Riding the Unit
Motor Controls

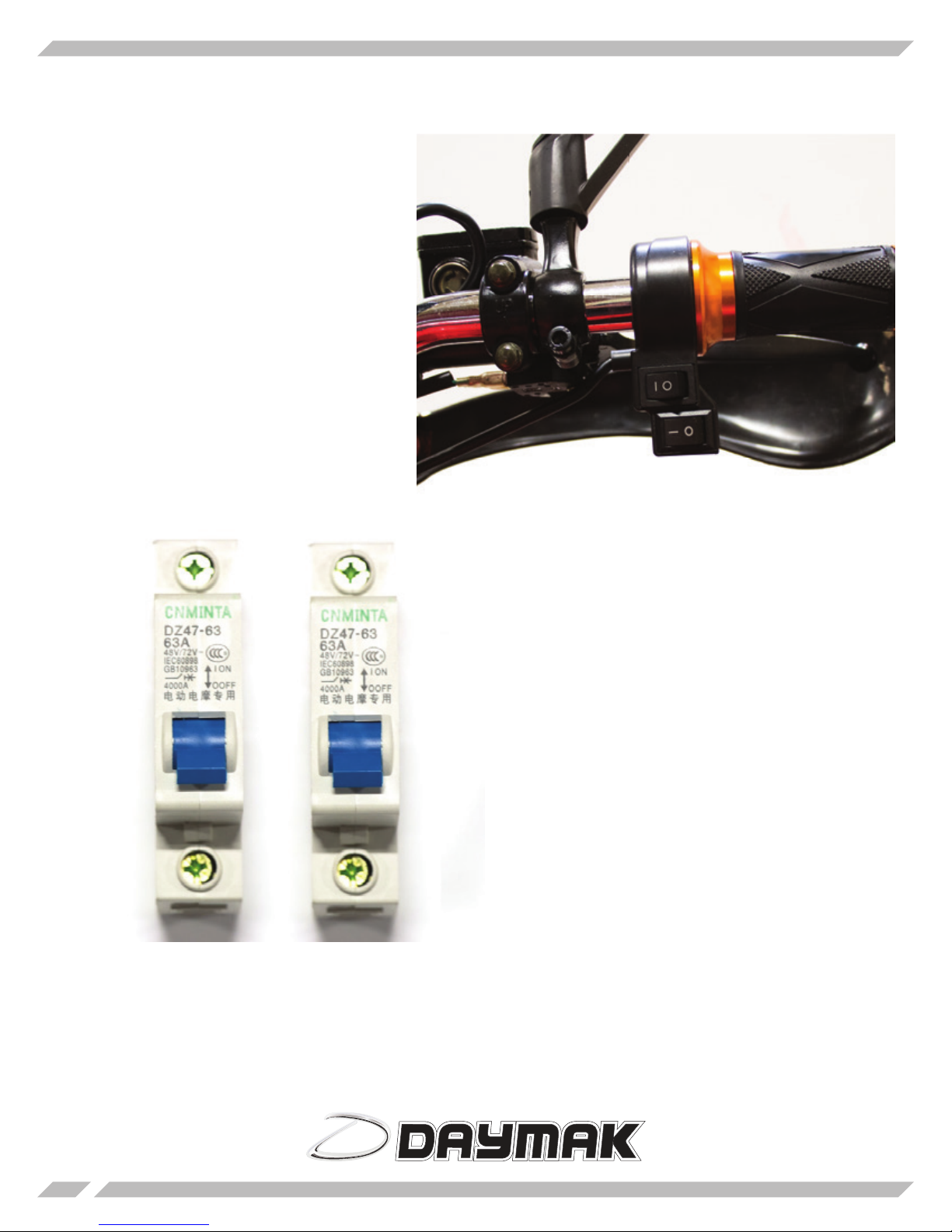

To start driving the unit, ensure that you
are properly seated on the ATV. On the
right handlerbar, you will see two switches.
These switches are the Motor Controls.
Set the top switch to 1 to turn on the
front motor and 0 to turn it off .
Set the bottom switch to 1 to turn on the
rear motor and 0 to turn it off .
Set Both Switches to 1 to engage both front
and rear motors.
In the center console of the Ultra Beast you will
fi nd two circuit breakers which control battery
power to the motors. This will override the motor
settings on the handlebar so please make sure
these are set to on.
Throttle
Once you have chosen which motors you want
to engage, rotate the throttle (the right handle
seen above) towards you to go. Do this slowly
to get your bearings and once you are com-
fortable continue rotating until you reach your
desired speed.

9
Brakes
On both sides of the handlebar there are brake levers
as seen on the right. To engage the brakes, pull the
brake lever towards you.
The right brake lever activates the front brakes
The left brake lever activates the rear brakes
Brake lock / Wheel Lock

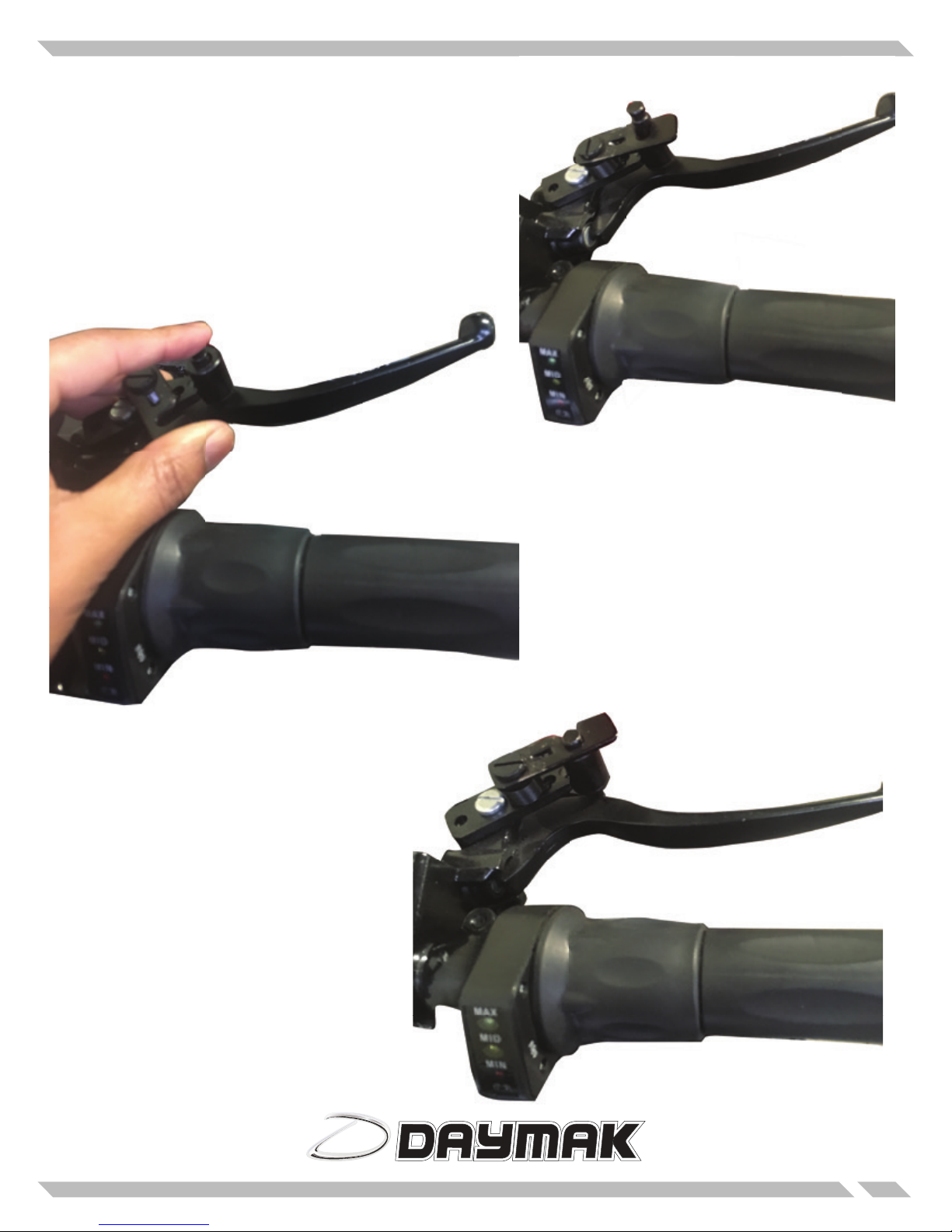

To engage the brake lock, fi rst pull the
brake lever towards you as you would nor-
mally engage the brakes.
Then push the knob seen here behind the
brake lever . To release it pull the small
latch that surrounds the button back and
pull the brake lever again to its normal po-
sition

10
Features

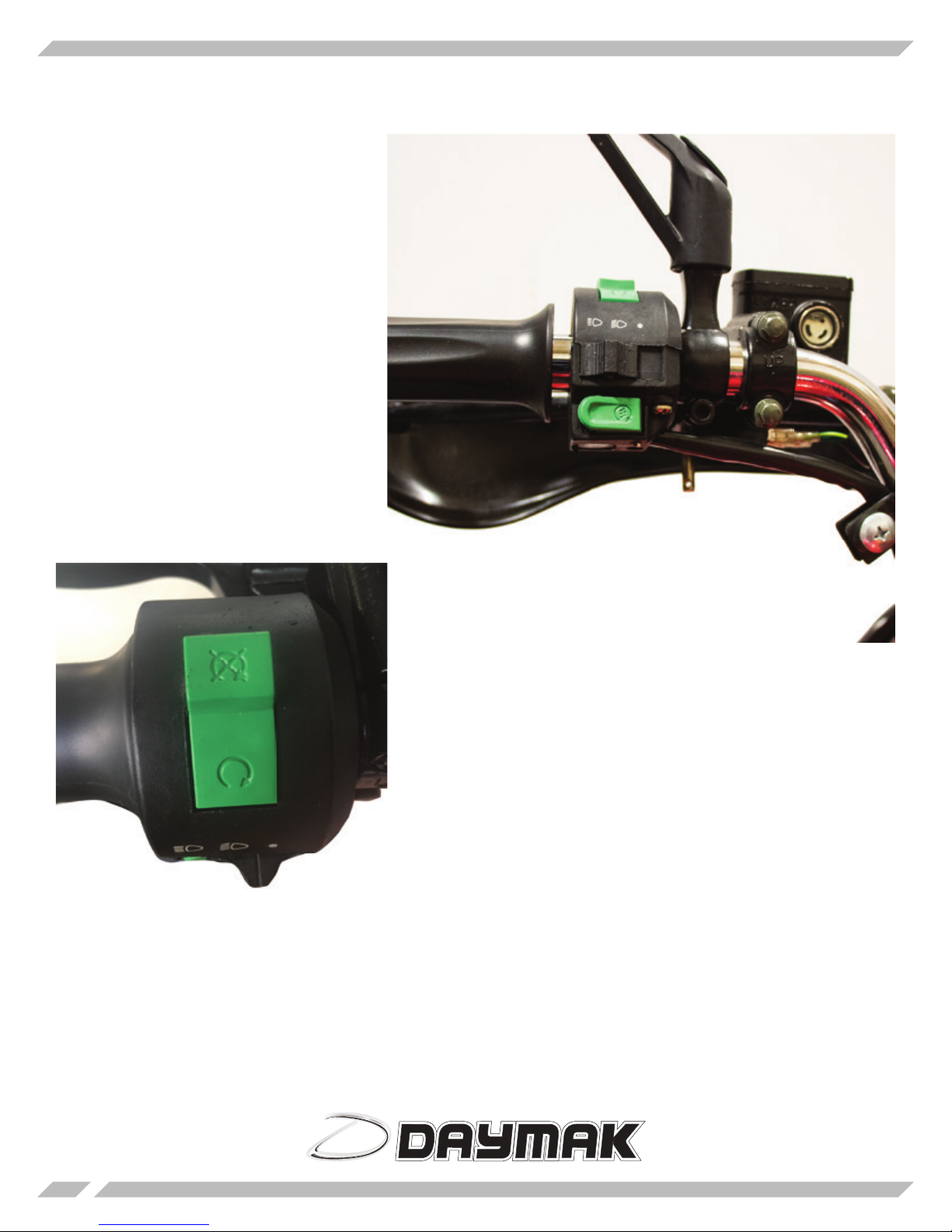

On the left handlebar, you will see two
switches and one button.
The switch at the very top is the forward
vs reverse switch. Below that you will
fi nd the light switch . And below that you
will fi nd the horn.
Forward / Reverse
When the semi circle is pressed down,
you will go foward.
When the semi circle crossed out is
pressed down you will go in reverse.
Lights
If the switch is turned all the way to the right only the brake
lights will turn on.
If it is in the center position only rear running lights will turn
on.
If it is pushed to the far left position all lights will be running.
