DB Drive WDX GO Series User manual

WDX8G0.4 |WDX10G0.4 |WDX12G0.4
USER MANUAL
Due to continuous improvement of the product, specifications are subject to change without notice.

2
Introduction:
Keep Your Sales Receipt:
Recommendation:
IMPORTANT!
Before making any connections, disconnect the car’s battery until the installation is
completed to avoid possible damage to the electrical system.
WARNING!
Exposure to a high power sound system can cause hearing loss or damage. Listening
to your system at loud levels while driving will impair your ability to hear traffic sounds
and emergency vehicles. Use common sense when listening to your system.
____________________________________#laireS ___________________________________#ledoM_
Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of
a DB Drive car audio product indicates a true appreciation of fine musical reproduction.
Whether adding to an existing system or including your DB Drive subwoofer in a new system,
you are certain to notice immediate performance benefits.
Take this time to attach your sales receipt to the manual and put it in a safe place. In case of
any unforeseen reason this product may need warranty service, your receipt will be
necessary to establish purchase date.
A subwoofer’s performance is only as good as its installation. Proper installation will
maximize the system’s overall performance. It is recommended that you have our product
installed by an authorized DB Drive retailer. However, if you decide to install it yourself, please
carefully read through this manual and take your time to do a quality installation.
Optimal Product Choice:
To get the maximum performance out of your stereo system, we recommend using 100%
authentic DB Drive electronics and DB LINK wiring and accessories. Matching DB Drive
amplifiers and Speakers with your state-of the art electronics purchase is critical to optimize
your system’s performance. Wiring is the lifeblood of a system, make sure your audio system
has the adequate current and signal transfer it deserves and needs. DB Link has it all, from
wiring rolls; Speaker, power, ground and remote to amplifier kits, RCAs, Fuse holders,
distribution blocks and battery connectors. Insist on getting the best, DB LINK. It’s what you
deserve to get the optimum performance from your audio system.
DB’s engineering professionals harnessed years of expertise, experience and passion,
coupled with exhaustive testing and creative design to develop the optimal product and
performance for your musical enjoyment. This is our commitment to you. It’s what you
deserve and have come to expect from DB DRIVE. We appreciate your confidence and look
forward to your positive experience.
Product Commitment:

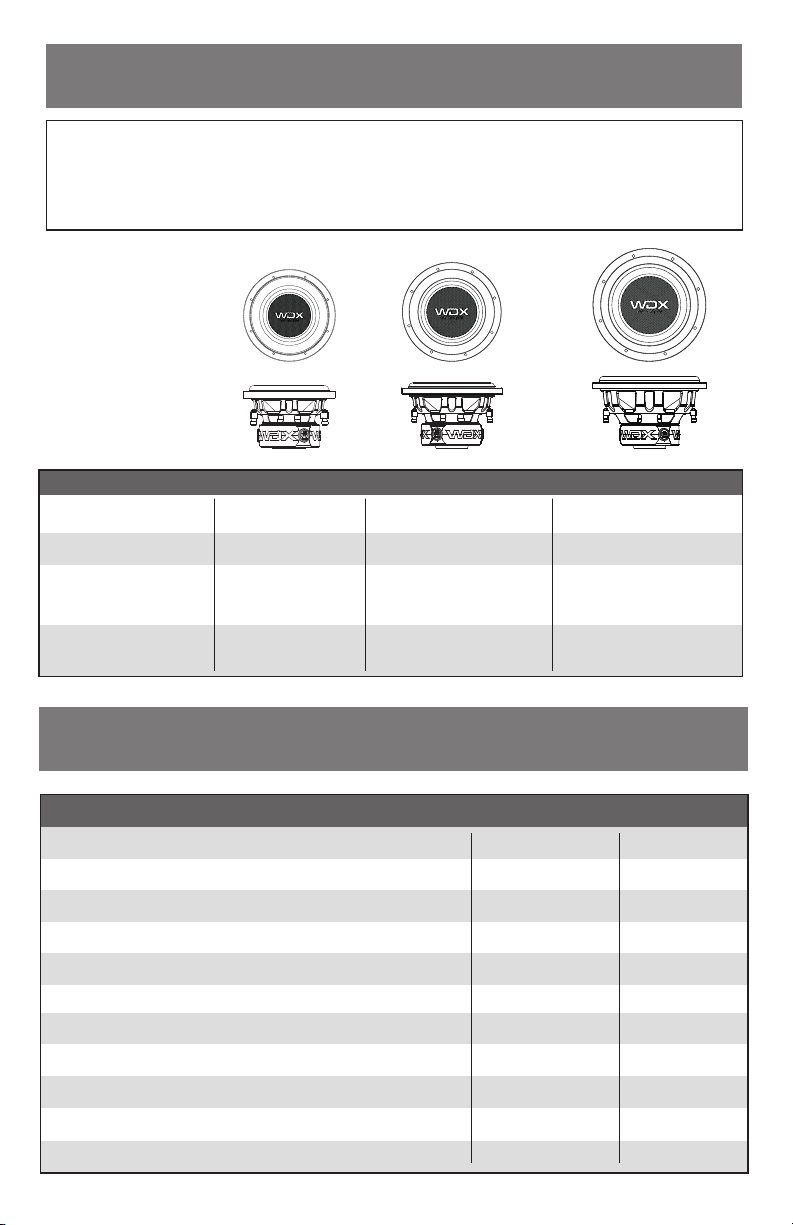

PRODUCT SPECIFICATIONS
PRODUCT FEATURES
T/S PARAMETERS WDX8G0.4 WDX10G0.4 WDX12G0.4
Resonant Frequency (fs)
DC Resistance (Re)
Mechanical Q (Qms)
Electromagnetic Q (Qes)
Total Q (Qts)
Compliance Equivalent Volume (Vas)
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
Diaphragm Mass inc. Airload (Mms)
Sound Pressure Level (SPL)
X-Max
41.702Hz
1.6Ω x 2
2.230
0.447
0.372
8.417m
132.844u M/N
9.745 N/A
93.321 gr
84.3dB
11mm
38.074 Hz
1.7Ω x 2
2.370
0.580
0.466
18.768m
100.274u M/N
11.051 N/A
174.262 gr
84.4dB
14mm
34.798 Hz
1.7Ω x 2
2.876
0.673
0.545
34.645m
86.553u M/N
11.556 N/A
241.691 gr
85.2dB
14mm
Max Power:
Structure:
Nominal Power:
Impedance:
WDX8G0.4 WDX10G0.4 WDX12G0.4
10”( 25.4cm ) Woofer8”( 20.3cm ) Woofer
800 Watts
400 Watts
12”(30.4cm ) Woofer
1000 Watts
500 Watts
1200 Watts
600 Watts
• High Temperature Voice coil
• Reinforced paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Stamped Cast basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover
2” (50.8mm)
4Ω Dual Voice Coil
2.5” (63.5mm)
4Ω Dual Voice Coil
2.5” (63.5mm)
4Ω Dual Voice Coil
3

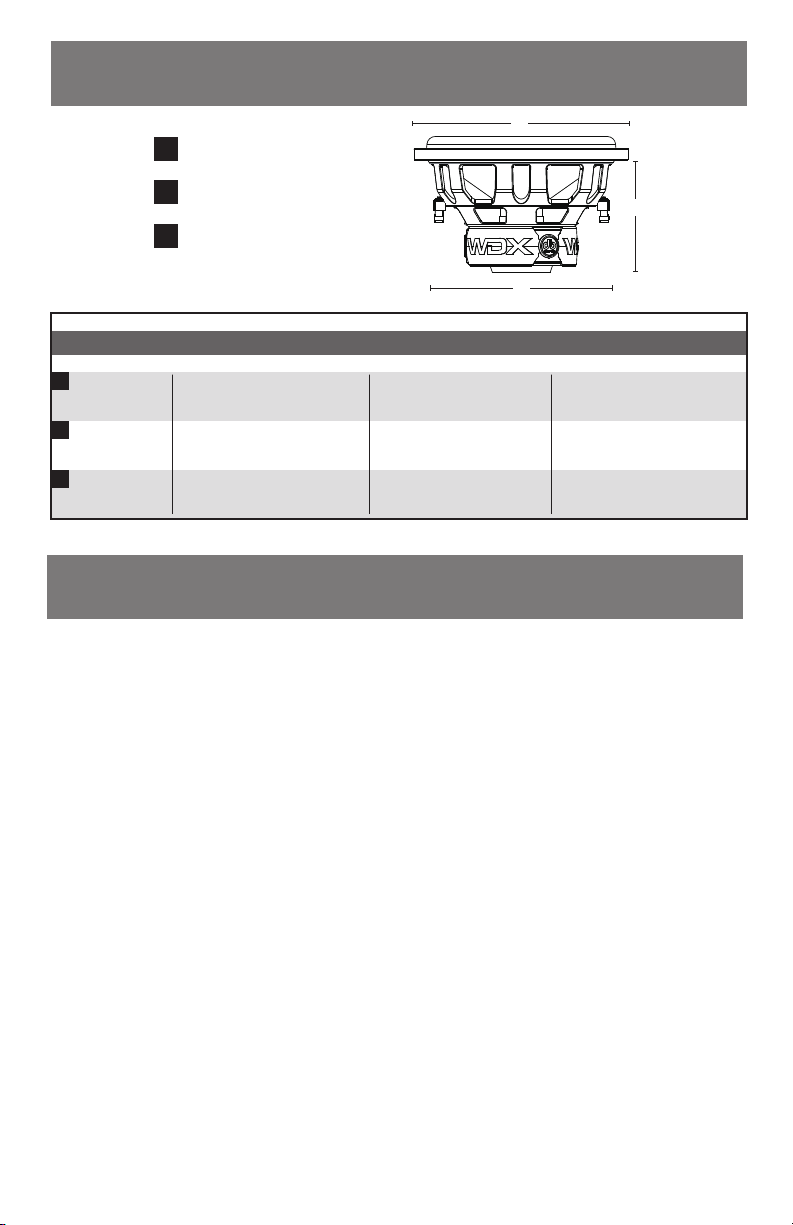

PRODUCT DIMENSIONS
WDX8G0.4 WDX10G0.4 WDX12G0.4
Frame
Diameter:
8.42 in.
(214 mm)
Cutout
Diameter:
Mounting
Depth:
10.70 in.
(272 mm)
6.90 in.
(175.38 mm)
12.40 in.
(315 mm)
4.62 in.
(117.50 mm)
5.84 in.
(148.50 mm)
6.51 in.
(165.50 mm)
9.07 in.
(230.57 mm)
10.85 in.
(275.79 mm)
RECOMMENDED ENCLOSURES
The purpose of the information below is to help you select the most appropriate type of enclosure for your
application. We have selected the two most popular enclosure types and their performance benefits.
Sealed Enclosure: (Air-Suspension design): Characteristically simpler to make, sealed enclosures usually are
better at controlling the woofer’s excursion and performance at lower frequencies. The added control allows for
higher power handling or the use of a bigger amplifier. The secret is to maintain a perfect seal. Using glue and
sealants at all seams is recommended to prevent leaks and integrity of the enclosure. The size or volume of the
enclosure will directly affect the performance of the woofer. Smaller enclosures generally provide the desired
bump to the frequency response curb and Greater SPL. Larger enclosures will provide a lower but flatter
response for deeper bass. In general, the benefit of the sealed enclosure versus a ported enclosure is a smaller
footprint, simpler build with higher power handling, a more linear flat response, superior sound quality and
extended low frequency output.
Ported Enclosure: (Bass-Reflex or Vented): A ported enclosure is simply a sealed enclosure with a port or vent
added to the sealed design for the purpose of tuning the enclosure to higher output at the desired tuned
frequency, typically 3db or higher. Another advantage of a ported enclosure is the reduction of cone motion for
the speaker, thus distortion at higher power levels within the tuned frequency response of the port. A drawback
is that building a ported enclosure is more complex than a sealed enclosure. Having the wrong port or vent could
result in poor sound, and the potential of damaging a woofer when played too loud or out of the tuning
frequency. Thus, we recommend not guessing, please follow the guidelines listed in this manual or go to a
professional. In General, the benefit of a ported enclosure versus a sealed enclosure is higher volume output at
the tuned frequency and stronger bass output with lower power input.
Construction: We recommend using ¾” MDF (Medium Density Fiberboard) for the construction of an enclosure.
It is critical for the side walls of the enclosure not to flex due to the pressure generated by the woofer, bracing
might be required. The enclosure sides should be secured together with nails/screwed. We also recommend the
use of glues and sealants to maintain the integrity of the enclosure and eliminate leaks.
A
B
C
A
B
C
A
B
C
Frame Diameter
Mounting Depth
Cutout Diameter
4

RECOMMENDED ENCLOSURES
VentedSealed
WDX8G0.4 WDX10G0.4 WDX12G0.4ENCLOSURES:
Woofer Cut-out:
Mounting Depth:
Sealed Box:
Vented Box:
• Vent Area:
• Vent Length:
• Tuning:
Dynamic Power :
Nominal Power :
0.7 cu ft.
(19.82 L)
0.9 cuft.
(25.49 L)
8 in.
(20.32cm)
45Hz
800 Watts
400 Watts
7.06 sq in.
(45.6 cm2)
0.8 cu ft
(22.65 L).
1.39 cu ft.
(39.36 L)
13in
(33.02cm)
40Hz
1000 Watts
500 Watts
12.57 sq in.
(81.57 cm2)
1.4 cu ft.
(39.64 L)
1.4 cu ft.
(39.64 L)
14in
(35.56cm)
36Hz
1200 Watts
600 Watts
12.57 sq in.
(81.57 cm2)
CALCULATING ENCLOSURES
Calculating External Volume
To calculate box volume, measure the outside Width x Height x Depth of
the enclosure. Example 12” x 14” x 9”=1512
Next you must convert cubic inches into cubic feet. To do this, you must
divide the cubic inches total by 1728”. Example 1512 ÷ 1728=.875 Cubic feet.
Calculating Internal Volume
To calculate the internal (net) volume of the above box you must first multiply
the thickness of the wood you are using by Two(2). Example 3/4” x 2= 1.5“
Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12 - 1.5 = 10.5 14 - 1.5 = 12.5 9 - 1.5 = 7.5
Multiple the new totals (H x W x D) Example: 10.5 x 12.5 x 7.5 = 984.375
Next you must convert cubic inches into cubic feet. To do this, you must
divide the cubic inch total by 1728”. Example 984.375 ÷ 1728=.5696 cubic feet.
It is recommended to build your enclosure from at least 3/4” thick MDF (medium density fiber
board). Make sure the enclosure is sealed airtight.
4.62 in.
(117.50 mm)
5.84 in.
(148.50 mm)
6.51 in.
(165.50 mm)
6.90 in.
(175.38 mm)
9.07 in.
(230.57 mm)
10.85 in.
(275.79 mm)
5

1 X 4Ω DVC
SUBWOOFER
2 X 4Ω DVC
SUBWOOFER
4 X 4Ω DVC
SUBWOOFER
3 X 4Ω DVC
SUBWOOFER
4Ω
4Ω
2Ω
4Ω4Ω
4Ω4Ω
4Ω
4Ω4Ω 4Ω
2.66Ω
4Ω4Ω 4Ω
4Ω4Ω
4Ω4Ω
4Ω4Ω
4Ω4Ω
2Ω
4Ω DVC WIRING CONFIGURATIONS
6
You can change the wiring configuration of your speakers ( Series, Parallel and Series / Parallel ) to match
the impedance loads that maximize the power output of your amplifier. Wiring the same woofer or
multiple woofers in these three different wiring configurations will result in different impedance loads.
Series: Is the method of wiring of alternate positive with negative terminals ( string method )
( Illustration below ).
Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive
terminal and negative to negative. ( Illustration below ).
Series/Parallel: This configuration is a combination of both series and parallel. We recommend wiring in
series for the terminal and parallel for the leads to the amp. ( Illustration below ).
DVC WIRING CONFIGURATIONS
4Ω
4Ω
1Ω
4Ω
2 X 4Ω DVC
SUBWOOFER

7
NOTES

LIMITED WARRANTY
Designed and Engineered in the U.S.A.
DB Drive™ warrants any products purchased in the U.S.A. from
an authorized DB Drive™ dealer.
All products are warranted to be free from defects in material
and workmanship under normal use and service for a period of
one (1) year.
This warranty applies to the original purchaser only.
DB Drive™ will either repair or replace (as its option) any unit
that has been found to be defective and under warranty
provided the defect occurs within the one (1) year warranty
period.
This limited warranty does not extend to units that have been
subjected to misuse, abuse, neglect, or accident. In DB Drive™’s
judgment, products that show evidence of having been altered,
modified, or serviced without DB Drive™’s authorization, will be
ineligible under this warranty.
To obtain warranty service please contact your retailer or visit
our website at www.dbdrive.net for more details.
