Deaoke TK208 User manual

1
GSM/GPRS/GPS TRACKER
MANUAL
Preface
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or

2
omissions in this document.
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this
product can locate and monitor any remote targets by SMS or internet.
Content
Specs
Dim.
60*42*19MM
Weight
38g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GSM chip
MT6261D
GPS chip
Ublox 7020
GPS sensitivity
-159dBm
GPS accuracy
5m
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Work voltage
5V
Battery
Chargeable changeable 3.7V 700mAh Li-ion battery
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
2.Led indicator status

3
LED INDICATOR STATUS
MEANING
RED LED continuously work
Charging
RED LED not lit
Fully charged
Green LED Flashing
Success get GSM singnal
Green LED continuously lit
Searching GSM signal
Main functions
·GSM quad-band frequency;
·Real time tracking by SMS/GPRS
·Low battery alarm;
·Geo-fence alarm ;
·Add Smart sleep save power Mode
·Add GPX history route record, can thereal-time view in Google map
·Add AGPS function,receive GPS signals faster
·Add built-in storage memory
·patented product
3. Notices:
1).GPS tracking can be worked outdoor. Must have mobile phone gsm signal
and have GPS singal, can block GPS satellite signal when there are metal
or building above the GPS tracker
2).Please make sure GSM SIM card(2G GSM network or compatibility 2G
GSM network) supports making calls, sending messages, GPRS
network.have money
3).make sure the SIM card has opened the call shows and turned off the call
transfer.

4
4).Please insert the SIM card correctly. Cancel the PIN code
5).Do not assembly and disassembly device at will.
Insert in SIM card
3.1 Open the back cover, Put the SIM card into the as picture shows.
1).open the back cover screws
2).Open on the left side of the USB plug
3). Open the back cover
4). Open the PCBA board screw ，Open the back board
5). open the SIM card slot and inserted SIM card
6) refixed PCBA, fixed screw, Fixed back cover and USB plug, Then tighten the
screws
Quick using
3.1 Put the SIM card into the as picture shows.

5
3.2 inset battery, then charge the battery in time to keep it working normally
3.3 take the device to outdoor and the front of device towards sky ,move
device to receive gps singnal. Beause indoor has no gps signal
3.4 Use mobile phone call the device and hang up or sending message
“smslink123456” to mobile number in tracker ,tracker Will reply positioning
information
Picture (1) have gps signal Picture (2) no gps signal
Pic(1) ：Replied real-time tracking information under GPS satellites
signal.
Lat:22.67533 lon:114.03913 Positioning of the latitude and longitude
values.
Spd：000.1 This refers to the device moving speed. The unit is km/h.
T:06/14/17 09:14 real-tracking time, the Default is London time. You
can set a time zone by sms command
Google Link: This is the link to the Google map showing the position of the
device.

6
Pic( 2) ：Replied last time position information. Now is LBS position
information. no gps singal
smcc:27a4 1223: Real-time LBS data.
Time:08/00/00 LBS positioning time.
If you receive positioning information is picture 2, please go out the outdoor
and Walk around with gps tracker,for receive The satellite signal
4.Command instruction
NOTE:
1)Device default password:123456)
2)use of mobile phones send messages to the tracker about all set command
3) The “+” in the command, please don’t type “+”, space means press
the space keyboard on your cell phone
4)After admin number setting, all alarm message will send authorization number
other cell-phone number send command will not reply
5) If you want standby time longer, pls don't open move alarm, and platform for
real-time location tracking.etc
4.1 Admin number setting:
Command: admin123456+space+ phone number（This phone number is your
own mobile phone number , not the mobile number in tracker .）
Reply：admin ok
E.g：admin123456 13725556021

7
Note: support 5pcs admin number , Set the first authorization number,then use use
the first authorization number to set other authorization number,
If the authorization number forget or lost, you can send reset123456 to Restore the
factory Settings
Admin number Canceling:
Command ：noadmin123456 13725556021
Reply：noadmin ok
4.2 Low battery alarm
When GPS device battery is Less than 30%, it will send SMS:low
battery+Ge-info alarm, at 3 minutes interval.
Canceling low battery alarm: send“low battery” to the tracker.
4.3 Terminal (local) Time Setting (factory setting GMT 0)
Command：time+space+zone123456+space+ local time zone
Reply：time ok!
E.g：
NOTE:( 1 is east 1, - 1 is west 1, 30 is half the time zone)
4.4 change Time upload interval( default 10s)

8
Command：t030s***n123456
Reply: t030***n ok
(030 s is every 30 seconds send data to platform)
4.5 Reset Hardware
Command：reset123456
Reply：reset ok
4.6 Change the password
Command: password123456 888888
Reply :password OK
Note: 123456 is the old password(default ),888888 is the new password,it
must the 6 digits Arabic numerals
4.7 State Checking
Send SMS:”check+password” to the tracker device, it will reply the recent
status via SMS as: GSM: 100% GPS: OK/NO GPRS: ON/OFF battery: 100%.
Remark: GPS NO, only mean there are no GPS position request.
4.8 change IMEI number
Command: imei123456+space +new imei number
E.G: setimei123456 352887076633221
5.If you need real-time tracking by APP or websit ,pls Operating
as follows
NOTE:If you need a platform position, please use phone send “ gprs123456”
to device
5.1:Suport Andriod & IOS APP tracking

9
If you need real-time tracking by APP ,please scan APP on web platform
OR Download “dagps”
1).scan QR code---open with browser--- choose Android or iphone---Download--
installation app
2): support Website and APP login
Open www.gps110.org
Use tracker ID login, default password 123456.

10

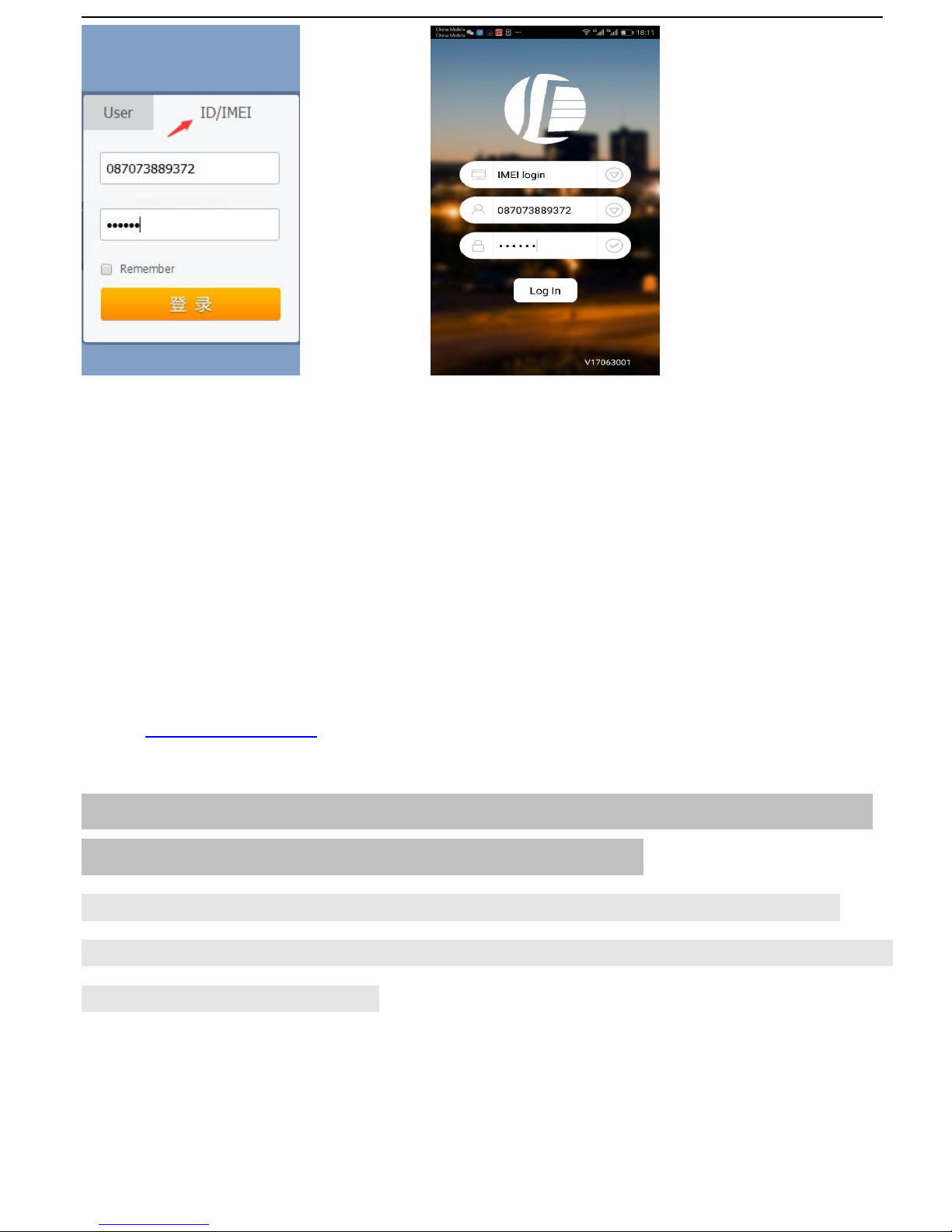

PC login APP login
5.3Geo-fence setting
Point APP fence and Set the diameter of 200 metres, Choose a location as
center ,in outdoor(device out of the safety area will alarm)
6:suport Websit tracking
Open www.gps110.org
Use tracker ID login, default password 123456.
NOTE:If you insert the correct SIM card and send “GPRS123456”, device in
outdoor, still not online.Please set the APN commands
If set the first step,device online in platefrom, no need set apn commands
After set GPRS mode, every 2min upload data to server by default,you can
change upload time interval

11
Set GPS online in platefrom
SMS1: “GPRS123456”
SMS2: APN123456+space+Apn name
( APN name pls ask the sim card company ,for example tell you the apn
name is ABC,so send APN123456 ABC)
(If have the APN user name and password, need plus APN user name and
password behind the APN name)
Eg: APN123456+space+APN name+space+ APN user name+space+
APNpassword
7. If use the other platform, start on line tracker(Use the default platform,
don't need to operate 7)
in advance Using mobile phone send SMS commands to device and set online
platform (please set DNS and port,set apn)
SMS1: “GPRS123456”
SMS2:adminip123456 +space+ip+space+port
or adminip123456+space +DNS+space+ port
E.g: adminip123456 www.gps110.org 7018(www.gps110.org is DNS,7018 is
port)
SMS3: APN123456+space+Apn name (APN name pls ask the sim card company ,for
example tell you the apn name is ABC,so send APN123456 ABC)
If have the APN user name and password, need plus APN user name and password
behind the APN name)
Eg:APN123456+space+APNname+space+APNuser name+space+ APNpassword

12
If device online in platefrom, no need set apn commands
7. FAQ and processing methods.
FAQ
Instructions/Solutions
Fail to turn it on
Please check if battery and USB cable is charged
No GSM signal
Please check if SIM card installed correctly.
Please check if SIM card is 2G GSM network.
Don’t turn on the PIN code
no calls can be diverted
No GPS
A more open view of the sky is recommended to make
sure the device can receive the GPS signal normally.in
outdoor,or take device to walk around
No reply to SMS
command
Password wrong or the format is wrong. restore factory
settings send “reset123456”
No reply to calling &
No alarm message
Authorized / admin phone number is incorrect or has not
setup
SMS position OK,
cannot use the APP
and web platform
Pls check if APN is correctly set. And pls find out the
correct APN content of the SIM card.
Platform position is
difference from the
actual position.
No uploading position time or no GPS signal: call the
device phone number and receive the position message.
If it shows like Pic 2, pls make sure the device can
receive the GPS signal normally.in outdoor,and take
device to walk around
