DEFORD New Power DCU100B-V2 User manual

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:1 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
Lithium Iron Phosphate Battery with
Bluetooth Communication for
Leisure & Marine
Customer Code:
P/N
DCU100B-V2
Customer Code
Prepared by
Liang Zhichao
Approved by
Cc Zhou
Customer Approval
Company Name
Signature and Date
Company Stamp

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:2 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
1. Overview
The specification applies to Li+AGE DCU100B-V2 LiFePO4 battery with Bluetooth communication designed
and manufactured by DEFORD New Power Co., Ltd (the “DNP”) for universal deep cycle use on RV, caravan,
camping, marine. The specification describes the battery mechanical, electrical characteristics and usage.
1.1 Battery Type
Lithium Iron Phosphate Battery (the “LiFePO4”)
1.2 Design Criteria
Based on GB/T 18287-2013, UL1973-2013, IEC62619:2017
1.3 Battery Specification
LiFePO4 12.8V/100AH - 4S1P configuration
1.4 Cell Specification
LiFePO4 prismatic 36130220 3.2V 100AH. The cell is UL1642, IEC62619 certified.
1.5 Warranty
The warranty is effect from the date of shipping. The battery is warranted to be free from defects in
workmanship and materials under normal use and service. (see P10 “Limited Warranty”)
P/N
Free Replacement (months)
Repair (months)
Total Warranty (months)
DCU100B-V2
36
24
60
2. Electrical Characteristics at 25℃
Item
Description
Characteristics
Criteria or Remark
1
Nominal Voltage
12.8V
3.2V/cell
2
Installed Capacity
100AH
UL1973-2013, IEC62619:2017
3
Nominal Capacity
100AH
UL1973-2013, IEC62619:2017
4
Minimum Capacity
98.5AH
UL1973-2013, IEC62619:2017
5
Internal Resistance
≤15mΩ
Internal Resistance Testing
Machine(1kHz)
6
Delivery Voltage
12.8V～13.6V
Multi-meter
7
Charge Temperature
0~50℃
Charge is cut off at -5℃

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:3 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
8
Discharge Temperature
-20℃~60℃
Discharge is cut-off at 65℃
9
Charge Current
≤100A
Recommend: 20A~50A
10
Discharge Current
≤100A for continuous
100A~120A in 10 minutes
120A~150A in 3 minutes
Peak: >150A in 6 seconds
11
Reverse Charge
Not Allowed
Prohibition
12
External Short Circuit
Available
IEC62619:2017
13
Charge Voltage
14.6V±0.2V
3.65V/cell
14
Discharge Cut-off Voltage
11.2V
2.8V/cell
15
Life Cycle
>2,750 times @ 90% DOD
0.5C charge/ discharge at 25℃.
16
Series Connection
Max 4pcs (48V)
IMPORTANT: KEEP each battery is
fully charged and voltage difference is
<0.02V after 12-24 hours shelving.
17
Parallel Connection
Max 4pcs
IMPORTANT: KEEP each battery is
fully charged and voltage difference is
<0.02V after 12-24 hours shelving.
18
Bluetooth Communication
Apply to Android & iOS
BLE 4.0
3. Physical and Mechanical Specifications
Specification
Description
Dimensions
328mm X 177mm X 217.5mm, drop in BCI Group 31
Net weight
11.9kg(26.2lbs)
Battery case material
PC + ABS UL94V-0
Threaded insert –8mm stud
M8 size, Torque < 10N.m
Data port (LP-12, 5pin socket)
RS485 is optional
Insulation
IP55 (splash and dust proof)

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:4 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
4. Battery Safety Test
4.1 Test Conditions
Temperature: 20±5℃Relative Humidity(RH): 45% ~75%
Atmosphere Pressure: 86kPa ~106kPa
All tests are based on UL1973-2013 and IEC62619:2017.
4.2 Tests
Item
Description
Non-compliant
Test Result
1
Overcharge Test
E, F, C, V, S, L, R, P
Pass
2
Short Circuit Test
E, F, C, V, S, L, R, P
Pass
3
Overdischarge Protection Test
E, F, C, V, S, L, R, P
Pass
4
Imbalanced Charging Test
E, F, C, V, S, L, R, P
Pass
5
Failure of Cooling/Thermal Stability System
E, F, C, V, S, L, R, P
Pass
6
Vibration Test (LER Applications)
E, F, C, V, S, L, R, P
Pass
7
Impact Test
E, F, C, V, S, L, R, P
Pass
8
Drop Impact Test
E, F, C, S, L, R, P
Pass
9
Static Force Test
E, F, C, V, S, L, R, P
Pass
10
Thermal Cycling Test
E, F, C, V, S, L, R, P
Pass
11
Resistance to Moisture Test
E, F, C, V, S, L, R, P
Pass
12
Salt Fog Test
E, F, C, V, S, L, R, P
Pass
13
Internal Fire Exposure Test
E, F
Pass
Non-compliant Results Key:
E - Explosion
F - Fire
C –Combustible vapor concentrations
V –Toxic vapor release (in buildings or LER passenger compartment)
S –Electric shock hazard (electric breakdown)
L –Leakage (external to enclosure of DUT)
R - Rupture
P –Loss of protection controls

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:5 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
5. Battery Management System (the “BMS”)
Item
Contents
Criteria
Overcharge protection
Overcharge detects voltage
3.75 ± 0.025V
Overcharge release voltage
3.60 ± 0.025V
Delay time
1s
Over discharge protection
Over discharge detects voltage
2.80 ± 0.02V
Over discharge release voltage
2.95 ± 0.02V
Delay time
1s
Current
Continuous charge
≤100A
Continuous discharge
≤100A
Discharge over current
protection
Discharge over current
protection –level 1
100A~120A
Time
10 minutes
Discharge over current
protection –level 2
120A~150A
Time
3 minutes
Short circuit protection
Short circuit current
>700A
Short circuit release condition
Cut load
Temperature protection
Charge high temperature
protection
50℃
Discharge high temperature
protection
60℃
Communication
Version
BLE 4.0
Bluetooth protocol
Consult manufacturer
Pre-discharge
Applicable
≤3kW inverter
Internal resistance
Main loop work condition
RDS≤5mΩ
Balance charge
Open at 3.45V/cell
Current: 100~200mA
Power consumption
Dormant
0.8mA

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:6 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
6. Battery Drawing (Front & Top)

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:7 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn

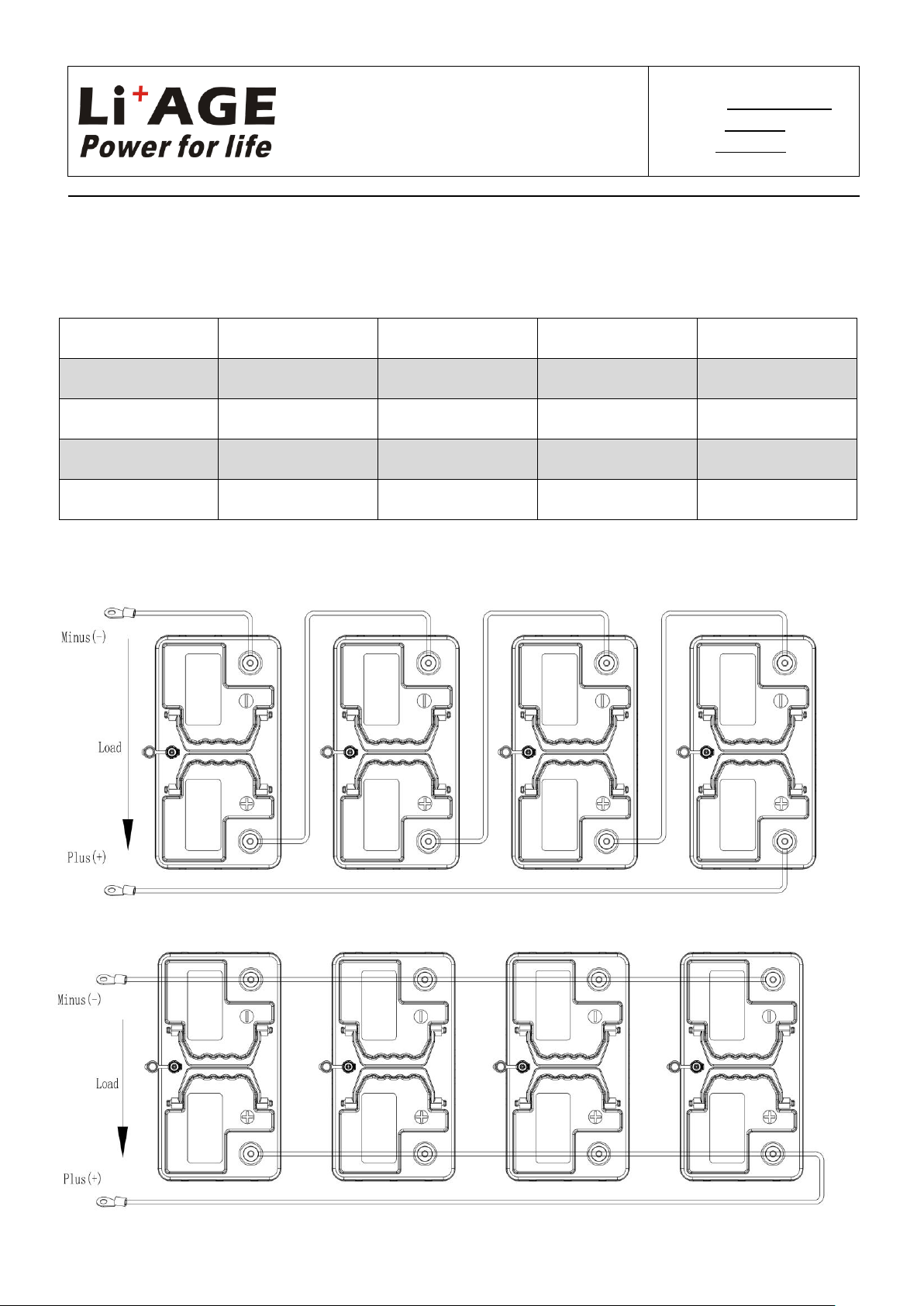

7. Battery Bank Application
The Li+AGE DCU100B-V2 can be connected up in series or parallel when needed but only in the below
configurations:
Item
1S(12V)
2S(24V)
3S(36V)
4S(48V)
1P
YES
YES
YES
YES
2P
YES
YES
YES
YES
3P
YES
YES
NO
NO
4P
YES
YES
NO
NO
Remark: S - series, P - parallel
NOTE –do not mix use new Li+AGE batteries with old batteries, whether in series or parallel.
(See owner’s manual Appendix I)

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:8 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
8. Charging Instructions
When charging Li+AGE DCU100B-V2 makes sure that you are not using a charger meant for other Lithium ion
chemistries, which are typically set to a higher voltage than required by LiFePO4 batteries. Most mains lead
acid battery chargers can be used if the voltage setting is within the parameters of LiFePO4 batteries but
some smart chargers might only charge up to 90%. If this is the case we recommend getting a LiFePO4
charger. However you will not cause any damage to the battery if using your old charger.
Check that your charger cables are insulated and free of breakage. Charger terminal connectors should be
clean and properly mate with the battery terminals to ensure a good connection and optimum conductivity.
Diagram 1 - Charging with lead acid battery charger
Charger Category
Compatible
Recharge a low
voltage Li+AGE
DCU100B-V2
State of charge to
Li+AGE
DCU100B-V2
Remark
Output 13.8V~14.8V
lead acid battery charger
YES
YES
90%~100%
Suit 12V(1S) Li+AGE
DCU100B-V2
Output 27.6V~29.6V
lead acid battery charger
YES
YES
90%~100%
Suit 24V(2S) Li+AGE
DCU100B-V2
Output 41.4V~44.4V
lead acid battery charger
YES
YES
90%~100%
Suit 36V(3S) Li+AGE
DCU100B-V2
Output 55.2V~59.2V
lead acid battery charger
YES
YES
90%~100%
Suit 48V(4S) Li+AGE
DCU100B-V2
Diagram 2 –Charging with inverter or charge controller
Item
12V system
24V system
48V system
Bulk voltage (stage 1)
14V~14.8V
28V~29.6V
56V~59.2V
Absorption voltage
(stage 2)
14V~14.8V
28V~29.6V
56V~59.2V
Float charge
13.3V~13.8V
26.6V~27.6V
53.2V~55.2V
Low voltage cut-off
11V~12V
22V~24V
44V~48V
High voltage cut-off
14.6V
29.2V
58.4V

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:9 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
9. Accessing the Li+AGE App
The App is available for iOS andAndroid phones. Search the AppleApp Store for LiAGE and download for free.
If using an Android phone, search the Google Play for LiAGE and download for free too. The App will give you
full visibility of your Li+AGE battery and its performance. Your phone connects to the Li+AGE App will via
Bluetooth so you need to be within 10m of the battery to access the data. Each time you wish to view the data
you will need to log on via the App but this is quick and easy.
10. Safety and Product Limitations
Keep out of the reach of children or pets.
Do not under any circumstances disassemble this battery.
Do not immerse the battery in liquid.
Do not use the battery with damaged cables or terminals.
This battery is not designed for cranking and starter applications.
Keep the battery charged at operating temperature range 0~50℃except low temperature version.
Keep the battery discharged at operating temperature range -20~60℃.
Do not expose the battery to fire or crush or puncture its casing.
Do not mix the batteries with other brands of batteries, whether in series or parallel.
Do not short circuit positive (+) and negative (-) which can cause spark, fire or even explosion.

DEFORD New Power Co., Ltd.
File No.:12DF100V2
Version:A2
Page:10 of 10
Li+AGE®is registered trademark of DNP, find us online at: www.deford.com.cn
11. Limited Warranty
DEFORD New Power Co., Ltd (the “Manufacturer”) warrants this battery for 36 + 24 months from the date of
shipping against defective materials or workmanship that may occur under normal use and care.
The manufacturer has no obligation under this Limited Warranty for Product subjected to the following
conditions (including but not limited to):
※Damage caused during shipping (exclude manufacturer’s obligation) or mishandling of the Product.
※Damage due to improper installation, loose terminal connections, under-sized cabling, incorrect connections
on series and parallel, reverse polarity connections, and external short circuit.
※Product has been disassembled, modified or tampered with.
※Product that was used for applications other than which is was designed and intended for.
※Product that was under-sized for the application.
※Tampering or removal of manufacture date code.
12. Revision History
Revision No.
Date (YY-MM-DD)
Description
Editor
A1
20-01-09
First release
Liang Zhichao
A2
20-03-26
Add 0V charge function to lead acid battery
charger, inverter and charge controller
LiangZhichao
