dellonda DG100 User manual

Model No. DG100
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
Petrol Lawnmower Grass Cutter Grass Bag
16”/40cm 127cc 16”/40cm 4-Stroke Engine
DG100 Issue:2 14/05/2021

Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Wear
Safety
Footwear
Warning!
Live electrical
parts
Read manual
before use
Warning! Keep
bystanders away
Warning!
Keep away from
moving parts.
Warning!
DO NOT operate
on slopes
Wear ear
protection
Wear protective
clothing
Start/brake lever
Warning!
Ejected objects
Warning!
Keep hands and
feet away from
the blades
Warning!
Hot surfaces
Remove spark
plug connection
before
performing
maintenance
Safety Instructions
9Read and fully understand instruction manual before using the lawnmower. Retain manual for future use and future users.
9Users must be fully trained before using lawnmower.
WARNING! keep hands and feet away from moving blades. Be aware of the danger of being drawn in by moving parts.
WARNING! Be aware of live electrical parts and hot surfaces.
9Suitable/protective clothing (long trousers) and appropriate PPE must be worn: ear protection, safety, slip resistant footwear.
8DO NOT use whilst tired, ill or under the inuence of alcohol or other drugs.
8DO NOT use indoors or an unventilated area due to danger from exhaust fumes.
9ALWAYS inspect and risk assess the area to be worked prior to mowing. Review for items such as foreign objects (stones, toys, wires
sticks, bones), slope, ditches, drop-o󰀨s.
8DO NOT use the mower on slopes. Be aware of the risk of overturning on too steep a slope. DO NOT use where the gradient is more
than 20o or motor seizure may occur. Always ‘travel’ along slope contours not up and down slopes.
9ALWAYS inspect the unit prior to use for loose ttings, fatigue and damage.
8DO NOT add fuel while the engine is running or the mower is hot. Only add fuel in a well ventilated location. Remove all sources of
ignition.
9Check oil level before rst/use.
9ALWAYS keep bystanders and pets at a safe distance from the mower when in use.
9Only use the lawnmower when there is good visibility (daylight or good articial light.)
8DO NOT use the mower without either the grass bag or deector tted.
8DO NOT use the mower if there is a risk of lightning.
8DO NOT use in the rain.
8DO NOT leave the mower running without supervision.
9Allow the unit to cool down completely before moving or storing.
9Before carrying out any maintenance or adjustments, turn o󰀨 the engine and disconnect the spark plug. Ensure all moving parts have
come to a complete standstill and cannot start again unexpectedly.
9Use genuine replacement parts only.
9Keep the lawnmower in good operating condition and perform regular maintenance. Keep lawnmower clean.
9Check for and replace worn or damaged parts.
8DO NOT modify the lawnmower in any way. DO NOT tamper with or modify safety features in any way.
NOTE: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
About the Product
Powerful RATO 127cc 4-stroke engine with recoil pull start. 40cm (16”) Cutting width ideal for accuracy whilst cutting all garden sizes. Easy
1-lever height adjustment system with 7 height variations ranging from 25-70mm. Rear discharge with 45L grass collection bag. Soft grip handles
for comfort during use and folding handles for easy storage.

3
Assembling the handle
• Line up the two lower handle arms (with the connection Knob facing outwards) with the square holes on the mounting brackets (Fig. 1) insert the
4 coach bolts (2 each side) through the holes and loosely screw on the nuts on the inside of the plate. (tighten at the end of assembly).
• Unscrew the connection knobs and remove the washers (leave the bolts in place) Carefully lift the handle from it’s stored location ensuring not to
bend or pinch the cable for the start/brake lever, position the handle onto the bolts and replace the washer and then connection knob (nger tight)
to match (Fig. 1 below)
• Make sure the start/brake lever is not wrapped around the handle and that it has not been kinked, then begin to tighten all fasteners using a
wrench for the 4 bolts and hand tighten the connection knobs.
Assembling the grass box
• Thread collection bag onto the metal frame.
• Press the plastic clips on the collection bag to the wire frame (Fig.2)
Preparation
• OIL LEVEL - Note: THE UNIT IS SUPPLIED WITHOUT ENGINE OIL.
• Remove the oil ller cap (Red/Orange) by rotating to the left, Use any good SAE30 or SAE15W-30 oil, try to buy one with and extendible ller
nozzle or use a suitable funnel to avoid spillage. Approximately 350-400ml of oil will be required on rst lling, Constantly check the dipstick until
the correct level is achieved. Screw the dipstick in each time carefully and remove the opposite way, wipe the dipstick clean each time to ensure
an accurate reading. Do not over-ll.
• Before each use, unscrew the dipstick and check oil level. (Fig.1.6, Fig.3). Top up if necessary.
• Markings on the dipstick indicate maximum and minimum oil levels.
Item Description
1 Soft grip on handle
2 Start/ brake lever
3 Connection knob
4 Recoil handle to start the engine
5 Grass bag
6 Cap with oil dipstick
7 Height adjustment lever
8 Rear wheel
9 Front wheel
10 Fuel tank cap
11 Air lter cover
1
9
2
3
4I0
11
5
7
86

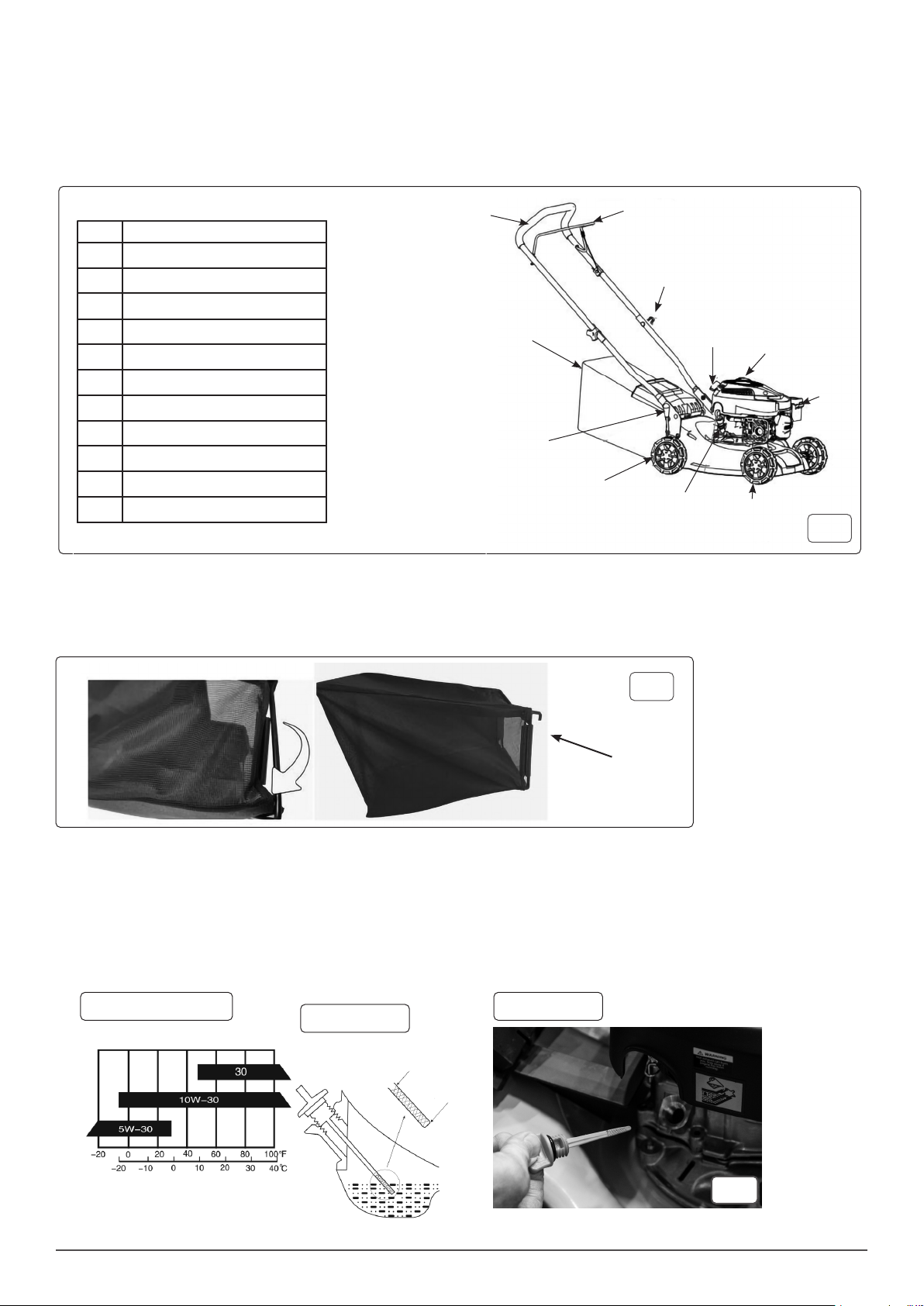

Fig.1
Press plastic
Clips to
Frame (both sides)
Fig.2
SAE Oil recommendation Oil level reading Oil ller location
Upper
level Lower
level
Fig.3

4
• FUEL LEVEL - Note: The unit is supplied without fuel. The tank holds a maximum of 1 litre.
• Recommended fuel is lead free and at least 95 octane.
Operation/Starting the mower
• To Start the mower pull the Start/Brake handle back (Fig 1.2) towards the handle (Fig 1.1) and hold it there to allow the motor to spin.
• When initially starting the unit from cold, prime the unit by depressing the orange rubber priming bulb three or four times (Fig.4).
• Sharply pull the starter handle (g.1.4) to it’s extent and allow it to rewind gently under control. The engine should start after 2-4 pulls.
• To turn the engine off, release the start/brake lever slowly. (only let go or release quickly in an emergency as this can damage your engine).
• NOTE: The cutting blade may not stop immediately.
• To adjust the height of cut, use lever (Fig.1.7). There are 7 set positions for the lever giving a range of cut heights from 25 to 75 mm.
• To t the grass bag, lift the deector on the mower body and locate the hooks on the bag onto the mower body.
• If the grass bag is not tted, the deector will direct the cuttings towards the ground.
• DO NOT operate the mower without either the grass bag tted or the deector tted and facing downwards.
Maintenance
DO NOT attempt any maintenance without having disconnected the spark plug.
• Allow the engine to cool before attempting any maintenance.
• Regular maintenance will increase the life of your unit.
• After each use and before stowage, wipe off and dry all outer surfaces.
• Clean the air lters regularly. Unclip the lter housing (g.1.11) and remove any debris from the foam lters.
• To change the motor oil, with suitable receptacle in place, remove the dip stick (Fig.1.6) and tilt the unit to fully drain it. Replace the dip stick after
draining and rell as described in the Preparation section and Fig.3. DO NOT overll. Start the engine and run for a short time. Stop the engine and
after 1 minute, measure the oil level. Add oil if required.
• NOTE: Drain oil before removing the blade.
• When removing the blade, wear safety gloves to avoid personal harm.
• To remove blade (Fig. 5), hold blade rmly with one gloved hand to prevent it rotating and use suitable spanner to undo the nut. NOTE: Take care
to not lose the woodruff key. When replacing the blade tighten to 60 Nm.
Fig.4
Fig.5

Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of
it in an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations.
It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No
liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Specication
Attribute Value
Power Source Petrol
Type Push Lawn Mower
Propulsion Type Propelled by hand
Engine Type 4 Stroke
Engine Size 127cc
Engine Speed 2800rpm
Rated Power 2kW
Emissions Rating 75 / 95 dB(A)
Vibration Rating 4.4m/s2 / 2.2 m/s2
Petrol Tank Volume 1L
Grass Collection Volume 45L
Blade Style Rotary
Cutting Width 40cm/16”
Height Adjustment 25-70mm
