DeLonghi AC928AY7-SV0F User manual

Version 1 29/5/2019
28L Microwave Oven with Grill and
Convection
AC928AY7-SV0F
Please read and retain these instructions for future
reference
i n s t r u c t i o n s
1

Version 1 29/5/2019
2
CONTENTS
Safety Information……………………………………………..
3
Installation…………………………………………………………
7
Parts and assembly……………………………………………
8
Control panel……………………………………………………..
9
Setting the clock……………………………………………….
10
Selecting the microwave power level……………………….
10
Selecting the grill or combination modes…………………
11
Stop cooking / cancel or switch off display………………
11
Child lock…………………………………………………………
12
Kitchen timer……………………………………………………..
12
Microwave cooking………………………………………………
13
Microwave express mode…………………………………….
14
Grill cooking…………………………………………………….
15
Combination cooking …………………………………………
16
Convection cooking …………………………………………..
17
Defrosting…………………………………………………………
18
Multistage cooking…………………………………………….
19
Extending cooking time during use……………………….
20
Auto menu function……..…………………………………….
20
Cleaning your oven………………………………………………
23
Materials suitable for use in the oven…………………….
24
General microwave cooking advice…………………………
25
Troubleshooting…………………………………………….……
26
Technical specification……………………………………….
27
Recycling electrical products…………………………………
27
Plug rewiring……………………………………………………
28
Guarantee………………………………………………………..
32

Version 1 29/5/2019
3
ELECTRICAL AND MICROWAVE SAFETY
WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover that gives
protection against exposure to microwave energy. Servicing
of this appliance must only be carried out by a qualified
electrician.
WARNING:If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a
competent person. Do not operate this appliance if
damaged or modified in any way.
Keep the appliance and its cord out of reach of children
less than 8 years.
When operating in convection, combination or grill modes,
the oven becomes extremely hot. Do not allow children to
use the appliance without adult supervision
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above and
supervised.
Switch off and unplug before cleaning or servicing the
appliance.
Keep microwave, cable and plug dry and away from areas
where it is likely to get splashed. Never immerse in water.
Never clean with a steam cleaner.
Do not pull on the cable to disconnect from the mains
supply.
This oven must be positioned so that the plug is accessible
and the plug socket is within easy reach of the power cord.

Version 1 29/5/2019
4
ELECTRICAL AND MICROWAVE SAFETY (continued)
Do not operate the microwave if damaged or after it
malfunctions. In the event the supply cord is damaged, it
must only be replaced by a qualified service engineer, with
a suitably approved part.
Do not place items with naked flames or containers with
liquids on this appliance.
The mains plug shall be connected into a mains socket
outlet with a protective earth connection.
All microwaves are tested and approved in accordance with
current electromagnetic safety and compatibility regula-
tions and standards. As a precautionary measure,
pacemaker manufacturers recommend wearers to keep a
minimum distance of 20-30 cm between an operating
microwave oven and the pacemaker in order to avoid
possible interference with the pacemaker. If you suspect
there may be interference, turn the microwave off
immediately and contact the manufacturer of the
pacemaker.
WARNING!
This appliance is not intended to be used in: staff kitchen
areas in shops, offices and other working environments;
farm houses; by clients in hotels, motels and other
residential type environments; bed and breakfast type
environments.
This appliance must not be operated by a timer or a
separate remote control system.
Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
Microwave heating of beverages can result in delayed
eruptive boiling; therefore care must be taken when
handling the container.
If you are preparing food or liquid for a baby stir or shake
the contents and check the temperature before
consumption in order to avoid burns.

Version 1 29/5/2019
5
WARNING! (continued)
Never cook or heat eggs in their shell or whole hard boiled
eggs, as they may explode even after cooking in the
microwave has been completed.
The oven should be cleaned regularly and any food deposits
removed –see page 23 for details. Failure to maintain the
oven and seals in a clean condition could lead to
deterioration of the surface or seals, adversely affect the
life of the oven and possibly result in a hazardous situation.
Never operate the oven when empty and avoid leaving
unattended during use.
Do not cover and allow adequate ventilation –see page 7
for clearance required.
The surfaces of the oven and the containers inside
will become hot during and immediately after use;
wear oven gloves when handling. Note the
elements are subject to residual heat after use. Do
not touch.
Check regularly during cooking cycle especially when using
plastic or paper containers to ensure food and containers
do not ignite.
If smoke is emitted, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
Do not use oven on, near or under flammable or heat
sensitive items.
Do not place foil wrapped food, metal containers or
containers with metal parts or trim when using the
microwave oven.
Do not use with a cracked or missing turntable or without
the turntable ring.
The microwave oven is intended for heating food and
beverages. Drying of clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead
to risk of injury, ignition or fire.
Always check for container and utensil suitability before
using in the microwave oven - see page 24 for advice.

Version 1 29/5/2019
6
FOOD SAFETY
Do not cook raw meat or raw shellfish in a microwave, due
to the possibility for uneven heating.
Do not use microwave for home canning or bottling.
Improperly canned or bottled foods may spoil and be
dangerous to eat.
Always check the temperature of food before serving.
Food cooking times will vary with microwave wattage (MAFF
rating). When following recipes and on pack cooking
instructions always check the MAFF rating / wattage of the
appliance being used (marked on the front of the
microwave) and follow the corresponding cooking advice.
Where the recommended cooking time exceeds 6 minutes,
increase the cooking time by 30% when using this
appliance (e.g. if recommended cooking time is 10
minutes, set the appliance cooking time to 13 minutes).

Version 1 29/5/2019
7
INSTALLATION
This microwave is designed to be free standing and is not
intended to be used ‘built in’ or in a cabinet.
Select a level surface away from televisions, cookers and
other heat producing appliances.

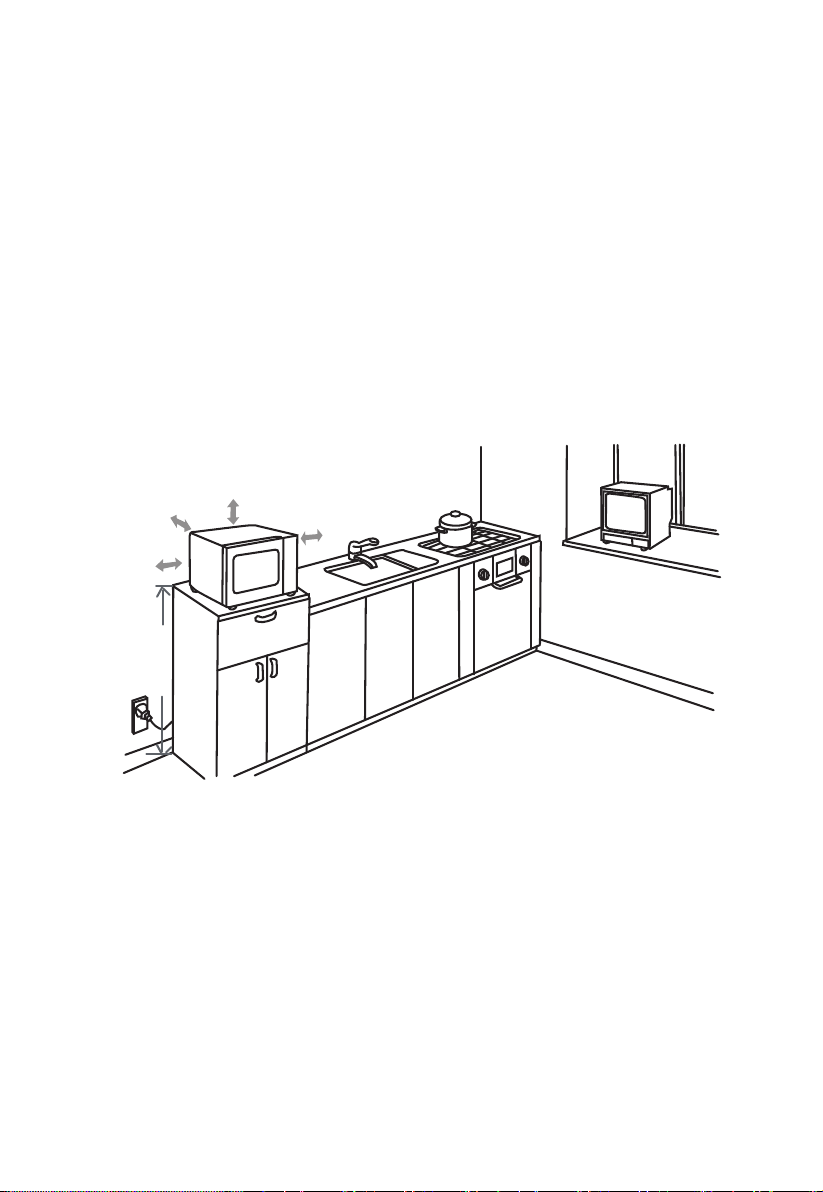

Ensure adequate ventilation and allow a clearance of
20cm at each side of the oven
30cm clearance above the oven
10cm at the rear of the oven
The minimum installation height is 85cm
Ensure that the cable is not close to any sharp or hot
surfaces and where it is likely to cause a trip hazard.
20cm
30cm
20cm
min85cm
10cm

Version 1 29/5/2019
8

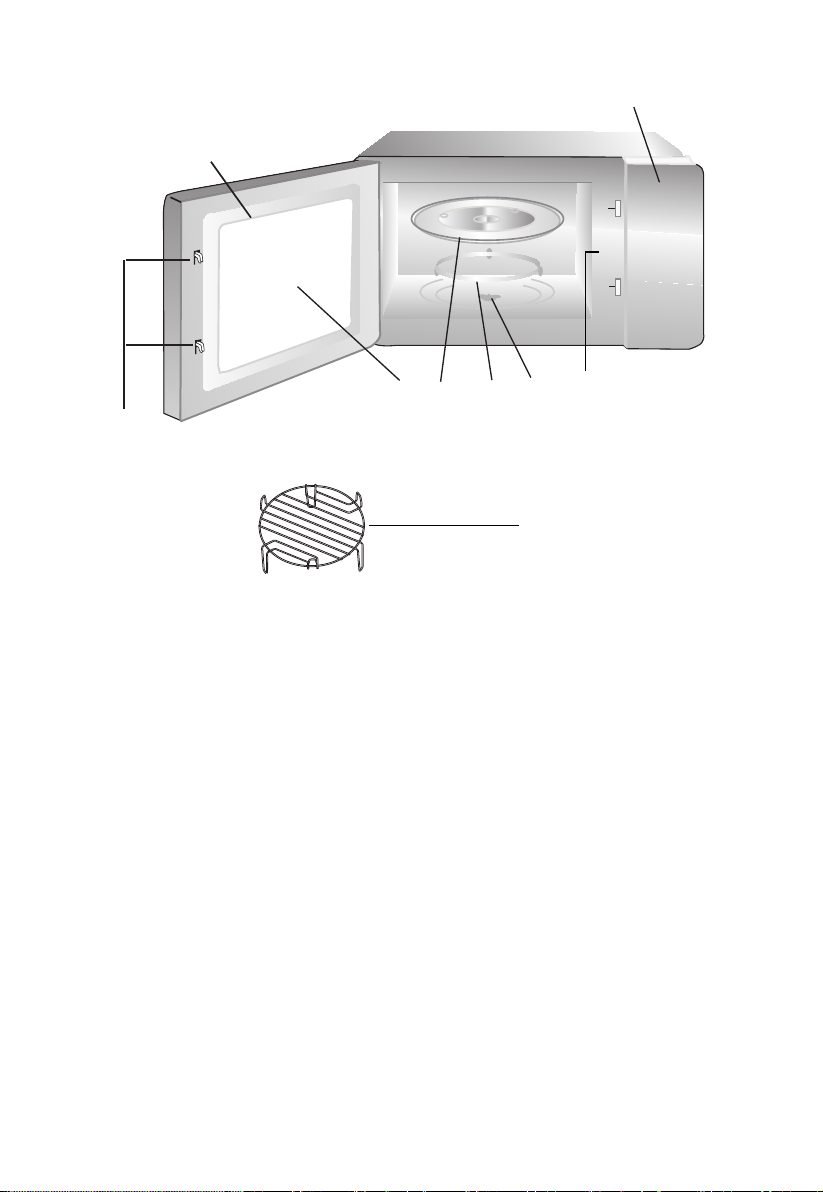

PARTS & ASSEMBLY
A. Control panel
B. Turntable shaft
C. Turntable roller
D. Glass turntable
E. Door with viewing panel
F. Seal
G. Interlocking catches
H. Waveguide cover
I. Grill rack
Ensure all packaging materials, protective film and
adhesive tape are removed and check the oven and door
for any damage. Do not remove the waveguide cover.
Assemble as shown above and ensure that the glass
turntable is correctly positioned on the shaft and roller.
When using in microwave only mode do not fit the grill
rack.
When using the grill, place the grill rack onto the glass
turntable.
When using the combination and convection modes the
grill may be used as required.
I
F
G
A
C B
ED
H

Version 1 29/5/2019
9

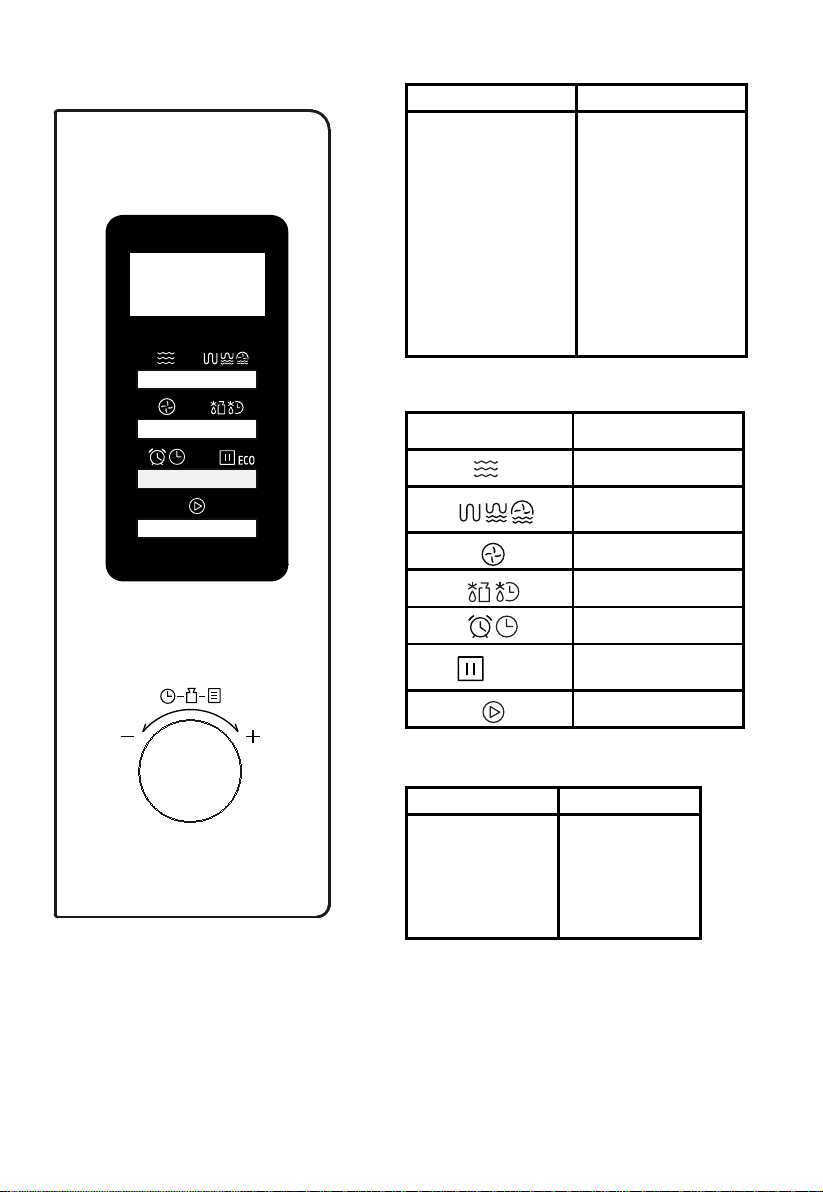

CONTROL PANEL
POWER LEVELS
Power
Display
100%
P100
90%
80%
P90
P80
70%
60%
50%
P70
P60
P50
40%
30%
P40
P30
20%
10%
P20
P10
BUTTON MARKINGS
Marking
Description
Microwave
Grill /
Combination
Convection
Defrost
Timer / Clock
Stop / Clear /
Eco
Start / Confirm
TIME INCREMENTS
Cooking time
Increments
0 –1 min
5 sec
1 –5 min
10 sec
5 –10 min
30 sec
10 –30 min
1 min
30 –95 min
5 min
Function
knob
Display
ECO

Version 1 29/5/2019
10
DISPLAY - INDICATORS
Symbol
Description
Symbol
Description
Microwave
Defrost
Convection
Keypad locked
Grill
Auto cook
DISPLAY - TEMPERATURE BAR
When used in convection mode a
temperature bar will be visible in the
display. The number of squares
illuminated in the bar indicates the
temperature of the oven.
SETTING THE CLOCK
1. Fully unwind the cable, plug in and switch on. The
microwave will emit a single bleep and the display will
show 0:00.
2. Press the CLOCK / TIMER button TWICE (the hour
digit will flash) and turn the FUNCTION knob until the
correct hour is displayed.
3. Press the CLOCK / TIMER ( ) button again (the minute
digits will flash) and turn the FUNCTION knob until the
correct minute is displayed.
4. Press the CLOCK / TIMER ( ) button again to save the
setting.
5. If the oven is unplugged or turned off at the mains the
clock setting will be lost.
SELECTING THE MICROWAVE POWER LEVEL
The default on the microwave oven is set to cook at full power
unless otherwise changed. To select a lower power setting
either
Press the MICROWAVE ( ) button repeatedly or
alternatively
Press the MICROWAVE ( ) button once and turn the
FUNCTION knob to scroll through the options available.
140 ˚C
180 ˚C
230 ˚C
Auto
()
