Delta ERD124 User manual

USER MANUAL
MODELS: ERD124 • ERD125 • ERD126 • ERD127
p: 0800 503 335 | w: www.southernhospitality.co.nz
e: [e-mail]
SOUTHERN
HOSPITALITY
DISTRIBUTED BY:
DELTA CABINET UPRIGHT STAINLESS
CHILLERS AND FREEZERS
DELTA UPRIGHT STAINLESS REFRIGERATION

p: 0800 503 335 | w: www.southernhospitality.co.nz
e: [e-mail]
SOUTHERN
HOSPITALITY
DISTRIBUTED BY:
2
Important safety instructions...............................................................................3
Unpacking and installation....................................................................................3
Electrical connection ....................................................................................................4
Start-up of the cabinet................................................................................................4
Thermostat...............................................................................................................................5
Defrosting..................................................................................................................................6
Maintenance and cleaning....................................................................................6
Service ..........................................................................................................................................6
Disposal.......................................................................................................................................6
TABLE OF CONTENTS

p: 0800 503 335 | w: www.southernhospitality.co.nz
e: [e-mail]
SOUTHERN
HOSPITALITY
DISTRIBUTED BY:
3
Important safety instructions
1. To obtain full use of the cabinet, we recommend reading this instruction manual.
2. It is the user’s responsibility to operate the appliance in accordance with the instructions
given.
3. Contact your dealer immediately in case of any malfunctions.
4. Place the cabinet in a dry and ventilated place.
5. Keep the cabinet away from strongly heat-emitting sources and do not expose it to direct
sunlight.
6. Always keep in mind that all electrical devices are sources of potential danger.
7. Do not store flammable material such as thinner, gasoline, etc., in the cabinet.
8. We declare that no asbestos nor any CFC are used in the construction.
9. The oil in the compressor does not contain PCB.
Unpacking and installation
Remove the wooden pallet and the packing. External surfaces are supplied with a protection
foil, which must be removed before installation. To ensure correct function it is important that
the cabinet is level.

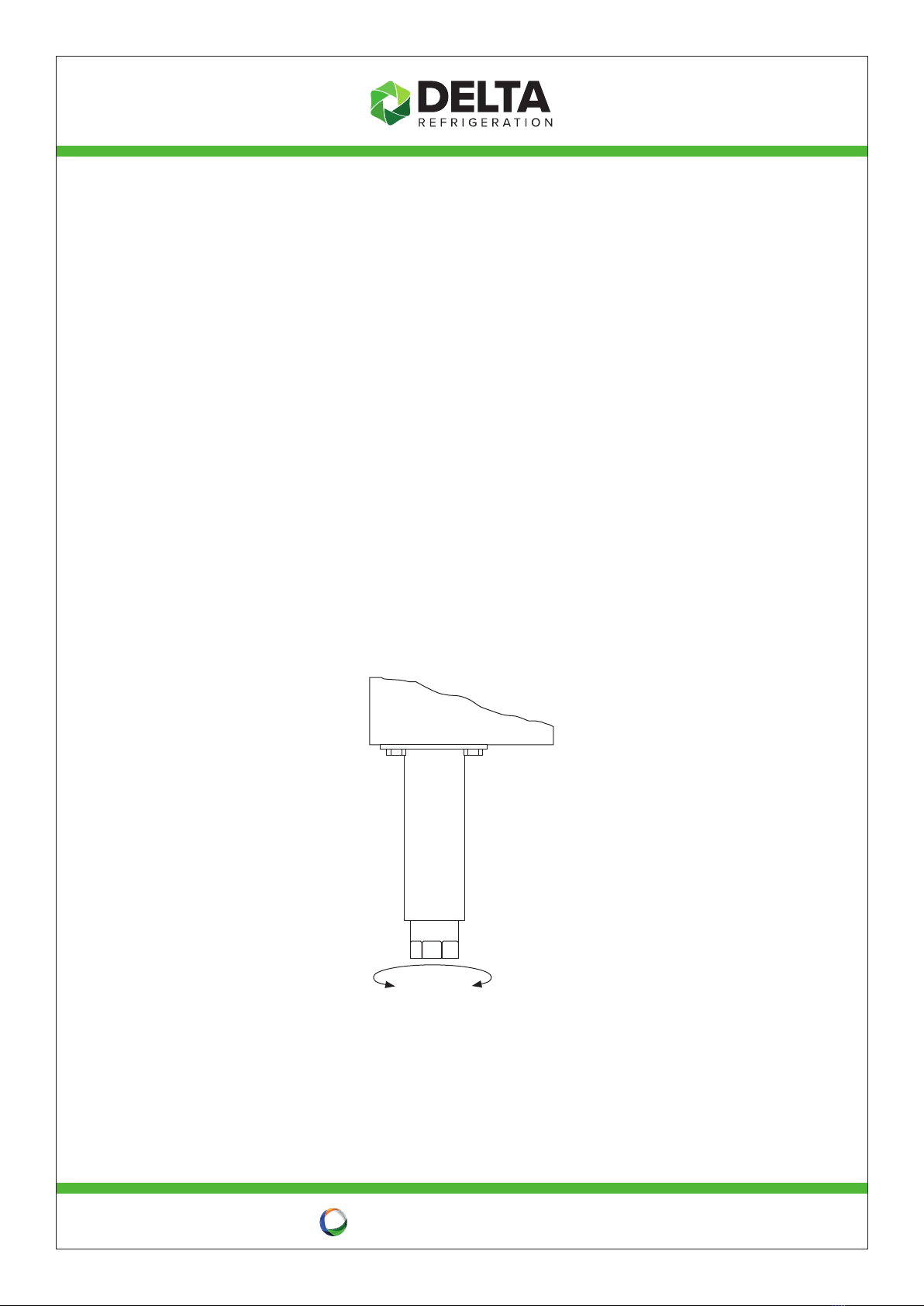

The cabinet is supplied with legs, these can be adjusted. See Fig. 1.1.
lf you want to build in your cabinet please note the following:
• There must be at least 15cm free space above the cabinet in order for the cooling system
to work satisfactorily.
• There must be sucient space at the hinge side to clean and replace the shelves and
clean around the hinge.
Fig 1.1

p: 0800 503 335 | w: www.southernhospitality.co.nz
e: [e-mail]
SOUTHERN
HOSPITALITY
DISTRIBUTED BY:
4
Electrical connection
The cabinet operates on 230V/50Hz. The wall socket should be easily accessible.
All earthing requirements stipulated by the local electricity authorities must be observed. The
cabinet plug and wall socket should then give correct earthing. If in doubt, contact your local
supplier or authorised electrician.
The flexible cord fitted to this appliance has three cores for use with a 3 pin, 13 amp or 3 pin
15 amp plug. If a B.S. 1363 (13 amp) fused plug is used, it should be fitted with a 13 amp fuse.
The wires in this mains lead are coloured in accordance with the following code: Green/
Yellow: Earth, Blue: Neutral, Brown: Live.
The main electrical connections must be done by skilled electricians.
Start-up of the cabinet
Before use, we recommend that the cabinet is cleaned (see the section on maintenance and
cleaning).
Important!
If the cabinet has been vertically placed during transport, please wait 2 hours
before turning the cabinet on.
Fig 1.9

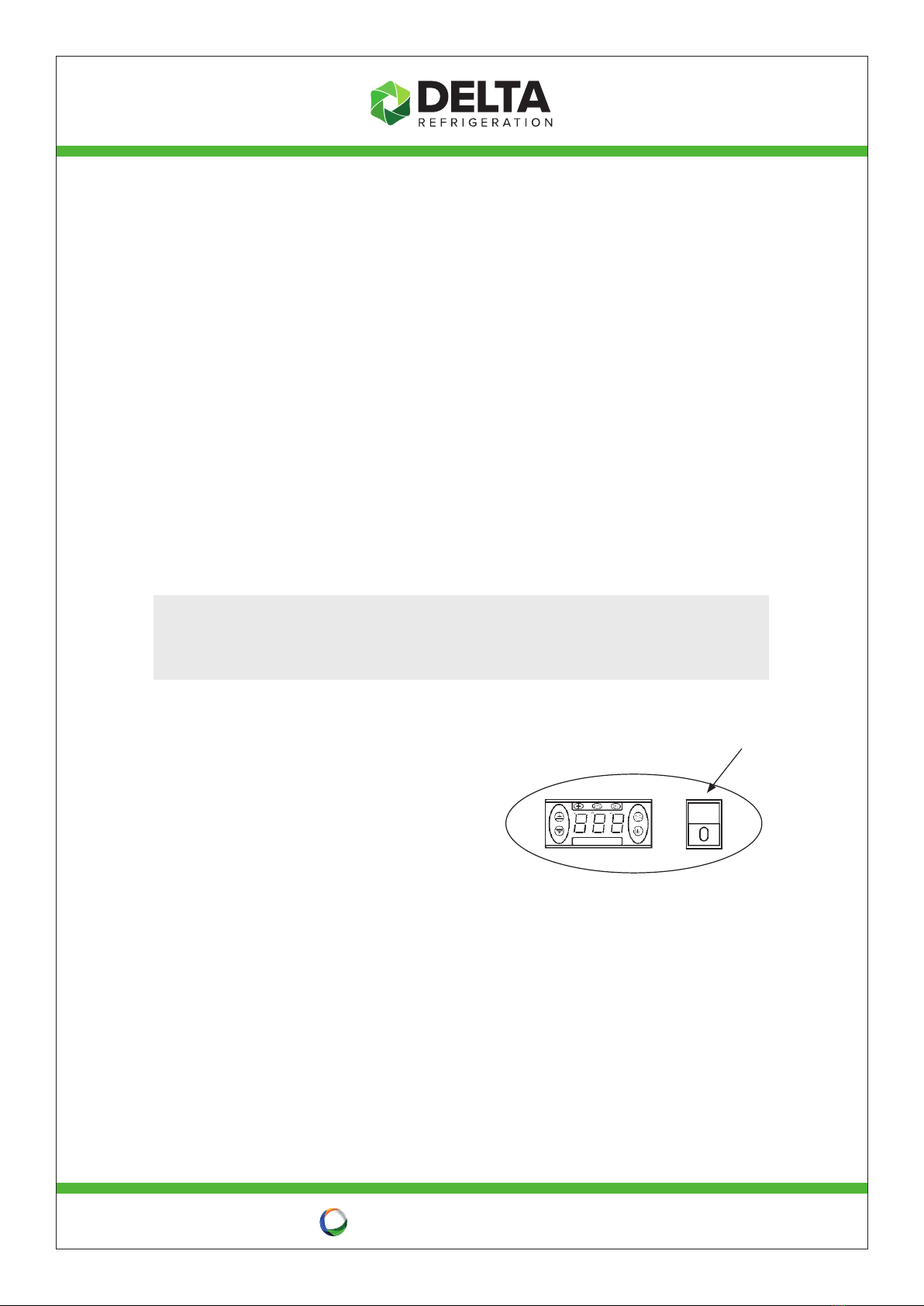

Connect the cabinet to a socket and turn on the
switch on the control panel, see Fig 1.9

p: 0800 503 335 | w: www.southernhospitality.co.nz
e: [e-mail]
SOUTHERN
HOSPITALITY
DISTRIBUTED BY:
5
Thermostat

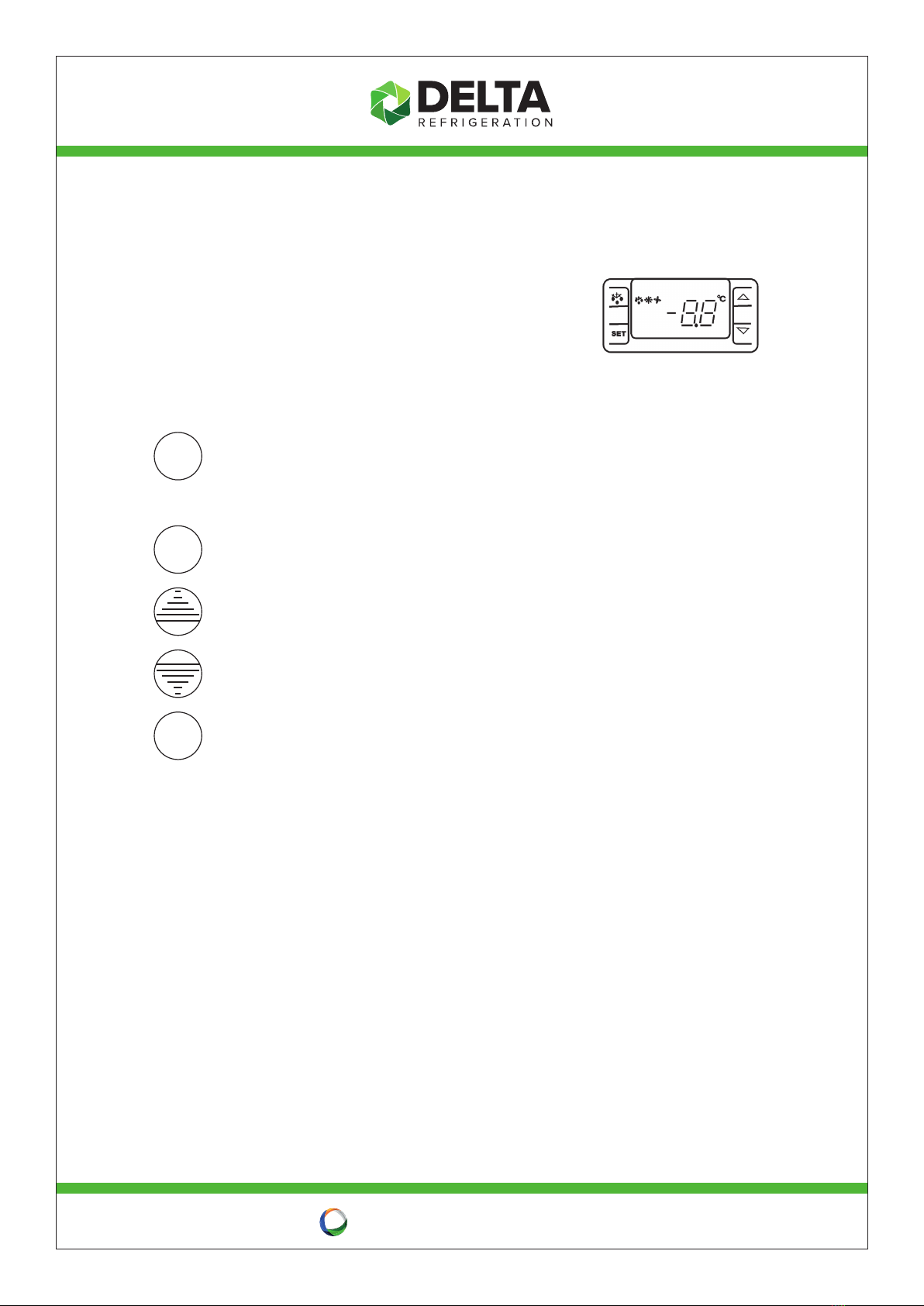

The thermostat is placed in the control panel, see fig. 2.0.
The thermostat has been pre-set and in most cases it is not
necessary to adjust the settings.
When turning on the cabinet the display will show the current
temperature in the cabinet.
Display set temperature
SET Press this key and the display will show the set temperature. Press the key again to
return to normal reading.
Set new temperature:
SET Press this key and the display shows the set temperature.
Press this key to increase the set temperature.
Press this key to lower the set temperature.
SET Press this key to save the new settings. The display will flash with the new value and
will then return to normal reading.
Alarm codes
PF1—Flashing in the display: indicates that the cabinet sensor is defective. The cabinet will
strive to keep the set temperature until it has been repaired.
PF2—Flashing in the display: indicates that the evaporator sensor is defective. This does not
influence the operation of the cabinet, but should be repaired as soon as possible.
Fig 2.0

p: 0800 503 335 | w: www.southernhospitality.co.nz
e: [e-mail]
SOUTHERN
HOSPITALITY
DISTRIBUTED BY:
6
Defrosting
The cabinet defrosts automatically with pre-set intervals. If the door to the cabinet is opened
or the contents of the cabinet is changed frequently it may become necessary to defrost the
cabinet manually.
Pressing this key continuously for more than 3 seconds will start a manual defrosting
and then return to normal operation.
Defrosted water runs to a container placed in the compressor compartment and evaporates.
Maintenance and cleaning
Switch the cooler o at the socket.
The cabinet must be periodically cleaned. Clean the external and internal surfaces of the
cabinet with a light soap solution and subsequently wipe dry. External surfaces can be
maintained using steel oil.
Do NOT use cleansers containing chlorine or other harsh cleansers, as these can damage the
stainless steel surfaces and the internal cooling system.
Clean the condenser and the compressor compartment using a vacuum cleaner and a sti
brush.
Do NOT hose the compressor compartment with water as this can cause short circuits and
damage on the electrical parts.
Service
The cooling system is a hermetically sealed system and does not require supervision, only
cleaning. If the cabinet fails to cool, check if the reason is a power cut.
If you cannot locate the reason to the failure of the cabinet, please contact your supplier.
Please inform model and serial number of the cabinet. You can find this information on the
rating label which is placed inside the cabinet in the top right hand side.
Disposal
Disposal of the cabinet must take place in an environmentally correct way. Please note
existing regulation on disposal. There may be special requirements and conditions which
must be observed.
