DELTALINK ANT-5527N User manual

[email protected]
www.deltalink.com.tr
[phone]
[phone]
Istanbul Ataturk Havalimani, Serbest Bolgesi Plaza,
Office No.318 , Yesilkoy, Istanbul, Turkey
Orhan Gazi Mah , Mimsan Sanayi Sitesi , 1730 Sk ,
No:36, Bahcesehir, Esenyurt, Istanbul, Turkey
01 02 03 04 05 06
161514
13
121110090807

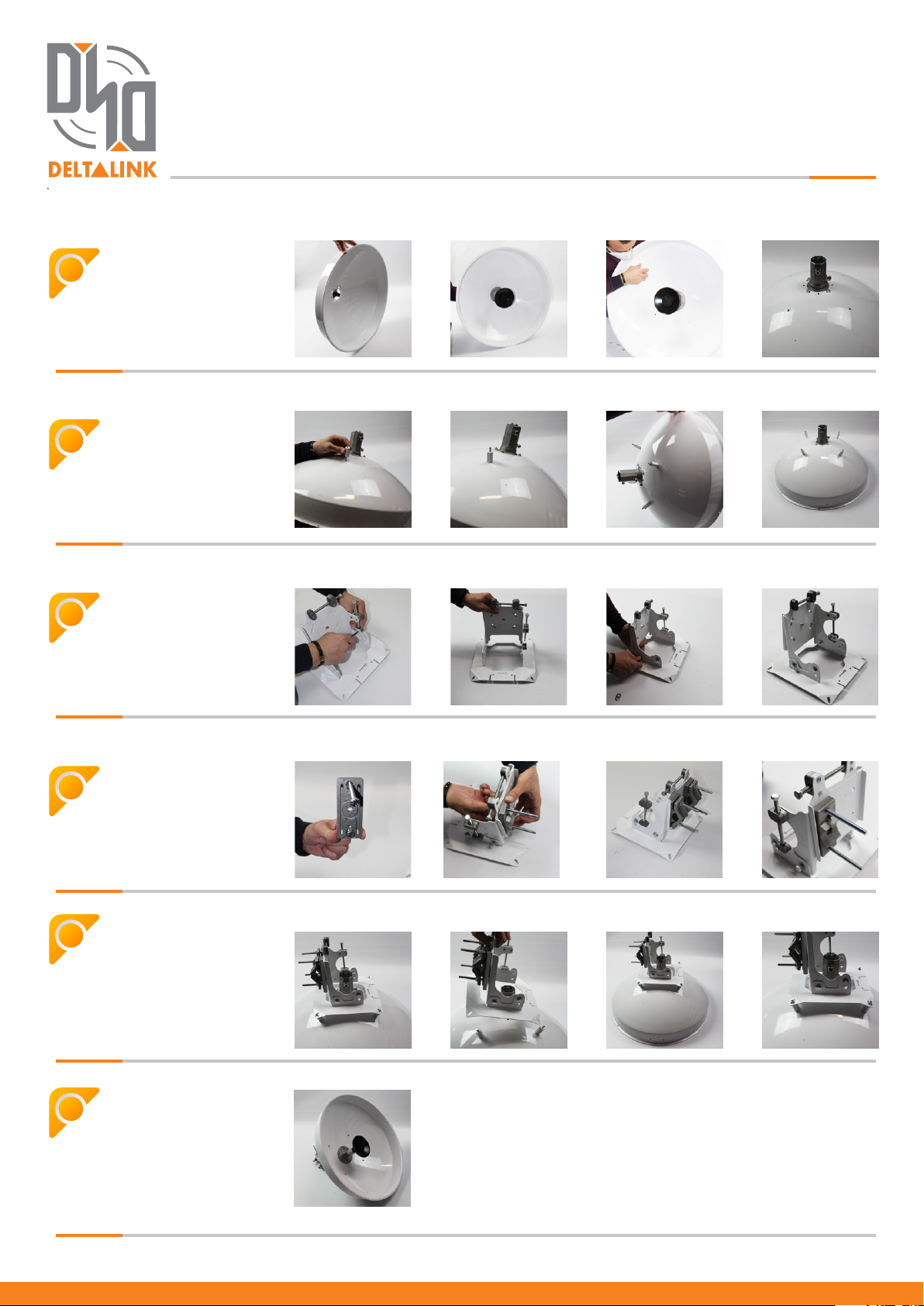

Parabolic Antenna Assembly
Guide
Package Included
No Descriptions Quantity
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
Dish
Feeding Unit
Antenna Mount Part -1
Antenna Mount Part - 2
Pole Mount Clamp -1
Pole Mount Clamp -2
M8 Washer
M8 x 80mm Screw
M8 x 15mm Screw
M8 Flanșlı Nut
M6 Washer
M6 x 50mm Screw
Cylinder Booster
M6 x15mm Screw
M6x20mm Screw
Radio Mounting Bracket
1x
1x
1x
1x
2x
2x
8x
4x
8x
4x
10x
4x
4x
2x
4x
1x
Feeding Unit Antenna Mount
Part -1
Pole Mount
Clamp -1
Pole Mount
Clamp -2
Antenna Mount
Part -2
Radio
Mounting
Bracket
M6x20mm
Screw x4
M6x15mm
Screw x2
Cylinder
Booster x4
M6x50mm
Screw x4
M6 WasherM8
Nuts x4
M8x15mm
Screw x8
M8x80mm
Screw x4
M8 Washer
5527N Product Info 5527N Guide
Dish
ANT- 5527N
ANT- 5527N

01
02
03
04
05
06
Parabolic Antenna Assembly
Guide
ANT- 5527N
In the supply assembly, the
antenna will be mounted with the
M6 x 20mm bolt and M6 nut, with
the water drainage holes of the
antenna facing down, and the
arrow mark on the scale facing
M6x30mm long screws are
inserted from inside to outside
through 4 holes prepared in the
antenna and fixed by screwing to
the riser cylinders in return.
The screws of the lower round
apparatus are loosened and
separated, the iron mounting feet
with the adjustment screws are
passed through the twisting part
and fixed using M8x15mm screws,
the vertical adjustment screw is
M8x80mm screws are inserted
into the slot by passing through
the top and bottom holes, the
connection piece is fixed to the
holes on the iron apparatus by
using M8x15mm screws and nuts.
The cylindrical risers on the bowl
are fixed with M6 nuts, with the
arrow on the pole connecting
piece pointing upwards. It is fixed
with M8 nut by attaching the
counter during the pole connec-
tion.
Ready to Install

Parabolic Antenna Assembly
Guide
ANT- 5527N
Part Placement (Assembly Expansion)
Supply Unit mounting screw M6x20mm x4
Feeding Unit
Dish and dish Mounting Screws
M6x50mm x4
Dish
M8 Screw with Nut
Pole Mounting Part -2
M8 x 80mm x4
Nuts x4
M8x15 mm x 4
M6 Sscrew with bolt x4
Radio Mount Parts
M6x10mm x2
Cylinder Booster x4
Antenna Mount -1
Antenna Mount - 2
Pole Mounting Part -1
