Ultra Start RFK4BAM User manual

TMTM
INSTALLATION
GUIDE
MODEL
PARTS
RFK4BAM (DATA-AM ANTENNA)
DATA AM
x2
REMOTESANTENNA
REMOTES MAY BE
DIFFERENT THAN
PICTURED
PROGRAMMING
ultrastarters.com REV.09/20/18
DATA PROTOCOL SELECTION
With the Antenna plugged in and powered up:
1 . Leave Ignition in OFF position
2. Press programming button (antenna button) 8x within 10 seconds (White LED will flash 2x)
3 . Choose your protocol below by pressing the programming button:
TYPE 1 - Press 2x - ULTRA RF (Default)
TYPE 2 - Press 4x - iDatalink RF
TYPE 3 - Press 6x - Fortin RF
TYPE 4 - Press 8x - D2D
TYPE 5 - Press 10x - Future Use
4 . After 3 seconds White LED will flash the number of times according to your selection.
REMOTE
PROGRAMMING
REMOTE PROGRAMMING - ONLY REQUIRED FOR D2D
Follow the “Remote Programming Procedure” from the manufactures programming instructions.
Visit the appropriate website or download the “RFK4BAM Full Guide” at
www.ultrastarters.com
For Devices that do not have a remote coding procedure follow the procedure below.
STEP 1STEP 2STEP 3STEP 4STEP 5
Turn the
Ignition ON then
OFF 2x leaving it in
the ON position at
the 2nd time.
Press and release the
programming button on
the antenna 2 times.
The LED will flash
1x then 2x.
Turn the
Ignition OFF
to exit
programming.
Press and hold for 3 seconds
until LED flashes turns on
solid. Release
programming button.
Press the button on each
transmitter. LED on
antenna will flash 1x
for each remote
programmed.
DAC-ADPT
ANTENNA IN RF CONN 2
RF CONN 3
BLACK - GROUND
RED - 12V+ (FUSED)
RF CONN 1
DATA AM
2X
DATA AM
x1
2X

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
Data-AM ANTENNA RF Kit Module Connection
Fortin
iData
DEI
EVO-ALL
DBALL 2 / 3
EVO-ONE
iDATASTART ADS-AL-CA
Ultra
“i” Series
4/5X10 , DS4 / +
IC4
ANTENNA IN RF CONN 2
RF CONN 3
RF CONN 1
BLACK - GROUND
RED - 12V+ (FUSED)
RF CONN 1 -iDATALINK / EVO-ONE
RF CONN 2 -D2D
RF CONN 3 -EVO-ALL
DAC-ADAPT
ANTENNA IN ANTENNA IN
BLACK - GROUND
RED - 12V+ (FUSED)
BLACK - GROUND
RED - 12V+ (FUSED)
TYPE 1
TYPE 2
TYPE 3
TYPE 4
RF CONN 3 RF CONN 1
RF CONN 1
RF CONN 1
RF CONN 2RF CONN 2
DATA AM

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONE
CONNECTIONS
PROGRAMMING
MODULE
DATA PROTOCOL : TYPE 3 - Fortin RF
1 . Run Flashlink Manager, plug in EVO-ONE
2 . Click Toggle to switch to Remote Starter Connection
3 . Click Configuration, then select Options
4 . Under RF Kits select Fortin 2 / Solace / Autoconnect
5 . Click on “SAVE”
ANTENNA IN
RF CONN 1
DATA-AM & EVO-ONE
PROGRAMMING PROGRAMMING REMOTES
STEP 1STEP 2STEP 3STEP 4STEP 5STEP 6
x5 x1
On each transmitter
press lock button. The
LED will stop flashing
confirming programming
Press and release the valet
switch five times.
The parking lights will flash and
the horn/siren will chirp each
time to confirm.
Press and hold the valet
switch until the parking
light turn ON, the horn/
siren will chirp once.
Press and
release the
brake pedal
once
Turn the
Ignition ON.
Turn the
Ignition OFF
to exit
programming
DATA AM
x1
DATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONEDATA-AM & EVO-ONE

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & EVO-ALL (STANDALONE FW.)
DATA AM
CONNECTIONS
PROGRAMMING
MODULE
DATA PROTOCOL : TYPE 3 - Fortin RF
1 . Run FlashLink Manager, plug in EVO-ALL
2 . Click on “EVO-ALL OPTIONS” Tab
3 . Activate “SUPPORTED RF KITS” and Option “H2”
4 . Click on “SAVE OPTIONS”
5 . Wait for “Options Saved” message to appear.
RF CONN 3
ANTENNA IN
PROGRAMMING PROGRAMMING REMOTES
STEP 1STEP 2STEP 3STEP 4STEP 5STEP 6
On each transmitter
press the lock button.
The Blue and Red LED’s on
EVO-ALL will flash
confirming programming.
Hold down programming
button on EVO-ALL while
inserting Datalink Cable.
Release on BLUE & RED
Press and hold the
programming button,
release button when
the Blue and Red
LED’s turn back on
The Yellow LED
will turn on
Turn the
Ignition OFF
to exit
programming
HOLD HOLD
Turn the
Ignition ON.
BLACK - GROUND
RED - 12V+ (FUSED)
x1

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE

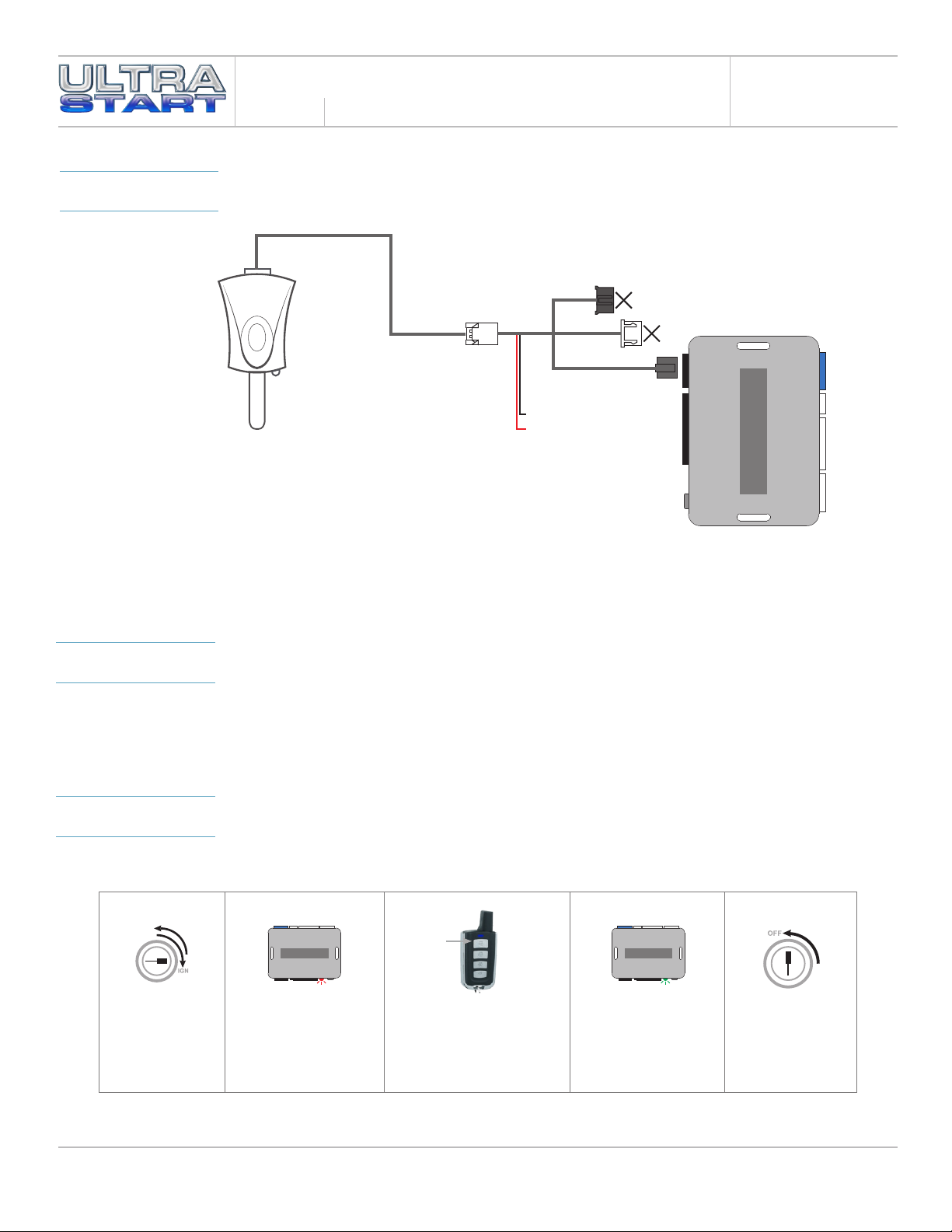

MODEL DATA-AM & iDATASTART HC / VW
DATA AM
CONNECTIONS
DATA PROTOCOL : TYPE 2 - iDATALINK RF
1 Open “Weblink Program”
2 Choose Year / Make / Model
3 Select Connected RF & MY-Start
4 Configure module and Flash firmware
PROGRAMMING
MODULE
PROGRAMMING
STEP 1STEP 2STEP 3STEP 4STEP 5
Press Lock on each
transmitter to be
programmed.
Turn the
Ignition ON then
OFF 5x leaving it in
the on position at
the 5th time.
The Red LED will turn on. Turn the
Ignition OFF
to exit
programming.
The LED will
flash Green for each
remote programmed.
PROGRAMMING REMOTES
ANTENNA IN
RF CONN 1
x1

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & iDATASTART (BM & BZ)
DATA AM
CONNECTIONS
DATA PROTOCOL : TYPE 2 - iDATALINK RF
1 . Open “Weblink Program”
2. Choose Year / Make / Model
3 . Select Connected RF & MY-Start
4 . Configure module and Flash firmware
PROGRAMMING
MODULE
STEP 1STEP 2STEP 3STEP 4STEP 5
Press Lock on each
remote to be
programmed.
Turn the
Ignition ON then
OFF 5x leaving it in
the ON position at
the 5th time.
The Red LED will
turn ON.
Turn the
Ignition OFF
to exit
programming.
The LED will
flash Green for each
remote programmed.
ANTENNA IN
RF CONN 1
PROGRAMMING PROGRAMMING REMOTES
x1

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & iDATASTART (CLASSIC / AKX)
DATA AM
CONNECTIONS
DATA PROTOCOL : TYPE 2 - iDATALINK RF
1 . Open “Weblink Program”
2. Choose Year / Make / Model
3 . Select Connected RF & MY-Start
4 . Configure module and Flash firmware
PROGRAMMING
MODULE
STEP 1STEP 2STEP 3STEP 4STEP 5
Press Lock on each
remote to be
programmed.
Turn the
Ignition ON then
OFF 5x leaving it in
the ON position at
the 5th time.
The Red LED will
turn ON.
Turn the
Ignition OFF
to exit
programming.
The LED will
flash Green for each
remote programmed.
PROGRAMMING PROGRAMMING REMOTES
ANTENNA IN
RF CONN 1
x1

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & ADS-ALCA (R.S. FW.)
DATA AM
CONNECTIONS
PROGRAMMING
DATA PROTOCOL : TYPE 2 - iDATALINK RF
1 . Open “Weblink Program”
2. Choose Year / Make / Model
3. Select Select Connected RF & MY-Start
4 . Configure module and Flash firmware
PROGRAMMING
MODULE
STEP 1STEP 2STEP 3STEP 4STEP 5
Press Lock on each
remote to be
programmed.
Turn the
Ignition ON then
OFF 5x leaving it in
the ON position at
the 5th time.
The Red LED will turn ON. Turn the
Ignition OFF
to exit
programming.
The LED will
flash Green for each
remote programmed.
PROGRAMMING REMOTES
ANTENNA IN
RF CONN 1
BLACK - GROUND
RED - 12V+ (FUSED)
x1

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & DEI (4X10/5X10)
DATA AM
CONNECTIONS
PROGRAMMING PROGRAMMING REMOTES
1 . Follow programming guide to program remotes.
2 . There is no other programming required for operation.
PROGRAMMING
MODULE
DATA PROTOCOL : TYPE 4 - D2D
1 . Open “XK Loader”
2 . Choose Year / Make / Model
3 . Configure Module features
4 . Enable “SMART START” without RF
5 . Flash Firmware
RF CONN 2
STEP 1STEP 2STEP 3STEP 4STEP 5
Turn the
Ignition ON then
OFF 2x leaving it in
the ON position at
the 2nd time.
Press and release the
programming button on
the antenna 2 times.
The LED will flash
1x then 2x.
Turn the
Ignition OFF
to exit
programming.
Press and hold for 3 seconds
until LED flashes turns on
solid. Release programming
button.
Press the button on
each transmitter. LED
on antenna will flash 1x
for each remote
programmed.
DATA AM
2X
DATA AM
x1
2X
ANTENNA IN

TMTM
ultrastarters.com REV.09/20/18
INSTALLATION
GUIDE
MODEL DATA-AM & DEI (DBALL RSR FW.)
CONNECTIONS
PROGRAMMING
MODULE
DATA PROTOCOL : TYPE 4 - D2D
1 . Open “XK Loader”
2. Choose Year / Make / Model
3 . Configure Module features
4 . Enable “SMART START” without RF
5 . Flash Firmware
RF CONN 2
PROGRAMMING PROGRAMMING REMOTES
1 . Follow programming guide to program remotes to LoRa Data
2. There is no other programming required for operation.
STEP 1STEP 2STEP 3STEP 4STEP 5
Turn the
Ignition ON then
OFF 2x leaving it in
the ON position at
the 2nd time.
Press and release the
programming button on
the antenna 2 times.
The LED will flash 1x then
2x.
Turn the
Ignition OFF
to exit
programming.
Press and hold for 3 seconds
until LED flashes turns on solid.
Release programming
button.
Press the button on each
transmitter. LED on
antenna will flash 1x
for each remote
programmed.
DATA AM
2X
DATA AM
x1
2X
DATA AM
ANTENNA IN
