Dentsply Sirona REF 6497452 D3655 User manual

New as of:
Operating Instructions – 22 inch monitor
03.2017
SIVISION digital
English
=
REF 6497452 D3655
REF 6576248 D3678

Dentsply Sirona Table of contents
Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
D3655.201.01.02.02 3
Table of contents
1General information ................................................................................................................ 4
1.1 Dear Customer,............................................................................................................................................ 4
1.2 Contact data................................................................................................................................................. 4
1.3 General information about these operating instructions............................................................................... 5
1.4 Warranty and liability.................................................................................................................................... 5
1.5 Intended use ................................................................................................................................................ 5
1.6 Formats and symbols used.......................................................................................................................... 6
2Safety instructions .................................................................................................................. 7
2.1 Identification of the danger levels................................................................................................................. 7
2.2 Notes on the unit.......................................................................................................................................... 7
2.3 Maintenance and repair ............................................................................................................................... 7
2.4 Modifications and extensions to the unit ...................................................................................................... 8
2.5 Danger of electric shock............................................................................................................................... 8
2.6 Electromagnetic compatibility....................................................................................................................... 8
2.7 Disassembly / Installation............................................................................................................................. 8
3Unit description ....................................................................................................................... 9
3.1 Monitor versions........................................................................................................................................... 9
3.2 Standards/approvals .................................................................................................................................... 9
3.3 Technical data.............................................................................................................................................. 9

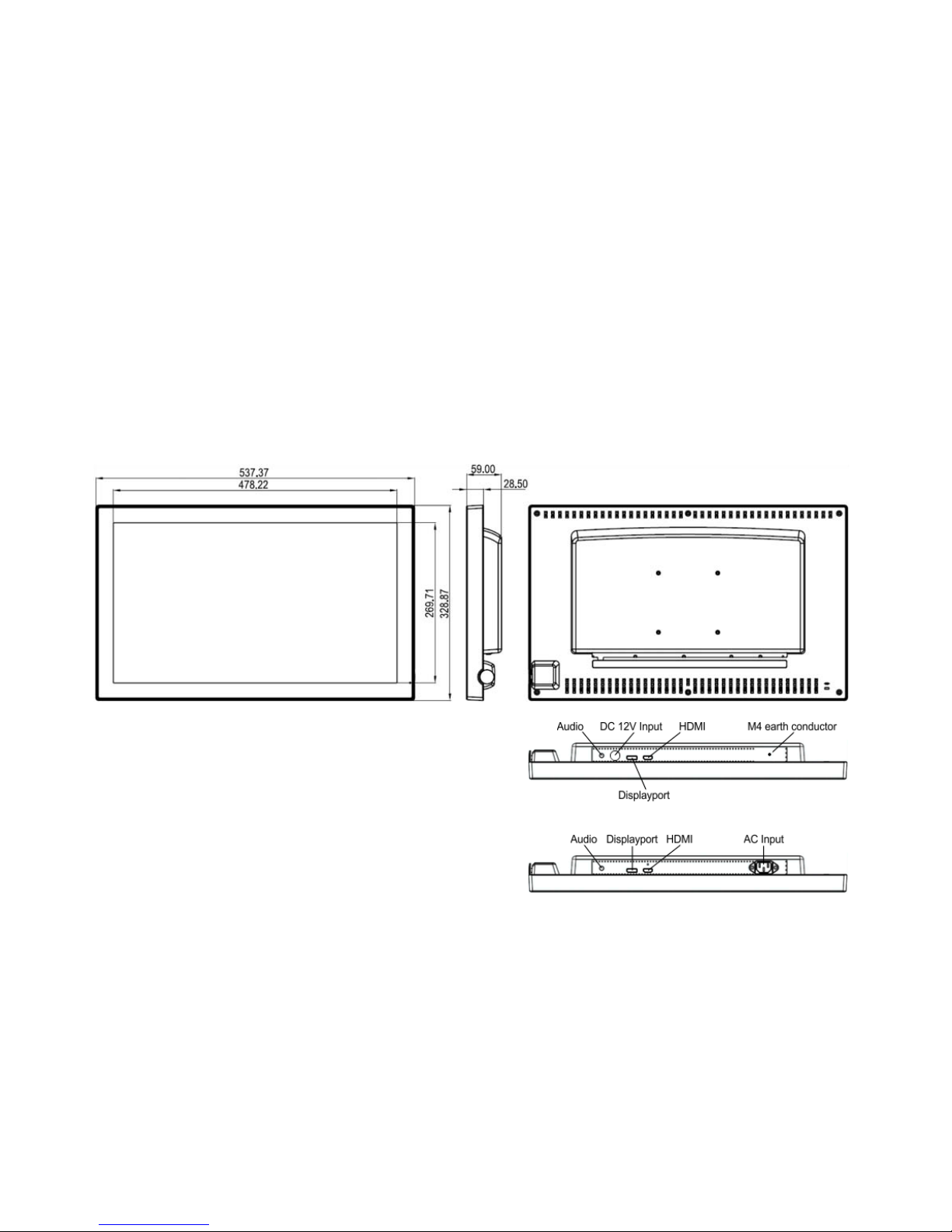

3.4 External dimensions landscape orientation.................................................................................................. 10
4Operation ................................................................................................................................ 11
4.1 Control and display elements....................................................................................................................... 11
4.2 Brightness .................................................................................................................................................... 12
4.3 Contrast........................................................................................................................................................ 12
4.4 Color Mode................................................................................................................................................... 12
4.5 Management ................................................................................................................................................ 13

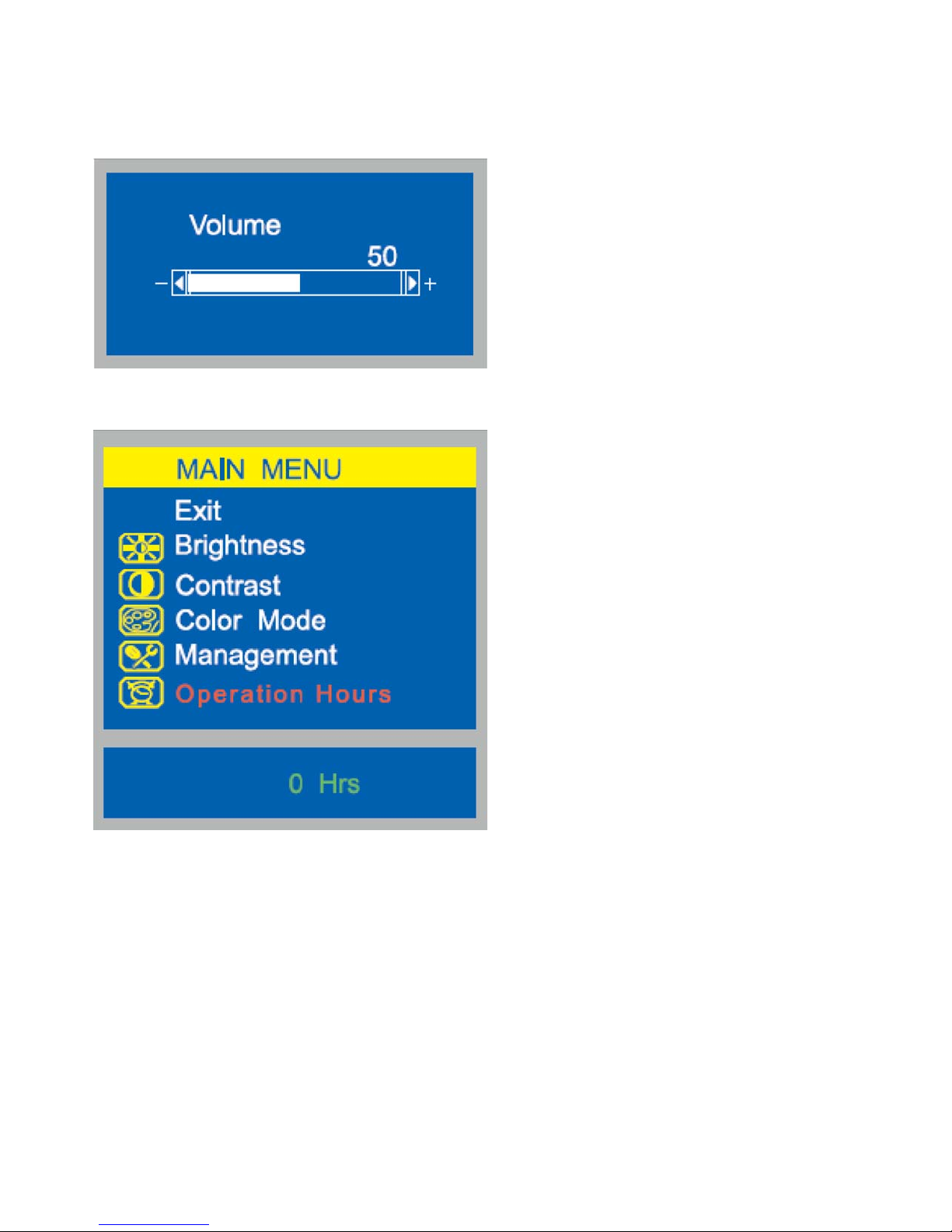

4.6 Operation Hours........................................................................................................................................... 18
5Care and cleaning instructions for the practice team.............................................................. 19
5.1 Care, cleaning agents, and disinfectants ..................................................................................................... 19
5.2 Care and cleaning of the monitor................................................................................................................. 19
6Disposal.................................................................................................................................. 20

1 General information Dentsply Sirona
1.1 Dear Customer, Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
4D3655.201.01.02.02
1General information
1.1 Dear Customer,
You have decided to equip your dental treatment center with the integrated
SIVISION digital communication system from Dentsply Sirona.
As such, you have made a significant step towards improving your patient
communication. You can therefore easily discuss the source situation, status
and the success of treatment with your patients. For indeed a picture says
more than a thousand words.
These operating instructions should be of good help to you before use and can
be used anytime later as reference material.
YourDentsply Sirona Team
1.2 Contact data
Customer Service Center In the event of technical queries, please use our online contact form at
www.sirona.com. In the navigation bar, select "CONTACT" / "Customer Service
Center"
and click on the "CONTACT FORM FOR TECHNICAL QUESTIONS"
button.
Manufacturer's address Sirona Dental Systems GmbH
Fabrikstrasse 31
64625 Bensheim
Germany
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
www.sirona.com

Dentsply Sirona 1 General information
Operating Instructions 22 inch monitor 1.3 General information about these operating instructions
65 38 297 D3655+D3678
D3655.201.01.02.02 5
1.3 General information about these operating
instructions
Observe the Operating Instructions
Observe the Operating Instructions Please familiarize yourself with the unit by reading through these Operating
Instructions before putting it into operation. It is essential that you comply with
the specified warning and safety information.
Keep documents safe, Online portal, Help
Keep documents safe Always keep the Operating Instructions handy in case you or another user
require(s) information at a later point in time. Save the Operating Instructions
on the PC or print them out.
If you sell the unit, make sure that the Operating Instructions are included with
it either as a hard copy or on an electronic storage device so that the new
owner can familiarize himself with its functions and the specified warning and
safety information.
Online portal for technical documents We have set up an online portal for the Technical Documents at
http://www.sirona.com/manuals. From here, you can download these
Operating Instructions along with other documents. Please complete the
online form if you would like a hard copy of a particular document. We will then
be happy to send you a printed copy free of charge.
Help If you continue to have difficulties despite having thoroughly studied the
Operating Instructions, please contact your dental depot.
1.4 Warranty and liability
In the event that the system owner fails to fulfill the obligation to perform
scheduled inspections and preventive maintenance activities or ignores error
messages, Sirona Dental Systems GmbH and its authorized dealers cannot
assume any liability for damages.
1.5 Intended use
The 22 inch DC monitor (REF 6497452 D3655) is designed for use with
Dentsply Sirona TENEO and SINIUS treatment centers, and 22 inch AC
monitor (REF 6576248 D3678) for use with the Dentsply Sirona INTEGO
treatment center.
It serves for viewing intraoral images and any other images resulting from the
PC connection.
This unit is not intended for operation in areas subject to explosion hazards.
IMPORTANT
If the monitor is used to diagnose X-ray images, special proof is required
from the user in terms of the ambient conditions specifying that the monitor
is suitable for diagnostic purposes. Please observe the relevant national
regulations.
The acceptance test can be performed using the SIDEXIS program, for
example. The document entitled "Digital radiography in dentistry, performing
acceptance testing on image display devices for diagnosing with SIDEXIS"
(REF 6088699) describes the procedure.

1 General information Dentsply Sirona
1.6 Formats and symbols used Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
6D3655.201.01.02.02
1.6 Formats and symbols used
The formats and symbols used in this document have the following meaning:
Prerequisite
1.First action step
2.Second action step
or
➢ Alternative action
Result
Prompts you to do something.
See "Formats and symbols used
[→6]"
Identifies a reference to another text
passage and specifies its page
number.
●List
Designates a list.
"Command/menu item" Indicates commands/menu items or
quotations.

Dentsply Sirona 2 Safety instructions
Operating Instructions 22 inch monitor 2.1 Identification of the danger levels
65 38 297 D3655+D3678
D3655.201.01.02.02 7
2Safety instructions
2.1 Identification of the danger levels
To prevent personal injury and material damage, please observe the warning
and safety information provided in these operating instructions. This
information is highlighted as follows:
Tip: Information on making work easier.
2.2 Notes on the unit
This symbol is located on the rating plate of the unit.
Meaning: The accompanying documents are available on the manufacturer's
homepage.
2.3 Maintenance and repair
As manufacturers of dental medical units and in the interest of the operational
safety of your system, we stress the importance of having maintenance and
repair of this unit performed only by ourselves or by agencies expressly
authorized by us. Furthermore, defective components must always be
replaced with original spare parts.
DANGER
An imminent danger that could result in serious injury or death.
WARNING
A potentially dangerous situation that could result in serious injury or
death.
CAUTION
A potentially dangerous situation that could result in slight bodily injury.
ATTENTION
A potentially harmful situation which could lead to damage of the product
or an object in its environment.
IMPORTANT
Application instructions and other important information.

2 Safety instructions Dentsply Sirona
2.4 Modifications and extensions to the unit Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
8D3655.201.01.02.02
2.4 Modifications and extensions to the unit
Modifications to this unit which might affect the safety of the system owner,
patients or other persons are prohibited by law.
For reasons of product safety, this product may be operated only with original
Dentsply Sirona accessories or third-party accessories expressly approved by
Dentsply Sirona. The user is responsible for any damage resulting from the
use of non-approved accessories.
If any units not approved by Dentsply Sirona are connected, they must comply
with the applicable standards, e.g.:
●IEC 60950-1 or IEC 62368-1 for IT equipment (e.g. PC) and
●IEC 60601-1 for medical devices.
The loudspeaker port of the monitor may only be connected to a device that
complies with the IEC 60950-1 or IEC 62368-1 (e.g. a PC) or IEC 60601-1
standard. Under no circumstances may it be connected to a stereo system or
similar.
If a system is created during the installation process, the requirements of IEC
60601-1, 3rd edition, must be fulfilled.
2.5 Danger of electric shock
To prevent the danger of fire or of electric shock, the product must not be
exposed to rain or moisture.
Please do not open or dismantle the unit, as otherwise there will be a risk of
electric shock.
2.6 Electromagnetic compatibility
Medical electrical equipment is subject to special precautionary measures with
regard to electromagnetic compatibility (EMC). It must be installed and
operated in compliance with the specifications provided for the respective
treatment center in the document "Installation Requirements".
Portable and mobile RF communications equipment may interfere with
medical electrical equipment. Therefore, the use of mobile wireless phones in
medical office or hospital environments must be prohibited.
To ensure safe operation from the standpoint of EMC, please observe the
chapter entitled "Electromagnetic compatibility" in the document "Installation
Requirements".
2.7 Disassembly / Installation
Follow the installation instructions
When dismantling and reinstalling the unit, proceed according to the
installation instructions for new installation in order to guarantee its proper
functioning and stability.
This unit must not be used in areas subject to explosion hazards.

Dentsply Sirona 3 Unit description
Operating Instructions 22 inch monitor 3.1 Monitor versions
65 38 297 D3655+D3678
D3655.201.01.02.02 9
3Unit description
3.1 Monitor versions
DC Monitor for operation with 12 V direct voltage at TENEO and SINIUS
treatment centers.
AC monitor for operation with alternating voltage at the INTEGO treatment
center.
3.2 Standards/approvals
The 22 inch DC monitor (REF 6497452 D3655) meets the requirements under
the following standards:
●IEC 60950-1 (information technology equipment, e.g. PC)
●IEC 60601-1-2 (Electromagnetic Compatibility)
The 22 inch AC monitor (REF 6576248 D3678) meets the requirements under
the following standards:
●IEC 62368-1 (information technology equipment, e.g. PC)
●IEC 60601-1-2 (Electromagnetic Compatibility)
3.3 Technical data
Model designation: 22 inch monitor
LCD display: 21.5 inchTFT color display, Normally Black
Display size: 476,6 (H) x 268,1 (V) mm
Pixel spacing: 0.248 (H) x 0.248 (V) mm
Display mode: VESA 1024 x 768 with 60 Hz
VESA 1280 x 1024with 60 Hz
VESA 1280 x 720with 60 Hz
VESA 1600 x 900with 60 Hz
VESA 1920 x 1080with 60 Hz
Maximum resolution: WUXGA 1920 x 1080 with 60 – 70 Hz
Pixel error rate: according to ISO 13406-2:2001 Class 2
Contrast ratio: > 350:1
Brightness: > 220 cd/m²
Display color: 16.7 M (6 bit + A-FRC)
Perspective: 178° (vertical/horizontal)
Loudspeakers: 2 x 2 W
Input signal: Stereo jack plug 3.5 mm
21 pin HDMI connector
20 pin DisplayPort connector
Dimensions: 537.7 mm (H) x 328.9 mm (W) x 59 mm (D)
Weight: approx. 7.0 kg
Operating mode: Continuous operation
Nominal voltage: DC Monitor (REF 6497452 D3655): 12 V DC
AC Monitor (REF 6576248 D3678):
100-240 V AC 50-60 Hz

3 Unit description Dentsply Sirona
3.4 External dimensions landscape orientation Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
10 D3655.201.01.02.02
3.4 External dimensions landscape orientation
Subject to changes to the technical data and appearance without prior
announcement within the scope of further development.
Rated current: DC Monitor (REF 6497452 D3655): 4.5 A
AC Monitor (REF 6576248 D3678): 1-0.5 A
Protection class: Class I unit – with protective conductor connector
Degree of protection
against ingress of water:
Ordinary equipment (IP X0 – without protection
against ingress of water)
Transport and storage
conditions:
Temperature: -20°C to +60°C
Relative humidity: 10% – 95%
Air pressure: 500 hPa – 1,060 hPa
Operating conditions: Ambient temperature: 10°C – 40°C
Relative humidity: 10% - 85%
without condensation
Air pressure: 700 hPa – 1,060 hPa
≤ 3000 m above sea level
DC Monitor
REF 6497452 D3655
AC Monitor
REF 6576248 D3678

Dentsply Sirona 4Operation
Operating Instructions 22 inch monitor 4.1 Control and display elements
65 38 297 D3655+D3678
D3655.201.01.02.02 11
4Operation
4.1 Control and display elements
2 1
No. Element Function
Control dial The control dial is a multifunctional control element that is located behind the LED display
on the right side of the fascia panel. It provides three options for activation: Rotate upwards,
Rotate downwards and Press as a button
Switching ON/OFF
Press the control dial to switch the unit on when switched off (the LED is off). To switch the
unit off, press the control dial and hold it down for at least one second until the LED goes off.
OSD control
With the monitor switched on (the green light is showing and an image is displayed on the
screen), press the control dial in order to activate the OSD. Once the OSD is active you can
adjust the monitor by using the control dial. Rotate downwards: Up/right, Maximize, Zoom
in, More Rotate upwards: Down/left, Minimize, Zoom out, Less Press: Execute, Confirm,
Save
LED display This LED display shows a green light when the device is switched on and the power cable is
connected properly. It changes to yellow if the monitor switches to power saving mode
(active off). Further information can be found in the "Power Management" section in the
Operating Instructions.
1
2

4 Operation Dentsply Sirona
4.2 Brightness Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
12 D3655.201.01.02.02
4.2 Brightness
For adapting the screen brightness. The greater the
value the brighter the screen and vice versa. Settings
between 0 and 100.
4.3 Contrast
For adapting the screen contrast. The greater the value
the greater the screen contrast and vice versa. Settings
between 0 and 100.
4.4 Color Mode
For adapting the colors.
The monitor's color temperature can be modified.
• Exit: Return to the Main Menu.
• Cool: Blueish-white for general and CAD/CAM
applications. 8000K is a value stipulated by the
manufacturer.
• Neutral: White, close to natural light, is generally used
in publishing. 6500K is a value stipulated by the
manufacturer; the user cannot modify the setting.
• Warm: Reddish-white, suitable above all for photo
editing. 5400K is a value stipulated by the
manufacturer; the user cannot modify the setting.
• 9300K: 9300K is a value stipulated by the
manufacturer (0.284 ±0.03, 0.299 ±0.03).
• 5800K: 5800K is a value stipulated by the
manufacturer (0.326 ±0.03, 0.335 ±0.03).

Dentsply Sirona 4Operation
Operating Instructions 22 inch monitor 4.5 Management
65 38 297 D3655+D3678
D3655.201.01.02.02 13
The color channels can be adjusted individually by
selecting User.
• Exit: Return to the Main Menu.
• Red: Adjusts Red and corresponding colors in the
range from 0 to 100.
• Green: Adjusts Green and corresponding colors in the
range from 0 to 100.
• Blue: Adjusts Blue and corresponding colors in the
range from 0 to 100.
4.5 Management
• Exit: Return to the Main Menu.
4.5.1 Scaling
You can adjust the following elements for image scaling
in the main channel with this option.
• Exit: Return to the Main Menu.

4 Operation Dentsply Sirona
4.5 Management Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
14 D3655.201.01.02.02

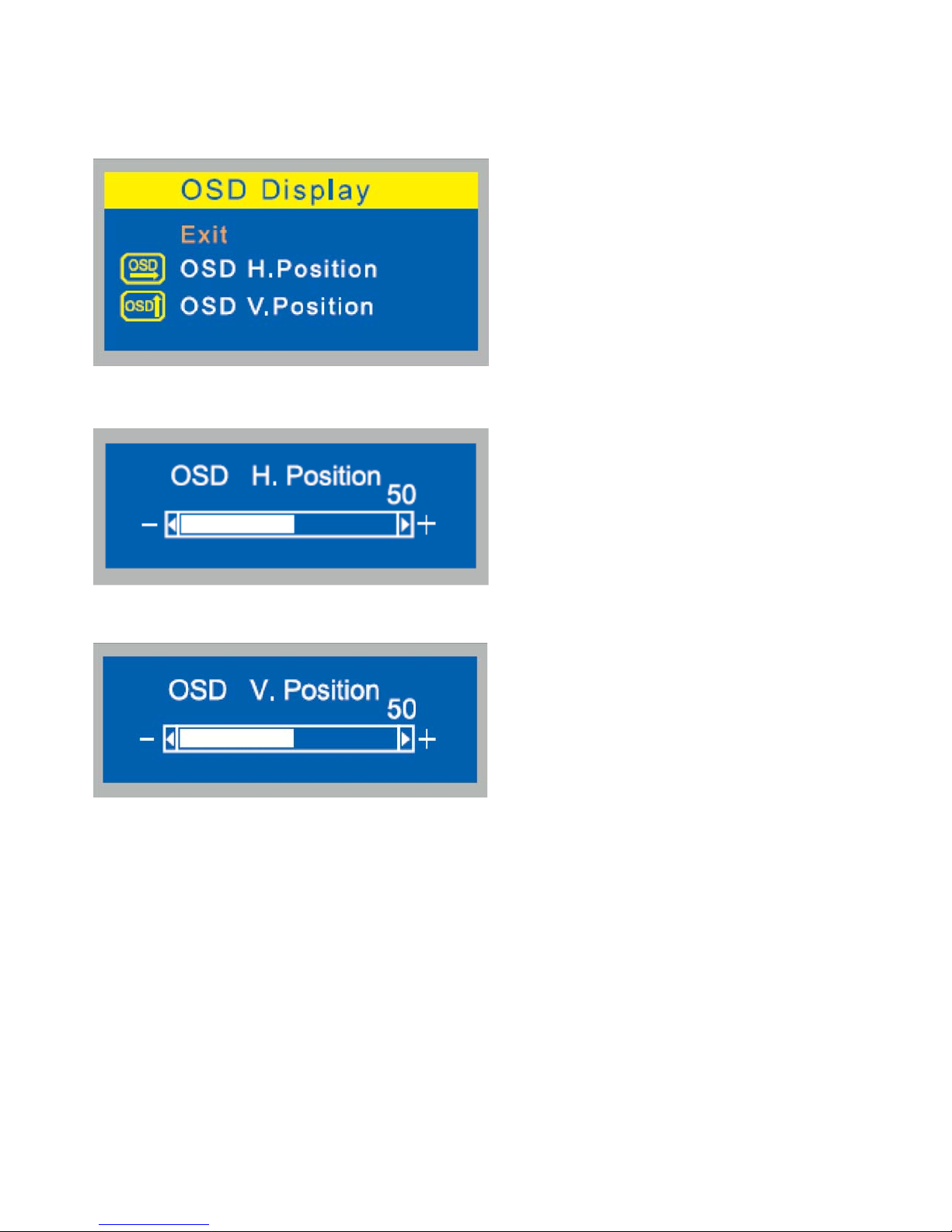

4.5.2 OSD Display
• Exit: Return to the Main Menu.
4.5.2.1 OSD H. Position
For adjusting the horizontal position of the OSD. If you
rotate the control dial clockwise then the OSD moves
right and vice versa.
4.5.2.2 OSD V. Position
For adjusting the vertical position of the OSD. If you
rotate the control dial clockwise then the OSD moves up
and vice versa.

Dentsply Sirona 4Operation
Operating Instructions 22 inch monitor 4.5 Management
65 38 297 D3655+D3678
D3655.201.01.02.02 15

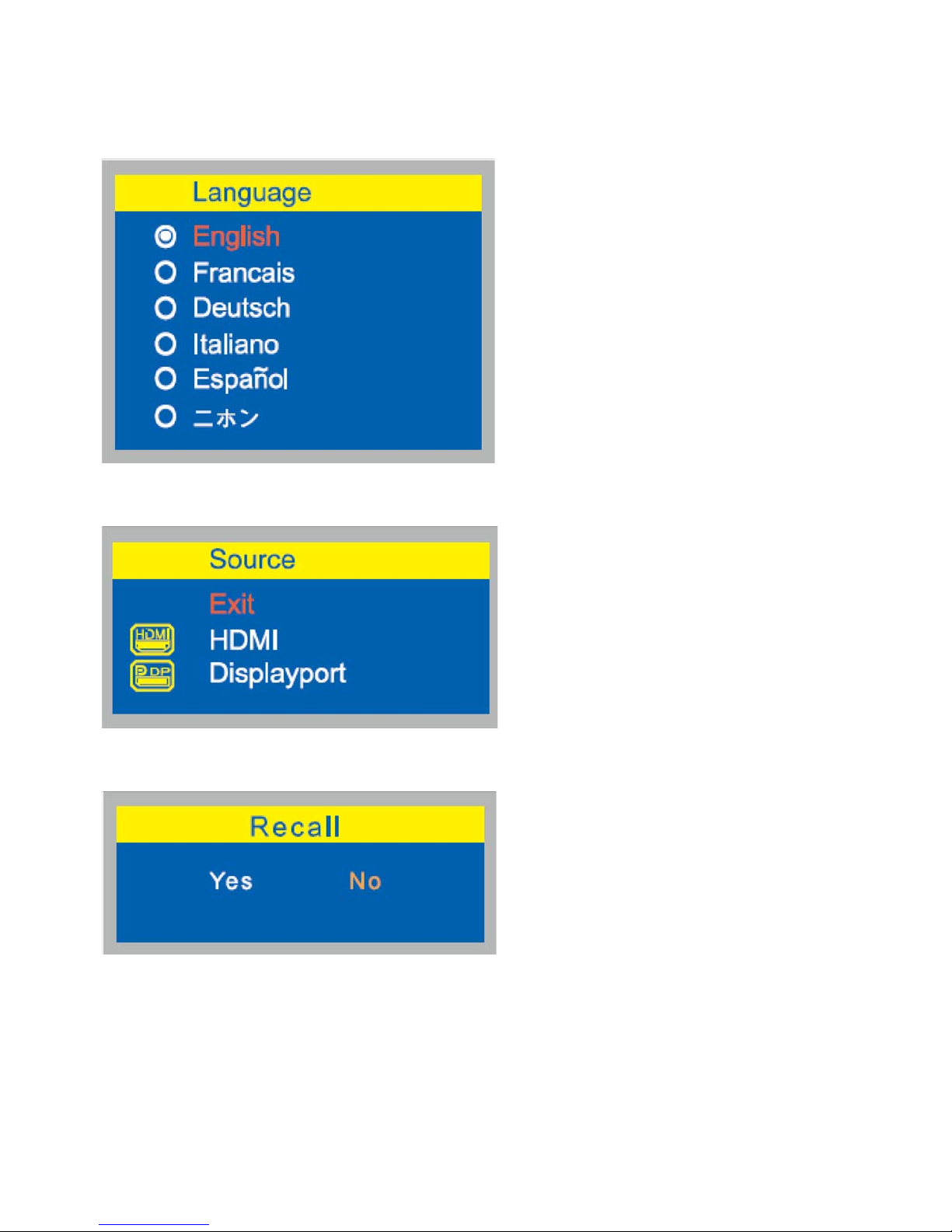

4.5.3 Language
You can set the desired language with this option.
• English: Displays the OSD in English.
• Français: Displays the OSD in French.
• Deutsch: Displays the OSD in German.
• Español: Displays the OSD in Spanish.
• Italiano: Displays the OSD in Italian.
• Japanese: Displays the OSD in Japanese.
4.5.4 Source
You can choose manually between HDMI and Display
Port with this option in order to enable automatic
detection of input sources.
• Exit: Return to the Main Menu.
• HDMI: Displays the signal from the HDMI connection.
• Display port: Displays the signal from the Display Port
connection.
4.5.5 Recall
For restoring settings such as the display position and
automatic adjustment to the factory settings.

4 Operation Dentsply Sirona
4.5 Management Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
16 D3655.201.01.02.02

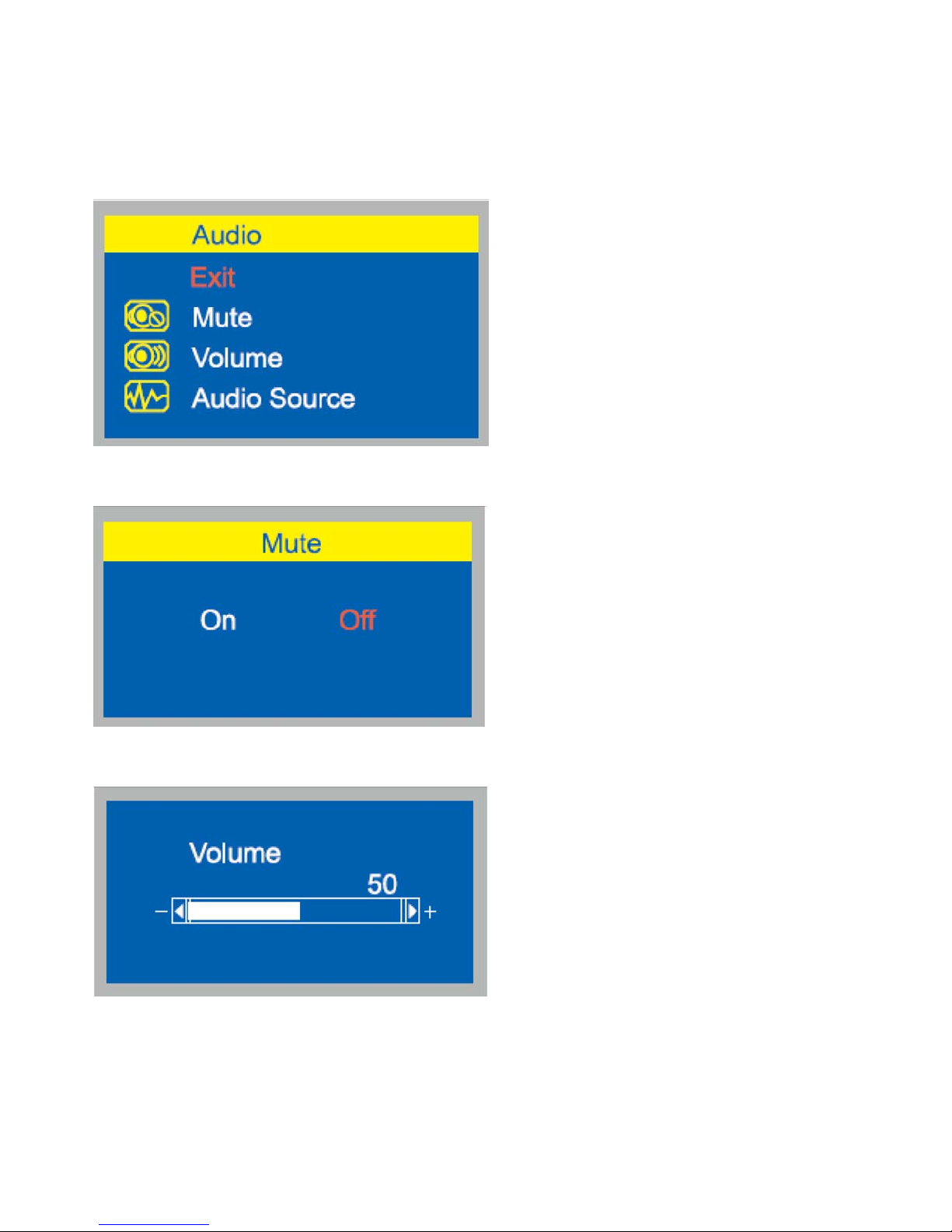

4.5.6 Audio
4.5.6.1 Audio (HDMI)
The following menu is located under "HDMI Source".
• Exit: Return to the Main Menu.
4.5.6.1.1 Mute
For controlling the monitor sound.
• ON: Switched to mute
• OFF: Mute off
4.5.6.1.2 Volume
For adjusting the volume in the range from 0 to 100.

Dentsply Sirona 4Operation
Operating Instructions 22 inch monitor 4.5 Management
65 38 297 D3655+D3678
D3655.201.01.02.02 17

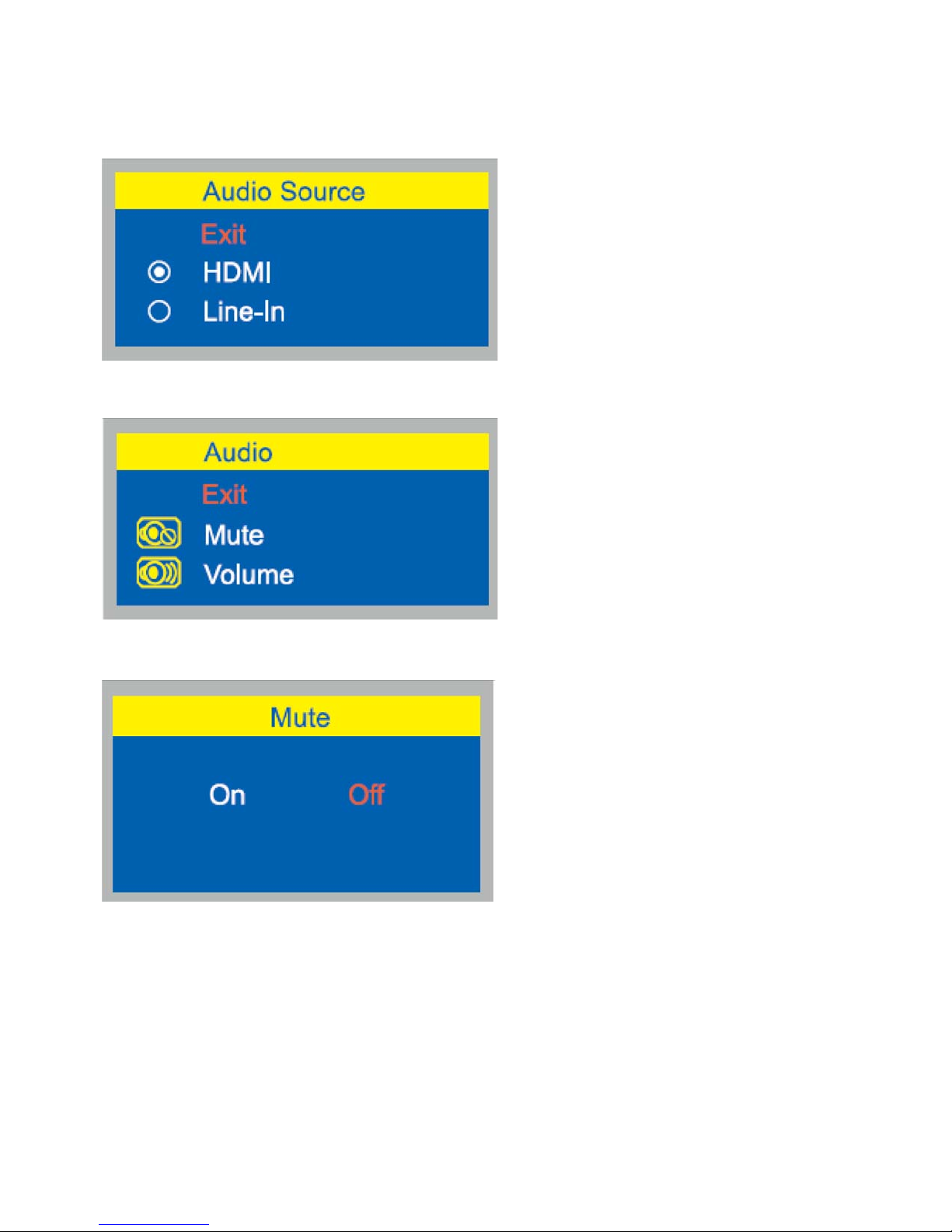

4.5.6.1.3 Audio Source
You can choose the audio source manually as HDMI or
Line-In with this option.
• Exit: Return to the Main Menu.
4.5.6.2 Audio (Display port)
The following menu is located under "Display port
Source".
• Exit: Return to the Main Menu.
4.5.6.2.1 Mute
For controlling the monitor sound.
• ON: Switched to mute
• OFF: Mute off

4 Operation Dentsply Sirona
4.6 Operation Hours Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
18 D3655.201.01.02.02
4.5.6.2.2 Volume
For adjusting the volume in the range from 0 to 100.
4.6 Operation Hours
For displaying the operating time in hours.
• Exit: Return to the Main Menu.

Dentsply Sirona 5 Care and cleaning instructions for the practice team
Operating Instructions 22 inch monitor 5.1 Care, cleaning agents, and disinfectants
65 38 297 D3655+D3678
D3655.201.01.02.02 19
5Care and cleaning instructions for the practice team
5.1 Care, cleaning agents, and
disinfectants
A continuously updated list of approved agents can be
downloaded from the Internet at "www.sirona.com". To
access the online portal for technical documentation,
follow the "SERVICE" / "Technical Documentation"
menu points in the navigation bar. The portal can also be
accessed directly via the following address: http://
www.sirona.com/manuals. Click on the "General
Documents" menu point and then open the "Care,
cleaning agents, and disinfectants" document.
If you do not have access to the Internet, please contact
your dental depot to order the list (REF 59 70 905).
5.2 Care and cleaning of the monitor
Cleaning
Remove dirt and disinfectant residues regularly using a
mild, commercially-available cleaning agent.
Do not use any dyed cloths for cleaning, since they may
cause discoloration of the surfaces, e.g. in combination
with disinfectants.
Disinfecting
The glass screen and housing of the monitor can be
disinfected by wiping them with a soft cloth.
ATTENTION
Use only care, cleaning and disinfecting agents
approved by Dentsply Sirona.
ATTENTION
Never use corrosive cleaning agents, wax or solvents.
ATTENTION
Use only cleaning agents which have been approved
by Dentsply Sirona (see "Care, cleaning agents, and
disinfectants" above).
ATTENTION
Do not spray disinfectants or cleaning agents on the
monitor.

6Disposal Dentsply Sirona
5.2 Care and cleaning of the monitor Operating Instructions 22 inch monitor
65 38 297 D3655+D3678
20 D3655.201.01.02.02
6Disposal
Environmentally sound disposal
In accordance with Directive 2012/19/EU and national
disposal regulations regarding old electrical and
electronic devices, please be advised that such items
must be disposed of in a special way within the
European Union (EU). These regulations require
environmental friendly usage/disposal of old electrical
and electronic devices. Such items must not be
disposed of as domestic refuse. This has been
expressed using the icon of the "crossed out trash can"
since March 24, 2006, amongst other methods.
Disposal procedure
We feel responsible for our products from the first idea
to their disposal. For this reason, we give you an option
to return our old electronic and electrical devices.
If you wish to dispose of your devices, please proceed as
follows:
In Germany
To initiate return of the electrical device, please send a
disposal request to enretec GmbH. You have the
following options here:
• Use the "Returning an electrical device" button under
the "eom" menu item on the enretec GmbH homepage
(www.enretec.de)).
• Alternatively, you can also contact enretec GmbH
directly.
enretec GmbH
Kanalstrasse 17
16727 Velten
Tel.: [phone]
E-mail: [e-mail]
In accordance with the national disposal regulations
regarding old electrical and electronic devices
(ElektroG), as the manufacturer, we assume the costs
for disposing of the electrical and electronic devices in
question. Disassembly, transport and packaging costs
shall be borne by the owner / operator.
Prior to disassembly / disposal of the product, it must be
fully prepared (cleaned / disinfected / sterilized).
If your unit is not permanently installed, it will be
collected from the practice. If it is permanently installed,
it will be picked up curbside at your address by
appointment.
Other countries
For country-specific information on disposal, contact
your local dental dealers.
