Deteknix Wire-Free W3 User manual
Wire-Free
W3 W6 WA WR
Wireless Headphone Kit
Deteknix Inc | 1211 Center Court Dr. Suite 103 Covina, CA U.S.A. 91724
TECHNICIAN SPECIFICATION
Headphone
Transducer type............................Dynamic
Operating principle .....................Closed
Frequency response.....................20–20,000Hz
Nominal impedance....................32Ω
Sound pressure level ..................111dB
Power handling capacity .............100 mW
Max. sound pressure level .......... 131 dB
Sound coupling to the ear ..........Supra-aural
Headband pressure ....................2.5N
Wireless technology....................Digital 2.4GHz
Paring type..................................Manually digital
Weight.........................................115g
Charging.....................................USB 2.0
Power..........................................3.7VDC
Current........................................40mA
Battery ........................................300mAh Li-Poly
Transmitting power......................5dbm
Transmitter / Receiver
Transmitter Cable......................... 25cm straight+5cm coil; 5cm straight(WR)
Connector......................................W3(3.5mm) W6(6.35mm) WA(AT pro)
Attaching.......................................Clip on rod or hang on.
Protection level..............................Indoor or outdoor using splash-proof
Control...........................................One touch button; three buttons (WR )
Weight ..........................................33g
premium
metal detector
accessories
d.

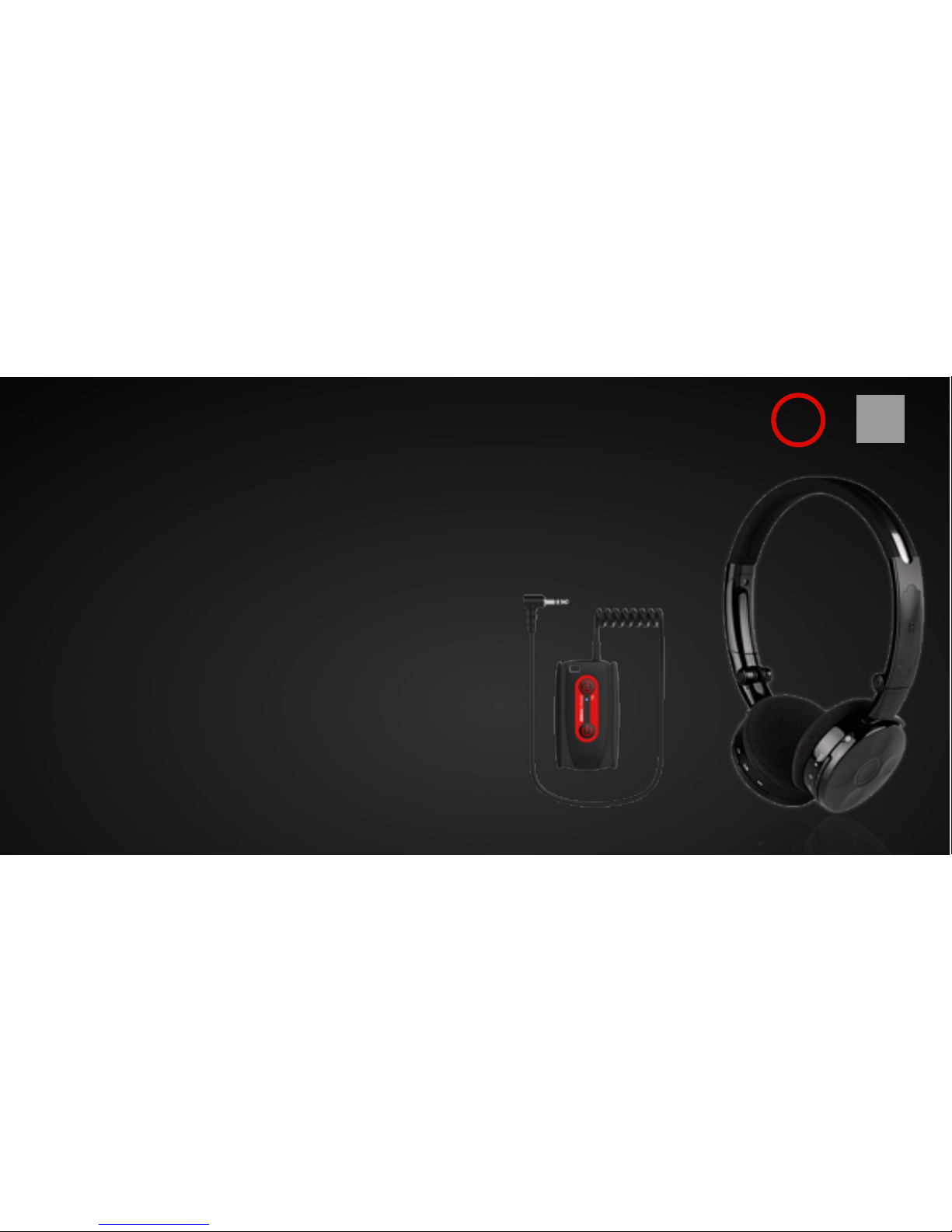

*W3 Wireless Headphone Kit as demonstrated
Congratulations on your purchase of this Wire-Free headphone
kit. Before using your headphones for the first time, please take
a moment to carefully read the following information.
SAFETY INSTRUCTIONS
•When wearing the headphones, make sure the volume is turned to
minimum. Only adjust the volume after putting the headphones on.
Do not turn the volume up too loud. You could cause permanent
damage to your hearing.
•Danger to life! Headphones dramatically reduce your ability to hear
ambient noise. Using headphones while in road traffic is potentially
very dangerous and is therefore prohibited by law.Also, please make
sure that you do not use your headphones when in the vicinity of
possibly dangerous machines and tools.
•This product’s wireless 2.4G technology has a transmission range of
approx. 10 meters, but interfering obstacles (people, metal objects,
walls, etc.), other radio signals, and other factors may affect the
transmission range or even loss connection.
IN THE BOX
One lite headphone
One transmitter unit
One USB 2.0 charger cable
Two elastic bands, one adapter , one soft carry case .
IMPORTANT-PLEASE READ
Please read this operation manual thoroughly before using.
Fully recharge the batteries before using.
Do not expose the devices under direct sunshine.
Do not immerse the devices in any liquid.
Do not pull on cables to unplug transmitter.
1.1 HEADPHONE ADJUSTMENT
Before wearing the Wire-Free lite headphone for the first time
you should adjust it properly to achieve the best sound and
ambient noise attenuation.
Unfold the headphone pad as the figure 1. and 2. Select the
appropriate lock-in position on both sides of the headband as
figure 3.The pads will adjust the angle automatically according to
your head size.
1
2 3
1.2 POWER ON TRANSMITTER
Make sure the transmitter is fully charged and press the power
button for 1 second.The LED indicator will start to flash.
1.4 PARING
Each set of Wire-Free have been pre-paired before packing. If you
need pair them again please place the headphone to within 10cm
of the transmitter, press and release the power button of the
headphone quickly. The LED indicator of the transmitter will
change to steady condition.
1.3 POWER ON HEADPHONE
Make sure the headphones are fully charged and press the power
button(between two volume buttons) for 1 second.The LED
indicator will start to flash.
deteknix !
1.5 TRANSMITTER ATTCHMENT
We provide two methods to attach the transmitter to your detector.
For headphone jack on control box, you can clip it on the rod by elastic
band. For headphone jack under the arm-rest, you can paste the iron
piece on flat place and attach the transmitter on it.
Now you have turned your detector into wireless!
2.1 TRANSMITTER RECHARGING
You can recharge it thru smartphone charger(recommend)
laptop computer USB port, or power bank for emergency.
Plug the USB side into the port and insert the microUSB head
on the transmitter’s charging port.
The LED indicator will start to flash. It will turn off when fully
charged.
2.2 HEADPHONE RECHARGING
You can also charge the headphone through the USB 2.0 cable
by computer, smartphone wall charger(recommend) or
portable power bank. The green light will turns off when fully
charged. It will takes about 2 to 3 hours .
1.6 VOLUME CONTROL
If the detector’s audio is too laud or low, you can also adjust the
headphone volume by press the volume buttons.
You can also adjust the receiver(WA) volume by the buttons on the
touch pad.
This manual suits for next models
3
