DGSI TR-974 User manual

SRX-R PUMPS
Models TR-974 & TR-976
Quick Start Guide V1.1
Unpacking and Preparation
To remove the pump, separate the packing tape
and four staples from the sides of the box, then
pull apart the two box halves.
IMPORTANT! You will need to first remove
the internal packaging before the pump can
be used. A tag will be attached to the pump
alerting you of this.
2. Remove the bottom assembly.
Hose Barb Sizes
Warning: All tubing or hoses attached to the pump must be secured with
an appropriately sized hose clamp.
Additional Info.
Additional drawings and parts lists can be found at www.DGSI.info
Air Inlet Push-To-Connect
¼ in O.D. Tubing.
Exhaust Hose Barb
3/8 in I.D. Buna-N Fluid Discharge Hose Barb
¾ in I.D. Buna-N Hose
The quick-link
chain loop is
for securing
the pump to
the restraining
cable.
When calling for
parts or service,
please include the
serial number of
y
our
p
um
p
.
Durham Geo Slope Indicator
2175 West Park Court
Stone Mountain, GA 30087
USA
+1.770.465.7557
Fax: [phone]
e-mail: [e-mail]
www.DurhamGeo.com
Pn # 603392
1. Remove the two bolts from the
bottom assembly using either a ½ in
socket or adjustable wrench.

Maintenance
Internal foam packaging
3. Now remove the pump body by simultaneously twisting the valve assembly
and pulling at the same time until the pump and the body easily separate.
4. Once separated, remove the upper-and-lower protective foam packaging.
To reassemble the pump, follow the above steps in reverse order.
The control rod and
float can now be
removed for
cleaning. Remove
the barbed fittings to
clean the exhaust
and air-inlet valves
from an
y
debris.
Additional drawings and parts lists can be found at www.DGSI.info
To clean the internal components
of the pump, remove the housing
as outlined in steps 1 – 3 in Packing
and Unpacking, then remove the
cotter and clevis pins from the
bottom assembly before sliding
the “T” assembly from the center
discharge tube.
Note: This packaging is provided to protect both the float and control rod from
damage during shipping. DGSI recommends that you save this packaging as
well as the box for any future shipping requirements.
To reassemble the pump, follow the above steps in reverse order. When
installing the bottom plug, it is recommended that you stand the pump upside-
down on the discharge hose-barb, then tighten the two bolts to pull the O-ring
seals into place.

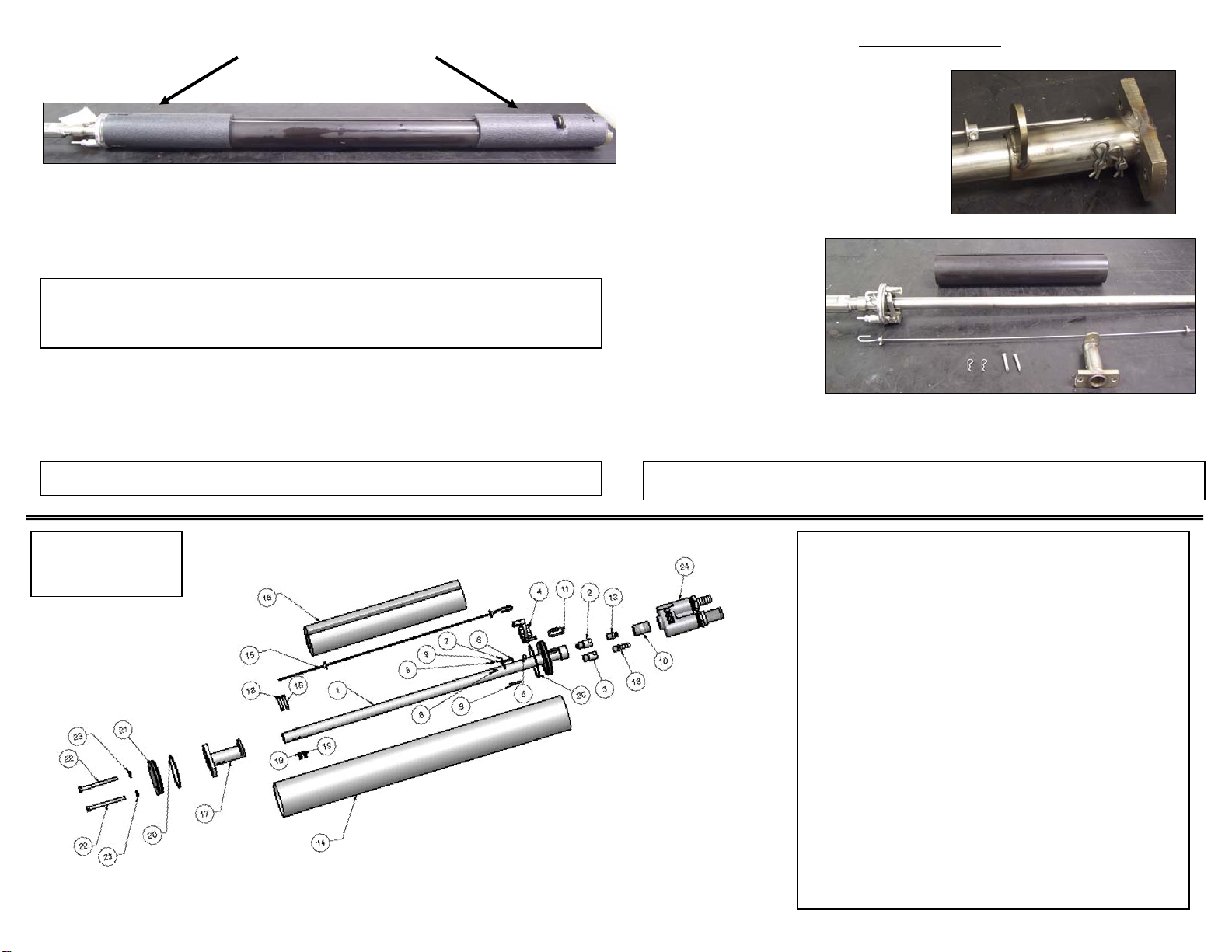

No. Qty Part # Description 1* 1 603221 Pump Head Weldment, Short 2 1 603012 Air Valve Cartridge 3 1 603026 Exhaust Valve Assembly 4 1 603024 Air / Exhaust Valve Assembly 5 1 601968 Magnet, .375” Dia. X .25” Thick HT 6 1 2404010V O-Ring, 010 V 7 1 603003 Magnet Cover Plate 8 2 603004 Cap Screw, 6 – 32 x ¼” Long 9 2 603015 Cap Screw 8 x 32 x 1” S.S. 10 1 603017 Close Nipple ¾” S.S. 11 1 918521 Quick Link 5/32” S.S. 12 1 2151167 ¼” Tube x ¼” MNPT Tube Fitting 13 1 301040 Brass Hose Barb, 3/8 Barb x ¼” MNPT
14* 1 603220 Pump Body, Short 15 1 603234 Control Rod Assembly, Short 16 1 602874 Float Nitrile 17* 1 602992 Bottom T Assembly 18 2 603020 Pin, Clevis, ¼” x 1 7/16” Long S.S. 19 2 603182 Hairpin Cotter Pin 20 2 2404151V O-Ring, 151 V 21 1 603143 Closed Bottom 22 2 603013 Bolt, 5/16” x 3 ¾” Long 23 2 603022 Sealing Washer, 5/16” S.S. 24 1 603245 Top Inlet Valve Assembly
Note: Some parts
listed are sold
onl
y
as a kit.
Warning: Any further disassembly should be carried out by DGSI.
* Parts for model TR-976 differ from items listed. For complete parts list, visit www.durhamgeo.com.
