Directed Video VC2050 Quick start guide

Video Cassette Recorder
with TV Tuner
MODEL VC2050
OWNER’S GUIDE
INSTALLATION GUIDE

© 2001 Directed Electronics, Inc. 3
For a period of ONE YEAR from the date of purchase,
Directed Electronics, Inc. ("DIRECTED") promises to the
original purchaser to repair or replace, free of cost,
with a comparable reconditioned model any VIDEO
CASSETTE RECORDER (hereafter the "UNIT”), which
prove to be defective in workmanship or material
defect under normal use, provided the following condi-
tions are met: the unit was purchased and installed by
an authorized DIRECTED dealer; the unit remains in the
vehicle in which the unit was originally installed; and
the unit is returned to DIRECTED. The unit in question
must be returned to DIRECTED postage paid and must
be accompanied by a clear, legible copy of the bill of
sale bearing the following information:
■Date of Purchase
■Your Full name and address
■Authorized dealer's company name and address
■Type of unit installed
■Year, make, model, and color of the automobile
■Automobile license number
■Vehicle Identification number
■Installation receipts
All components other than the unit, including and
without limitation the remote control, cables and
installation accessories, carry a 60-day warranty from
the date of purchase of the same.
This warranty is automatically void if the unit's date
code or serial number is defaced, missing or altered;
the unit has been modified or used in a manner con-
trary to its intended purpose; or the unit has been
damaged by accident, unreasonable use, neglect,
improper service, installation or other causes not aris-
ing out of defects in materials or construction. This
warranty is nontransferable and does not apply to any
until that has been modified or used in a manner con-
trary to its intended purpose and does not cover bat-
teries. This warranty does not cover labor costs for
the removal, diagnosis, troubleshooting or reinstalla-
tion of the unit. For service on an out-of-warranty
product a flat fate fee by model is charged. Contact
your authorized dealer to obtain the service charge for
your unit.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL
WARRANTIES, INCLUDING BUT NOT LIMITED TO
EXPRESS WARRANTY, IMPLIED WARRANTY, WARRAN-
TY OF MERCHANTABILITY, FITNESS FOR PARTICULAR
PURPOSE AND WARRANTY OF NON-INFRINGEMENT OF
INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED;
AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,
OBLIGATION OR LIABILITY IN CONNECTION WITH ITS
PRODUCTS. DIRECTED DISCLAIMS AND HAS
ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS
OF THIRD PARTIES INCLUDING DEALERS OR
INSTALLERS. IN THE EVENT OF A CLAIM OR A DIS-
PUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE
PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE
STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND
APPLICABLE FEDERAL LAWS SHALL APPLY AND GOV-
ERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER
ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY
LIMITED TO THE AUTHORIZED DIRECTED DEALER'S
PURCHASE PRICE OF THE UNIT. DIRECTED SHALL NOT
BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO, ANY CONSEQUEN-
TIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES
FOR THE LOSS OF TIME, LOSS OF EARNINGS, COM-
MERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE
MANUFACTURER DOES OFFER A LIMITED WARRANTY
TO REPLACE OR REPAIR THE CONTROL MODULE AS
DESCRIBED ABOVE. Some states do not allow limita-
tions on how long an implied warranty will last or the
exclusion or limitation of incidental or consequential
damages. This warranty gives you specific legal rights
and you may also have other rights that vary from State
to State. DIRECTED does not and has not authorized
any person or entity to create for it any other obliga-
tion, promise, duty or obligation in connection with
these UNITS.
Limited One-Year Warranty

4© 2001 Directed Electronics, Inc.
Safety Instructions
This symbol indicates the pres-
ence of high voltage in the unit. It
is dangerous to make any kind of
contact with any inside part of this
product.
This symbol alerts you that impor-
tant literature concerning opera-
tion and maintenance has been
included with this product.
CAUTION
TO RED CE THE RISK
OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO SER
SERVICEABLE PARTS
INSIDE. REFER SERVICING
TO Q ALIFIED PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: FCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS
EQUIPMENT MAY VOID THE USER'S AUTHORITY TO OPERATE IT.
IMPORTANT: One Federal Court has held that unauthorized recording of copyrighted TV programs is an
infringement of U.S. copyright laws.
Certain Canadian programs may be copyrighted and any unauthorized recording in whole
or in part may be a violation of these rights.
To prevent damage that may result in fire or electric shock hazard, do not expose
this appliance to rain or moisture.
Important Safeguards
1. Read Instructions - Read all safety and
operating instructions before operating
the product.
2. Retain Instructions - Retain all safety
and operating instructions for future refer-
ence.
3. Heed Warnings - Adhere to all warnings
on the product and in the operating
instructions.
4. Follow Instructions - Follow all operating
and usage instructions.
5. Cleaning - Use dry cloth only; do not use
liquid or aerosol cleaners.
6. Attachments and Connections - Do not
use attachments or make any connections
other than those recommended by the
manufacturer.
7. Ventilation - Slots and openings in the
cabinet are provided for ventilation. To
ensure reliable operation of the product
and to protect against overheating, these
openings must not be blocked or covered.
8. Power Cord Wiring Harness - The power
cord should be routed in such a way that it
is not likely to be stepped on, have objects
placed on it, shorted to ground, or hinder
operation of the vehicle in any way.

© 2001 Directed Electronics, Inc. 5
9. Unit Placement - The unit should be posi-
tioned on a flat, sturdy surface and
secured in such a way that it cannot move
freely about the passenger compartment or
hinder operation of the vehicle in any way.
10. Object and Liquid Entry - Never insert
objects (other than video cassette tapes,
as instructed) into this product. Electric
shock, fire, or electric short can occur.
Never spill/pour liquid of any kind
onto/into this product.
11. Servicing - Do not attempt to service this
product yourself; opening or removing the
covers may expose you to dangerous elec-
tric voltage or other hazards. Refer all
servicing to qualified service personnel.
12. Damage Requiring Service - Unplug this
product from the power source and refer to
qualified service personnel for the following:
a. Liquid has spilled into or objects
have been dropped onto the product.
b. The product has been exposed to rain
or water.
c. The product does not operate
normally according to the operating
instructions. Adjust only those
controls covered by the operating
instructions, as improper adjustment
of other controls can cause damage
and can require extensive repair work
by a qualified technician to restore
normal operation.
d. The product has been dropped or
damaged in any way.
e. The product exhibits a distinct
change in performance.
13. Repairs - If the unit stops working for any
reason, discontinue use immediately and
consult with your Directed retailer about
any necessary repairs.
14. Heat - The product should be located away
from heat source devices such as radiators,
heater vents, or other products (including
amplifiers) that produce heat.
Important Information
FCC NOTICE
This device complies with Part 15 of FCC rules.
Operation is subject to the following two condi-
tions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user's authority to operate
this device.
YOUR WARRANTY
Your warranty registration must be completely
filled out and returned within 10 days of pur-
chase. Your product warranty will not be vali-
dated if your warranty registration is not
returned. Make sure you receive the warranty
registration from your dealer. It is also neces-
sary to keep your proof of purchase, which
reflects that the product was installed by an au-
thorized dealer.

6© 2001 Directed Electronics, Inc.
Table of Contents
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Rear Panel/TV Connection/Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Remote Control Battery Install/Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Playing a Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Manual Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Videocassette Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
About Videocassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using Special Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Forward and Reverse Picture Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Forward and Reverse Jet Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Still and Frame Advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Slow Motion Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Video Head Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setting the Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
On-Screen Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Record Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Auto Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
VCR Output CH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

© 2001 Directed Electronics, Inc. 7
FEATURES
■Hi-Fi stereo.
■Audio/Video inputs.
■Digital auto Tracking.
■Built-in HQ (High Quality) video circuitry.
■Frame advance and slow motion.
■DLC (Diamond Like Carbon) Head - special
alloy reduces head wear and increases
durability.
■Infrared remote control.
■On-screen display.
■Built-in 125-channel TV tuner.
■Remote Ejection - tape can be ejected
using the remote control.
ACCESSORIES
■VCR.
■Remote infrared (IR) sensor (Optional part).
■Antenna.
■Remote control.
■AA Batteries for remote.
■Power harness.
■Mounting brackets (2).
■Mounting hardware.
■4 machine screws.
■4 sheet metal screws.
■Sticker sheet to cover unused holes.
Features
Power
Harness
VCR
Batteries
(Two AA)
Remote
Control
POWER TV/VCR
REC MEN
II
STILL/SLOW
CH/TRK
ENTER DISPLAY
SHIFT
POWER REC SLP HEAT
DEW
R
POWER
REW PLAY FFEJECT STOP REC
Antenna

8© 2001 Directed Electronics, Inc.
1. POWER - Turns VCR on and off.
2. Cassette Compartment - For cassette
insertion/removal.
3. EJECT - Ejects cassette.
4. STOP - Stops tape movement.
5. REC - Starts recording.
6. Power Indicator Light
7. Record Indicator Light
8. SP/SLP Indicator - Lit when VCR is record-
ing in SLP mode.
9. DEW/HEAT Indicator - When DEW/HEAT
indicator is blinking and “DEW/HEAT” is
displayed on the TV screen, which shows
the VCR is under a high moist circumstance
or VCR is overheated, the VCR will not be
able to work. Then the VCR will turn to
standby and dry itself. When moisture dis-
appears, the VCR will work normally.
10. Remote Sensor Eye
11. REW -Rewinds tape from stop mode.
12. PLAY - Press to begin playback.
13. FF - Fast forwards tape from stop mode.
14. Video Input
15. Audio Input (left)
16. Audio Input (right)
Front Panel
Installation
The VCR can be mounted vertically, horizontally,
or at any angle using the optional mounting
brackets. The VCR cannot be mounted upside
down or on its side. The VCR is sensitive to dirt
and other contaminants. Do not mount the unit
in direct sunlight, on the floor near heavy traf-
fic areas, or where fluids are likely to spill on or
in the unit. The VCR is for (-) 12 volt ground
vehicles only.
110
9
8
7
65432 151411 1312 16

© 2001 Directed Electronics, Inc. 9
1. VIDEO OUT - Connects to TV video input.
2. VIDEO IN - Connects to a second VCR for
recording or video camera for recording.
3. AUDIO OUT - Connects to receiver or
amplifier input.
4. AUDIO IN - Connects to a second VCR or
an audio source to record audio.
5. Audio Output - Additional audio output.
6. DC (+) 12 VOLT INPUT - To provide power
for the VCR, connect the small plug end of
the power harness on the back of the VCR.
RED: This wire connects to a circuit
that turns on and off with the key.
YELLOW: This wire connects to the battery
or a constant power source.
BLACK: This wire connects to a good
factory ground wire or a metal
part of the chassis.
7. REMOTE SENSOR INPUT - The optional
remote infrared (IR) sensor eye allows you
to access all the features on the remote
control when the VCR is mounted in anoth-
er location away from the remote. To install
the remote IR sensor, simply plug it into
the input next to the power plug. Run the
sensor cable to the front of the vehicle and
mount the sensor in a convenient location
so that the remote control can be easily
pointed toward the remote sensor eye.
8. IN FROM ANT - Use to input cable or
antenna signal.
9. OUT TO TV - Use to output VCR signal to
TV or monitor.
Note: Route the wires so they can not be pinched, punc-
tured, or chaffed against bare metal. Always fuse
appropriately at the source.
Rear Panel/TV Connection/Power
To connect the VCR and TV, use cable type (A/V RCA-type) appropriate to your TV. Connect the VCR
and TV as shown:
Back of TV
AUDIO IN
On TV
12 9
7
36
VIDEO IN
ON TV
Remote IR Sensor
LINE
IN
R
AUDIO
DC 12V
INPUT REMOTE
SENSOR
INPUT
VIDEO
L
AUDIO
8

10 © 2001 Directed Electronics, Inc.
1. Slide battery compartment cover out from
back of remote control.
2 Insert two AA batteries as diagrammed.
3. Slide battery compartment cover back in.
Remote Control
POWER TV/VCR
REC MEN
II
STILL/SLOW
CH/TRK
ENTER DISPLAY
SHIFT
POWER
Turns VCR on and off.
REC
Starts recording.
ENTER
SHIFT
PLAY
Press to begin playback.
REW
Rewinds tape from stop
mode.
STOP
Stops tape movement.
TV/VCR
Switchs between TV or VCR source.
MENU
Selects menu.
CHANNEL UP/DOWN
Changes channels.
TRACKING UP/DOWN
Adjusts cassette tracking.
STILL(Pause)/SLOW
Selects still frame or variable
slow motion playback.
DISPLAY
FF
Fast forwards tape from stop
mode.
Batte y Compa tment
(on back)
Remote Control Battery Install/Replace
Always aim the remote control directly at the VCR or the remote sensor eye.

© 2001 Directed Electronics, Inc. 11
1. Turn TV and VCR on. If connected with RCA
cable, set TV to video mode. If connected
with RF cable, set TV to channel 3 or 4 and
set VCR output to channel 3 or 4 in the
MAIN MENU. (Refer to page 11.)
2. Load a video cassette tape. VCR power
turns on automatically.
3. Press PLAY to start playback. If the tape
doesn’t have a safety tab, VCR will play-
back automatically. When playback starts,
the VCR automatically adjusts the tracking
for clear picture and sound.
4. To stop playback, press STOP.
MANUAL TRACKING
For best picture quality, the VCR video head
must be aligned with the recorded track on the
tape; this alignment is called tracking.
Videocassettes recorded on other VCRs and
videocassettes with copy protection may require
some manual adjustment.
To adjust manually, press CH/TRK up or down as
necessary until the best picture possible is
achieved.
NOTE: Picture distortion often occurs at the beginning
of a tape. Let the tape play for a moment to see
if the distortion clears. If manual tracking adjust-
ments do not produce a clear picture, there may
be a problem with the videotape.
Playing a Tape
1. Turn on TV and VCR.
2. Insert videocassette tape.
3. Press the MENU button on the remote
control to access the on-screen menu. Use
the SHIFT button to select the Record
Speed function. Press the ENTER button to
select the desired recording speed. Press
MENU button to exit.
Note: Tape speed can be changed while recording; there
may be minor distortion but no interruption.
5. Press REC; the REC button will light.
6. To pause recording, press STILL/SLOW. To
resume recording, press REC.
7. To end recording, press STOP.
Recording

12 © 2001 Directed Electronics, Inc.
Always insert the videocassette window-side up
with the arrow on the case pointing toward the
VCR.
Use only videocassette tapes marked .
European-standard PAL VHS videocassette tapes
and S-VHS prerecorded videocassette tapes are
not compatible.
To prevent accidentally recording over previous-
ly recorded material, remove the Record Protect
Safety Tab on the videocassette case after
recording.
To record a tape that has the Record Protect
Safety Tab removed, place a piece of cellophane
tape over the space from which the tab was
removed.
NOTE: The recording time available on a videocassette
depends on Tape Speed (SP or SLP) and Cassette
Type (T60 = 60 minutes at SP or 180 minutes at SLP;
T120 = 120 minutes at SP or 360 minutes at SLP).
Tape SP (standard play) SLP (super longplay)
T-120 2 hrs 6 hrs
T-160 2 hrs, 40 minutes 8 hrs
T-180 3 hrs 9 hrs
VHS
Videocassette Tapes
ABOUT VIDEOCASSETTES
■In general, high-quality, brand name
videocassettes last longer and provide a
better picture.
■Rewind your cassettes all the way so that
the tape is not at a midpoint; this can
extend the tape life.
■Do not touch or splice the tape; this can
damage the tape and playing such a tape
can damage the VCR.
■Do not take apart any cassette you plan to
use again.
■Do not put any object inside a videocas-
sette and do not clean inside a
videocassette; this can permanently
damage the tape, making it unusable.
NOTE: Keep cassettes from direct sunlight, heat, or
extreme cold. Do not drop cassettes. Never touch
the recording surface of the tape.

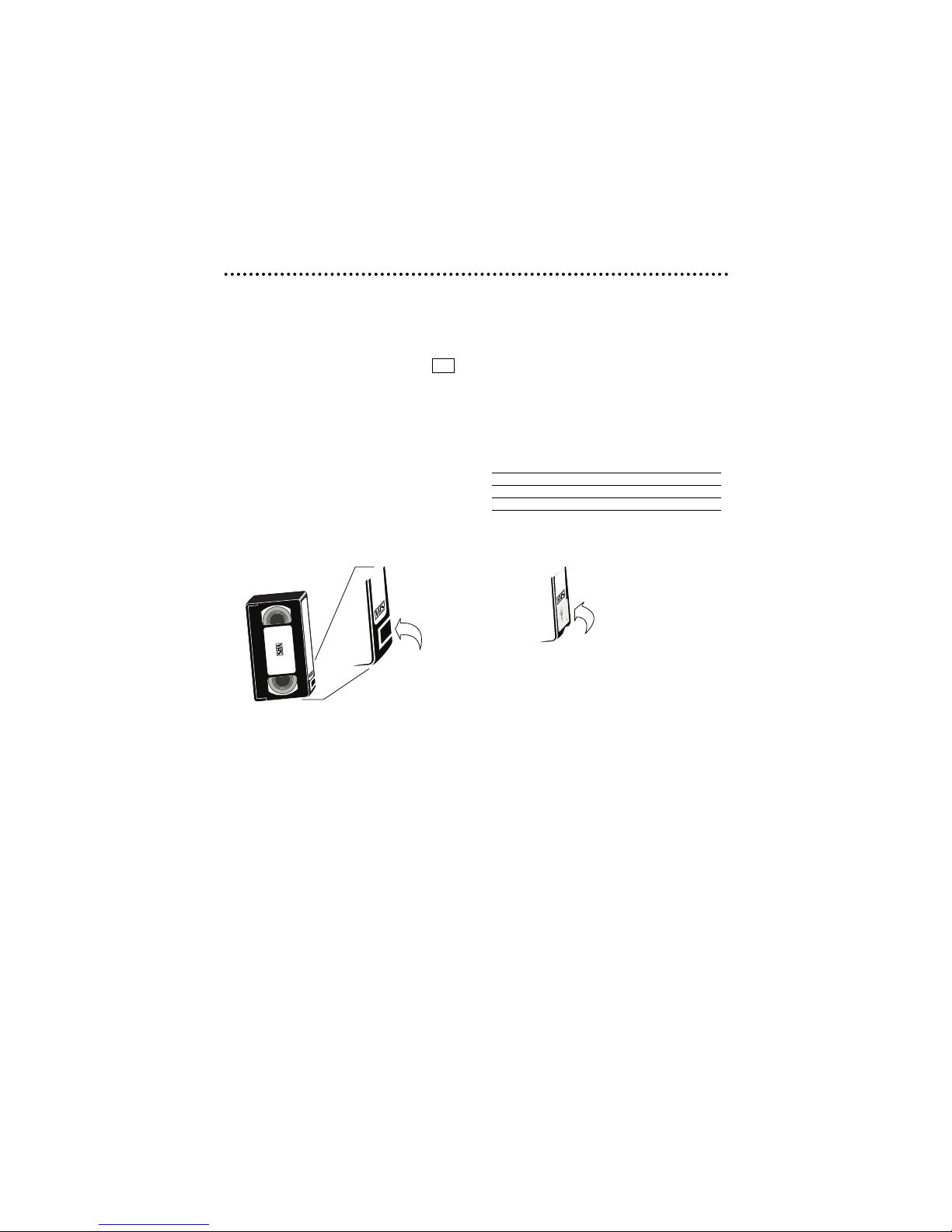

Break off the plastic safety tab
to prevent accidentally record-
ing over important tapes.
Cover the record protect
space with cellophane
tape to make a new
recording.

© 2001 Directed Electronics, Inc. 13
■Disconnect the VCR from the power source
before cleaning.
■Do not use liquid or aerosol cleaners on or
in the VCR.
■Use a dry cloth to dust the VCR.
■Keep the remote control with the VCR and
secure it in such a manner that it is unlike-
ly to be lost or damaged.
■Keep liquids away from the VCR. A spill on
the VCR can damage the electronics and
cause electric shock or fire.
VIDEO HEAD CLEANING
If poor playback qualities (snow, distortion,
streaking, etc.) develop and persist, the unit’s
videoheads may need cleaning. If necessary,
purchase a head cleaning cassette. Do not clean
the heads excessively.
When using a head cleaning cassette, read all
instructions carefully; incorrect head cleaning
can permanently damage the video heads.
Cleaning and Care
IMPORTANT! DO NOT INSERT ANY OBJECTS INTO THE CABINET SLOTS; CONTACT WITH A VOLTAGE POINT
INSIDE THE VCR CAN CAUSE DANGEROUS SHOCK OR MAY SHORT OUT PARTS AND CAUSE
FIRE OR ELECTRIC SHOCK.
FORWARD AND REVERSE
PICTURE SEARCH
While in Play mode, press REW or FF; to resume
normal viewing, press PLAY button.
FORWARD AND REVERSE
JET SEARCH
While in Play mode, press and hold REW or FF;
Jet Search increases the tape speed 7 times if
recorded at SP speed or 21 times for tapes
recorded at SLP speed. To resume normal view-
ing, release the button.
NOTE: While in Forward or Reverse Jet Search, audio
is muted.
STILL AND FRAME ADVANCE
While in Play mode, press STILL/SLOW to stop
on a single still frame. Press STILL/SLOW again
to advance picture frame by frame. To resume
normal viewing, press PLAY.
Note: Using Still mode for more than five minutes
stresses the tape and causes undue stress on the
video heads; the VCR automatically disengages
Still mode after five minutes have elapsed.
SLOW MOTION PLAYBACK
Press STILL/SLOW for more than two seconds
for SLOW Motion Playback.
Using Special Features

14 © 2001 Directed Electronics, Inc.

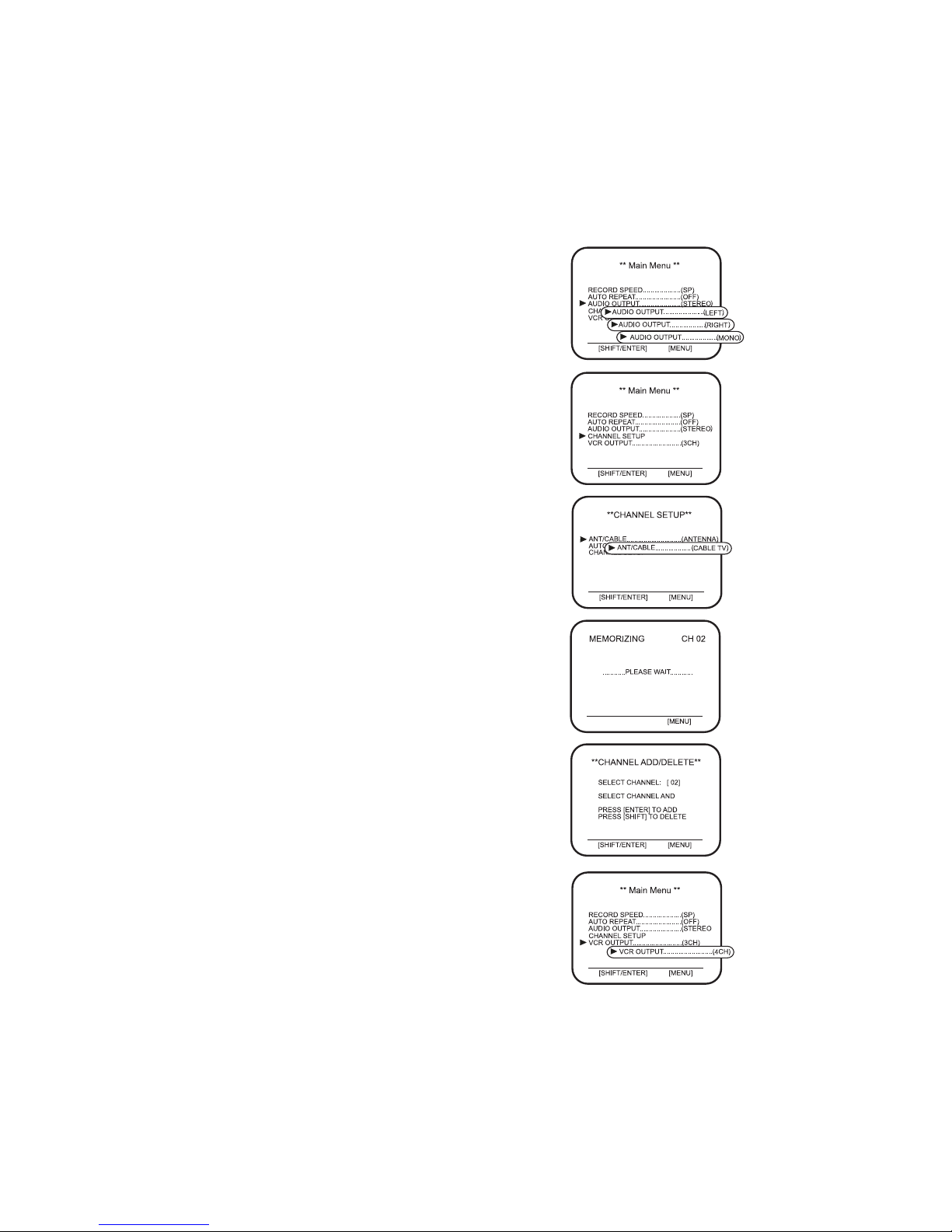

ON-SCREEN MENU
Your VCR has on-screen menus that allow you to
access and control the VCR’s programmable fea-
tures. You will use the buttons on the remote
control to work with the on-screen program-
ming. If the setup menu does not appear, make
sure the TV is tuned to the same channel as the
VCR output CH3/4 on the SETUP MENU of the
VCR. If the VCR is in the TV mode, press TV/VCR
on the remote control to set VCR to TV mode.
To make all of the VCR’s features available, set the
VCR functions before playing or recording a tape.
Setting the Main Menu
RECORD SPEED
The VCR can record at two tape speeds. The slower speed (SLP)
allows the VCR to record more program material on a tape. Tapes
recorded at standard speed (SP) provide a clearer picture. (See
page 12.)
AUTO REPEAT
Press ENTER to activate the AUTO REPEAT. Auto repeat sets the
VCR to play a tape repeatedly unless a tape control is activated
(stop, fast-forward, or rewind).

© 2001 Directed Electronics, Inc. 15
AUDIO OUTPUT
Press ENTER to change the AUDIO OUTPUT. The VCR can record a
program in stereo. It can also be set to record the secondary
Audio Program (SAP) of any broadcast with second language
audio. The VCR records the same audio on both the Hi-Fi and lin-
ear tracks on the tape.
CHANNEL SETUP
When the VCR memorizes all the available channels, you can use
CH/TRK to select channel. Select the CHANNEL SETUP using
SHIFT and ENTER.
1. Setting the Source
Before the VCR can memorize available channels, you must
set the signal source for your VCR, leave ANTENNA
displayed in the ANT/CABLE screen. If you have a cable
system hooked up to your VCR, press ENTER to change to
CABLE TV.
2. Auto Channel Memory
Select to activate the auto channel memory. Your VCR will
begin scanning through available channels. To interrupt,
press MENU on the remote control. When the channel
number on screen stops changing, the VCR has finished.
3. Channel Add/delete
You can add or delete channels that have been memorized
by the Automatic Channel Memory function. Press ENTER
to add the selected channel. Press SHIFT to delete the
selected channel.
NOTE: The Auto Channel Memory function must be performed before
Channel Add/delete can be used.
VCR OUTPUT CH
VCR sends the output signals to channel 3 or 4 on your TV. Set
the output channel on the menu to 3 CH or 4 CH, whichever is
vacant in your area.

16 © 2001 Directed Electronics, Inc.
Troubleshooting
Before calling for service, check the following:
PROBLEM SOLUTION
No Power. Make sure the VCR is on and connected to an operating
power source; check the remote for “good” batteries.
Videocassette cannot be inserted. Press EJECT to see if a cassette is already in the VCR.
Make sure the videocassette is window-side up, with the
arrow pointing toward the VCR.
No picture, distorted picture ■Try another videocassette to see if it plays back
playback. properly.
■Press TRK up or down to adjust the picture.
■Set INPUT MODE on TV to AUX IN, VIDEO or EXTERNAL.
■Make sure the TV is working properly.
■If the problem occurs on more than one tape, try
using a video head cleaner cassette.
No TV broadcast picture. ■Check all connections between VCR and TV.
■Make sure TV is on.
Streaks (noise) on a taped program. ■Press TRK up or down to adjust the picture.
■Check all connections.
■View another videocassette to see if it plays back
properly.
■If the problem occurs on more than one tape, try
using a video head cleaner cassette.
Streaks (noise) or jitter with Press TRK up or down to adjust the picture.
the VCR in Still mode.
Streaks (noise) on a taped program. ■Check if the VCR is in Still mode.
■Check if the cassette has been rewound.
The VCR motor continues to run This is normal; the video heads run for five minutes even
after STOP is pressed. even after a cassette has been stopped.

© 2001 Directed Electronics, Inc. 17
Format VHS 1/2 inch (12.7mm)
Recording System Rotary Double azimuth four-head helical scanning
Video Heads DA-4 rotary heads
Audio heads Linear : 1 stationary
Hi-Fi : 2 rotary
Control head 1 stationary
Erase 1 full track; 1 audio track
Record/play time 6 hours with T-120 in SLP mode
Video input Video IN terminal (RCA)1.0 Vp-p
Video output Video out terminal (RCA)1.0 Vp-p
Audio input Audio IN terminal (RCA) 300 MV, 50K ohm
Audio output Audio out terminal (RCA) 300 MV
Signal-to-noise ratio Linear : Better than 40 dB
Hi-Fi : Better than 68 dB
Power source 12V DC
Power consumption Approx. 10 Watts while in use
Dimensions 10.5 ” (W) x 3.64 ” (H) x 10.5 ” (D)
(265mm x 92.5mm x 265mm)
Fuse Internal 1.6 Amp GMA style
Weight 6.17 lbs (2.8 kg)
.
Specifications
Your VCR can receive 68 broadcast TV channels or up to 125 unscrambled cable channels. Check your
local cable company for complete compatibility requirements.
Type Number Channel List of Channels
On Air 12 VHF (Channels 2~13)
56 UHF (Channels 14~69)
CATV 113 Channels 14~22 (A~I)
Channels 23~94 (J~W+58) and 100~125(W+59-W+84)
Channels 95~97 (A~5,A~4,A~3)*
Channels 98~99(A~2,A~1)*
Channel 01 (5A)*
Total 181

Directed Electronics, Inc.
Vista, CA 92083
www.directed.com
© 2001 Directed Electronics, Inc. - All rights reserved
N82201 Rev. 1.0 12-01
