Dobrosfera Z10HL User manual

Z10HL

Delivery set
Co
de
Amount
B1
22 pieces
B2
88 pieces
B3
22 pieces
R1
36 pieces
R2
18 pieces
R3
18 pieces
R4
18 pieces
R5
18 pieces
R6
18 pieces
C1
8 pieces
C2
20 pieces
V1
2 pieces
V2
2 pieces
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 1

VN
1 piece
D
2 pieces
N
154 pieces
A foundation piles, foundation frame, floor lags, flooring beams, supports and anchorages of the lags
of the second floor are not included in the delivery set.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 2

Attention! Be sure to read
this section before
assembling.
Before proceeding with the assembly of the frame, prepare sawn OSB
elements,15 mm thick (map of pattern see below), a screws, a screwdriver and
drills for pre-drilling under self-tapping screws. All of this you will need during
assembly.
During assembly, be sure to fix a frame, securing the cladding on each
assembled horizontal tier. The cladding, sawn exactly in size, is also a template
for precise positioning of beams and the braces of the frame for correct
convergence in the upper anchorage.
For installation of the cladding, please use galvanized screws 5х70 every 20 cm
perimeter.To drill 3 mm by 53 mm deep into the frame.
To piece together the constituent elements of the cladding, consisting of several
parts is required.
Nagel must be attached to the braces with bolts and nuts and with washers as
indicated in the instructions.
The frame must be fixed on metal plates on top of the pile with a bolt screw
from below through the head to the vertical beam with preliminary drilling with a
depth of 120-150 mm.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 3

It is important!
Never pick up the next horizontal tier of the frame, without securing
the previous covering!
Remember that this can lead to collapse of the frame, serious
injuries and even death. Strictly adhere to the assembly instructions!
For work at a height, use only specialized auxiliary equipment. Be sure to use a
construction helmet, insurance and assistants.
If you are not sure in your abilities, recruit specialists for installation.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 4

Foundation - screw piles
It is possible to use a band or monolithic foundation; combining of perimeter piles and concrete
support in the center; other types of foundations.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 5

Foundation frame and lags of the first floor
The lags of floor and the beams of foundation frame are not included in the delivery set, they are
locally manufactured from dry lumber.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 6

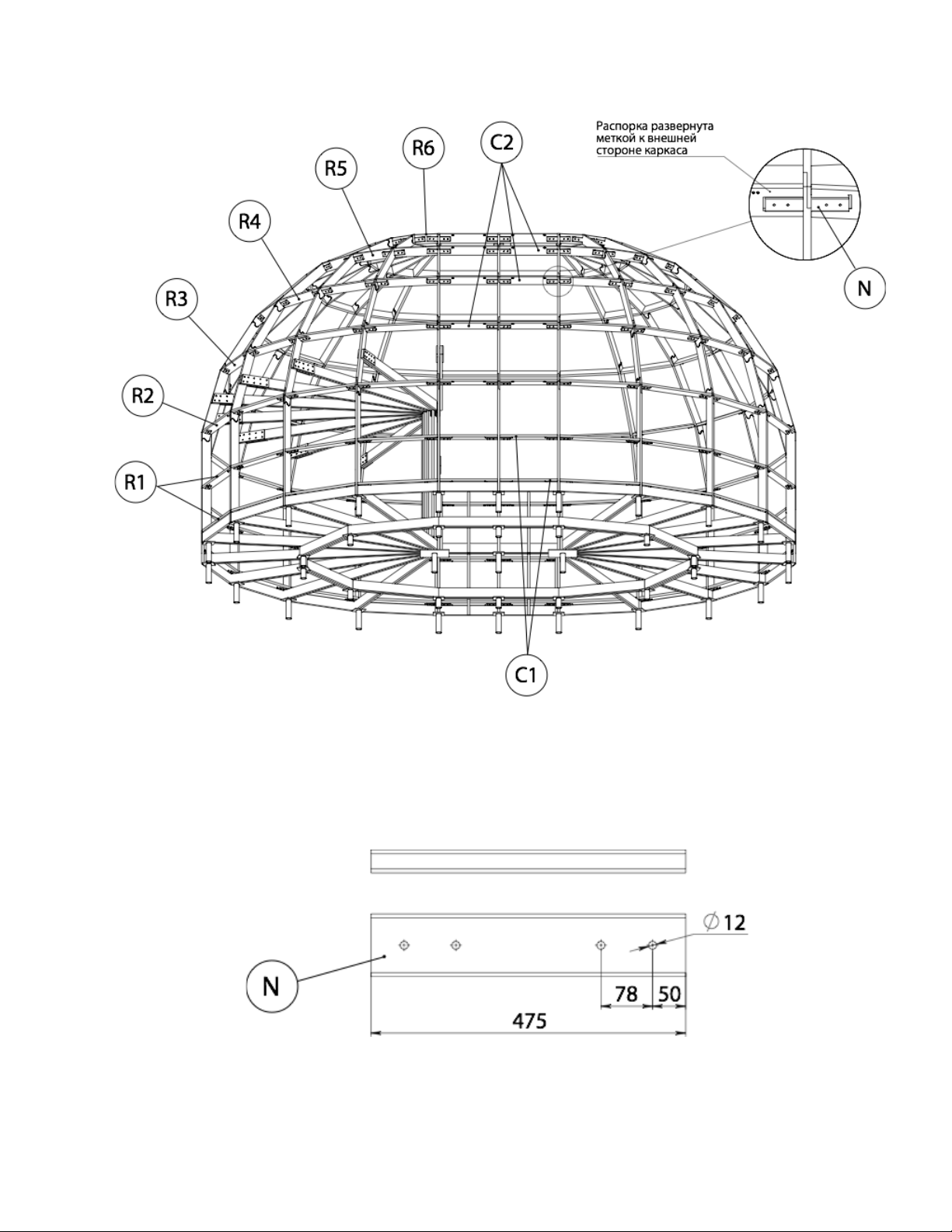

Frame assembly and nagels
Drill through the nagel and the brace. The holes and their location are shown in the figure. Fix the
brace and the nagel with a bolt M12 bolt with a nut and wide washers on both sides. A total of 4 bolts
per each nagel.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 7

Frame assembly. Support disk
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 8

Assembly of units
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 9

Fixing lag of the floor on the second floor
with support
Supports of the lags of the floor and the lags of the second floor are ordinary boards of coniferous
trees. Fixing lining are made of PSF plywood thickness of 30 mm. We recommend to leave a
sufficient second light to organize the stairs and maximum aesthetics of the construction.
To avoid sagging the lags of the second floor, add vertical supports under the lags to the wall
partitions and other places as needed.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 10

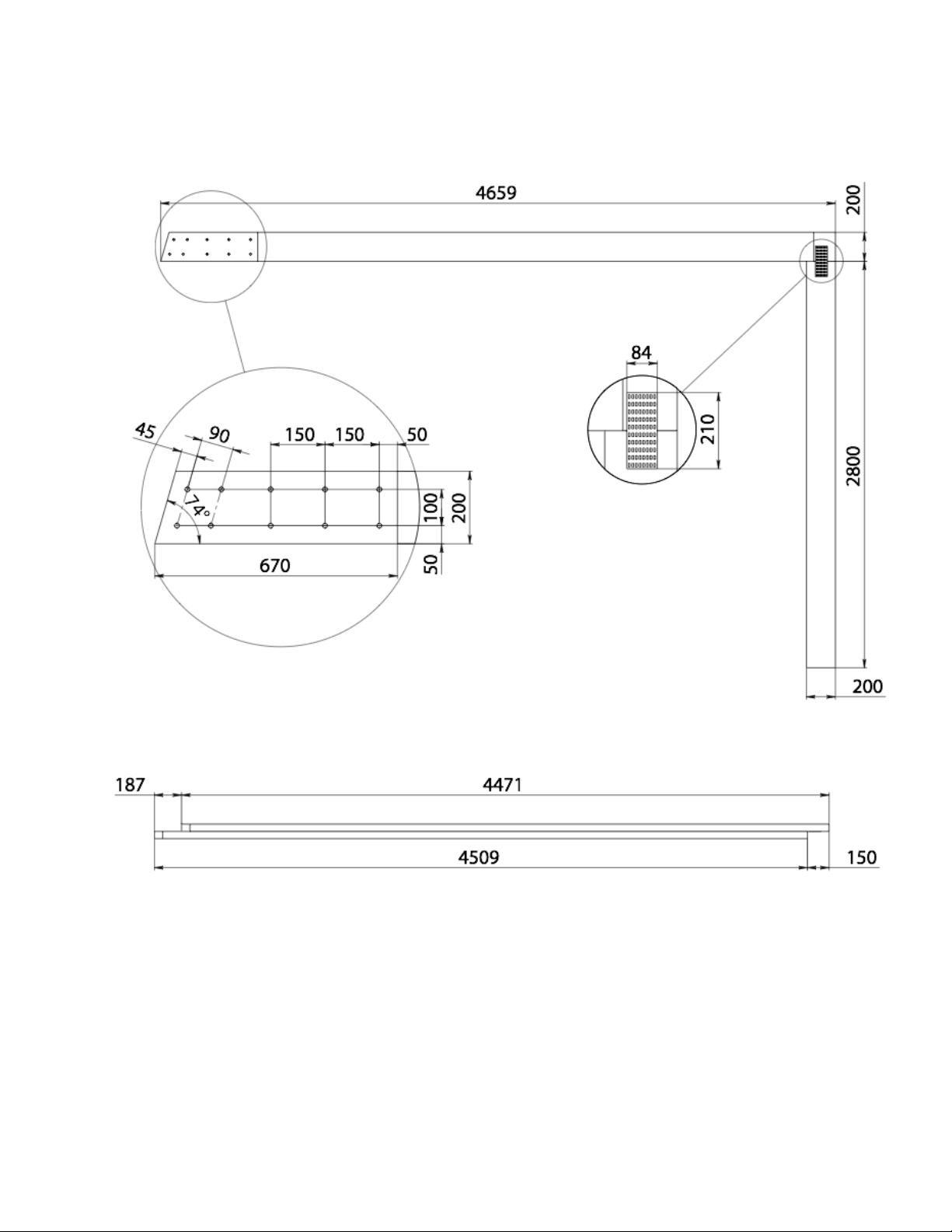

Upper beam
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 11

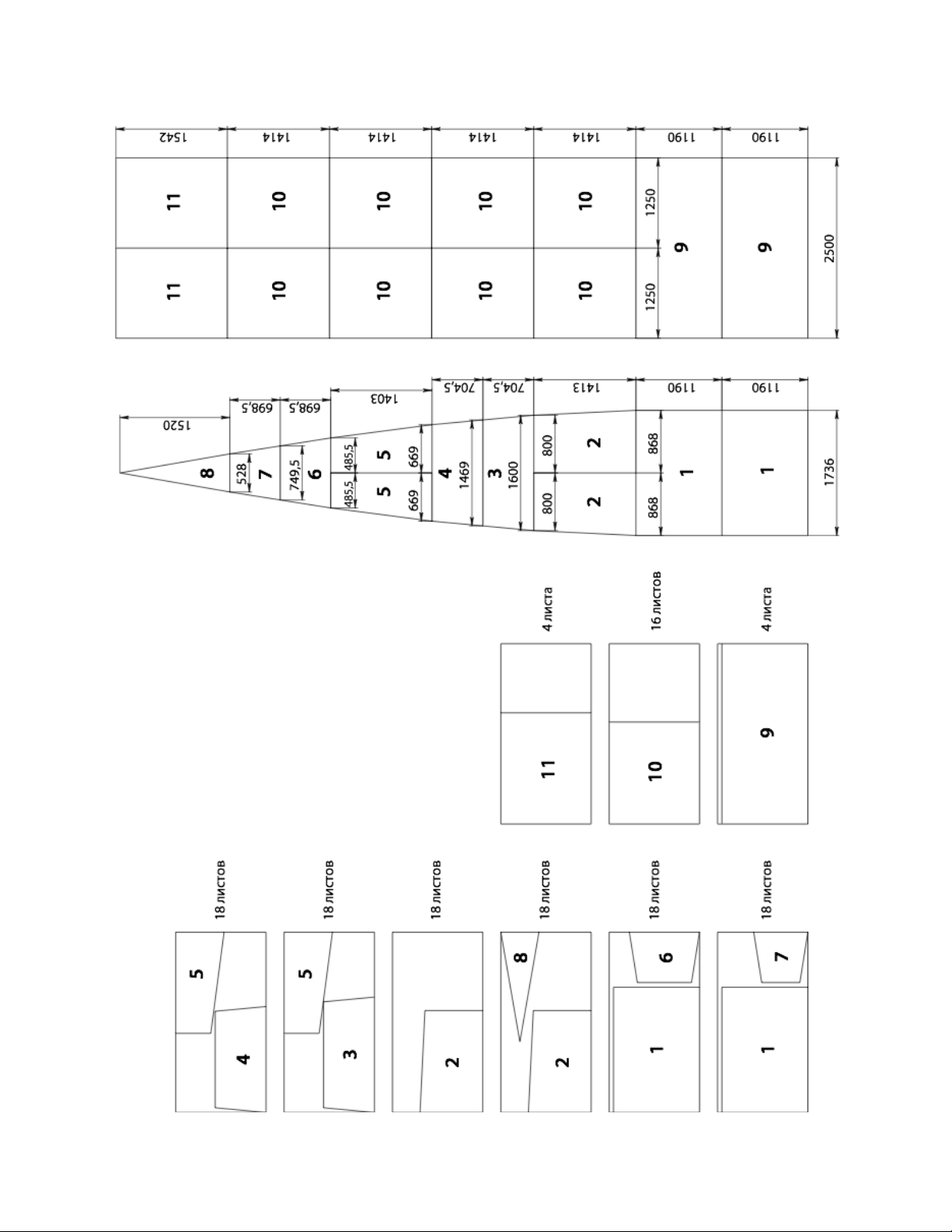

Sheet of frame cladding
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 12

Presented for OSB size 15x1250x2500. Trimming of the material will go to underfloor heating and for
the connecting bar. In the process of connecting the composite elements by the bar, do not allow the
output of the screws from the outside of the cladding - otherwise it will damage the roof! Sheathing is
not included in the delivery set and it is manufactured independently.
© Factory «Dobrosfera», 2018. Version 3.0 us.dobrosfera.com 13

Important notes
The constructor is made of solid wood of coniferous trees - a living, natural material.
The presence of irregularities, knots, roughness and cracks in the frame elements is acceptable,
which is not a material defect and does not affect the strength of the construction.
Features of storage and the maintenance
The constructor should be used for its intended purpose as a dome house, which is lined from the
outside and roofed with a roof.
It is recommended to cover all wooden frame elements with a protective formulation, selected
according to the planned operating conditions.
You should keep the constructor in a cool dry place, protected from direct sunlight and precipitation,
ensuring free circulation of air around the elements, away from heat sources, high humidity and
extraneous odors.
The guarantee
The manufacturer sets a warranty period of one year for the constructor. At the same time, the
change in the physical parameters of the designer (wood) arising from improper storage or operation
is not a warranty case.
Reference information
The table shows the characteristics of the constructor Dobrosfera Z10HL for an approximate
calculation of the estimate.
№
Наименование
Unit of meas.
Quantity
1
Total surface area
м2
258
2
The area of the vertical part
м2
87
3
Surface area of the dome
м2
171
4
Quantity of OSB sheets for cladding
pieces
132
5
Quantity of self-tapped screws for cladding
pieces
4096
