Dolby Laboratories LC19SB25U - LC - 19" LCD TV User manual

1
LC-19SB15U
LC-19SB25U
LC-19SB25U-W
OPERATION MANUAL
IMPORTANT:
To aid reporting in case of loss or theft, please record the
TV's model and serial numbers in the space provided. The
numbers are located at the rear of the TV.
Model No.:
Serial No.:
LIQUID CRYSTAL TELEVISION
ENGLISH
IMPORTANT INFORMATION
ENGLISH

2
• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
• “HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.”
IMPORTANT INFORMATION
SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-19SB15U/LC-19SB25U/LC-19SB25U-W
Trademarks
• Products that have earned the ENERGY STAR®are designed to protect the environment through superior energy
efciency.

3
DEAR SHARP CUSTOMER
Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years
of trouble-free operation of your product, please read the Important Safety Instructions carefully before
using this product.

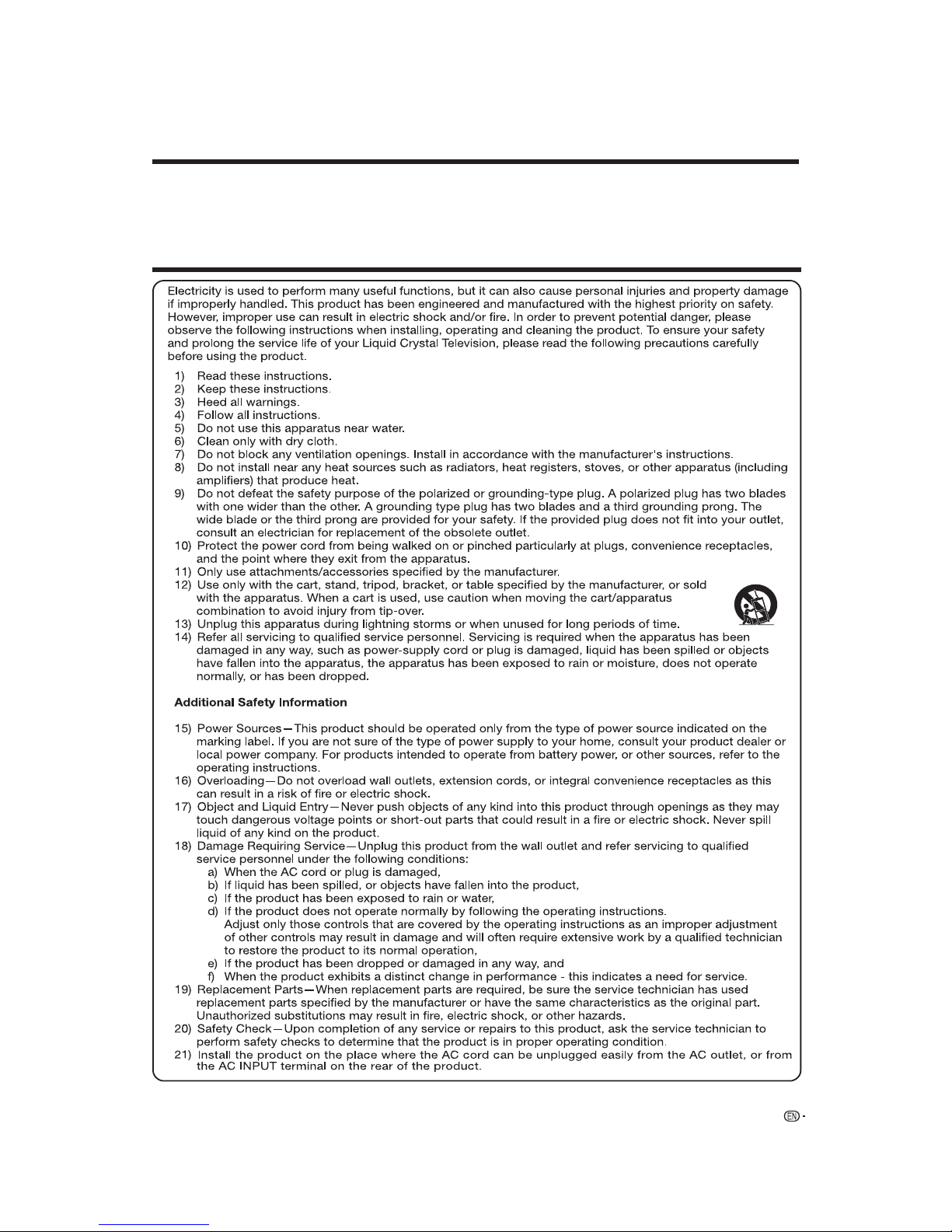

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
4
• Water and Moisture — Do not use this product near water - for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in serious personal injuries
as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended
by the manufacturer or sold with the product. When mounting the product on a wall, be sure to
follow the manufacturer's instructions. Use only the mounting hardware recommended by the
manufacturer.
• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other
similar surface, since they can block ventilation openings. This product is not designed for built-
in installation; do not place the product in an enclosed place such as a bookcase or rack, unless
proper ventilation is provided or the manufacturer's instructions are followed.
• Heat — The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
• The Liquid Crystal panel is a very high technology product with 1,049,088 pixels, giving you fine picture details.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this
does not affect the performance of your product.
• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the
product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in
case the panel breaks.
• Lightning — For added protection for this television equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the wall outlet
and disconnect the antenna. This will prevent damage to the equipment due to lightning and
power-line surges.
• Power Lines — An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them might be fatal.
• Selecting the location — Select a place with no direct sunlight and good ventilation.

5
• Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna
system is grounded so as to provide some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location
of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA
LEAD IN WIRE
GROUND
CLAMP
NEC — NATIONAL ELECTRICAL CODE
• To prevent fire, never place any type of candle or flames on the top or near the TV set.
• To prevent fire or shock hazard, do not expose this product to dripping or splashing.
No objects filled with liquids, such as vases, should be placed on the product.
• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy
items.
• Turn off the main power and unplug the AC cord from the wall outlet before handling.
• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may
scratch the panel surface.
• Use a soft damp cloth to gently wipe the panel when it is really dirty.
(It may scratch the panel surface when wiped strongly.)
• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.
• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it,
such materials may damage the panel surface.
• To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE
SYSTEM
(NEC ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
• Do not display a still picture for a long time, as this could cause an afterimage to remain.
IMPORTANT SAFETY INSTRUCTIONS
• When cleaning the TV or the stand, use the cloth supplied with the TV.

IMPORTANT SAFETY INSTRUCTIONS
6
CHILD SAFETY:
It Makes A Difference How and Where You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:
THE ISSUE
The home theater entertainment experience is a growing trend and larger
flat panel displays are popular purchases. However, flat panel displays are
not always supported on the proper stands or installed according to the
manufacturer’s recommendations.
Flat panel displays that are inappropriately situated on dressers, bookcases,
shelves, desks, speakers, chests or carts may fall over and cause injury.
THIS MANUFACTURER CARES!
The consumer electronics industry is committed to making home entertainment
enjoyable and safe.
•
•
•
TUNE INTO SAFETY
One size does NOT fit all. Follow the manufacturer’s recommendations for the
safe installation and use of your flat panel display.
Carefully read and understand all enclosed instructions for proper use of this
product.
Don’t allow children to climb on or play with furniture and television sets.
Don’t place flat panel displays on furniture that can easily be used as steps,
such as a chest of drawers.
Remember that children can become excited while watching a program,
especially on a “larger than life” flat panel display. Care should be taken to
place or install the display where it cannot be pushed, pulled over, or knocked
down.
Care should be taken to route all cords and cables connected to the flat panel
display so that they cannot be pulled or grabbed by curious children.
•
•
•
•
•
•
Note: CEA is the preeminent trade association promoting growth in the $161
billion U.S. consumer electronics industry. More than 2,200 companies enjoy the
benefits of CEA membership, including legislative advocacy, market research,
technical training and education, industry promotion and the fostering of business
and strategic relationships.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
Use a mount that has been recommended by the display manufacturer and/or listed by an independent
laboratory (such as UL, CSA, ETL).
Follow all instructions supplied by the display and wall mount manufacturers.
If you have any doubts about your ability to safely install your flat panel display, contact your retailer about
professional installation.
Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not
designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a
professional installer.
A minimum of two people are required for installation. Flat panel displays can be heavy.
•
•
•
•
•

Supplied accessories
7
• Always use the AC cord supplied with the TV.
Remote control unit (g1)
“AA” size manganese battery (g2)
Page 9
Make sure the following accessories are provided with the product.
AC cord (g1)
Page 8
Operation manual
(g1)
Cable Clamp (g1)
Page 8
Cleaning cloth (g1)
Page 5
Hex key (g1)
Page 7
Screws (g3)
Page 7
Stand (g1)
Page 7
Before using the TV unit
1
21Insert the stand into the
openings on the bottom of
the TV.
2Insert and tighten the 3
screws into the 3 holes on
the rear of the stand.
Soft cushion
NOTE
• To detach the stand, perform the steps in reverse order.
Confirm the 3 screws supplied with the TV.
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Screws (g3)
(Used in step 2)
Attaching the stand

QUICK REFERENCE
Notes on installing the TV
• Avoid direct sunlight and place the TV in a well-ventilated location.
• Place the TV in a level location.
• Do not turn on the power of the TV before connecting the AC cord.
8
QUICK INSTALLATION TIPS
Attach your antenna to the back of the
television. (See page 13.)
Bundle the cords properly with cable clamps .
How to turn on the television for the first time.
A) Press POWER on television.
POWER
POWER indicator
Connect the AC plug for the television into the
AC outlet.
B) POWER indicator on the front of the
television lights GREEN.
• Speakers cannot be detached from the TV.
• To change the vertical angle of the LCD TV set, tilt
the screen up to 2.5 degrees forward or 10 degrees
backwards. Please adjust the angel so that the LCD TV set
can be watched most comfortably.
AC outlet
• Place the TV close to the AC outlet, and keep the power
plug within reach.
•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT
TOUCH UN-INSULATED PARTS OF ANY CABLES
WITH THE AC CORD CONNECTED.
1
2
3
4
Ventilation & Cleaning Tips
Keep your television in a well ventilated area and make sure not to place it by a heat source or use near water. The
television is designed for AC use only and should be used with supplied AC cord.
Clean the screen by spraying a soft lint free cloth with water to lightly moisten. Gently wipe and
avoid pressing on the screen. To clean the outer cabinet, use the same method. Do not use
liquid or aerosol cleaners.
The screen is glass and can be scratched or broken when dropped or impacted.
Cable calmp
AC cord

9
QUICK REFERENCE
If the remote control fails to operate TV functions, replace the batteries in the remote control unit.
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage in old batteries.
• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a
rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove batteries from it.
1 Open the battery cover.
• Place the batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.
2Insert two “AA” size batteries
(supplied with the product).
3Close the battery cover.
IMPORTANT:
The POWER indicator on the television should light GREEN indicating you have power to the television.
If the POWER indicator on the television still does not light up, press POWER on the remote
control to turn the power on.
IMPORTANT:
IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE
INSTALLATION STEPS.
IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.
17Q(5 m)
Remote control sensor

10
IMPORTANT INFORMATION ................................. 1
Trademarks............................................................. 2
DEAR SHARP CUSTOMER .................................... 3
IMPORTANT SAFETY INSTRUCTIONS................. 3
Supplied accessories............................................. 7
Before using the TV unit .........................................7
QUICK REFERENCE............................................... 8
Contents................................................................ 10
Part names .............................................................11
TV (Front)...........................................................11
TV (Side/Rear)....................................................11
Remote control unit ...........................................12
Preparation ............................................................13
Using the remote control unit.............................13
Cautions regarding the remote control
unit .............................................................13
Antennas ...........................................................13
Connecting a VCR, game console
or camcorder...................................................13
Connecting a Blu-ray disc player, HD-DVD player,
DVD player or a Digital TV STB (Air or Cable) ...14
Using Digital Audio Output.................................14
Connecting HDMI equipment.............................15
Connecting a PC ...............................................15
PC compatibility chart........................................15
Watching TV...........................................................16
Turning on the power.........................................16
Turning off the power.........................................16
Initial setup ........................................................17
Simple button operations for
changing channels .........................................18
Displaying the receiving channel information ......18
Simple button operations for
changing volume/sound .................................19
Setting MTS/SAP stereo mode ..........................20
Setting Digital broadcasting audio mode............20
Basic adjustment settings ................................... 21
Menu operation buttons.................................... 21
On-Screen Display............................................ 21
Menu items for TV/INPUT 1/2 ........................... 22
Menu items for HDMI/PC-IN ............................. 22
EZ Setup .......................................................... 23
Channel Setup.................................................. 23
Favorite channel setting .................................... 25
Picture adjustments .......................................... 26
OPC setting ................................................. 26
Advanced picture settings................................. 27
C.M.S. ..........................................................27
Color Temperature ....................................... 27
Film Mode ................................................... 27
3D-Y/C ........................................................ 27
Monochrome ............................................... 27
I/P Setting .....................................................27
Sound adjustment ............................................ 28
Power Control .................................................. 29
Power Management ..........................................29
Using external equipment.................................... 30
Displaying an external equipment image ........... 30
Displaying an image from HDMI equipment....... 31
Useful adjustment settings.................................. 32
Auto Sync. Adjustment
(for Analog PC input mode only) ..................... 32
Fine Sync. Adjustment ...................................... 32
Picture Rotate....................................................33
Language setting .............................................. 34
Image position .................................................. 34
Reset................................................................ 34
Input Label........................................................ 35
Sleep Timer ...................................................... 35
View Mode for 4:3 Programs ............................ 36
View Mode for HD Programs ............................ 36
View Mode (for PC input mode) ........................ 37
Advanced Option settings................................. 38
DNR..............................................................38
Audio Only ................................................... 38
Color System ............................................... 38
Digital Audio................................................. 39
AV MODE ......................................................... 40
Input Signal (for Analog PC input mode only) .... 40
Closed Captions and Digital Closed
Captions......................................................... 41
Digital Caption Setup ........................................ 42
Secret number setting for parental control ........ 43
Parental control (setting V-CHIP level) ............... 45
How to temporarily release
the V-CHIP BLOCK ........................................ 48
Reactivating the temporarily released
V-CHIP BLOCK .............................................. 48
Other viewing options .......................................... 49
Freezing images................................................ 49
Appendix ............................................................... 50
Troubleshooting................................................ 50
Troubleshooting-Digital broadcasting................ 50
Specifications .................................................. 51
Information on the software license for this
product ...........................................................53
Calling for Service ................................................ 54
LIMITED WARRANTY ........................................... 54
Dimensional drawings
• The dimensional drawings for the LCD TV set are shown on
the inside back cover.
Contents

11
Part names
POWER
button
TV (Front)
Channel
buttons
(CHr/s)
Volume
buttons
(VOLk/l)
INPUT
button
POWER indicator**
OPC sensor*
Remote control sensor
*OPC: Optical Picture Control (See page 26.)
**See page 16 for TV status indicator.
OPC indicator**
TV (Side/Rear)
INPUT 4 terminals
(PC IN)
INPUT 1 terminals
DIGITAL AUDIO OUTPUT
terminal
Antenna/Cable in
AC INPUT
terminal
INPUT 2 terminals
MENU
button
INPUT 3 terminals
(HDMI)
HEADPHONE terminal
Regarding the headphone jack
• Use headphones with a stereo mini plug (Ø 3.5 mm).
• Be sure to unplug headphones from the jack when they are not in use.
• The speakers do not output volume when headphones are plugged in.
• You can set the volume to different levels for each input source.
Volume display when
headphones are plugged in
20
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The examples used throughout this manual are based on the LC-19SB25U model.

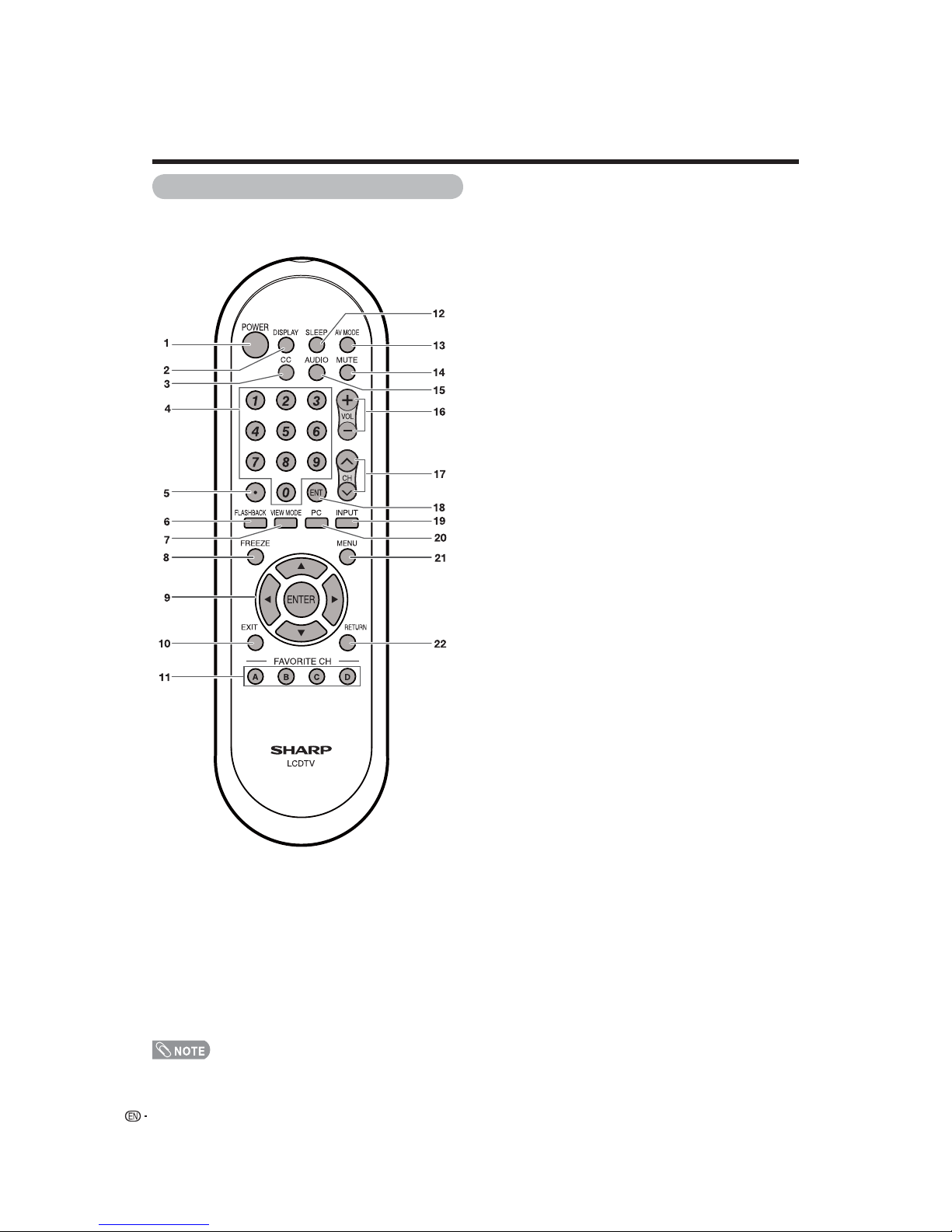

12
Part names
1POWER: Switch the TV power on or enters standby.
(See page 16.)
2DISPLAY: Display the channel information.
(See page 18).
3CC: Display captions from a closed-caption source.
(See page 41.)
40 – 9: Set the channel. (See page 18.)
5•(DOT): (See pages 18.)
6FLASHBACK: Return to the previous channel or
external input mode. (See page 18.)
7VIEW MODE: Select the screen size. (See pages 36
and 37.)
8FREEZE: Set the still image. Press again to return to
normal screen. (See page 49.)
9a/b/c/d/ENTER: Select a desired item on the
screen.
10 EXIT: Turn off the menu screen.
11 FAVORITE CH
A, B, C, D: Select 4 preset favorite channels in 4
different categories. (See page 25 for details.)
While watching, you can toggle the selected channels
by pressing A, B, C and D.
12 SLEEP: Set the sleep timer. (See page 35.)
13 AV MODE: Select an audio or video setting. (When
the input source is TV, INPUT 1 or 2: STANDARD,
MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC.
When the input source is INPUT 3: STANDARD,
MOVIE, GAME, PC, USER, DYNAMIC (Fixed),
DYNAMIC. When the input source is INPUT 4:
STANDARD, PC, USER) (See page 40.)
14 MUTE: Mute the sound. (See page 19.)
15 AUDIO: Selects the MTS/SAP or the audio mode
during multi-channel audio broadcasts. (See page 20.)
16 VOL k/l:Set the volume. (See page 19.)
17 CHr/s:Select the channel. (See page 18.)
18 ENT: Jumps to a channel after selecting with the 0–9
buttons.
19 INPUT: Select a TV input source. (TV, INPUT 1,
INPUT 2, INPUT 3, INPUT 4) (See pages 30 and 31.)
20 PC: Quickly access to PC mode. (See pages 30 and
32.)
21 MENU: Display the menu screen.
22 RETURN: Return to the previous menu screen.
Remote control unit
• When using the remote control unit, point it at the TV.

Antennas
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,
plug it into the antenna terminal at the rear of the TV set.
1. A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal
without tools (Commercially available).
F-type connector
300-ohm twin-lead cable (flat)
F-type connector
75-ohm coaxial cable (round)
75-ohm coaxial cable
NOTICE
2. A 300-ohm system is a flat “twin-lead” cable that can be
attached to a 75-ohm terminal through a 300/75-ohm
adapter (Commercially available).
F-type connector should be finger-
tightened only.
When connecting the RF cable to the TV set, do not
tighten F-type connector with tools.
If tools are used, it may cause damage to your TV
set. (The breaking of internal circuit, etc.)
13
Preparation
Using the remote control unit
Use the remote control unit by pointing it towards the remote control sensor on the
TV. Objects between the remote control unit and the remote control sensor may
prevent proper operation.
Cautions regarding the remote control unit
• Do not expose the remote control unit to shock. In addition, do not expose the remote
control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the remote control unit.
• The remote control unit may not work properly if the remote control sensor on the TV is
under direct sunlight or strong lighting. In such cases, change the angle of the lighting or
the TV, or operate the remote control unit closer to the remote control sensor.
Connecting Antenna Cable
1Cable without a CATV
converter
3Combination VHF/
UHF antenna
4Separate VHF/UHF
antenna
To TV antenna
terminal
2VHF/UHF antenna
• Connect the antenna cable
to the TV using one of the
methods in the illustration
as shown (1, 2, 3or 4).

L
R
AUDIO
Y
PB
PR
L
R
AUDIO
L
R
AUDIO
14
Preparation
Connecting a Blu-ray disc player,
HD-DVD player, DVD player or a
Digital TV STB (Air or Cable)
Connecting a VCR, game console
or camcorder
A VCR, game console, camcorder and other
audiovisual equipment can be conveniently connected
using the INPUT 2 terminals.
You can connect many types of external equipment to
your TV like a Blu-ray disc player, HD-DVD player, DVD
player, VCR, Digital TV tuner, HDMI equipment, game
console or camcorder. To view external source images,
select the input source from INPUT on the remote control
unit or on the TV. (See pages 30 and 31.)
• To protect equipment, always turn off the TV before
connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc
player, etc.) carefully before making connections.
• If your Blu-ray disc player offers a choice of output formats,
please select 720p for use with this TV.
When using S-VIDEO cable (commercially
available).
VCR/Game
console/
Camcorder
When using component cable. (INPUT 1)
Using Digital Audio Output
It is possible to output audio through the DIGITAL
AUDIO OUTPUT terminal.
• The S-VIDEO terminal takes priority over the video
terminals. (INPUT 2 only)
VCR/Game console/
Camcorder
When using composite cable (commercially
available).
Blu-ray disc
player/HD-
DVD player/
DVD player/
Digital TV STB
Component
video cable
(commercially
available)
Audio cable
(commercially
available)
To optical
digital input of
external audio
devices
Optical fiber cable
(commercially available)

ANALOG
RGB
( PC IN )
15
Preparation
PC
HDMI equipment
PC compatibility chart
It is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page 40 to set PC input signals.
DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Corp.
PC Horizontal Frequency VESA StandardResolution Vertical Frequency
Connecting a PC
When connecting to a PC with an analog RGB terminal. (INPUT 4)
RGB cable
(commercially available)
• When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 3.
• When receiving an incompatible signal, such as 1080p, the message below appears without the image on the screen.
For an incompatible video signal: “Not compatible with this signal.”
HDMI-certified cable
(commercially available)
Connecting HDMI equipment
You can use the INPUT 3 terminal when connecting HDMI equipment.
Ø 3.5 mm stereo minijack cable
(commercially available)

16
Simple operations for watching a TV program
POWER
indicator
POWER (On/Standby)
Turning on the power
Press POWER on the TV, or POWER on the remote
control unit.
• POWER indicator (Green): The TV is on. (After a few
seconds, a window appears with sound.)
• The initial setup starts when the TV powers on for the first
time. If the TV has been turned on before, the EZ Setup will
not be invoked. See page 25 for performing EZ Setup from
the Setup menu.
Turning off the power
Press POWER on the TV, or POWER on the remote
control unit.
• The TV enters standby and the image on the screen
disappears.
• The POWER indicator on the TV turns off.
• If you are not going to use this TV for a long period of time,
be sure to remove the AC cord from the AC outlet.
• Weak electric power is still consumed even when POWER
is turned off.
Watching TV
POWER
TV status indicator (POWER)
Off Power off, Standby mode “Off” is selected in OPC setting
“On” or “On: Display” is selected in OPC setting
Lights off
Lighting (Green)
TV status indicator (OPC)
• See page 26 for details.
OPC indicator
Green The TV is on

Press a/bto select “Analog & Digital” to
search both analog and digital broadcasts or
“Analog” to search only analog broadcasts or
“Digital” to search only digital broadcasts, and
then press ENTER.
Press a/bto select “Yes” or “No”, and then
press ENTER.
• The Channel search will start automatically.
• To exit the Channel search screen, press
RETURN.
17
Initial setup
When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live.
Perform the following steps before you press POWER on the remote control unit.
1. Insert the batteries into the remote control unit. (See page 9.)
2. Connect the antenna cable to the TV. (See page 13.)
3. Plug in the AC cord to the AC outlet. (See page 8.)
Language setting
Select from among 3 languages: English, French and
Spanish.
Press a/bto select the desired language
listed on the screen, and then press ENTER.
Channel search
Channel auto search makes the TV look for all
channels viewable in the set area.
When “Air/Cable”has been selected in
Antenna setting and then press ENTER
again.
Example
Antenna setting
Make sure what kind of connection is made with your
TV when selecting “Air”, “Cable(STD)”, “Cable(HRC)” or
“Cable(IRC)”.
Press a/b to select “Air”, “Cable(STD)”,
“Cable(HRC)” or “Cable(IRC)”.
Press ENTER to enter the setting.
Example
Watching TV
1
2
3
• If no channel is found, confirm the type of connection made
with your TV and try EZ Setup again. (See page 23.)
Language
Air/Cable
CH Search
Language
Air/Cable
C
H
S
earc
h
CH Search Air
Cable (HRC)
Cable (IRC)
Cable (STD)
Language
Air/Cable
CH Search
Analog & Digital
Digital
Analog Yes
No
Analog
Air [69]

18
Simple button operations for
changing channels
You can change channels in several ways.
• When selecting a 1-digit channel number, it is not
necessary to press 0 before the number.
• When you enter 0-9 only, channel selection will be made if
there is no operation within a few seconds.
To select a 3-digit channel number
(e. g., Channel 115):
Press 1s1s5sENT
To select a 4-digit channel number
(e. g., Channel 22.1):
Press 2s2s• (DOT) s1sENT
• When you enter 0–9 only, channel selection will be made if
there is no operation within a few seconds.
• If you push “0” by itself, nothing will happen.
• Complete the above steps within a few seconds.
• When you enter 0–9 and •(DOT), channel selection will be
made if there is no operation within a few seconds.
Method 1
Using CH r/son the remote control unit, or on the
TV.
Method 2
1Press FLASHBACK to switch to the previously
tuned channel.
2Press FLASHBACK again to switch back to the
currently tuned channel.
• FLASHBACK will not work if no channel has been
changed after the TV is turned on.
Method 3
Using remote control buttons 0-9, • (DOT) to select
channels for VHF/UHF/CATV/DIGITAL.
To select a 1 or 2-digit channel number
(e. g., Channel 5):
Press 5sENT
Watching TV
Displaying the receiving channel
information
Press DISPLAY once. The display appears
as shown on below. If the viewing channel is
a digital channel, the information of channel
number, audio service type, broadcast station,
program information and V-Chip rating will
appear.
Press DISPLAY again to return to normal
screen.
1
2
• The channel information will disappear if there is no
operation within a few seconds.
(While viewing digital
channel)
(While viewing analog
channel)
Ratings
SAP ( ST )
1/4 CC1
AUDIO STEREO
AIR DIGITAL
2.1

20
20
20
19
Simple button operations for
changing volume/sound
■Changing the volume
You can change the volume on the TV, or on the
remote control unit.
• VOLk/lon the TV operates the same as VOL k/l on
the remote control unit.
■Using VOLk/l
• To increase the volume, press VOLk.
• To decrease the volume, press VOLl.
Volume display when headphones are plugged in.
Volume adjustment
• Use headphones with a stereo mini-plug (∅3.5mm).
• Be sure to unplug headphones from the jack when they are
not in use.
• The speakers do not output volume when headphones are
plugged in.
■Using MUTE on the remote control unit
Mutes the current sound output.
• Within 30 minutes of pressing MUTE, mute can be
canceled by using one of the methods below.
Mute will cancel if you press VOL k/l or MUTE.
• Mute will be canceled after 30 minutes have passed.
However, the TV will not suddenly output a loud sound as
the volume level is set to 0 automatically.
Mute
Press MUTE.
• Mwill be displayed on the screen for 30 minutes, and the
sound is silenced.
Watching TV

English
French
Spanish
20
Setting MTS/SAP stereo mode
The TV has a feature that allows reception of sound
other than the main audio for the program. This feature
is called Multi-channel Television Sound (MTS). The TV
with MTS can receive mono sound, stereo sound and
Secondary Audio Programs (SAP). The SAP feature
allows a TV station to broadcast other information,
which could be audio in another language or something
completely different like weather information.
You can enjoy Hi-Fi stereo sound or SAP
broadcasts where available.
• Stereo broadcasts
View programs like live sporting events, shows and
concerts in dynamic stereo sound.
• SAP broadcasts
Receive TV broadcasts in either MAIN or SAP sound.
MAIN sound: The normal program soundtrack (either in
mono or stereo).
SAP sound: Listen to a second language, supplementary
commentary or other information. (SAP is mono sound.)
If stereo sound is difficult to hear.
• Obtain a clearer sound by manually switching to
fixed mono-sound mode.
•MTS only operates while in TV mode.
You can change MTS as
shown below to match the
television broadcast signal.
Press AUDIO to toggle
between audio modes.
Examples: when receiving MTS and SAP
STEREO mode MAINkSAP mode
Example: when receiving Digital broadcasting
Setting Digital broadcasting audio
mode
The types of audio transmitted in a digital broadcast
include Language1, Language2 and Language3. In
addition, it is possible for multiple audio tracks to
accompany a single video track.
Press AUDIO to toggle
between audio modes.
Watching TV
STEREOkSAP mode MONO mode
