JVC LT-32Z48 User manual

WIDE LCD PANEL TV INSTRUCTIONS
À¤²©q®/&'¿¨n³ ´¿±´³¤Án³
ENGLISH
¡³ª³Â£
LT-42Z48 / LT-32Z48
GGT0253-002A-H
LT-42Z48_002A_EN.book Page 0 Wednesday, October 29, 2008 11:10 AM

1

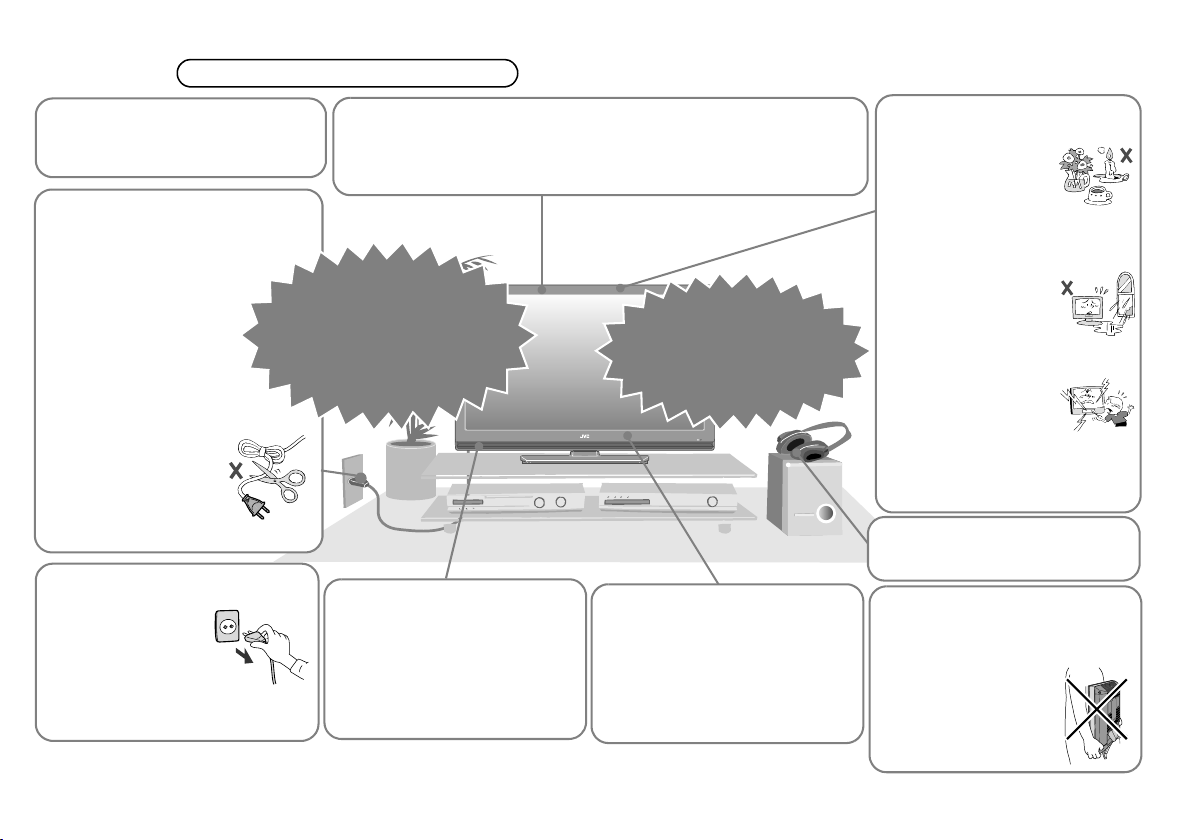

Warning Please follow all the guidelines below
Follow this manual regarding
setup!
zConnect only to a 110 - 240 V,
50/60 Hz AC outlet.
Unplug the power cord when
going out!
zThe power buttons
on the remote
control and the TV
unit cannot
completely turn off
the TV. (Make
appropriate arrangements for
bedridden people.)
Make enough room for inserting
and removing the power plug!
Place the TV as close to the
outlet as possible!
zEven if the TV’s power lamp
is unlit, the main power
supply is not cut off
unless the power cord is
unplugged. The main
power supply for this TV is
controlled by inserting or
removing the power plug.
Never cut or damage the
power cord!
zIf the power plug is
not the right shape, or
the power cord is not
long enough, use an
appropriate plug
adapter or extension
cable. (Consult your retailer.)
Never try to repair the TV
yourself!
gIf the problem cannot be
solved in
“Troubleshooting” (P. 26),
unplug the power cord and
contact your retailer.
For more details on installation, usage and safety gConsult your retailer
When attaching the TV to the
wall, use the optional JVC
wall mounting unit!
zConsult a qualified technician.
zSee the included manual on
mounting procedures.
zJVC assumes no responsibility
for damage due to improper
mounting.
Do not allow the TV to fall!
zDo not rest your elbows on, or allow children to hang from the TV.
There is a risk that the TV will fall and cause injuries.
zMake use of the hole on the back of the stand to prevent the TV from
falling easily. (P. 6)
If the TV is damaged or
behaving strangely, stop
using it at once!
gUnplug the power cord
and contact your retailer.
Handle LCD panel with care!
zUse a soft, dry cloth when
cleaning.
Never dismantle the rear panel!
zIt may cause an electric shock.
Never place anything on the
TV!
Never expose to rain or
moisture!
Never insert objects into the
cabinet openings!
zIt may cause a fatal
electric shock. Take
care when children
are near.
Never obstruct the ventilation
holes!
zIt may cause overheating or a
fire.
zPlacing liquids,
naked flames,
cloths, paper, etc. on
the TV may cause a
fire.
zTo prevent fire or
electric shock, never
allow liquids to enter
the unit.
Never listen to headphones at
high volume!
zIt may damage your hearing.
Hold the TV so as not to scratch
the screen!
zDo not touch the screen when
carrying the TV.
Do not carry the TV on
your own!
zIn order to prevent
accidents, ensure that
the TV is carried by
two or more people.
LT-42Z48_002A_EN.book Page 1 Wednesday, October 29, 2008 11:10 AM

USE SETTING
TROUBLE?
PREPARE
IMPORTANT
2
ENGLISH
ENGLISH
Please read “Getting started” (P. 6 - 11).
The main descriptions are in the following pages.
Contents
Connecting the
external devices
and aerial
Initial settings
Editing channels
7
PAGE
8
PAGE
Language
9
PAGE
10
PAGE
First things first! zWarning..............................................1
Getting started zRemote control...................................3
zNames and functions of parts ............4
zGetting started ...................................6
Let’s try it out
Try the advanced features
zEnjoy your new TV!..........................12
zWatching TV.....................................13
zViewing Teletext ...............................14
zWatching videos / DVDs ..................15
zUseful functions ...............................16
Just the way you like it zConfiguring your remote control.......17
zCustomising your TV........................19
Picture.............................................19
Features (sub menu).......................20
Sound..............................................21
Features..........................................22
Set Up .............................................24
When you have trouble zTroubleshooting ...............................26
zTechnical information .......................28
z“CH/CC” list......................................29
zSpecifications ................................... 30
To set up your TV
LT-42Z48_002A_EN.book Page 2 Wednesday, October 29, 2008 11:10 AM

3
466)$%/
LCD
STB
AUDIO
MODE
2%452.
#LEAR3$
CH
CH
VOL
VOL
$)30,!9
SLEEP TIMER
TOP MENU

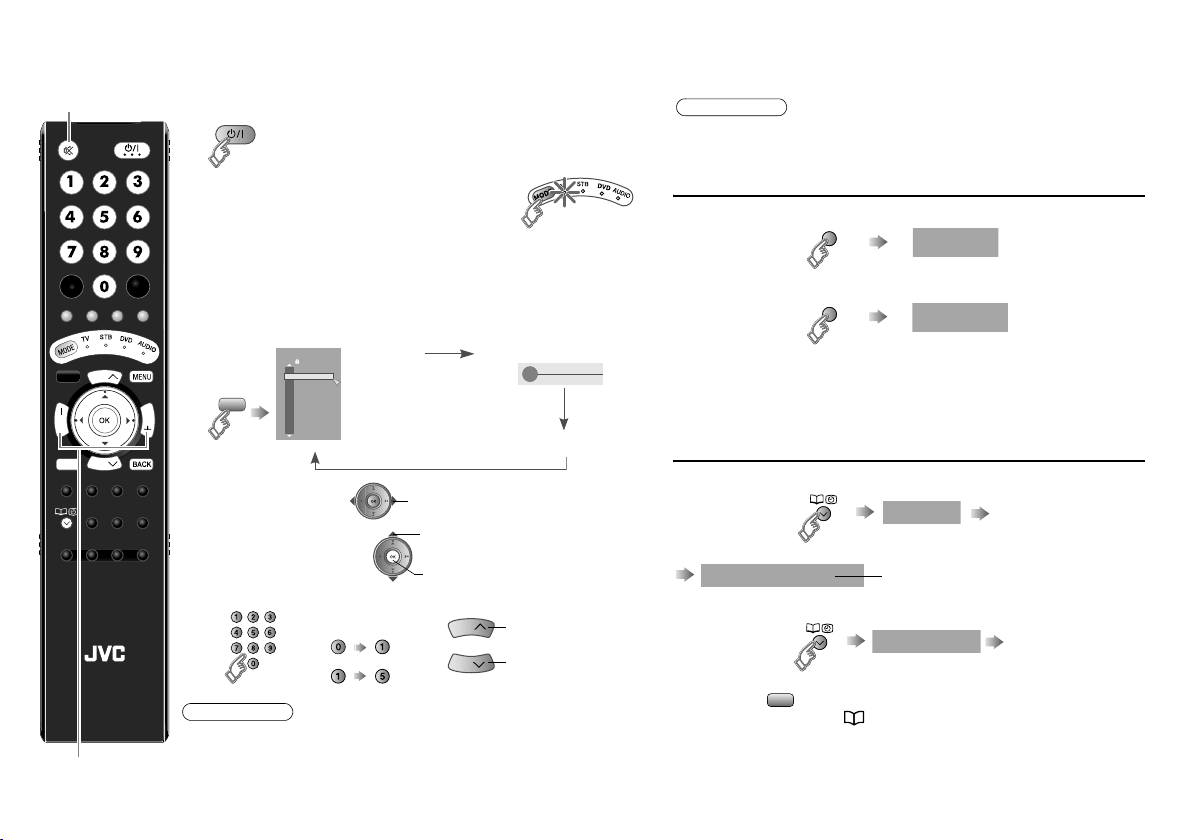

Mute Turn on / off (standby) the TV
Enter channel / page number
View Teletext (P. 14)
Colour buttons
Display on-screen menu (P. 19)
Select and confirm settings in menus
Change channel / page
For Hyper Scan, press and hold CH or CH , PR changes
without changing the picture screen. Once you release the
button, the picture of the selected PR will appear.
To the previous screen

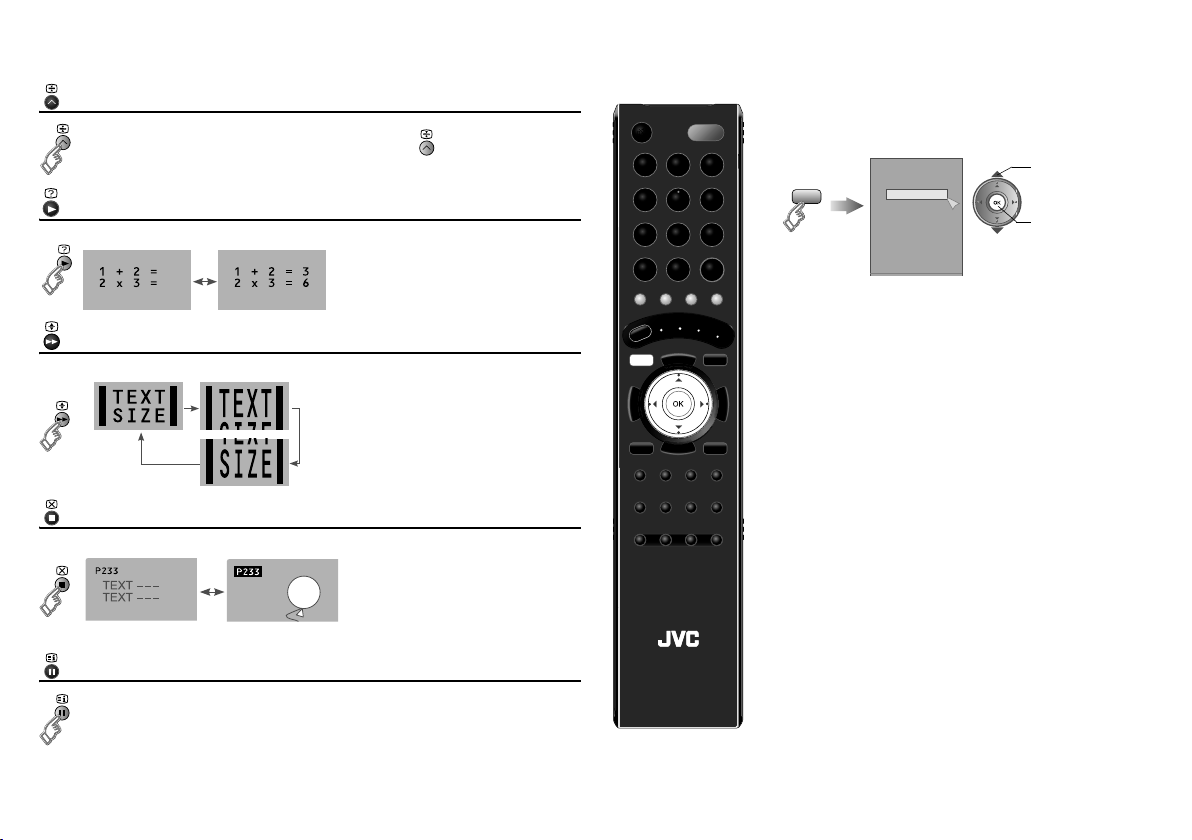

Functions for viewing Teletext (P. 14)
Set the sleep timer (P. 16)
Select a picture mode (P. 16)
Return to a frequently watched channel (P. 13)
Turn on “Clear SD” (P. 20)
Switch between “TV / STB / DVD / AUDIO” (P. 17)
Switch between TV / VIDEO devices
Volume control / Turn off muting
Display PR List and channel information
Choose a favourite channel (P. 13)
Change the aspect ratio (P. 16)
Turn on “Sound Effect” (P. 16)
zFor buttons that can be used to operate other devices, refer to
“Configuring your remote control” (P. 17).
Note
Remote control
LT-42Z48_002A_EN.book Page 3 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
4
USE SETTING
TROUBLE?
PREPARE
IMPORTANT
Power lamp
TV/VIDEO
CHANNEL
VOLUME
MENU/OK
Remote control sensor
Turn On / Off (standby) the TV
To headphones
Change channel / page / Hyper Scan (P. 3)
Switch between TV / VIDEO devices
Display on-screen menu / set
Volume / adjust
ON: Lit (Blue)
OFF: Unlit
zWhen “Power Lamp” is set to “Off”, the Power lamp will not light up.
g“Power Lamp” (P. 23)
Names and functions of parts
LT-42Z48_002A_EN.book Page 4 Wednesday, October 29, 2008 11:10 AM

5
Insert the stand into the panel at the position where the screw holes are and
fasten the screws (x 4, provided).
zIf you face any problem with the stand assembly, please contact your
retailer or authorised dealer.
Change the direction of TV Attach the stand to the TV
1
2
Note
Names and functions of parts
LT-42Z48_002A_EN.book Page 5 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
6
USE SETTING
TROUBLE?
PREPARE
IMPORTANT

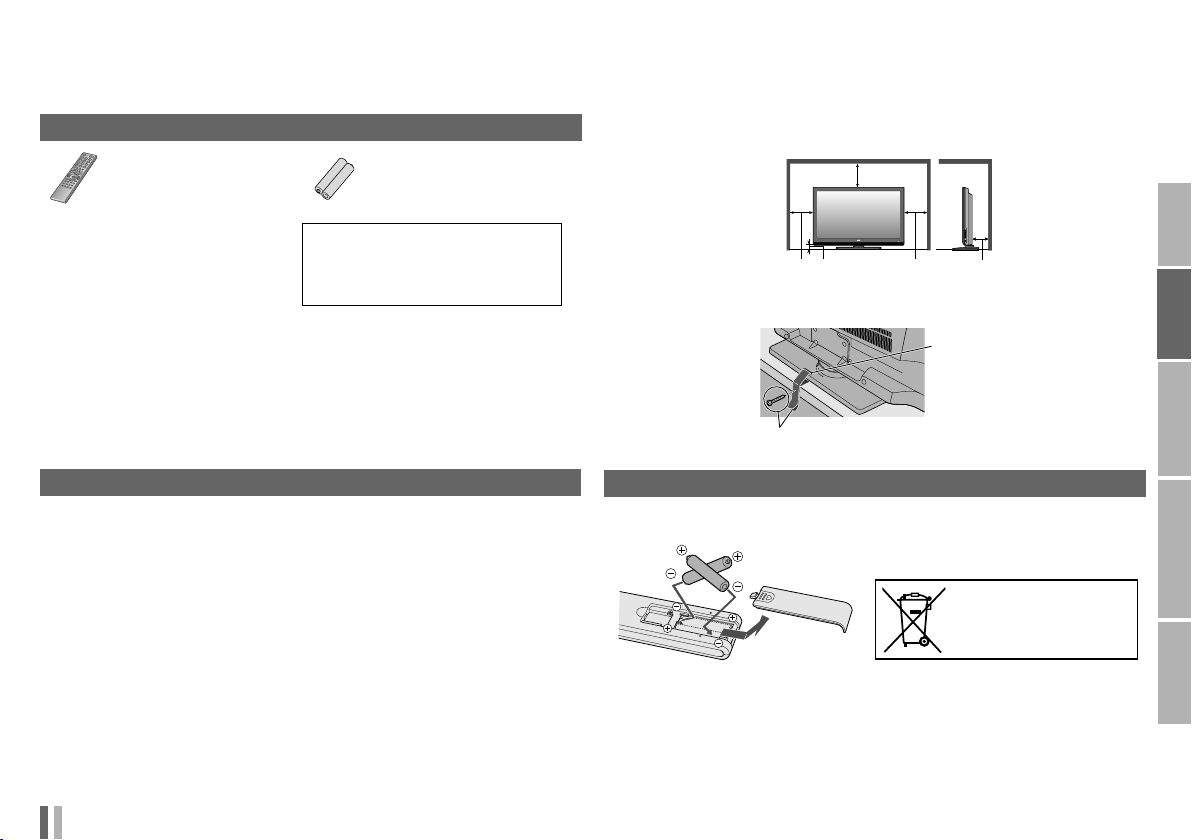

Please read P. 7 - 11 of this manual to set up your TV.
zStand and screws are also included. For details, refer to page 5.
Power requirements
zConnect the power cord only to a 110 - 240 V, 50/60 Hz AC outlet.
When attaching the TV to the wall, use the optional JVC wall mounting unit
zConsult a qualified technician.
zSee the included manual on mounting procedures.
zJVC assumes no responsibility for damage due to improper mounting.
zMounting holes for wall mounting unit:
LT-42Z48:
M5 x 4, 400 mm x 200 mm
Depth of screw hole is 13 mm from the surface of the TV.
LT-32Z48:
M5 x 4, 200 mm x 200 mm
Depth of screw hole is 7 mm from the surface of the TV.
Installation requirements
zPlace the TV on a flat and stable location.
zTo avoid overheating, ensure the unit has ample room.
zTo prevent the TV from falling, thread the belt through the hole on the back
of the stand and secure it to the TV rack, etc.
Use two “AAA/R03” dry cell batteries. Insert the batteries from the -end,
making sure the +and -polarities are correct.
Check accessories
Install your TV
Remote control
RM-C1940
“AAA/R03” Batteries
(For confirming the TV
works)
WARNING:
Batteries shall not be exposed to
excessive heat such as direct
sunshine, fire or the like.
Insert the batteries
200 mm
150 mm 50 mm 150 mm 50 mm
Hole
Belt and screw (not provided)
If this symbol is shown,
it is only valid in the
European Union.
Getting started
LT-42Z48_002A_EN.book Page 6 Wednesday, October 29, 2008 11:10 AM

7

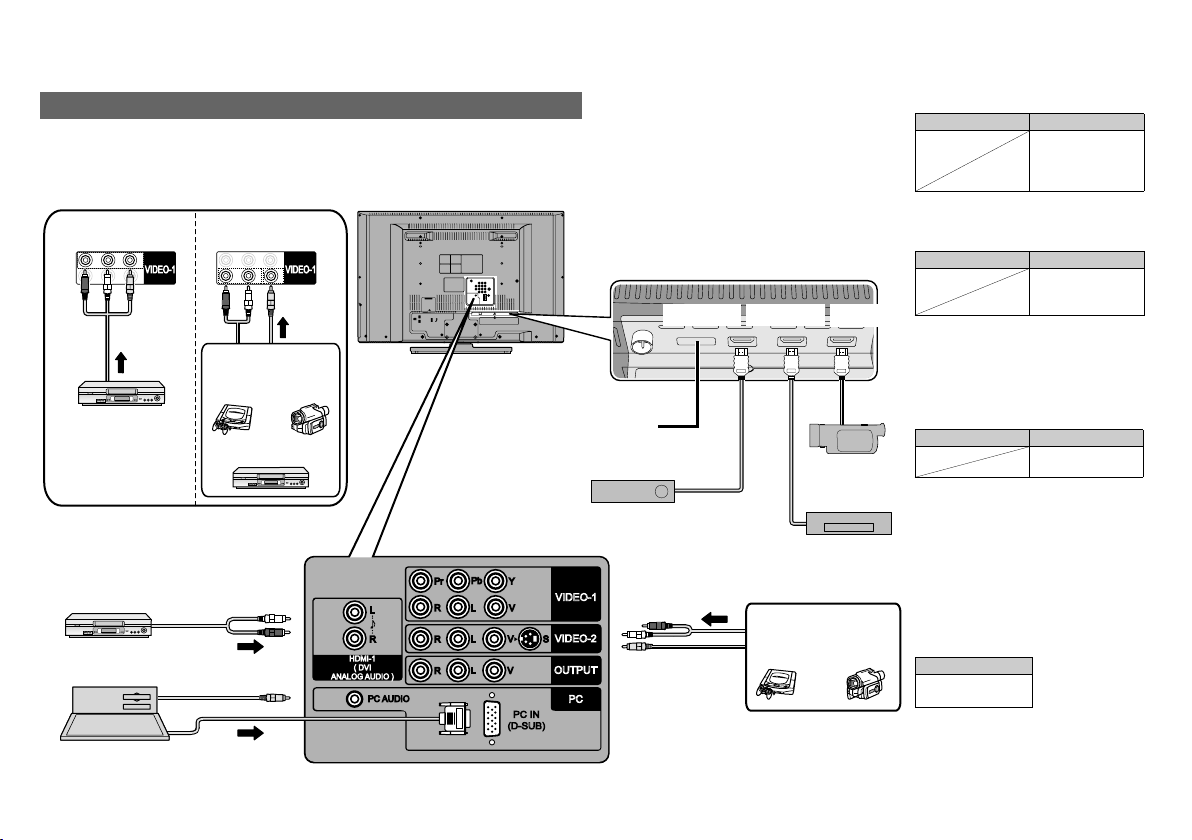

Make sure all the devices and the TV are turned off.
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)
Connecting your external devices
Pr Pb Y
R
LRLV
RLV
RLV
S
VIDEO-2
VIDEO-1
PC
PC AUDIO
PC IN
(D-SUB)
OUTPUT
HDMI-1
( DVI
ANALOG AUDIO )
Pr
Pb
Y
RLV
VIDEO-1
Pr Pb Y
RLV
VIDEO-1
JVC
JVC
Component input
DVD Player
HDMI-1* HDMI-2* HDMI-3*
DVD player
(HDMI compatible)
Not available.
(For service adjustments)
Digital Satellite broadcast tuner
HD Video
camera
DVD player
To VIDEO-2
Game
consoles
Video
camera
PC input line in
PC
Composite input
Game
consoles
Video
camera
VCR
g:signal direction
* HDMI-1, HDMI-2 and HDMI-3 are
HDMITM Connector.
Getting started
zUse component signal
g“VIDEO Setting” (P. 24)
zIf both composite and S-VIDEO cables
are connected, S-VIDEO input takes
priority over composite inputs.
z“HDMI-1 Audio Setting” g(P. 24)
zHDMI-2 and HDMI-3 inputs do not
support analogue sound.
zPlease use a High Speed HDMITM
Cable. High Speed HDMITM Cables are
tested to carry an HD signal up to 1080p
and higher.
OUTPUT
Video and sound signals of a TV channel
you are viewing output from these
terminals
DVI devices
g“Connect DVI devices”
(P. 28)
VIDEO-1 Watching videos
Output jInput h
•Composite signal /
Component signal
(P. 31)
•Sound L / R
VIDEO-2 Watching videos
Output jInput h
•Composite signal /
S-VIDEO
•Sound L / R
HDMI-1
HDMI-2
HDMI-3
Connecting HDMI
devices
Output jInput h
•HDMI signal
(P. 31)
Output j
•Composite signal
•Sound L / R
LT-42Z48_002A_EN.book Page 7 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
8
USE SETTING
TROUBLE?
PREPARE
IMPORTANT

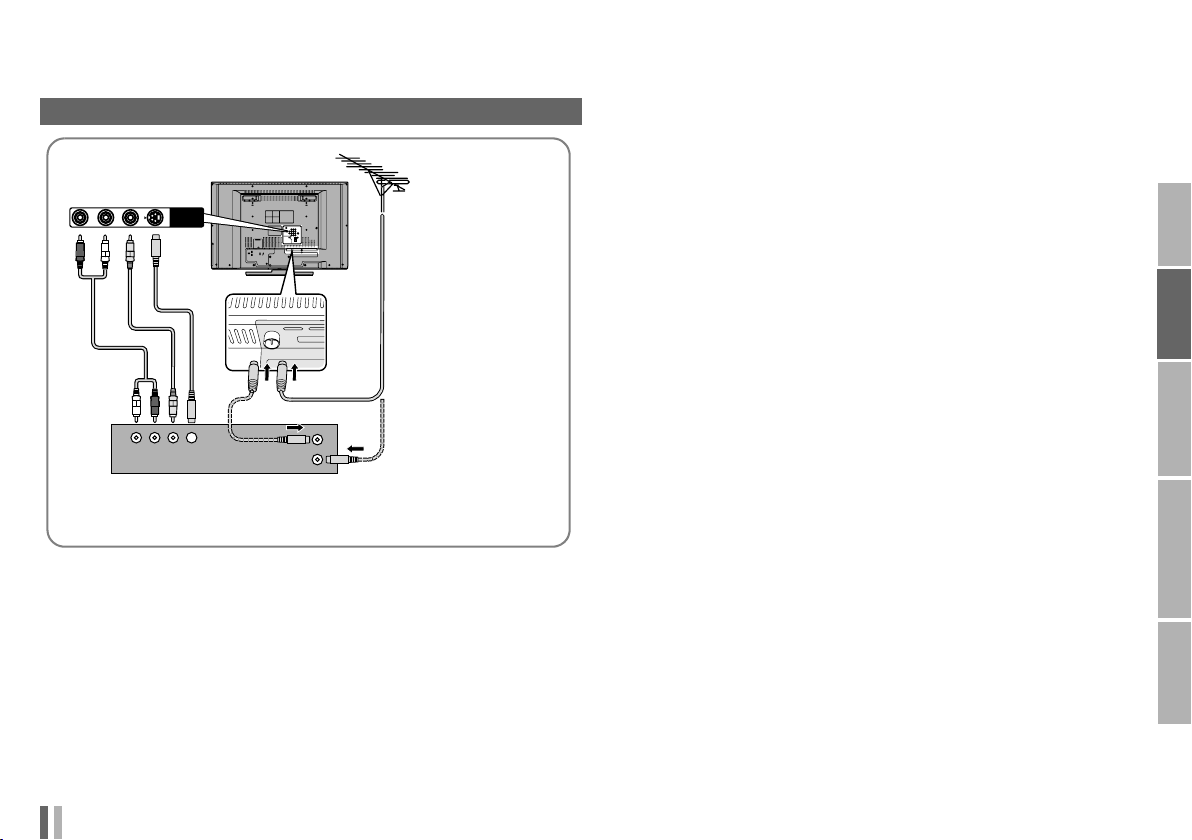

Connecting an aerial and VCR / DVD player
VIDEO-2
VIDEO-2
RLV
S
AERIAL
zAfter all the connections have been made, insert the plug into an
AC outlet.
VCR / DVD player
OR
LT-42Z48_002A_EN.book Page 8 Wednesday, October 29, 2008 11:10 AM

9

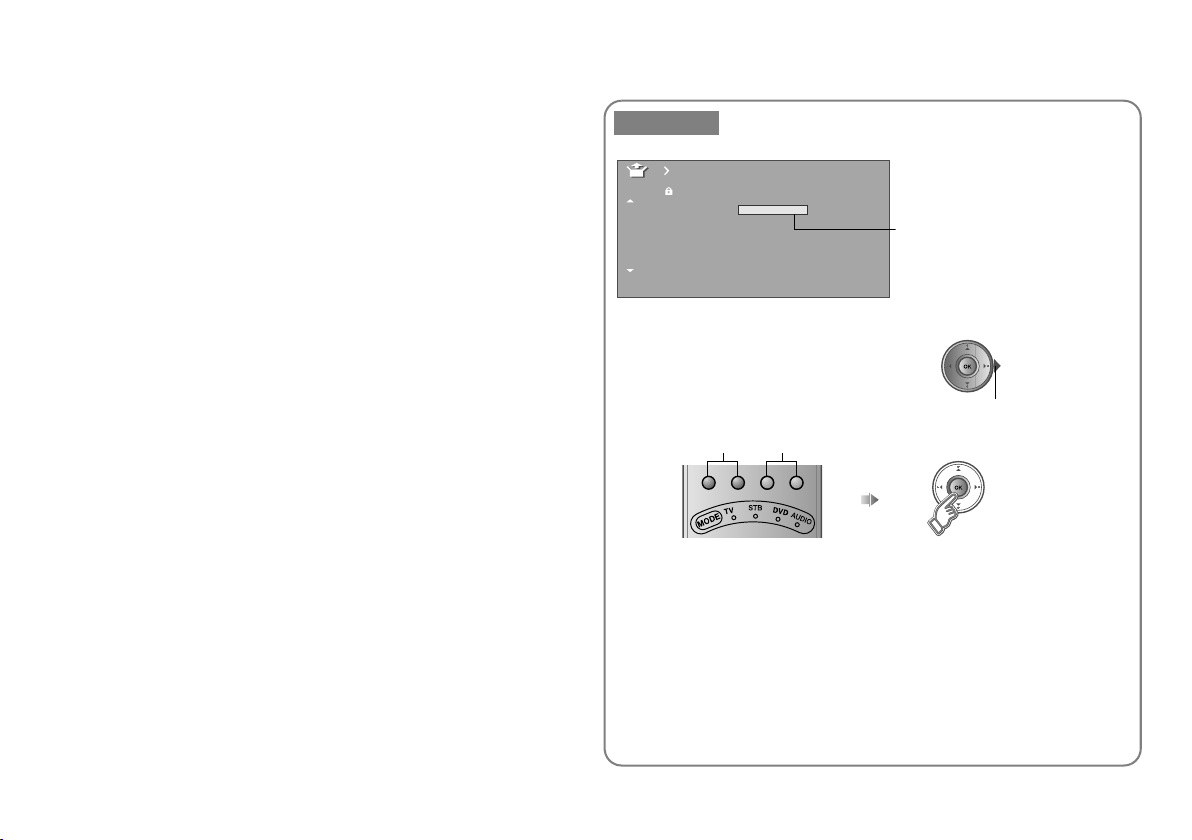

The initial settings will begin automatically when the TV is turned
on for the very first time. Follow the on-screen instructions to
perform the settings.
Initial settings
1Turn on
zIf the remote control doesn’t work,
confirm that the mode is set to “TV”.
2Start initial settings
zIf the JVC logo does not appear, refer to “To perform initial
settings again”.
3Select a language
To the previous screen g
Exit g
To perform initial settings again
Take note that performing initial settings again will cause all
channel related settings to be lost. Press the “MENU” button to
display the menu, then press and hold the number button “1”
for more than 3 seconds to start initial settings.
If you wish to make changes later
g“Language” and “Auto Program” (P. 24)
Language
Bset
Aselect
4Select the Teletext language group
5Automatically register channels
6Check what was registered
To edit channels
g“Editing channels” (P. 10)
7Finish
select
Group-4
Group-5
Group-3
Group-2
Group-1
Teletext Language
Auto Program
CH 02
0%
select a channel
_ _ _ _ _
AV
PR ID
Edit
CH/CC
01 CH
02 CH
03 CH
04
05
06
07
CH
CH
CC
CC
02
03
04
05
06
01
02
Getting started
I
n
i
LCD
LT-42Z48_002A_EN.book Page 9 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
10
USE SETTING
TROUBLE?
PREPARE
IMPORTANT
You can edit the channel list.
Editing channels
1Display the “Edit” menu
2Edit channels
To the previous menu
g
Exit
g
3Finish
Aselect
Bnext Bnext
Aselect
Select “Set Up” Select “Edit/Manual” Display the menu bar
_ _ _ _ _
AV
PR ID
Edit
CH/CC
01 02CH
02 03CH
03 04CH
04
05
06
07
05CH
06CH
01CC
02CC
select a
channel
Select channel Select edit function
ID
Insert Delete
Manual
Move Next
Move Move a channel’s position (PR)
ID Edit a channel name (ID)
Insert Insert a new channel directly by entering the
CH/CC number
Delete Delete a channel
zPressing the button deletes the channel.
set
select
Aselect character
Bmove position
Cset
N
am
i
ng a c
h
anne
l
z“CH/CC” list g(P. 29)
Select a “CH/CC”
zReceives the
broadcast signal.
Enter a number
LT-42Z48_002A_EN.book Page 10 Wednesday, October 29, 2008 11:10 AM

11
Manual Register a new channel
zPress the red or green button. Auto-search begins, and the nearest
frequency is imported.
gRepeat the previous steps until the desired channel is displayed.
ASearch a channel Fine tune BSet
Select a system
zIf necessary, press Xto
change the broadcasting
system.
g“Sound and colour system
in your country or region”
(P. 28)
AV
PR ID
Manual
CH/CC
01
02 03CH
03 04CH
04
05
06
07
05CH
06CH
01CC
02CC
(B / G)
_ _ _ _ _
02CH
Getting started
LT-42Z48_002A_EN.book Page 11 Wednesday, October 29, 2008 11:10 AM

LCD
TV/VIDEO
CH
CH
ENGLISH
ENGLISH
12
USE SETTING
TROUBLE?
PREPARE
IMPORTANT
Enjoy your new TV!
13
PAGE
Watching TV
16
PAGE
Useful functions
19
PAGE
Watching videos / DVDs
15
PAGE
PR List
09
08
07
06
05
04
03
02
01
_ _ _ _ _
AV
PR ID
Picture settings
(Picture Mode, Features, etc.)
Sound settings
(Stereo/tu, Cinema Surround,
etc.)
Set Up settings
(Auto Program, Language, etc.)
Features settings
(Sleep Timer / Child Lock, etc.)
Customising your TV
Change the aspect ratio
Change the sound effect
Select a preset picture setting
Set the sleep timer
14
PAGE
Viewing Teletext
LT-42Z48_002A_EN.book Page 12 Wednesday, October 29, 2008 11:10 AM

13
LCD
CH
CH
VOL
VOL
DISPLAY
TOP MENU
zUsing the TV buttons
g“Names and functions of parts” (P. 4).
zTo soften the picture for daily use, change the setting in
“Picture Mode” g“Picture Mode” (P. 19)
Register a frequently watched channel as return
channel (RETURN PLUS)
Choose the channel you want to register
zTo Cancel
RETURN function
If you have not registered or have cancelled the RETURN PLUS
channel, press this button to return to the previously watched
channel.
Register a channel to a button (Favourite channel)
1Turn on
zIf the remote control doesn’t work,
confirm that the mode is set to “TV”.
zPress again to turn the screen off and
put the TV into standby mode.
zTo completely turn off the TV, unplug the power plug.
2Select a channel
Using PR list
The power lamp on the TV lights.
PR List
09
08
07
06
05
04
03
02
01
_ _ _ _ _
AV
PR ID
DISPLAY
TOP MENU
PR List
zChannels
registered in
“Initial settings”
will appear here.
zSelect a page gselect
CH
CH
Press a channel number Move up or down a channel
E.g.
15 :
1 :
up
down
zView a channel g
Bview
Aselect
1
Channel information
(No indication)
Note
Choose the channel you want to register
Recall the favourite channel
Check your favourite channels
gPress “ ” and confirm that the channels you have
registered have a beside them.
Delete a favourite channel g“Favourite Setting” (P. 23)
Note
Return Plus
Programmed!
Press and hold
RETURN +
Return Plus
Canceled!
Press and hold
RETURN +
Set 1-4?
Press number
button (1-4 only)
Press and hold
Programmed! Disappears after a
few seconds
Favourite 1-4?
Press number
button (1-4 only)
Press and hold
DISPLAY
Watching TV
Mute
Volume
LT-42Z48_002A_EN.book Page 13 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
14
USE SETTING
TROUBLE?
PREPARE
IMPORTANT
This TV can display TV broadcasts and Teletext on the same channel in two
windows.
View sub-pages
Display sub-pages
Bookmark your favourite page
MODE
CH
CH
(red) (green)
updown
Move up or down a page
Release gPress “ ” again
MODE
1Display your favourites list
2Select a coloured button to save your page to
3Enter the number of the page to save
4Save
Recall your favourite page
1 Display your favourites list
2 Press a coloured button
MODE
(red) (green) (yellow) (blue)
Exit gMODE
MODE
(red) (green) (yellow) (blue)
Viewing Teletext
1
2Enter a Teletext page
Move up or down a
page
TEXT
TV TEXT
CH
CH
up
down
When watching TV
LT-42Z48_002A_EN.book Page 14 Wednesday, October 29, 2008 11:10 AM

15
Hold the current page
Reveal hidden pages
Enlarge the text
Switch briefly from Teletext to TV
To the index page
Hold the current page
Release gPress “ ” again
Display hidden information (answers to quizzes, etc.)
Double the size of the displayed text
Leave the current page open, while you switch to watch TV
zUseful when running a page search.
Returns to page “100” or a previously designated page
1Select the video source
2Operate the connected device and play a
video
AV Select
01
VIDEO-1
VIDEO-2
HDMI1
HDMI2
HDMI3
PC
0
1
2
3
4
5
6
E.g. For VIDEO-1
Bwatch
Aselect
TV/VIDEO
AV Select
LCDLCD
TV/VIDEO
Watching videos / DVDs
LT-42Z48_002A_EN.book Page 15 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
16
USE SETTING
TROUBLE?
PREPARE
IMPORTANT
Zoom
Change the aspect ratio
zDepending on the signal formats, some zoom modes will be
displayed in black and will not be selectable.
zIf an image is displayed in an aspect ratio that differs from its
original aspect ratio, the image will be distorted or portions of
the image will be cut off.
Sound Effect
Enjoy the sound setting that you like
Cinema Surround (P. 21)
Enjoy ambient sound.
z“Cinema Surround” does not work with headphones.
MaxxBass (P. 21)
Compensates low frequencies to widen the frequency band.
z“MaxxBass” does not work with headphones.
Picture Mode (P. 19)
You can select a preset picture setting according to the
brightness of your room or when playing video games.
Sleep Timer
Set a time for the TV to turn off automatically
1
2Select the aspect ratio
3
zWhen “Slim” is selected, a 4:3 image stretched out to 16:9 will
revert back to its original aspect ratio with black bands.
zWhen “Panoramic Zoom” is selected, a 4:3 image with black
bands will be stretched out to 16:9.
z“Full Native” g“What is “Full Native”?” (P. 28)
zUsing “Auto” g“Auto in “Zoom”” (P. 28)
Zoom
Auto
Regular
Panoramic
14:9 Zoom
16:9 Zoom
16:9 Zoom Subtitle
Full
Full Native
Slim
Panoramic Zoom
Panoramic
Aselect
Bset
16:9 Zoom
Move the picture with Sor Twhile this bar is displayed
Note
1
2Set the time
Cancel gSet the time to “0”.
Remaining time gDisplay this menu again.
OffMaxxBass
OffCinema Surround
Sound Effect
SLEEP TIMER
SLEEP TIMER
Aselect
Bset
Sleep Timer
0120
Off
Useful functions
LCD
SLEEP TIMER
CH
CH
LT-42Z48_002A_EN.book Page 16 Wednesday, October 29, 2008 11:10 AM

17
You can configure your TV’s remote control to operate your other
devices.
Configure your remote control.
zIf your device does not respond, try all the available codes for
the device’s brand.
zIf none of the code works, or the brand is not listed, refer to
“Using the search code function” (P. 18).
1Turn on the device manually.
2Switch the remote control mode to a mode that
matches your device. Refer to the table on the
right to select an appropriate mode.
zThe indicator lights for 3 seconds each time the remote
control is operated.
3Find the remote control code for your device
according to its brand from the “Remote control
codes” manual.
4Set the remote control code.
5Point the remote control at your device, press
and confirm that your device is turned off. If your
device does not respond, try entering another
available code.
TV STB
AUDIO DVD
Press and hold Enter four digit
number
Release the button
MODE Applicable devices
TV This TV only
STB Cable Set Top Box, Cable/PVR Combination,
Satellite Set Top Box, SAT/PVR Combination
DVD DVD, Blu-Ray DVD, HD DVD, DVD-R, Home
Theater in Box, TV/DVD Combination
AUDIO Amplifier, Receiver, Home Theater in Box
Note
Configuring your remote control
LCD
LT-42Z48_002A_EN.book Page 17 Wednesday, October 29, 2008 11:10 AM

ENGLISH
ENGLISH
18
USE SETTING
TROUBLE?
PREPARE
IMPORTANT
Change the remote control mode
Turn on/off the device
Navigate the menus
Playback / Record, etc.
Mute gPress “ ”
Volume gPress “ ”
Select a surround mode gPress “ ”
zDepending on your device, some functions may not be
operable with this remote control.
Using the search code function
This function searches through the codes one by one, beginning from the
first code in the list.
1Turn on the device manually.
2Switch the remote control mode to a mode that matches
your device.
Press to select the mode.
3Activate the search code function.
Hold down and until the mode indicator blinks.
4Point the remote control at your device and press . If
there is no response, try the next code by pressing and
press again. Repeat the process until your device
turns off.
5Press to register the code.
The code is now set. Confirm that the mode indicator goes
out.
If your TV’s remote control still does not work even after using the
search code function, use your device’s own remote control. The TV’s
remote control is not guaranteed to work with all models, brands or
operations.
Button functions
DISPLAY
Display top
menu
OK
Select Display menu
Back to
previous menu
MODE
Play
Forward
Rewind
Select a
chapter
Stop
Pause
Record
VOL
VOL
LCD
MODE
VOL
VOL
DISPLAY
TOP MENU
LT-42Z48_002A_EN.book Page 18 Wednesday, October 29, 2008 11:10 AM

19
You can select a preset picture setting according to the
brightness of your room or when playing video games.
You can make further adjustments to the selected preset
“Picture Mode” to your liking.
To return to the default adjustments g(blue)
1Display the menu bar
2Display the desired menu
3Change or adjust the setting
zThe menu disappears
after one minute of
inactivity.
To the previous
screen
g
4Close the menu
select
Picture Mode Standard
White Balance Cool
Features
Backlight
Contrast
Brightness
Sharpness
Tint
Colour
select
To enter an item’s menu
change / adjust
select
(E.g. Features)
Features
Clear SD
DigiPure
Pull Down
Colour Management
Picture Management
Smart Picture
Dynamic Backlight
MPEG Noise Reduction
Colour System
Zoom
Off
Digital VNR Off
Off
Auto
On
On
On
On
On
Picture Mode
Bright : in a fairly bright room
Soft : in a dark room
Standard : in a room with standard brightness
Game Mode : when playing video games
Backlight Backlight brightness (Darker lBrighter)
Contrast Contrast (Lower lHigher)
Brightness Brightness (Darker lBrighter)
Sharpness Sharpness (Softer lSharper)
Colour Colour (Lighter lDeeper)
Tint Tint (Reddish lGreenish) (NTSC only)
White Balance Colour temperature (Warm / Mid / Cool)
Features g“Features (sub menu)” (P. 20)
Picture Mode Standard
White Balance Cool
Features
Backlight
Contrast
Brightness
Sharpness
Tint
Colour
Customising your TV
zDepending on the
situation (channels,
video signal
formats, external
inputs, etc.), some
items will be
displayed in black
colour and will not
work. You will not
be able to change
their setting as
well.
Note
LT-42Z48_002A_EN.book Page 19 Wednesday, October 29, 2008 11:10 AM
