INSTALLATION

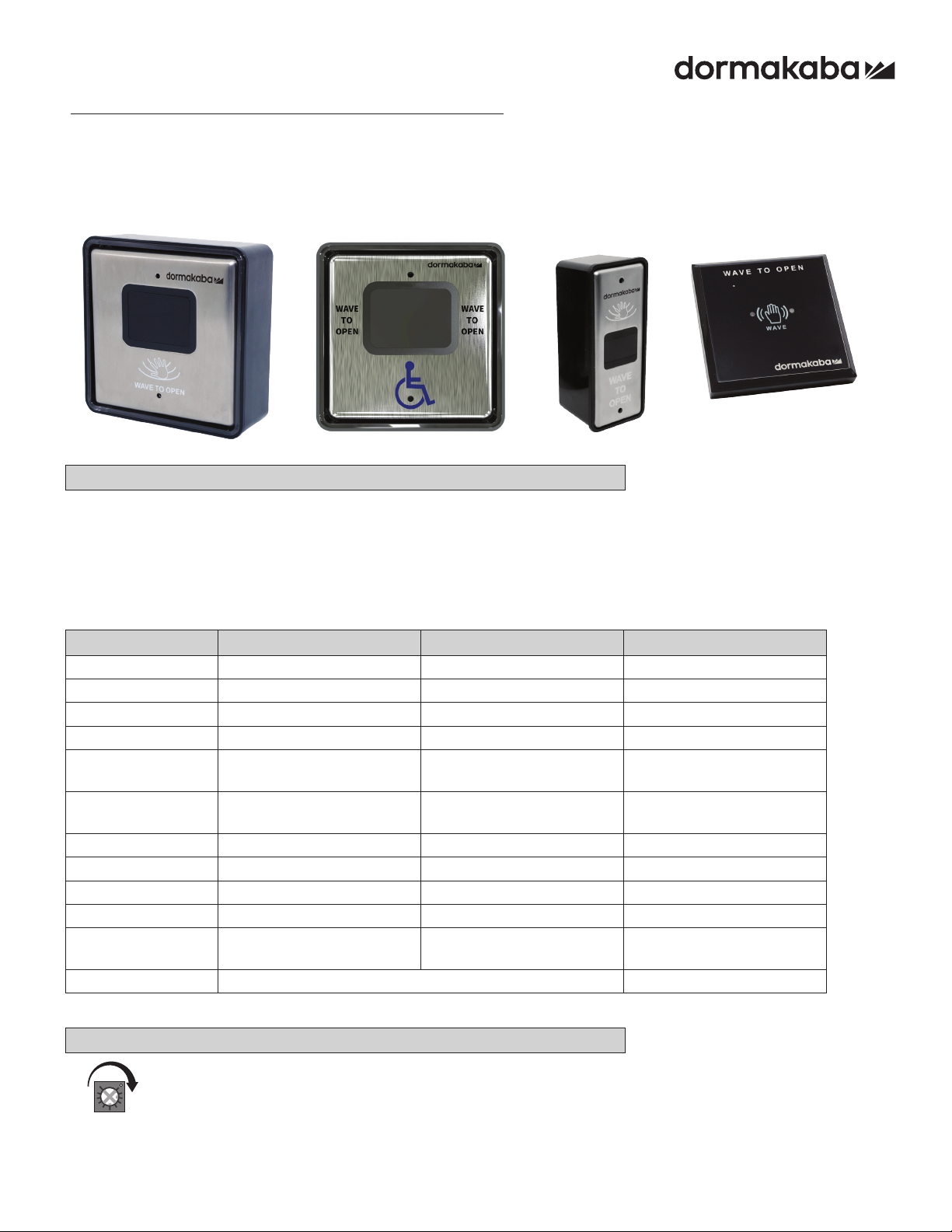

RCI 912-WBT Series
WIRELESS BATTERY POWERED TOUCHLESS SWITCH
© 2022 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]IS912-WBT
PCN2204
R03-22GR
OVERVIEW
SPECIFICATION 912-WBT, 912-WBT-HC 912N-WBT, 912N-WBT-HC 912GL-WBT, 912GL-WBT-HC
Power Input 6 VDC (4 AA batteries) 3 VDC (2 AA batteries) 3 VDC (2 AAA batteries)
Static Current ≤ 80uA ≤ 80uA ≤ 80uA
Battery Life 500 actuations/day ~ 450 Days 200 actuations/day ~ 250 days 200 actuations/day ~ 220 Days
Emmission Current 10mA 10mA 10mA
Infrared Modulation
Frequency
38KHz 38KHz 38KHz
Infrared Scanning
Interval
100ms 100ms 100ms
Response time ≤ 130ms ≤ 130ms ≤ 130ms
Transmitter Range >30M (100') in clear line of sight >30M (100') in clear line of sight >30M (100') in clear line of sight
Working Temperature* -42˚C ~ 45˚C (-43˚F ~ 113˚F) -42˚C ~ 45˚C (-43˚F ~ 113˚F) -42˚C ~ 45˚C (-43˚F ~ 113˚F)
Working Humidity 10 ~ 90% RH 10 ~ 90% RH 10 ~ 90% RH
Size 129mm L x 129mm W x 46mm H
(5.0"w L x 5.0" W x 1.8" H)
121mm L x 51mm W x 46mm H
(4.8" L x 2.0" W x 1.8" H)
86mm L x 86mm W x 15mm H
(3.4" L x 3.4" W x 0.6" H)
Certications FCC, ISED FCC, ISED FCC, ISED
* Intended for indoor use only
SENSING DISTANCE ADJUSTMENT
30cm
3cm
The clockwise direction will increase sensing distance.
The counterclockwise direction will decrease sensing distance.
• Infrared motion detection technology
• Non-contact activation with hands or reective objects is clean and
hygenic
• The detection distance is adjustable from 1-12" (3-30cm)
• High sensitivity infrared, quick response
• 2.4GHz wireless transmission adopts wireless transmitter/receiver
• Low power consumption sensor provides long battery life
• Receiver 3 Amp @ 30 VDC output can be used with automatic
door and access control
• After receiving the signal, the door opening signal is output for
1.5 seconds
• Receiver voltage input 12~30 VDC

© 2022 dormakaba Canada Inc
www.dormakaba.us • Phone: [phone] • Fax: [phone] • E-mail: [email protected]
SPECIFICATION RECEIVER model 912-R
Power Input 12 ~ 30 VDC
Static Current 34 mA
Activated Current 62 mA @ 12 VDC
Contact Rating 3A @ 30 VDC SPDT
Size 110mm L x 30mm W x 15mm H
(4.3" L x 1.2" W x 0.6" H)
RECEIVER I/O DIAGRAM
PAIRING & RESET
REGULATORY STATEMENTS
FCC statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
ISED statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device
may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélec-
trique subi, même si le brouillage est susceptible d'encompromettre le fonctionnement.
Transmitter/Receiver Pairing:
1. Press Learn Button for 1 second.
LED will change from green to red,
indicating learn mode.
2. Activate Transmitter Button Red, Blue.
LED will ash alternately, indicating units
are paired.
3. Select momentary or latching for
activation action.
Note: Follow steps 1 & 2 for additional units.
Reset receiver:
1. Press and hold Learn Button for
5 seconds.
Will delete memory.
Note: As this device uses wireless transmit-
ter and receiver technology, location of these
devices is critical to optimal operation.
Locating the receiver in close proximity to
other electrical devices and connections may
cause erratic behavior.
Should this happen, relocate the receiver.
Orange = NC relay output
Yellow = COM relay output
Blue = NO relay output
Red to Positive Power
Green to Negative Power
}
}
12 - 30 VDC
SPDT 3A Relay
M = Momentary
L = Latching
Learn Button
Blue LED Activated
Red LED Power
912-R
M-MOMENTARY
L-LATCHING
