DPT MINI CAT 5 User manual

DIRECTPUMPSANDTANKS.CO.UK
THE DPT
MINI CAT 5
INSTALLATION
MANUAL

DPT MINI CAT 5

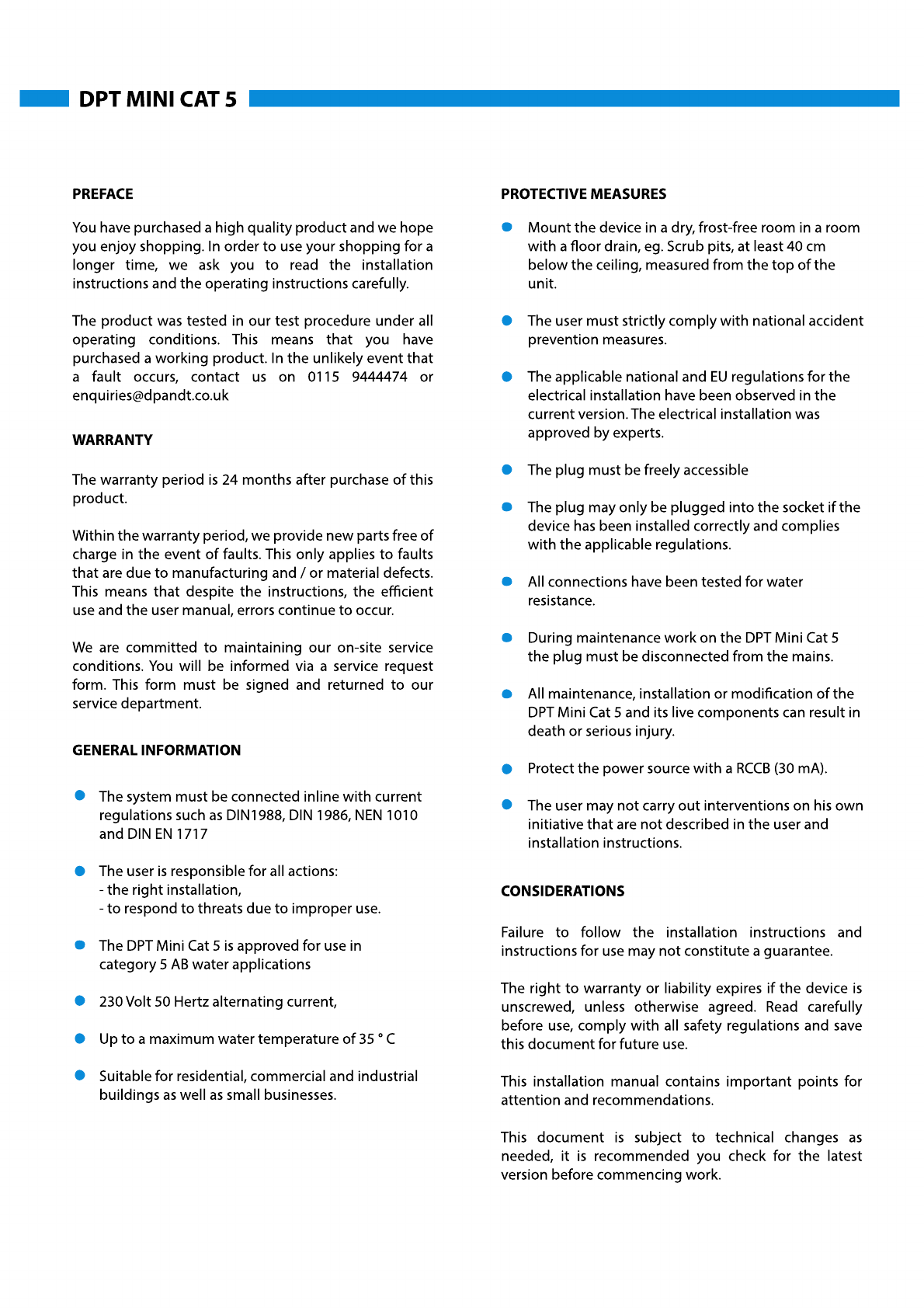

PREFACE
WARRANTY
GENERAL INFORMATION
PROTECTIVE MEASURES
CONSIDERATIONS
The warranty period is 24 months after purchase of this
product.
Within the warranty period, we provide new parts free of
charge in the event of faults. This only applies to faults
that are due to manufacturing and / or material defects.
This means that despite the instructions, the efficient
use and the user manual, errors continue to occur.
We are committed to maintaining our on-site service
We are committed to maintaining our on-site service
conditions. You will be informed via a service request
form. This form must be signed and returned to our
service department.
The system must be connected inline with current
regulations such as DIN1988, DIN 1986, NEN 1010
and DIN EN 1717
The user is responsible for all actions:
- the right installation,
- to respond to threats due to improper use.
The DPT Mini Cat 5 is approved for use in
The DPT Mini Cat 5 is approved for use in
category 5 AB water applications
230 Volt 50 Hertz alternating current,
Up to a maximum water temperature of 35 ° C
Suitable for residential, commercial and industrial
buildings as well as small businesses.
You have purchased a high quality product and we hope
you enjoy shopping. In order to use your shopping for a
longer time, we ask you to read the installation
instructions and the operating instructions carefully.
The product was tested in our test procedure under all
The product was tested in our test procedure under all
operating conditions. This means that you have
purchased a working product. In the unlikely event that
a fault occurs, contact us on 0115 9444474 or
[e-mail]
Mount the device in a dry, frost-free room in a room
with a oor drain, eg. Scrub pits, at least 40 cm
below the ceiling, measured from the top of the
unit.
The user must strictly comply with national accident
prevention measures.
The applicable national and EU regulations for the
The applicable national and EU regulations for the
electrical installation have been observed in the
current version. The electrical installation was
approved by experts.
The plug must be freely accessible
The plug may only be plugged into the socket if the
The plug may only be plugged into the socket if the
device has been installed correctly and complies
with the applicable regulations.
All connections have been tested for water
resistance.
During maintenance work on the DPT Mini Cat 5
the plug must be disconnected from the mains.
All maintenance, installation or modication of the
All maintenance, installation or modication of the
DPT Mini Cat 5 and its live components can result in
death or serious injury.
Protect the power source with a RCCB (30 mA).
The user may not carry out interventions on his own
initiative that are not described in the user and
installation instructions.
Failure to follow the installation instructions and
instructions for use may not constitute a guarantee.
The right to warranty or liability expires if the device is
unscrewed, unless otherwise agreed. Read carefully
before use, comply with all safety regulations and save
this document for future use.
This installation manual contains important points for
This installation manual contains important points for
attention and recommendations.
This document is subject to technical changes as
needed, it is recommended you check for the latest
version before commencing work.

DPT MINI CAT 5
CONTENTS
The DPT Mini Cat 5 system comes with the following
components as standard:-
1) 1x Mini Cat 5
2) 1x pressure tank 8 liter
3) 1x Float switch bracket
4) 3x Ring M6
5) 1x supplied ball valve
6) 2x Flexible hose
6) 2x Flexible hose
7) 2x Bolts
8) 1x mounting bracket
9) Vlotter 50x50
10) 3x Nylon plug M8
11) 6x ber rings
Place the system on the ground and ensure there is
sufficient space for LxWxH of 60x40x70 cm.
Caution! All connections are on the right side of the
system
Mark the rst drill point at 3 cm at the right and 3.5 cm
above of the system, mark the second drill point 7 cm at
the right of drill point 1 (at the same height). Use an
8mm drill and approx. 5 cm deep.
INSTALLATION INSTRUCTIONS
Insert the supplied plugs in the drilled holes and mount
the mounting bracket on the wall. Use the supplied
bolts.

DPT MINI CAT 5
INSTALLATION INSTRUCTIONS CONTINUED
Mount the pressure tank at the top side of the mounting
bracket. Make sure the connection is water tight by
using hemp or other sealing material.
Mount the 3/4” exible hose on the connection of the
pressure side of the pump (bottom connection). Then,
mount the other side of the exible hose at the bottom
side of the mounting bracket. Use the ber rigns for a
water tight seal.
Mount the second 3/4” exible hose on the supplied ball
valve. Use the ber rings for a waterproof seal.
Mount the other side of the exible hose on the drinking
water supply of the system (middle connection). Use the
ber rings for a waterproof seal.
Connect the 3/4” F connection on the T-piece under the
pressure tank on the secundary water network. Once all
the pipings are connected water proof, you can continue
commissioning.
