Draper Expert 95092 User manual

These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

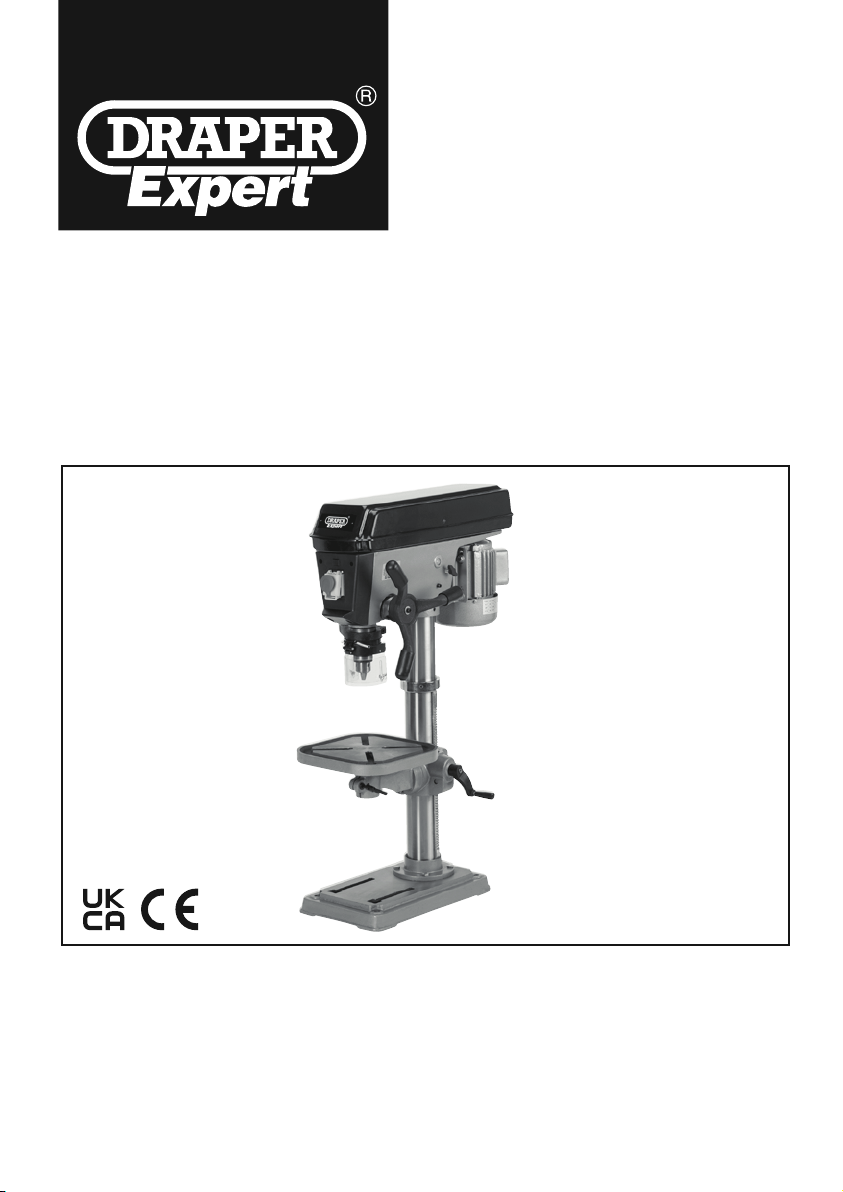

Stock No.95314 shown
95314 / 95092

230V 16 SPEED
BENCH/FLOOR STANDING
DRILL

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V 16 Speed Bench/Floor Standing Drill
Stock No’s: 95314 & 95092
Part No’s: BD650/16E & DP650/16E
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited Draper Tools Limited
Hursley Road Oude Graaf 8
Chandler’s Ford 6002 NL
Eastleigh WEERT
Hampshire Netherlands
SO53 1YF
UK
Website: drapertools.com
Product Helpline: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published November 2018.
Date first revised: April 2022.
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL ............................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS..................................................................................................................3
3. WARRANTY
3.1 WARRANTY.................................................................................................................4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION ..........................................................................................................5
4.3 HANDLING AND STORAGE........................................................................................5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................6-7
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR DRILLS...............................................8
5.3 CONNECTION TO THE POWER SUPPLY .................................................................9
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION .......................................................................................................10
7. UNPACKING AND CHECKING
7.1 PACKAGING .............................................................................................................. 11
7.2 WHAT’S IN THE BOX?............................................................................................... 11
8. PREPARING THE DRILL
8.1 BASE TO COLUMN ...................................................................................................12
8.2 TABLE BRACKET .....................................................................................................12
8.3 TABLE ........................................................................................................................13
8.4 HEADSTOCK .............................................................................................................13
8.5 PLUNGE HANDLES................................................................................................... 13
8.6 CHUCK AND ARBOR.................................................................................................14
8.7 CHUCK GUARD......................................................................................................... 14
8.8 BENCH/FLOOR MOUNTING.....................................................................................14
9. SETTING THE DRILL
9.1 SPINDLE SPEED ADJUSTMENT..............................................................................15
9.2 BRILL BIT INSTALLATION/REPLACEMENT............................................................. 16
9.3 NO-VOLT SWITCH..................................................................................................... 16
9.4 WORK TABLE ADJUSTMENT................................................................................... 17
9.5 GENERAL DRILLING................................................................................................. 18
9.6 DUST AND SWARF ...................................................................................................18
10. TROUBLESHOOTING
10.1 TROUBLESHOOTING ............................................................................................... 19
11. MAINTENANCE
11.1 MAINTENANCE .........................................................................................................20
11.2 ARBOR REMOVAL ....................................................................................................20
12. OPTIONAL ACCESSORIES
12.1 OPTIONAL ACCESSORIES....................................................................................... 21
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS .................................................................................. 22
14. DISPOSAL
14.1 DISPOSAL..................................................................................................................23
DECLARATION OF CONFORMITY ..............................................................................ENCLOSED
- 3 -

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 230V 16 Speed Bench/Floor Standing Drill
Stock No’s: 95314 & 95092
Part No’s: BD650/16E & DP650/16E
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited Draper Tools Limited
Hursley Road Oude Graaf 8
Chandler’s Ford 6002 NL
Eastleigh WEERT
Hampshire Netherlands
SO53 1YF
UK
Website: drapertools.com
Product Helpline: [phone]
General Fax: [phone]
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published November 2018.
Date first revised: April 2022.
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL ............................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS..................................................................................................................3
3. WARRANTY
3.1 WARRANTY.................................................................................................................4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION ..........................................................................................................5
4.3 HANDLING AND STORAGE........................................................................................5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................6-7
5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR DRILLS...............................................8
5.3 CONNECTION TO THE POWER SUPPLY .................................................................9
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION .......................................................................................................10
7. UNPACKING AND CHECKING
7.1 PACKAGING .............................................................................................................. 11
7.2 WHAT’S IN THE BOX?............................................................................................... 11
8. PREPARING THE DRILL
8.1 BASE TO COLUMN ...................................................................................................12
8.2 TABLE BRACKET .....................................................................................................12
8.3 TABLE ........................................................................................................................13
8.4 HEADSTOCK ............................................................................................................. 13
8.5 PLUNGE HANDLES................................................................................................... 13
8.6 CHUCK AND ARBOR.................................................................................................14
8.7 CHUCK GUARD......................................................................................................... 14
8.8 BENCH/FLOOR MOUNTING.....................................................................................14
9. SETTING THE DRILL
9.1 SPINDLE SPEED ADJUSTMENT..............................................................................15
9.2 BRILL BIT INSTALLATION/REPLACEMENT............................................................. 16
9.3 NO-VOLT SWITCH..................................................................................................... 16
9.4 WORK TABLE ADJUSTMENT................................................................................... 17
9.5 GENERAL DRILLING................................................................................................. 18
9.6 DUST AND SWARF ...................................................................................................18
10. TROUBLESHOOTING
10.1 TROUBLESHOOTING ............................................................................................... 19
11. MAINTENANCE
11.1 MAINTENANCE .........................................................................................................20
11.2 ARBOR REMOVAL ....................................................................................................20
12. OPTIONAL ACCESSORIES
12.1 OPTIONAL ACCESSORIES....................................................................................... 21
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS .................................................................................. 22
14. DISPOSAL
14.1 DISPOSAL..................................................................................................................23
DECLARATION OF CONFORMITY ..............................................................................ENCLOSED
- 3 -

3. WARRANTY
- 4 -
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or:
Product Helpline [phone].
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does
not apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover
any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its
terms are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
4. INTRODUCTION
4.1 SCOPE
This product is intended for trade use and has the quality and features to meet and exceed the
expectations of the most demanding user. Any application other than that it was intended for, is
considered misuse.
Designed to drill into wood, plastics, ceramics, and many metals (drill bits sold separately).
4.2 SPECIFICATION
Stock No. ........................................................... 95314......................................................... 95092
Part No. ......................................................... BD650/16E ............................................ DP650/16E
Rated voltage .................................................... 230V ........................................................... 230V
Rated frequency ................................................ 50Hz ........................................................... 50Hz
Rated input ........................................................650W .......................................................... 650W
Speed settings ......................................................16 ................................................................. 16
Revolutions per minute (no load) .............. 120-3,000min-1 ...................................120-3,000min-1
Chuck capacity ................................................ 3-16mm .................................................... 3-16mm
Drilling capacity ..................................................19mm ........................................................ 19mm
Spindle taper ....................................................... MT2 ............................................................. MT2
Spindle travel .....................................................80mm ........................................................ 80mm
Throat ................................................................178mm ..................................................... 178mm
Column Ø ...........................................................80mm ........................................................ 80mm
Collar Ø .............................................................60mm ........................................................ 60mm
Chuck to table ..................................................323mm ..................................................... 648mm
Chuck to base ...................................................515mm ................................................... 1171mm
Table tilt ...............................................................±45° ............................................................. ±45°
Head rotation .......................................................360° ............................................................. 360°
Table rotation .......................................................360° ............................................................. 360°
Table dimensions ..........................................290x290mm .......................................... 290x290mm
Base dimensions ...........................................460x275mm .......................................... 460x275mm
Height ...............................................................1000mm .................................................. 1650mm
Sound power level............................................. 85db(A) .................................................... 85db(A)
Sound pressure level ........................................ 70db(A) .................................................... 70db(A)
Vibration level ................................................. <2.5m/s2................................................. <2.5m/s2
Weight ...............................................................71kgs ......................................................... 78kgs
4.3 HANDLING & STORAGE
– Care must be taken when handling this product.
● Dropping this power tool could have an effect on its accuracy and could also result in personal
injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
● Exposure to damp air can gradually corrode components.
● If the product is unprotected from dust and debris, components will become clogged.
● If not cleaned and maintained correctly or regularly, the machine will not perform at its best.
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to prEN ISO 15744:1999
and declared according to EN ISO 4871.
** A-Weighted Sound Power Level in accordance to prEN ISO 15744:1999 and declared according to EN ISO 4871.
- 5 -

3. WARRANTY
- 4 -
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or:
Product Helpline [phone].
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering labour is 12 months from
the date of purchase except where tools are hired out when the warranty period is 90 days from
the date of purchase. The warranty is extended to 24 months for parts only. This warranty does
not apply to any consumable parts, any type of battery or normal wear and tear, nor does it cover
any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its
terms are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
4. INTRODUCTION
4.1 SCOPE
This product is intended for trade use and has the quality and features to meet and exceed the
expectations of the most demanding user. Any application other than that it was intended for, is
considered misuse.
Designed to drill into wood, plastics, ceramics, and many metals (drill bits sold separately).
4.2 SPECIFICATION
Stock No. ........................................................... 95314......................................................... 95092
Part No. ......................................................... BD650/16E ............................................ DP650/16E
Rated voltage .................................................... 230V ........................................................... 230V
Rated frequency ................................................ 50Hz ........................................................... 50Hz
Rated input ........................................................650W .......................................................... 650W
Speed settings ......................................................16 ................................................................. 16
Revolutions per minute (no load) .............. 120-3,000min-1 ...................................120-3,000min-1
Chuck capacity ................................................ 3-16mm .................................................... 3-16mm
Drilling capacity ..................................................19mm ........................................................ 19mm
Spindle taper ....................................................... MT2 ............................................................. MT2
Spindle travel .....................................................80mm ........................................................ 80mm
Throat ................................................................178mm ..................................................... 178mm
Column Ø ...........................................................80mm ........................................................ 80mm
Collar Ø .............................................................60mm ........................................................ 60mm
Chuck to table ..................................................323mm ..................................................... 648mm
Chuck to base ...................................................515mm ................................................... 1171mm
Table tilt ...............................................................±45° ............................................................. ±45°
Head rotation .......................................................360° ............................................................. 360°
Table rotation .......................................................360° ............................................................. 360°
Table dimensions ..........................................290x290mm .......................................... 290x290mm
Base dimensions ...........................................460x275mm .......................................... 460x275mm
Height ...............................................................1000mm .................................................. 1650mm
Sound power level............................................. 85db(A) .................................................... 85db(A)
Sound pressure level ........................................ 70db(A) .................................................... 70db(A)
Vibration level ................................................. <2.5m/s2................................................. <2.5m/s2
Weight ...............................................................71kgs ......................................................... 78kgs
4.3 HANDLING & STORAGE
– Care must be taken when handling this product.
● Dropping this power tool could have an effect on its accuracy and could also result in personal
injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
● Exposure to damp air can gradually corrode components.
● If the product is unprotected from dust and debris, components will become clogged.
● If not cleaned and maintained correctly or regularly, the machine will not perform at its best.
* Continuous A-Weighted Sound Pressure Level at the workstation in accordance to prEN ISO 15744:1999
and declared according to EN ISO 4871.
** A-Weighted Sound Power Level in accordance to prEN ISO 15744:1999 and declared according to EN ISO 4871.
- 5 -

- 6 -
When using any type of power tool there are steps that should be taken to make sure that you, as
the user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
5. HEALTH AND SAFETY INFORMATION
Most important: You must know how to safely start and stop this machine, especially in an
emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use
will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilled on the floor
could result in you slipping.
Find a suitable location. If the machine is bench mounted, the location should provide good natural
light or artificial lighting as a replacement. Avoid damp and dusty locations as it will have a negative
effect on the machine’s performance. If the machine is portable do not expose the tool to rain. In all
cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the
work area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended
while connected to the power supply. They must be housed in a suitable location, away locked up
and from children.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what
they are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an
application it is not designed for. Select a tool appropriate for the size of the job. Overloading a tool
will result in tool failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become
entangled in moving machinery. This can also result in parts of body being pulled into the machine.
Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed.
Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous
if not suitably protected against. If the work involving the power tool creates dust or fumes wear a
dust mask. Vibration to the hand, caused by operating some tools for longer periods must be
protected against. Wear vibration reducing gloves and allow long breaks between uses. Protect
against dust and swarf by wearing approved safety goggles or a face shield. These are some of the
more common hazards and preventions, however, always find out what hazards are associated with
the machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine (if
possible) to an extraction system either locally or remotely. Working outdoors can also help if
possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply
cable. If the product is heavy, employ a second or third person to help move it safely or use a
mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This
could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged
or missing parts immediately with original parts from the manufacturer. As applicable keep blades
sharp, moving parts clean, oiled or greased, handles clean and emergency devices working.
Warning!
● Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
●The term "power tool" in the warnings refers to your mains operated (corded) power tool or
battery-operated (cordless) power tool.
5. HEALTH AND SAFETY INFORMATION
- 7 -
Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may
continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply
before making any adjustments, carrying out maintenance operations or just finishing using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys to
set, load or adjust the power tool. Before starting the power tool always check to make certain they
have been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the
switch is in the OFF position. If the machine is portable, do not hold the machine near the switch and
take care when putting the machine down, that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If
the tool is designed for use outdoors, use an extension lead also suitable for that environment. When
using an extended lead, select one capable of handling the current (amps) drawn by the machine in
use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess
current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool
if you are under the influence of drugs (prescription or otherwise), including alcohol or if you are
feeling tired. Being disorientated will result in an accident.
Have this tool repaired by a qualified person. This tool is designed to conform to the relevant
international and local standards and as such should be maintained and repaired by someone
qualified, using only original parts supplied by the manufacturer. This will ensure the tool remains safe
to use.

- 6 -
When using any type of power tool there are steps that should be taken to make sure that you, as
the user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
5. HEALTH AND SAFETY INFORMATION
Most important: You must know how to safely start and stop this machine, especially in an
emergency.
Keep the work area tidy and clean. Attempting to clear clutter from around the machine during use
will reduce your concentration. Mess on the floor creates a trip hazard. Any liquid spilled on the floor
could result in you slipping.
Find a suitable location. If the machine is bench mounted, the location should provide good natural
light or artificial lighting as a replacement. Avoid damp and dusty locations as it will have a negative
effect on the machine’s performance. If the machine is portable do not expose the tool to rain. In all
cases do not operate power tools near any flammable materials.
Keep bystanders away. Children, onlookers and passers by must be restricted from entering the
work area for their own protection. The barrier must extend a suitable distance from the tool user.
Unplug and house all power tools that are not in use. A power tool should never be left unattended
while connected to the power supply. They must be housed in a suitable location, away locked up
and from children.
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what
they are capable of doing. Do not attempt to use a power tool (or adapt it in any way) for an
application it is not designed for. Select a tool appropriate for the size of the job. Overloading a tool
will result in tool failure and user injury. This covers the use of accessories.
Dress properly. Loose clothing, long hair and jewellery are all dangerous because they can become
entangled in moving machinery. This can also result in parts of body being pulled into the machine.
Clothing should be close fitted, with any long hair tired back and jewellery and neck ties removed.
Footwear must be fully enclosed and have a non-slip sole.
Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous
if not suitably protected against. If the work involving the power tool creates dust or fumes wear a
dust mask. Vibration to the hand, caused by operating some tools for longer periods must be
protected against. Wear vibration reducing gloves and allow long breaks between uses. Protect
against dust and swarf by wearing approved safety goggles or a face shield. These are some of the
more common hazards and preventions, however, always find out what hazards are associated with
the machine/work process and wear the most suitable protective equipment available.
Do not breathe contaminated air. If the work creates dust or fumes connect the machine (if
possible) to an extraction system either locally or remotely. Working outdoors can also help if
possible.
Move the machine as instructed. If the machine is hand held, do not carry it by the power supply
cable. If the product is heavy, employ a second or third person to help move it safely or use a
mechanical device. Always refer to the instructions for the correct method.
Do not overreach. Extending your body too far can result in a loss of balance and you falling. This
could be from a height or onto a machine and will result in injury.
Maintain your tools correctly. A well maintained tool will do the job safely. Replace any damaged
or missing parts immediately with original parts from the manufacturer. As applicable keep blades
sharp, moving parts clean, oiled or greased, handles clean and emergency devices working.
Warning!
● Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
●The term "power tool" in the warnings refers to your mains operated (corded) power tool or
battery-operated (cordless) power tool.
5. HEALTH AND SAFETY INFORMATION
- 7 -
Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may
continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply
before making any adjustments, carrying out maintenance operations or just finishing using the tool.
Remove and check setting tools. Some machinery requires the use of additional tools or keys to
set, load or adjust the power tool. Before starting the power tool always check to make certain they
have been removed and are safely away from the machine.
Prevent unintentional starting. Before plugging any machine in to the power supply, make sure the
switch is in the OFF position. If the machine is portable, do not hold the machine near the switch and
take care when putting the machine down, that nothing can operate the switch.
Carefully select an extension lead. Some machines are not suitable for use with extension leads. If
the tool is designed for use outdoors, use an extension lead also suitable for that environment. When
using an extended lead, select one capable of handling the current (amps) drawn by the machine in
use. Fully extend the lead regardless of the distance between the power supply and the tool. Excess
current (amps) and a coiled extension lead will both cause the cable to heat up and can result in fire.
Concentrate and stay alert. Distractions are likely to cause an accident. Never operate a power tool
if you are under the influence of drugs (prescription or otherwise), including alcohol or if you are
feeling tired. Being disorientated will result in an accident.
Have this tool repaired by a qualified person. This tool is designed to conform to the relevant
international and local standards and as such should be maintained and repaired by someone
qualified, using only original parts supplied by the manufacturer. This will ensure the tool remains safe
to use.

5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR DRILLS
MECHANICAL HAZARDS:
1. Crushing. When setting/changing a tool or maintaining the machine avoid crushing injuries
sustained between fixed and moving elements of the machine.
2. Cutting or Severing. At all times the workpiece shall be clamped as manual support will lead
to injury.
3. Entanglement. Switch off the machine for maintenance, workpiece loading/unloading, swarf/chip
removal, cutting/lubrication fluid application as contact with rotating spindle or tool will cause
entanglement and possibly lead to injury and entrapment.
4. Impact. Ensure the workpiece is securely clamped at all times to avoid sudden movement
(rotation) or ejection causing injury. Ensure any special tools associated with tool exchange, i.e.
chuck key are removed prior to attempting to start the machine.
5. Stabbing, Cutting or Puncture Wounds. Take care when handling the tools and avoid contact
with swarf and burrs created during drilling as they are extremely sharp.
ELECTRICAL HAZARDS:
1. Contact with Live parts. During commissioning, maintenance and trouble shooting operations
do not remove, open or expose any electrical, terminal and control boxes due to the danger of
electrocution. If the main cable is damaged, unplug the machine immediately and have the cable
replaced before continuing.
AUDIBLE HAZARDS:
1. Hearing Loss. Wear ear defenders during operation to avoid damage to hearing, however ensure
this does not interfere with speech communications or audible warnings.
MATERIAL HAZARDS:
1. Contact and Inhalation. Wear personal protective equipment to avoid contact from harmful
fluids, gases or dust thrown or created during the drilling process.
2. Fire or Explosion. Do not drill or drill in the vicinity of flammable or combustible materials.
LOCATION:
1. Posture. Ensure when mounting the machine that the chosen location does not lead to unhealthy
posture or repetitive strain during normal operation.
2. Lighting. Adequate lighting must be provided to ensure no operations are light impaired possibly
leading to injury.
3. Reach. Do not reach over or around the machine at any time.
UNEXPECTED START-UP:
1. Remove the plug. Remove the plug from the socket before carrying out adjustment, servicing
or maintenance.
ERRORS OF FITTING:
1. Tools. Ensure a suitable tool for the job in hand is securely and correctly fitted prior to starting the
machine. Guards shall be fitted and in place at all times.
STABILITY:
1. Toppling. The drill shall be securely bolted down to a suitable and level surface to prevent the
machine from overturning leading to injury.
2. Slipping. Ensure the area is clean of any residue cutting/lubrication fluid and other materials
which may lead to a slip, trip or other such hazard.
5. HEALTH AND SAFETY INFORMATION
- 8 -
5. HEALTH AND SAFETY INFORMATION
- 9 -
5.3 CONNECTION TO THE POWER SUPPLY
Caution: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class I†and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance. If
using an extension lead, follow the instructions that came with your lead regarding maximum load
while cable is wound, if in doubt ensure the entire cable is unwound. Using a coiled extension lead
will generate heat which could melt the lead and cause a fire.
†Earthed : This product requires an earth connection to protect against electric shock from
accessible conductive parts in the event of failure of the basic insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding
maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound.
Using a coiled extension lead will generate heat which could melt the lead and cause a fire.

5.2 ADDITIONAL SAFETY INSTRUCTIONS FOR DRILLS
MECHANICAL HAZARDS:
1. Crushing. When setting/changing a tool or maintaining the machine avoid crushing injuries
sustained between fixed and moving elements of the machine.
2. Cutting or Severing. At all times the workpiece shall be clamped as manual support will lead
to injury.
3. Entanglement. Switch off the machine for maintenance, workpiece loading/unloading, swarf/chip
removal, cutting/lubrication fluid application as contact with rotating spindle or tool will cause
entanglement and possibly lead to injury and entrapment.
4. Impact. Ensure the workpiece is securely clamped at all times to avoid sudden movement
(rotation) or ejection causing injury. Ensure any special tools associated with tool exchange, i.e.
chuck key are removed prior to attempting to start the machine.
5. Stabbing, Cutting or Puncture Wounds. Take care when handling the tools and avoid contact
with swarf and burrs created during drilling as they are extremely sharp.
ELECTRICAL HAZARDS:
1. Contact with Live parts. During commissioning, maintenance and trouble shooting operations
do not remove, open or expose any electrical, terminal and control boxes due to the danger of
electrocution. If the main cable is damaged, unplug the machine immediately and have the cable
replaced before continuing.
AUDIBLE HAZARDS:
1. Hearing Loss. Wear ear defenders during operation to avoid damage to hearing, however ensure
this does not interfere with speech communications or audible warnings.
MATERIAL HAZARDS:
1. Contact and Inhalation. Wear personal protective equipment to avoid contact from harmful
fluids, gases or dust thrown or created during the drilling process.
2. Fire or Explosion. Do not drill or drill in the vicinity of flammable or combustible materials.
LOCATION:
1. Posture. Ensure when mounting the machine that the chosen location does not lead to unhealthy
posture or repetitive strain during normal operation.
2. Lighting. Adequate lighting must be provided to ensure no operations are light impaired possibly
leading to injury.
3. Reach. Do not reach over or around the machine at any time.
UNEXPECTED START-UP:
1. Remove the plug. Remove the plug from the socket before carrying out adjustment, servicing
or maintenance.
ERRORS OF FITTING:
1. Tools. Ensure a suitable tool for the job in hand is securely and correctly fitted prior to starting the
machine. Guards shall be fitted and in place at all times.
STABILITY:
1. Toppling. The drill shall be securely bolted down to a suitable and level surface to prevent the
machine from overturning leading to injury.
2. Slipping. Ensure the area is clean of any residue cutting/lubrication fluid and other materials
which may lead to a slip, trip or other such hazard.
5. HEALTH AND SAFETY INFORMATION
- 8 -
5. HEALTH AND SAFETY INFORMATION
- 9 -
5.3 CONNECTION TO THE POWER SUPPLY
Caution: Risk of electric shock. Do not open.
This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class I†and is designed for connection to a power supply matching that detailed
on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance. If
using an extension lead, follow the instructions that came with your lead regarding maximum load
while cable is wound, if in doubt ensure the entire cable is unwound. Using a coiled extension lead
will generate heat which could melt the lead and cause a fire.
†Earthed : This product requires an earth connection to protect against electric shock from
accessible conductive parts in the event of failure of the basic insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding
maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound.
Using a coiled extension lead will generate heat which could melt the lead and cause a fire.

6. TECHNICAL DESCRIPTION
(1) Motor.
(2) Pulley cover.
(3) Motor tension lever.
(4) Motor pulley.
(5) Intermediate pulley.
(6) Spindle pulley.
(7) Motor tension locking knob.
(8) Guard.
(9) Plunge handle assembly.
(10) Geared chuck.
(11) Work table.
(12) Work table height/rotation
locking handle.
(13) Rack.
(14) Column.
(15) Base.
(16) Chuck key.
(17) Work table tilt locking bolt.
(18) BS moulded plug & cable.
(19) No-volt on/off switch.
(20) Depth stop.
(21) Spindle.
(22) Drift key.
(23) Table height crank handle.
(24) Table locking handle.
(25) Hex. keys.
- 10 -
6.1 IDENTIFICATION
(8)
(10)
(15)
(11)
(20)
(14)
(23)
(13)
(12)
(4)
(1) (3)
(9)
(7)
(5)
(21)
(2)
(6)
(24) (17)
(25)
(18)
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have
happened during shipping. If any part is damaged or missing, please contact the Draper Help Line (the
telephone number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the guarantee period in case the machine
needs to be returned for repair.
Warning!
● Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
● If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.
7.2 WHAT´S IN THE BOX?
The packaging contains several parts and semi-assembled elements that require final assembly.
Lay out the contents and check off the items against those featured below.
7. UNPACKING AND CHECKING
(10) Geared chuck.
(11) Work table.
(14) Column.
(15) Base.
(16) Chuck key.
(18) Moulded plug & cable.
(23) Table height
crank handle.
(25) Hexagon keys.
(26) Bolts and washers.
(27) Plunger handles.
(28) Body.
(29) Guard assembly.
(30) Work table bracket.
- 11 -
(14)
(18)
(28) (11)
(23)
(26)
(27)
(25)
(16) (10) (29)
(30)
(15)
