Dreamline Enigma-z shen-623448-## User manual

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please

refer to your model’s web page on DreamLine.com

ENIGMA-Z Enclosure

MODEL #s

SHEN-623448-##

SHEN-623460-##

##=finish

07- Brushed Stainless Steel

08- Polished Stainless Steel

Right-hand return panel installation shown

For more information about DreamLine®Shower Doors & Tub Doors please visit DreamLine.com

SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS

ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

DRAFT

not approved for release

DRAFT

not approved for release

This model is treated with DreamLine’s

exclusive ClearMaxTM Glass technology.

This is a specially formulated coating

that prevents the build up of soap and

water spots.

Install the surface with the ClearMaxTM

label towards the inside of the shower.

Please note that depending on the

model, the glass may be coated on

either one or both surfaces.

For best results, squeegee the glass after

each use and dry with a soft cloth.

2ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

3ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

Right hand door installation shown as an example

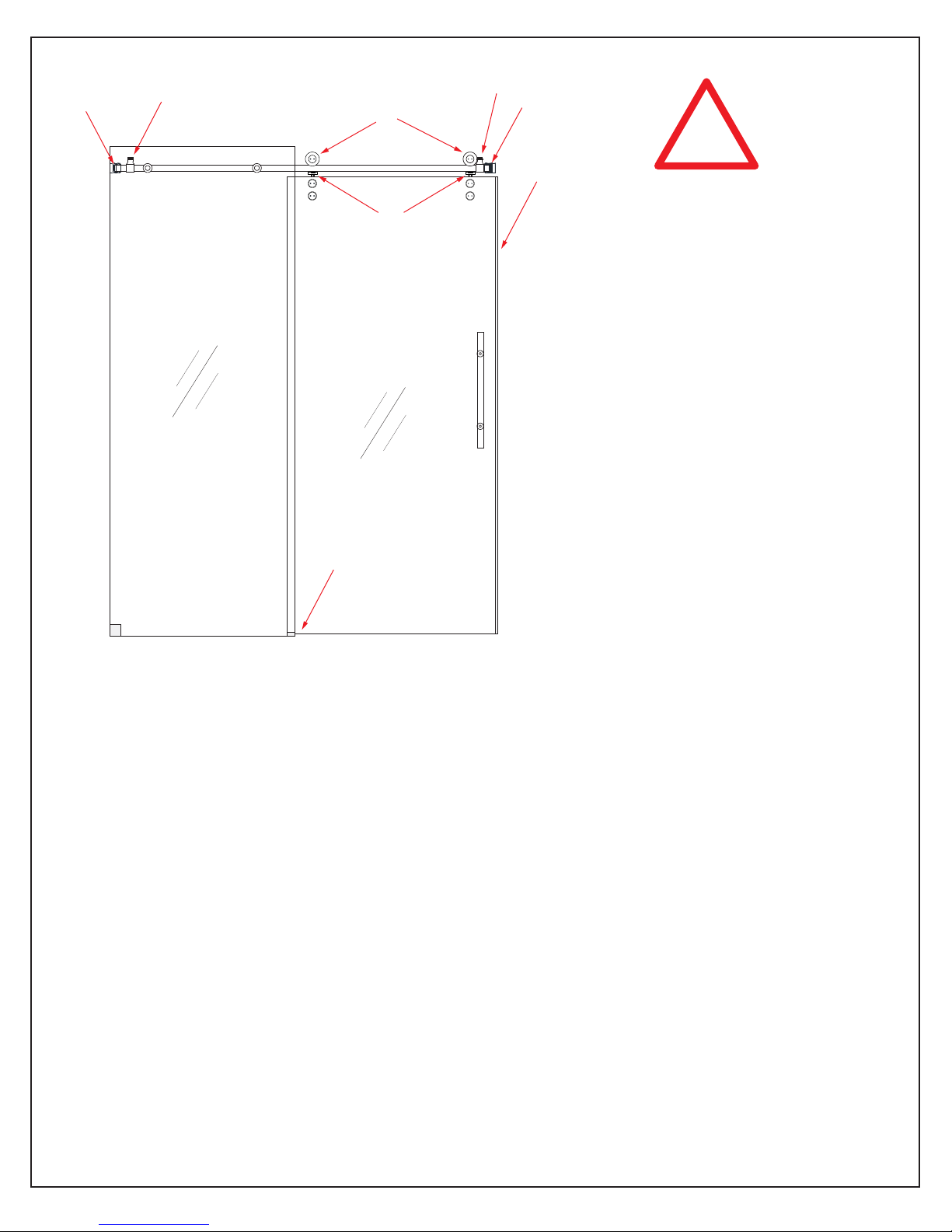

AGuide Rail Brackets must be firmly

attached to the wall. Installation into a

stud is strongly recommended.

All of the guide rail bracket set

screws must be tightened.

BThread Lock must be applied to both

stopper set screws.

Panel-side stopper must be installed

into the pre-drilled stopper hole in

the upper guide rail.

Door-side stopper must be installed

at the proper position to stop the

door from contacting the wall.

EBumper Vinyl Seal must be installed on

the closing edge of the door glass

DRoller Guards must be postioned and

secured within 1/16” of Upper Guide Rail

FThe Guide Block must be screwed to the

threshold and installed square to the panel

glass and door glass. Installing the guide

block crooked may damage the bottom edge

of the door glass and lead to breakage.

CRoller Wheel Assembly Set Screws

must be tightened

PLEASE READ THE ENCLOSED INSTALLATION

MANUAL FOR DETAILS REGARDING PROPER

INSTALLATION.

THE LATEST VERSION OF THE INSTALLATION

MANUAL IS AVAILABLE TO VIEW OR PRINT

AT DREAMLINE.COM

IMPORTANT INFORMATION

REGARDING THE INSTALLATION

OF THIS SHOWER DOOR

4ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

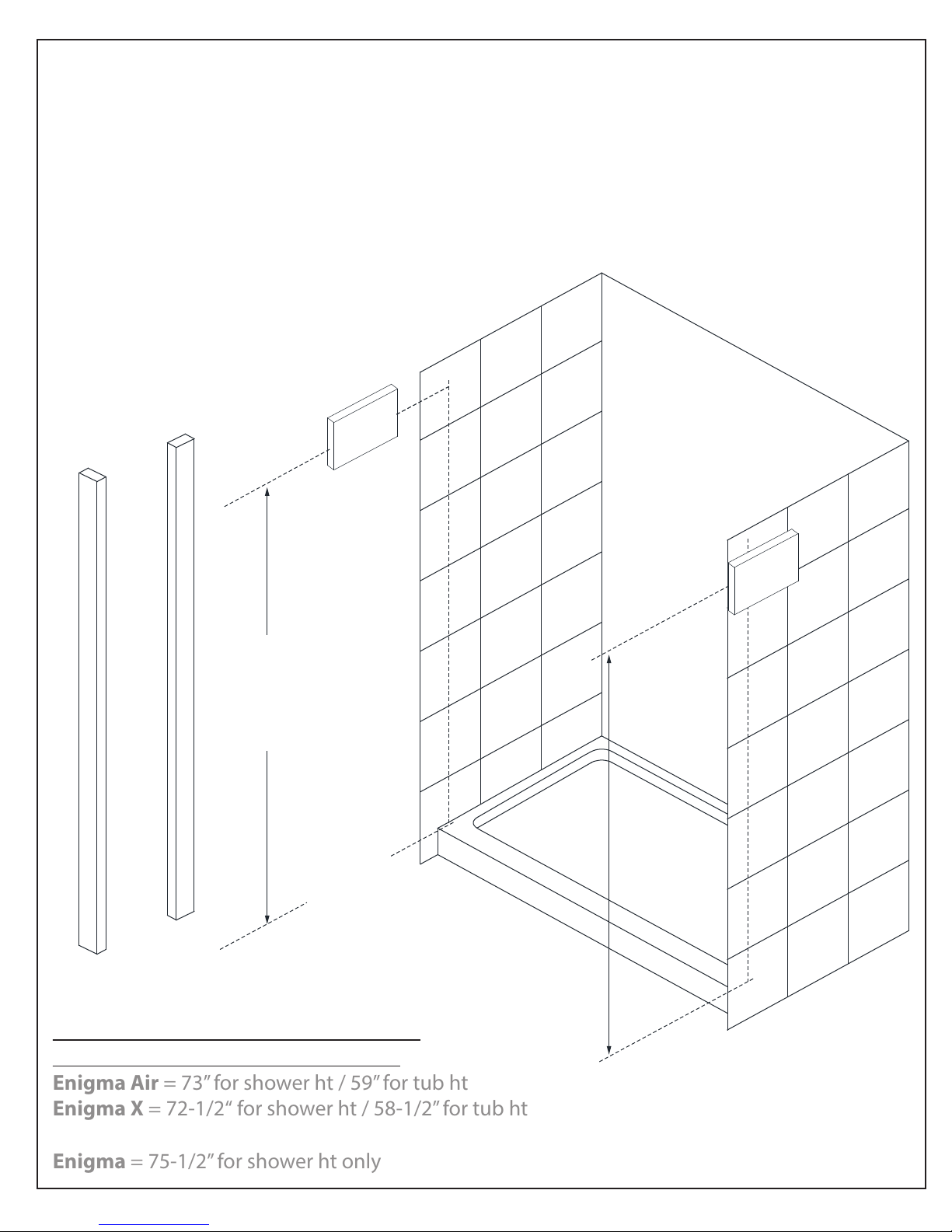

Install studs OR install 2”x 6” wood blocking between the studs where the

Guide Rail Brackets will attach to the wall

Reinforcement for Enigma Series

Heavy Glass frameless sliding shower or tub door

2” X 6”

Stud

threshold

or tub deck

measured

from threshold

or tub deck*

(see list below)

2” X 6”

*Blocking height requirement (to center)

as measured from threshold or tub deck:

Enigma Air = 73” for shower ht / 59” for tub ht

Enigma X = 72-1/2“ for shower ht / 58-1/2” for tub ht

Enigma Z = 73-1/2” for shower ht / 59-1/2“ for tub ht

Enigma = 75-1/2” for shower ht only

threshold

or tub deck

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with

your packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the

needed parts are included in the package by checking off the components on the “Detailed Diagram of Shower

Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact

our customer support department within 3 business days of the delivery date. Please note that DreamLine®

will not replace any damaged products or missing parts free of charge after 3 business days or if the

product has been installed. Contact DreamLine®if you have any questions, and please provide an order

number, job name or other proof of purchase to help to identify the original order.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine®is not responsible

for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all

plumbing installation.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to

support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface

level, radius corners or improper angle of side walls will result in serious problems for your installation. Please

note that some adjustments and drilling might be necessary during the installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down directly onto

a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or

cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. NOTE! This model has NO adjustment for out-of-plumb wall conditions. Verify that your walls are plumb

before proceeding with the installation.

8. This model requires that you drill into the threshold for proper installation.

9. Take extra care during installation when you set your glass directly onto the threshold as instructed.

10. This door requires a minimum 2-3/8”of flat threshold space for installation.

11. Please note that Step #15 has an option for installing the guide rail brackets to the wall using

anchors. However, the manufacturer strongly recommends installing these heavy doors to the studs or

to pre-installed 2”x 6” wood reinforcements behind the wall in the area where the guide rail brackets will

be attached to the wall.

NOTE: Do Not attach the handle to the door glass until instructed.

Do Not attempt to lift the door glass with the handle as this may result in damage to the

glass and/or serious personal injury. Use a professional grade glass suction cup and an

assistant when handling heavy glass.

!Attention: This door is extremely heavy and requires professional installation.

Two installers recommended.

5ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

NOTE: The Enigma-Z enclosure is reversible for left or right-hand return panel installation.

This manual will show the right-hand return panel installation. For a left-hand return panel

installation, simply begin on the opposite wall and reverse the orientation of the parts as

necessary.

Right-hand return panel installation

Left-hand return panel installation

6ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

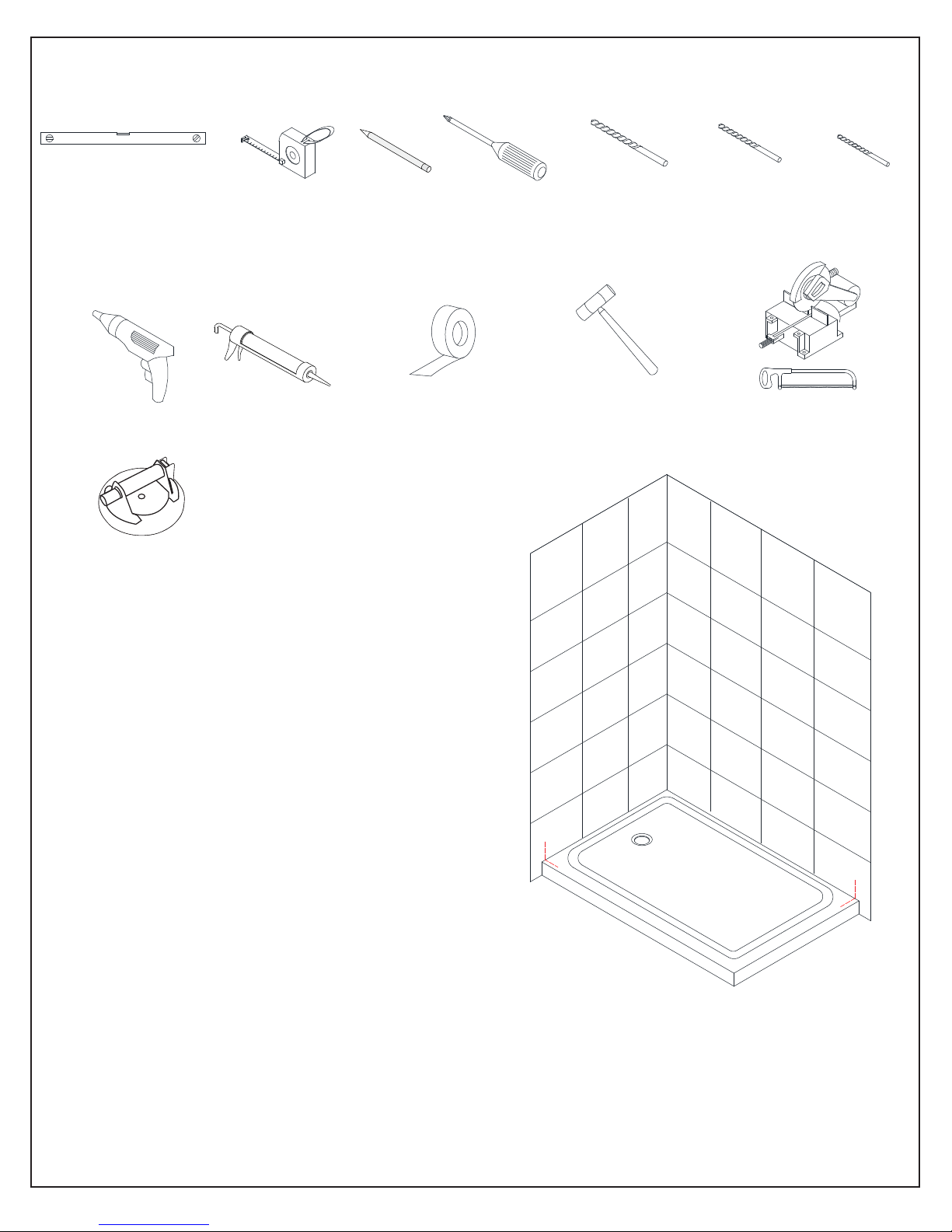

Tools

Soft Head

Hammer

(Ø=3/8")

(10 mm)

Drill bit (Ø=1/8")

(3 mm)

Drill bit

(Ø=5/16")

(8 mm)

Drill bit

Chop saw and Hacksaw

Silicone

Tape

Measure Pencil

Screwdriver

Phillips

Level

Drill

Power

Painter’s Tape

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small

hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in

your model configuration.

NOTE: Retain these installation instructions for future reference.

Tip: Measure the finished opening before

proceeding with the installation to be sure

that the correct model size has been ordered.

Tip: Before installation, cover the shower drain to

prevent losing small parts.

Tip: Set screw gun clutch to low setting when

installing screws and bolts to

prevent stripping the heads.

7ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

Professional-grade

Glass suction cup

Parts List

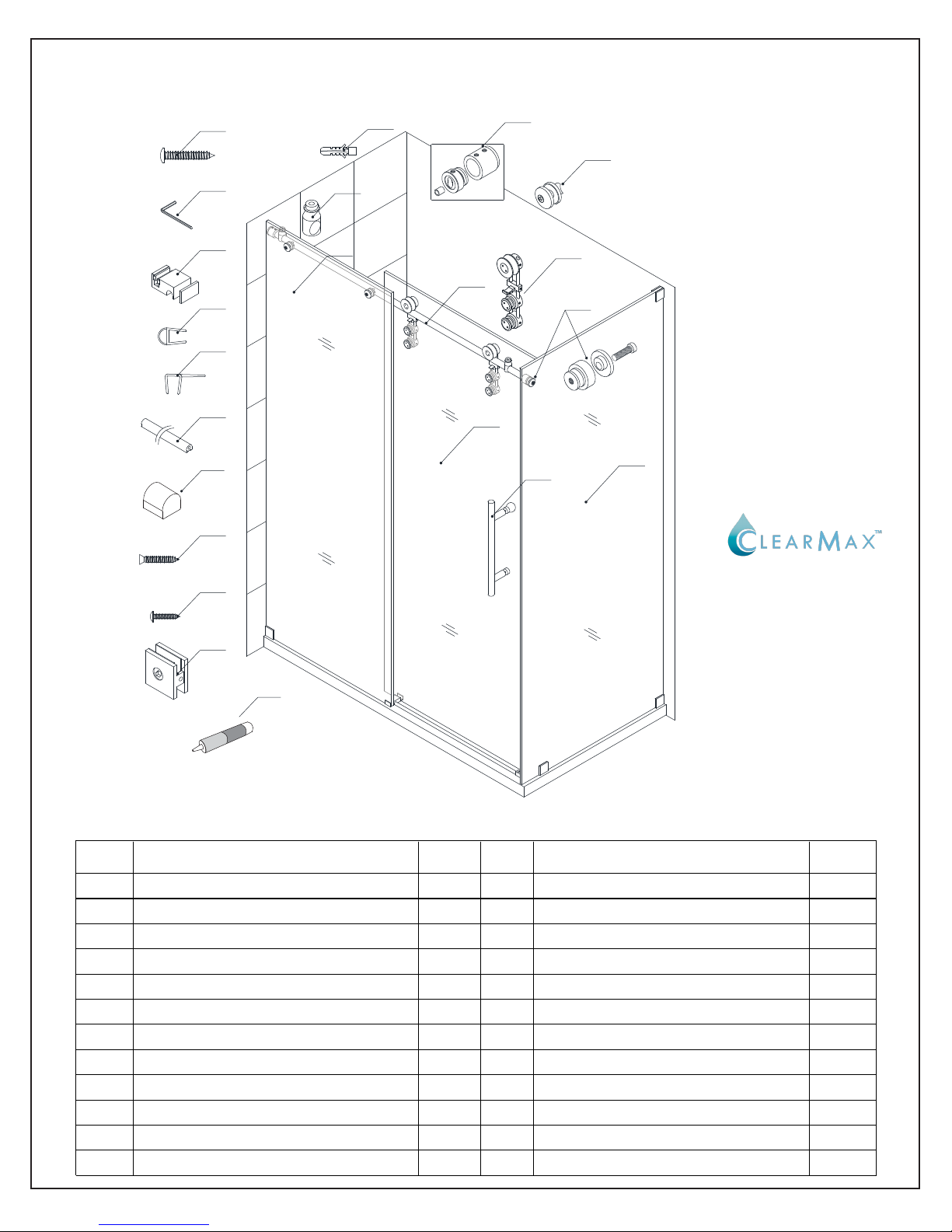

Detailed Diagram of shower door components

8ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

01 2pcs 12 1pc

02 1pc 13 Bumper seal strip 1pc

03 1pc 14 2pcs

04 2pcs 15 1pc

05 1pc 16 1pc

06 1pc 17 4pcs

07 2pcs 18 3pcs

08 2pcs 19 4pc

09a 1pc 20

09b 3pcs 21

1pc

10 1pc 22 1pc

11 1set

Part#

Qty Qty

Part#

Description Description

Door stopper

Stationary glass

Roller

Door Glass

Handle

Glass bracket

Guide rail bracket

Anti-splash guard

Anti-water strip

Guide block

Anti-splash guard cap

Wall bracket

Thread Lock Adhesive

Glass Connector

Return panel glass

Truss head screw ST4.2x55

Countersunk screw ST4.2x25

Hex wrench 3mm, 4mm, 5mm

Large Truss head screw ST6x65

Wall anchor Ø5/16”

Wall anchor Ø3/8”

Upper Guide rail

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

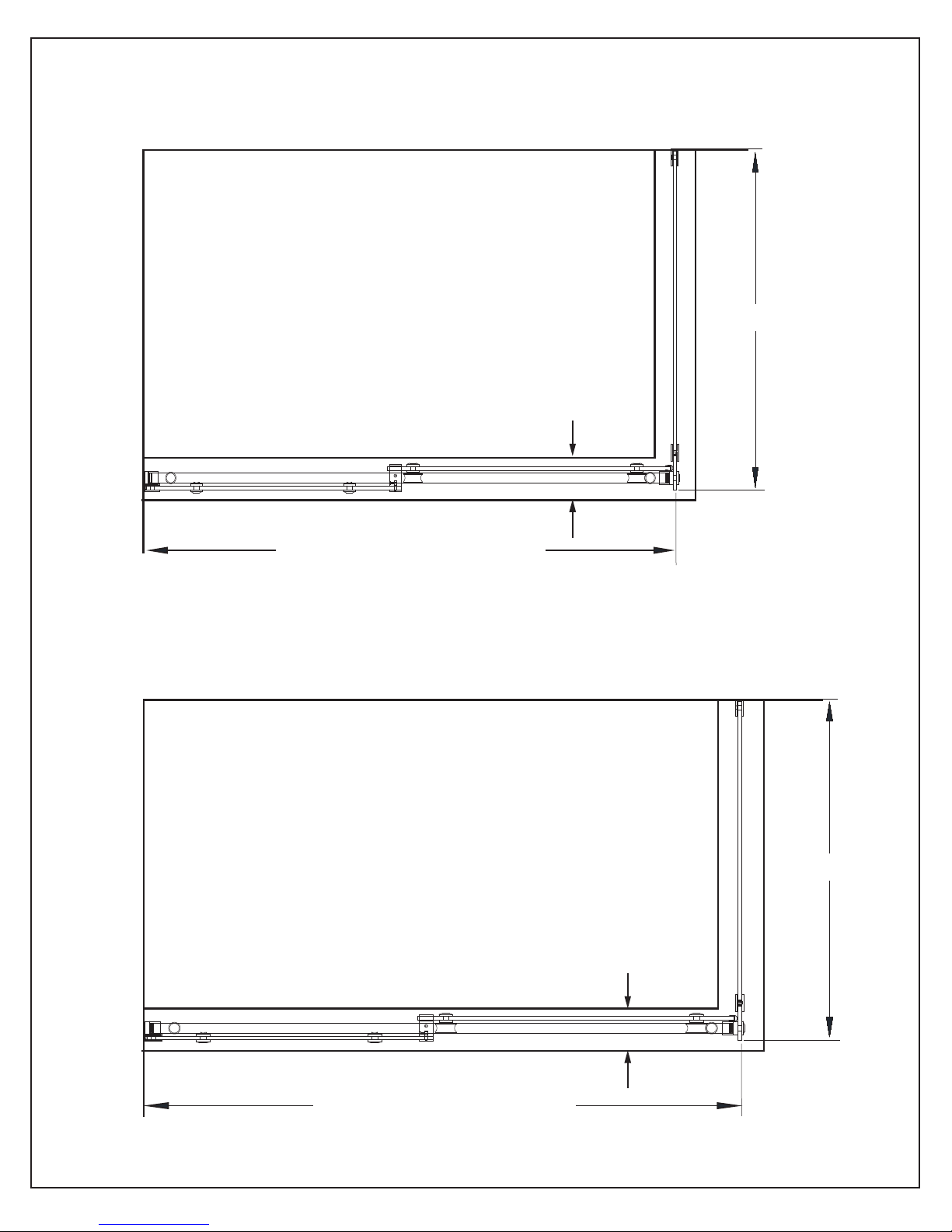

Shower Enclosure Plan

9ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

56-3/8” min to 60-3/8” max

34 1/2"

2-3/8” minimum

threshold required

34 1/2"

2-3/8” minimum

threshold required

44-3/8 “min to 48-3/8” max

Installation steps

10ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

1 2

outside dimensions of installed enclosure

outside

Fig. 2

Fig. 1

threshold

2-3/8”

minimum

34-1/2”

56-3/8” min to 60-3/8” max

44-3/8 “min to 48-3/8” max

2-3/8” minimum

threshold required

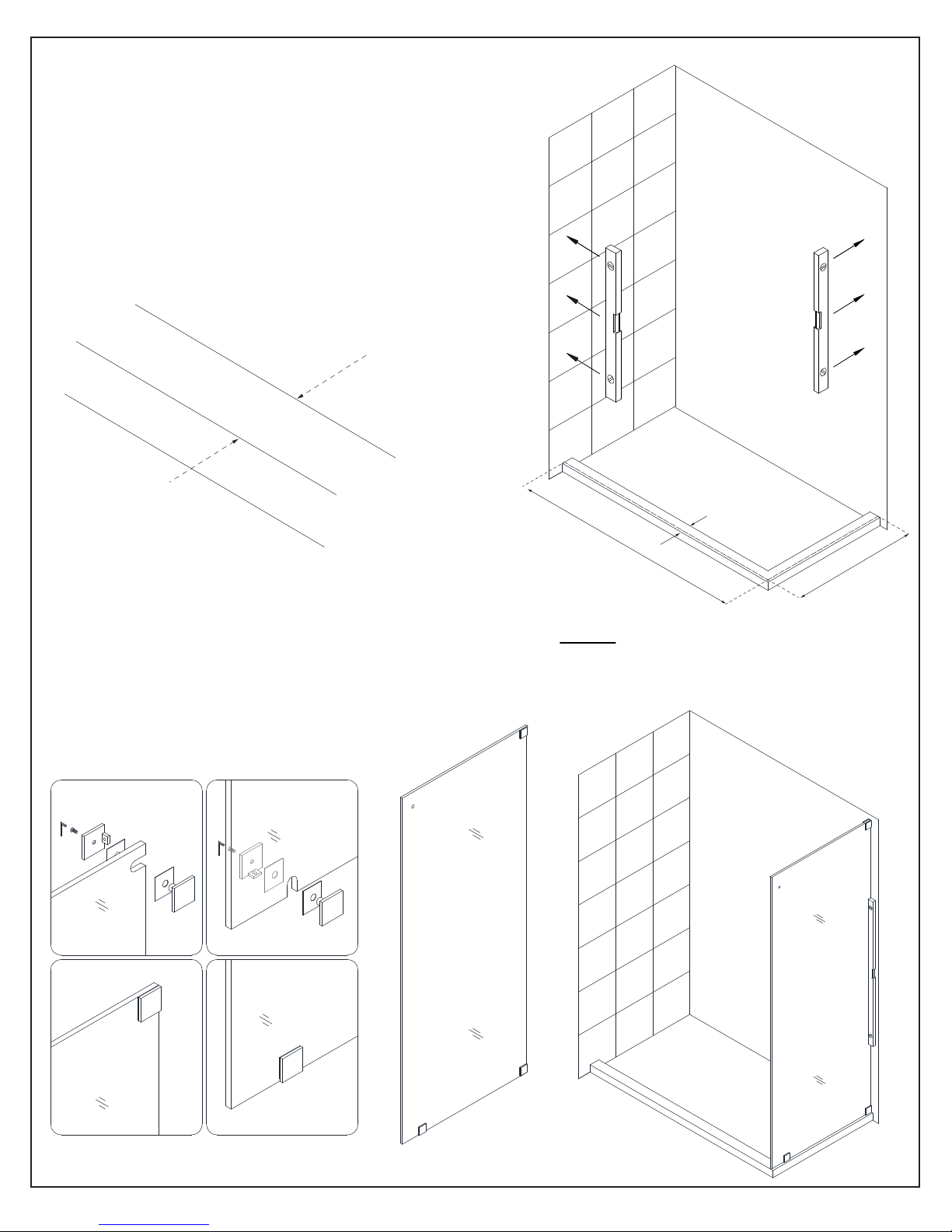

2. Attach the Wall Brackets (#19) to the

Return Panel Glass (#22). The bolt should face

the inside of the shower. (Fig. 2)

1. This shower enclosure requires a minimum 2-3/8”

wide threshold, shower base, or installation space.

Compare the overall outside dimensions of the

shower enclosure model size (as shown on the

“Shower Enclosure Plan”) with your finished

threshold. (Fig. 1)

11ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

1234

Fig. 3

Fig. 4

< 48”or < 60”

inside

3. Place the Return Panel Glass (#22)

on the pre-installed shower base or

threshold. Position the panel up against

the wall and level it vertically (plumb).

Make sure the Return Panel Glass

(#22) is aligned with the shower base

or threshold and will create an opening

that is within the model dimensions of

the door section: <48”

(SHEN-6234480) or <60”

(SHEN-6234600) depending on the

model size. (Fig. 3)

See the “Shower Enclosure Plan” on

page 8 for dimensions.

4. Outline the position of the Wall Brackets (#19) on the wall and the shower base or threshold.

Carefully set the Return Panel Glass (#22) aside.

Remove the Wall Brackets (#19) from the Return Panel Glass (#22). Place the brackets against the

outlined positions and mark the holes on the wall for drilling. (Fig. 4)

12ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

4**

123

outsideoutside

Ø5/16”

Ø1/8” or

Fig. 5

Fig. 6

outside

6. Place the Return Panel Glass (#22) back in the

designated position and assemble the Wall Brackets

(#19) to the Return Panel Glass (#22). Use the

supplied gaskets to protect the glass from contact

with the metal. (Fig. 6)

5. Drill the holes in the wall using a Ø5/16” drill bit and insert the Wall Anchors (#9b) for the two Wall

Brackets (#19). Mount the Wall Brackets (#19) to the wall using the Truss Head Screw ST4.2×55 (#18).

For installation into an Acrylic Base: Drill a hole in the shower base threshold using a Ø1/8” drill bit and

mount the remaining Wall Bracket (#19) to the threshold using the Round Head Screw ST4.2×25 (#17).

**For installation onto a Tile Threshold: Drill a Ø5/16” hole and install an anchor using the Round Head

Screw ST4.2×25 (#17). (Fig. 5)

13ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

Fig. 7

Fig. 8

door end

glass bracket

holes

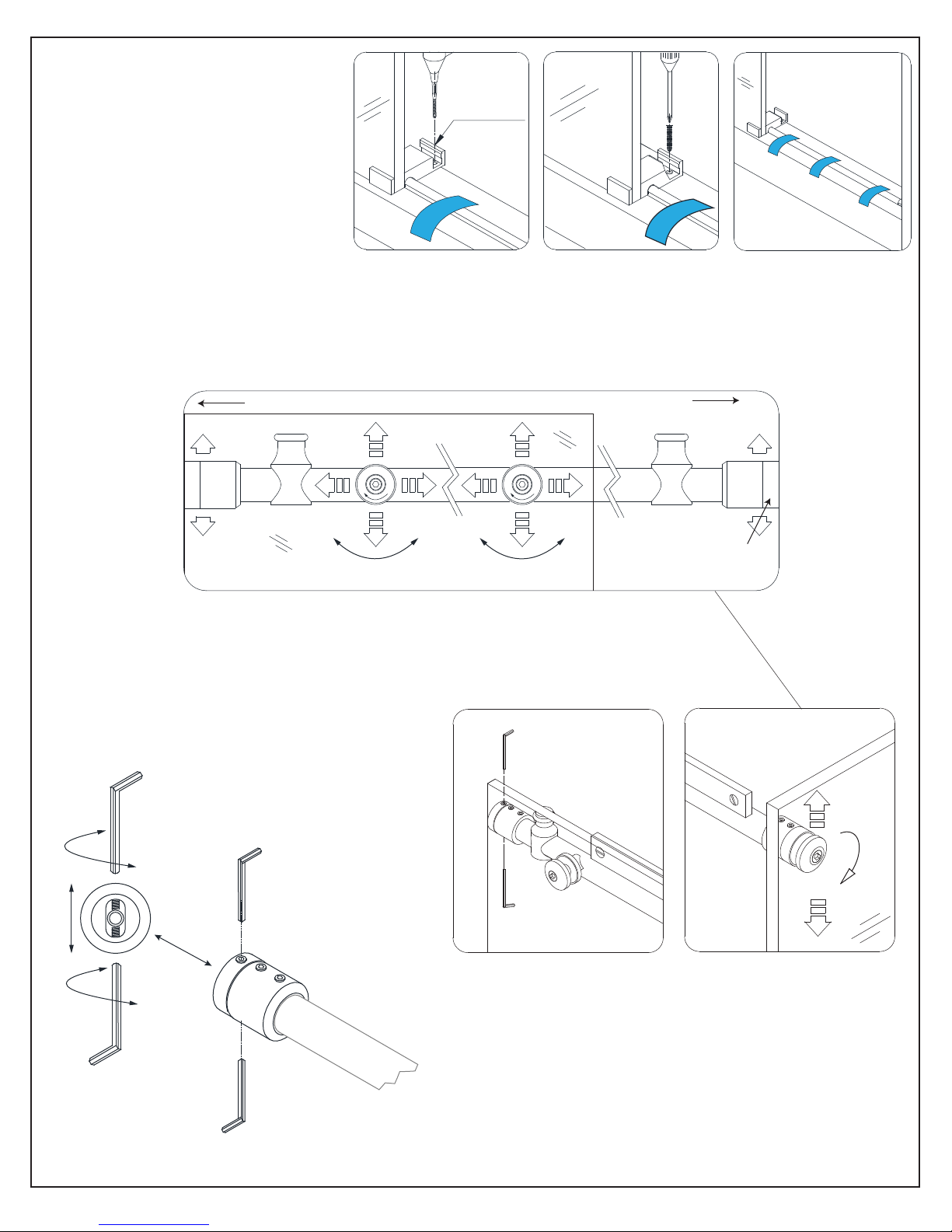

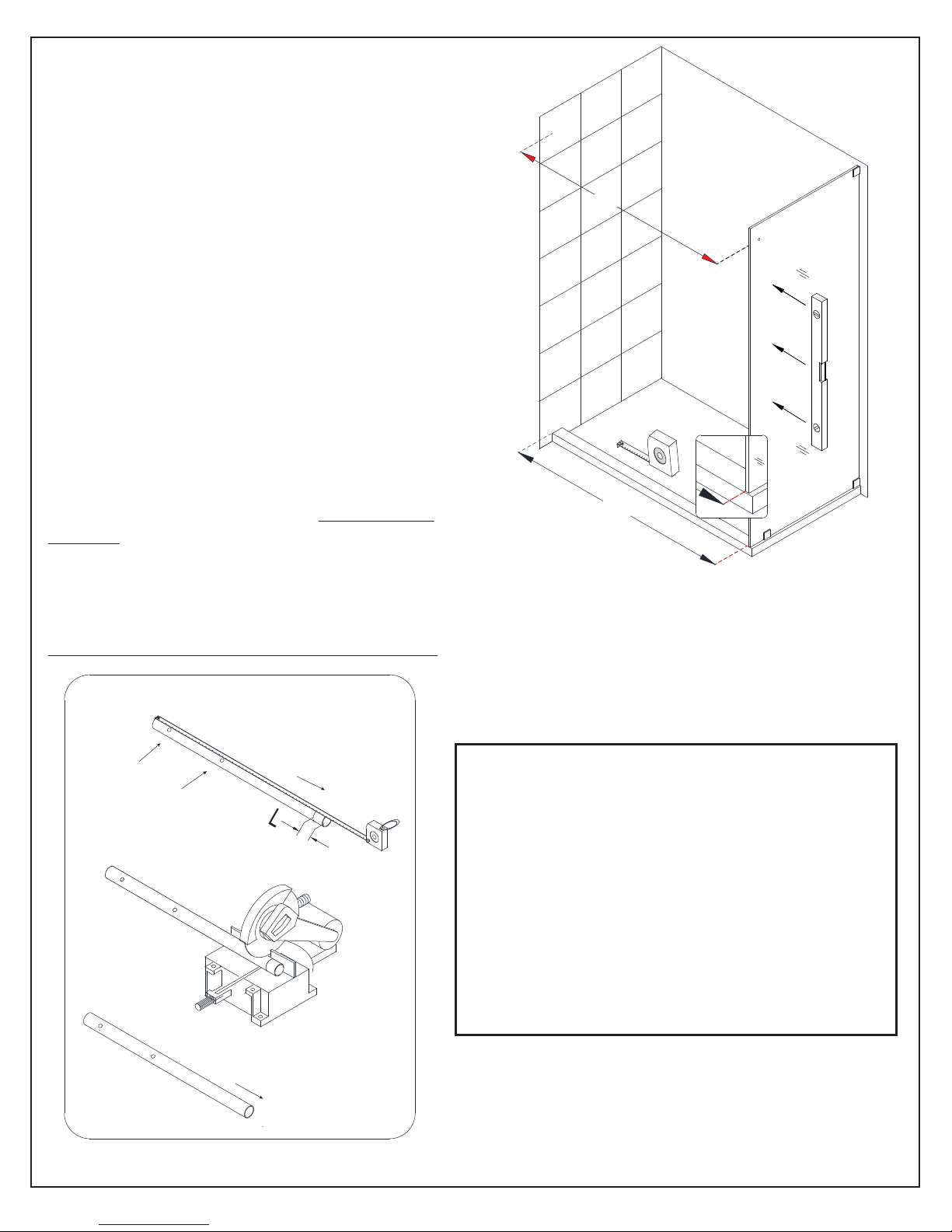

8. The Upper Guide Rail (#03) has been precut

for your model width of: 48” or 60”

(the actual rail is shorter than the model width

by design).

Cut the Upper Guide Rail (#03) from the door

end only, which is the end that is farther from

the Glass Bracket (#07) holes. (Fig. 8)

The length to cut off will be L:

Model Width – opening W = cut off length L

7. Measure the distance from the finished wall to

the inside surface of the installed Return Panel

Glass (#22).

This distance will represent the finished opening size

“W” that will be used to calculate the finished cut

dimension for the Upper Guide Rail (#03). (Fig. 7)

FOR EXAMPLE:

If the model width is 60” and the finished

opening from the finished wall to the inside

surface of the installed Return Panel Glass (#22)

is 58”, then you will need to cut 2” off of the rail:

Example: 60” – 58” = 2” cut off length

*Note that this is only an example and the

actual cut-off length will vary based on the

actual finished opening dimension.

14ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

(EQ=Equal distance)

after adjusting the disk, use this hole to hold it

in place with a small allen wrench while

tightening main bolt

Fig. 10

Fig. 9

glass bracket

adjustment

disk

measure

Door end of guide rail

High spot of disk bushing

outside

panel side

stopper hole

thread lock

outside

TIP: Mark the location of the high spot on the

outer surface of the adjustment disk with a felt

tip pen to make adjustment easier to see.

*NOTE: The outer glass bracket disk has an eccentric bushing for adjustment. Be sure to install both

glass bracket disks with the high spot of the bushing pointed toward the door end of the guide rail. See

the detail of the disks below as viewed from inside prior to installing on the glass.

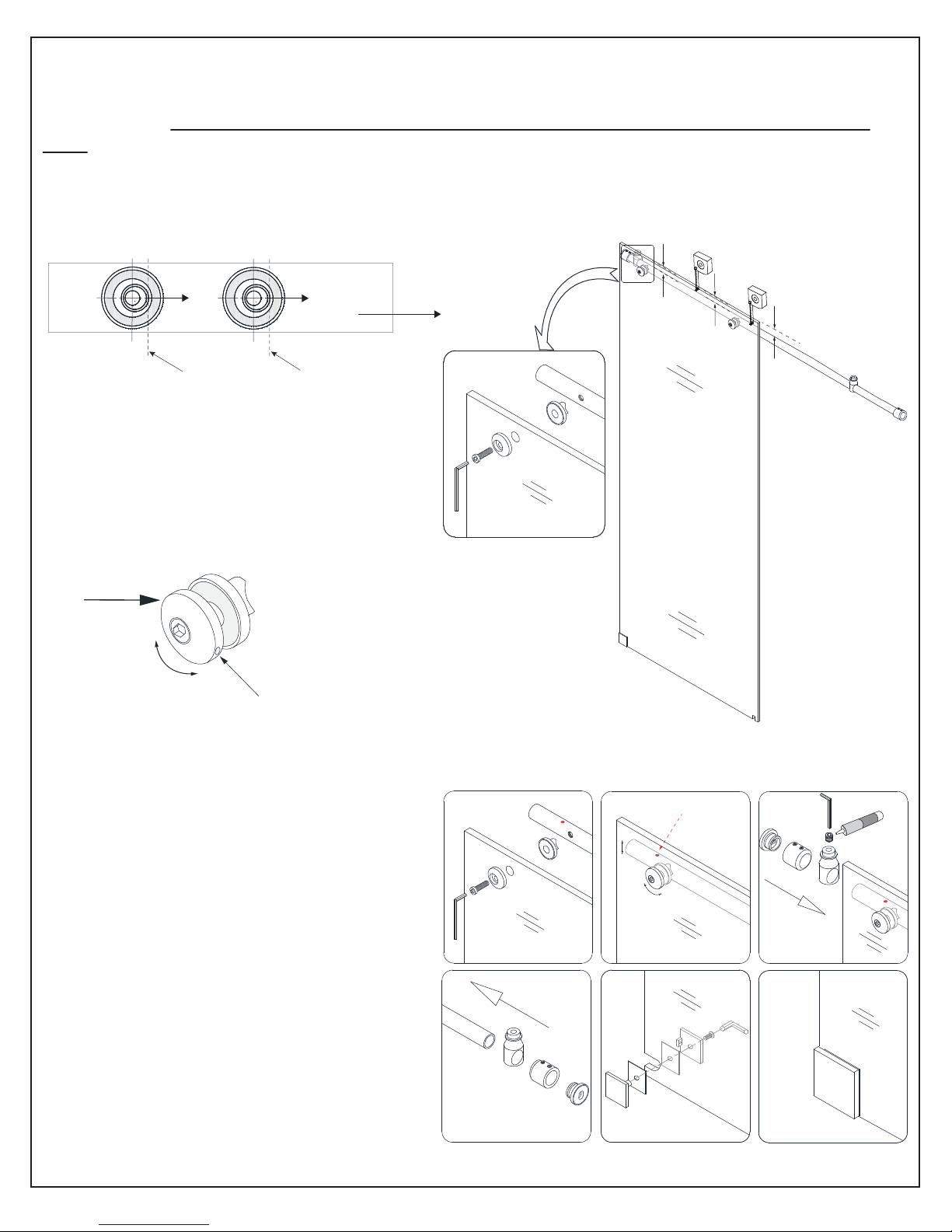

9a. Attach the Upper Guide Rail (#03) to the Stationary Glass (#02) with the Glass Brackets (#07)

and tighten the bolts into the pre-drilled holes in the Upper Guide Rail (#03). Make sure both

adjustment disks are installed in the same direction with the high spot facing towards the door end (see

*NOTE below). Make sure the guide rail is attached parallel with the top edge of the stationary panel

glass. (Fig. 9)

Install the panel-end stopper into the

pre-drilled stopper hole in the Upper Guide

Rail and apply Thread Lock (#20) to the set

screw.

Install the door-end stopper approximately 4”

from the end of the guide rail. (The door-end

stopper position will be adjusted in a later step

after the door glass is installed).

9c. Slide the Guide Rail Brackets (#08) onto

each end of the Upper Guide Rail (#03) and

secure them. Next, assemble the Wall

Bracket (#19) onto the bottom corner of the

Stationary Glass (#02) with the bolt facing

into the shower as shown in Fig. 10.5.Use the

supplied gaskets to protect the glass.

(Fig. 9 and Fig. 10)

9b. Slide the Door Stoppers (#01) onto each end of the Upper Guide Rail (#03) and secure them

using the 4mm Hex Wrench (#11).

15ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

Fig. 11

Fig. 12

Glass Connector (#21)

not used in this

configuration

sleeve

Lower guide rail Raise guide rail

Glass Bracket adjustments

10. Place the Stationary Glass (#02) with the Upper Guide

Rail (#03) onto the threshold and position it against the wall.

Fasten the Upper Guide Rail (#03) to the Return Panel Glass

(#22) using the Glass Connector (#21).

Tighten the set screws to secure the guide rail bracket sleeve to

the Glass Connector (#21). (Fig. 11)

11. Make sure the Stationary Glass (#02) is plumb and the Guide Rail (#03) is level. Adjust the

Guide Rail (#03) to level by using the Glass Connector (#21) and Glass Brackets (#07). If necessary,

rotate the elliptical adjustment disk on the outside of the Glass Bracket (#07), and then re-tighten the

bolt while holding the adjustment disk in place.

Dry fit the Guide Block (#12) into the notch of the Stationary Glass (#02) and mark its position on

the threshold. (Fig. 12)

16ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

1 2

Fig. 13

Fig. 14

X-3/8"

12. Once the Upper Guide Rail (#03) is leveled, mark the position of the Wall Bracket (#19) and the

Guide Rail Bracket (#08) on the wall. (Fig. 13)

13. Mark the Guide Block (#12) position and the holes for drilling on the threshold. (Make sure the

Guide Block (#12) is square to the Stationary Glass (#02)). Measure the distance from the Return

Panel Glass (#22) to the far edge of the Guide Block (#12). This distance will be “X”. The

Anti-Splash Guard (#15) will need to be cut to the size of: X(-) 3/8”. Insert the Anti-Splash Guard

(#15) into the Guide Block (#12) and align the Anti-Splash Guard (#15) parallel to the front edge

of the threshold and mark it. (Fig. 14)

17ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

4**

3**

Fig. 15

Separate the Guide Rail Bracket (#08) sleeve from the base by

loosening the set screws (leave the sleeve on the upper guide rail

and tigthen the set screws)

Ø5/16”

(8mm)

Ø3/8”

(10mm)

or Ø1/4”

(6mm)

** Ø1/4”

(6mm)

Fig. 16

base

sleeve

Wall bracket (#19) Guide Rail bracket (#08)

**NOTE: The manufacturer strongly recommends

installing the guide rail brackets into studs or

pre-installed 2”x 6“ wood reinforcements behind

the wall.

For installation into a stud,

drill a Ø1/4” hole up to

the stud and let the screw

bore into the wood.

Do not use the wall

anchors.

15. Drill the hole for the Wall Bracket (#19) using a

Ø5/16” drill bit and insert the Wall Anchors (#9b)

(Fig. 16.1)

**Drill the holes for the Guide Rail Brackets (#08) using

a Ø3/8” drill bit and insert the Wall Anchors (9a).

(Fig. 16)

14. Carefully set the Stationary Glass (#02) and

Upper Guide Rail (#03) aside, along with the Guide

Block (#12) and Anti-Splash Guard (#15).

Remove the Guide Rail Brackets (#08) from the

Upper Guide Rail (#03) (as shown below) and the

Wall Bracket (#19) from the Stationary Glass (#02).

Place the Wall Bracket (#19) and Guide Rail

Bracket (#08) back to the outlined positions and

mark the holes for drilling. (Fig. 15)

18ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

protective

padding

protective

padding

1234

Fig. 17

Fig. 18

Painter’s Tape

NOTE: Before you install the Stationary Glass (#02),

bring the Door Glass (#05) into the shower and lean it

against the wall.

Make sure the door is facing in the right

direction for installation

with the handle holes on the correct side.

After the Stationary Glass (#02) is installed, it may not be

possible to easily get the door glass into the shower or to turn it

around. Always use padding to protect the door glass and

shower surfaces.

NOTE: Do Not attach the handle to the door glass until

instructed.

Do Not attempt to lift the door glass with the handle as this

may result in damage to the glass and/or serious personal

injury. Use a professional grade glass suction cup and an

assistant.

17. Apply silicone to the bottom of the Anti-Splash Guard (#15) and the Guide Block (#12). Insert

one end of the Anti-Splash Guard (#15) fully into the Guide Block (#12) and align both pieces on

the threshold using the marks made in Step #13.

16. Fasten the Wall Bracket (#19) to the wall using the Truss Head Screw ST4.2×55 (#18). (Fig. 17.1)

Mount the base

part of

the Guide Rail Bracket (#08) to the wall using the

Large Truss Head Screw

ST6×65

(#10).

Note that the adjustment Set Screws on the bracket must be aligned vertically for

easier access to adjust for level after the glass is installed. (

Fig. 17)

Fasten the Upper Guide Rail (#03) to the Return Panel Glass (#22), connecting the sleeve of the Guide

Rail Bracket (#08) to the Glass Connector (#28) (Fig. 17.3 and Fig. 17.4) on the return panel glass. Align

the set screws vertically and tighten. (Fig. 17)

Apply silicone to the

Anti-Splash Guard Cap (#16),

and place it at the wall end of

the Anti-Splash Guard (#15).

Apply several strips of painter’s

tape to hold the Anti-Splash

Guard (#15) and Cap in place

while the silicone cures.

(Fig. 18)

19ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

The Guide Block (#12) must be

installed squarely onto the threshold

and stationary panel glass

Fig. 20

Fig. 19

Painter’s Tape

Use Caution

outside

panel glass

90°

anti-splash guard

overhead view of

guide block and

stationary panel glass

on threshold

protective

padding

right-hand installation shown as an example

19. Re-position the Stationary Glass (#02) and Upper Guide Rail (#03) onto the threshold and fasten

the sleeves of the Guide Rail Brackets (#08) to the bracket on the wall and to the Glass Connector (#21)

on the Return Panel Glass (#22).

Tighten the set screws on the Guide Rail Brackets (#08) to secure the Upper Guide Rail (#03).

Make sure to position the bracket set screws so that they are accessible from the top and bottom.

(As shown in Step 16, Fig. 17).

18.

Carefully p

lace the Stationary Glass (#02) with the Upper Guide Rail (#03) onto the threshold

with the notch fitting into the

Guide Block (#12).

Position the Stationary Glass (#02) against the wall.

(Please note that the Stationary Glass (#02) installs on the outside and the Upper Guide Rail (#03)

goes on the inside of the shower). (Fig. 19)

Assemble the Wall Bracket (#19) at the bottom corner of the Stationary Glass (#02). Use the clear vinyl

gasket between the glass and the metal parts to avoid contact with the glass, then tighten the bolt with

the supplied allen wrench. (Fig. 20)

20ENIGMA Z Enclosure Manual Ver 1 Rev 4 04/2017

TIP: Level the installed Upper Guide Rail (#03) as necessary using the Guide Rail Brackets (#08) first

and then the Glass Brackets (#07). Start adjustments from the door end. (Fig. 22 and Fig. 23)

Fig. 23

Fig. 22

Fig. 21

Ø1/8"

Panel end Door end

Glass bracket

Guide Rail Bracket

or Glass Connector

(Right hand door installation shown as example)

To lower the rail using the

Guide Rail Bracket:

Loosen the top set screw and

tighten the bottom set screw.

To raise the rail:

Loosen the bottom set screw

and tighten the top set screw.

To raise or lower the rail

using the Glass Connector:

Loosen the bolt and rotate

the disk then tighten the

bolt.

NOTE: Use the Guide Rail Bracket (#08) set

screws and/or the Glass Connector (#21) to

adjust the Guide Rail (#03) to level.

20.Fasten the Guide Block (#12) to

the threshold with the Countersunk

Screws ST4.2×25 (#17). (Fig. 21)

This manual suits for next models

Table of contents

Other Dreamline Enclosure manuals

Dreamline

Dreamline UNIDOOR User manual

Popular Enclosure manuals by other brands

Rosewill

Rosewill CHALLENGER-S user manual

Z3 Technology

Z3 Technology Z3-MVE-SPEC User instructions

GAMEMAX

GAMEMAX Abyss TR installation guide

Vxl

Vxl Itona TC61yy Service manual

Hamlet

Hamlet HXD2CCUU user manual

Elektro-Automatik

Elektro-Automatik Rittal TS 47U installation guide

Nofan

Nofan CS-60 user manual

Leviton

Leviton LP 3B Series installation instructions

COUGAR

COUGAR DUOFACE PRO RGB user manual

Kicker

Kicker Comp DC10 owner's manual

OWC

OWC Mercury On-The-Go Assembly manual

Wincomm

Wincomm WPC-651 user manual

Adamson

Adamson Metrix Sub-i Information booklet

Conquip

Conquip COSHH Cranelift Drum Store user guide

YORKVILLE

YORKVILLE PL12 - PARTS manual

Intellinet

Intellinet Premium Assembly instructions

HP D6000 Disk Enclosure specification

Icy Box

Icy Box IB-1922MF-C32 manual

Dreamline ENIGMA-Z SHEN-623448-## User manual

Popular Enclosure manuals by other brands
