UNIDOOR Shower Door Installation Instruction
IMPORTANT
Please read carefully the following instructions before installing your shower door. If you have any
questions regarding shower door installation, please call our technical support specialists Monday
through Friday 9:00AM –5:00PM EST at 1-866-731-8378, ext. 3 or e-mail our technical support
group at [email protected]
DreamLineTM reserves the right to alter, modify or redesign products at
any time without prior notice. For the latest up-to-date technical
drawings, manuals or any other details please refer to the
BathAuthority.com web page.

Rev 2.1
2
Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed
parts are included in the package, by marking all the components on the “Detailed Diagram of
Shower Enclosure Components”. Examine boxes and packages for shipping damage. If the unit
has been damaged, has a finishing defect, or has missing parts, please contact our customer support
department within 3 business days of the delivery date. Please note that DreamLine TM will not
replace any damaged products or missing parts free of charge after 3 business days or if the
product has been installed. Feel free to contact DreamLineTM if you have any questions.
2. Please note that you should consult your local building codes with questions on installation
compliance standards. Building and plumbing codes may vary by location, and DreamLine is
not responsible for code compliance standards for your project.
3. If this unit is going to be installed in a new construction, please, install all of the required plumbing
and drainage before installing the shower. Use a competent and licensed (if required by local
code) plumber for all plumbing installation
4. Please insure that prior to the installation the tub is leveled and solid and will be able to support the
total weight of the unit. Also make sure the walls are at right angles. While some adjustment in
leveling of the door is possible, irregular tub level or improper angle of side walls will result in
serious problems for your installation. Please, note that some adjustments and drilling might be
necessary during the installation process.
5. Please, NOTE! The doors that are under 30” do not have out-of-plumb adjustment. Make
sure your walls are at right angles
6. a) If the width of your door is less than 30” and you are installing the door without stationary
glass, you only need to refer to (Diagram A) with (Packing ListA).
b) If the width of your door is 30” and over, and you are installing the door and stationary glass
with support arm, you have to use (Diagram A and B) with (Packing List A and B) to
complete the installation
c) If the width of your door is 30” and over, and you are installing the door and stationary glass
with glass shelves, you have to use (Diagram A, and C) with (Packing List A, and C) to
complete the installation

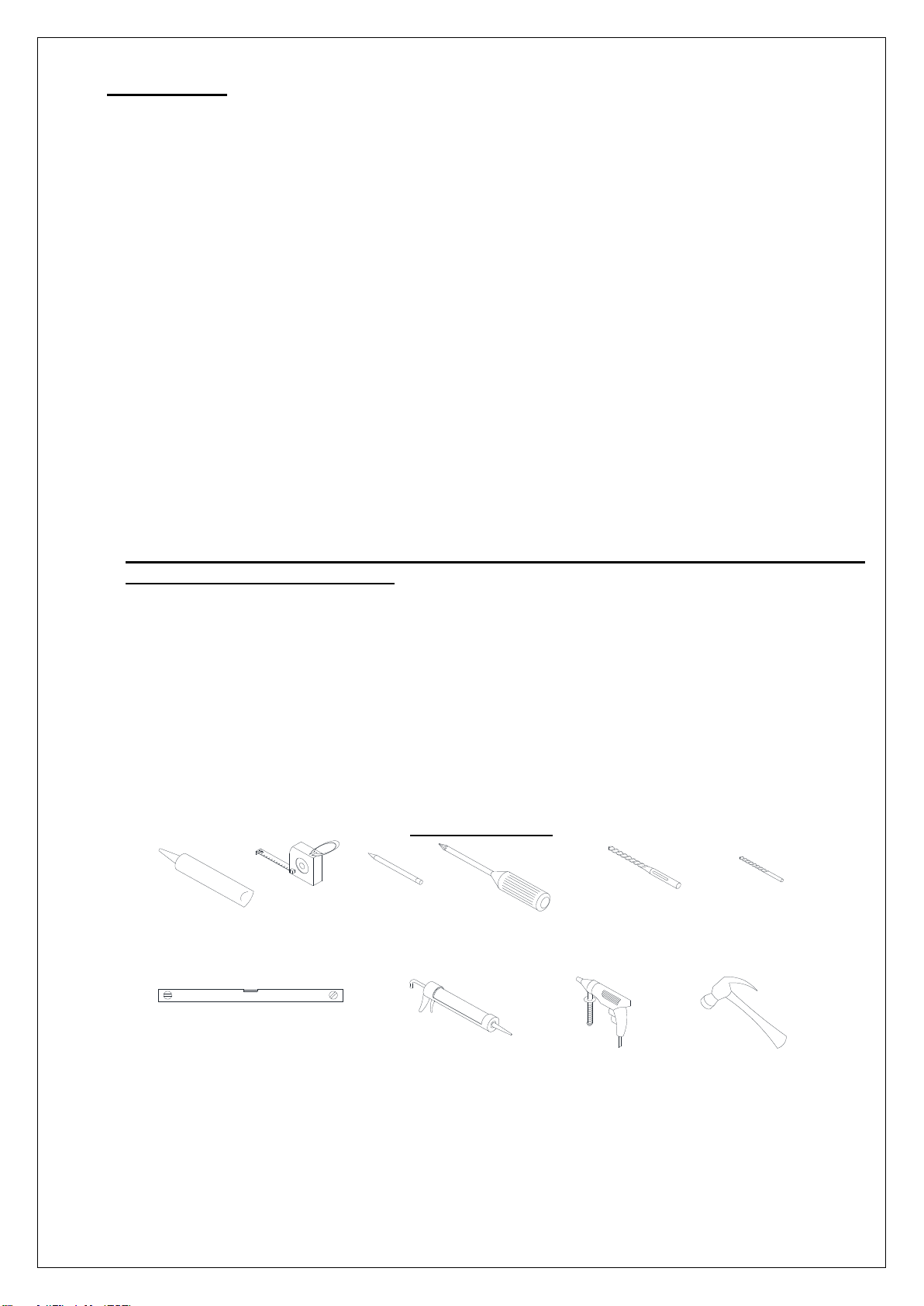

Tools Required
Hammer
Electric
Drill
Caulk
Gun
Level
Phillips
Screwdriver
Pencil
Measure
Tape
Caulk Drill bit
(Ø=5/16") Drill bit
(Ø=3/16")

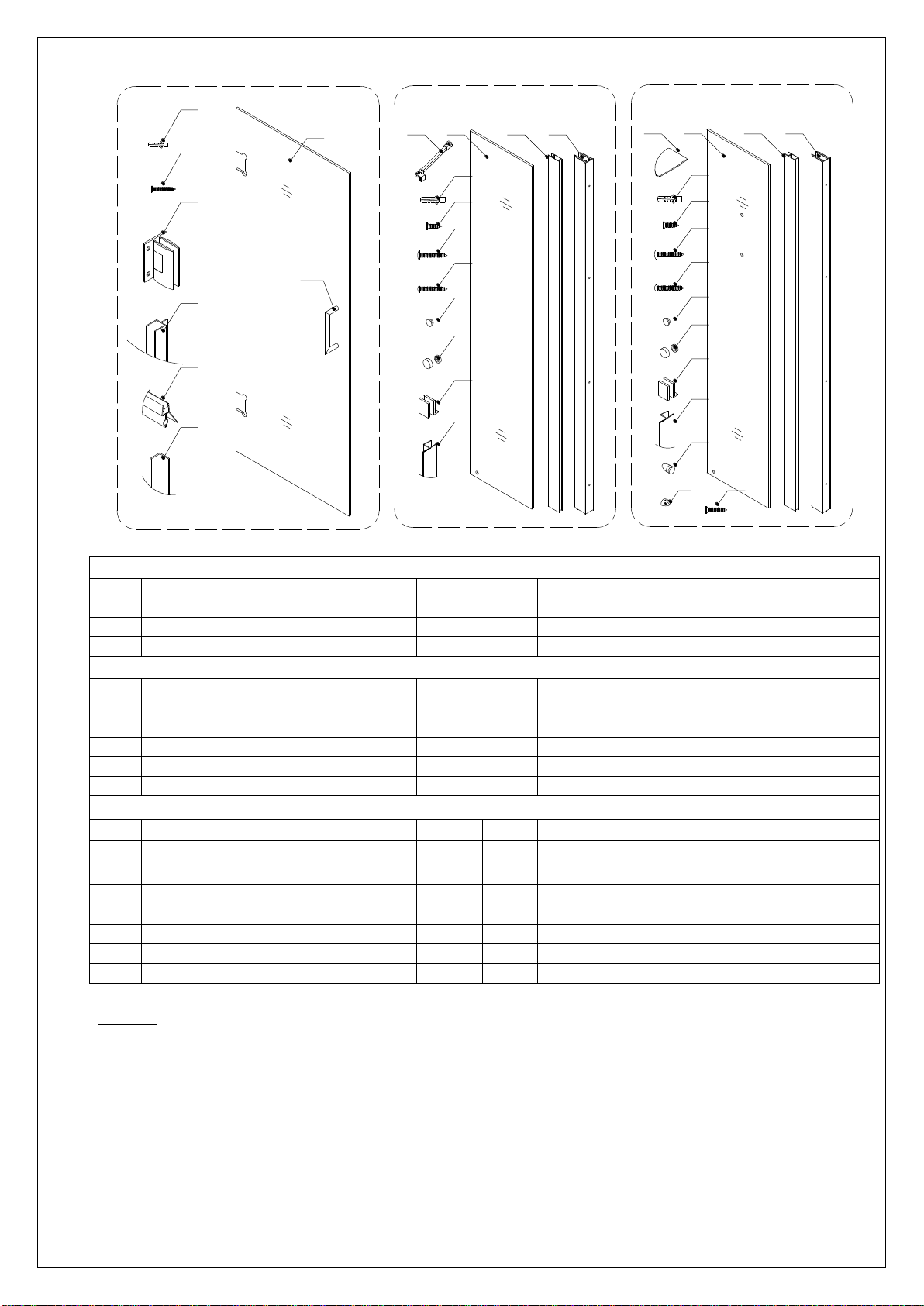

Detailed Diagrams of Shower Door Components
Diagram A Diagram B Diagram C

Rev 2.1
3
1
2
3
4
5
6
7
8
9101112
13
14
15
16
17
18
19
20
9101112
13
14
15
16
17
18
19
20
22
21
23
Packing List A
01
Glass door
1pc
05
Hinge
2pcs
02
Handle
1pc
06
Side strip ( 3 sections to cut)
1pc
03
Wall Anchor
8pcs
07
Bottom anti-water strip
1pc
04
Countersunk screw ST5×50
8pcs
08
L-shaped strip
1pc
Packing List B
09
Wall profile
1pc
15
Round head screw ST 4.2×30
4pcs
10
Glass profile
1pc
16
Round head screw ST 4.2×25
1pc
11
Stationary glass
1pc
17
Decorative plug
3pcs
12
Support bar
1pc
18
Decorative cover
1pc
13
Wall Anchor
5pcs
19
Bottom bracket
1pc
14
Countersunk screw ST 4.2×18
3pcs
20
Anti-Water strip
1pc
Packing List C
09
Wall profile
1pc
17
Decorative plug
3pcs
10
Glass profile
1pc
18
Decorative screw cover
1pc
11
Stationary glass
1pc
19
Bottom bracket
1pc
12
Glass shelf
2pc
20
Anti-water strip
1pc
13
Wall anchor
8pcs
21
Shelf bracket (with nut)
2pcs
14
Flat head screw ST4.2×18
3pcs
22
Shelf bracket (without nut)
4pcs
15
Round head screw ST4.2×30
4pcs
23
Countersunk screw ST4.2×25
4pcs
16
Round head screw ST4.2×25
1pc
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed
diagram and packing list in your manual as a reference. Before discarding the carton, check for small
hardware bags that tend to fall to the bottom of the box. If any parts are damaged or missing, please
contact DreamLineTM for replacement.

Rev 2.1
4
Shower Door Installation
1. Attach the Hinges (05) to the Glass door (01).
See Fig. 1 for details.
Fig. 1
2. Place a piece of flat timber (5/8” thick) on the
threshold or the shower base. Take the Glass door (01)
and place it on the flat timber. Butt up the door with
hinged side against the wall, adjust its position and
level it.
Be sure the door is absolutely vertical.
See Fig. 2 for details.
Fig. 2
3. Mark the drill holes for both hinges on the
wall. Set the door aside, drill the holes in
the wall using Ø 5/16” drill bit, and insert
the Wall Anchors (03).
Place the Glass door back on the flat
5/8"
3
1

Rev 2.1
5
timber and attach both hinges to the wall with the Countersunk screws ST5×50 (04).
See Fig. 3 for details.
PLEASE NOTE:
The manufacturer strongly recommends to attach this heavy door to the studs or to
preinstalled 2x6 wood reinforcement behind the wall.
Fig. 3

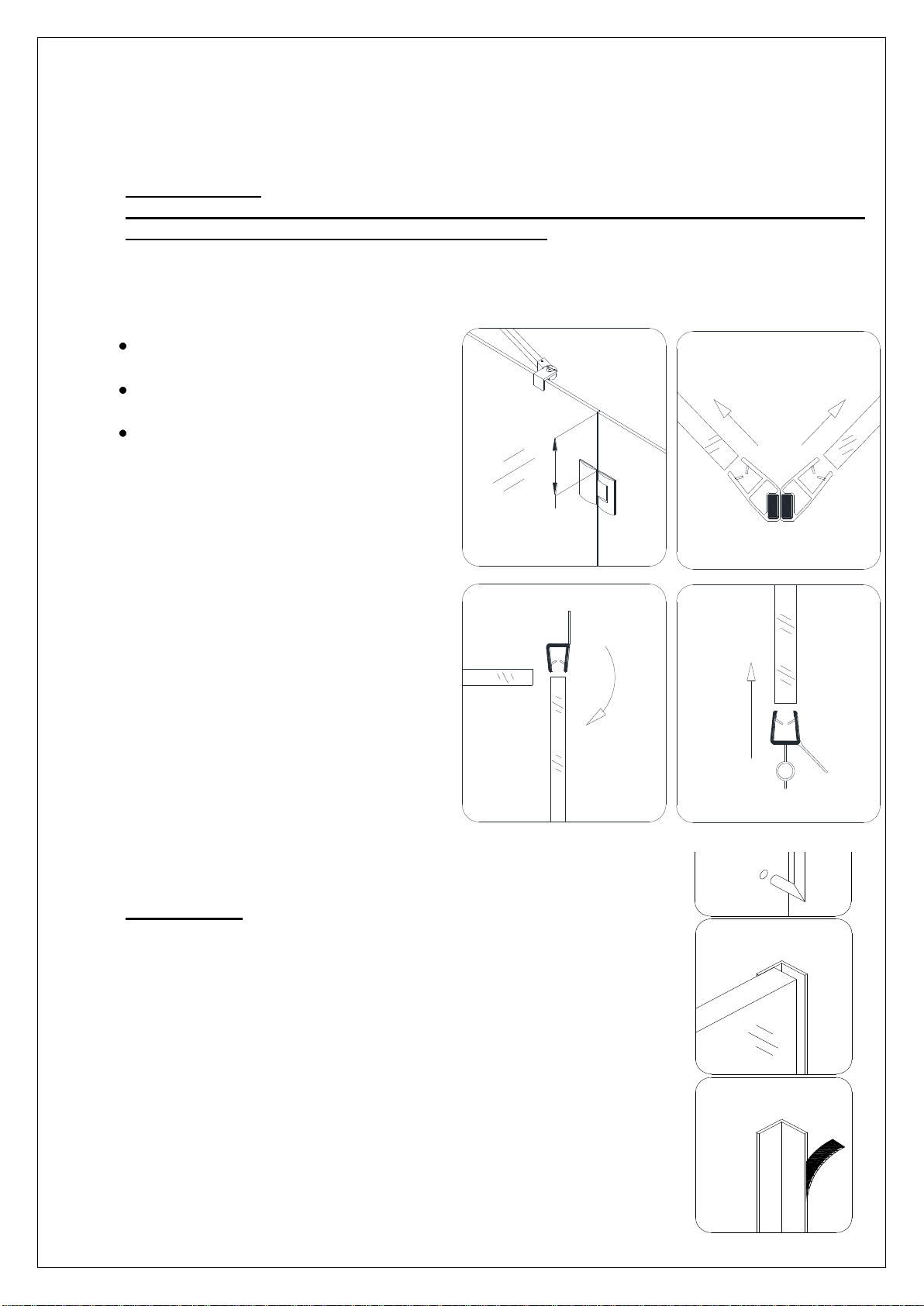

4. Get three measurements:
from the top edge of the Glass door (01)
to the upper edge of the top Hinge (05);
from the bottom edge of the upper Hinge
to the top edge of the bottom Hinge;
from the bottom edge of the bottom
Hinge to the bottom of the Glass door.
Cut the Side strip (06) according to the
measurement.
Remove the timber plate, open the door to
its full section and press the cut strips on
the vertical edge of the Glass door.
Press the Bottom anti-water strip (07) on
the bottom edge of the glass door.
See Fig. 4 for details.
Fig. 4
5. Mount the Handle (02) to the Glass door
(01).
See Fig. 5.1 for details.
ATTENTION;
Prior to the next step, please be sure the part of the wall for
installation of the L-shaped strip (08) is clean, dry and free from
soap, oil and any construction debris.
6. With the door closed place the L-shaped strip (08) on the door edge
and mark its location on the wall.
Please note that the corner of the L-shaped strip (08) should face
inward.
Open the door. Gently remove the plastic tape from the adhesive side
of the L-shaped strip (08) and firmly press it to the wall.
See Fig. 5.2 and Fig. 5.3 for details.
2
1
3
2
1
xxx
1
2
3
4

Rev 2.1
6
Fig. 5
NOTE:
If your shower door is up to 30” in width and
you don’t have the Stationary glass, you only
need to assemble parts from Packing List A
and your installation is finished.
See Fig. 6 for details.
Fig. 6
NOTE:
If your door is more than 30” in width,
you will need to add Stationary glass
panel (11):
a) For installation of the Stationary Glass
with Support bar, you will need to
refer to Packing List B.
b) For installation of the Stationary Glass
with Glass Shelves, you will need to
refer to Packing List C.
See Fig. 7 for details.
Fig. 7

Rev 2.1
7
Stationary Glass Installation
7. Apply clear silicone along the inner channel of
the Glass profile (10) and push the Stationary
glass (11) inside the channel.
NOTE: If you have difficulty sliding the Glass
profile over the Stationary glass, you can
slightly tap on the Glass profile with a rubber
hammer and a piece of wood.
See Fig. 8.1, Fig. 8.2 and Fig. 8.3 for details.
NEVER use the metal hammer or hit
the profile without the wood bumper.
8. Push the Glass profile (10) inside the Wall
profile (09).
See Fig. 8.4 for details.
NOTE: Please note that the hole in the
corner of the Glass panel should be at the
bottom, farther from the wall.
Fig. 8
9. Press the Anti-Water strip (20) on the vertical
edge of the Stationary glass (11). Align the Stationary glass with the
Glass Door and then close the Glass door.
If needed adjust the position of the Stationary glass to make sure the
Anti-water strip (20) and the Glass door (1) work well.
See Fig. 9 for details.
Please note: The Stationary glass must be
leveled with the Glass door
Fig. 9
10. Draw a line along the inner edge of the Wall
profile on the wall. Detach the Wall profile
from the Stationary glass and the Glass
profile assembly. Place the Wall profile to
the outlined position and mark the drilling
holes through the predrilled holes in the Wall
profile.
Now drill the holes using Ø 5/16”drill bit in
5
4
2
1
4
3
2
1
3
2
1

Rev 2.1
8
the wall and insert the Wall anchors (13) into the holes.
Apply silicone along the Wall profile and around the holes. Fasten the Wall profile to the wall
with the Round head Screw ST4.2×30 (15). Then push the Stationary glass and Glass profile
assembly into the Wall profile.
See Fig. 10 for details.
Fig. 10
11. Adjust the Stationary glass position to ensure
that when the glass door is closed, there is a gap
(1/16”-1/8”) between the two glass panels.
To adjust and secure the stationary glass in place,
install the Bottom Bracket (19) to the Stationary
glass;
Mark the drilling hole for the bracket. Make sure
the mark is clear and visible and drill the hole
using Ø 1/8”drill bit.
Use the Round head screws ST4.2×25 (16) to
attach the Bottom Bracket (19) to the shower
base or the threshold. Cover the screw head with
Decorative cover (18).
See Fig. 11 for details.
Fig. 11

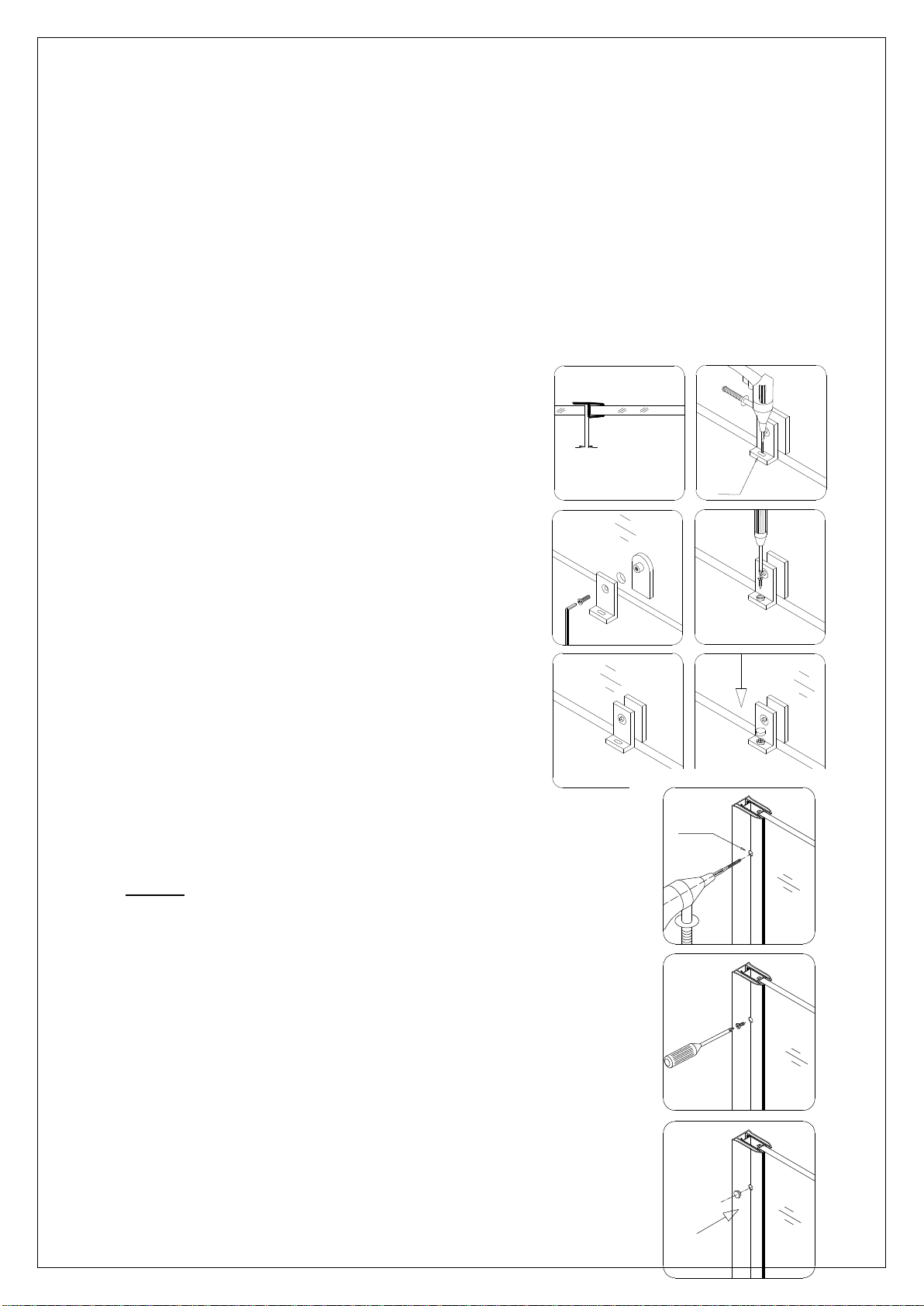

12. After final adjustments of the Stationary glass
drill the holes in the Glass profile through
predrilled holes in the Wall profile using Ø 1/8” drill bit.
NOTE: You only need to drill through the first layer of the Glass
Profile.
Use Countersunk screws ST4.2×18 (14) to attach the Wall
profile to the Glass profile. Cover the exposed screw heads with
Decorative Plugs (17).
See Fig. 12 and Fig. 13 for details.
(1/16--1/8)"
6
5
4
3
2
1
Ø 1/8”
3
2
1
Ø 1/8”

Rev 2.1
9
Fig. 12
If the Stationary Panel width is 6”, the installation is
finished.
If the Stationary Glass width is 12” and over you will
need to continue your installation from:
a) Step 13 for Support Bar installation.
b) Step 15 for Glass Shelves installation.
Fig. 13
Support bar installation
13. Locate the Support bar (12).
Adjust the bar to a proper position on the glass and the
wall. Level it horizontally. Hold it firmly and outline the
bracket’s position on the wall. Remove the Support bar
and detach the wall bracket from it. Place the wall
bracket against its outlined position on the wall and
mark the drilling hole.
Drill the hole using Ø 5/16” drill bit; insert the Wall
anchor (13) and fasten the wall bracket to the wall with
the Screw ST4.2×30 (15). Attach the Support bar to
the wall as shown on Fig 14.5 and tighten the set screws
and the glass holding screw to secure the glass.
See Fig. 14 for details.
Fig. 14
14. Apply the sealant along the connection of the
Stationary glass and the Shower base or threshold.
1
2
3
4
5
6
Ø 5/16”

Rev 2.1
10
See Fig. 15 for details.
Fig. 15
Caulk

Rev 2.1
11
Glass shelves installation
15. Mark the Glass shelf (12) position on the wall.
According to the measurements in Fig. 16.1, mark
the drilling holes for the shelf brackets.
Drill the holes using Ø 5/16”drill bit and insert
the Wall anchors (13).
Attach the Shelf brackets (without nut) (22) to
the wall using the Countersunk screw ST4.2×25
(23) and attach the Shelf brackets (with nut) (21)
to the Stationary glass (11).
Insert the Glass shelves into the Shelf brackets
and fasten the screws at the bottom of the
brackets.
See Fig. 16 and Fig. 17 for details.
Fig. 16
Fig. 17
16. Apply the sealant along the connection of the
Stationary glass and the Shower base or the
threshold.
See Fig. 18 for details.
2"
6"
caulk
Ø 5/16”
6
5
4
3
2
1

Rev 2.1
12
Fig. 18
Maintenance
To insure long lasting life for your acrylic back walls, wipe them off after each use with a soft cloth.
To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive
cleansers, metal brushes or scrapers that could scratch or dull the surface.
To insure long lasting life for your glass shower products, wipe them off after each use with a soft
cloth. Rinse and wipe of the glass using either soft cloth or squeegee to prevent soap buildup. Never
use abrasive cleaners and cleaning products that contain scoring agent because this may scratch the
surface. Never use bristle brushes or abrasive sponges.
To assure a long lasting finish wipe off the metal parts after each use with a soft cloth. Do not use
abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse
the surface as soon as possible to prevent finish peeling or corrosion. After cleaning the shiny finishes,
rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week.
When applying stainless steel cleaner or polish, work with (not across) the grain. Never use abrasive
sponge or cloth, steel wool or wired brushes.

Rev 2.1
13
Warranty
2011
This is Bath Authority LLC’s (“DreamLine”) exclusive written warranty effective April 1, 2011
This warranty extends only to the original owner/end-user for household use only and is not transferable to a subsequent owner. This warranty
applies only to DreamLine™ products purchased from an authorized dealer and installed in United States or Canada. Proof of purchase (original
sales receipt) must be provided with all warranty claims. In no event shall the liability of DreamLine™ exceed the purchase price of the unit.
If DreamLine™ shower doors, shower enclosures and shower bases are used commercially, DreamLine™ warrants such products to be free from
defects in material and workmanship for one (1) year from initial date of purchase from an authorized dealer, with all other terms of this warranty
applying except duration. If DreamLine™ vanities, vessel sinks and shower columns are used commercially, DreamLine™ warrants such products to
be free from defects in material and workmanship for three (3) months from initial date of purchase from an authorized dealer, with all other terms of
this warranty applying except duration. DreamLine™ Jetted and Steam Shower Cabins are not intended for commercial use and there is no
warranty extended for these products for commercial use. DreamLine™ is not responsible for loss of use or profit under any circumstances.
DreamLine™ hereby disclaims all warranties for products sold as a dealer or store displays. DreamLine™ hereby disclaims all warranties for
products used outside of the United States or Canada whether expressed or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
DreamLine™ will, at its election, repair, replace with product of equal value or make appropriate adjustment where DreamLine’s analysis or
inspection of warranty claim discloses any such defects occurring in normal usage within the warranty period. DreamLine warranty obligation shall
be discharged upon tender of replacement or repair. Purchaser’s refusal to accept the tender terminates warranty obligation.
Cost of freight for returning products to DreamLine™ for repairs or replacement under this limited warranty are the responsibility of the customer.
Cost of freight associated with shipping of replacement product or parts to the customer may be charged to customer. Any product replaced or
repaired during the warranty period will be covered only for the remaining period of the original warranty. In no event will DreamLine be liable for
costs of repair or replacement of any installation material, including but not limited to tiles, marble, etc. DreamLine™ is not responsible for
installation, removal or reinstallation costs of any product requiring warranty services.
Improper modification or alterations of any DreamLine™ products will void the warranty. Any DreamLine products repairs must be performed by
either a DreamLine authorized agent or a licensed experienced professional contractor. This warranty shall not apply to breakage or damages
caused by normal wear and tear, fault, carelessness, abuse, misuse, misapplication, improper maintenance, alteration or modification of the unit, as
well as chemical or natural corrosion, accident, fire, flood, act of God or any other casualty. Improper care and cleaning will void the warranty.
Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents or other products not recommended for
chrome or similar finish, glass or acrylic. This will void the warranty. For additional product maintenance instructions please refer to product
installation manuals. The warranty does not extend to any non-DreamLine™ plumbing or components installed by installers, end users or by any
party other than DreamLine™.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED
TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. BATH AIUTHORITY LLC
(“DREAMLINE”) AND/OR SELLER DISCLAIM ALL LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
DREAMLINE™ IS NOT LIABLE FOR PERSONAL INJURIES OR DEATH TO ANY PERSON OR FOR ANY DIRECT, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGE, LOSS OF USE, LOSS OF TIME, LOSS OF PROFITS, INCONVENIENCE, INCIDENTAL EXPENSES, LABOR
OR MATERIAL CHARGES, OR ANY OTHER COSTS RESULTING FROM THE USE OF ITS PRODUCTS OR PERTAINING TO THE
APPLICATION OF THE PRESENT WARRANTY, OR RESULTING FROM THE REMOVAL OR REPLACEMENT OF ANY PRODUCT OR
ELEMENT OR PART COVERED BY THIS WARRANTY.
DreamLine™ is not responsible for product code compliance or for verifying code restrictions on installation or use and any such compliance is
excluded from this warranty. DreamLine™ reserves the right to modify this warranty at any time - such warranty modification will not alter warranty
applicable at the time of sale of the products in question. The warranty terms for specific products are:
SHOWER DOORS, SHOWER ENCLOSURES AND SHOWER BASES
DreamLine™ warrants shower doors, shower enclosures and shower bases to be free from defects in workmanship and materials under normal
residential use for a period of five (5) years from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
SHOWER CABINS (JETTED & STEAM)
DreamLine™ warrants glass, acrylic and finish to be free from defects in workmanship for a period of five (5) years from initial date of purchase by
the owner/end-user, contractor or builder from an authorized dealer; and plumbing, electrical and steam generator components for a period of one
(1) year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
SHOWER COLUMNS
DreamLine™ warrants shower columns to be free from defects in workmanship and materials under normal residential use for a period of one (1)
year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
VANITIES AND VESSEL SINKS
DreamLine™ warrants bathroom vanities and vessel sinks to be free from defects in workmanship and materials under normal residential use for a
period of one (1) year from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of special, incidental or
consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may also have
other rights, which vary from state/province to state/province.
