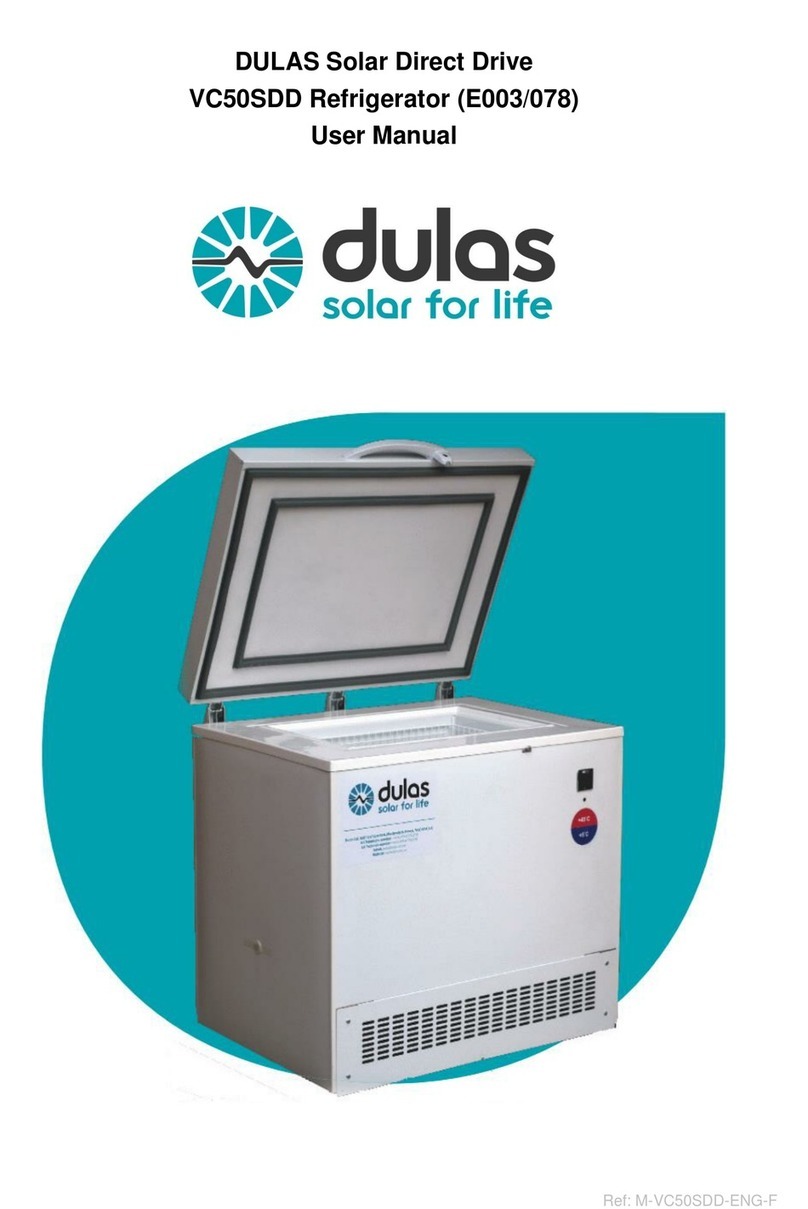

Dulas VC50SDD User manual

DULAS Solar Direct Drive
VC50SDD Refrigerator (E003/078)
Installation & Technician’s Manual
Ref: M-VC50SDD-ENG-F

VC50SDD Installation & Technician’s Manual
Page 2 of 46
Table of Contents
1. COMPONENTS CHECKLIST...................................................................................... 4
2. SAFETY INSTRUCTIONS........................................................................................... 5
3. YOUR DULAS SOLAR DIRECT DRIVE REFRIGERATOR......................................... 7
4. VC50SDD REFRIGERATOR COMPONENTS ............................................................ 8
5. RECOMMENDED TECHNICIAN’S TOOLS ................................................................. 9
6. MATERIAL SAFETY INFORMATION.........................................................................10
7. END OF LIFE & PRODUCT RECYCLING..................................................................11
8. REFRIGERATOR TRANSPORTATION......................................................................13
9. PREPARING TO INSTALL .........................................................................................14
10. SOLAR ARRAY ASSEMBLY...................................................................................15
11. SOLAR ARRAY ORIENTATION..............................................................................21
12. SOLAR ARRAY INSTALLATION.............................................................................22
13. SOLAR MODULE CONNECTIONS.........................................................................24
14. COMMISSIONING SOLAR ARRAY ........................................................................25
15. ADVICE ON LIGHTNING PROTECTION................................................................26
16. ADVICE ON SURGE PROTECTION.......................................................................26
17. SOLAR ARRAY EARTHING....................................................................................27
18. REFRIGERATOR INSTALLATION..........................................................................28
19. SYSTEM COMMISSIONING...................................................................................29
20. REFRIGERATOR LOADING...................................................................................30
21. GREEN COMPRESSOR STATUS LED LIGHT.......................................................31
22. USER TRAINING.....................................................................................................32
23. MAINTENANCE TASKS..........................................................................................32
24. TROUBLESHOOTING GUIDE ................................................................................33
25. INSTALLATION & COMMISSIONING RECORD.....................................................40
26. VC50SDD ELECTRICAL SCHEMATIC...................................................................43
27. VC50SDD REFRIGERATION SCHEMATIC............................................................44
28. SPARE PARTS........................................................................................................44
29. VC50SDD SYSTEM LAYOUT - 1 MODULE SYSTEM............................................45

VC50SDD Installation & Technician’s Manual
Page 3 of 46

VC50SDD Installation & Technician’s Manual
Page 4 of 46
1.Components Checklist
DESCRIPTION
QUANTITY
REFRIGERATOR
VC50SDD Refrigerator Cabinet
1
Refrigerator Basket
1
Refrigerator Key
2
SOLAR ARRAY
260Wp min Solar Module(s)
1
20m Pre-terminated Solar Cable (+ve & -ve)
1 pair
Solar Connector –Branch Plug (only required for 2 module systems)
0
Solar Connector –Branch Socket (only required for 2 module systems)
0
Earthing Kit (incl. Earth Rod, 25m Earth Cable & Earth Clamp)
1
MOUNTING SYSTEM (see page 14 for references A to G)
(A) End Clamp 34-43mm Set
4
(B) Mid Clamp 28-42mm Set
0
(C) Front fixed leg
2
(D) C-Rail 47-3 –1530mm
2
(E) C-Rail 47-3 - 750mm (only required for 2 module systems)
0
(F) Rear adjustable leg
2
(G) Rail connector set 47 (only required for 2 module systems)
0
Coachscrews, Rawl bolts, Washers
2 packs
Screws
1 pack
Wall Plugs
1 pack
Cable Ties
1 pack
Cable Tie Bases
1 pack
Silicon Sealant
1

VC50SDD Installation & Technician’s Manual
Page 5 of 46
2. Safety Instructions
Read the Manual - please read all instructions completely
before installing. Installation and system servicing should only be
carried out by a qualified and competent engineer. Work
performed by persons with insufficient technical knowledge may
adversely affect the performance of the unit or cause physical
injury or damage to the equipment.
The refrigerator is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction. Children must be supervised not to play
with the appliance. This refrigerator is for professional use only. It
is not designed for household use.
Refrigerator and power system are heavy - please observe
good manual handling procedures when moving the refrigerator
and solar power system. Only use suitable transport equipment.
Safe working - Please observe safe working at height practices
when installing the solar array.
Live electrical components –solar modules are live when
exposed to sunlight. Isolate the array (using the PV isolator on the
back of the refrigerator) before disconnecting any components.
Electrical danger –under fault conditions high electrical
currents can occur. Never bypass a circuit breaker and always
replace with the same type and rating.

VC50SDD Installation & Technician’s Manual
Page 6 of 46
DC power only - this refrigerator is designed for operation with
the solar power system supplied. Do not connect the refrigerator to
other power supplies.
Dangerous substances - this refrigerator contains substances
that are not biodegradable and can cause harm, please ensure
that all components of the refrigerator are disposed of correctly,
see page 8 for more information. Do not damage the internal side
panels of the compartment.
Keep Dry –This refrigerator is for indoor use only. Do not
expose it to rain.
WARNING: This unit's cooling system contains flammable refrigerant. Due to this
fact, the following information is particularly important:
Warning: Do not damage the refrigeration circuit. Ensure that
sharp or pointed objects do not come into contact with the
refrigeration circuit.
Warning: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
Warning: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Warning: Do not use electrical equipment inside the appliance.
Warning: Do not store explosive substances such as aerosol
cans with a flammable propellant inside this appliance.

VC50SDD Installation & Technician’s Manual
Page 7 of 46
3. Your Dulas Solar Direct Drive Refrigerator
Congratulations on choosing the Dulas VC50SDD vaccine refrigerator. With over 30 years of
engineering experience in the production of solar powered vaccine refrigerators, Dulas is
considered one of the market leaders in this field.
The VC50SDD is Dulas’ latest innovation in solar refrigeration. Using our new solar direct drive
technology we have replaced the traditional battery energy store with a ground breaking phase
change solution. With this new technology we can offer the same renown Dulas quality and
reliability that have always kept your vaccines safe, but in a simpler and more efficient package.
How does solar direct drive work?
When the sun shines the solar panels generate electricity which directly drives the refrigerators
compressor, cooling down the refrigerator and its contents. As a result the compressor only
operates during the day. To maintain the temperature at night or when the sun is not shinning the
refrigerator has a phase change lining. This interior lining holds the exact temperatures required
for safe vaccine storage and acts as a “cold store”, storing energy that keeps the temperatures
stable all day and night.
In order to store sufficient energy to keep vaccines safe for prolonged periods without any
sunshine, the refrigerator must be allowed time to charge it’s cold store. Under normal
sunlight conditions (8 hours/day of solar irradiance >250W/m²) the refrigerator will take
approximately 7 days to fully charge the cold store and be ready for vaccine storage.
Recommended solar array
The VC50SDD has been designed to meet the World Health Organisation’s Performance, Quality
& Safety (PQS) standards. The refrigerator has been independently tested to the PQS standard
WHO/PQS/E03/RF05 and is a Hot zone rated appliance with an ambient operating temperature
range of between +5C and +43C. For use in such Hot Zone environments it should be powered by
a minimum 260Wp solar array with a Voc not exceeding 45Vdc.

VC50SDD Installation & Technician’s Manual
Page 8 of 46
4. VC50SDD Refrigerator Components
Lockable Handle
Basket
Vaccine
compartment solar
powered temperature
display and
compressor status
LED
Temperature
sensors
Replaceable
gaskets

VC50SDD Installation & Technician’s Manual
Page 9 of 46
5. Recommended Technician’s Tools
Pozidrive No.2 Screwdriver
Slot-head Screwdriver
Pliers
Wire Cutters
Craft Knife
Drill and Bits
Hammer and Punch
Deep reach 18mm socket (supplied)
Torx T30 key (supplied)
Torx T45 key (supplied
Ratchet socket handle (not supplied)
Adjustable Spanner
Multimeter (20A rated)
Tape measure
Spirit level
Compass (supplied)

VC50SDD Installation & Technician’s Manual
Page 10 of 46
6.Material Safety Information
THE REFRIGERATOR
The Dulas VC50SDD conforms to the European directive 2002/95/EC on hazardous substances
and does not contain the following elements: lead, cadmium, mercury, hexavalent chrome, PBB or
PBDE.
The absence of ozone destroying materials is in accordance with EC 1005/2009 (CFC-free)
It is compliant with European Standards (CE) EN60335-1:2010 & EN60335-2-24:2010.
R600a refrigerant –Isobutane, is highly flammable when mixed with air. Do not inhale, ingest, and
avoid contact to skin. Ensure that any work carried out on the refrigeration circuit is done by a
competent refrigeration engineer.
THE PHASE CHANGE MATERIAL (PCM)
The refrigerator contains an organic phase change material (PCM) that provides the energy store
for the refrigerator. This PCM material is a paraffin wax that is liquid at room temperature and is
stored in large tanks secured inside the walls of the refrigerator. In normal use the user will never
be aware of its presence. This PCM is classified under regulation (EC) No 1272/2008 as a
category 1 aspiration hazard and is classified under regulation 67/548/EWG, 1999/45/EG as
having the potential to cause physical harm (R65 & R66). At normal ambient temperatures this
product will be unlikely to present an inhalation hazard because of its low volatility. At high
temperature aerosol/mist can cause an irritation of the respiratory tract.
H304 May be fatal if swallowed and enters airways.
P301 + P310 IF SWALLOWED: Immediately call a POISON CENTRE or
physician.
P331 DO NOT induce vomiting.
R65: Harmful: may cause lung damage if swallowed.
R65: Repeated exposure may cause skin dryness or cracking.
In the event of a PCM spillage:
•Wear suitable protective clothing, gloves and safety glasses when clearing up spillages.
•Use an absorbent substance such as sand to contain any escaping material.
•If the PCM contaminates rivers and lakes or sewers inform respective authorities. Avoid water
ingress underground. Do not flush into surface water or sanitary sewer system.

VC50SDD Installation & Technician’s Manual
Page 11 of 46
7. End of Life & Product Recycling
PACKAGING
The packaging is made from recyclable / reusable materials and should be brought to an official
recycling centre. The materials used are:
•Heat treated (HT) timber, certified by UK Forestry Commission (ISPM No. 15 Mark)
•Corrugated cardboard / Cardboard
•Polyethylene plastic
•Moulded polystyrene parts
•Steel reinforcing straps
WARNING –Keep packaging away from children - danger of suffocation from plastic!
WORN OUT REFRIGERATOR
The refrigerator still contains valuable materials and is not to be disposed of in the normal
household waste.
•Ensure that the cooling circuit of the worn out device is not damaged when being
transported.
•Information on the coolant used is on the type plate on the back of the refrigerator.
•The walls of the refrigerator contain an organic phase change material that can be harmful
and must be disposed of safely. Please contact Dulas for advice.
•Worn out devices must be professionally disposed of in accordance with local regulations
and legislation.
Potentially hazardous components / materials are:
•Refrigerant gas (R600a)
•Phase change material (PCM) - paraffins, normal C5-20
•Electrolytic capacitor
•Electronic components –SDD controller
Compressor controller
Refrigerator compartment temperature display
Disposal of Phase Change Material (PCM)
The PCM used in the Dulas refrigerator has a very long life and does not degrade through use. At
the end of the refrigerators useful life the PCM should be either recycled or disposed of in
accordance with applicable regional, national and local laws and regulations. Contact your local
waste disposal authority for advice. The product can be incinerated in accordance with local
regulations. In the EU it has a Waste Disposal Code (EWC): 13 08 99 oil waste not otherwise
specified.

VC50SDD Installation & Technician’s Manual
Page 12 of 46
SOLAR POWER SUPPLY
Do not dispose of this equipment with normal domestic waste!
To comply with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment
and its implementation as national law, electrical equipment that has reached the end of its life
must be collected separately and returned to an approved recycling facility. Any device that you no
longer require must be returned to our agent, or find out about the approved collection and
recycling facilities in your area.
Ignoring this European Directive may have potentially adverse effects on the environment and
your health!
Solar modules contain materials that can be recovered and reused in either new PV modules or
other new products. Industrial recycling processes exist for both thin-film and silicon modules.
Materials such as glass, aluminium, as well as a variety of semiconductor materials, are valuable
when recovered.

VC50SDD Installation & Technician’s Manual
Page 13 of 46
8. Refrigerator Transportation
To reduce the risk of bodily injury, or damage to the refrigerator, the following precautions must be
observed:
•Properly secure the refrigerator when in transit to prevent it moving or falling within the
vehicle.
•Plan any lifting or moving of the refrigerator in advance, paying particular attention to steps,
gradients and doorways.
•Ensure suitable moving and lifting equipment is used as required.
•Make sure there is sufficient assistance to safely carry out any lifting and moving of the
refrigerator.
•Keep the refrigerator in its original packaging for as long as is practical to prevent damage
during transit and unloading.
•Do not drop the refrigerator or allow it to topple over.

VC50SDD Installation & Technician’s Manual
Page 14 of 46
9. Preparing to Install
Before starting the installation please read through the complete installation manual. By taking the
time to follow these simple instructions the whole installation process will be much easier.
1) Carefully unpack the system and check that all components are present, familiarise
yourself with them and make sure that everything has been identified. Ensure that you
have all tools required to complete the installation.
2) Familiarise yourself with the Dulas Installation Record in Section 24 of this manual. This
provides a step-by-step guide to the installation process and also gives you a formal record
of the installation.
3) Discuss and decide a position for the refrigerator, ensuring that it is out of direct sunlight
and in a well-ventilated, dry place. The cooler the room, the better the performance. Note:
avoid locations where room temperature may fall below +5°C.
4) Identify a safe position for the solar array, ensuring that it faces the correct direction and is
mounted at the correct tilt angle for the system location. Ensure that the solar array is
not, and will not become, shaded in the future and that it is accessible for cleaning
and maintenance.
5) Work out the best route for the solar array output cable and the earthing cable, ensuring
that there is sufficient length to reach the refrigerator and that our advice on lightning
protection is followed (see Section 13).
Each component should have a sensible, well thought out, safe location, allowing access for
routine maintenance.

VC50SDD Installation & Technician’s Manual
Page 15 of 46
10. Solar Array Assembly
WORKING AT HEIGHT IS DANGEROUS –PLEASE OBSERVE
SAFE WORKING PRACTICES
FRAGILE ROOFS –ENSURE THE ROOF WILL HOLD YOUR
WEIGHT PLUS THAT OF THE ARRAY BEFORE YOU CLIMB ONTO
IT
SOLAR PANELS ARE FRAGILE - BROKEN MODULES CANNOT
BE USED: TAKE CARE NOT TO DROP TOOLS OR LEAN ON THE
MODULES WHILE WORKING ON THEM.
PLEASE READ ALL OF THE INSTRUCTIONS THOROUGHLY BEFORE COMMENCING
These instructions apply to all variants of the Dulas mounting system: 2 and 3 module systems in
both portrait and landscape orientation.
Tools required to assemble the mounting structure:
•Deep reach 18mm socket (supplied)
•Torx T30 key (supplied)
•Torx T45 key (supplied
•Ratchet socket handle (not supplied)
If this is your first time installing the Dulas mounting system it is highly recommended to do a test
assembly at ground level prior to working on the roof top. This will ensure you are familiar with how
the system goes together and can work out any problems in a safe environment.

VC50SDD Installation & Technician’s Manual
Page 16 of 46
The mounting system is supplied in pre-assembled parts. See below for a pictorial guide to
identifying these individual parts (refer to the parts list in Section 1 for the exact quantity of parts
you should have)
Mounting system components for 1 or 2 module systems
E) 750mm rail x 2 (2 mod. only)
B) Mid clamps x 2 (2 mod. only)
A) End clamps x 4 C) Front fixed leg x 2
D) 1530mm rail x 2 F) Rear adjustable
leg x 2
G) Optional Rail connector x 2 (2 mod. only)

VC50SDD Installation & Technician’s Manual
Page 17 of 46
The mounting system can be assembled to allow the modules to be attached in either portrait or
landscape configuration. The decision between which option to use is usually guided by which
direction the joists run on your roof.
1 or 2 modules in Portrait orientation
Front fixed legs
Rear
adjustable leg

VC50SDD Installation & Technician’s Manual
Page 18 of 46
1 or 2 modules in Landscape orientation
IMPORTANT: CLAMP MODULES IN THE GREEN AREA FOR MAXIMUM WIND LOADING.
Solar panel clamping guidance
Clamp here for maximum strength (550 kg/m2)
Extended clamping area (244 kg/m2)
Do not clamp here
NOTE:
This diagram is for guidance only. If you are
uncertain of the correct way to install the
solar panels in your system refer to the
solar panel manufacturer’s installation
manual for more details
L/8
L/4 L

VC50SDD Installation & Technician’s Manual
Page 19 of 46
Attaching solar panels to the rails
How to attach the modules to the rails
Mid clamps x 2 (2 mod. Only))
End clamps x 4

VC50SDD Installation & Technician’s Manual
Page 20 of 46
In order to minimise the shipping volume some systems have the rails supplied in two pieces. In
this case we also provide a rail connector to securely attach the two rail sections together:
Joining two rails together with the rail connector
The mounting system is made from aluminium and is adaptable to a wide variety of mounting
options. If your mounting area cannot be level e.g. you have a sloping roof, then the correct angle
must be made by adjusting the position of the mounting feet and the leg lengths.
