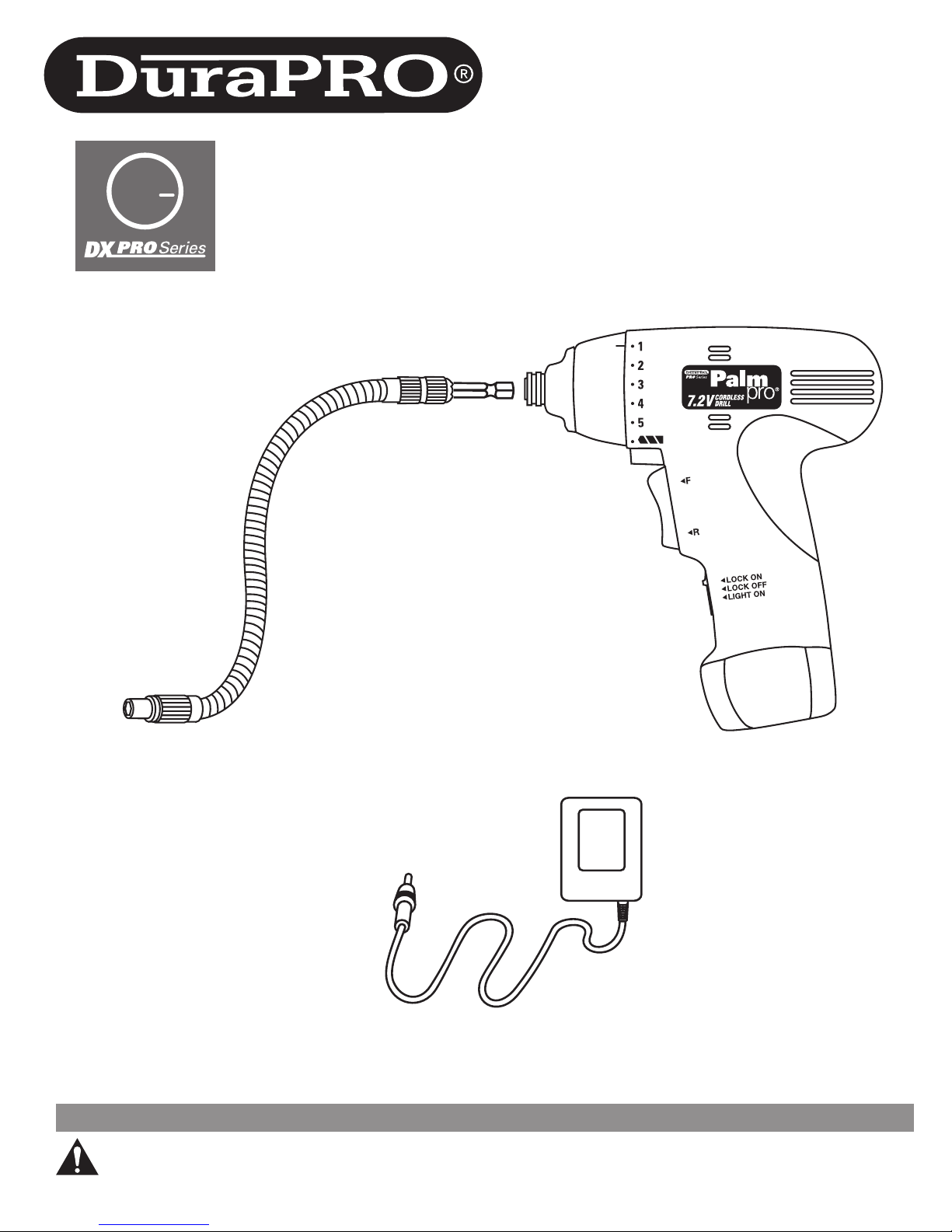

DuraPro PalmPRO User manual

WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
PalmPRO®DX PRO SERIES
Drill/Driver set
CORDLESS
OPERATOR’S MANUAL
06-145
AEC - 3590
Tools That Work For You®
7. 2 V
TM

2
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 4
Specific Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6, 7, 9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TABLE OF CONTENTS
MADE IN TAIWAN
Innovative Concepts Corporation
Torrington, CT 06790 U.S.A.
DuraPRO is a registered trademark of ICC Innovative Concepts Corporation
Recyclable 0406
Visit us at www.durapro.com
Customer Service
860-482-0512
9a-5p M-F, EST
WARRANTY: DuraPRO®products are designed with
quality in mind. This product is warranted against defects
in material and workmanship for three years from the
date of purchase. This warranty does not apply to defects
or damage caused by misuse, alteration or normal wear
and tear, and is limited only to replacement of this tool.
SERVICE Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician.
For service we suggest you return the product to your nearest AU-
THORIZED SERVICE CENTER for repair. When servicing, use
only identical replacement parts.
WARNING: To avoid serious personal injury, do not
attempt to use this product until you read thoroughly
and understand completely the operator’s manual.
Save this operator’s manual and review frequently for
continuing safe operation and instructing others who may
use this product.
WARNING: The operation of any power tool can result in
foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool
operation, always wear safety goggles or safety glasses
with side shields and a full face shield when needed.
WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other ma-
sonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic
particles.
Tools That Work For You®

3
SYMBOLS
IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
VVolts Voltage (potential)
AAmperes Current
Hz Hertz Frequency (Cycles per second)
WWatt Power
min Minutes Time
Direct current Type or a characteristic of current
noNo load speed Rotational speed, at no load
.../min Revolutions or reciprocation per minute Revolutions, strokes, surface speed, orbits etc. per minute
0Off position Zero speed, zero torque...
Arrow Action in the direction of arrow
Read The Operator’s Manual To reduce the risk of injury, user must read and understand operator’s manual before
using this product
Eye Protection Always wear safety goggles or safety glasses with side shields and a full face shield
when operating this product.
Breathing protection Wear respirator or proper breathing protection when using this product
Safety Alert Precautions that involve your safety
Safety Alert Risk of electric shock
TM
Ni-Cad RBRC seal Designates Ni-Cad battery recycling program
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property damage.
SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them
these instructions also to prevent misuse of the product and possible injury.
AC adapter is UL listed.

4
WARNING: Read and understand all instructions. Failure to
follow all instructions listed below, may result in electric shock, fire
and/or serious personal injury. SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep by-standers, children, and visitors away while operating a power
tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
A battery operated tool with integral batteries or a separate battery pack
must be recharged only with the specified charger for the battery. A
charger that may be suitable for one type of battery may create a risk of fire
when used with another battery.
Use battery operated tool only with specifically designated battery pack.
Use of any other batteries may create a risk of fire.
Use only with charger listed:
CHARGER . . . . . . . . . . . .AEC - 3590
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplug-
ging the power tool. Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Be sure to lock switch in off position when not in
use. Carrying tools with your finger on the switch invites accidents.
Do not overreach. Keep proper footing and balance at all times. Proper foot-
ing and balance enable better control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
Use clamps or other practical way to secure and support the workpiece
to a stable platform. Holding the work by hand or against your body is
unstable and may lead to loss of control.
Do not force tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
Do not use tool if switch does not turn it on or off. A tool that cannot be
controlled with the switch is dangerous and must be repaired.
Place the switch in the locked or off position before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
Maintain power tools with care. Keep cutting tools sharp and clean. Prop-
erly maintained tools with sharp cutting edge are less likely to bind and are
easier to control.
Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may affect the tool’s operation. If damaged,
have the tool serviced before using. Many accidents are caused by poorly
maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may create a risk of
injury when used on another tool.
Keep the tool and its handle dry, clean and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake fluids, gasoline,
petroleum-based products, or any strong solvents to clean your tool. Fol-
lowing this rule will reduce the risk of loss of control and deterioration of
the enclosure plastic.
SERVICE
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the Maintenance section of this manual. Use of unauthorized parts or
failure to follow Maintenance Instructions may create a risk of shock or injury.
GENERAL SAFETY RULES — FOR ALL BATTERY OPERATED TOOLS

5
WARNING: Before using battery charger, read all
instructions and cautionary markings on (1) battery charge
and (2) product using battery.
Use only the charger which accompanied your product or direct replace-
ment as listed in the catalog or this manual. Do not substitute any other
charger. Use only approved chargers with your product.
Do not operate charger with a damaged cord or plug, which could cause
shorting and electric shock. If damaged, have the charger replaced by an
authorized serviceman.
Do not operate charger if it has received a sharp blow, been dropped,
or otherwise damaged in any way. Take it to an authorized serviceman for
electrical check to determine if the charger is in good working order.
Do not disassemble charger. Take it to an authorized serviceman when
service or repair is required. Incorrect reassembly may result in a risk of
electric shock or fire.
Do not abuse cord or charger. Never use the cord to carry the charger.
Do not pull the charger cord rather than the plug when disconnecting
from receptacle. Damage to the cord or charger could occur and create
an electric shock hazard. Replace damaged cords immediately.
Make sure cord is located so that it will not be stepped on, tripped
over, come in contact with sharp edges or moving parts or otherwise
subjected to damage or stress. This will reduce the risk of accidental
falls, which could cause injury, and damage to the cord, which could
result in electric shock.
Keep cord and charger from heat to prevent damage to housing or
internal parts.
Do not let gasoline, oils, petroleum-based products, etc. come in
contact with plastic parts. They contain chemicals that can damage,
weaken, or destroy plastic.
An extension cord should not be used.
Do not recharge battery in damp or wet environment. Do not expose
charger to rain or snow. If battery case is cracked or otherwise damaged,
do not insert into charger. Water entering charger will increase the risk of
electric shock.
Charge only approved rechargeable batteries. Other types of batteries
may burst causing personal injury and damage.
Charge battery in temperatures above +40 degrees F (4 degrees C)
and below +105 degrees F (41 degrees C). Store tool in locations where
temperatures will not exceed 120 degrees F (49 degrees C). This is
important to prevent serious damage to the battery cells.
Battery leakage may occur under extreme usage or temperature condi-
tions. Avoid contact with skin and eyes. The battery liquid is caustic and
could cause chemical burns to tissues. If liquid comes in contact with
skin, wash quickly with soap and water, then with lemon juice or vinegar.
If the liquid contacts your eyes, flush them with water for a minimum of
10 minutes and seek medical attention.
Place charger on flat non-flammable surfaces and away from flammable
materials when re-charging battery. The charger and tool heat during
charging. Carpeting and other heat insulating surfaces block proper air
circulation which may cause overheating of the charger and tool. If smoke
or melting of the case are observed unplug the charger immediately and do
not use the tool or charger. Use of an attachment not recommended or sold
by DuraPRO®may result in a risk of fire, electric shock or injury to persons.
BATTERY/CHARGER SAFETY
BATTERY DISPOSAL
NICKEL-CADMIUM BATTERIES
This product contains nickel-cadmium batteries. Local, state or
federal laws may prohibit disposal of nickel-cadmium batteries
in ordinary trash.
The EPA certified RBRC Battery Recycling Seal on the
nickel-cadmium (Ni-Cd) battery indicates DuraPRO®is
voluntarily participating in an industry program to collect
and recycle these batteries at the end of their useful life,
when taken out of service in the United States or Canada.
The RBRC program provides a convenient alterative to
placing used Ni-Cd batteries into the trash or the municipal waste stream,
which may be illegal in your area.
Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling and
disposal bans/restrictions in your area.
TM
Unplug charger from outlet before attempting any maintenance or
cleaning to reduce the risk of electric shock.
Disconnect charger from the power supply when not in use. This will
reduce the risk of electric shock or damage to the charger if metal items
should fall into the opening. It also will help prevent damage to the charger
during a power surge.
Risk of electric shock. Do not touch uninsulated portion of output
connector or uninsulated battery terminal.
DO NOT PUT BATTERIES INTO FIRE OR EXPOSE TO HIGH HEAT. They may
explode.
WARNING: Nickel-cadmium batteries must be recycled or
disposed of properly. Also, never touch both terminals with
metal objects and/or body parts as short circuit may result.
Keep away from children. Failure to comply with these
warnings could result in fire and/or serious injury.

6
OPERATION
LED FUNCTIONS ON TOOL
LED WILL BE ON TO INDICATE STATUS OF CHARGER AND BATTERY:
CHARGING THE BATTERY
NOTE: Batteries will not reach full charge the first time they are charged.
Allow several cycles (operation followed by recharging) for them to
become fully charged.
NOTE: If the charger does not charge the battery pack under normal
circumstances, return both the PalmPRO and charger.
Charge the battery only with a recommended charger. AEC3590
Plug AC Power Adapter into base of the PalmPRO handle.
Make sure the power supply is normal household voltage,
120 volts, 60 Hz, AC only.
Plug into a standard 110/120V AC household electrical outlet.
Charge battery for 10 hours before first use.
After normal usage, a minimum of 3 hours of charging time is required
to fully recharge battery pack.
Use only included 7.2v charger.
The tool will become slightly warm to the touch while charging. This is
normal and does not indicate a problem.
Do not place the charger and tool in an area of extreme heat or cold.
They will work best at normal room temperature.
NOTE: The charger and tool should be placed in a location where the tem-
perature is more than 50°F but less than 100°F.
When batteries become fully charged, unplug the charger from
power supply.
1
2
3
4
5
WARNING: A new battery is not charged and must be fully
charged before first use.
INDICATOR LIGHT
CAUTION: To prevent damage to the battery, remove the PalmPRO
from the charger immediately if no LED comes on. Return the PalmPRO
and charger to your nearest service center for checking or replacing.

7
SAFETY RULES FOR CORDLESS DRIVERS
Know your power tool. Read operator’s manual carefully. Learn its applica-
tions and limitations, as well as the specific potential hazards related to this
tool. Following this rule will reduce the risk of electric shock, fire, or serious
injury.
Always wear safety glasses with side shields. Everyday glasses have only
impact resistant lenses. They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious personal injury.
Hold tools by insulated gripping surfaces when performing an operation
where the cutting tool may contact hidden wiring or it own cord. Contact
with a “live” wire will make exposed metal parts of the tool “live” and shock
the operator. Do not drill, fasten or break into existing walls or other blind
areas where electrical wiring may exist. If this situation is unavoidable,
disconnect all fuses or circuit breakers feeding this work site.
Secure the material being fastened. Never hold it in your hand or across
your legs. Unstable support can cause loss of control and injury.
Battery tools do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock, fire, or serious
personal injury.
Do not place battery tools or their batteries near fire or heat. This will
reduce the risk of explosion and possibly injury.
Never use a battery that has been dropped or received a sharp blow. A
damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
Batteries vent hydrogen gas and can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of serious personal
injury, never use any cordless product in the presence of open flame. An
exploded battery can propel debris and chemicals. If exposed, flush with
water immediately.
Avoid accidental starting. Be sure the forward/reverse switch is in the
locked position when not in use. Carrying appliances with your finger on the
switch invites accidents.
Be prepared for a reaction torque when “seating” or removing a fastener.
The screwdriver housing may tend to twist in the opposite direction of bit
rotation when “seating” or removing a fastener depending on the torque
setting of the tool.
Do not use dull or damaged bits and accessories. When installing an ac-
cessory, insert the shank of the bit well within the chuck. Be sure the chuck
has locked onto the bit correctly.
Do not run the tool while carrying it at your side. A spinning bit could
become entangled with clothing and injury may result.
Place the tool onto the fastener only when the screwdriver is switched
off. Rotating driver tools can slide off the fastener.
Be careful when driving long screws—there is a risk of sliding off the
fastener head depending on type of socket or bit used. First test the
run-down of a fastener and pay attention during the screw driving process
to insure you do not injure yourself if the tool bit or socket slides off of the
fastener.
Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do
this type of work. To reduce your exposure to these chemicals, work in a
well-ventilated area and work with approved safety equipment such as dust
masks designed to filter out microscopic particles.
MAINTENANCE
WARNING: Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc., come in
contact with plastic parts. Chemicals can damage, weaken
or destroy plastic which may result in serious personal
injury.
WARNING: When servicing, use only identical replacement
parts. Use of any other parts may create a hazard or cause
product damage.
WARNING: Always wear safety goggles or safety glasses
with side shields when using compressed air to clean work
lights. If operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are sus-
ceptible to damage from various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

8
KNOW YOUR PALMPRO
Before attempting to use this product, familiarize yourself with all operating
features and safety rules.
MODE SELECTOR
The switch trigger can be locked in the OFF position. This feature helps
reduce the possibility of accidental starting when not in use.
FORWARD/REVERSE SWITCH (DIRECTION OF ROTATION SELECTOR)
The PalmPRO has a forward/reverse switch trigger.
STORAGE
When not in use, remove bit from PalmPRO.
LED LIGHT
This tool features an integrated LED light for low-light use.
TORQUE ADJUSTMENT RING
By adjusting the torque you can control how much force is applied.
FEATURES
PRODUCT SPECIFICATIONS
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.2 Volt DC
Chuck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"
Gear Train . . . . . . . . . . . . . . . . . . . . . . . . . . . .One Speed
Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single Speed
No Load Speed . . . . . . . . . . . . . . . .450 revolutions/min.
Charger Input . . . . . . . . . . . . . . . . 120 V, 60 Hz, AC only
Charge Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Hours
Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Variable
FORWARD/ REVERSE
SWITCH TRIGGER
CHUCK
MODE SELECTOR
WITH LOCK
LED LIGHT
TORQUE ADJUSMENT RING
CONTENTS:
1 – 7.2v DX PalmPRO®Pro Series
1 – SnakeDriver®12” flexible shaft
1 – AC power adapter
2 – Phillips 50mml screw bits
(#1, #2)
2 – Slotted 50mml screw bits
(1/8”, 3/16”)
2 – Square 50mml screw bits
(S1, S2)
1 – 1/4” socket adapter
9 – 1/4” drive chrome vanadium sockets
(3/16”, 1/4”, 9/32”, 5/16”, 11/32”,
3/8”, 7/16”, 15/32”, 1/2”)
1 – Hook driver attachment
1 – Durable carry case

9
ASSEMBLY
UNPACKING
• This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the box. Make sure
that all items listed in the packing list are included.
• Inspect the tool carefully to make sure no breakage or damage occurred
during shipping.
• Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
WARNING: If any parts are missing do not operate this tool
until the missing parts are replaced. Failure to do so could
result in possible serious personal injury.
WARNING: Do not attempt to modify this tool or create
accessories not recommended for use with this tool. Any
such alteration or modification is misuse and could result in
a hazardous condition leading to possible serious personal
injury.
WARNING: To prevent accidental starting that could cause
serious personal injury, always put in locked position when
assembling parts.
OPERATION
APPLICATIONS
You may use this tool for the following purposes:
• Drilling* • Driving screws
• Driving cup hooks • As a socket driver
* Drill bits not included
WARNING: Do not allow familiarity with tools to make you
careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING: Always wear safety goggles or safety glasses
with side shields when operating tools. Failure to do so
could result in objects being thrown into your eyes, result-
ing in possible serious injury.
WARNING: Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use of
attachments or accessories not recommended can result in
serious personal injury.
WARNING: Battery tools are always in operating condition.
Therefore, switch should always be locked when not in use
or carrying at your side.
SWITCH TRIGGER
To turn the tool ON, depress the switch trigger. To turn it OFF, release the
switch trigger.
SWITCH LOCK
The switch trigger can be locked in the OFF (top) position. This feature can
be used to prevent the possibility of accidental starting when not in use.
To lock switch trigger, place the switch in the top position. Slide switch to
center for normal operation, slide to bottom to activate LED light.
REVERSIBLE
This tool has the feature of being reversible. The direction of rotation is
controlled by a switch. Push the top of the switch for forward (clockwise),
push the bottom for reverse (counter-clockwise).
BUILT-IN CHUCK
The tool has a built-in chuck. The chuck has been designed
to accept 1/4 in. hex bits.
INSTALLING BITS
Lock switch trigger on the tool by placing the direction
of rotation selector in top position.
Slide the chuck forward and hold in position.
Insert bit straight into chuck.
Slide the chuck back slowly and release.
REMOVING BITS
Lock switch trigger or the drill by placing the direction
of rotation selector in top position.
Slide the chuck forward and hold in position.
Pull bit straight out of chuck.
CAUTION: The metal surface may become hot during use. Avoid
contact with it to avoid possible burn injury.
CAUTION: To prevent gear damage, always allow chuck to come
to a complete stop before changing the direction of rotation. To stop,
release switch trigger and allow the chuck to come to a complete stop.
1
2
3
4
1
2
3
SLIDE FORWARD
SWITCH TRIGGER
SWITCH LOCK

10
OPERATION
TO SET THE TORQUE LEVEL:
While grasping the main housing of the PalmPRO with one hand, grasp the
torque level adjustment ring with your other hand and turn it until the torque
level indicator is aligned with the desired number or the drilling icon. It may
take a little force to turn the ring, especially the first few times you move it.
The torque level can be adjusted to 6 different clutch settings (1-5 for
driving screws, and a special setting for drilling). The lowest torque level is
1, and maximum torque is achieved at the drilling setting.
The clutch will slip at various torque levels when set at the number 1 to 5.
The clutch is designed not to slip at the drill bit icon marking.
USE AS A SCREWDRIVER
Insert screwdriver bits into chuck
USE AS A SOCKET DRIVER
Insert 1/4” socket adapter into chuck. Place sockets on to adapter.
USE AS A HOOK DRIVER
Insert hook driver attachment into chuck. Place over end of hooks.
SNAKEDRIVER ATTACHMENT
Drive fasteners at virtually any angle using the SnakeDriver attachment.
TO USE
Insert Snake driver attachment into the chuck in the same manner as used
with other bits.
USE SNAKE DRIVER AS SCREWDRIVER
Insert bits into the SnakeDriver by sliding the bits into the 1/4” opening.
USE SNAKE DRIVER AS NUT-DRIVER
Insert 1/4” socket adapter into chuck. Place sockets on to adapter.
SOCKET ADAPTERSOCKET
