Dynon D30 Manual

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | i
D30
Touchscreen Electronic Flight Display
Installation and Maintenance Manual
Includes Instructions for Continued Airworthiness (ICA)
103997-000
Copyright © 2023 by Dynon Avionics, Inc.
Dynon Avionics grants third parties' permission to print this document

Page | ii
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Contact Information
Dynon Avionics, Inc.
19825 141st Place NE
Woodinville, WA 98072
Technical Support
Phone: [phone], 8:00 AM –5:00 PM (Pacific Time) Monday –Friday
Email: [e-mail]
Sales
Phone: [phone], 8:00 AM –5:00 PM (Pacific Time) Monday –Friday
Email: [e-mail]
Find Us on the Web
dynon.com –Dynon homepage
dynon.com/docs –Product documentation
dynon.com/download –Software updates for products
dynon.com/support –Support resources
dynon.com/register –Register your Dynon Avionics product
shop.dynon.com –Dynon’s secure online store
Stay in Touch
dynon.com/newsletter –Sign up to receive Dynon’s newsletter
forum.flydynon.com –Dynon-hosted forum for customers and pilots
preflight.dynon.com –Dynon’s blog
facebook.com/dynonavionics
instagram.com/dynonavionics
twitter.com/dynon
Videos and Training
youtube.com/DynonAvionics –Training, events, and other videos on YouTube
Copyright
©2023 Dynon Avionics, Inc. All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, or stored in any
storage medium, for any purpose without the express written permission of Dynon Avionics. Dynon Avionics hereby grants permission to
download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to be viewed for
personal use, provided that such electronic or printed copy of this manual or revision must contain the complete text of this copyright notice and
provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to
make changes in the content without obligation to notify any person or organization of such changes. Visit the Dynon Avionics website
(dynon.com) for current updates and supplemental information concerning the use and operation of this and other Dynon Avionics products.

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | iii
Revision History
REV
APPROVAL
DESCRIPTION OF CHANGE
A
06/26/2023
ECO 387170
Initial Release

Page | iv
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Table of Contents
1General...................................................................................................1-1
1.1 Document Control...................................................................................................... 1-1
1.2 Using this Manual...................................................................................................... 1-1
1.3 Intended Audience..................................................................................................... 1-1
1.4 Manual Iconography.................................................................................................. 1-1
1.5 Reference Documents............................................................................................... 1-2
1.6 Mechanical Drawings ................................................................................................ 1-2
1.7 Product Delivery & Warranty ..................................................................................... 1-2
1.8 Product Registration.................................................................................................. 1-2
2System Overview...................................................................................2-1
2.1 Specifications ............................................................................................................ 2-1
2.2 Basic Controls ........................................................................................................... 2-2
2.3 System Operation......................................................................................................2-3
3Installation.............................................................................................3-1
3.1 Backup Battery Installation........................................................................................ 3-1
3.2 Unit Installation..........................................................................................................3-2
3.3 Pitot and Static Connection ....................................................................................... 3-7
3.4 Electrical Installation..................................................................................................3-9
3.5 System Check ......................................................................................................... 3-11
3.6 Configuration........................................................................................................... 3-12
4Troubleshooting....................................................................................4-1
4.1 Self-Diagnostics......................................................................................................... 4-1
4.2 Unit Does Not Start-up .............................................................................................. 4-2
4.3 Airspeed Incorrect ..................................................................................................... 4-2
4.4 Airspeed Indicator Frozen or Indicates Zero.............................................................. 4-2
4.5 Altitude Indicator Frozen............................................................................................ 4-3
5Maintenance ..........................................................................................5-1
5.1 Periodic Maintenance................................................................................................ 5-1
5.2 Cleaning.................................................................................................................... 5-2
5.3 Backup Battery Test.................................................................................................. 5-2

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | v
5.4 Backup Battery Replacement.................................................................................... 5-3
5.5 Unit Removal and Replacement................................................................................5-5
5.6 Pitot and Static Leakage Tests.................................................................................. 5-7
5.7 Zero-pressure Calibration.......................................................................................... 5-8
5.8 Pitch/Roll Angle Check & Adjustment........................................................................5-8
5.9 Altimeter Function Testing & Altitude Offset.............................................................. 5-9
5.10 System Software Updates....................................................................................... 5-10

Page | vi
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
This page intentionally left blank.

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 1-1
1 General
This document provides installation and configuration information for the Dynon D30
Touchscreen Electronic Flight Display. It also provides Instructions for Continued Airworthiness
(ICA) for use by technicians and homebuilders to service and maintain the D30 according to
Federal Aviation Regulation (FAR) 14 CFR § 23.1529 and 14 CFR 23 Appendix G.
1.1 Document Control
This document is released, archived, and controlled according to the Dynon's document control
system. Dynon posts documents for customer use at dynon.com/docs. Only the latest revision
of a document is made available. Owners and installers are notified of the new revision via an
official Dynon Marketing email release.
1.2 Using this Manual
To save paper, Dynon does not provide a printed versionof this manual. However, Dynon grants
permission to third parties to print this manual, as necessary. The most recent PDF version is
available for download at dynon.com/docs. This manual is updated periodically. It is important
to use the most recent revision when servicing the D30 Touchscreen Electronic Flight Display.
Dynon suggests keeping a PDF version of the manual on a smartphone, tablet, or laptop
computer while installing and servicing SkyView components. Using the manual electronically
allows quick navigation of the document, figures to be viewed in color, and keyword searches.
1.3 Intended Audience
This document is intended for technicians and homebuilders who are installing or servicing a
D30 Touchscreen Electronic Flight Display.
1.4 Manual Iconography
This manual uses the following iconography:
Alerts reader to important information that mitigates potential unsafe conditions
and/or equipment damage.
Alerts reader to noteworthy technical information.
Alerts reader to helpful tips or suggestions.

Page | 1-2
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
1.5 Reference Documents
•104002-000 –D30 Airplane Flight Manual Supplement (current revision)
•23.1311-1C –Installation of Electronic Display in Part 23 Airplanes
•AC 43.13-1B –Acceptable Methods, Techniques and Practices –Aircraft Inspection and
Repair
•AC 43.13-2B –Acceptable Methods, Techniques and Practices –Aircraft Alterations
1.6 Mechanical Drawings
All mechanical drawings included in this manual are for reference purposes only. They should
not be scaled or copied and used as templates or patterns.
1.7 Product Delivery & Warranty
Upon delivery, visually inspect the D30 and accessories (bracket, fasteners, cable harness) for
damage that may have occurred during shipping. If damage has occurred, contact Dynon
Technical Support.
1.8 Product Registration
Register the D30 at dynon.com/register. Product registration confirms ownership, expedites
warranty claims, and allows Dynon to send notification when product Service Bulletins and
Technical Advisories are published. This site also allows owners and installers to register to
receive news and product announcements from Dynon. Dynon will not share contact information
with third-parties or send announcements without explicit consent.

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 2-1
2 System Overview
The D30 Touchscreen Electronic Flight Display features internal calibrated solid-state sensors
and a high-definition display to present Airspeed, Altitude, and Attitude data.
The D30 provides pilots with immediate Primary Flight Information (PFI) in case of failure of the
primary display or instruments providing PFI. It also allows pilots to cross-compare the presented
PFI to ensure data integrity.
2.1 Specifications
MECHANICAL SPECIFICATIONS
Width
4.19" (106.4 mm)
Height
3.85" (97.8 mm)
Length
3.35" (85.1 mm)
Weight
1.0 lbs.
Finish
Black Anodized Aluminum
Operating Temperature
-20 to 70 °C
Storage Temperature
-55 to 80 °C
ELECTRICAL SPECIFICATIONS
Power Requirement
10–30V
Power Consumption
0.6A at 12V
0.3A at 24V
Power Consumption when
Battery is Charging
1.1A at 12V
0.6A at 24V
Connector Type
D25 Male
USB Port Type
Type-C USB 2.0
USB Port Power Output (1)
0.5V
DISPLAY SPECIFICATIONS
Display Type
LCD
Resolution
720 x 720 px
Vertical Viewing Angle
80°
Horizontal Viewing Angle
80°
Screen Treatments
Anti-Reflective
Anti-Fingerprint
(1) Charging external devices using the USB port is prohibited.

Page | 2-2
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
2.2 Basic Controls
Operating the D30 is intuitive for people familiar with flight instrumentation. Basic operation
happens via touching the actual indicators on the screen or the menu icon in the upper left corner
of screen. The front bezel has an ON/OFF button (i.e., Bezel Button) and a USB-C port.
Figure 1: Dynon D30

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 2-3
2.3 System Operation
No special operating procedures are required for using the D30. Operating limitations for the
D30 are listed in the D30 Airplane Flight Manual Supplement document at dynon.com/docs.
2.3.1 Flight Indications
The D30 provides the flight indications listed below. See Figure 2 for locations of the D30's flight
indications
•Airspeed Tape
•Indicated Airspeed
•Slip/Skid Indicator
•Bank Angle Indicator
•Turn Rate Indicator
•Vertical Speed Indicator (VSI) w/
Altitude Scale
•Altimeter
•Barometer / Altimeter Setting
Figure 2: Flight Indications

Page | 2-4
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
2.3.2 Start-up and Shut-down
To start-up the D30:
1. Apply power to unit. Unit will start-up.
2. If power is applied and unit does not start-up, then press and hold bezel button for two
seconds. Unit will start-up.
Altitude is not displayed until 30 seconds after start-up. If the D30 senses an
airspeed or altimeter setting adjustment, then altitude is immediately displayed.
To shut-down the D30:
1. Remove power from unit. The SHUTTING DOWN window is displayed with a 30-second
countdown timer. After countdown, unit will shut-down.
2. Alternatively, press and hold bezel button for two seconds. The SHUTTING DOWN
window is displayed with a 3-second countdown timer. After countdown, unit will shut-
down.
2.3.3 Screen Brightness Control
To adjust the screen brightness on the D30:
1. Touch Menu icon (see Figure 2). Main Menu is displayed.
2. Use Brightness slider bar on Main Menu to set screen brightness level.
3. When done, tap 'arrow' icon to close Main Menu.
2.3.4 Altimeter Setting
To change the altimeter setting on the D30:
1. Touch Barometer / Altimeter Setting indicator (see Figure 2). The Altimeter Setting tool
appears.
2. Use the slider bar or tap +/ –to adjust the altimeter.
3. When done, touch any other part of screen to hide the Altimeter Setting tool and restore
Altimeter and Altitude Tape.

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 3-1
3 Installation
This section provides information and instructions for installing the Dynon D30.
3.1 Backup Battery Installation
Per shipping regulations, the D30 is shipped without the backup battery installed. Prior to unit
installation, the D30 needs its backup battery installed.
To install the D30's backup battery:
1. On back of unit, loosen captured retaining screw on access plate (see Figure 3), and then
remove access plate.
2. Connect backup battery to unit. Unit and backup battery have mating Molex connectors.
3. Gently insert backup battery and wires into unit.
4. Reposition access plate, and secure with retaining screw.
Figure 3: Backup Battery Access

Page | 3-2
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
3.2 Unit Installation
The D30 should be installed within the primary maximum field-of-view boundary, as close as
practicable to the equipment that displays Primary Flight Information (PFI). According to AC
23.1311-1C, the primary maximum field-of-view is based on vertical and horizontal visual fields
from the pilot's eye reference point that can be observed with eye movement and minimal head
movement only.
The D30 is designed to mount to the instrument panel in a standard 3-1/8"
diameter instrument hole with little modification. See installation guidelines and
specifications below for more information.

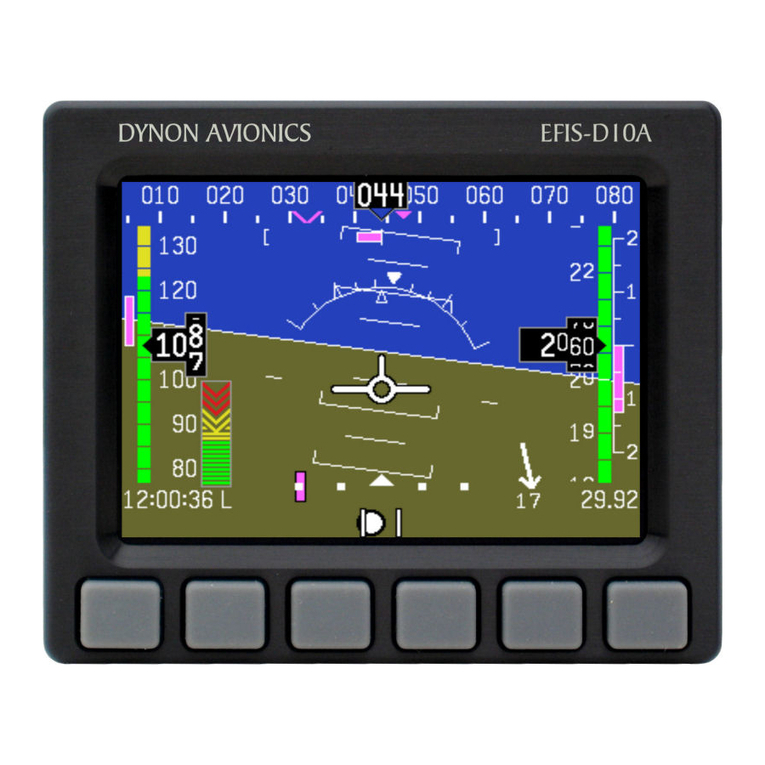

The D30 is designed as near direct-fit replacement for the Dynon EFIS-D10A.
Observe the following guidelines and specifications when installing a D30:
•Unit should be installed so its bezel is level across aircraft's lateral axis.
•Wire harness extends about 3" from the rear of the unit. (This can be reduced if 90°
connector shell is used on the wire harness.)
•A small relief must be cut at the bottom of the 3-1/8" instrument panel hole (see Figure
5).
•If retrofitting an EFIS-D10A with a D30, the holes drilled in the instrument panel for the
EFIS-D10A can be reused for the D30's bracket (see Figure 6).
•Front bezel will extend 0.5" beyond the face of the instrument panel.
•Unit will need to be accessed during service; therefore, provide enough slack in the wire
harness and the pitot and static lines to remove the unit from the instrument panel without
disconnection.
•Avoid placing the unit near sources of heat.

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 3-3
Figure 4: Volume Requirements
To mount the D30 to an instrument panel:
1. If needed, use Figure 5 as a guide to mark and drill holes in instrument panel for mount
bracket attachment.
2. Cut small relief at bottom of instrument hole (see Figure 5) to allow clearance for unit's
retaining screw.
3. Deburr cut edges.
4. Feed mount bracket through instrument hole, as shown in Figure 6, and then secure
to instrument panel with provided hardware.
5. Complete pitot and static connection (see Section 3.3) and electrical installation (see
Section 3.4).
6. Insert unit into instrument hole and mount bracket, as shown in Figure 6.
7. Use 3/32" hex wrench to tighten captured retaining screw that secures unit to mount
bracket (see Figure 7). Tighten retaining screw to 3-5 lbs.

Page | 3-4
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Figure 5: Mounting Dimensions

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 3-5
Figure 6: Instrument Panel Installation

Page | 3-6
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Figure 7: Instrument Panel Attachment
3.2.1 Replacement Hardware
If the provided mounting hardware is lost or damage, replace with the hardware is listed below.
Table 1: Replacement Hardware
DYNON P/N
HARDWARE DESCRITION
100980-001
PHIL SCREW 100 DEG, #6-32, 3/8" L, STAINLESS

D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Page | 3-7
3.3 Pitot and Static Connection
The pitot and static ports on the back of the D30 are equipped with 1/8" NPT female fittings.
Installers need to source appropriate flexible hose and AN/MS fittings for connection to existing
pneumatic tubes/hoses.
To plumb the D30 into the pitot and static systems:
1. Find an appropriate place to connect the D30 plumbing to the airplane's existing pitot and
static systems.
2. Measure and cut correct lengths of flexible hoses to connect to the airplane's pitot and
static systems.
3. Install AN/MS fittings into ends of flexible hoses for connection to the airplane's pitot and
static systems.
4. Route flexible hoses and connect them to the airplane's pitot and static systems using
AN/MS fittings.
Ensure there are no low spots in the flexible hoses that could trap
condensation and cause an obstruction.
5. On a bench, remove plugs from the 1/8" NPT fittings on back of unit (see Figure 8). Leave
the AoA pipe fitting capped.
6. Apply appropriate thread sealant to AN/MS fittings and hand-thread them into the 1/8"
NPT fittings on back of unit.
7. When AN/MS fittings are snug, place a wrench on the unit's 1/8" NPT fittings to prevent
them from rotating, and then carefully tighten.
DO NOT overtighten! If the unit's 1/8" NPT fittings rotate during tightening
it may damage its internal components.
8. Connect flexible tubes to the corresponding AN/MS fittings on back of unit.

Page | 3-8
D30 - Installation and Maintenance Manual, Rev A, 6/26/2023
Figure 8: Threaded Pipe Fitting Ports
