E-FLITE EFL2650 User manual

Specifications
Wingspan: 62 in (1575mm)
Length: 41.5 in (1050mm)
Wing Area: 550 sq in (35.5 sq dm)
Weight w/ Battery: 4–4.25 lb (1800–1900 g)
Weight w/o Battery: 3.25 lb (1450 g)
Piper Pawnee 15e ARF
Assembly Manual

2 E-flite Piper Pawnee ARF Assembly Manual
Introduction
The Piper Pawnee entered service in the late 1950s as one of
the first planes to be purpose-built for agricultural spraying and
dusting. While most have been retired from crop-dusting duty,
many are still on the job today towing advertising banners or
serving as towplanes for glider clubs around the world.
E-flite’s Piper Pawnee 15e ARF is a superbly detailed replica
of this aerial workhorse that flies every bit as good as it looks.
Its fuselage and wing outlines are exact-to-scale and perfectly
match the proportions of the full-scale Pawnee. Other realistic
touches include the prepainted fiberglass cowl and belly pan
as well as cockpit instrument gauges and a pilot’s seat. And
like its full-scale inspiration, the Pawnee 15e’s generous wing
area gives it exceptionally forgiving flight characteristics that
are perfect for newer pilots. You can even outfit the Pawnee 15e
with optional flaps and experience exciting short field takeoffs
and landings.
Using the Manual
This manual is divided into sections to help make assembly
easier to understand, and to provide breaks between each
major section. In addition, check boxes have been placed next
to each step to keep track of each step completed. Steps with
a single circle () are performed once, while steps with two
circles () indicate that the step will require repeating, such
as for a right or left wing panel, two servos, etc.
Remember to take your time and follow the directions.
Table of Contents
Specifications...................................................................... 1
Introduction......................................................................... 2
Using the Manual................................................................ 2
Contents of Kit/Parts Layout................................................. 3
Required Radio Equipment................................................... 3
Important Information About Motor Selection........................ 4
Scale Outrunner Setup......................................................... 4
Sport Outrunner Setup......................................................... 4
Optional Accessories........................................................... 4
Required Tools and Adhesives.............................................. 4
Notes Regarding Servos and ESC ........................................ 5
Note on Lithium Polymer Batteries ........................................ 5
Warranty Information...................................................... 5–7
Landing Gear Assembly....................................................... 8
Aileron Servo Installation................................................... 12
Flap Servo Installation ....................................................... 19
Joining the Wing Panels .................................................... 22
Rudder and Elevator Installation ......................................... 25
Main Radio Installation...................................................... 30
Motor Installation .............................................................. 37
Final Assembly.................................................................. 41
Control Throws.................................................................. 43
Range Test Your Radio ....................................................... 44
Center of Gravity .............................................................. 44
Preflight ............................................................................ 45
Flying Your Piper Pawnee ARF ........................................... 45
Instructions for Disposal of WEEE
by Users in the European Union............................... 46
2007 Official AMA
National Model Aircraft Safety Code ....................... 47

3E-flite Piper Pawnee ARF Assembly Manual
Contents of Kit/Parts Layout
EFL2651 Wing Set w/Struts
EFL2652 Fuselage
EFL2653 Tail Set
EFL2654 Landing Gear
EFL2655 Cowling
EFL2656 Canopy
EFL2657 Pushrod Set
EFL2658 Belly Pan
EFL2659 Pilot Seat
EFL2660 Wing Struts
EFL2661 Battery Hatch
EFL2662 Motor Mount Spacers
EFL2663 Instrument Panel
Required Radio Equipment
You will need a minimum 6-channel transmitter (for proper mixing
and dual rate capabilities), crystals, micro receiver, and four mini
servos. You can choose to purchase a complete radio system
if you are using an existing transmitter, just purchase the other
required equipment separately. We recommend the crystal-free,
interference-free Spektrum™DX6i 2.4GHz DSM2®6-channel
full range transmitter and receiver (no servos). If using your own
transmitter, we recommend the JR SPORT™MN48 Mini servos.
If you own the Spektrum DX7 radio, just add the AR7000 DSM2™
7-channel receiver and four of our JR SPORT MN48 Mini servos.
Radio System
SPM6600 DX6i DSM2 6CH (without servos)
Or Purchase Separately
JRPR720UL UltraLite 7-Channel ScanSelect
FM Receiver (72MHz)
Or
SPMAR6200 AR6200 DSM2 6-Channel Receiver Ultralite
(for DX7 only)
Or
SPM6070 AR7000 DSM2 7CH Rx (for DX7 only)
And
JSP20040 MN48 Mini Servo (4)
JSP98110 6-inch extension (2)
JSP98020 Y harness (1), (2) w/optional flaps

4 E-flite Piper Pawnee ARF Assembly Manual
Important Information About
Motor Selection
We recommend the E-flite®Power 15 Brushless Outrunner,
950Kv (EFLM4015A) for sport performance.
Scale Outrunner Setup
EFLM4015A Power 15 BL Outrunner, 950Kv
EFLA1040 40-Amp Brushless ESC
THP42003S2PPL 4200mAh 3-Cell 11.1V Li-Po
APC11070E 11 x 7 Electric Prop
EFLAEC303 EC3 Device & Battery Connector,
Male/Female (included with our ESC)
EFLC3005 Celectra™1- to 3-Cell Li-Po Charger
Sport Outrunner Setup
EFLM4025A Power 25 BL Outrunner, 870Kv
EFLA1060 60-Amp Brushless ESC
THP42003S2PPL 4200mAh 3-Cell 11.1 V Li-Po
APC12080E 12 x 8E Electric Prop
EFLAEC303 EC3 Device & Battery Connector,
Male/Female (included with our ESC)
EFLC3005 Celectra 1- to 3-Cell Li-Po Charger
Optional Accessories
EFLA110 Power Meter
Required Tools and Adhesives
Tools & Equipment
EFLA250 Park Flyer Tool Assortment, 5-piece
Or Purchase Separately
EFLA257 Screwdriver, #1 and #2 Phillips
(or included with EFLA250)
EFLA251 Hex Wrench: 3/32-inch (or included
with EFLA250)
30-minute epoxy 6-minute epoxy
Adjustable wrench (2) Canopy glue
Card stock Clamps
Covering iron Drill
Epoxy Brush Felt-tipped pen
File Flat blade screwdriver
Hex Wrench: 1.5mm Hobby knife (#11 blade)
Low-tack tape Medium CA
Mixing Cups Mixing Sticks
Paper Towels Pencil
Pin drill Pliers
Razor Saw Rubbing Alcohol
Ruler Sandpaper
Scissors Side cutters
Square String
Thin CA Threadlock
T-pins
Rotary tool w/sanding drum
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm), 1/8-inch (3mm)

5E-flite Piper Pawnee ARF Assembly Manual
Notes Regarding Servos and ESC
WARNING: Use of servos other than those we recommend may
overload the BEC of the recommended Electronic Speed Control
(ESC). We suggest the use of only the servos we recommend
when utilizing the recommended ESC’s BEC, or the use of a
separate BEC (like the UBEC) or receiver battery pack when
using other servos.
Note on Lithium Polymer Batteries
Lithium Polymer batteries are significantly more
volatile than alkaline or Ni-Cd/Ni-MH batteries used
in RC applications. All manufacturer’s instructions
and warnings must be followed closely. Mishandling
of Li-Po batteries can result in fire. Always follow the
manufacturer’s instructions when disposing of Lithium
Polymer batteries.
Warning
An RC aircraft is not a toy! If misused, it can cause serious
bodily harm and damage to property. Fly only in open areas,
preferably at AMA (Academy of Model Aeronautics) approved
flying sites, following all instructions included with your radio.
Keep loose items that can get entangled in the propeller away
from the prop, including loose clothing, or other objects such as
pencils and screwdrivers. Especially keep your hands away from
the propeller.
Warranty Period
Horizon Hobby, Inc., (Horizon) warranties that the Products
purchased (the “Product”) will be free from defects in materials
and workmanship at the date of purchase by the Purchaser.
Limited Warranty
(a) This warranty is limited to the original Purchaser
("Purchaser") and is not transferable. REPAIR OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE PURCHASER. This warranty covers only those
Products purchased from an authorized Horizon dealer. Third
party transactions are not covered by this warranty. Proof of
purchase is required for warranty claims. Further, Horizon
reserves the right to change or modify this warranty without
notice and disclaims all other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY OR
REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER
ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED
THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS
OF THE PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon's sole obligation hereunder
shall be that Horizon will, at its option, (i) repair or (ii)
replace, any Product determined by Horizon to be defective.
In the event of a defect, these are the Purchaser's exclusive
remedies. Horizon reserves the right to inspect any and all
equipment involved in a warranty claim. Repair or replacement
decisions are at the sole discretion of Horizon. This warranty
does not cover cosmetic damage or damage due to acts of
God, accident, misuse, abuse, negligence, commercial use,
or modification of or to any part of the Product. This warranty
does not cover damage due to improper installation, operation,
maintenance, or attempted repair by anyone other than
Horizon. Return of any goods by Purchaser must be approved
in writing by Horizon before shipment.

6 E-flite Piper Pawnee ARF Assembly Manual
Damage Limits
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR
PRODUCTION OR COMMERCIAL LOSS IN ANY WAY
CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM IS
BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY. Further, in no event shall the liability of Horizon
exceed the individual price of the Product on which liability
is asserted. As Horizon has no control over use, setup, final
assembly, modification or misuse, no liability shall be assumed
nor accepted for any resulting damage or injury. By the act of
use, setup or assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared to accept the
liability associated with the use of this Product, you are advised
to return this Product immediately in new and unused condition
to the place of purchase.
Law: These Terms are governed by Illinois law (without regard to
conflict of law principals).
Safety Precautions
This is a sophisticated hobby Product and not a toy. It must be
operated with caution and common sense and requires some
basic mechanical ability. Failure to operate this Product in a safe
and responsible manner could result in injury or damage to the
Product or other property. This Product is not intended for use
by children without direct adult supervision. The Product manual
contains instructions for safety, operation and maintenance. It is
essential to read and follow all the instructions and warnings in
the manual, prior to assembly, setup or use, in order to operate
correctly and avoid damage or injury.
Questions,Assistance, and Repairs
Your local hobby store and/or place of purchase cannot provide
warranty support or repair. Once assembly, setup or use of the
Product has been started, you must contact Horizon directly.
This will enable Horizon to better answer your questions and
service you in the event that you may need any assistance.
For questions or assistance, please direct your email to
[e-mail], or call 877.504.0233 toll
free to speak to a service technician.
Inspection or Repairs
If this Product needs to be inspected or repaired, please call for
a Return Merchandise Authorization (RMA). Pack the Product
securely using a shipping carton. Please note that original boxes
may be included, but are not designed to withstand the rigors
of shipping without additional protection. Ship via a carrier that
provides tracking and insurance for lost or damaged parcels, as
Horizon is not responsible for merchandise until it arrives and
is accepted at our facility. A Service Repair Request is available
at www.horizonhobby.com on the “Support” tab. If you do not
have internet access, please include a letter with your complete
name, street address, email address and phone number where
you can be reached during business days, your RMA number,
a list of the included items, method of payment for any non-
warranty expenses and a brief summary of the problem.
Your original sales receipt must also be included for warranty
consideration. Be sure your name, address, and RMA number
are clearly written on the outside of the shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your original
sales receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be
repaired or replaced free of charge. Repair or replacement
decisions are at the sole discretion of Horizon Hobby.

7E-flite Piper Pawnee ARF Assembly Manual
Non-Warranty Repairs
Should your repair not be covered by warranty the repair
will be completed and payment will be required without
notification or estimate of the expense unless the expense
exceeds 50% of the retail purchase cost. By submitting the item
for repair you are agreeing to payment of the repair without
notification. Repair estimates are available upon request. You
must include this request with your repair. Non-warranty repair
estimates will be billed a minimum of ½ hour of labor. In
addition you will be billed for return freight. Please advise us
of your preferred method of payment. Horizon accepts money
orders and cashiers checks, as well as Visa, MasterCard,
American Express, and Discover cards. If you choose to pay
by credit card, please include your credit card number and
expiration date. Any repair left unpaid or unclaimed after 90
days will be considered abandoned and will be disposed of
accordingly. Please note: non-warranty repair is only available
on electronics and model engines.
Electronics and engines requiring inspection or repair should be
shipped to the following address:
Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822
All other Products requiring warranty inspection or repair should
be shipped to the following address:
Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822
Please call 877-504-0233 with any questions or concerns
regarding this product or warranty.
Safety, Precautions, and Warnings
As the user of this product, you are solely responsible for
operating it in a manner that does not endanger yourself
and others or result in damage to the product or the property
of others.
Carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery
packs, etc.) that you use.
This model is controlled by a radio signal that is subject to
interference from many sources outside your control. This
interference can cause momentary loss of control so it is
necessary to always keep a safe distance in all directions
around your model, as this margin will help to avoid collisions
or injury.
• Always operate your model in an open area away from cars,
traffic, or people.
• Avoid operating your model in the street where injury or
damage can occur.
• Never operate the model out into the street or populated
areas for any reason.
• Never operate your model with low transmitter batteries.
• Carefully follow the directions and warnings for this and any
optional support equipment (chargers, rechargeable battery
packs, etc.) that you use.
• Keep all chemicals, small parts and anything electrical out of
the reach of children.
• Moisture causes damage to electronics. Avoid water exposure
to all equipment not specifically designed and protected for
this purpose.

8 E-flite Piper Pawnee ARF Assembly Manual
Landing Gear Assembly
Required Parts
Landing gear Landing gear cover (2)
Axle w/nut (2) Instrument panel
Pilot seat 2mm x 6mm machine screw (4)
Landing gear cover (2) 5/64-inch wheel collar w/setscrew
Vertical Fin Rudder
3/4-inch (19mm) tailwheel
2mm x 15mm sheet metal screw (8)
5/32-inch wheel collar w/setscrew (2)
21/2-inch (63mm) main wheel w/hubs (2)
Required Tools and Adhesives
#1 Phillips screwdriver Hex wrench: 1.5mm
Threadlock File
Medium CA Adjustable wrench (2)
Note: We will assemble the landing gear and set them
aside until needed. This will reduce the number of parts
to track, yet keep the fuselage light to install the rudder,
elevator and radio system.

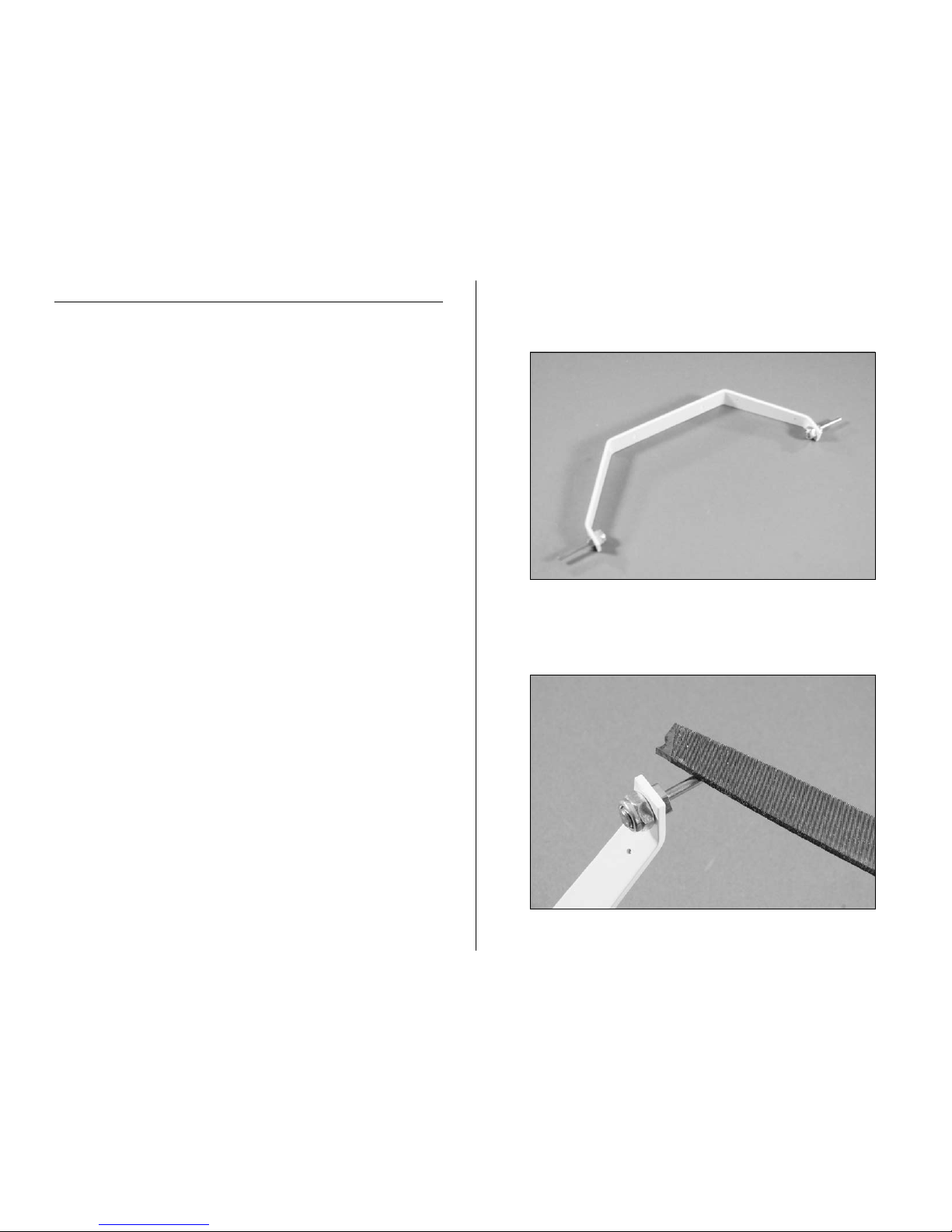

1. Locate the two axles and axle nuts, as well as the
landing gear. Use two adjustable wrenches to secure the
axles to the landing gear.
 2. Use a file to create a flat on the bottom of the landing
gear wire. This provides a place to tighten the screws for
the wheel collars, making them more secure on the wire.

9E-flite Piper Pawnee ARF Assembly Manual
 3. Remove the hubs from the wheels. Note which is the
rear hub and which is the front hub.
 4. Slide the rear hub onto the axle. With the 5/32-inch
wheel collar in the center of the axle, tighten the setscrew
using a 1.5mm hex wrench to secure the collar to the
axle. Make sure to use threadlock on the setscrew to
prevent it from vibrating loose.

10 E-flite Piper Pawnee ARF Assembly Manual
 5. Slip the tire over the rear hub. Insert the front hub
into the tire. Place a piece of music wire or hex wrench
through a hole in the front hub and into a screw hole in
the rear hub to help align the holes when inserting the
front hub in the wheel.
 6. Use four 2mm x 15mm sheet metal screws and a #1
Phillips screwdriver to secure the front and rear hubs. You
can now install the hubcap onteh wheel.
 7. Attach the landing gear covers to the landing gear
using four 2mm x 6mm machine screws. Make sure to
use threadlock on these screws. The front edge of the
covers will line up with the front edge of the landing gear
when installed correctly.

11E-flite Piper Pawnee ARF Assembly Manual
8. Repeat Steps 2 through 7 for the remaining
wheel installation.

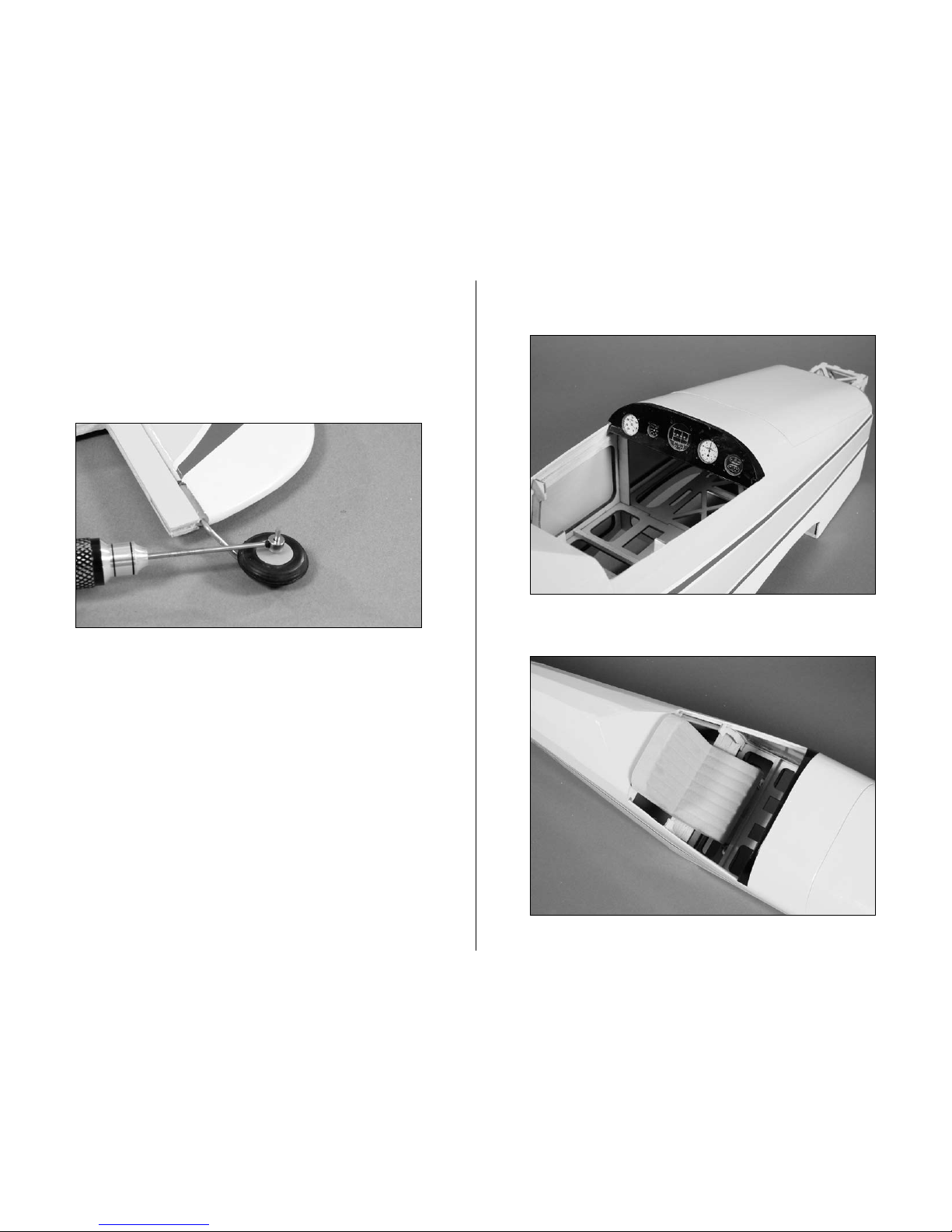

9. Slide the tail wheel onto the tail gear wire. Use a
5/64-inch wheel collar and setscrew to secure the tail
wheel. Remember to use threadlock on the setscrew to
prevent it from vibrating loose.
10. Use medium CA to glue the instrument panel into
the cockpit as shown.
11. Use medium CA to glue the seat into the fuselage.

12 E-flite Piper Pawnee ARF Assembly Manual
Aileron Servo Installation
Required Parts
Wing panels (right and left)
Servo w/hardware (2)
Servo cover (right and left)
6-inch (152) servo extension (2)
2mm x 15mm machine screw (4)
2mm x 8mm self-tapping screw (8)
Control horn w/backplate (2)
Clevis (2)
Clevis retainer (2)
4-inch (102mm) pushrod wire (2)
6-inch (152mm) servo extension (2)
Pushrod connector (2)
Servo mounting block
5/8 x 3/8 x 3/8-inch (16 x 9.5 x 9.5mm) (4)
Required Tools and Adhesives
6-minute epoxy Pencil
Phillips screwdriver: #1 Felt-tipped pen
String Side cutters
Pin drill Pliers
Drill Thin CA
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)

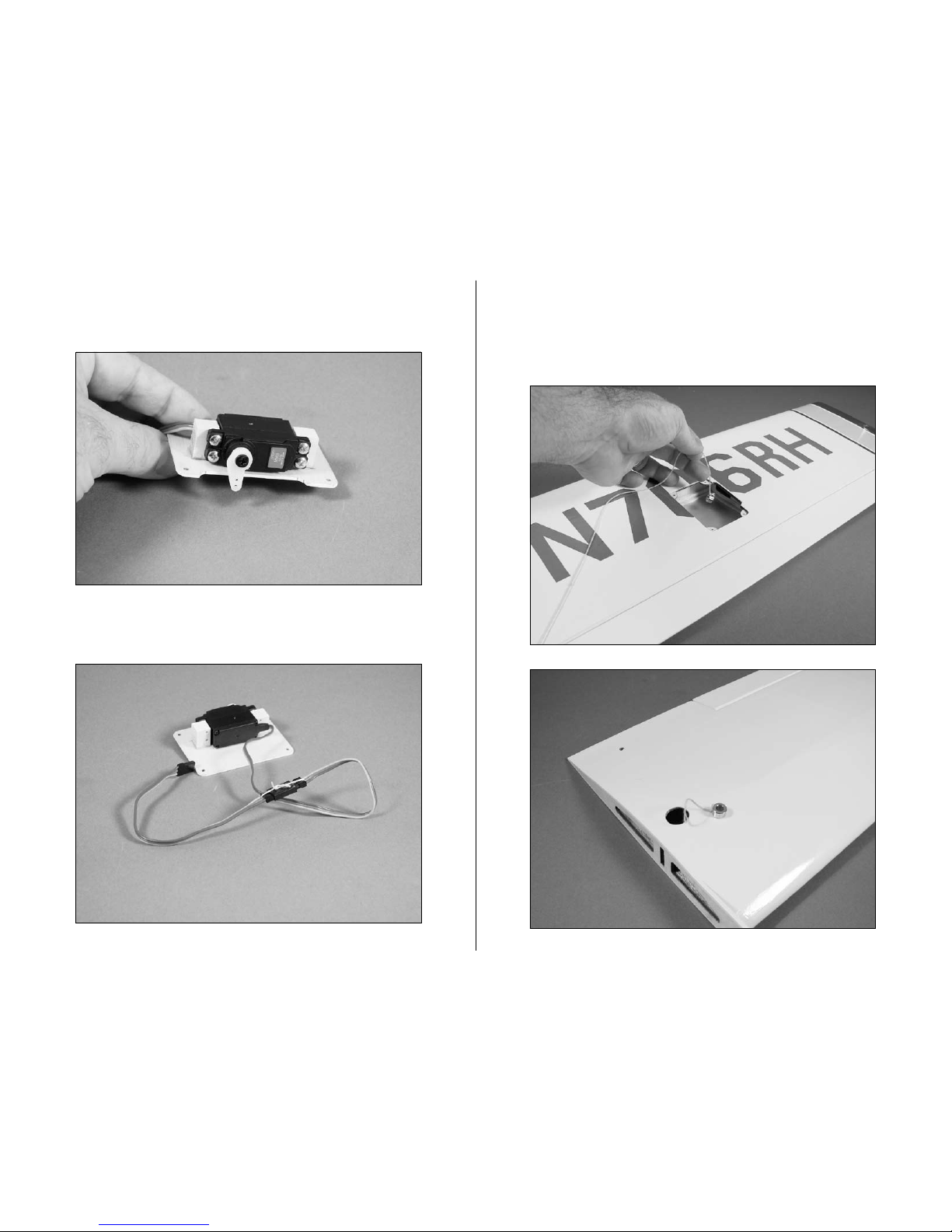

1. Plug the aileron servos into the radio system and make
sure they operate and are centered as well.
2. Prepare the aileron servos for installation by removing
any unnecessary arms from the servo horns as shown.
Install any grommets or brass eyelets at this time as well.
The servos will have the arms installed opposite of each
other as shown in the photo.
 3. Position the aileron servo on the servo cover so the
arm is centered lengthwise in the cutout. The arm will
align with the edge of the servo cover as well. Use a
pencil to mark the position of the servo on the cover.

13E-flite Piper Pawnee ARF Assembly Manual
 4. Use 6-minute epoxy to glue the servo mounting block
to the servo cover as shown. Allow the epoxy to fully cure
before proceeding.
 5. Position the servo between the servo mounting
block. Use a pencil to mark the locations for the servo
mounting screws on the blocks. The servo should not
touch the cover to prevent it from absorbing vibrations
from the airframe.
 6. Use a drill and 1/16-inch (1.5mm) drill bit to drill the
holes for the servo mounting screws.
 7. Apply a few drops of thin CA to each of the
holes drilled in the previous step to harden the
surrounding wood.

14 E-flite Piper Pawnee ARF Assembly Manual
 8. Use a #1 phillips screwdriver to install the screws
provided with the servos to attach it to the servo
mounting blocks.
 9. Secure a 6-inch (152mm) servo extension to the servo
lead using string or a commercially available connector.
 10. Tie a weight to a 24-inch (600mm) piece of string
and lower the string into the opening for the aileron
servo. With the wing tip up, allow the weight to fall into
the wing, retrieve the weight through the hole near the
root of the wing.

15E-flite Piper Pawnee ARF Assembly Manual
 11. Tie the string to the servo extension and pull the
extension through the wing and out of the hole.
Note: Tape the extension to the wing so it does not fall
back into the hole.
 12. Secure the servo cover using four 2mm x 8mm sheet
metal screws and a #1 Phillips screwdriver.
 13. Slide a clevis retainer onto a nylon clevis. Thread the
clevis onto one of the 4-inch (102mm) pushrod wires.

16 E-flite Piper Pawnee ARF Assembly Manual
 14. Use side cutters to remove the backplate from
a control horn. Attach the clevis to the outer hole
of the horn.
 15. Position the control horn so a) the holes in the
horn align with the hinge line and b) the pushrod is
90 degrees to the hinge line. Use a felt-tipped pen
to transfer the locations for the two mounting screws
onto the aileron.
 16. Use a drill and 5/64-inch (2mm) drill bit to drill the
two holes for the aileron control mounting screws.
 17. Apply a few drops of thin CA to each of the
holes drilled in the previous step to harden the
surrounding wood.

17E-flite Piper Pawnee ARF Assembly Manual
 18. Use two 2mm x 15mm machine screws, a #1 Phillips
screwdriver and the control horn backplate to secure the
control horn to the aileron.
 19. Center the aileron and aileron servo and use a felt-
tipped pen to mark where the pushrod crosses the outer
hole of the servo horn.
 20. Use pliers to bend the pushrod 90 degrees at
the mark.

18 E-flite Piper Pawnee ARF Assembly Manual
 21. Use a pin drill with a 5/64-inch (2mm) drill bit to
enlarge the outer hole in the servo arm.
 22. Slide the bend through the hole in the servo arm.
 23. Use a pushrod connector to secure the pushrod
wire to the servo arm. Use side cutters to remove
any excess wire.
 24. Use side cutters to trim all but 1/16-inch (1.5mm)
of the wire so it does not interfere with the operation
of the aileron servo.
25. Repeat Steps 3 through 24 to install the remaining
aileron servo and linkage.

19E-flite Piper Pawnee ARF Assembly Manual
Flap Servo Installation
Required Parts
Wing panels (right and left)
Servo w/hardware (2)
Servo cover (right and left)
6-inch (152) servo extension (2)
2mm x 15mm machine screw (4)
2mm x 8mm self-tapping screw (8)
Control horn w/backplate (2)
Clevis (2)
Clevis retainer (2)
4-inch (102mm) pushrod wire (2)
Pushrod connector (2)
Servo mounting block
5/8 x 3/8 x 3/8-inch (16 x 9.5 x 9.5mm) (4)
Required Tools and Adhesives
Drill Thin CA
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)
6-minute epoxy Pencil
Phillips screwdriver: #1 Felt-tipped pen
String Side cutters
Pin drill Hobby knife
Razor saw Covering iron
Sandpaper
Note: The installation of the flaps are optional. You will
need to purchase a Y-harness or use a computer radio
with mixing to operate the flaps.
1. Plug the flap servos into the radio system and make
sure they operate and are centered as well.

20 E-flite Piper Pawnee ARF Assembly Manual
2. Use a hobby knife to cut the covering separating the
flap and aileron
3. Use a razor saw to separate the flap from the aileron.
4. Use a hobby knife to remove the covering for the
flap servo. Use a covering iron to iron the edges of
the covering into the opening to have a visually
appealing flap servo installation. Save the covering
for the following step.
