Ecoair Apollo mk2 User manual

APOLLO MK2

PAC-100013

Portable Air Condioner

UK

Please read instrucons before use. Keep a copy for future reference.

English

INDEX

Important Safety Instrucons ............................................................................................................. 2

The Refrigerant R290 Gas ................................................................................................................... 3

BS Plug Wiring ..................................................................................................................................... 4

The Appliance and Accessories....................................................................................................... 5 - 6

Read Before Installaon.................................................................................................................. 7 - 8

Installaon..................................................................................................................................... 9 - 10

Installaon of Drainage............................................................................................................... 11 - 12

Quick Set Up................................................................................................................................ 13 - 16

Cleaning And Maintenance......................................................................................................... 17 - 18

Troubleshoong.......................................................................................................................... 19 - 21

English

READ & SAVE THESE IMPORTANT SAFETY INSTRUCTIONS FOR FUTURE REFERENCE

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

IMPORTANT SAFETY INSTRUCTIONS

Use this appliance only as described in this instrucon manual. As with any electrical appliances, the

instrucons aim to cover as many situaons as possible, cauon and common sense should be used

when operang and installing this air condioner as we do with any other electrical appliances.

• The appliance is manufactured for comfort cooling and dehumidicaon in domesc environments and must

not be used for other purposes.

• This appliance must not be used outdoor or wet areas such as bathrooms.

• Do not alter or modify the appliance’s characteriscs in any way.

• The appliance must be installed in accordance with the relevant naonal legislaon.

• Should repairs be necessary, contact EcoAir’s Authorised Service Center. Self-servicing or unauthorised servic-

ing can be dangerous.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilies, or lack of experience and knowledge, unless they have been given supervision or instrucon con-

cerning the use of the appliance by a person responsible for their safety.

• Children and pets should be supervised to ensure they do not play with the appliance.

• If the power cable is damaged, do not use the appliance. It must be replaced by an EcoAir’s Authorised Service

Center.

• The appliance must be plugged into a grounded 3-prong outlet and ensure that the voltage matches the rated

specicaons. If you have any doubts, check you a qualied technician.

• Do not use with extension cables or mul sockets.

• Always unplug the appliance before cleaning or maintenance operaons or when not in use.

• Do not pull or place strain on the power cord when moving appliance.

• The appliance must not be installed where the atmosphere may contain combusble gasses, oil or sulphur or

near heat sources (such as server rooms & factories).

• Do not place or rest any objects on the appliance.

• Do not place any objects or curtains in close proximity to the appliance. Always allow a minimum of 50 cm

clearance around the appliance.

• Do not operate the appliance without a lter in place.

• Clean the lters at least once a week.

• Do not use the appliance near any other appliances that emits heat such as heaters, servers etc.

• The appliance must be always kept upright on an even and level oor, during use or transportaon and when

put into storage.

• Ensure the air inlet and outlet are not blocked or covered when in use.

• Do not operate or store the appliance under direct sunlight.

• Always switch of the power before unplugging from the socket.

• Do not leave the appliance running or plugged in over a long period of me unaended. Leaving unaended

electrical appliances running is unsafe.

• Always make sure your hands are dry when operang the appliance.

• Only operate the appliance within the specied operang temperature range.

• Always observe the minimum room size for storing and operang the appliance.

English

The Refrigerant R290 Gas

This appliance contains of ammable

R290 refrigerant gas.

Read the precauons in this manual care-

fully before operang the unit.

Our portable air condioners contain the non-pollung refrigerant R290 with no harm to our ozone, it helps

reduce global warming potenal. This refrigerant complies with the European Environmental Direcves.

There are some important safety precauons that you need to follow :-

1. Do not use these appliances in rooms smaller than shown below for each of the models to prevent

re, explosions :-

Model Minimum Floor Area (m2) Contains R290 (Grams)

CRYSTAL MK2 7000 BTU 4150g

CRYSTAL MK2 9000 BTU 11 180g

CRYSTAL MK2 12000 BTU 11 220g

APOLLO MK2 12000 BTU 11 200g

2. Do not use these appliances in a room with connuous sources of ignion such as open ames, gas

appliances, electric heaters, cigaree smoking and other other sources of ignions.

3. Always store these appliances in a well-venlated area with a minimum size shown in the above

table.

4. Keep any required venlaon openings clear of obstrucons.

5. Never aempt to service or repair the appliances yourself, always ensure it is only serviced by a

EcoAir approved engineer using original EcoAir parts.

6. If these appliances are installed, operated or stored in a non-venlated area, then the room must

be designed to prevent the accumulaon of refrigerant leaks. Accumulaon of refrigerant leaks in

a non-venlated area can be ignited by other causes such sparks or smoking or open ames from

other appliance or causes such as electric heaters, stoves or other sources of ignion in the area.

English

BS PLUG WIRING

Wiring Instrucons: Should it be necessary to change the plug, please note the wires in the mains lead

are coloured in accordance with the following codes:

BLUE - NEUTRAL

BROWN – LIVE

GREEN AND YELLOW - EARTH

In the event that the colours of the wires in the mains lead of this appliance do not correspond with the

coloured markings idenfying the terminals in your plug, proceed as follows:

1. The BLUE wire is NEUTRAL and must be connected to the terminal which is marked with the leer N or

coloured BLACK.

2. The BROWN wire is LIVE and must be connected to the terminal which is marked with the leer L or col-

oured RED.

3. The GREEN/YELLOW is EARTH and must be connected to the terminal which is marked with the leer E

or or coloured GREEN or GREEN/YELLOW.

4. Always ensure that the cord grip is posioned and fastened correctly.

If a 13A (BS 1363) fused plug is used it must be ed with a 13A fuse. If in doubt consult a

qualied electrician.

Wiring for a 13 Amp Plug (BS1363)

Please note. The Earth Terminal is marked with the leer E or Earth Symbol.

BS PLUG WIRING

Earth - (Green/Yellow)

Neutral - N (Blue) Live - L (Brown)

English

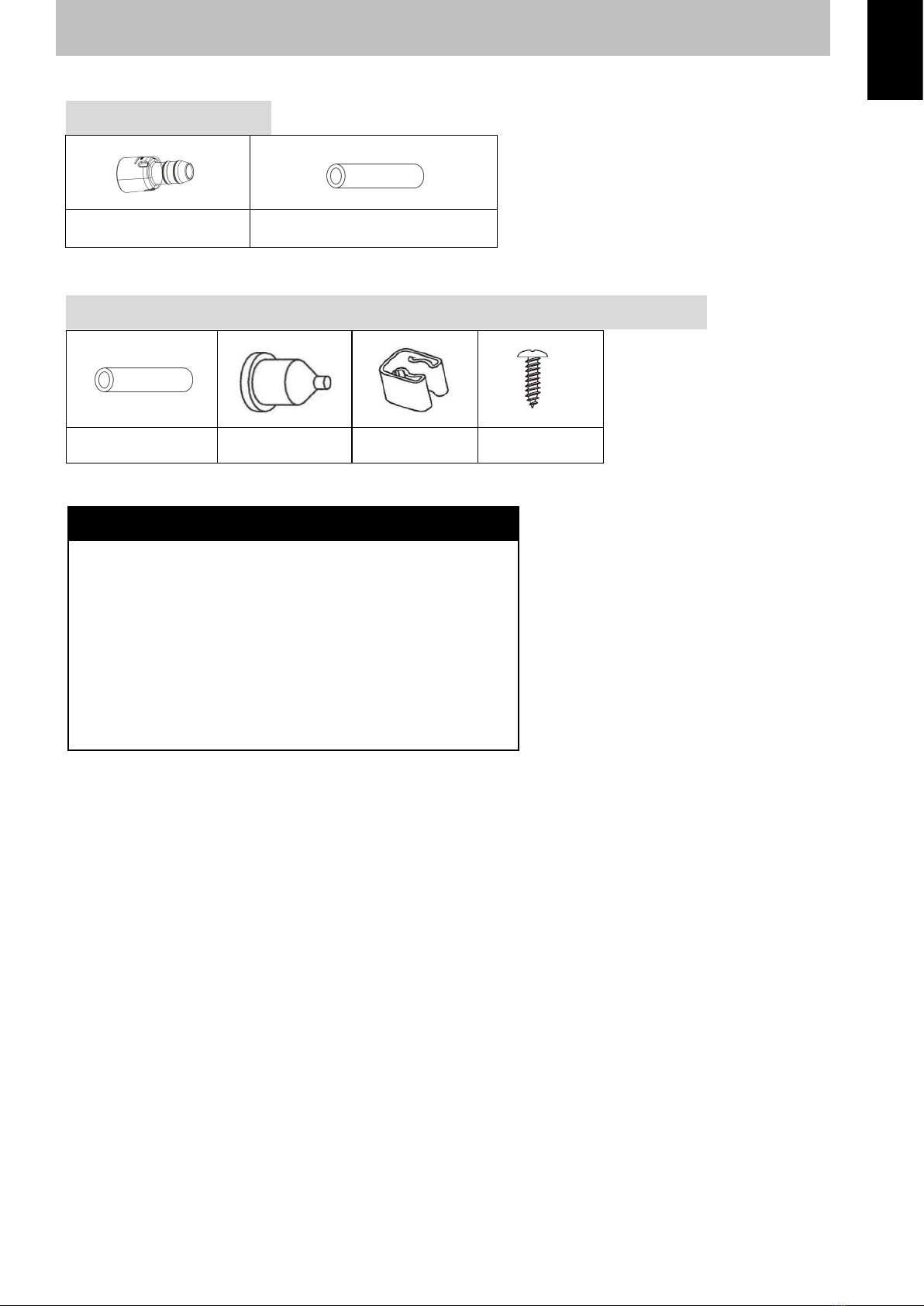

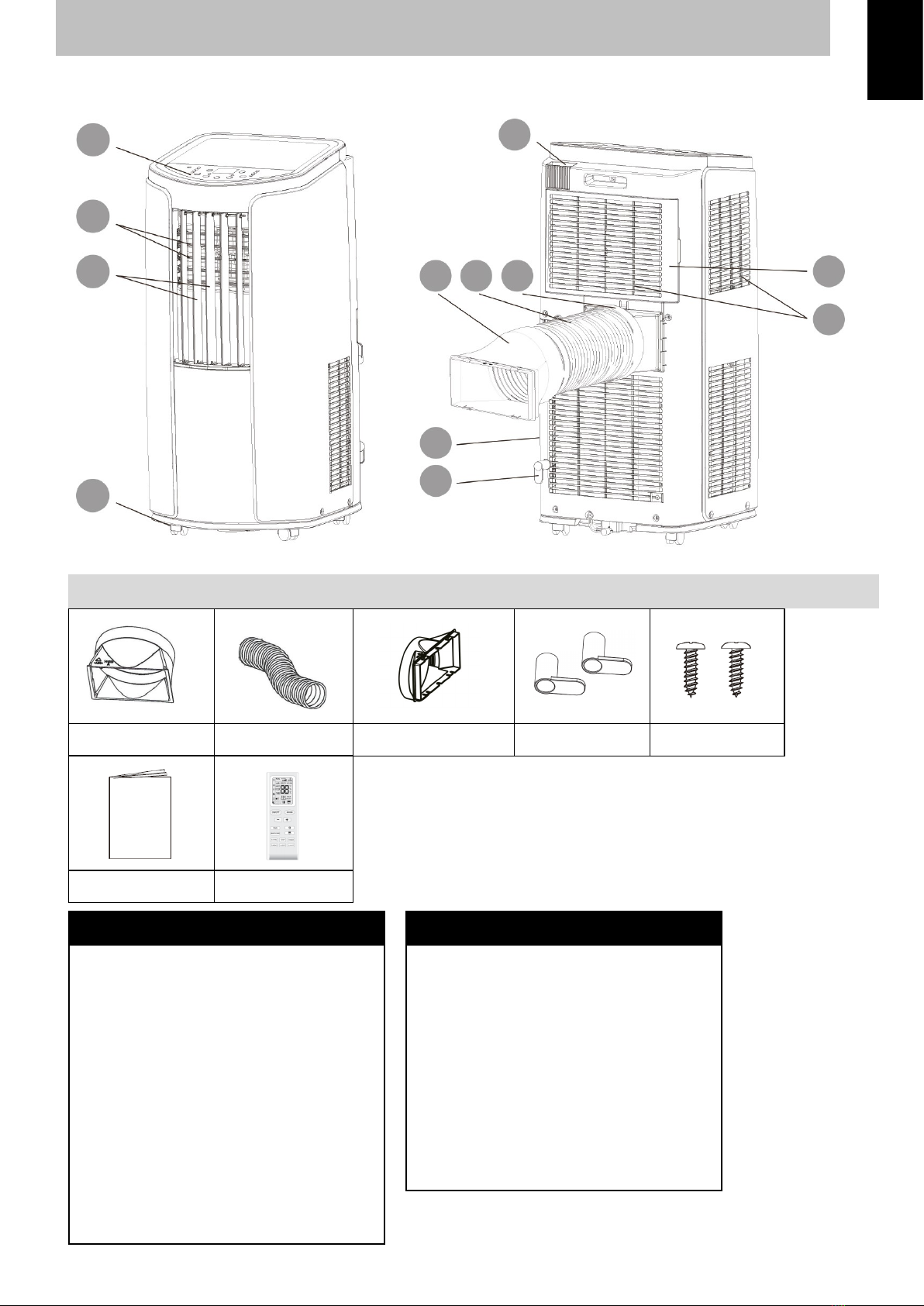

THE APPLIANCE & ACCESSORIES

DESCRIPTION

Key Descripon

A1 Control Panel

A2 Outlet Louvre (Horizontal)

A3 Air Outlet Louvre (Vercal)

A4 Castor

A5 Cable Tidy

A6 Plug of power cord

A7 Filter

A8 Air Inlet Grille

A9 Remote Control Compartment

B1 B2 B3 B4 B5

A1

A2

A3

A4

A9

A7

A8

A6

B2B3 B1

A5

Exhaust Kit , Cable Tidy, Remote Control, User Manual, Screw

DESCRIPTION

Key Descripon

B1 Joint A (Hose to AC)

B2 Exhaust Hose

B3 Joint B + C (Hose to Window)

B4 Cable Tidy

B5 Screw x 2

B6 User Manual

B7 Remote Control

B6 B7

English

THE APPLIANCE & ACCESSORIES

DESCRIPTION

Key Descripon

C1 Drainage Connector

C2 Connuous Drainage Hose 14mm (not included)

D1 Hose (10mm)

D2 Rubber Stopper

D3 Pipe Clamp

D4 Screw

A2

A3

A4

A7

A8

D1 D2 D3 D4

Excess Drainage Kit (For Heat and Dry Modes Only) - To be purchased separately

C1 C2

Connuous Drainage Kit

English

 The appliance must be installed in accordance with naonal wiring regulaons.

 The appliance is for indoor use only, and must not be installed in a high humidity area (i.e.

laundry room or wet room).

 Place the appliance on a even level oor that is strong enough to support the unit.

 Allow at least 50cm of air space on all sides of the appliance for good venlaon to avoid over-

heang.

 Only use the appliance within the operang temperature in an area where the temperature

will not fall below 16°C. Do note operate the appliance where the temperature is below 16°C

to avoid frosng of the coils consequently reducing its performance.

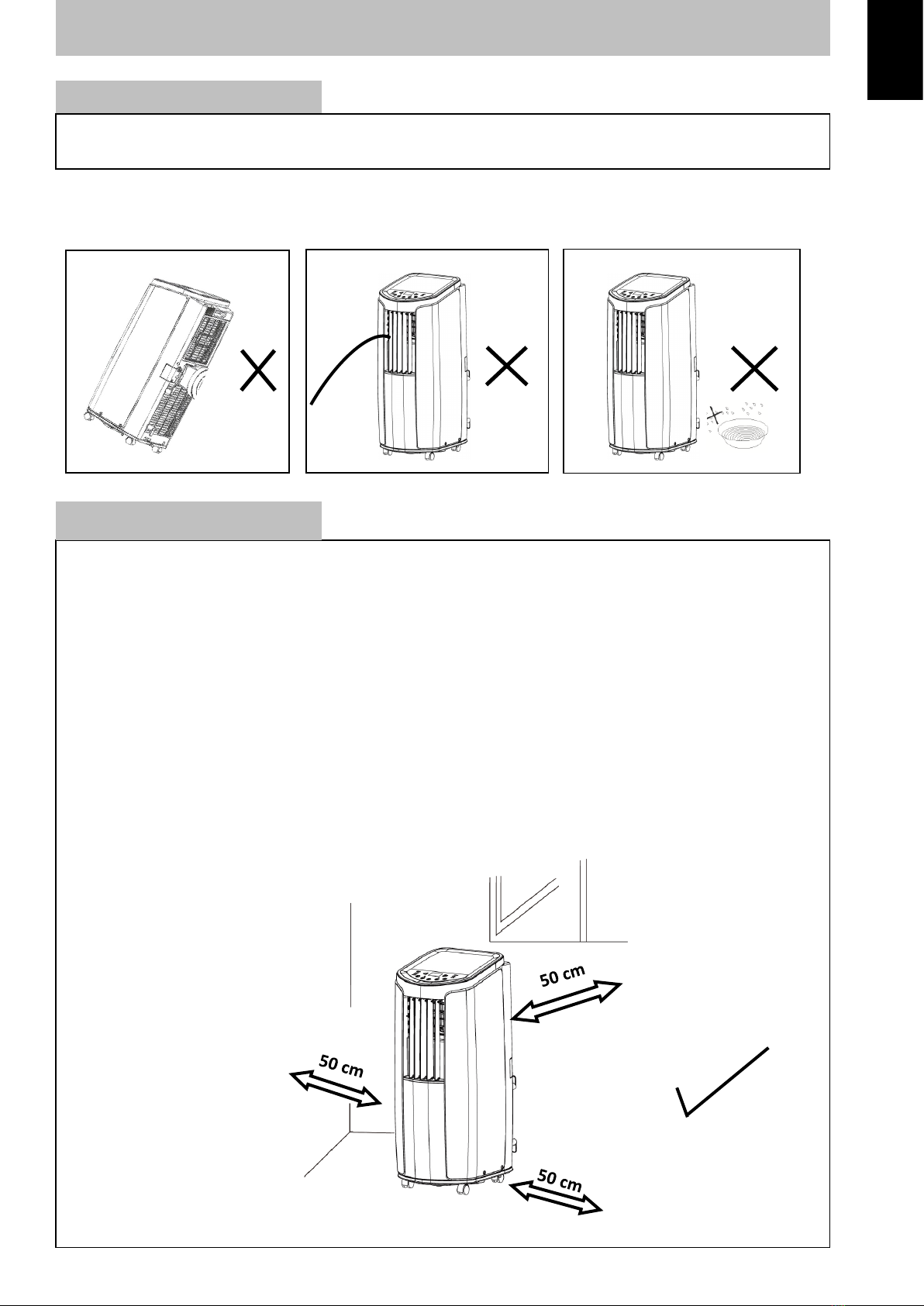

READ BEFORE INSTALLATION

FIG 1. FIG 2. FIG 3.

 Two or more people are required to move and install the appliance.

Do not pull the appliance along

by the power cord. See Fig 1.

Do not place objects on the appliance

or restrict air inlet / outlet. See Fig 2.

Do not use the appliance in humid or

wet environment. See Fig 3.

OK

INSTALLATION REQUIREMENTS:

IMPORTANT SAFEGUARD

Appliance in this picture is for illustraon purpose only

English

READ BEFORE INSTALLATION

INSTALLATION OF EXHAUST HOSE

EXHAUST HOSE CONNECTION

Only use the exhaust hose B2 supplied.

The length of the exhaust hose B2 must not be longer than 1.5 meters.

English

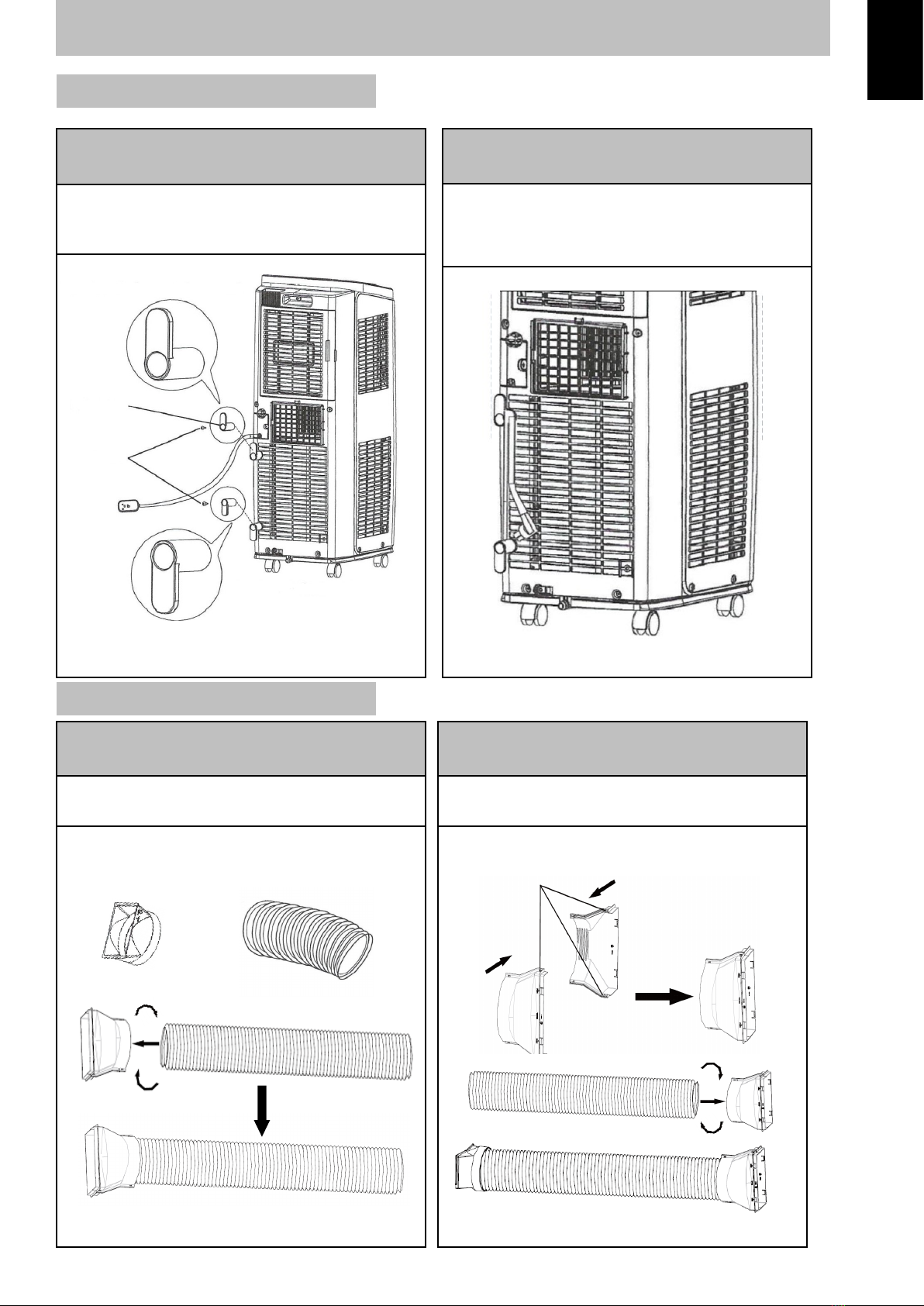

STEP 1. ASSEMBLE THE CABLE TIDY

Fit the cable dy B4 at the back of the appli-

ance as shown below.

INSTALLATION

INSTALLATION OF POWER LEAD HOOK

STEP 2. WIND THE POWER LEAD AROUND THE

CABLE TIDY

When you are not using the appliance wind the

power lead around the cable dy B4 as shown

below.

Direcon of the Cable Tidy

Screws

Cable Tidy

STEP 3. CONNECT JOINT “A” TO EXHAUST

HOSE

Aach Joint A (B1) to Exhaust Hose (B2)

STEP 4. CONNECT JOINT “B/C” TO

EXHAUST HOSE

Connect together Joint B to Joint C (B3)

Joint A (Hose to AC)

B1 Exhaust Hose B2 Joint C

B3

Joint B

B3

Clip together

INSTALLATION OF EXHAUST HOSE

English

INSTALLATION

STEP 5. CONNECT EXHAUST HOSE TO

APPLIANCE

Appliance air outlet

Slide Joint A (Hose to AC) B1 to the air outlet slot (at the

back of the appliance)

STEP 6A. EXHAUST HOSE THROUGH A WALL

 Drill a 150mm hole through the wall. (outer di-

ameter 142mm)

 Insert the exhaust hose B2 through the hole.

 Seal the gap between the wall and the exhaust

hose B2

Wall

STEP 6B. DISCHARGE EXHAUST HOSE (B2) THROUGH A WINDOW GAP

 Pre-seal the window with a Window Seal Nylon Cloth (available for purchase)

 Pass the exhaust hose B2 (with or without Joint B B3 aached) through the zipped opening.

English

INSTALLATION OF DRAINAGE

When running the appliance in Dry Mode Only, the connuous drainage must be installed.

STEP 7. INSTALLATION OF CONTINUOUS DRAINAGE

STEP 1. Remove the connuous drainage cap and

remove the rubber plug from the drainage port.

Connuous

drainage cap

Rubber plug

STEP 2. Fasten the Drainage Connector C1 to the drainage

port (turning clockwise).

Drainage connector C1

STEP 3. Securely aach Drainage Hose C2 (14mm)

into the drainage connector.

Make sure the drainage hose C2 hangs downward.

Drainage hose

Tips to avoid water leakage

 Ensure the appliance is on an even level surface.

 Make sure the drainage hose C2 is clear of any obstruc-

ons.

 The drainage hose C2 must allow water to drain down-

wards from the drainage ports (without any kinks or

upward angles)

 Do not submerge the end of the drainage hose in water

(this will cause back pressure and the water will not

drain.

Drainage port

English

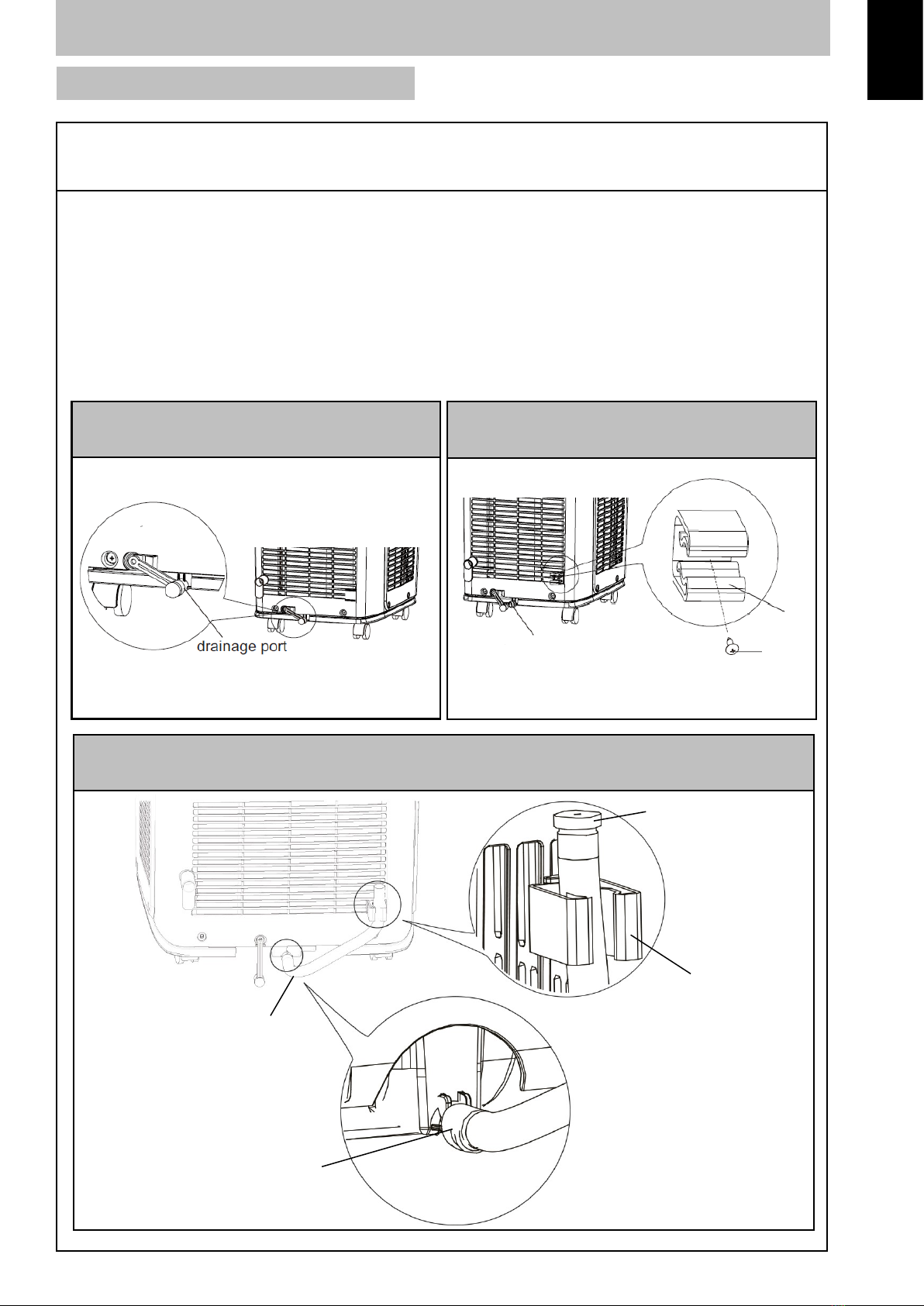

INSTALLATION OF DRAINAGE

When running the appliance in Heat Mode or Dry Mode, the connuous drainage must be

installed. Prior to storing the appliance, always drain as below.

This air condioning is a self-evaporang appliance. When running any air condioning, moisture

will be extracted from the ambient and the condensaon will self- evaporate. However, when the

ambient air is very high in humidity, excess condensaon will accumulate at a higher rate than the

evaporave acons can manage. The excess humidity will be collected into a tray at the boom of

the air condioning that requires manual draining.

When the tray is full the appliance will display (H8) on the display panel

STEP 8. INSTALLATION OF EXCESS DRAINAGE

STEP 1. UNPLUG THE PORT DRAINAGE

STOPPER

STEP 2. SCREW IN THE PIPE CLAMP (D3) TO

THE BACK PANEL

Drainage Port D4

D3

STEP 3. AFFIX THE EXCESS DRAINAGE HOSE

Hose

D1

Pipe Clamp

D3

Rubber Stopper

D2

Drainage

Port

English

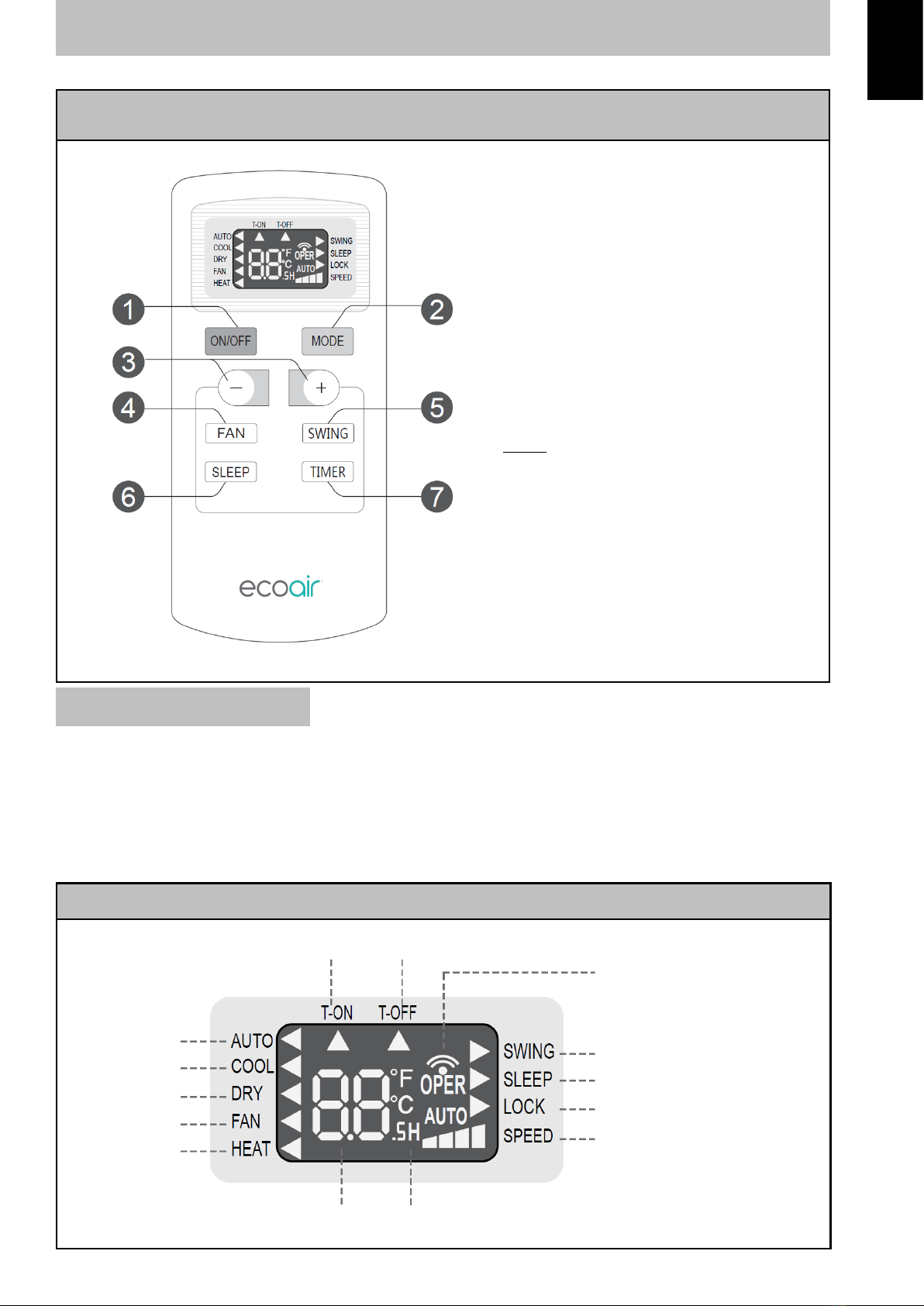

CONTROL PANEL

QUICK SET UP

Display Screen

Set buons

 Aer switching ON, the appliance will respond with a beep sound. Aer that, you can operate

the appliance with the control panel or remote control.

 Under ON status, when pressing any buon on control panel, the appliance will give out a

sound. Meanwhile, corresponding indicator light on control panel will be on.

 Under OFF status, there is no display on the control panel.

 Under ON status, the set temperature will show on the display control panel only in cooling

mode.

 For any other modes, the display will not show the temperature.

ON / OFF BUTTON

Press the ON/OFF buon to switch on and o.

MODE BUTTON

Press this buon to select :

COOL: When cooling Mode indicator is on, the appliance will operate in cooling mode. Display shows

the set temperature.

DRY: When drying Mode indicator is on, the display shows nothing. Appliance will operate at low

speed only.

FAN: When fan mode indicator is on, the display shows nothing. The appliance only blows air in the

ambient temperature as a fan does.

HEAT: When heang mode indicator is on, the appliance will operate in heang mode. Display shows

the set temperature. Recommended to use connuous drainage in this mode otherwise water

needs to be drained frequently.

Cooling mode indicator

Health indicator

Heat mode indicator

English

SET BUTTONS

Under cooling and heang mode, press "+" or "-" buon to increase or decrease set temperature by

1 °C.

Set temperature range is between 16°C - 30°C. Under auto, drying or fan mode, this buon is

invalid.

QUICK SET UP

FAN BUTTON

Press this buon to select:

 Auto

 Low

 Medium

 High

These fan speeds can be selected in cooling and fan modes only.

SLEEP BUTTON

TIMER BUTTON

 Press this buon to set mer. To adjust mer, press set buons.

 Timer can be set for up to 24 hours.

 Wait 5 seconds aer seng the me, for the display to show the set temperature.

 During the mer seng, make sure there is no more than 5 seconds delay between sets, other-

wise the remote control will cancel seng status.

 To cancel set mer, press mer buon twice.

Note: Select the mode before you select the mer.

The mer can be set for:

 While the appliance is ON, the mer can be set to switch o aer your set me.

 While the appliance is OFF, the mer can be set to switch on aer your set me.

Press this buon to select sleep mode. (Works in Cooling and Heang mode)

 The preset temperature will increase by 1°C aer the rst hour.

 The preset temperature will increase by 2°C aer two hours. The appliance will operate in this

temperature unl it is switched o.

 Use this mode for bedme, the appliance will reduce the cooling as you fall asleep since our

body temperature tends to come down during that period.

English

QUICK SET UP

REMOTE CONTROL DISPLAY SCREEN

REMOTE CONTROL

1. ON / OFF buon

2. Mode buon

3. - / + Buon

4. Fan buon

5. Swing (Not applicable for this

appliance)

6. Sleep buon

7. Timer buon

Sending signal

Set speed

Lock

Sleep operaon

Timer On

Cool operaon

Dry operaon

Fan operaon

Set temperature

Note:

 Press MODE and " - " buons at the

same me to switch between °C and °

F. (while the appliance is switched o)

 Press " + " and " - " buons at the

same me to switch ON and OFF

CHILD LOCK.

 During the operaon, point the remote control towards the appliance not more than 6 meters

away.

 Make sure there is no obstacles between the remote control and the appliance.

 Remote control signal may be interfered within the room where there is wireless telephone,

uorescent lamp.

 When appliance is not in use for a long me, please remove baeries.

 If there is no display on the remote control, please replace baeries.

USEFUL INFORMATIONS

Heat operaon

Set me

Auto operaon Swing

(Not applicable for this appliance)

Timer O

English

QUICK SET UP

HORIZONTAL DIRECTION

Hold the horizontal louvres and move up or

down for your comfort.

AIR FLOW DIRECTIONS

VERTICAL DIRECTION

Hold the vercal louvres and move le or

right.

NOTE: Do not close the air ow completely.

English

CLEAN FILTER

CLEANING AND MAINTENANCE

• Before cleaning the appliance, turn it o and disconnect power. Otherwise, it may cause elec-

tric shock.

• Do not wash appliance with water. Otherwise, it may cause electric shock.

• Do not use volale liquid (such as thinner or gas) to clean the appliance. Otherwise, it may

damage the appearance of appliance.

Clean outer case:

If there's dust on the surface of outer case, use so towel to wipe it.

If the outer case is very dirty , use a damp cloth to clean it.

Clean grille:

Use so brush or cloth to clean it.

2. CLEAN FILTER

Use vacuum cleaner, brush or water to clean the

lter.

1. REMOVE THE FILTER

3. INSTALL FILTER

Before re-installing the lter, make sure the lter

is dry.

NOTE:

3. USEFUL INFORMATION

The lter should be cleaned at least once

every two weeks. For dusty environment, you

should increase the cleaning frequency .

Appliance in this picture is for illustraon purpose only

English

CLEANING AND MAINTENANCE

STORAGE OF THE APPLIANCE

Please follow the following steps for opmum performance:

1. Disconnect power supply and wrap the power cord.

2. Clean lter and outer case.

4. Drain the water from the appliance.

5. Make sure Exhaust Hose is disassembled.

6. Clean the appliance and pack it well to prevent dust.

REPLACING BATTERIES

1. Gently slide the baery cover to remove.

2. Replace two (AAA 1.5V) dry baeries and

make sure the posions of plus and minus

polar are correct.

baery cover

baery

English

TROUBLESHOOTING

CHECK THE FOLLOWING POINTS BEFORE CONTACTING TECHNICAL SUPPORT.

DISPLAY CODE REASON SOLUTION

H8 Internal water tank is full. Drain the water from the excess drainage port.

F0

Heat exchanges, compressor, is

blocked and clogged up with

dust and dirt. Refrigerant may

have leaked.

Check the ambient temperature is within the

operang range. If its outside range, switch o

unl the ambient temperature is within range.

Clean the lters.

If error persist, contact technical.

F1 Ambient temperature sensor

alert. Check the appliance is within the operang

temperature.

F2 Evaporator temperature sensor

alert. Check the appliance is within the operang

temperature.

F4 Condenser temperature sensor

is open/short-circuited

Short circuit of the main board.

Temperature sensor or main board may have

malfunconed.

If error persist, contact technical.

H3 Overload protecon alert.

Check the ambient temperature is within the

operang range. If its outside range, switch o

unl the ambient temperature is within range.

Check the ambient humidity. High humidity in

a hot environment can cause on overload.

Switch o unl the humidity level reduces.

Clean the lters.

Ensure there is at least 50 cm air space around

the appliance for sucient venlaon.

If error persist, contact technical.

E8 Overload malfuncon

Ecoair APOLLO MK2 User manual

Popular Air Conditioner manuals by other brands
