Ecom Loc 01 User manual

1
Loc-Ex®01 | Loc 01**
Operating Instructions Development Kit
Connect CC Debugger to Loc-Ex®01/ Loc 01**

2
All documentation and available software for the Loc-Ex 01 / Loc 01 ** can be found
as download (please use the link below):
https://www.ecom-ex.com/Application_Engineering/public/Loc-Ex_01/
Additional languages can be downloaded from the relevant product page at www.
ecom-ex.com.

3

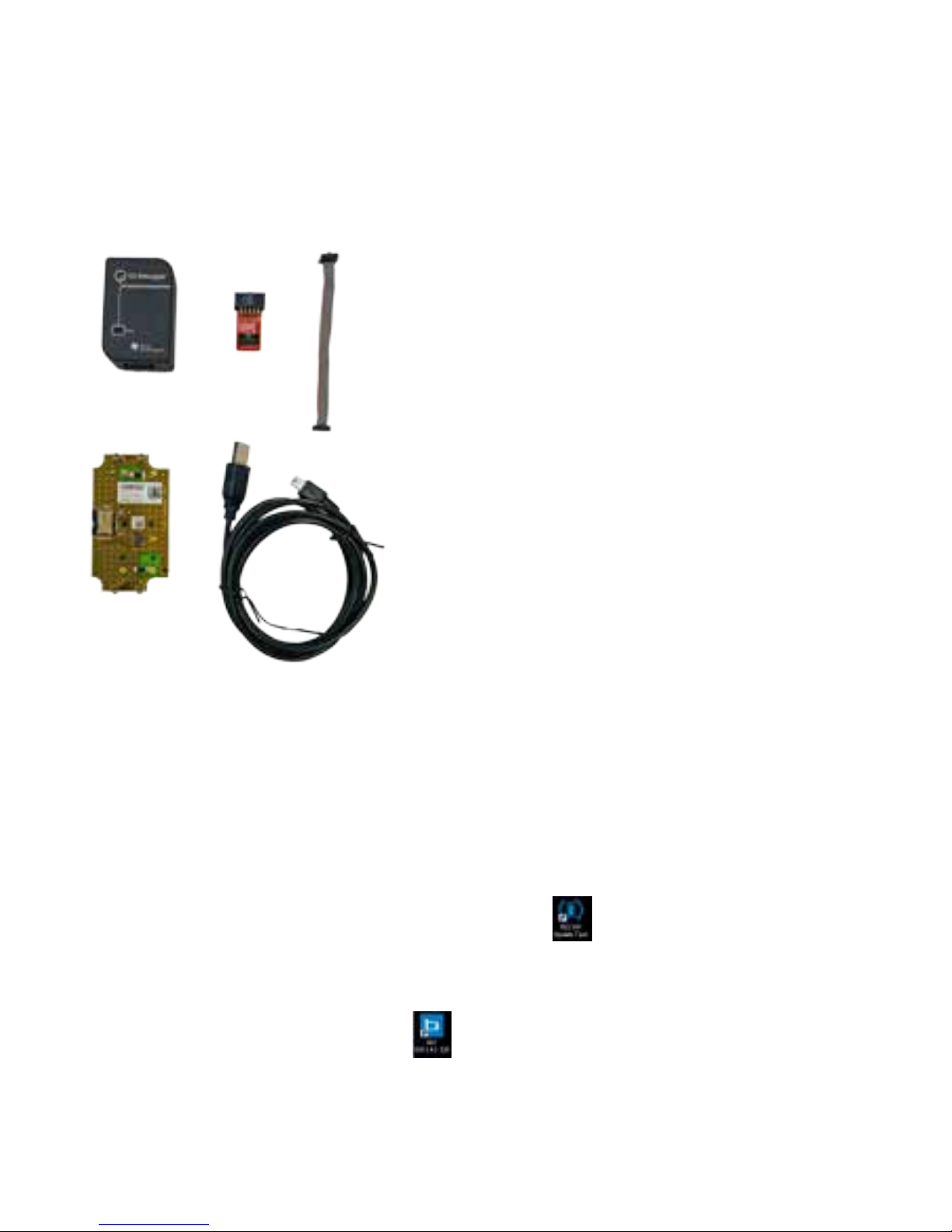

1. Scope of delivery
1 x Loc 01 Development Board
1 x CC Debugger
1 x Mini USB Cable
1 x 10 pin at cable with 2x5 1,27mm connector
1 x Converter Board 2,54mm- 1,27mm connector
2. Installing drivers
The required USB drivers for the tool, are listed below:
• bleupdate-1.3.6 (Tool for Flashing the Loc-Ex Firmware)
• BLE GUI (small BLE Sniffer Tool with some more helpful extensions ! for using
that part a additional BLE Dongle for your PC is needed: Article number A0050512
Download links:
• Loc-Ex Firmware Update Tool: bleupdate-1.3.6
• https://www.ecom-ex.com/Application_Engineering/public/Loc-Ex_01/PC%20
TOOLS/
• BLE GUI: Bluegiga_ble-1.4.1-128
• https://www.ecom-ex.com/Application_Engineering/public/Loc-Ex_01/SOFT-
WARE%20RELEASES/

4
!Please use the Blue Giga / Silabs tools for rmware ashing because Blue Giga is
using an own scripting language which is not fully compatible with TI´s C language.
3. How to connect the Debugger with the Development Board
1. Connect the Debugger with the Converter Board 2,54mm- 1,27mm connector.
2. Connect one side of the 10 pin at cable with the Converter Board.
3. Connect the open end of the 10 pin at cable with the Development Board.
Pin 1 = GND
4. Using The BLE Update Tool and start an Firmware Upgrade
After starting the tool and a debugger with a connected Development Board please
proceed as below :
Press the reset Button on the Debugger. The info LED should now switch from red
to green light.

5

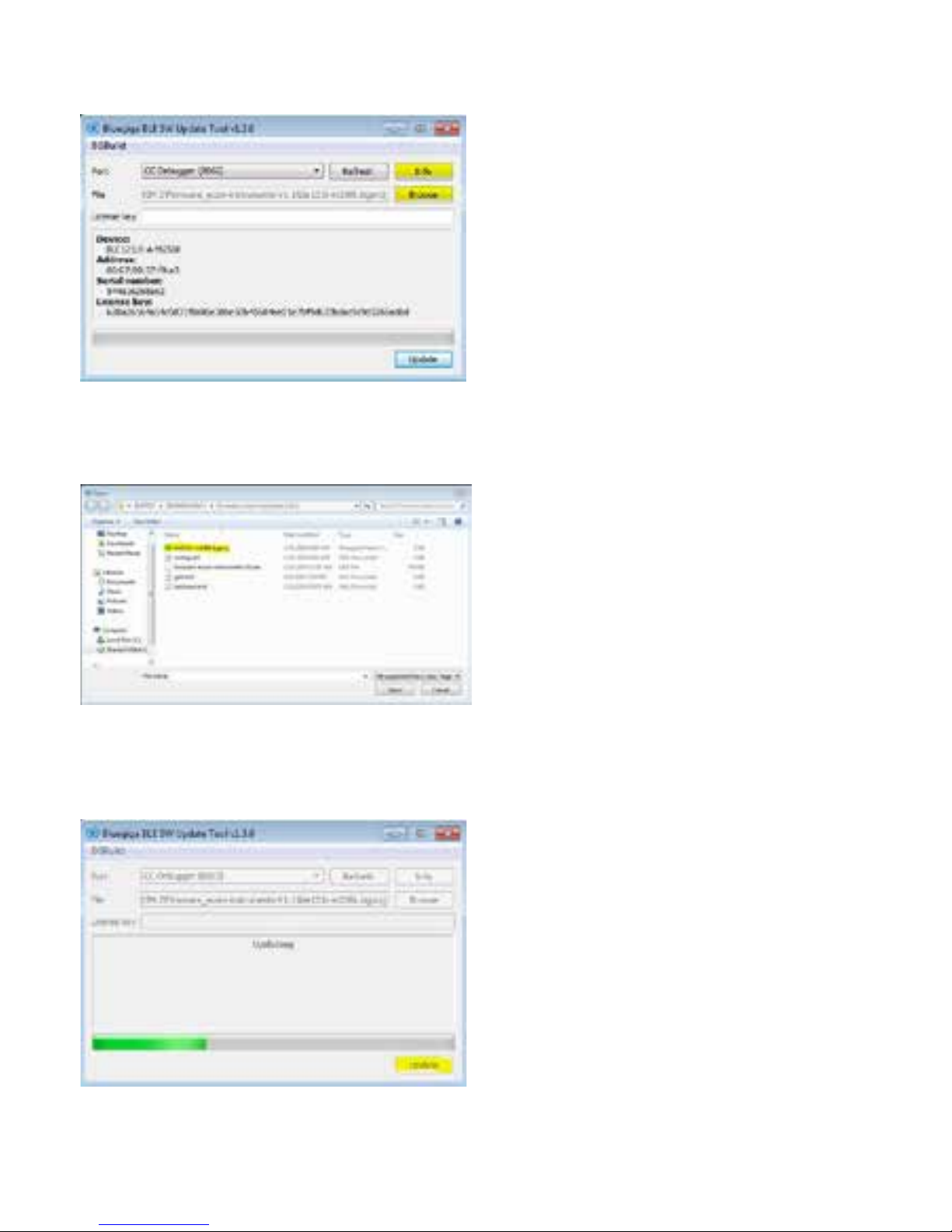

When pressing on “Info” the BLE Chip will be detected and the message below will
be shown:
Press the “Browse” Button and choose the requested .bgproj le for the Firmware
upgrade:
Press “Update”:
The upgrade procedure will start.
After the update has been nished you will be informed if the update was
successfull.

6
5. Troubleshooting
USB drivers:
If Windows will not nd the drivers automatically during the installation of “BLE-
Update.exe” additional USB drivers can be found here (please use link below):
• https://www.ecom-ex.com/Application_Engineering/public/Loc-Ex_01/DEBUG-
GER/USB%20driver/
BG Build le is missing:
Possibility 1: The bgbuild.exe is part of the “BLE GUI software” and can be found
following this guideline:
• Installing the File Bluegiga_ble-1.4.1-128 nding in a folder below:
• https://www.ecom-ex.com/Application_Engineering/public/Loc-Ex_01/SOFT-
WARE%20RELEASES/
• After installation please open the Firmware Update Tool and choose “BGBuild”
• Choose “Select manually…”
• The bgbuild.exe will be found in folder C under Blue Giga Bluegiga/ble-1.4.1-128/
bin
Possibility 2:
Download the “bgbuild.exe” and copy that le into the appropriate folder
• copy the blegui.exe le from the folder below (please use link below):
• https://www.ecom-ex.com/Application_Engineering/public/Loc-Ex_01/DEBUG-
GER/Bgbuild/
• Place that le into the Bluegiga folder were the bleupdate-1.3.6 software is
already installed

7
