Ecomiser SU-01 User manual

Ecomiser SU-01 / SU-02
UNDERCOUNTER DISHWASHER
Safety Instructions
-----------------4-5
Dishwasher Features
-------------6-7
Installation Instructions
-------- 8-11
Machine Operation
------------- 12-17
Care & Cleaning
---------------------18
Common Dishwash
ing
Problems
-------------------------------19
Troubleshooting
---------------------20
Customer Service
-------------------21
Wiring Diagram
-----------------22-23
Purchase Date:
Serial No.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 1 of 23

Legend
Height
Door open
41.5" (1,053 mm)
Door close
25.4" (647 mm)
Electric
A
32.5" (827 mm)
a
2.0" (51 mm)
Water
B
24.3" (618 mm)
b
15.6" (397 mm)
Drain
C
32.5" (827 mm)
c
7.7" (195 mm)
Ecomiser SU-01
INSTALLATION REFERENCE
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 2 of 23

Legend
Height
Door open
41.5" (1,053 mm)
Door close
25.4" (647 mm)
Electric
A
32.5" (827 mm)
a
5.5" (140 mm)
Water
B
14.7" (374 mm)
b
2.7" (70 mm)
Drain
C
32.7" (832 mm)
c
4.6" (117 mm)
Ecomiser SU-02
INSTALLATION REFERENCE
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 3 of 23

Before using the commercial dishwasher, follow the basic safety precautions.
- Read all the instructions before using the Ecomiser SU-01 / SU-02 Undercounter Commercial
Dishwasher.
- Use the Commercial Dishwasher only as instructed in this Owner’s Manual.
- This Manual does not cover every possible condition and situation that may occur. Use common
sense and caution when installing, operating, and maintaining the Ecomiser Undercounter
Commercial Dishwasher.
- The dishwasher must be electrically grounded. Read the Installation Instructions for details.
- The SU-01 / SU-02 undercounter dishwashers are designed to operate on 208 – 230 V, 60 Hz
1 PH.
- Do not operate Ecomiser SU-01 / SU-02 Undercounter Commercial Dishwasher, unless all
enclosure panels are in their proper place.
WARNING
Do not use an extension cord for this machine.
WARNING
The dishwasher must comply with all applicable sanitary, safety and plumbing codes in your area. It is
important that at least 1.0 gallon (3.8 liters) per 60 seconds must be supplied to the dishwasher.
WARNING
In order to prevent heat damage to the inlet valve, all solder connections must be made before the
water line is connected to the dishwasher.
WARNING
- To avoid entrapment and/or suffocation, remove door or door latch mechanism from any
dishwasher that is discarded or not in use.
- Do not abuse, sit, stand or play on door or racks of a machine.
- Use detergents and rinse agents recommended for optimum use in this machine.
- Do not wash plastic items unless marked “dishwasher safe” or the equivalent. Check with
manufacturer for recommendations, if not marked. Items that are not dishwasher safe may melt
and create a potential fire hazard.
- Disconnect electrical power to machine before servicing.
- Repairs should be done by a qualified technician.
- Do not touch the heating element during or right after use.
- When loading items to be washed:
1) Carefully load sharp items with the handles up to reduce the risk of injuries
2) Do not store or use combustible materials, gasoline or other flammable vapors and liquids in
the vicinity of this machine.
Save these instructions for future reference.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 4 of 23

NOTE
- Never put animals into the machine.
- Do not wash any kind of food for consumption.
- Do not wash items such as clothes and shoes.
- Do not place any objects on top of the machine.
- Do not close the door before confirming the safety of other people or objects.
- Do not open the door while the machine is operating, because it can cause serious scalds.
- Do not put inflammable items into the machine.
- Do not wash dishware or containers stained with industrial fluid.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 5 of 23

Commercial dishwasher is:
□Ecomiser SU-01 208 – 230 V AC / 60 Hz / 1 PH
□Ecomiser SU-02 208 – 230 V AC / 60 Hz / 1 PH
BASIC FEATURES
Ecomiser SU-01 / SU-02 undercounter dishwashers introduce a state of the art patented
technology with standard features and benefits currently unavailable in the up-right door type
commercial dishwasher market. Adjustable rack capacity and low water consumption that not only
reduces operating costs for the end user, but also provides enhanced performance and cycle flexibility.
Other unique features include the patented Ecomiser heat exchanger and the advanced
programmable controller. This controller simplifies operation and service diagnostics. Equipped with
internal electric heaters and powerful rinse and wash pumps provides constant guaranteed
temperature and pressure for the wash and final rinse.
All of the above features enable us to minimize water and energy costs, while providing excellence in
performance.

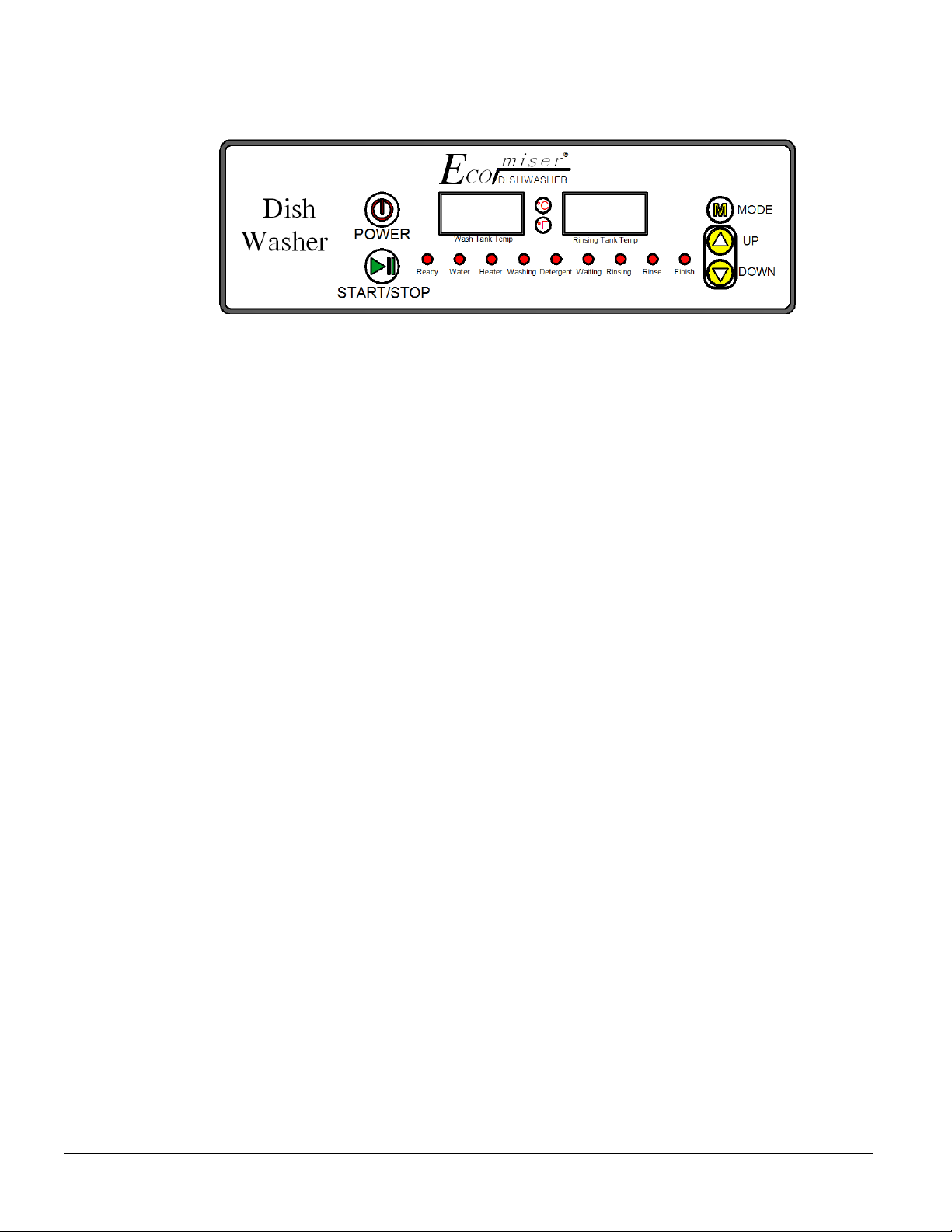

FEATURES OF the SU-01 / SU-02 Undercounter PROGRAMMABLE CONTROLLER
Microcomputer technology for service diagnostics and end user dishwasher settings
Microcomputer control panel allows easy selection of three different washing cycles to accommodate
different types of ware and levels of soiling. Adigital display permits easy monitoring of operation.
- Maximizing washing efficiency and provides a clean environment
- Guarantees proper wash and rinse temperatures
- Controls amount of detergent and rinse agent used
- Controls time of drain cycle
- Auto stop
STANDARD FEATURES
- Variable time cycles (25 - 207 seconds)
- Maximum capacity of 40 racks per hour.
- Automatic water fill, automatic start, and automatic stop.
- An internal rinse pump ensures that the final rinse pressure is constant and powerful.
- Automatic pumped drain.
- Stainless steel non-clogging wash and rinse impellers.
- Front mounted LED indicator with digital cycle and temperature displays.
- All 304L stainless steel construction for corrosion resistance.
- Field-convertible for use in either straight-through or corner applications.
- 3preset wash cycles See comment in brochure.
- Drain seals consist of special O-rings that withstand high temperatures.
- Equipped with easily removable, large capacity, one-piece strainer which minimizes frequent
removal and cleaning.
- A low-noise and large output 1 hp wash pump is installed for the Ecomiser models SU-01 / SU-02
for reliability and effective operation.
- Equipped with revolving, interchangeable upper and lower wash/rinse stainless steel impellers with
easily removable nozzles for cleaning and inspection.
- Automatic fill system is used which maintains the correct fill at variable water flow pressures.
- Door activated start.
- Self Service diagnostics.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 6 of 23

TECHNICAL SPECIFICATIONS
Ecospeclist04-Rev.06
Manufacturer – Dankor Industries
Ecomiser Model SU-01 SU-02
Optimum Machine
Rating (depending on
operating conditions)
Racks per Hour
40
Dishes per Hour
1,000
Glasses per Hour
1,200
Overall Dimension (W x D x H, inches)
23.6(600mm) / 25.4(647mm) / 34.2(870mm)
Water Consumption
Gallon per Rack
0.8 (3.0L)
Gallon per Hour
31.7 (120L)
Required Operating
Temperature (Room
Temp. 64°F/18°C)
Incoming Water
140°F (60°C)
59°F (15°C)
For Washing
122°F (50°C)
For Rinsing
180°F (82°C) - 198°F (92°C)
Water Tank Capacity
(US Gallon)
Washing Tank
6.4 (24.5L)
Rinsing Tank
3.7 (14.0L)
Electrical
Requirements
Specification
208-230/60/1PH
Nominal Amp’
220V / 17A
220V / 26.1A
Washing Motor
750W / 1PH
Rinsing Motor
90W
Electric Heater
1.5kw X 2
1.5kw x 2 + 2.0kw
Maximum Power
3.8kw
5.8 kw
Cycle Time
Adjustable/sec
25 - 207
3 Optional/sec
65/90/100
Weight
Machine (lbs)
209 (95kg)
231 (105kg)
Shipping (lbs)
229 (104kg)
251 (114kg)
All specifications are subject to change without notice based on Ecomiser’s dedicated product
improvement program.
ACCESSORIES
□Combination rack (1 flat, 2 pin racks)
□15mm (2.1”) water inlet hose / 5 feet (1.5 m)
□38mm (1 ½” OD) drain outlet hose / 4 feet (1.2m)
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 7 of 23

INSTALLATION INSTRUCTIONS
Read these instructions carefully and completely before you install the machine. The installation
should be carried out by a qualified technician who is familiar with all local codes and ordinances for
electrical and plumbing connections. If a commercial dishwasher is being installed in this area for the
first time, most of the cabinet work, plumbing, and electrical has to be done before moving the
machine into place. In the case of replacing an old dishwasher, check the plumbing and wiring
connections before moving the new dishwasher into place. Reasonable access to and around the
dishwasher for service must be provided
Installation Instruction
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 8 of 23

1. ELECTRICAL CONNECTIONS
Connect supply cable with a UL-listed strain relief bushing (if non-metallic cable is to be used).
A 208 - 230 volt, 60 Hz, 1 phase circuit is required for this machine. Despite the fact that the rating
plate shows 220 volts, the unit is designed to function properly on 208 volts to 230 volts.
1) Before working on wiring the machine, be sure the electrical power has been turned off at the
breaker/fuse box.
2) Electrical and grounding connections must comply with the applicable portions of the national
electrical code and/or other local electrical codes.
GROUNDING INSTRUCTIONS
This machine must be properly grounded Grounding instructions for a permanently connected
machine:
- This machine must be grounded to operate properly. It must be connected to a grounded metal,
permanent wiring system or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead of the machine. When
grounding the machine, connect the green line to the terminal provided.

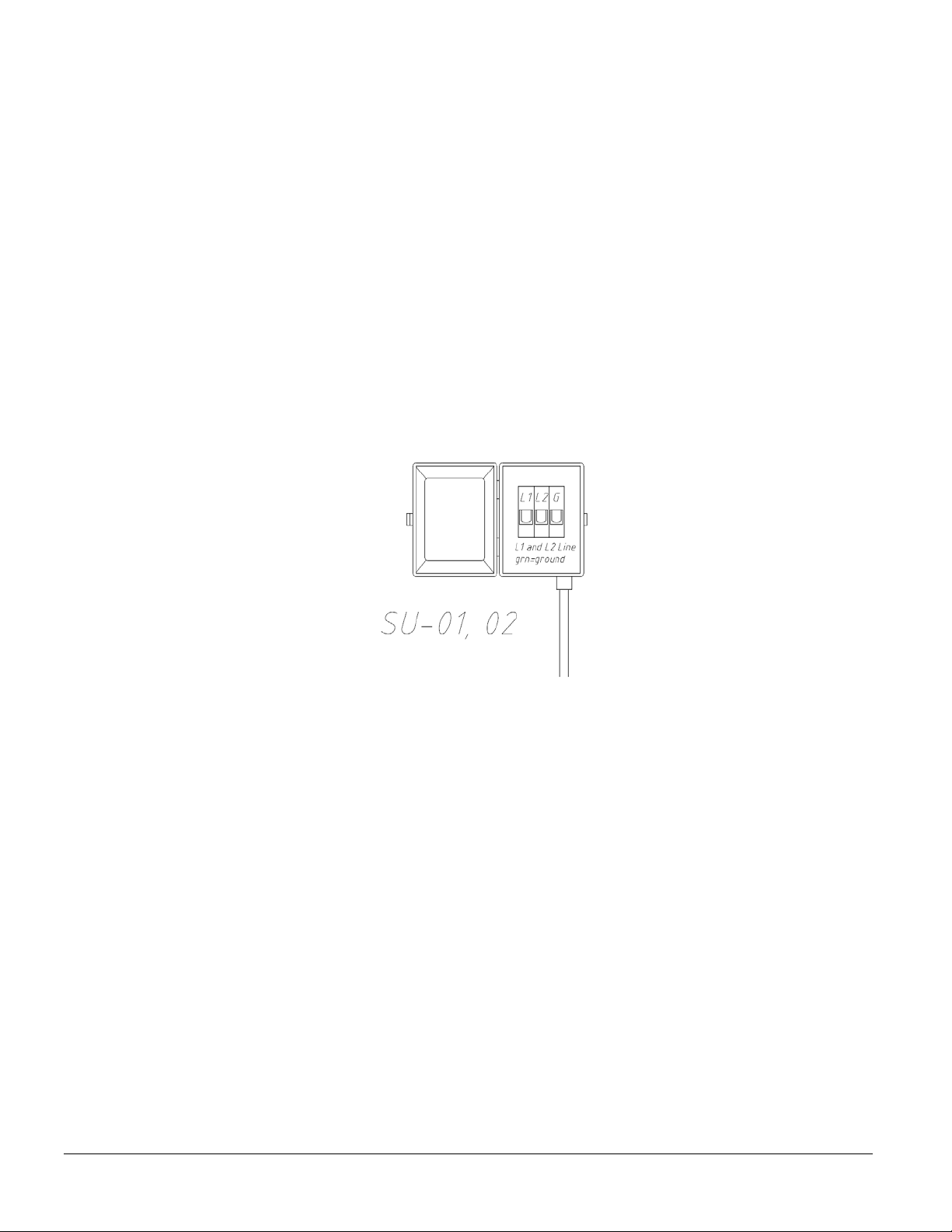

Figure 1-1 Main electrical supply connection
OVERVIEW OF INSTALLATION
The owner should contract with qualified personnel to move the appliance to the installation location,
unpack it, and prepare it for final utility connections. In most cases, local codes prevent the final utility
connections from being made by any party other than a licensed electrician and plumber.
NOTE
It is the responsibility of the owner to ensure that all aspects of the installation comply with all
applicable local and national codes.
NOTE
It is a good idea to inspect for any shipping damage before you proceed with the installation. If you
find any damage, you should report it to your dealer / freight company before accepting delivery.
2. WATER SUPPLY LINE CONNECTION
Before connecting the water supply hose, the line must be flushed clean of all debris, including (but
not limited to) pipe sealant, metal particles, solder, etc. This debris can damage to the machine.
- The water supply line could be connected to hot water or cold water and a shut-off valve should be
installed before connecting them.
- Water supply pressure should be under 40 psi and temperature should be kept at a minimum
140
℉
/60
℃
(SU-01) and 59
℉
/15
℃
(SU-02).Adjust water supply time to 1 gal per cycle, using the
water flow control valve inside the machine. Adjust so the fill indicating light stays on for 30 seconds.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 9 of 23

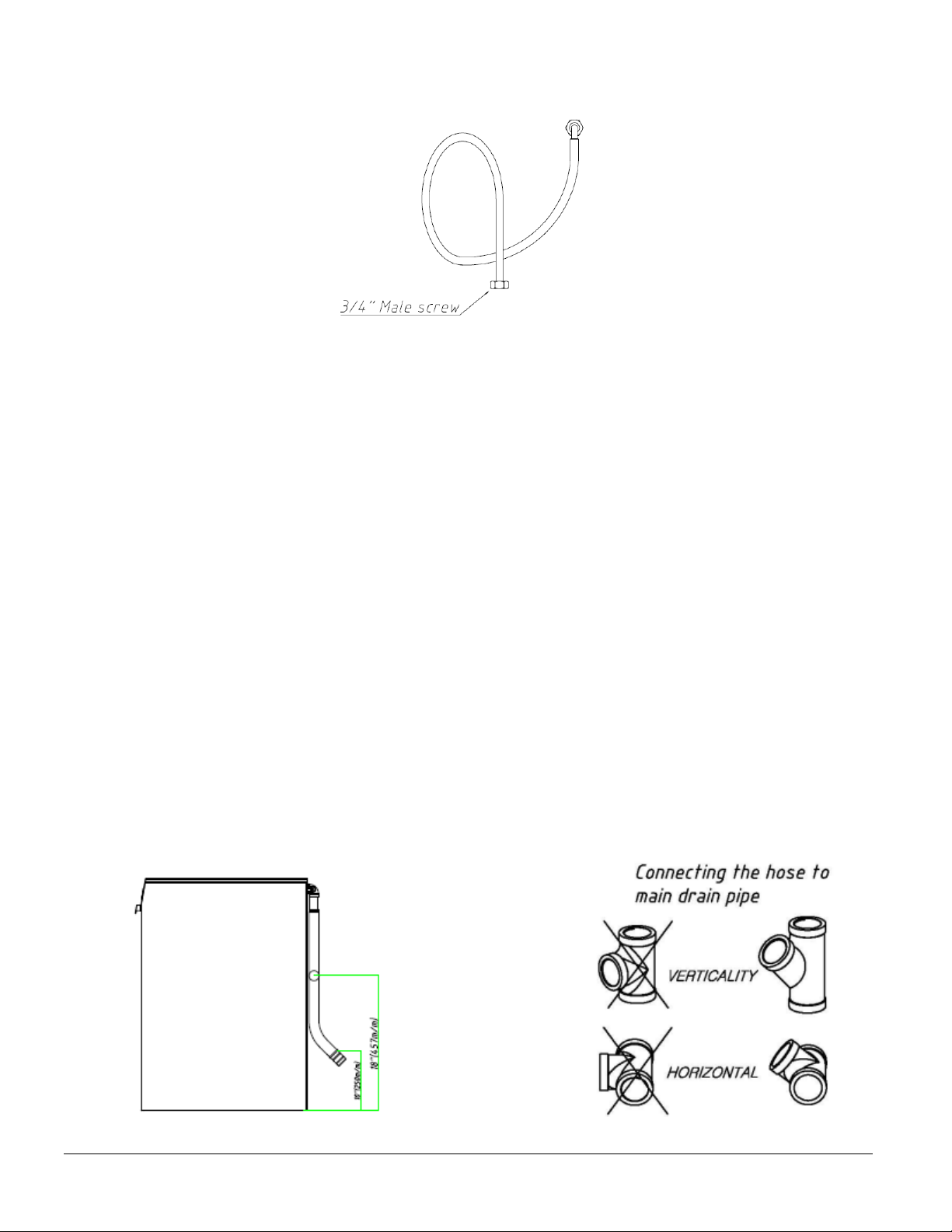

Figure 1-2 Fresh water connection
NOTE
In some cases, local codes dictate that water supply connections be made only by a certified
professional.
- Check that iron or other metal particles cannot contaminate the fresh water supplied to the machine.
- Check that the incoming water pressure is within the acceptable range for the machine (10 - 40 psi,
0.7 - 2.8 bars). It may be necessary to reduce the pressure.
- Check the incoming water temperature. Colder water will result in a longer preheat time (during
initial startup) and may extend the cycle time to allow the final rinse water to heat to minimum
180°F/82°C.
- Check the incoming water hardness. The Ecomiser SU-01 / SU-02 Models require a hardness of 4
grains per U.S. gallon or less. If over 4 grains the water should be treated.
- When connecting the customer-supplied water line to the fitting on the end hose supplied, pay
attention to prevent the hose from being twisted or broken.
3. DRAIN CONNECTIONS
- The Ecomiser SU-01 / SU-02 models contain a 1 1/2” (38mm OD) drain hose for end user’s
convenience.
- The Ecomiser SU-01 / SU-02 models are factory built with a drain pump. Recommended rough in
height is maximum 18” (457mm).
- Check that the end of the drain hose will empty into a drain with a minimum diameter of 1 1/2”
(38mm).
- Route the drain hose to the drain. In some cases a grease trap (supplied by others) must be fitted
into the wastewater line. If this trap is required for your installation, check that it is present.
Figure 1-3 Drain Connection
Max. Height 18”(457mm)
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 10 of 23

NOTE
- No portion of a wall drain system may be higher than 18” (457mm).
- No part of the drain hose should be higher than 20” (508mm) from the bottom of the dishwasher.
- Failure to provide the proper drain connection height (maximum of 20” (508mm))above the
bottom of the dishwasher base) will result in improper drainage.
- After connecting the drain hose to main drain line, make sure all connections are watertight
4. DISPENSING SYSTEM CONNECTION
The Ecomiser SU-01 / SU-02 models are designed for use with a liquid rinse aid and detergent. The
Ecomiser SU-01 / SU-02 models equipped with liquid internal detergent and rinse aid pumps each
have each tube exiting the machine at the lower rear. These tubes can simply be attached to detergent
and rinse aid containers.
- Commercial (not a domestic) detergent must be used.
- Locate the red liquid detergent and blue liquid rinse aid tube at the lower rear of the machine.
Connect the tubes to the detergent and rinse aid container.

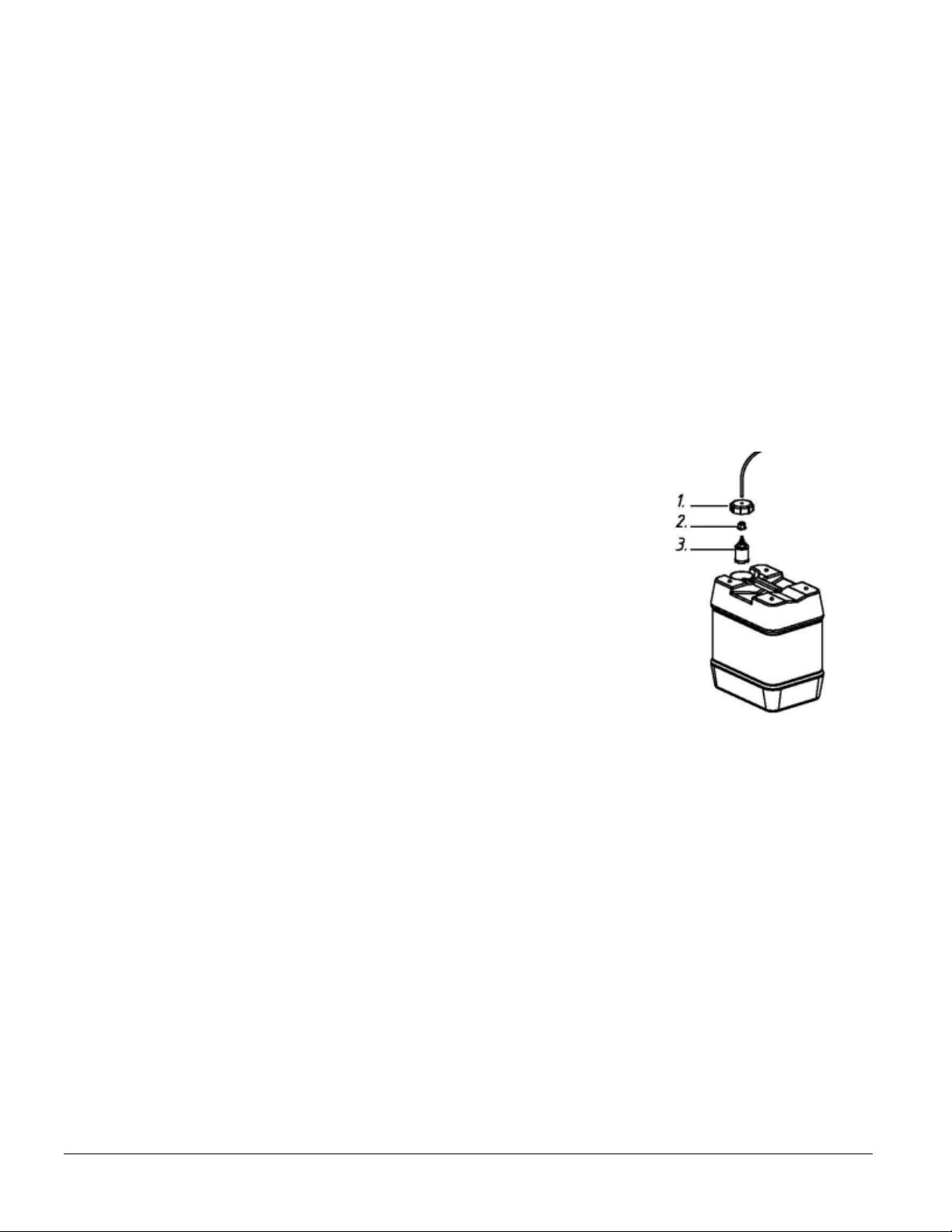

Figure 1-4 Liquid rinse & detergent injection
This figure shows you how tubes are to be connected to detergent /
rinse containers.
a) Make a hole about 3mm bigger than the tube diameter on the
container cap (No. 1)
b) Insert the tube through the container cap into the sinker cap (No. 2)
c) Tighten the sinker cap on to the sinker (No. 3)
d) Drop the sinker down to the bottom of the container to supply
chemical properly.
5. DETERGENT & RINSE AGENT SETTING
This mode will only work if the READY LED light is on.
1) Detergent - While the power is turned on, press MODE and UP button simultaneously to supply
detergent.
2) Rinse Agent – While the power is turned on, press MODE and DOWN button simultaneously to
supply rinse agent.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 11 of 23

IMPORTANT SAFETY INSTRUCTIONS
WARNING
Before using the machine, follow basic precautions including the following:
- Read all instructions before using dishwasher.
- Use dishwasher only as instructed in this manual.
- This manual does not cover every possible condition and situation that may occur. Use common
sense and caution when installing, operating and maintaining any appliance.
- Do not operate dishwasher unless all enclosures panels are in their proper place
NOTE
Before using the machine, read the manual and keep it in a convenient place for review.
- Open the water supply valve.
- Turn the power on after turning on the breaker
- Water will be filling in the tanks, but filling time of the water depends on the water supply pressure.
- When the tank is full and the water has been heated to the preset temperature, the READY LED
lamp on the front control panel will be on. The machine is now ready for operation. Cycle can be
started by either pushing START button or opening and closing the door.
OPERATION
1) Push power button or open and close door to turn on.
2) Remove and clean strainer basket as necessary. Remove any large food particles, scraps, sticks or
bones from the strainer basket. Lift out the strainer basket and clean it thoroughly using a brush
and warm water.
3) End of day push POWER button to turn off. The machine will automatically enter a self cleaning
cycle when it is turned off. The interior will be sprayed with hot, fresh water for 10 seconds.
NOTE
The daily cleaning is a general recommendation based on typical soiling. Because of large quantity of
food soiling on many dishes, pots and pans, at times it may be necessary to clean the machine more
often and more extensively. Extensive food soil deposits inside the machine work against optimal
performance. Some items may not be cleaned as effectively, resulting in the need for either a longer
cycle or repeat washing.
Machine Operation
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 12 of 23

CONTROL SYSTEM
1. Configuration of Display
2. Windows
2-1 Wash Tank Temperature
1) Displays the temperature of the wash tank, and RUN message.
2) Displays SETTING when MODE button is pressed.
2-2 Rinse Tank Temperature
1) Displays the temperature of the rinse tank, and NUMBER message.
2) Displays the temperature of the rinse tank during wash cycle.
3) Displays the menu for SETTING when MODE button is pressed.
4) Displays ERROR message.
5) Displays END message for 30 seconds after the cycle is completed. Message is cleared
as soon as the door is opened.
3. LED
3-1 Ready
Indicates that the cycle is fully ready. If the temperature requirement (Rinse Tank: 82
℃
or 180
℉
, Wash Tank 50
℃
or 122
℉
) is met, the message will be shown. When the READY LED is
not turned on, none of the buttons will work.
3-2 Tank Fill
1) Water will be supplied until both of the FLOAT switches are turned on in the rinse and
wash tank.
2) LED will be turned on while the water is being supplied.
3) During the wash cycle, even if the FLOAT switch is turned off, water will not be
replenished.
3-3 Heater
1) Will depend on the temperature settings.
2) When heater is working (FLOAT SWITCH ON/OFF status)
Process
Rinse Tank
Lower
Rinse Tank
Upper
Wash Tank Heater Operation
Step 1
OFF
OFF
OFF
OFF
Step 2
ON
OFF
OFF
ON
Step 3
ON
ON
OFF
ON
Normal
ON
ON
ON
ONOFF ON, Repeat
3) Depending on the temperature inside the lower and upper rinse tank, the switch will go
ON/OFF.
65
92
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 13 of 23

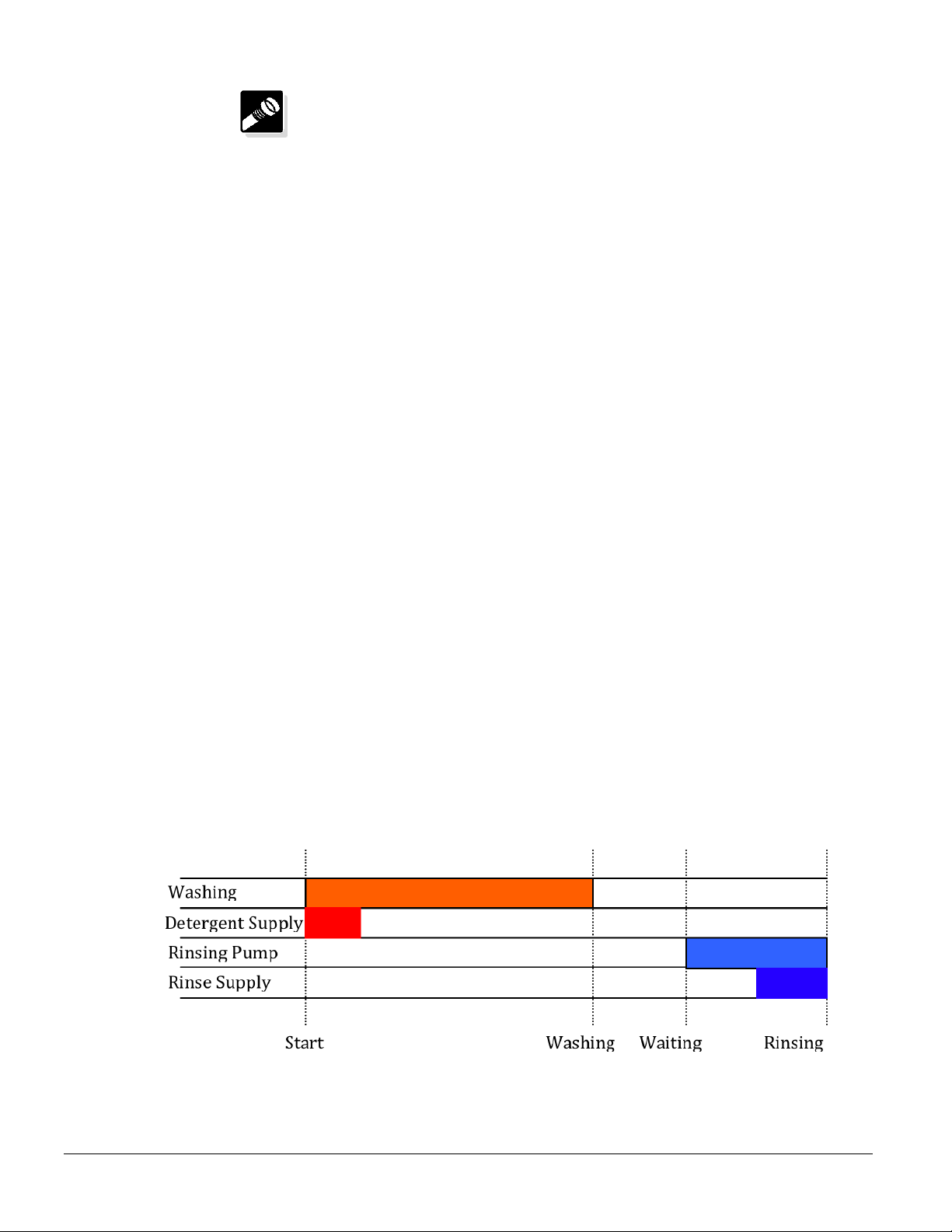

3-4 Cycle LED
Will display during cycle. (Washing, Detergent, Rising, Rinse Agent, Finish)
1) Washing
- If the door is opened then closed, wash cycle will begin within 2 seconds
- While the door is closed, press START/STOP button to initiate the wash cycle.
- While READY LED is turned off, machine will not operate.
- After each cycle is completed, it will move in sequence.
- If FLOAT SWITCH is turned off before the washing cycle begins, LED will not work.
2) Detergent
- At programmed time, detergent will be supplied.
3) Waiting
- After the wash cycle, machine will be put into waiting mode
- Machine will stop for previously set time
4) Rinsing
- Rinse cycle is in operation.
- After programmed time, rinse cycle will end.
5) Rinse Agent
- At programmed time, rinse agent will be supplied.
6) Finish
- When the rinse cycle is finished, the WHOLE CYCLE is finished.
- FINISH LED will light up.
- End message will appear.
- After the end buzzer sounds (3 Times), for 30 seconds on the DISPLAY, the END
message will appear
- After 30 seconds machine will reset to the beginning
3-5 Temperature Display –
℃
or
℉
(Celsius or Fahrenheit)
4. Power
4-1 POWER Button
1) Turns the power ON.
2) While the power is turned OFF, everything is stopped.
3) While ERROR message is displayed, press the power button to clear the message.
4-2 START/STOP Button
1) Button is used to start and/or stop the whole cycle.
2) If cycle is interrupted by opening the door, the message PAU will be displayed.
Immediately press the START/STOP button to cancel message when the door is closed.
3) START/STOP button will stop any ongoing cycle.
4) START/STOP button will manually stop the DRAIN CYCLE after the power is turned off.
4-3 START/STOP Button
(Press and hold the button for 7 seconds to initiate MODE) If there is no activity for more than
3 seconds, you will exit the MODE function.
1) Press MODE button 1 time Configure WASH cycle duration
2) Press MODE button 2 times Configure DETERGENT cycle duration
3) Press MODE button 3 times Configure WAIT MODE
4) Press MODE button 4 times Configure RINSE cycle duration
5) Press MODE button 5 times Configure RINSEAGENT cycle duration
6) Press MODE button 6 times Configure HIGH temperature
7) Press MODE button 7 times Configure LOW temperature
8) Press MODE button 8 times Configure BUZZER on/off setting
9) Press MODE button 9 times Switches temperature display between
℃
&
℉
10)Press MODE button 10 times Displays DRAIN cycle duration (DIP Switch UC only)
11)Press MODE button 11 times Displays Model Number
12)Press MODE button 12 times Returns to beginning
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 14 of 23

4-4 UP/DOWN Buttons
1) Within each mode, it will display time, temperature and selections
2) UP/DOWN buttons will increase or decrease certain variables.
3) When the system is not set in MODE, UP/DOWN buttons will display time remaining in
cycle.
4) When the machine is not running, UP/DOWN button will display wash time duration
(90/120/150 seconds).
4-5 TEMPERATURE LOCK/UNLOCK
While the power is turned OFF, press DOWN + UP + START/STOP button simultaneously for
3 seconds to initiate PCB LINE TEST MODE. Lock/Unlock temperature restriction of 82ºC for
rinse tank, and 50ºC for wash tank
5. Power Breaker ON
1) Provides power source to the machine. (Breaker ON)
2) On initial installation startup, when power is provided by the breakers, the machine will make
an initial long buzzer sound.
6. Operation
POWER button will initiate water supply, and as the water level reaches different levels, heaters
will be initiated. The machine will start the initiation stage where water temperature will be heated
up until it reaches the pre-set temperature.
6-1 Initiation Stage
1) If the water temperature in the rinse tank reaches 92ºC (198ºF) and wash tank reaches
55ºC (131ºF), initiation stage is completed. The READY lamp will be turned on.
2) Not meeting the initiation stage requirement:
If the temperature in the upper level rinse tank reaches 92ºC (198ºF), rinse cycle will
initiate once, and if the temperature is below that of 92ºC (198ºF), the machine will not
initiate until this temperature is reached.
6-2 During Initiation Stage
1) Washing, Rinsing, Detergent: 10 seconds
2) Washing: 80 seconds
3) Rinsing: 10 seconds
4) If the door is opened during initiation stage, it will cancel the cycle.
5) Press POWER button to stop the initiation stage.
6) If initiation stage is cancelled, [RUN]/[00],[00]/[00] message will appear in 2 second
intervals.
For example:
[run / 100]: Cycle time: 100 seconds
[65 / 90]: Wash tank temperature: 65ºC, Rinse tank temperature: 90ºC
6-3 POWER OFF
1) Water will start to drain out.
- Drain pump: 90 seconds
- Rinse pump (cleaning process): 10 seconds
- Wait: 10 seconds
- Drain pump re-initiation: ON (30 seconds) OFF (5 seconds) ON (5 seconds) 
OFF (5 seconds) ON (5 seconds)
2) Press START/STOP button during water drain stage to stop the cycle and the machine
completely.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 15 of 23

7. ERROR MESSAGE
1) ER1: Wash temperature sensor If OPEN or SHORT, temperature is above 100ºC
(230ºF)
2) ER2: Upper rinse tank temperature sensor if OPEN or SHORT, temperature is above
110ºC (230ºF)
3) Er3: Lower rinse tank temperature sensor if OPEN OR SHORT, temperature is above
110ºC (230º)
4) EF1: Water supply ERROR, problem with rinse tank FLOAT SWITCH, displays if there is
no signal from the FLOAT SWITCH after 15 minutes of water supply.
5) EF2: Water supply ERROR, problem with rinse tank FLOAT SWITCH, if there is no water
supply to the tank for more than 40 minutes.
6) Ed1: Upper OVER FLOAT SWITCH ERROR, if upper OVER FLOAT SWITCH is turned
on.
7) Miscellaneous:
7-1) if there is any type of ERROR, machine will completely stop.
7-2 ERROR buzzer will sound 5 consecutive times.
7-3) POWER button or START/STOP button will clear the ERROR status, but unless
the ERROR is fixed, ERROR message will continue to display
8. SETTING DATA
1) When the machine is turned off, all pre-set data will be saved.
2) Pre-set data consists of wash time / detergent time / wait time / rinse time / rinse agent
time, temperature setting, buzzer sound, temperature unit, and model number.
EF1
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 16 of 23

Pictures below show loading racks from left to right, but racks can be loaded from any
direction:
First prepare the rack loaded with dishes
then open the door
Gently push the rack to the inside guide of
the machine
Close the door then the machine starts after
3seconds
When alarm sound begins, open the door
and take out the rack
Don not forget that the bowls, spoons, etc., are
not to be stacked closely, so as not to affect
washing and drying performance.
Do not let little objects like spoons, forks, chop-
sticks or knives stick out of the gaps between
racks. It could deteriorate the performance of the
machine and could damage it.
Organize trays and plates on their side.
Organize in a way so the large dishes are on the
outside, and the small dishes are inside of the
rack. It will increase the machine’s performance.
When dishware is well organized, better
performance in productivity can be achieved per
rack.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 17 of 23

The interior of the Ecomiser SU-01 / SU-02 models are made of quality stainless steel that has been
electro polished to produce the smoothest surface available. The smooth surface prohibits the
accumulation of dirt and bacteria inside the unit. If the water in your area is especially hard, however,
lime deposits could form inside the machine. If this happens, you can remove them by putting 1000cc
of scale removal product in the wash tank and running a normal wash cycle 10 times. In extremely
hard water areas you may need to repeat this process a few times to remove hard water deposits.
CLEANING THE STRAINER BASKET
For your convenience, we have placed the strainer within easy reach inside the tub. To clean the
strainer, wash it gently in hot, soapy water and rinse it thoroughly 1 to 2 times every day.
CLEANING THE DOOR
To clean the edge around the door, use only a soft warm, damp rag. To prevent penetration of water
into the electrical components, do not use a spray cleaner of any kind.
WARNING
Never use a spray cleaner of any kind on the control panel. You could damage the electrical
components. Never use abrasive cleaners or scouring pads on the outer surfaces because they will
scratch the finish. Also, some paper towels can scratch or leave marks on the stainless steel surface.
CLEANING THE IMPELLERS
Impellers may sometimes become clogged with hard water deposits. To remove them, grip the center
of impeller and wash it all over with soft rags. After removing all of the impellers, check to ensure
impellers revolve easily.
DE-LIMING
Lime scale deposits will occur over time on the interior of the machine if it is operated using a hard
water supply. The Ecomiser SU-01 / SU-02 models require that a de-liming or de-scaling process be
used to remove these deposits, as well as any accumulated food residue. When de-liming the interior
area, be sure to follow these guidelines.
- Use de-liming agents designed for use with commercial dishwashers.
- Follow the instructions for the de-liming agent that is used.
NOTE
After the de-liming process:
- Run the machine through 2-3 regular cycles and sanitize the interior thoroughly.
- Inspect the interior for any remaining de-liming agent residue. If residue is present, remove it using a
soft cloth and hot water; then, run the machine through one final cycle.
- Press the POWER OFF button. This will empty the tank, ensuring that any de-liming agent still in the
tank will be flushed out of the machine.
- Ensure that all residue of the de-liming agent is removed. Residue from the agent can pose a health
hazard and damage seals and plastic components inside the machine.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 18 of 23

As with any new machine, it sometimes takes using it a few times to learn to operate it properly. If you
are having minor performance problems with your dishwasher, read this section before calling for
service. It may save you time and unnecessary expense.
POOR WASHING PERFORMANCE
- The dishes may not be loaded properly. Make sure that soiled surfaces are facing downward or
toward the center of the dishwasher. Also, make sure that the bowls, pots, etc., are not stacked so
closely that water can’t reach the soiled surfaces.
- Make sure you are using the appropriate program settings for the dirtiness of the dishware.
- An item may be obstructing the rotation of the impeller. With the rack loaded and in place, manually
turn impellers to ensure free movement.
- Dishwasher detergent should be fresh and stored tightly closed in a cool, dry place. Old or caked
detergent will not dissolve properly.
- Dishwasher detergent may be inferior. Try a different brand.
- If you have hard water in your area, try adding more detergent and increasing the amount of rinse
aid dispensed. Water hardness must be controlled to 4-6 grains for best results.
- Check that the impeller jets are not clogged.
POOR DRYING PERFORMANCE
- Make sure the rinse aid is enough.
- Do not overload the dishes and be careful to avoid nesting.
- Load items with concave bottoms tilted so as much water as possible will run off.
- Dishes washed in higher water temperatures will dry faster.
- Certain plastics may need to be towel dried. Always check the manufacturer’s suggested care
instructions before washing plastic in your dishwasher. Even dishwasher-safe items should be
loaded in the rack, away from the heating element.
- Check the amount of rinse aid is proper that it is fresh.
WASHING ITEMS
Ecomiser has no control over what is put in dishwasher once installed in a user’s place. You are
solely responsible for what you wash in your Ecomiser SU-01 / SU-02 models dishwasher. Most
common dishware items can be safely washed in an automatic commercial dishwasher. If you have
any doubts about a particular item, check with the manufacturer to see if it is dishwasher safe.
- Some high-acid foods can discolor plastic. You should rinse these items.
- When you load the dishware, be sure dishware is securely in place and will not fall over or strike
against each other during the wash.
- Load glasses between the tines, not straddling them.
- Move the rack in and out slowly to avoid slamming the dishware together.
- Make sure not to load dishware so high that the upper impeller could strike them.
- Do not overload the dishwasher.
STAINS AND DISCOLORATIONS
Stains or discoloration on dishware could be caused by a number of things:
- Too much iron or manganese in the water can cause yellow or brown marks on your dishware. You
should consider installing a water filtering system.
- Coffee and tea stains usually have to be removed by hand washing. Be sure to rinse these items
thoroughly before putting them in the machine so there is no bleach residue on the dishware.
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 19 of 23

If you should experience a problem with your dishwasher, you should review the following list of
frequently encountered situations. Even though the product is under warranty, if the problem is not
caused by defective product workmanship or materials, you will be charged for a service call. If you’re
still not sure, contact Ecomiser regional agent before you call a service technician.
THINGS TO CONSIDER
- Always use fresh detergent.
- The amount of detergent needed for dishware depends on the hardness of the water in your area.
Contact your local utility company to learn the water hardness in your area.
- Make sure the machine is level.
- The length of the dishwasher cycle may run longer if the temperature of the water entering the
machine is below 140
℉
/60
℃
(SU-01) and 59
℉
/15
℃
(SU-02). The machine runs longer because it
heats the water to the proper temperature by the pre-set program.
DRAIN
- Make sure that the cycle is complete before you open the dishwasher. If not, allow it to complete and
check again.
- Check the drain area for blockage.
- Check for a kink in the drain hose.
WATER FILL
- Make sure the water supply is turned on.
- Make sure the dishwasher is turned on and the door is closed securely.
- Check for crimps in the water feed line.
- Make sure the water inlet valve is not clogged.
DOES NOT START
- Make sure the dishwasher is turned on and the door is closed securely.
- Check that the water supply is connected properly and the water is turned on.
- Make sure the power cord is properly connected into the power supply box.
- Check your fuse box for a blown fuse or tripped circuit breaker.
CHECKLIST
Nonconformity
Check
Corrective Action
Is the power not
coming on?
Check breaker.
Did you press the power button?
Turn the breaker on
Press the power button
No water supply
Is the water supply valve open?
Turn the water supply valve on
Makes a lot of
noise?
Is the machine level to the ground?
Is the spray arm touching the plates?
Install the machine parallel to the ground
Do not let the nozzle touch the machine
No drain? Is the drain hose bent?
Is the drain higher than the water level?
Make sure the hose isn’t bent
Make sure the drain is installed at the bottom
level
Poor washing?
Are the impellers clogged?
Are the impellers not rotating?
Is the dishware too close together?
Are you out of detergent?
Are dried food bits stuck to the
dishware?
Clean up impeller nozzles
Do not load dishware too high
Do not load dishware too close
Refill the detergent
Rinse off the dried food bits before putting
into the machine
Poor rinsing?
Are there stains on the dishware
Is the dishware slippery?
Poor drying performance?
Check the temperature
Check the amount of rinse detergent
Check the temperature
Too much foaming?
Did you use the proper detergent?
Is the wash temperature too low?
Use the proper detergent for the machine
After confirming the water supply line, check
the temperature
Ecomiser SU-01 / SU-02 Manual – Rev. 06 Page 20 of 23
