Asko D5883 User manual
ASKO D5883(Duo)
Operating Instructions
Dishwasher
Save these instructions for future reference
Dear ASKO customer!
Thank you for choosing this quality product from Scandinavia, which was made in Sweden.
We want you to feel assured that the inside of your new machine is just as good as the outside and that the
ethics and standards that went into the production of this machine are just as high as the quality and perfor-
mance that you will receive from it. We hope that this product will give you many years of pleasure.
To ensure that you get the most out of your new machine, we recommend that you read the operating instruc-
tions before using the machine. The operating instructions also contain information on how to avoid damaging
the environment.
2
Customer Care Center
1-800-898-1879
www.askousa.com
Contents
Important safety instructions 4
Child safety 5
Parts of the dishwasher 6
Technical data 6
Baskets 7
Control panel 8
Detergent Dispenser 8
Basic Course 9
Programs 12
Options 15
Specialsettings 17
Eco-dishwashing 18
Fragile dishes 19
Display 20
Cleaning 21
Rinse aid 24
Fault indications 25
Troubleshooting 26
Performance information 29
3
Customer Care Center
1-800-898-1879
www.askousa.com
Read through the directions for use
Read through the directions for use before
starting to use your machine, especially the
Safety, Child Safety, and Basic Course sec-
tions.
Take care with certain materials
Read the Fragile Dishes section before
washing china with unglazed decoration
or other household goods made of plastic,
wood, or crystal requiring careful treatment.
Check the
Check that the door of the dishwasher ts
properly: open the door a little and let it go.
Does it stay exactly where you released it? If
not, you should check the installation in-
structions or consult the installer.
OBS!
The machine can only be adjusted when the
door is open!
Note!
Do you need this Use&Care Guide in spanish? Log onto www.askousa.com/customercare
to download.
¿ Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/
customercare y descárguesela.
4
Customer Care Center
1-800-898-1879
www.askousa.com
Important safety instructions
This manual does not cover all possible
conditions and situations that may occur.
Common sense and caution should always
be used when installing, operating, and
maintaining any appliance.
• Read all instructions before using the dish-
washer.
• Dishwashers must be electrically groun-
ded. Read the Installation Instructions for
details.
• Use the dishwasher only for its intended
purpose.
• Do not run the dishwasher while you are
out of the home.
• Use only automatic dishwasher detergents
and rinse agents.
• To reduce the risk of injury, keep deter-
gents and rinse aids out of the reach of
children.
• Do not load sharp items near the door; you
could damage the door seal.
• Place sharp knives in the cutlery basket
with the sharp ends down to avoid the risk
of cut-type injuries.
• Do not wash plastic items unless they are
marked “dishwasher safe” or the equi-
valent. For items not marked, check the
manufacturer’s recommendations. Items
not dishwasher safe could become de-
formed or melt and create a potential re
hazard.
• Do not touch the heating element during or
imediately after use.
• Do not operate the dishwasher unless all
enclosure panels are properly in place
(i.e., guard plate, access panel, toe kick,
etc.)
• Do not tamper with controls by removing or
changing.
• Do not abuse, sit on, or stand on the dish-
washer door or baskets.
To reduce the risk of injury, do not allow
children to play in or on a dishwasher.
• Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been used
for two weeks, before using the dishwasher
turn on all hot water faucets and let the wa-
ter ow from each for several minutes. This
will release any accumulated hydrogen
gas. As the gas is ammable, do not smo-
ke or use an open ame during this time.
• When removing an old dishwasher from
service or discarding it, remove the door to
the washing compartment.
• Do not store or use combustible materials,
gasoline, or other ammable vapors and
liquids in the vicinity of this or any other
appliance.
• Disconnect electrical power to dishwasher
before servicing.
• Repairs should be done by a qualied
technician.
5
Customer Care Center
1-800-898-1879
www.askousa.com
Child safety!
Child safety tips
Dishwasher detergents and rinse aids are
corrosive, so always keep them out of reach
of children.
• Should a child swallow dishwasher deter-
gent or rinse aid, give plenty to drink im-
mediately, i.e., one or two glasses of milk or
water. Do not try to induce vomiting. Seek
medical advice immediately: Call the Nation-
al Capital Poison Center at 1-800-222-1222
• Always close the door and start the dish-
washer as soon as you put in the detergent.
• Always keep small children away from
the machine when it is open. There may
be some detergent residue left inside the
machine.
• If dishwasher detergent gets in someone’s
eyes, rinse them with plenty of water for at
least 15 minutes. Seek medical advice.
• Do not allow children to use or play in or
on the dishwasher.
• Load all long and sharp items in the knife/
utensil basket. If this is not possible, load
sharp objects with the pointed end facing
the back of the dishwasher. Sharp items
loaded in the cutlery basket should be
loaded with pointed ends down.
• Engage the child safety lock.
6
Customer Care Center
1-800-898-1879
www.askousa.com
Parts of the dishwasher*
Technical data
Height 34-3/8” - 36-1/2” 870-920mm
Width 24” (610)mm
Depth 24” (610mm)
Weight 105.8 lbs (48 kg)
Water pressure 4.2 - 140 psi
0.03 - 1.0 MPa
0.3-10 Bar
Connection Single phase, 120 V, 60 Hz, 10 A
Max output 1300 W
1. Upper basket
2. Spray arms
3. Lamp
4. Cutlery basket
5. Lower basket
6. Dishwasher detergent compartment
7. Main switch
8. Rinse Aid Compartment
9. Filter
10. Type plate
*Details may dier depending on the model
and market!
1
3
2
4
5
6
8
9
7
3
10
7
Customer Care Center
1-800-898-1879
www.askousa.com

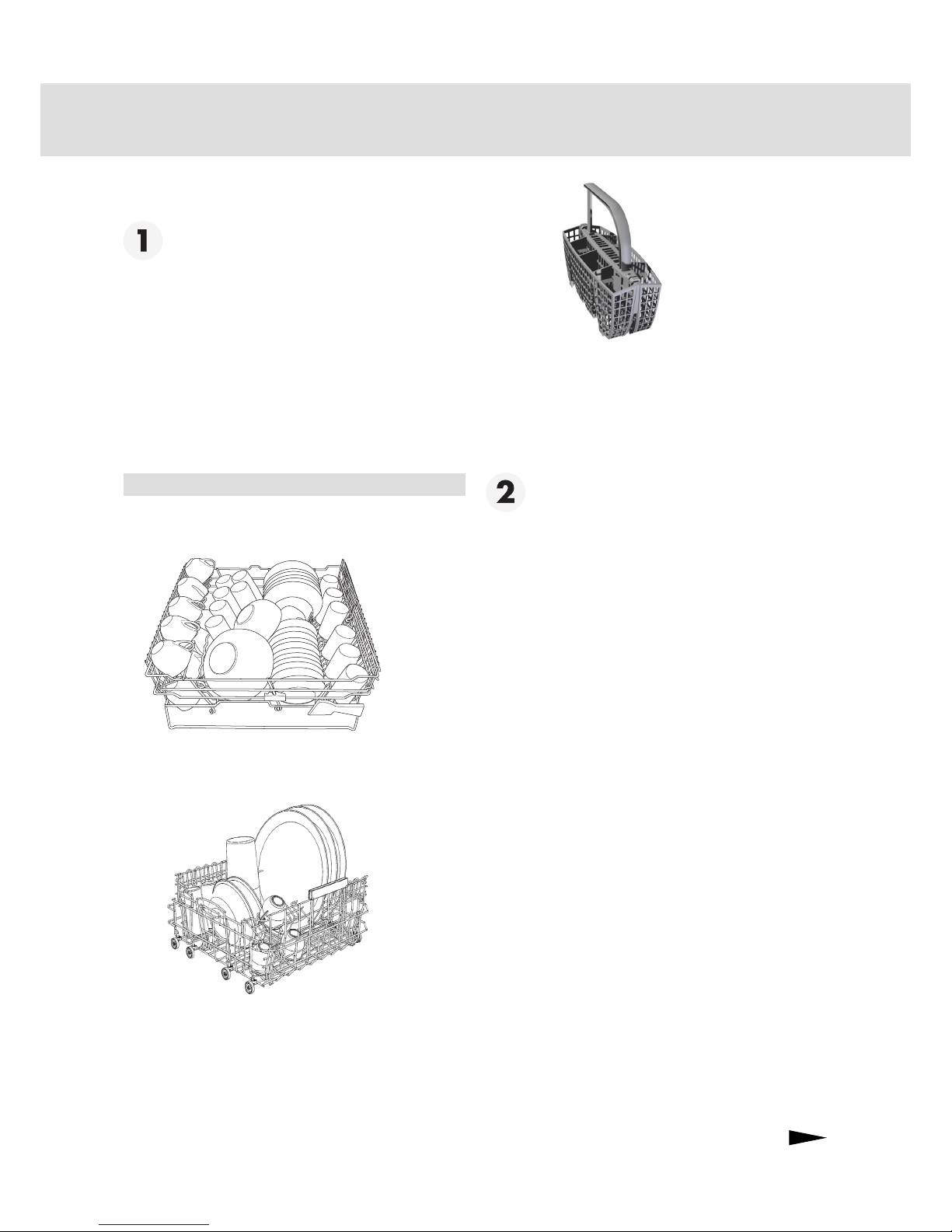

The baskets*
1. Wine glass shelf
2. Knife stop
3. Upper spray arm
4. Runner for adjusting basket height
5. Catch
Raising/lowering the upper basket
• Pull out the upper basket.
• Pull out the catches (5) on either side of
the upper basket and lift or raise the upper
basket at the same time.
• Release the catches once the basket is in
the desired position.
Cutlery basket
*Details may dier depending on the
model and market!
Lower basket
Upper basket
1
2
3
4
5
1
Complete basket with
handle
Small basket
8
Customer Care Center
1-800-898-1879
www.askousa.com

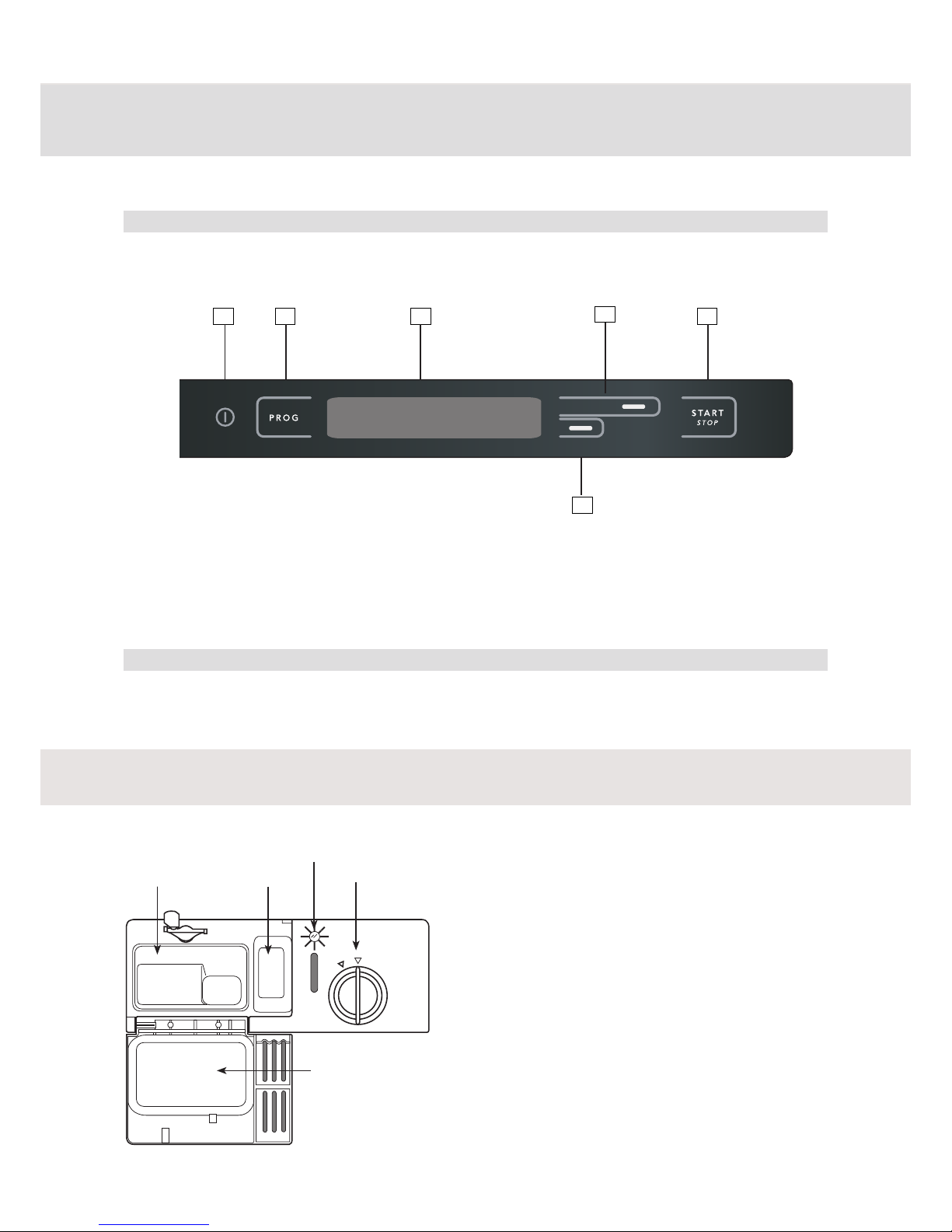

Control panel
Detergent Dispenser
1. Compartment for main wash dishwasher
detergent
2. Compartment for pre-wash detergent
3. Rell indicator for rinse aid (not all models)
4. Rinse aid cover
5. Detergent compartment cover
4
3
2
5
1
1235
4
4
The panel has touch buttons with optional sounds to conrm selections.
Important!
The touch buttons must be kept clean and free from grease. Use only a dry or slightly damp
cloth and never cleaning uid as this can cause scratches.
1. Main switch
2. Program selector
3. Display window
4. Navigations buttons
5. Start/stop
Important!
Wait a moment before pressing the touch buttons after opening the door.
9
Customer Care Center
1-800-898-1879
www.askousa.com
Basic Course
Below are step-by-step instructions to help you
achieve the best possible dishwashing results.
Load the baskets correctly!
Thanks to Self Cleaning System, you
do not need to rinse the dishes under run-
ning water. Simply remove large food parti-
cles and debris. Convenient and environmen-
tally-friendly!
Place glasses, cups, bowls, side plates, and
saucers in the upper basket.Wine glasses
should be hung from or leaned against the
wine glass shelf.
Note!
Ensure that all soiled surfaces face inwards
or downwards!
Place dinner plates, side plates, serving
dishes, saucepans in the lower basket.
Stand the cutlery with handles downward
and as spread out as possible. Ensure that
spoons are not resting inside each other.
Do not put cutlery made of dierent materi-
als - such as silver and stainless steel - in
the same compartment (risk of stains).
Check that the spray arms are able to
move freely. See the section entitled Fragile
Dishes if you want to wash objects that may
be fragile.
Dishwashing detergent
We recommend that you use
only unscented, granular automatic dish-
washing detergent. Using the wrong deter-
gent could cause ooding and/or damage
your dishwasher. Do not use detergent that
has been wet and is clumped. Also, check
the expiration date on the container.
The amount of detergent needed can vary
due to dierences in water hardness. To
determine the water hardness in your area,
contact your local water utility or area water
softening company. The harder the water,
the more detergent you may need. Refer to
the chart below for the recommended de-
tergent amounts based on water hardness.
Remember, you should adjust the amount
of detergent you use by small amounts
until you nd the correct amount.
Twelve grains and higher is extremely
hard water and detergent alone may not
be enough.You may need to use a water
softener to maximize the performance of
your dishwasher. Also, in areas with hard
water (9+) you may need to wash at lower
temperatures to prevent hard water depos-
its from forming in tank and wash system.
In hard water areas, both the dishes and
the machine can develop a white or gray
lm after a while.
10
Customer Care Center
1-800-898-1879
www.askousa.com
Switch on the main switch
Select program
For select program see part
Programs.
Select option
If you wish to use additional options
continue to part Option. Otherwise you
can now start the machine, see point 6.
This can be removed by replacing the pre-
wash detergent with two tablespoons of cit-
ric acid. If the water is very hard, use a rinse
aid that contains citric acid.
Dierent brands of dishwasher detergent
have dierent amounts of phosphorous for
softening water. If you have hard water and
use a detergent with less than 8.7% phos-
phorous content, you may need to use more
detergent or use a detergent with more than
8.7% phosphorous content.
We recommend that you do not add pre-
wash detergent for the Quick wash pro-
grams.
Dishwasher tablets
Halve the tablet if it is dicult to close the
dispenser cover. There is a risk that the
dishwasher detergent will not break down
properly to give the correct dosage if the
cover is tight and cannot be opened cor-
rectly.
Note!
If you use a dishwashing detergent with a
rinse aid additive, you may not need to ll
the rinse aid dispenser.
Read the directions for use for such products
carefully. If anything is unclear, contact the
detergent manufacturer.
Water hardness Detergent amounts
Soft
(0-3 grains per gallon)
Prewash 1 teaspoon
Main wash 1 to 1-1/2 tablespoons
Medium
(4-8 grains per gallon)
Prewash 1 teaspoon
Main wash 1 to 2 tablespoons
hard
(9+ grains*)
Prewash 1 teaspoon
Main wash 2 to 3 tablespoons
* 12 grains and higher is extremely hard water.
Recommended detergent amounts based on water hardness
11
Customer Care Center
1-800-898-1879
www.askousa.com
Press start
The dishwasher will now start. It man-
ages the entire wash automatically.
Ensure that the door is properly closed or
the machine will not start.
The display shows ‘Program started’. If the
door is open or not properly closed, ‘Close
door’ appers in the display.
Changing program
If you want to change program after having
started the machine, press the Start/Stop
button for three seconds.Then select a new
program and press the Start/Stop button.
Make sure there is detergent in the dispens-
er.
Do you want to load more dishes?
Carefully open the door; the machine will
stops automatically, put in the dishes, close
the door and the dishwasher will continue
from where it left o.
main switch
(or in the event of a power cut) before the
washing program has been completed, the
interrupted program will continue when the
power comes back on.
Note!
If the power is switched o, or if the door
is open during drying, the program is inter-
rupted.
7
After dishwashing
Once the machine has nished, it only
draws standby current. Turn o the water
faucet if the machine is not to be used for an
extended period, such as during vacations,
for example.
12
Customer Care Center
1-800-898-1879
www.askousa.com

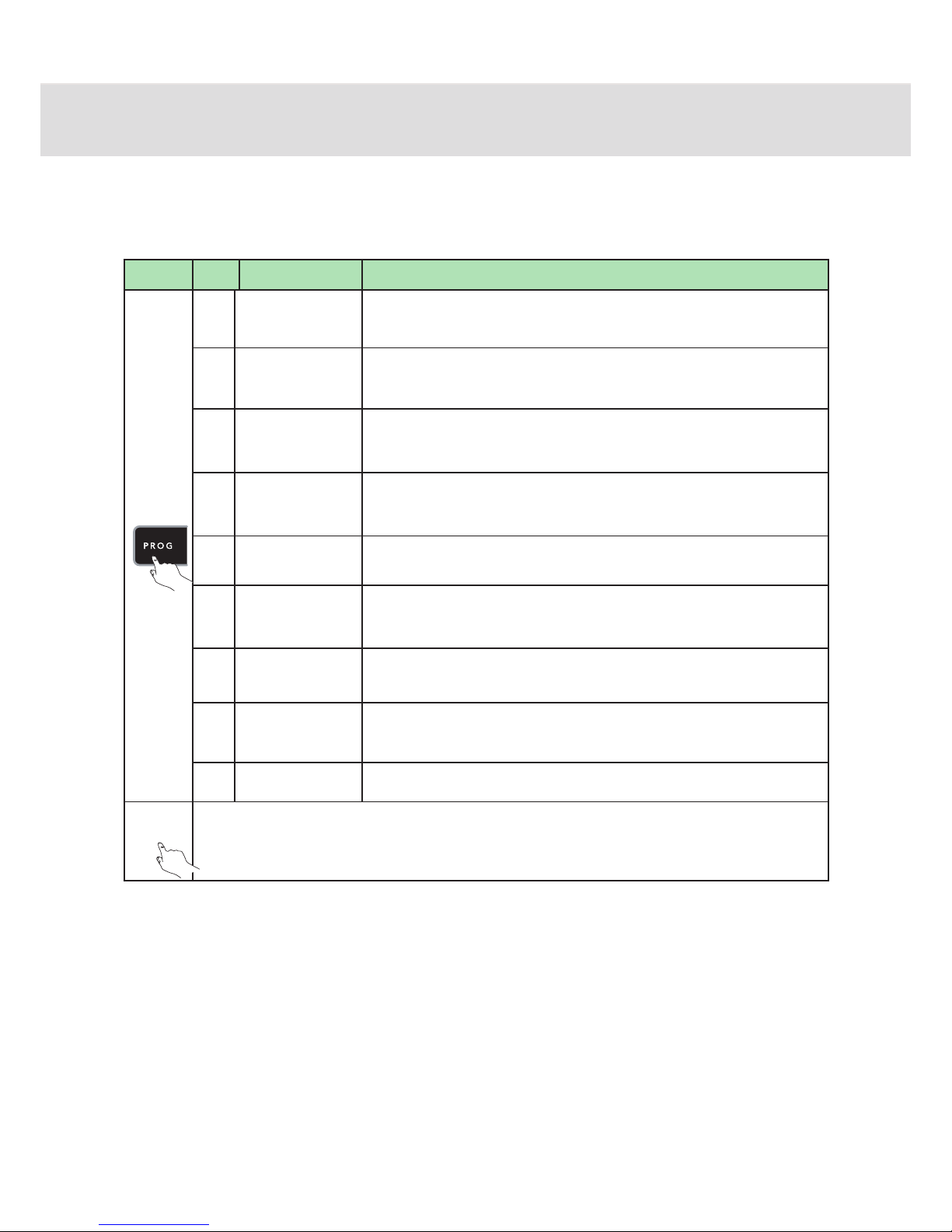

Programs
Press Pos. LCD Comments/instructions
1 Daily A program suitable for daily dishes.
The program can also deal with dried food, though the short prewashes are not
designed for burnt food.
2 Time From lightly soiled loads to heavily soiled loads, depending on selected time.
Longer time gives heavier wash.
3 Heavy The Heavy Wash program should be used for heavily soiled dishes, e.g.
saucepans, pots and gratin dishes. If there is still space in the machine after
loading such items, you can add plates etc.
4 Normal Used for washing normally soiled dishes such as plates, serving dishes, cups
and glasses, etc.
5 Pots and Pans For the heaviest soiled loads, such as casseroles, sauce pans, etc.
6 Delicate If the dishes are not heavily soiled, you can select Delicate wash. This program
is intended for glass and china which has just been used and therefore does
not need such a powerful program.
7 Quick Select Quick Wash if the dishes are very lightly soiled. This program is used for
very lightly soiled glass and china, e.g. coee cups.
8 Rinse and dry The Rinse & Dry programme comprises a rinse with heat and drying.It is a suitable
programme if you for exemple are planning to make jam and want to rinse and
warm previously washed glass jars.
9 Rinse and hold For rinsing the dishes while waiting for the machine to be lled.
START
STOP
If you wish to use additional options, continue to Selecting options. Oterwise you can now start the
machine.
Select program
Select a program by pressing the program selector one or more times until the required
program text lights up.
13
Customer Care Center
1-800-898-1879
www.askousa.com
Program Description
Programview
Programs Daily Time Heavy Normal Pots and
Pans
Options 140°F Selectable 30 to
180 minutes
130°F 150°F 150°F
Prewashes
with SCS*
1 varying 2 3 3
Mainwash *** 140°F Max. 150°F 130°F 150°F 150°F
Number of
rinses
2, last
rinse 150°F
Max. 150°F 3, last
rinse 140°F
3, last
rinse 160°F
2, last rinse
160°F
Consumption values
1. Wash time
hot water /
min. **
105 30 to 180 190 140 145
Energy ap-
prox. kWh
0.8 0.3 -1.3 0.8 1.0 1.0
2.Wash time
cold water /
min.**
120 30 to 180 220 175 185
Energy ap-
prox.
kWh
1.2 0.5 - 1.6 1.4 1.7 1.6
Water con-
sumption
(gallon)
3.7
(14 l)
2.6 - 4.9
(10 - 18 l)
5.3
(20 l)
5.8
(22 l)
5.3
(20 l)
* SCS = Self Cleaning System.
** All quoted times are approximate. Cycle time uctuations may occur due to
water temperature, water pressure, variations in voltage etc.
1. Hot water connection approx. 120°F (50°C).
2. Cold water connection approx. 50°F (10°C).
*** The listed temperatures are set as the default from the factory. By using the
temperature option you can alter the temperature.
14
Customer Care Center
1-800-898-1879
www.askousa.com
Program Description
Programview
Programs Delicate Quick Rinse &
Dry
Rinse &
Hold
Options 120°F 140°F -- --
Prewashes
with SCS*
-- -- -- --
Mainwash *** 120°F 140°F -- --
Number of
rinses
2, last
rinse
120°F
2, last
rinse
140°F
1, last
rinse
120°F
1 rinse
Consumption values
1. Wash time
hot water /
min. **
110 65 20 4
Energy ap-
prox. kWh
0.5 0.7 0.2 0.01
2.Wash time
cold water /
min.**
125 80 30 4
Energy ap-
prox.
kWh
0.9 1.1 0.4 0.01
Water con-
sumption
(gallon)
2.7
(10 l)
2.6
(10 l)
0.8
(3 l)
0.8
(3 l)
* SCS = Self Cleaning System.
** All quoted times are approximate. Cycle time uctuations
may occur due to water temperature, water pressure, variations
in voltage etc.
1. Hot water connection approx. 120°F (50°C).
2. Cold water connection approx. 50°F (10°C).
*** The listed temperatures are set as the default from the fac-
tory. By using the temperature option you can alter the tempera-
ture.
15
Customer Care Center
1-800-898-1879
www.askousa.com

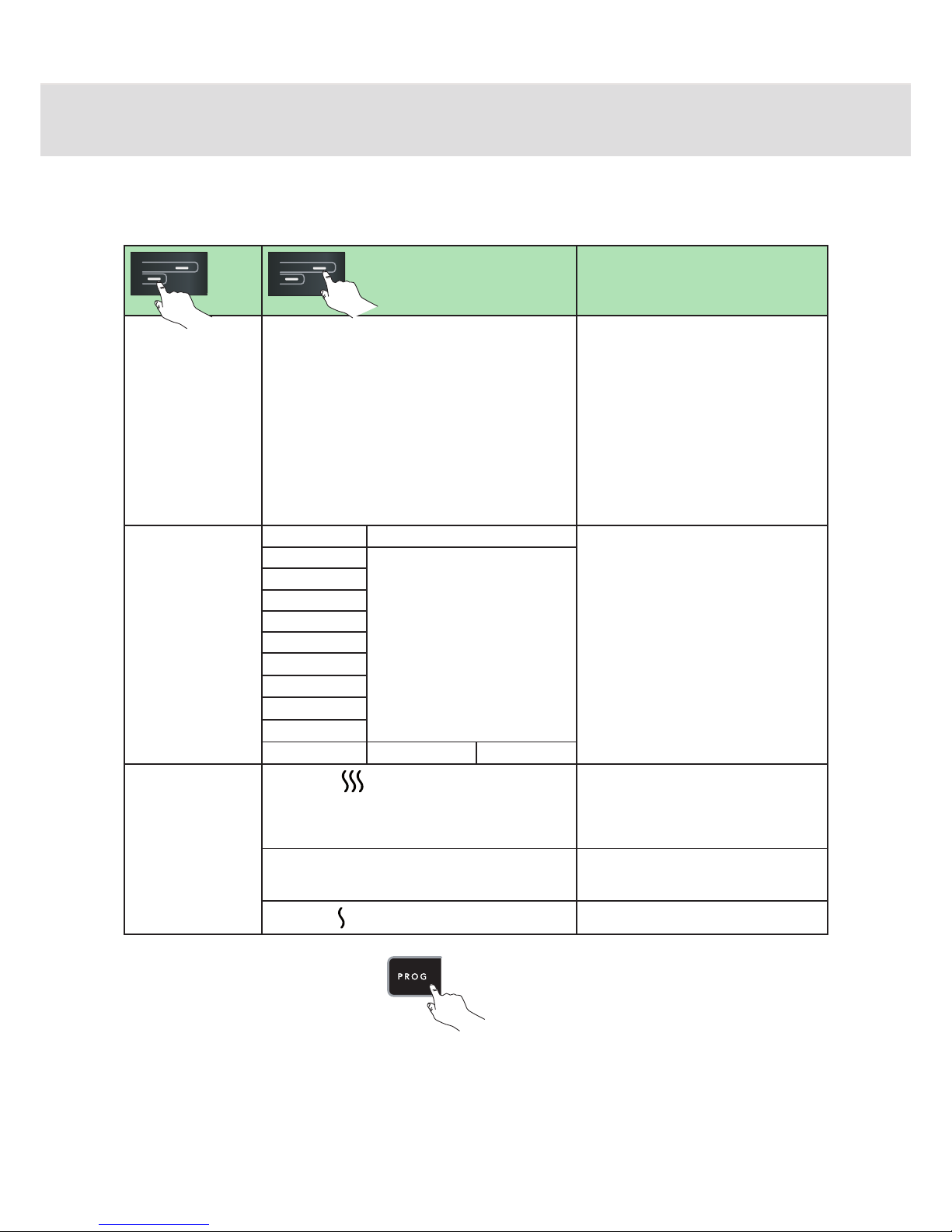

Options
Description
Delayed start
• If you want the machine to start up later,
press the ‘Delayed start’ option button,
you can delay the start 0.5-24 h. A clock
symbol and the number of hours until
start will appear in the display window.
• Press the Start/Stop button or make a
further selection. The machine will now
count down the time each hour until the
machine starts, and then show the re-
maining wash time in the display window.
• To cancel Delayed start, press and hold
the Start/Stop button for 3 seconds.
Temperature
Program With the temperature option button you
can select the wash temperature your-
self.
Daily
Time
Heavy
Normal
Pots & Pans
Delicate
Quick
Rinse&Dry
Rinse&Hold
Drying
Normal
If you desire a maximum drying result,
press the Drying options button (Normal)
and a symbol showing three wavy lines
will light. (in all programs except Time,
Rinse & Dry, Rinse & Hold).
Without If you want a program without Drying
options, press the button again and the
symbol will go out.
Eco To save energy, select Economy dry.
Press PROG to conrm your selection.
Select options
To select an option, press one of the option buttons.
16
Customer Care Center
1-800-898-1879
www.askousa.com

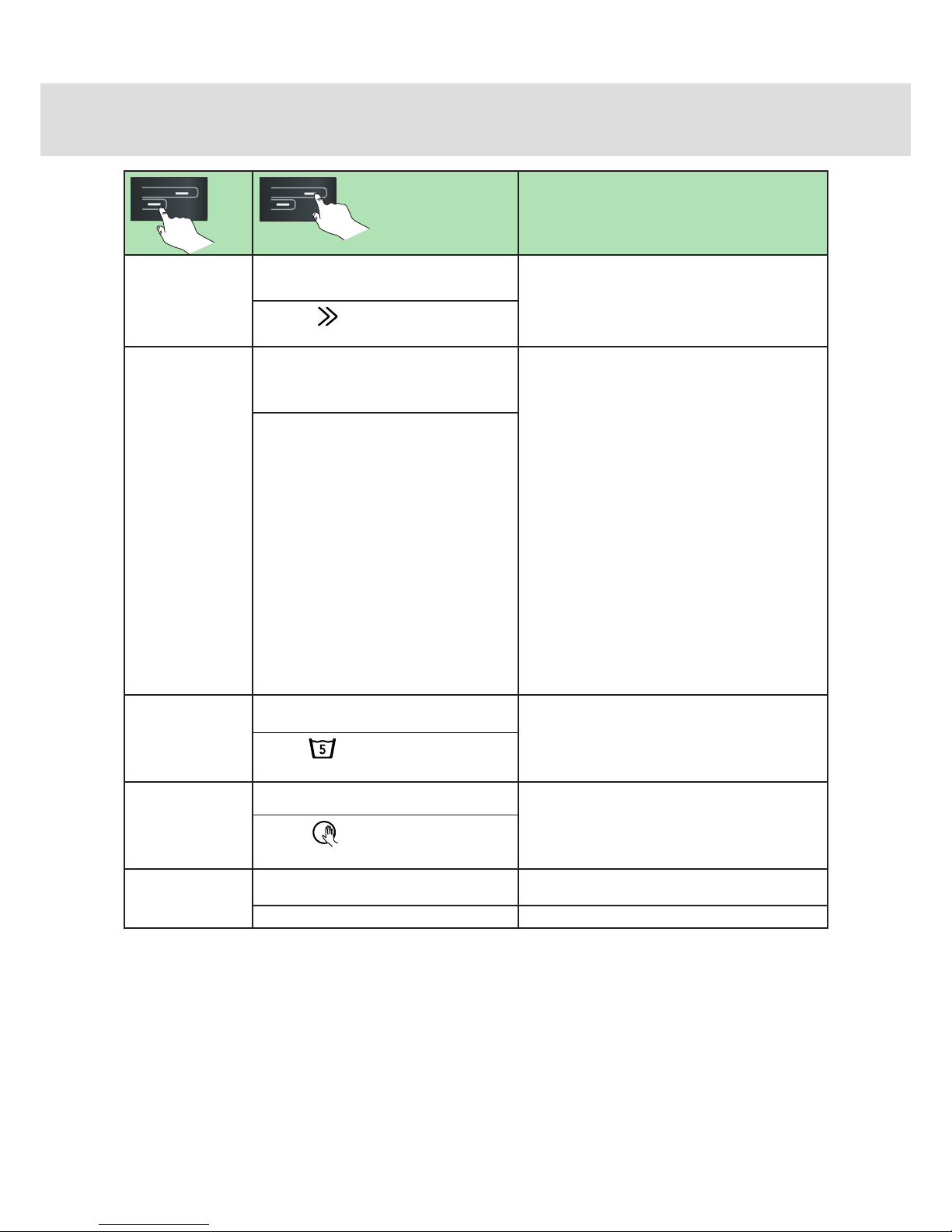

Description
Time saver
O An option that shortens the program time but uses
more water and energy to clean the dishes. Can be
used with Heavy Wash and Normal Wash.
On
Tab
Tab O
This option is available when using a combi
detergent, such as a 3-in-1 type.The dishwash-
ing programs are automatically adjusted so that
the best possible washing and drying results are
always attained. If you deactivate this option, the
machine will return to ordinary function for all pro-
grams. When using this option it is not necessary
to add rinse aid as the rinse aid dosing function is
bypassed. Salt consumption is reduced by roughly,
so the water softener must still be lled with salt.
Read the dishwashing detergent package care-
fully for directions of use. If you have problems with
deposits or dishes not being dry: deactivate this op-
tion and ll with rinse aid and salt. Salt consumption
applies only to machines with water softeners. See
the chapter entitled “Before doing your rst wash”.
NB: In order to achieve good dishwashing results,
it is essential to check which type of dishwasher
detergent or combi product best suits your needs!
The instructions and warnings on the
packaging must be followed!
Tab On
Super rinse
O The Super rinse option adds two extra rinses. The
Super rinse option can be used in all programs
except the Time, Rinse & Hold and Rinse & Dry
programs.
On
Cool touch
O This option lets you set a cool-down cycle after the
drying program, if you want the dishes to be cooler
for unloading (in all programs except Time, Rinse &
Dry, Rinse & Hold).
On
Special settings
Yes If you wish to use settings, continue to Special
settings.
Exit
Options
17
Customer Care Center
1-800-898-1879
www.askousa.com
Special settings
Description
Special settings Yes
Language
SE Language on the LCD can be selected.
To access the language menu directly press
and simultaneously.
EN
RU
DK
NO
NL
DE
FI
ES
IT
FR
Child lock
O Child lock can be set on or o. Default o.
On
Buzzer volume 1-4 This signal is set at the factory.
Operation volume 1-4 The signal shall indicate conrmation of a selection.
Temperature
units
°C The (program) temperatures on LCD can be set in °C (Celcius) or °F
(Fahrenheit).
°F
Water
consumption
Number of
wash cycles
To get to the Special settings
When you have selected the programme and any option, press the Menu button until ‘Spe-
cial settings’ appears in the display.
18
Customer Care Center
1-800-898-1879
www.askousa.com
Eco-dishwashing
Only wash full loads
Waiting to run the wash until the machine is
full saves energy.
Wash at a lower temperature
If the dishes are only lightly soiled you can
run a Quick wash program and reduce the
temperature to 86°F (30°C).
Select a program with Normal dry
To save energy, select Normal dry.You will
get a better drying result if you leave the door
slightly open after the end of the program.
Do not rinse before dishwashing
Thanks to the dishwasher’s Self Cleaning
System (SCS) you do not need to rinse the
dishes under running water before loading
them into the machine.
Choose environmentally-friendly
dishwasher detergent
Read environmental declarations on the
package!
Connect to cold water supply
For best performance it is recommended
that connection is to cold water.
19
Customer Care Center
1-800-898-1879
www.askousa.com
Fragile dishes
A number of household goods are not suit-
able for machine washing. This can be due
to a variety of reasons. Certain materials
cannot withstand intense heat; others can
be damaged by the dishwasher detergent.
Fragile decoration
China with decoration on top of the glaze
(the goods have a rough feel) should not be
machine washed.
Crystal/ glass
Place the goods so that they do not knock
together during the wash. Use the lowest
possible wash temperature and the shortest
possible program. Do not heat dry! Antique
and very fragile items should not be ma-
chine washed.
Glass which is machine washed at high
temperatures can in time develop a grey lm
which cannot be removed. Wash ne glass
at the lowest temperature and with a low
dosage of dishwasher detergent.
Silver
Silver and stainless steel items should not
come into contact with each other as the
silver can discolor.
Cutlery with glued handles
Certain types of adhesive cannot withstand
machine washing. In such cases the handles
can come loose.
Wood
Wooden items should only be machine
washed if they are labeled as dishwasher
safe.
Aluminum
Aluminum can be dulled by machine wash-
ing. However, good quality aluminum sauce-
pans can be machine washed, although a
reduction in luster should be expected.
Plastic
Certain types of plastic cannot withstand
the high temperature generated in machine
dishwashing.
Protect plastic goods
Select a program with a low temperature.
20
Customer Care Center
1-800-898-1879
www.askousa.com
Display
When you have selected programme and
option, the display shows the length of time
the programme took the last time it was
used. When you have started the machine,
the display window shows how much of the
programme time remains.
This time can vary a little from one occasion
to another depending on the temperature
of the inlet water, the amount of dishes, the
ambient temperature, etc.
During the time the programme is operating,
the time is counted down and the remaining
programme time is shown in the window.
The remaining time is shown e.g. as 1:02,
which means that 1 hour and 2 minutes of
the programme remain.
NB!
During the rst run of each programme, the
remaining time display can be slightly mis-
leading as the machine is estimating the
time. If the programme takes longer than
expected, it displays 1 minute until the pro-
gramme is nished.
Other manuals for D5883
2
This manual suits for next models
1
Table of contents
Other Asko Dishwasher manuals
